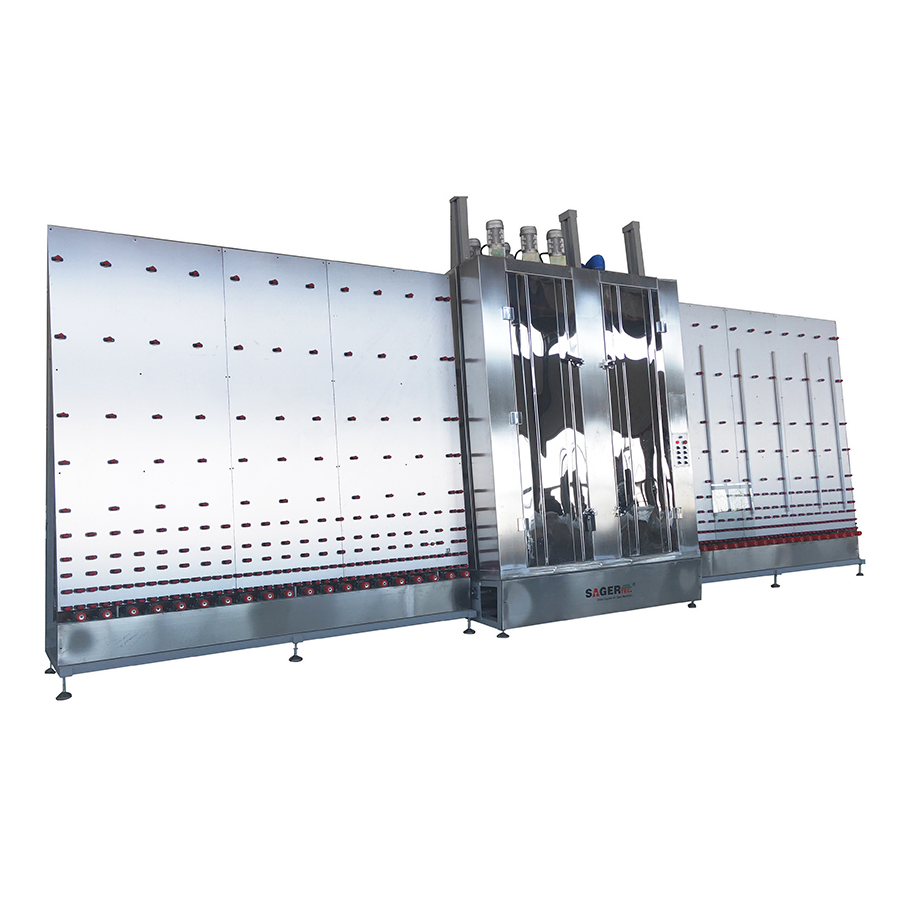

Insulating Glass Making Line Glass Washing Machine Used Glass Machinery
Insulating Glass Making Line Glass Washing Machine Used Glass Machinery
Insulating Glass Making Line Glass Washing Machine Used Glass Machinery
Insulating Glass Making Line Glass Washing Machine Used Glass Machinery
Insulating Glass Making Line Glass Washing Machine Used Glass Machinery
1 / 5
Insulating Glass Making Line Glass Washing Machine Used Glass Machinery
Insulating Glass Making Line Glass Washing Machine Used Glass Machinery
Insulating Glass Making Line Glass Washing Machine Used Glass Machinery
Insulating Glass Making Line Glass Washing Machine Used Glass Machinery
Insulating Glass Making Line Glass Washing Machine Used Glass Machinery

Insulating Glass Making Line Glass Washing Machine Used Glass Machinery

Customization: Available
Certification: CE
Min Size: 500*500mm
Send Inquiry

Product Description

Basic Info.

Model NO.
SZ-VW20
Max Width
1600mm
Thickness
3-19mm
Speed
2-7m/Min
Power
24kw
Weight
3500kg
Dimension
6000*1500*2400mm
Type
Glass Washing and Drying Machine
Structure
Vertical
Control System
PLC
Warranty
400 Days
Specification
CE

Product Description

Insulating Glass Making Line Glass Washing Machine

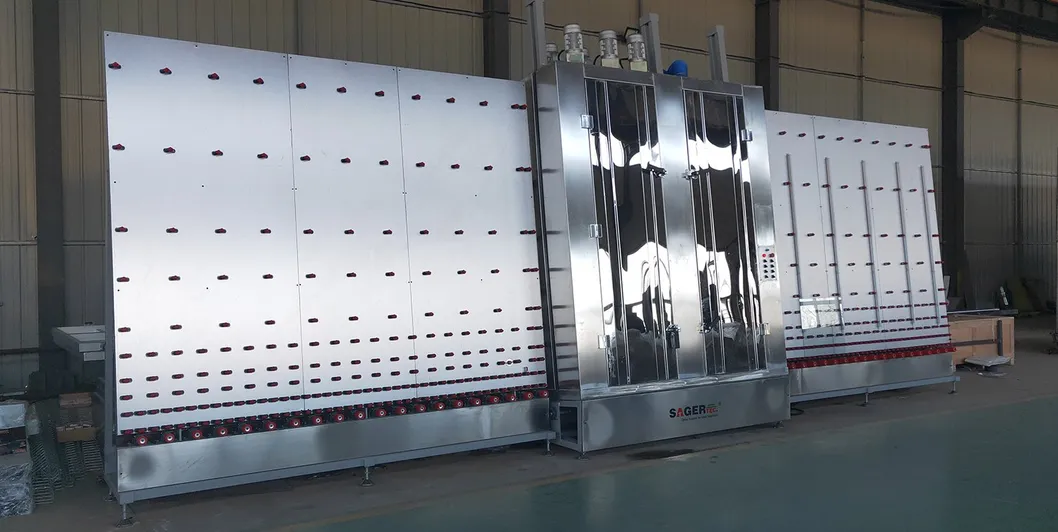

Glass Washing Machine

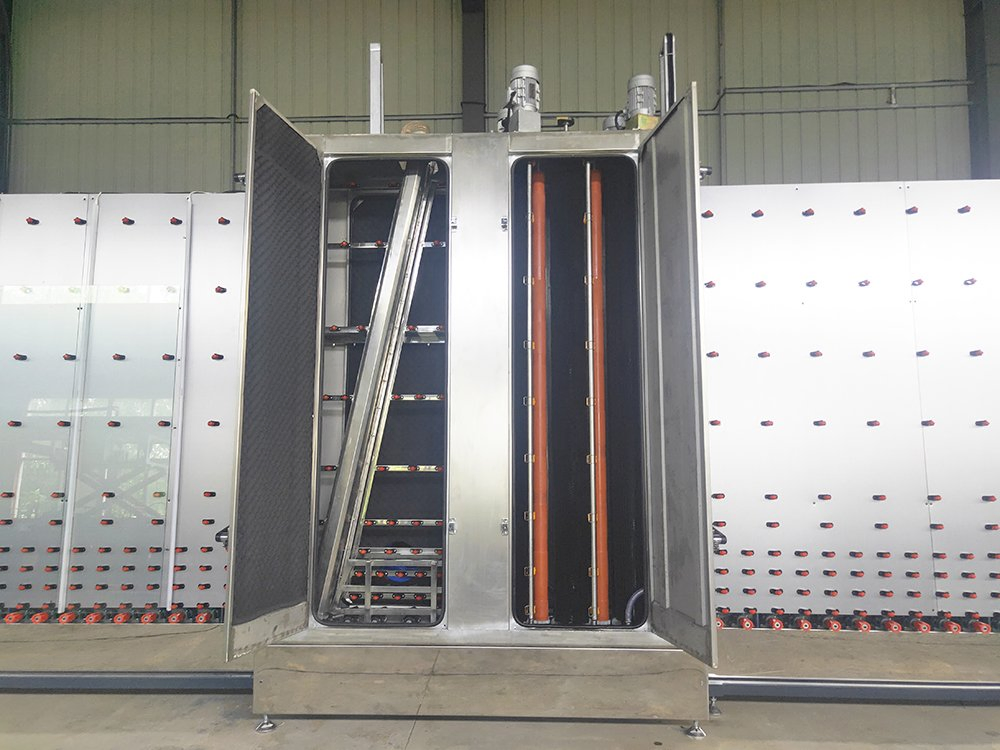

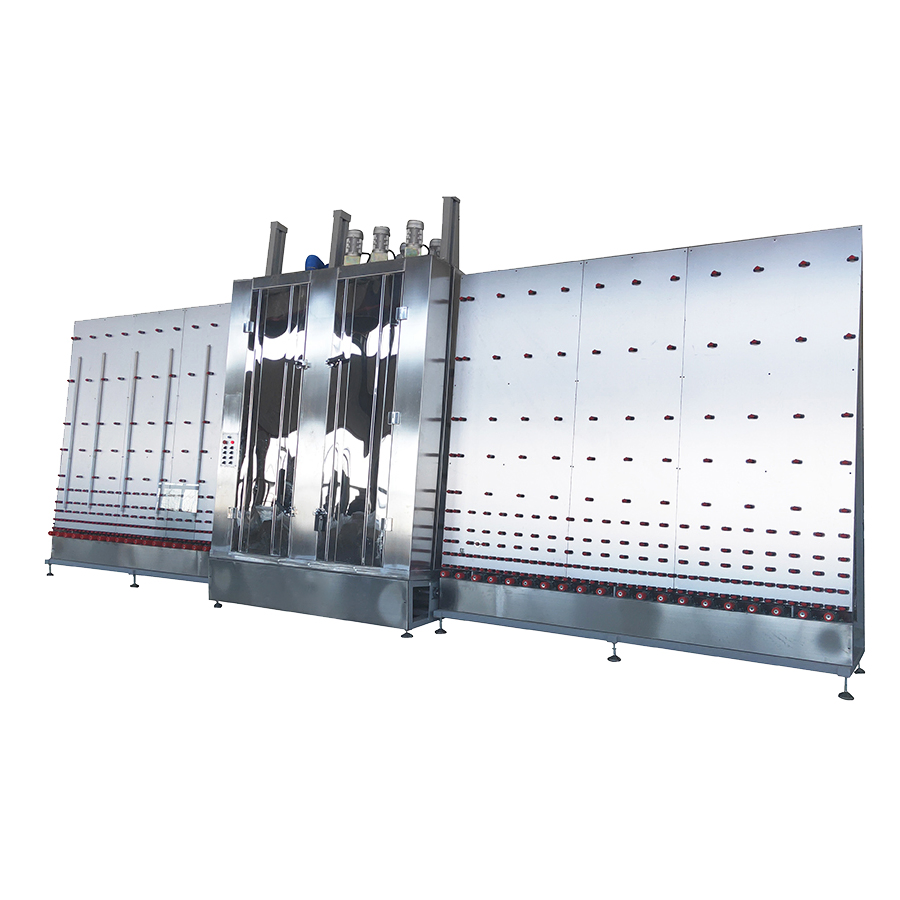

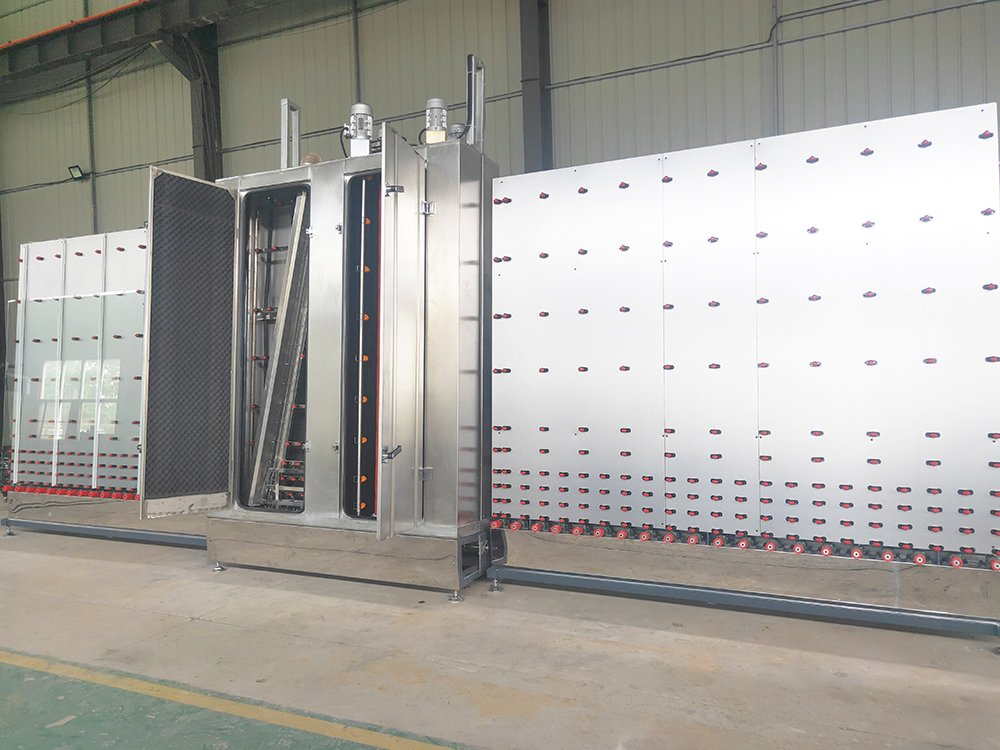

SZ-VW16 is a special vertical glass washing machine which is a key equipment of manufacturing and processing insulating glass in architecture, building material and decoration.

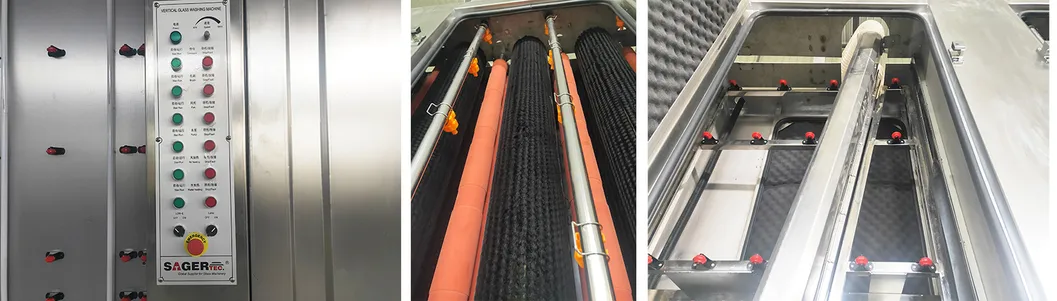

Processing Line
The machine mainly consists of washing section, dry section, drive system, machine frame, tank, blower, electric control system and other parts. During the whole washing process, the machine works automatically, and no need manual operation.
Model Min size Max width Thickness Speed Power Weight(kg) Dimension
W33 500*500mm 3300mm 3-25mm 0-7m/min 35KW 4800 5500*4500*2840mm
W30 500*500mm 3000mm 3-25mm 0-7m/min 35KW 4300 5500*4200*2840mm
W25 400*400mm 2500mm 3-25mm 0-12m/min 35KW 3800 5500*3600*2840mm
W20 400*400mm 2000mm 3-25mm 0-12m/min 28KW 3200 5500*3100*2840mm
VW16 500*500mm 1600mm 3-19mm 2-7m/min 24KW 3500 6000*1500*2400mm
SW08 150*150mm 800mm 3-19mm 0.7-3.5m/min 10KW 1200 2800*1350*1000mm

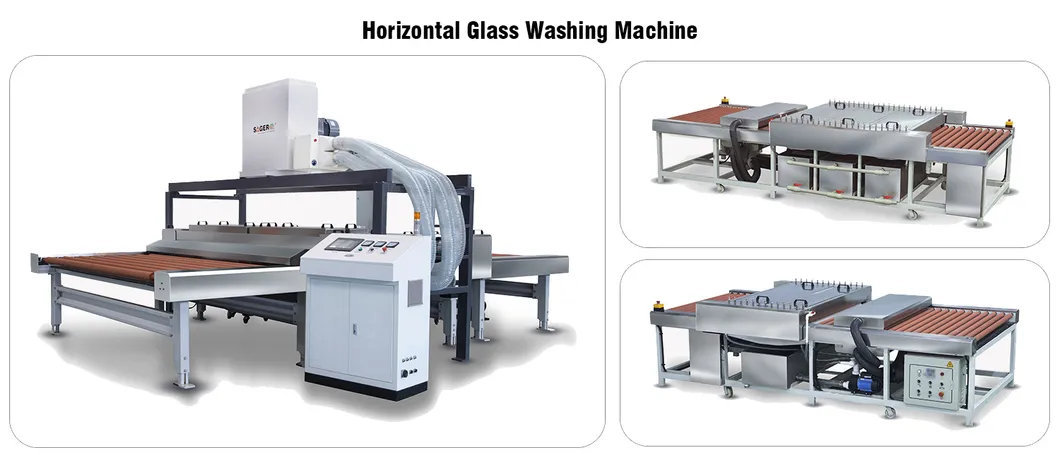

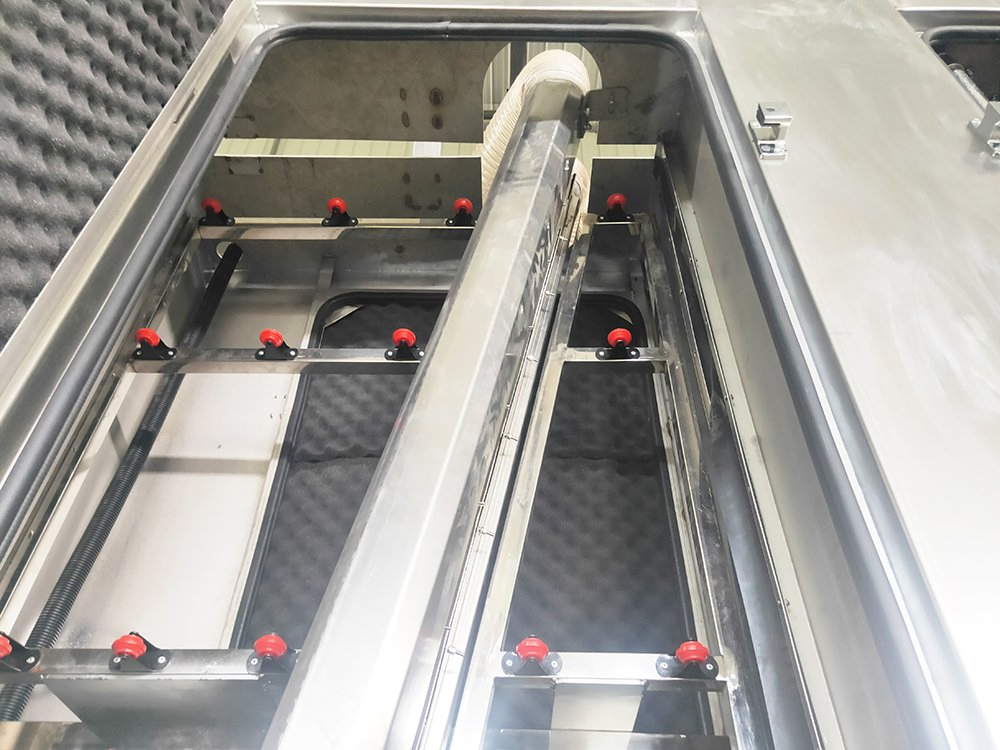

Machine Detail

Loading & Package

Package

Guarantee & After-sale Service

Our experienced technicians are ready to install the machine for you if required.
12-month warranty from the date of installation; broken parts replaced via air freight.
24-hour response time for after-sales inquiries in English.
Service
Technician

Profile & Global Reach

Professional designer and manufacturer for glass machinery with a decade of experience. Our products are sold in more than 80 countries, including Germany, Belgium, Australia, USA, Turkey, and across South America.
Exhibition
Certification

Frequently Asked Questions

What glass thickness can this machine handle?
The vertical glass washing machine can process glass with thicknesses ranging from 3mm to 19mm for standard models, and up to 25mm for heavy-duty models.
Does the machine require manual operation during washing?
No, the machine is designed for fully automatic operation including the washing and drying sections, controlled by a PLC system.
What is the warranty period for the machinery?
We provide a standard warranty of 12 months (or 400 days as specified for certain models) from the date of installation.
How is the equipment packaged for international shipping?
The equipment is professionally packed in wooden cases suitable for ocean shipment to ensure safety during transit.
Is technical support available for installation?
Yes, we have experienced technicians available for overseas installation and 24-hour English-speaking after-sales support.
What is the maximum glass width supported?
Depending on the model selected, the maximum glass width ranges from 800mm to 3300mm. The SZ-VW20 model supports up to 1600mm.
