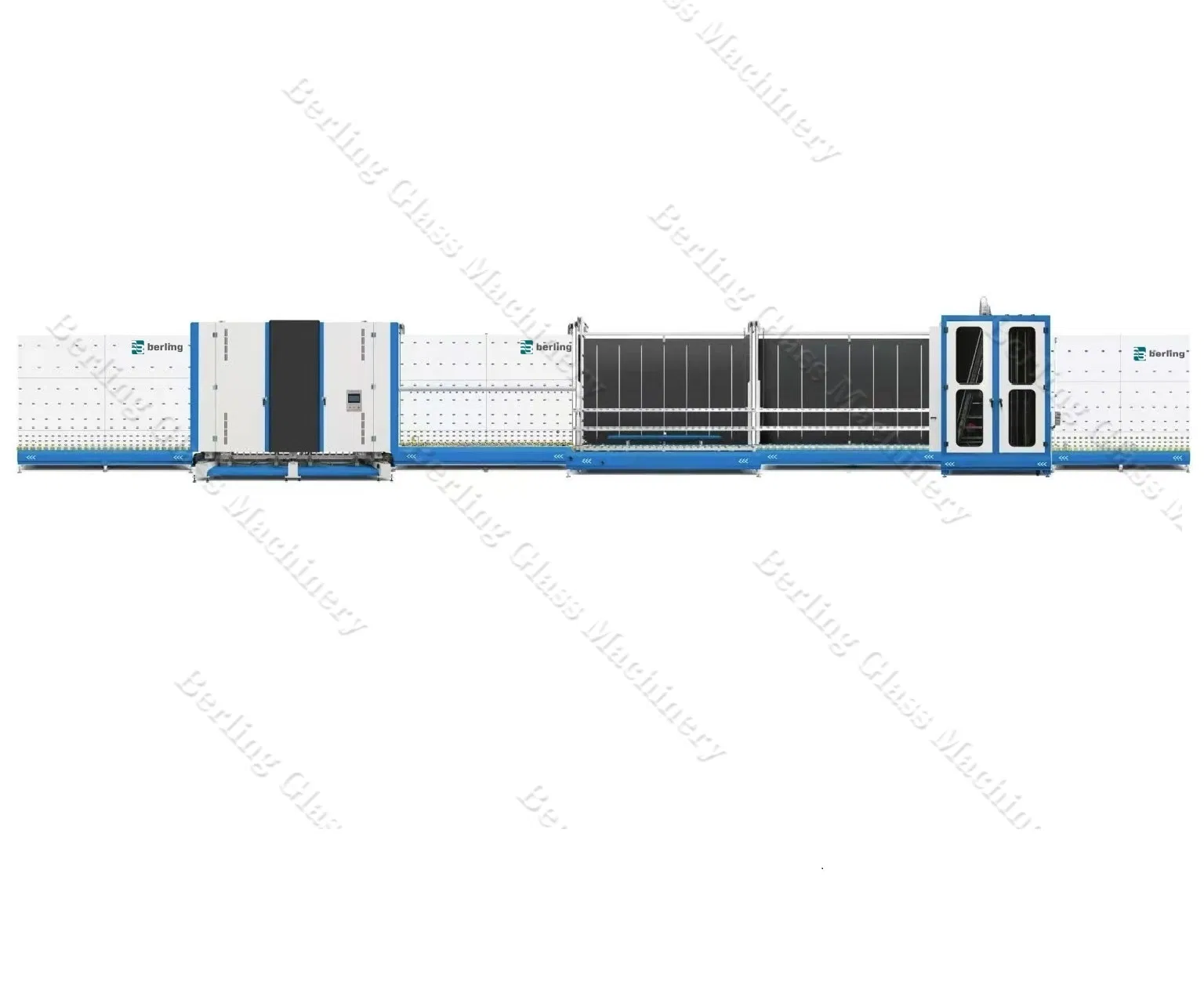

Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine
Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine
Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine
Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine
Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine
1 / 5
Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine
Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine
Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine
Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine
Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine

Integrated Igu Production Line with Dual Glass Panel Assembly Features Windows Machine

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Specifications
Model NO.
BLBG2030
Glass Thickness
3-12mm
Max Glass Size
2000*3000mm
Working Speed
2-40m/Min
Total Power
36kw
Voltage
380V/50Hz
Core Components
Motor, PLC, Pump
Control System
PLC (Mitsubishi)
Product Description

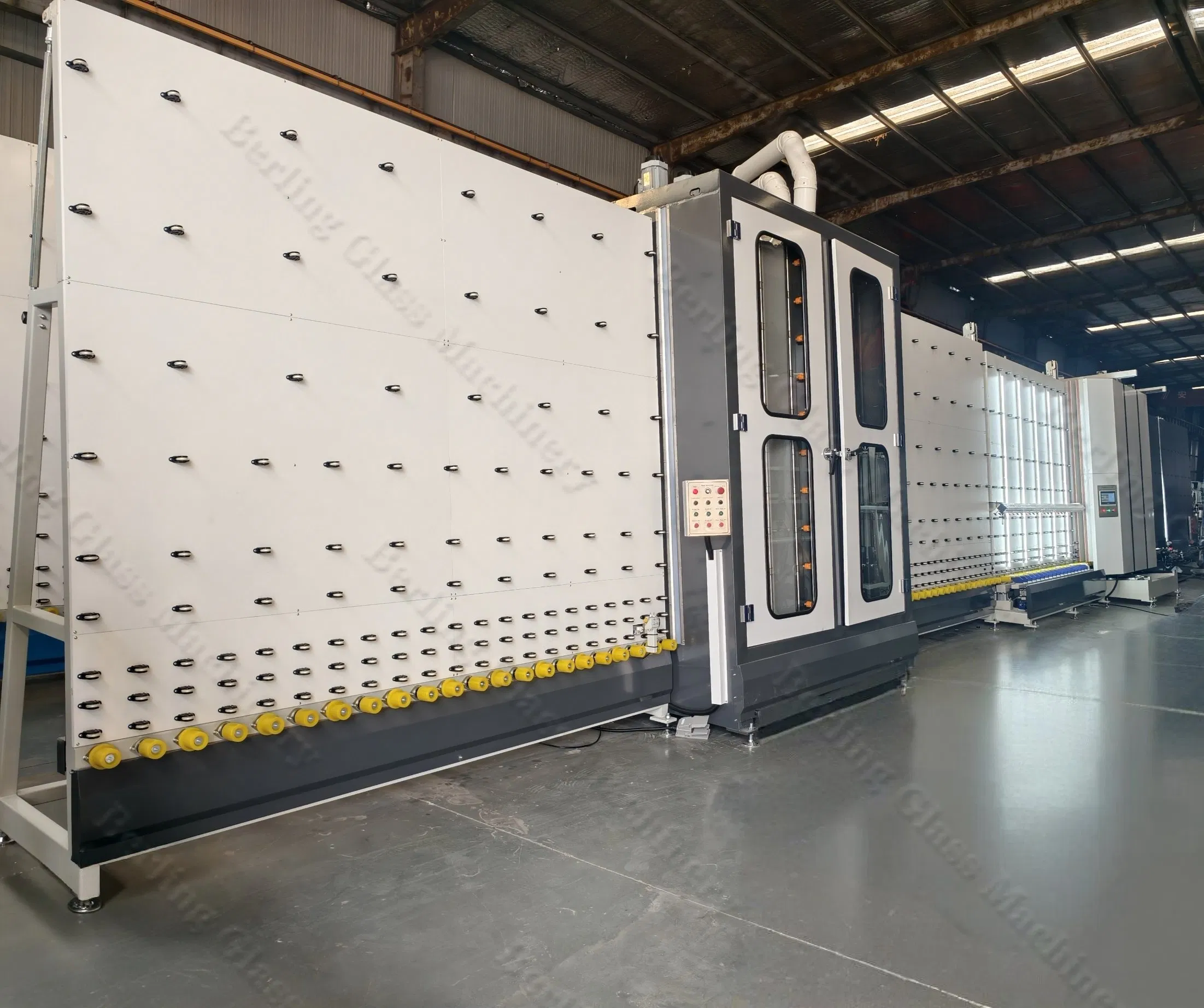

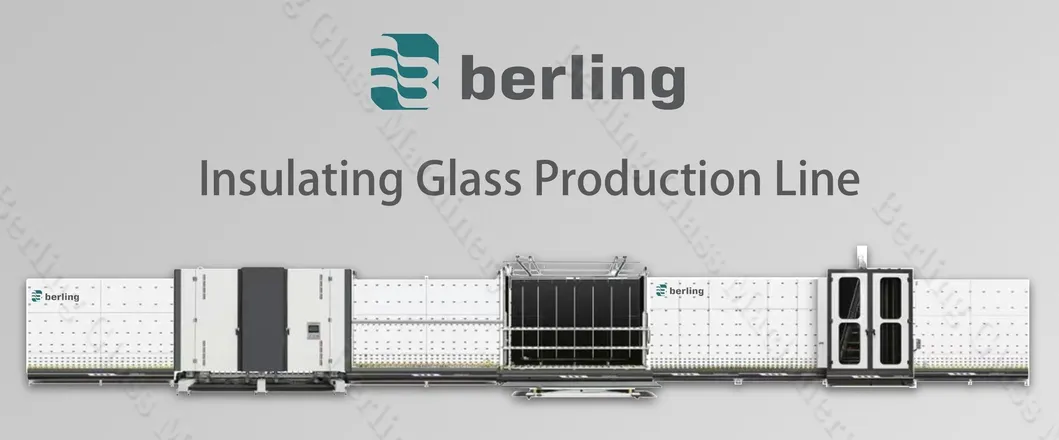

IGU Production Line

High-performance vertical insulating glass production lines designed for manufacturing double, triple, and structural glass units. Systems feature PLC control, touchscreen operation, Low-E glass detection, gas filling, and servo-driven pressing for accurate and efficient IGU processing.

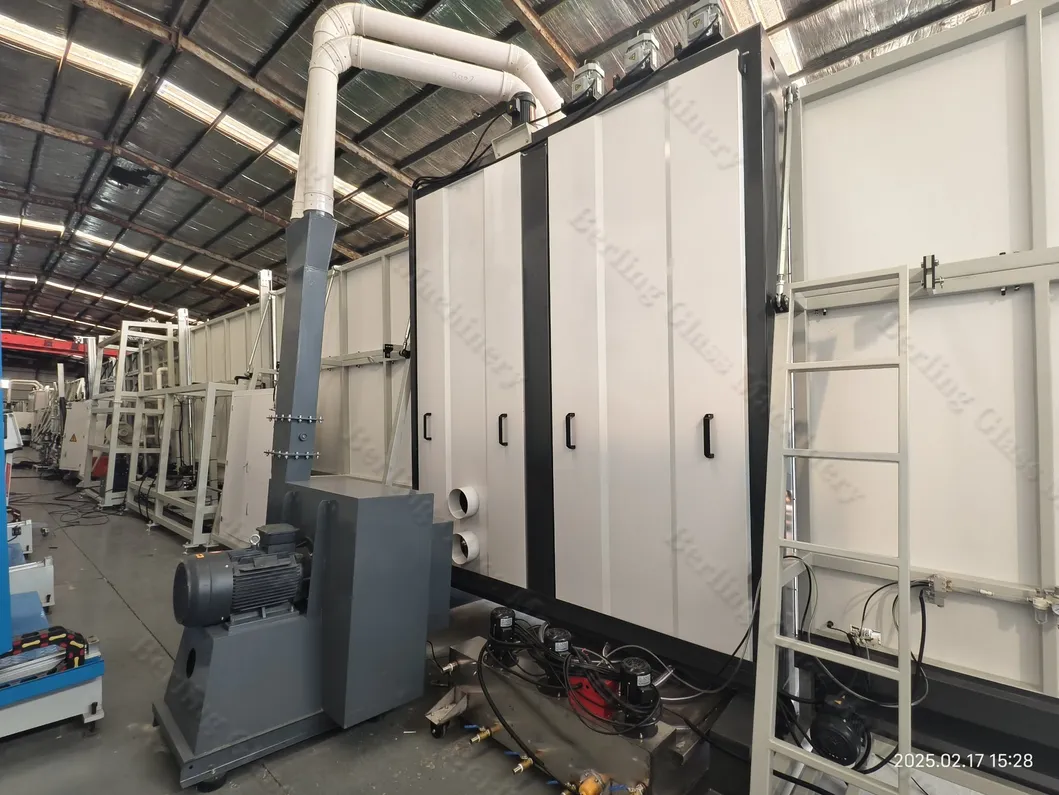

Glass Panel Assembly
  • PLC Touchscreen Control - Easy operation and real-time monitoring.
  • Low-E Glass Detection - Omron sensors automatically identify coated glass.

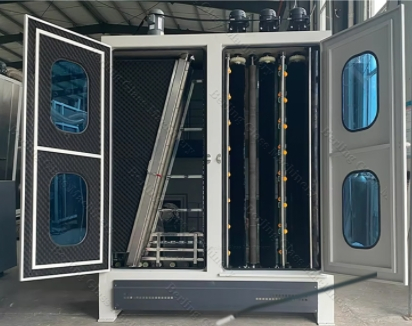

  • Independent Brush Motors - Each brush is motor-driven for superior cleaning.

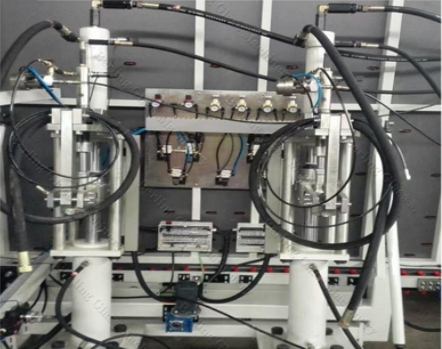

  • Argon Gas Filling System - Servo-controlled pressurized injection.
  • Flexible Assembly Modes - Supports both inner and outer press options.
  • Stainless Steel Build - Corrosion-resistant for industrial environments.
Technical Parameters
Item BLBG-3060 BLBG-2850 BLBG-2540 BLBG-2030
Total power 90KW 70KW 46KW 36KW
Max glass size 3000*6000mm 2800*5000mm 2500*4000mm 2000*3000mm
Panel thickness 3~30mm 3~12mm 3~12mm 3~12mm
Washing speed 2-12m/min 2-12m/min 2-12m/min 2-12m/min
Working Speed 2-45m/min 2-45m/min 2-45m/min 2-40m/min

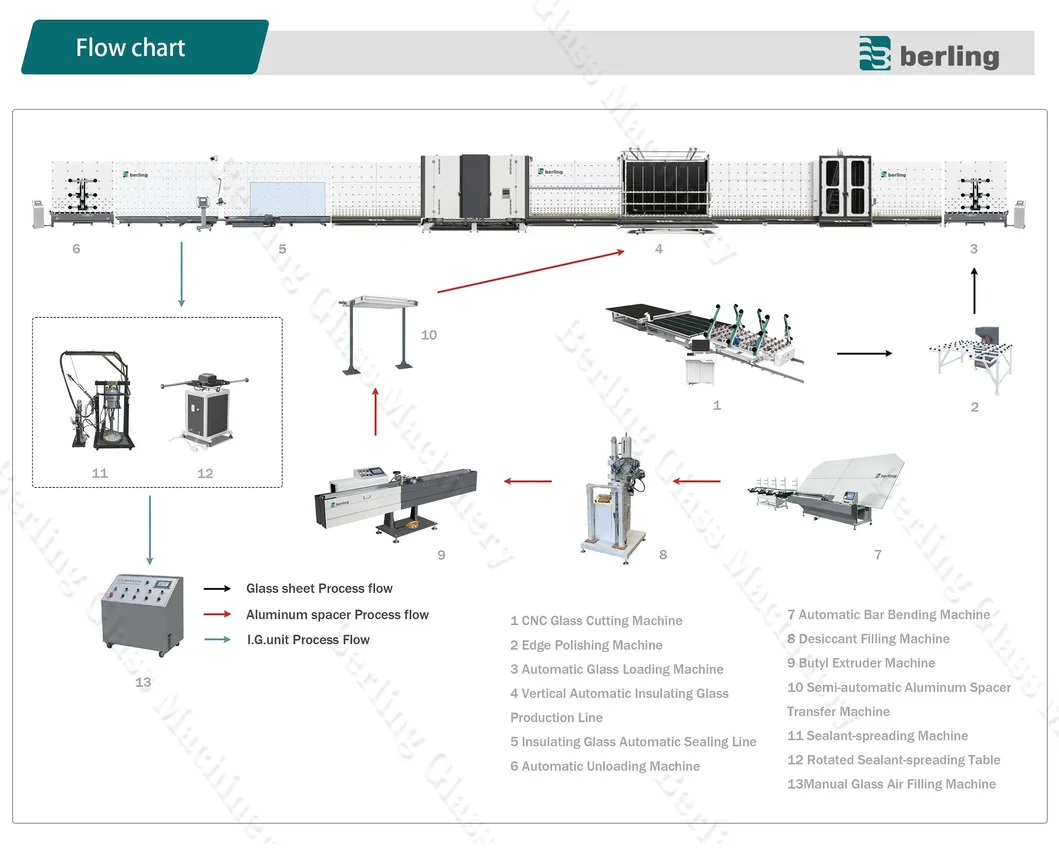

Technical Drawing
Applications
  • Residential & commercial window IGU manufacturing
  • Curtain wall insulating glass unit production
  • Low-E energy-saving glass processing
  • Structural glass façade panel fabrication
  • Glass panel assembly and sealing in building industry

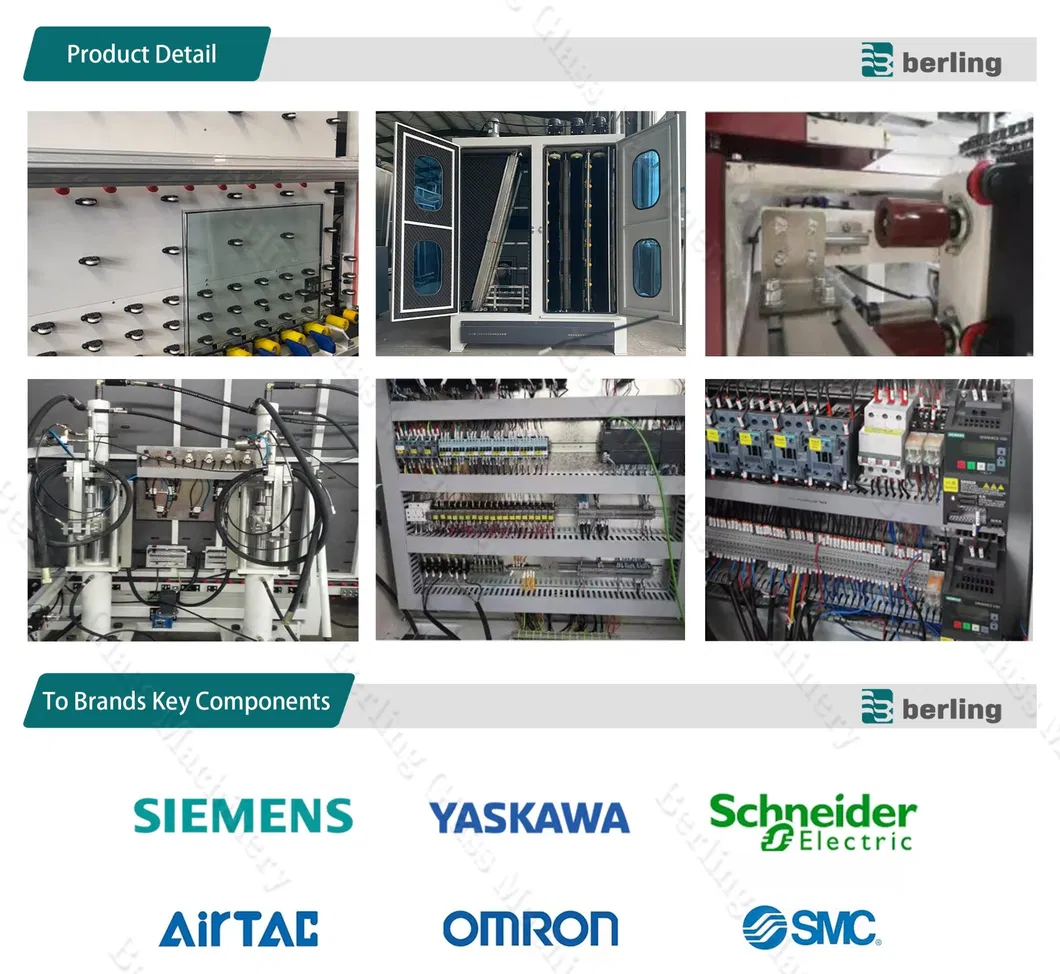

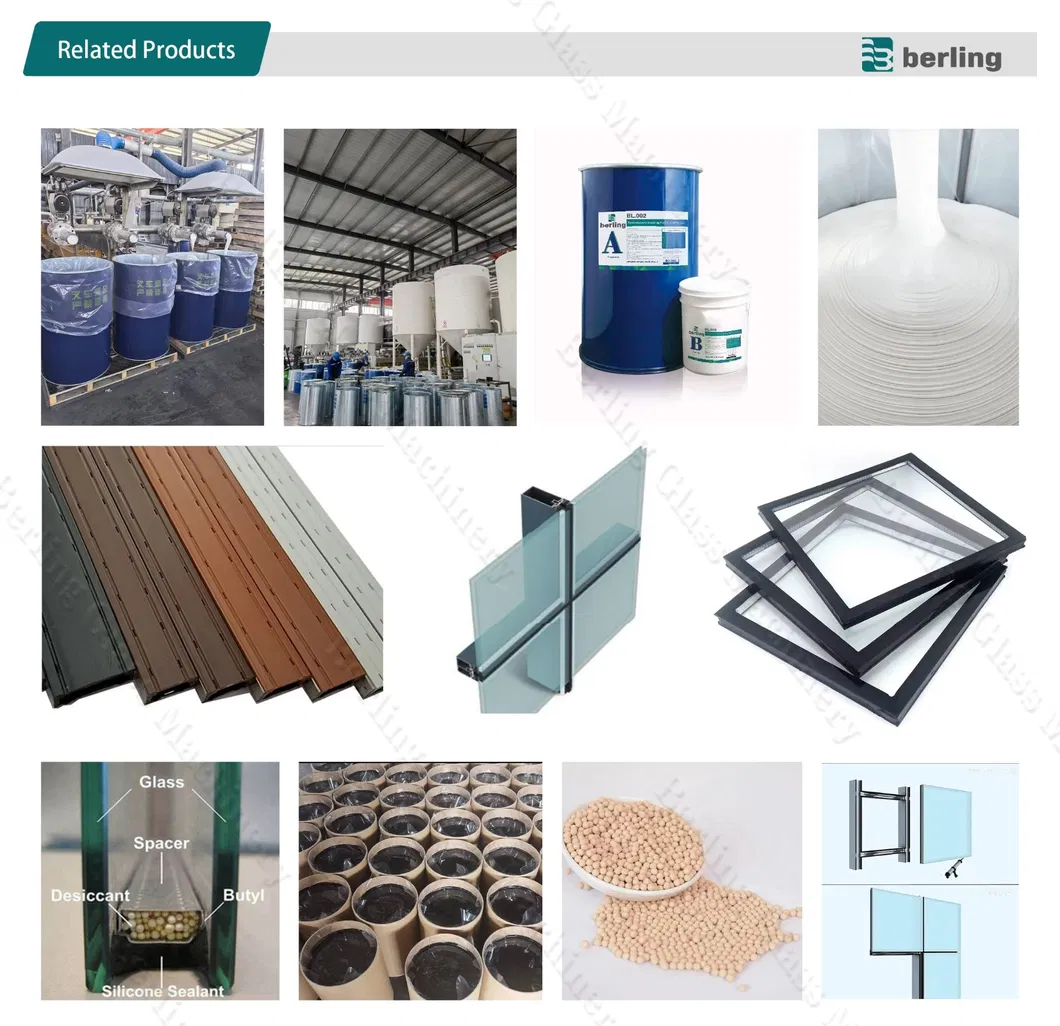

Application 1 Application 2
Certifications & Logistics
Certifications Packaging
Service & Support
Company Overview Production Facility After Sales Service
Frequently Asked Questions
What machinery do you specialize in?
We offer a full range of glass processing solutions including Insulated Glass Production Lines, Glass Cutting, Washing, Edging Machines, Tempering Furnaces, and Laminated Glass Production Lines.
How is the product quality guaranteed?
We ensure quality through a strict process: always providing a pre-production sample before bulk manufacturing and conducting a comprehensive final inspection before shipment.
What are the technical advantages of your IGU lines?
Our lines feature advanced PLC touchscreen controls, Omron Low-E detection sensors, independent motor-driven brushes, and servo-controlled Argon gas filling systems for high-precision output.
What payment and delivery terms are accepted?
We accept various delivery terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, or PayPal in USD, EUR, or CNY.
Which global markets do you serve?
Our products are exported globally, with significant market presence in Eastern Europe, North & South America, the Middle East, Southeast Asia, and Western Europe.
What languages does your support team speak?
Our team provides professional service in multiple languages, including English, Chinese, Spanish, Japanese, German, Arabic, French, Russian, and more.
