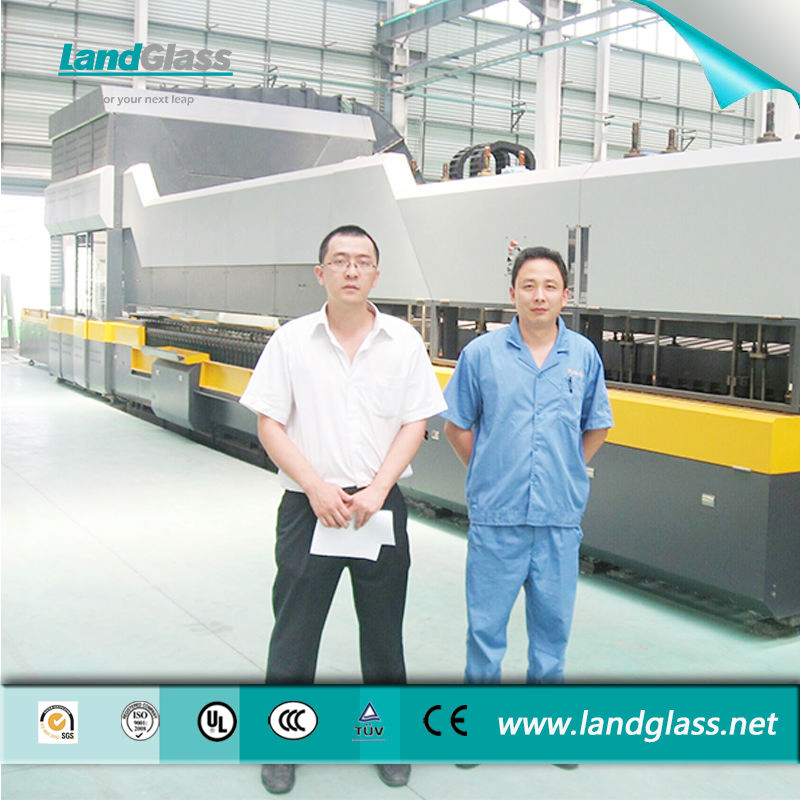

Landglass Jetconvection 4-19 Building Flat and Car Bent Low-E Bending Toughened Glass Production Line

1 / 5

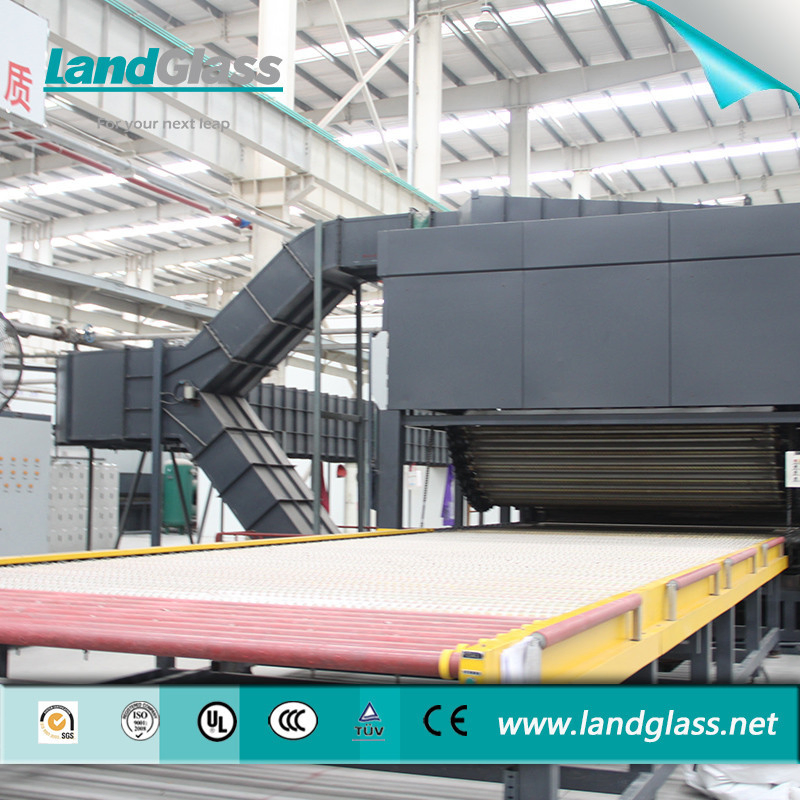

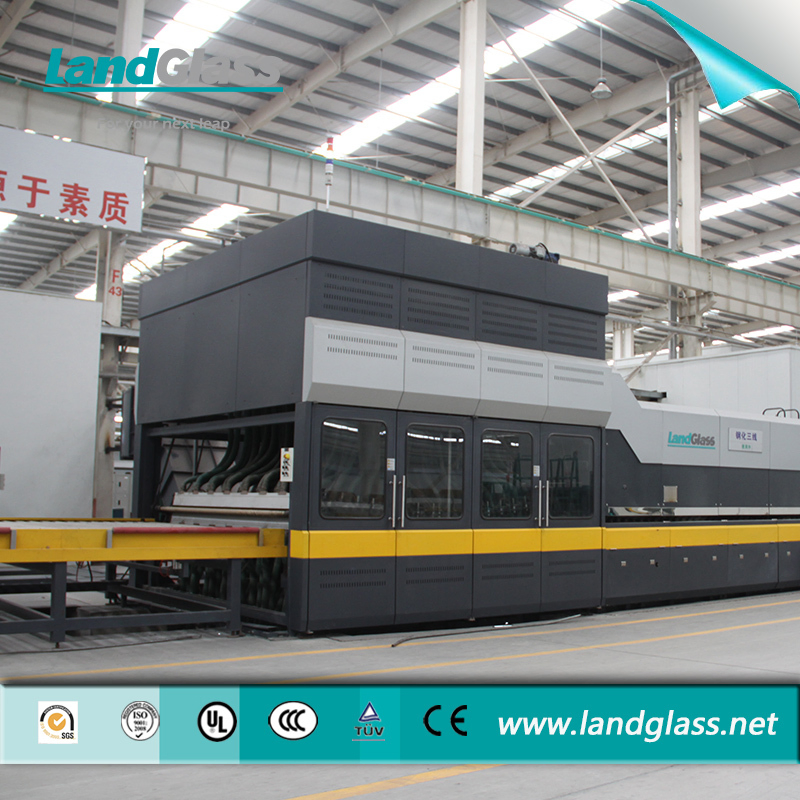

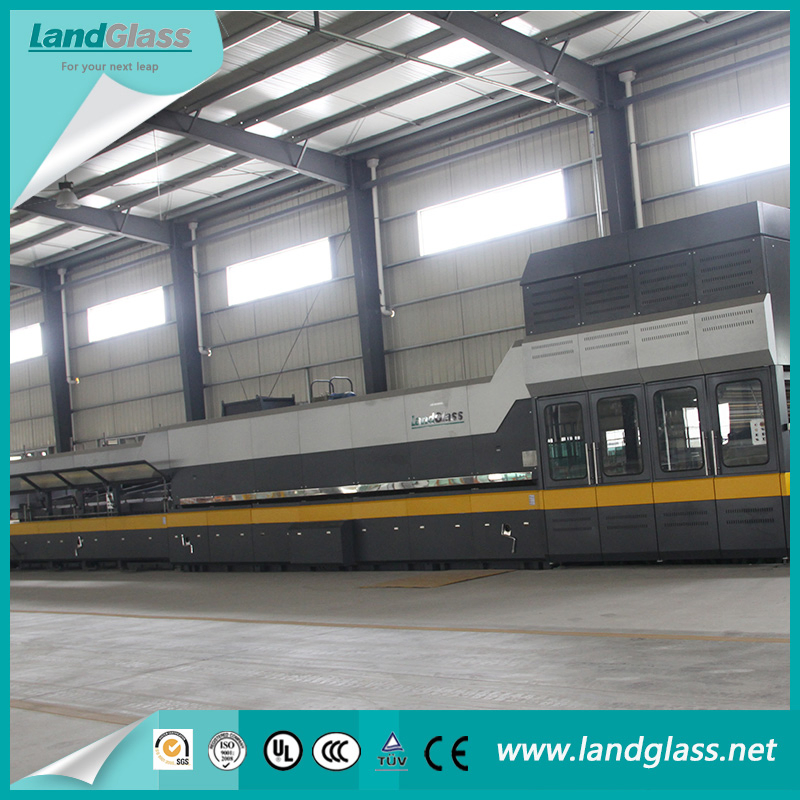

Landglass Jetconvection 4-19 Building Flat and Car Bent Low-E Bending Toughened Glass Production Line

Certification:	CE, ISO
Control System:	PLC
Machine:	Landglass Jetconvection 4-19 Building Flat and Car

Send Inquiry

Product Description

Basic Information

Model NO.LD-ABJ

Tempering TypeFlat and Bent Tempering Furnace

ApplicationArchitectures Automobile Household Appliance

Heating MethodJet Convection

Max Loading DimensionCustomizable

Min Loading Dimension150mm*350mm

Thickness3-19mm

Productivity (Loads/H)14-31

Arc Range350-3000

Installed Capacity800kVA - 2000kVA

Warranty12 Months

HS Code8419899090

Product Description

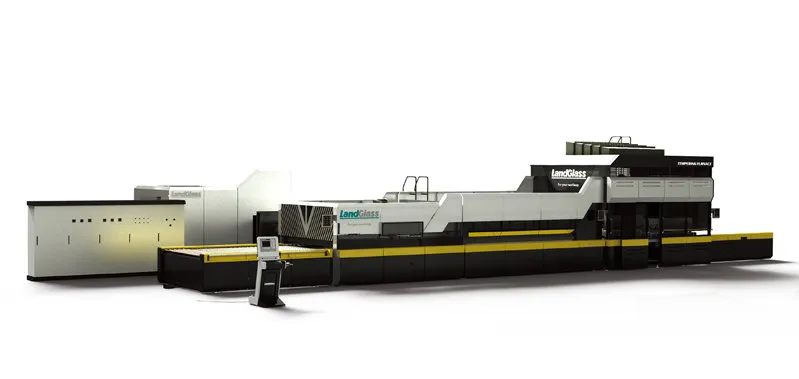

JetConvection Plus™ Technology: Convection heating plays a primary role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated by the convection blowers back into the chamber. This technology enhances the quality of the final product and increases productivity by ensuring even heating while minimizing production costs.

Types	Max Dimension		Min Dimension		Glass Thickness	Productivity (loads/h)		Capacity (KVA)
Types	Flat	Bent	Flat	Bent	Glass Thickness	Clear	Low-E	Capacity (KVA)
A2030B08/2	2000x3000	2000xARC780	150x350	200xARC350	4-19/450	27-31	5-29	780
A2030B10/2	2000x3000	2000xARC1000	150x350	200xARC350	4-19/500	27-31	5-29	780
A2436B15/2	2440x3600	2440xARC1500	150x350	300xARC400	4-19/750	27-31	5-29	780
A2442B18/2	2440x4200	2440xARC1780	150x350	300xARC400	4-19/850	27-31	5-29	1000
A2450B25	2440x5000	2440xARC2500	150x350	300xARC500	4-19/1000	14-16	5-29	1000
A2460B25	2440x6000	2440xARC2500	150x350	300xARC500	4-19/1000	14-16	5-29	1250
A2850B25	2780x5000	2780xARC2500	200x400	500xARC600	4-19/1000	14-16	5-29	1250
A3080B30	3000x7800	3000xARC3000	300x500	500xARC600	4-19/1500	14-16	5-29	2000

Key Features & Technical Advantages

◈Equipped with flat and bent quenching sections at each side of the heating furnace for versatile glass processing.

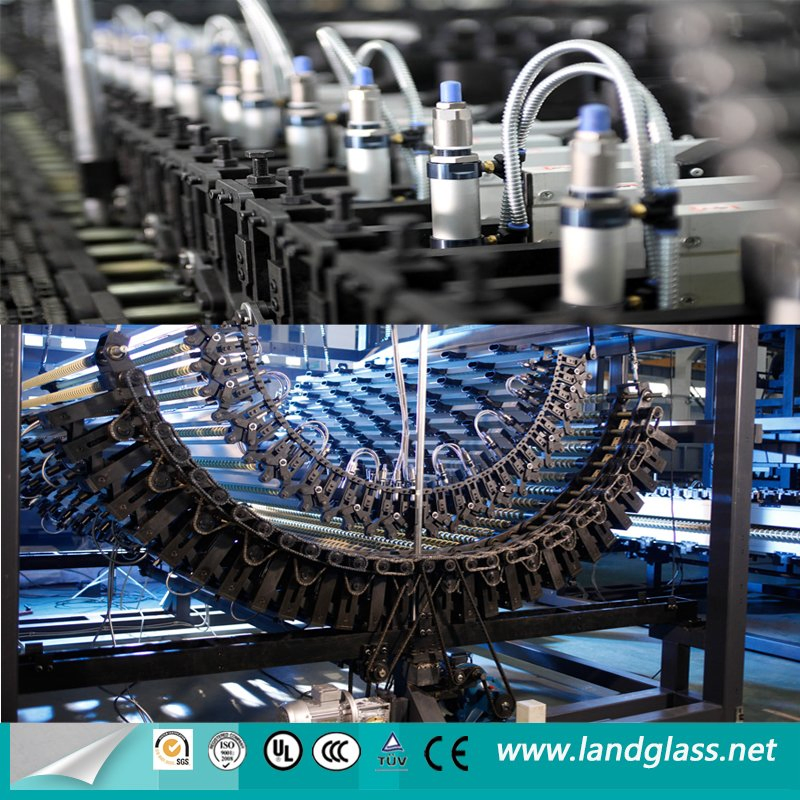

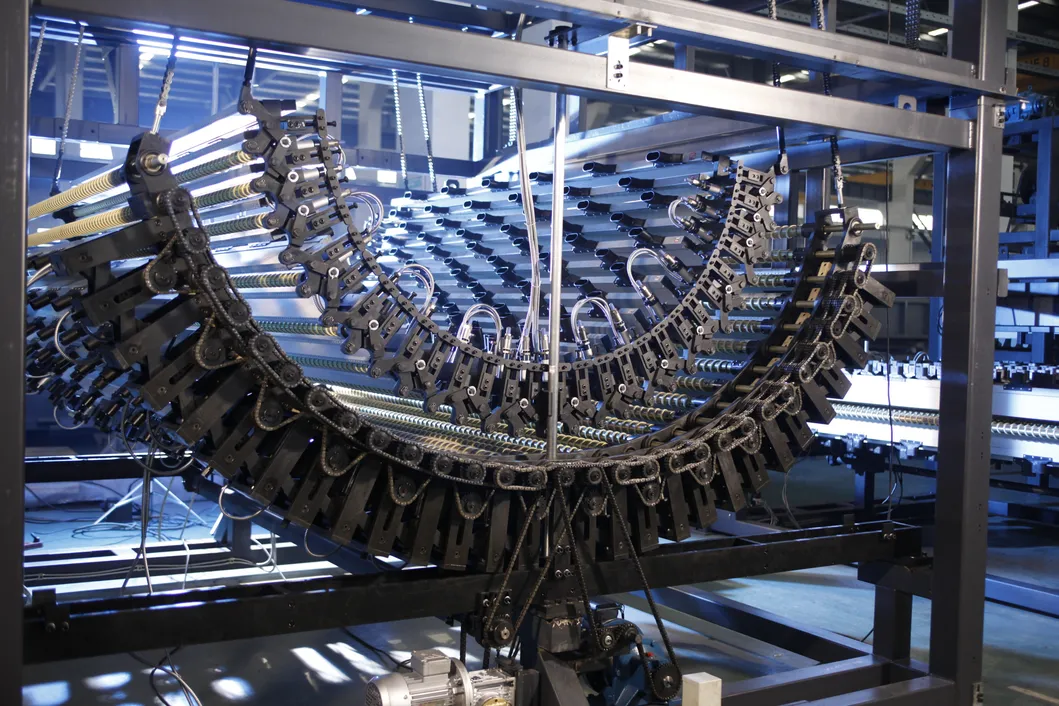

◈Hard-shaft bending roller technology for precise lengthwise bending.
◈Bending system with multiple mechanisms allowing separate adjustment for high-accuracy curvature.
◈Controlled by a German Servo Control System, ensuring excellent repeatability and consistency.
◈JetConvection Plus heating system supports online/offline Low-E (E=0.02), ultra-clear, screen printed, and tinted glass.

Manufacturing & Service Excellence

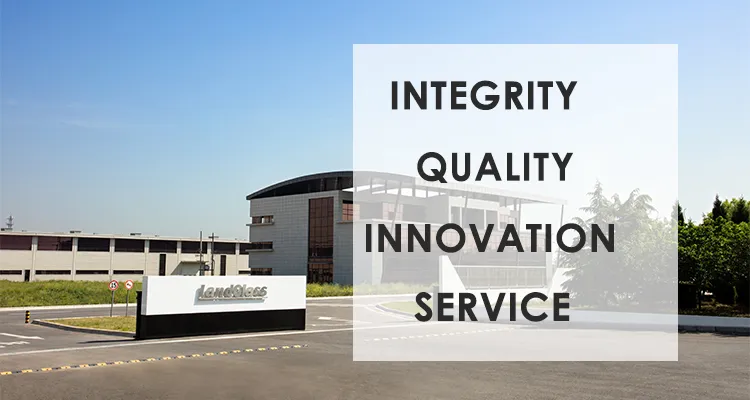

Our research and development facilities cover over 20,000 square meters, supported by a professional team of innovators. We maintain numerous patents and have received international certifications including CE, UL, and 3C.

Comprehensive Support Services

Pre-Sale Services: Helping customers choose the most suitable tempering line and auxiliary glass processing machines, including workshop layout planning.

After-Sale Services: Remote diagnosis for instant troubleshooting, localized service agencies in major global regions (Europe, North America, Southeast Asia, etc.), and preventive maintenance protocols.

Packaging & Global Presence

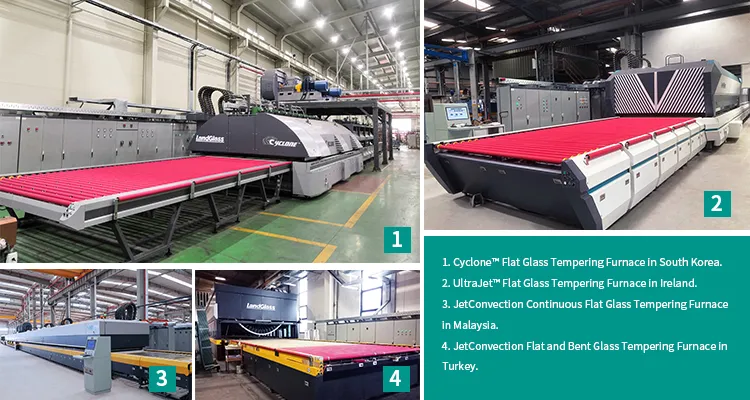

Equipment is packed in standard export-grade packaging suitable for long-distance shipping via containers. Components are assembled on-site at the customer's factory. Currently, over 1,000 furnaces are in operation across North and South America, Europe, Africa, the Middle East, and Asia.

Frequently Asked Questions (FAQ)

❓ What range of glass thickness can this furnace process?

The JetConvection production line is designed to handle glass thicknesses ranging from 3mm to 19mm.

❓ Can this machine produce both flat and bent tempered glass?

Yes, it features both flat and bent quenching sections, allowing for the tempering of both flat and bent glass by loading in different directions.

❓ What are the advantages of JetConvection technology?

It ensures even heating through air recirculation, which improves the quality of the tempered glass (especially Low-E glass) and increases overall productivity.

❓ How is the bending accuracy maintained?

The bending system is controlled by a high-precision German Servo Control System, and each mechanism can be adjusted separately for exact curvature.

❓ What type of technical support is available after purchase?

We offer remote diagnosis for quick troubleshooting, localized service agencies in various global regions, and preventive maintenance services.

❓ Is the equipment suitable for Low-E glass?

Absolutely. The JetConvection Plus system is specifically designed to temper both on-line and off-line Low-E glass (with emissivity as low as E=0.02).
