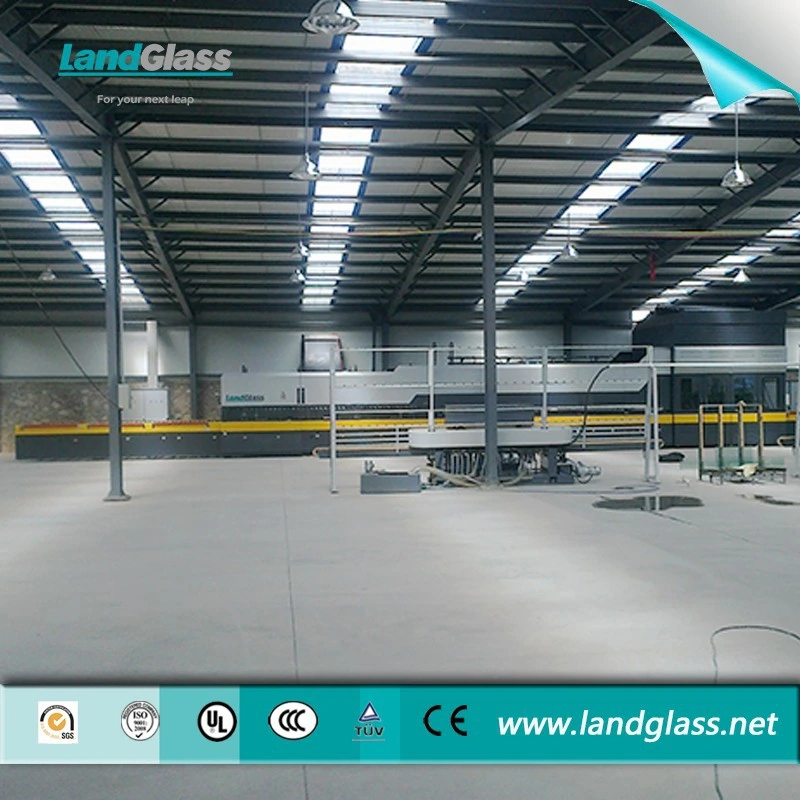

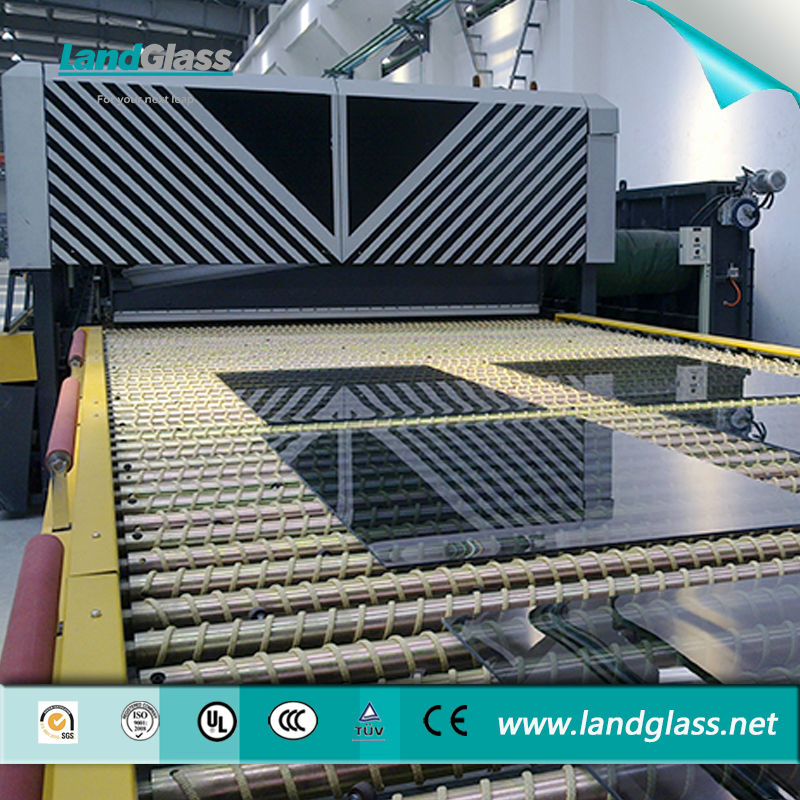

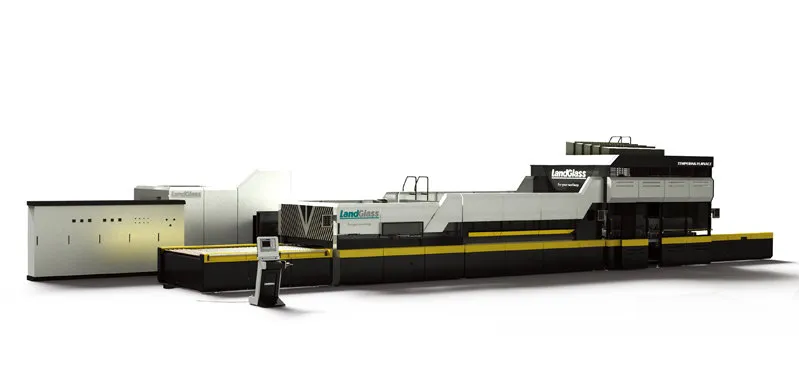

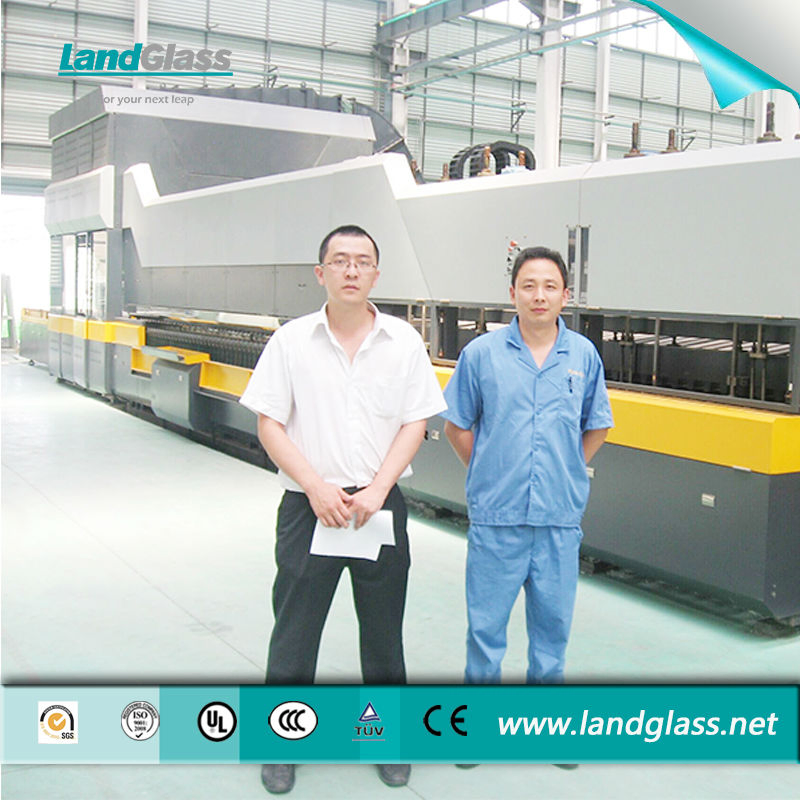

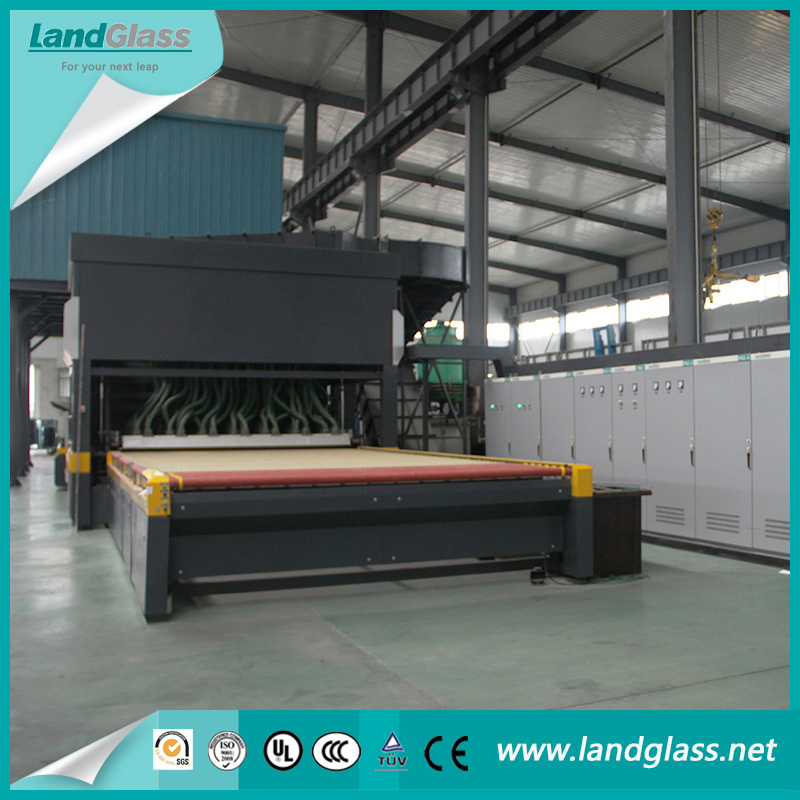

Flat and Bending Glass Tempering Furnace Machine for Architectural Glass
JetConvection Plus™ technology plays a main role during glass heating. Air is heated in the JetConvection chamber inside the heating furnace and is blown onto the glass surfaces. Air is then recirculated by the convection blowers into the JetConvection chamber. This technology enhances the quality of the final product and increases productivity by ensuring even heating while minimizing production costs.
| Types | Max. Dimension | Min. Dimension | Glass Thickness | Productivity (loads/h) | Installed Capacity (KVA) | |||
|---|---|---|---|---|---|---|---|---|
| Flat Glass | Bent Glass | Flat Glass | Bent Glass | Clear Glass | Low-E | |||
| A2030B08/2 | 2000x3000 | 2000xARC780 | 150x350 | 200xARC350 | 4-19/450 | 27-31 | 5-29 | 780 |
| A2030B10/2 | 2000x3000 | 2000xARC1000 | 150x350 | 200xARC350 | 4-19/500 | 27-31 | 5-29 | 780 |
| A2436B15/2 | 2440x3600 | 2440xARC1500 | 150x350 | 300xARC400 | 4-19/750 | 27-31 | 5-29 | 780 |
| A2442B18/2 | 2440x4200 | 2440xARC1780 | 150x350 | 300xARC400 | 4-19/850 | 27-31 | 5-29 | 1000 |
| A2450B25 | 2440x5000 | 2440xARC2500 | 150x350 | 300xARC500 | 4-19/1000 | 14-16 | 5-29 | 1000 |
| A2850B25 | 2780x5000 | 2780xARC2500 | 200x400 | 500xARC600 | 4-19/1000 | 14-16 | 5-29 | 1250 |
| A3080B30 | 3000x7800 | 3000xARC3000 | 300x500 | 500xARC600 | 4-19/1500 | 14-16 | 5-29 | 2000 |
With a manufacturing plant of 22,500 m² and a research base of 6,000 m², the enterprise specializes in developing high-tech glass tempering solutions. The research team possesses deep technical knowledge and a high capacity for innovation, cooperating with several universities to advance glass machinery technology.
Hundreds of patents have been authorized globally, including in America, Germany, and Australia. The company has been recognized with multiple national patent awards for its breakthroughs in glass industry miracles.
Pre-sale Service:
1. Professional guidance in choosing the most suitable tempering line.
2. Assistance with auxiliary glass processing machine selection.
3. Comprehensive workshop layout planning.
4. Arrangement of facility visits for first-hand evaluation.
After-sale Service:
1. Remote diagnosis for zero-distance technical support.
2. Localized service agencies (Southeast Asia, Europe, USA, Canada, Australia, etc.).
3. Preventive maintenance and active communication to minimize downtime.
Equipment is packed in standard export packing suitable for long-distance shipping in containers. The furnace components are packed separately and assembled on-site at the customer's factory.

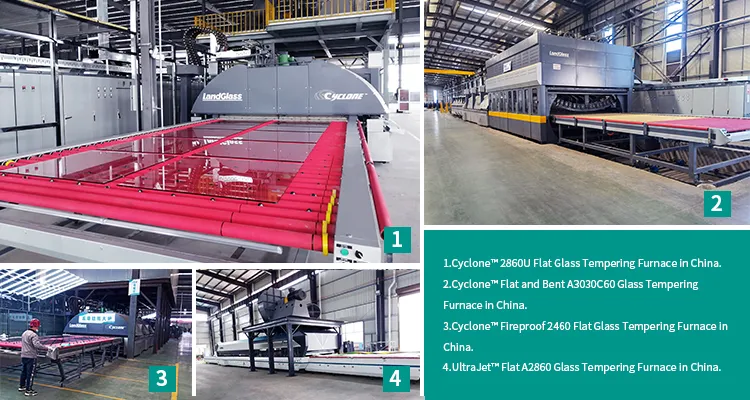

The machinery has been showcased at global exhibitions including Eurasia Glass, China Glass, Glasstech Mexico, GlassBuild AMERICA, and more.
