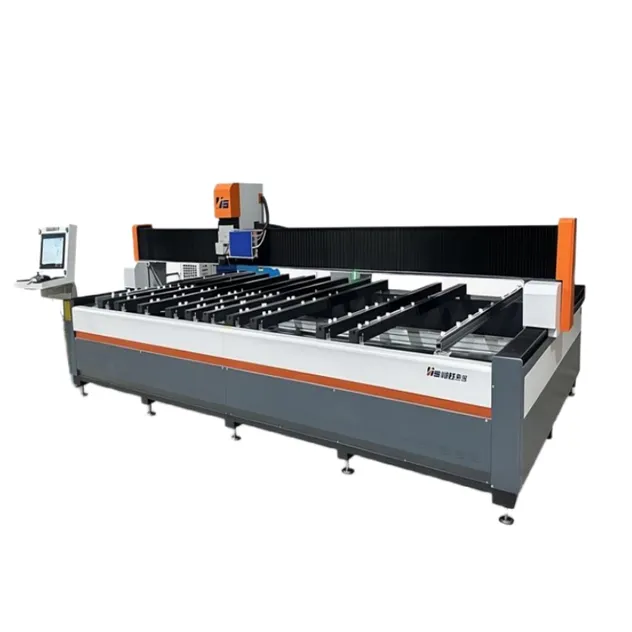

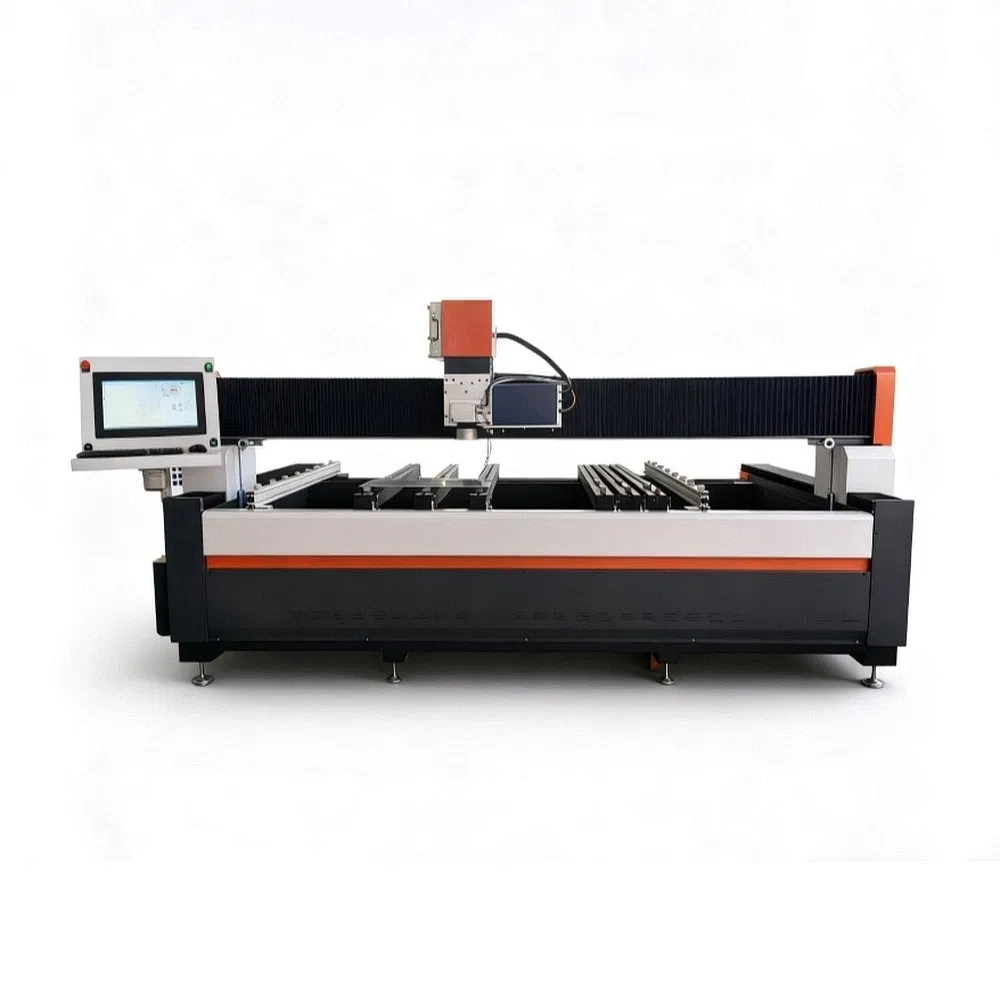

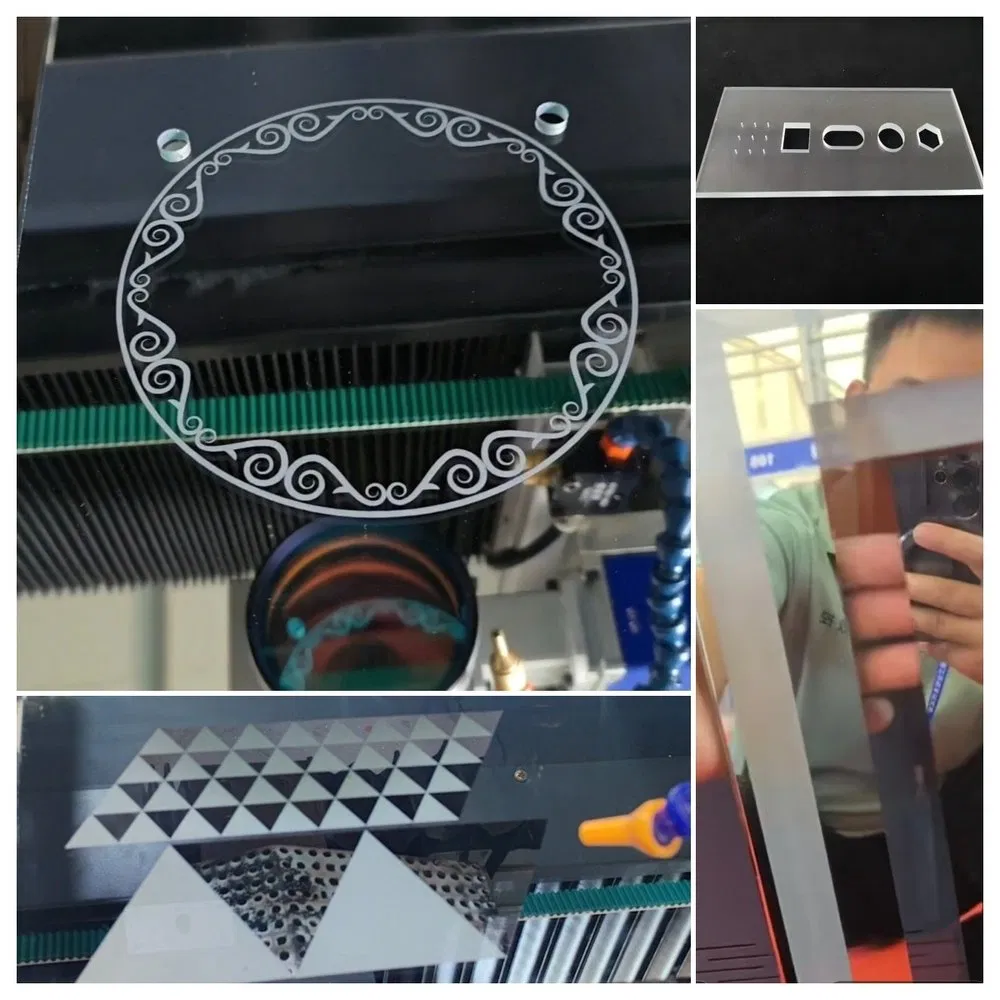

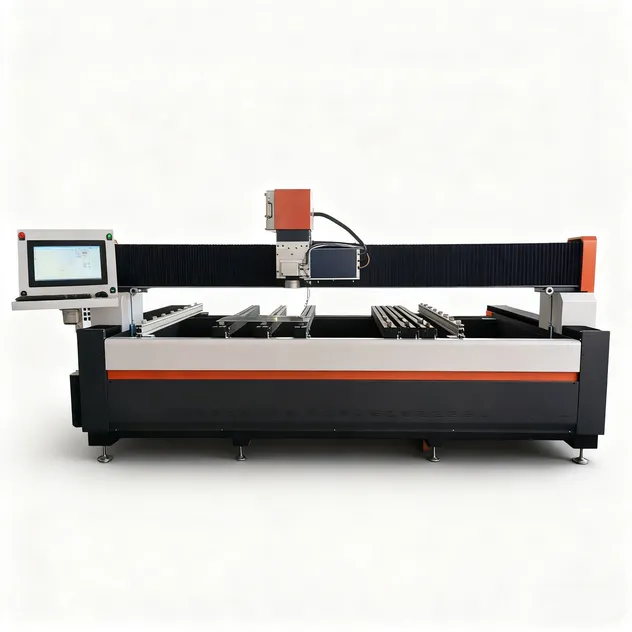

The Laser Sandblasting Machine is an advanced non-contact laser etching system designed for precision glass and mirror processing. It combines sandblasting, drilling, and paint removal capabilities in a single, highly efficient production line.
Utilizing cutting-edge laser ablation technology, this machine delivers superior processing results while significantly reducing production costs and eliminating environmental pollution.

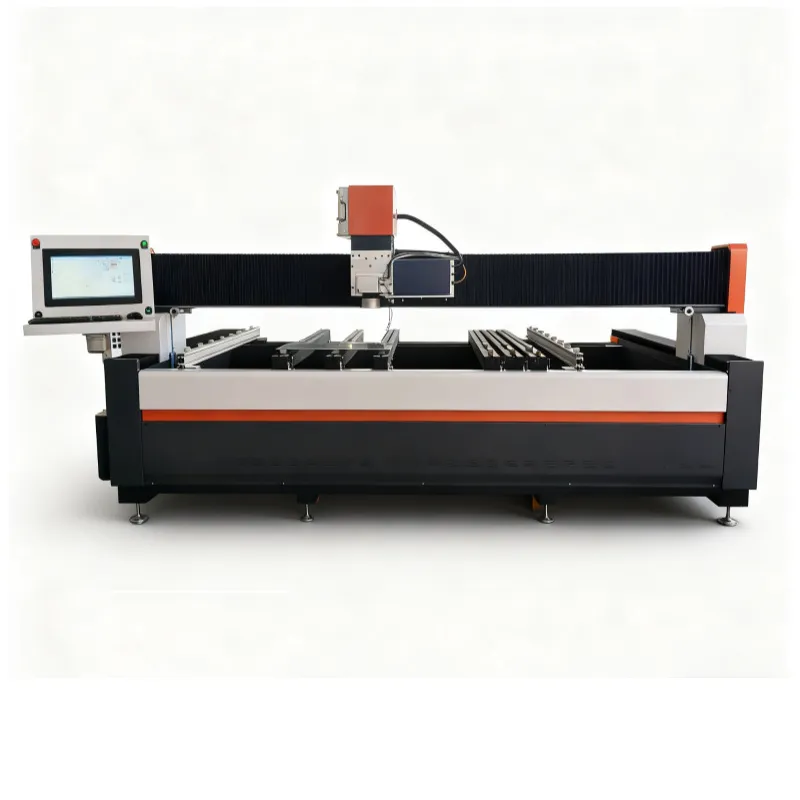

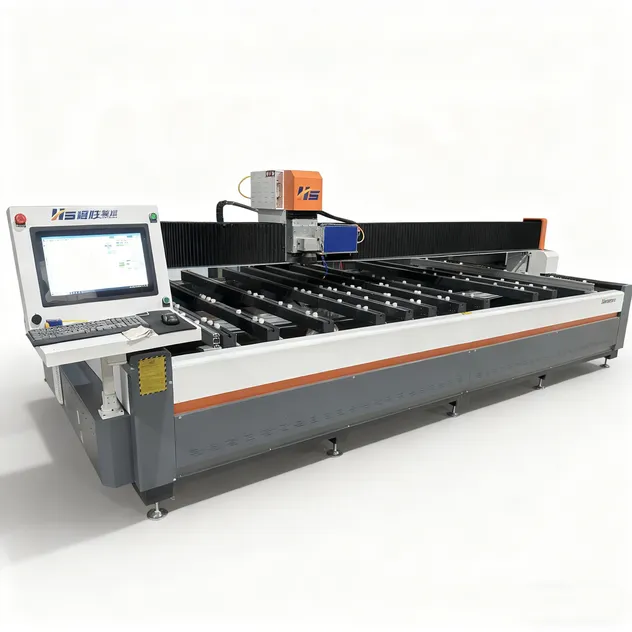

Heavy-duty horizontal machine structure with thick-walled square tube welding ensures minimal deformation and long-term mechanical stability.

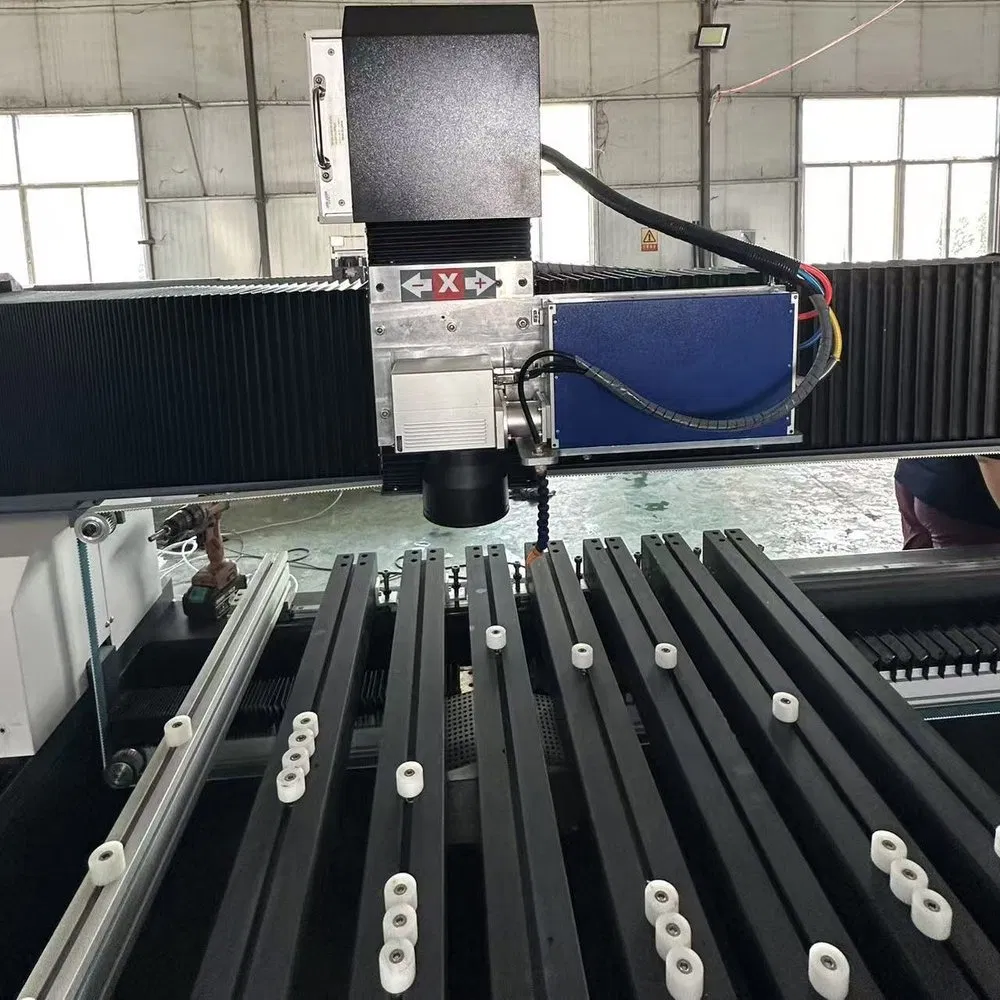

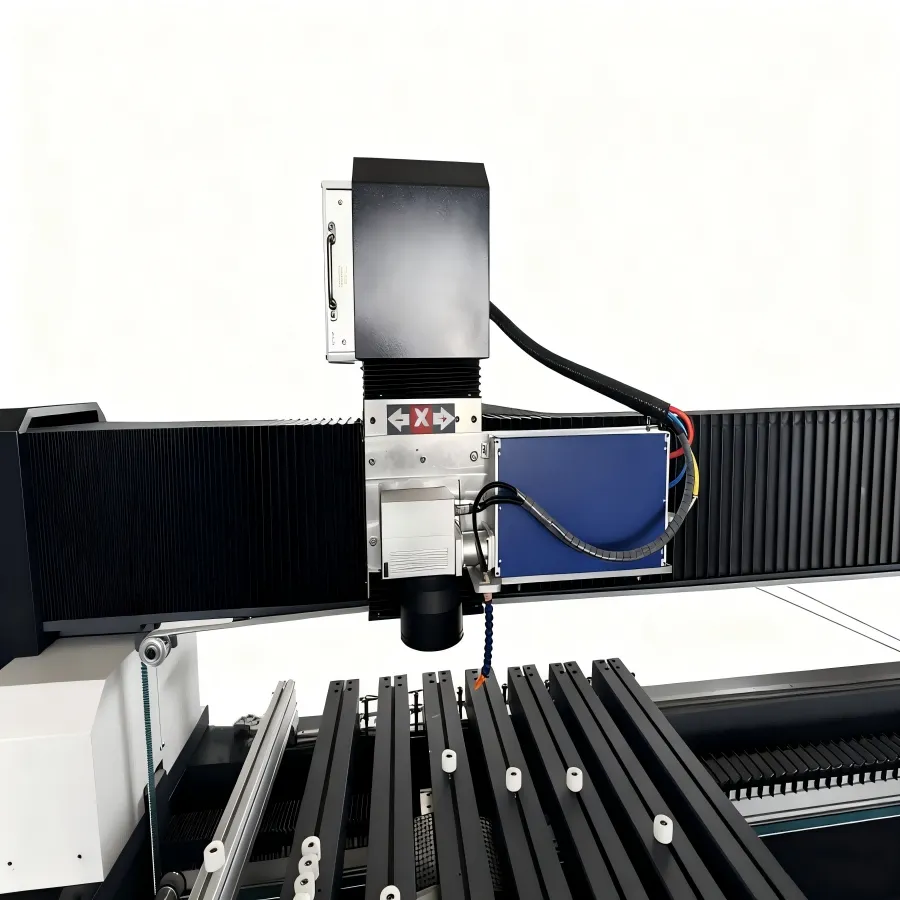

Professional-grade fiber laser source delivers superior beam quality with high stability and low power consumption.

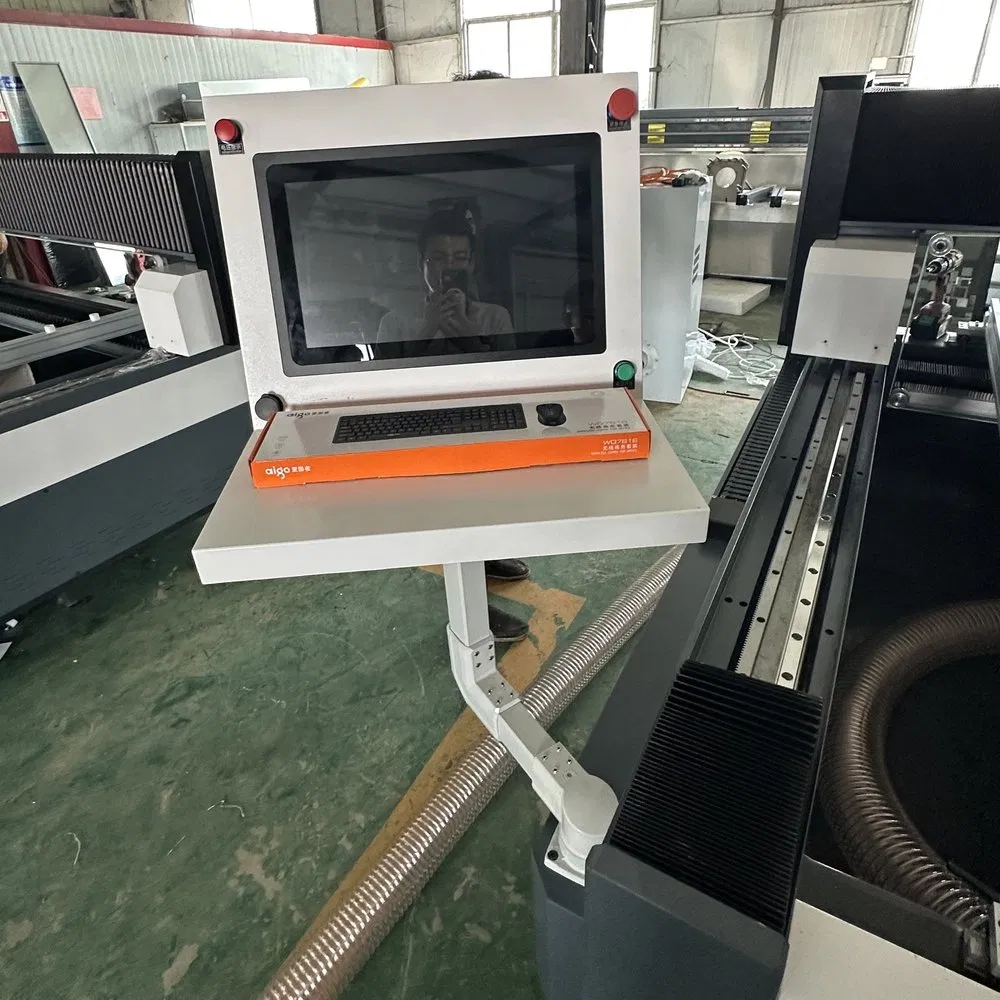

Intuitive laser control system features a built-in graphic library, enabling easy operation for various patterns.

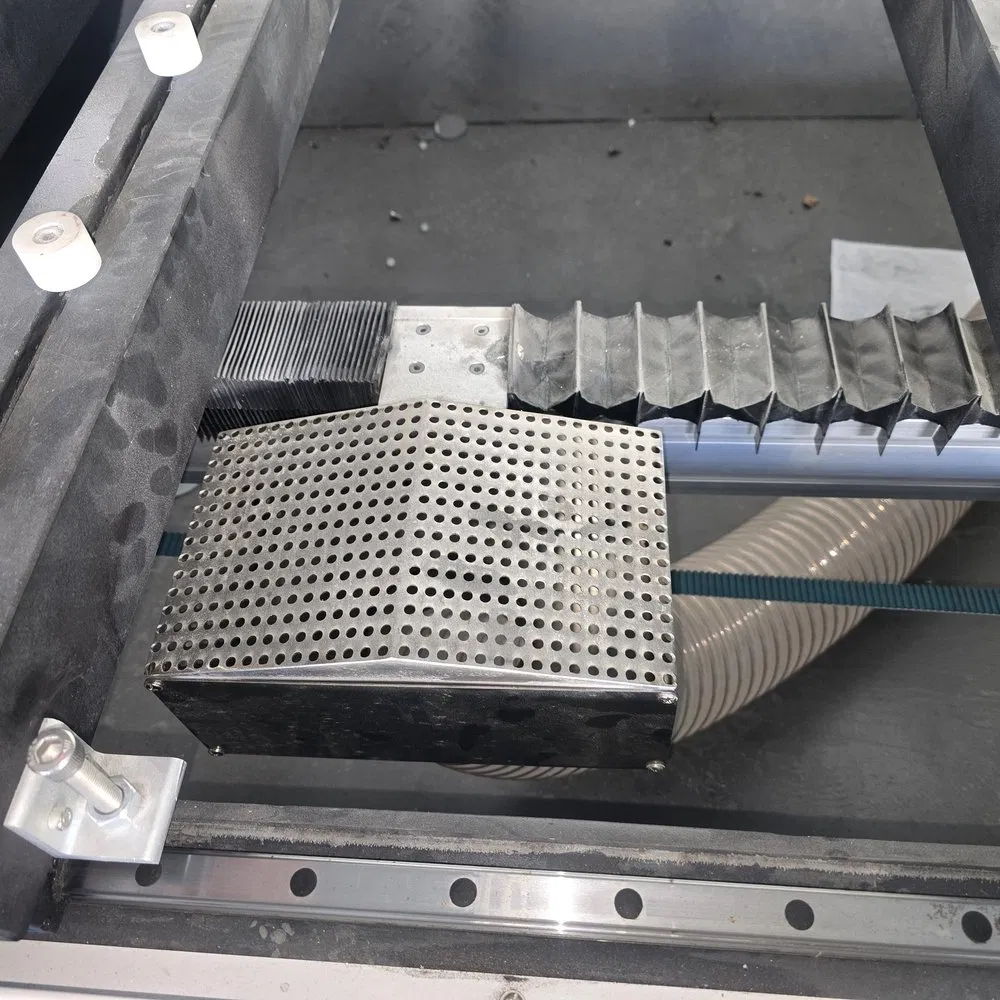

Comprehensive dust prevention system with follow-up extraction protects critical mechanical components.
| Parameter | Specification Details |
|---|---|
| Model | HS2513 Laser Sandblasting Machine |
| Working Area | 2500mm * 1300mm |
| Laser Power | 120W / 200W |
| Laser Wavelength | 1064nm |
| Mechanical Repetition | Accuracy ≤±0.25mm |
| Engraving Speed | ≤12000mm/s |
| Power Supply | 380V 50Hz-60Hz |
| Total Power | 3.2KW |
| Cooling Method | Water-Cooling |
| Laser Source Life | 100,000 Hours |

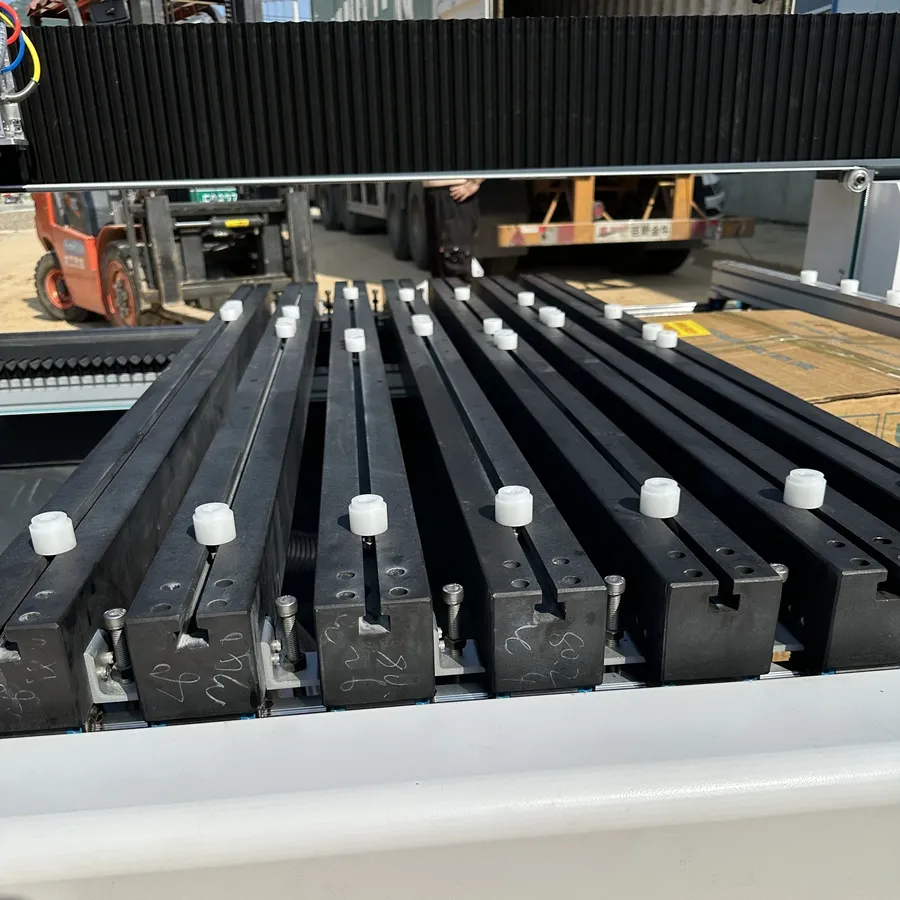

Multi-Process Integration
Contactless Precision
