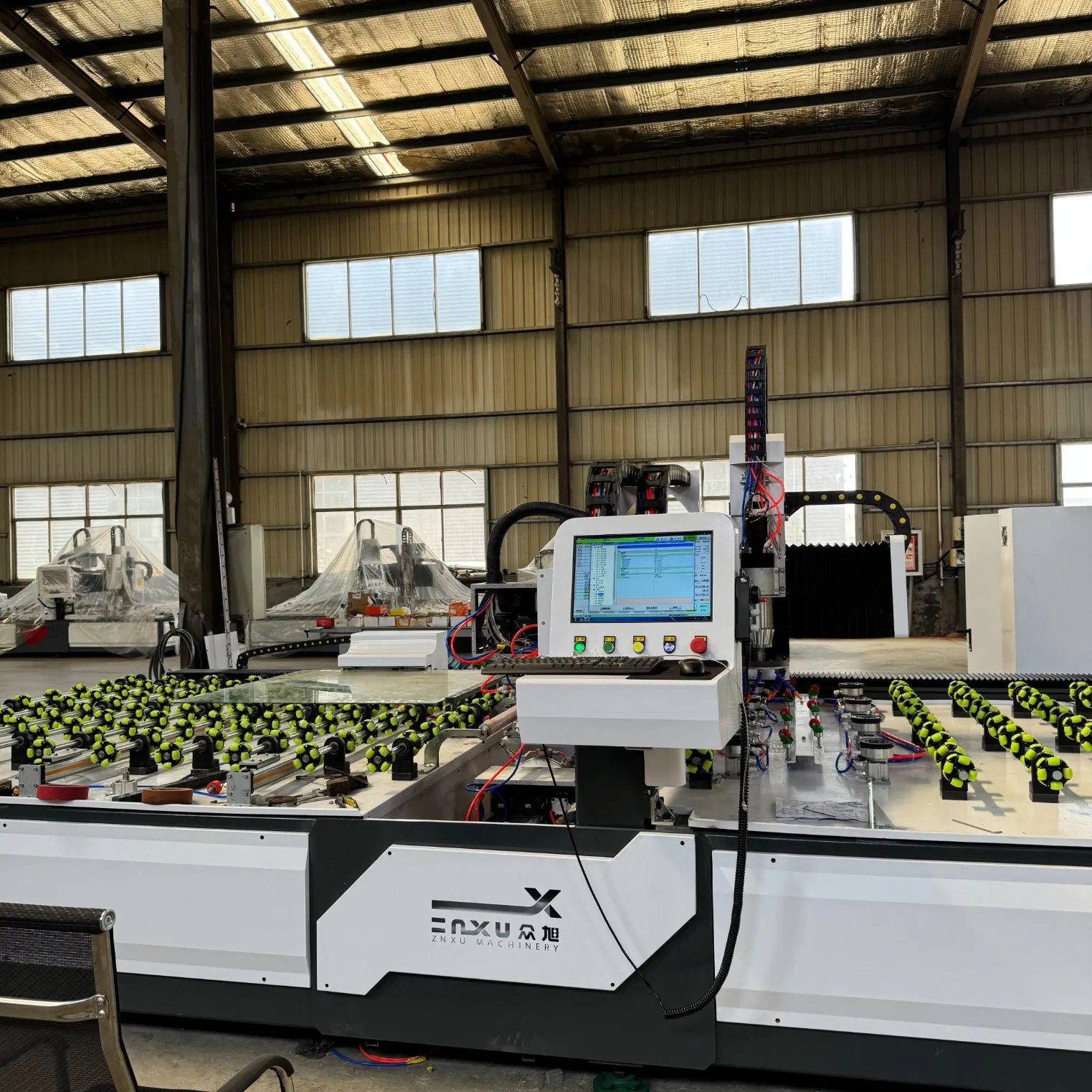

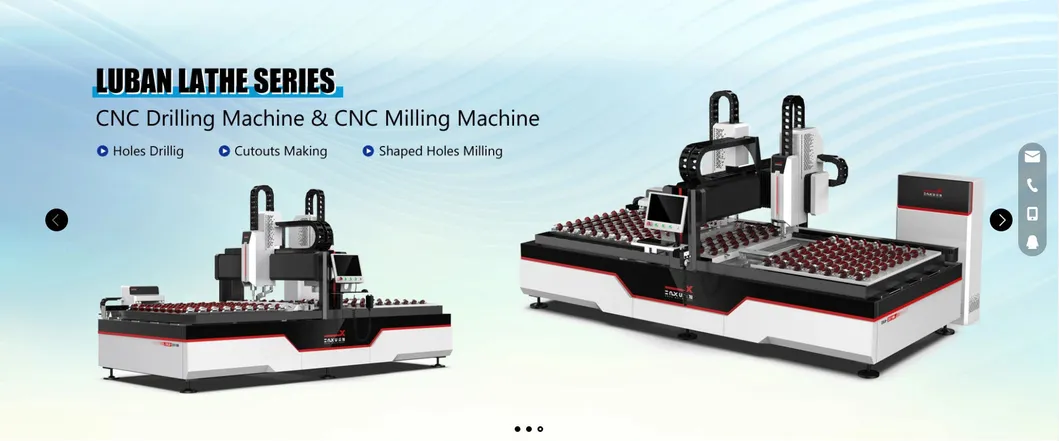

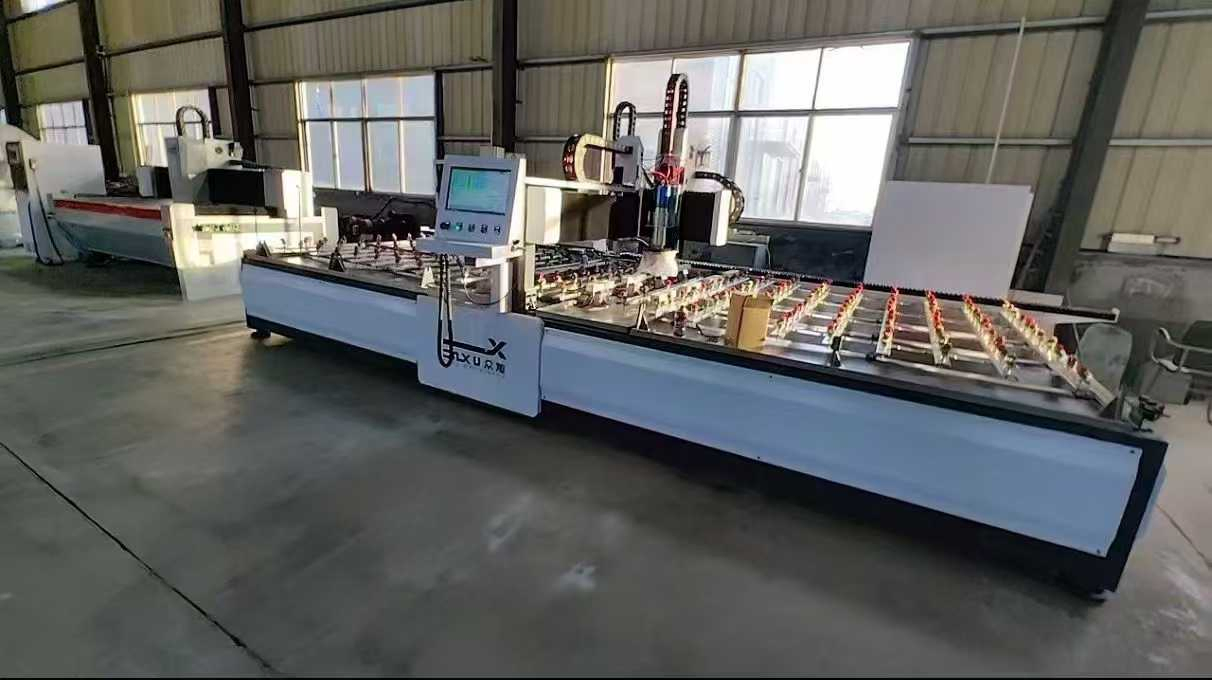

ZXLB LUBAN LATHE: CNC GLASS MILLING AND DRILLING MACHINE
Machine Introduction:

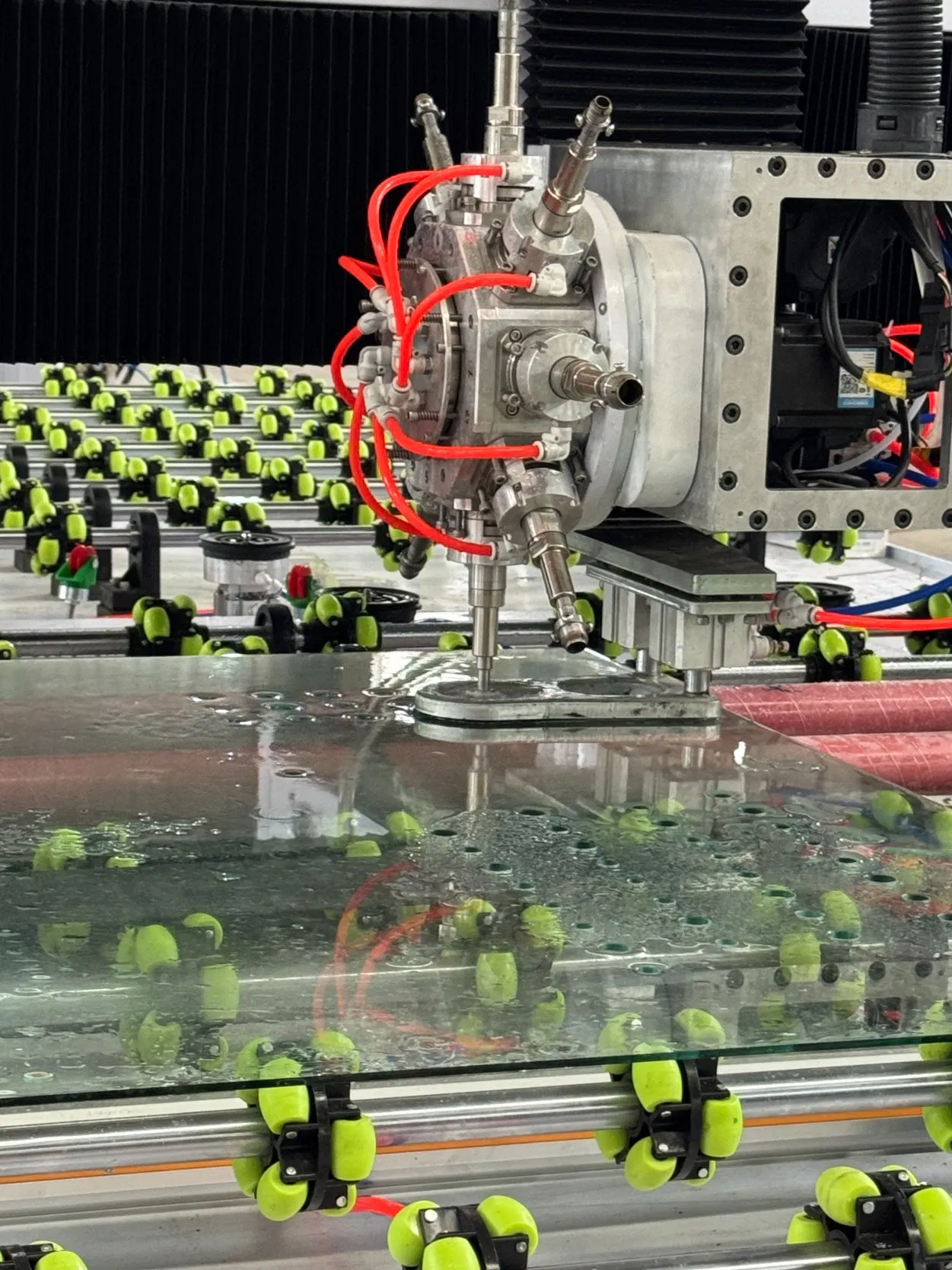

This machine is a glass processing equipment that integrates two mechanical structures of glass drilling and glass milling into one efficient system.
Key Features:
- Self-developed 8-axis control system for smooth drilling and milling functions.

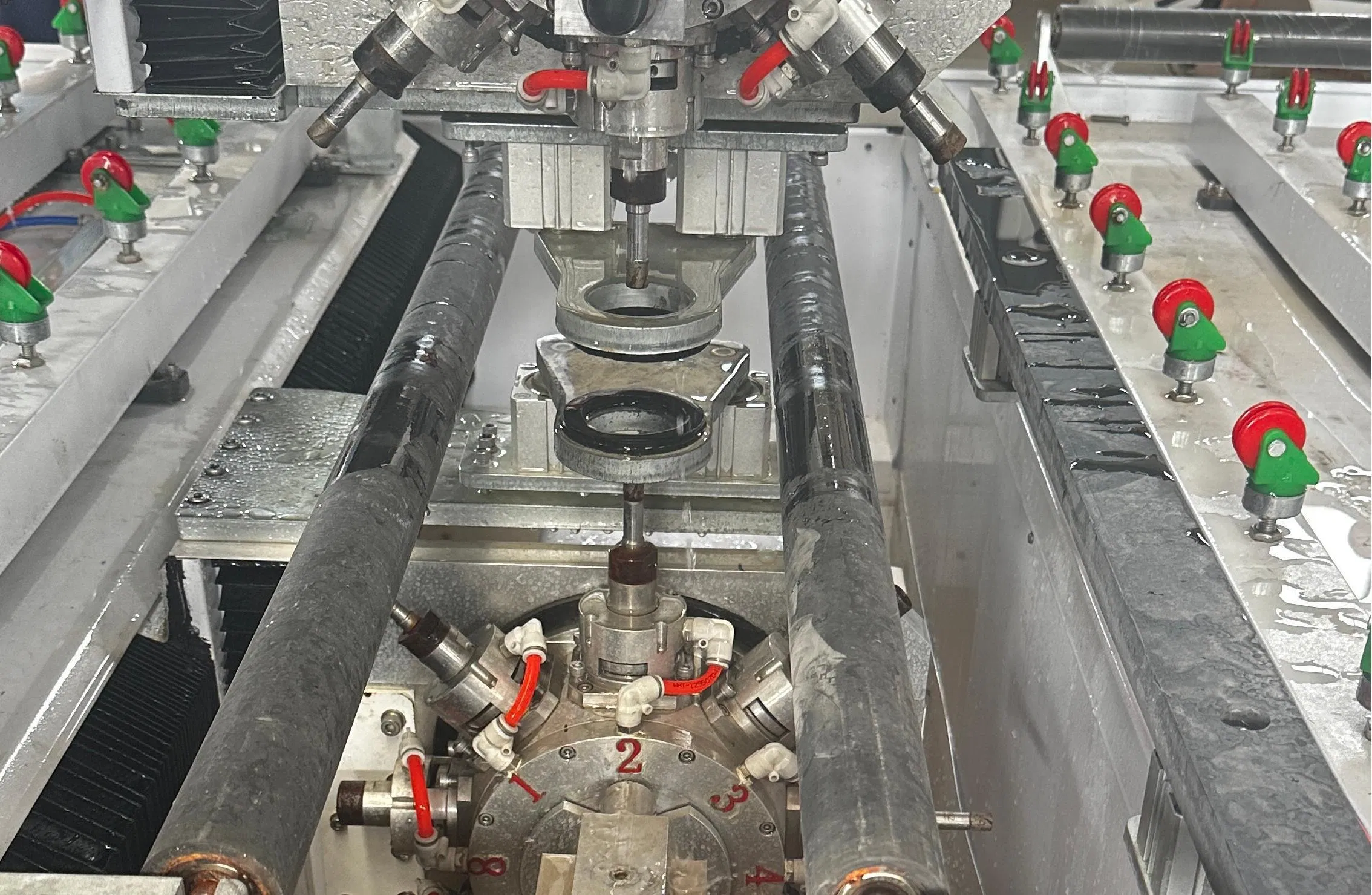

- Gantry type up and down drilling; supports CNC drilling, enlarging, and milling path integration.
- Supports DXF and DGW files with built-in drawing software for easy humanized operation.
- Pneumatic support with proximity priority to minimize empty strokes and save processing time.
- Uses general-purpose consumables to significantly reduce processing costs.
- T-shaped mechanical frame for a compact structure and flexible operation.
- Reserved for mechanical and PLC expansion; can be connected to loading tables, robots, and washing machines for in-line production.
Integrated Functions:
Offers comprehensive functions including drilling, cutting, milling, and grinding. Once the cycle is finished, there is no need to change the cutter, effectively avoiding glass scratches and dimensional errors from repeated positioning.
Applications:

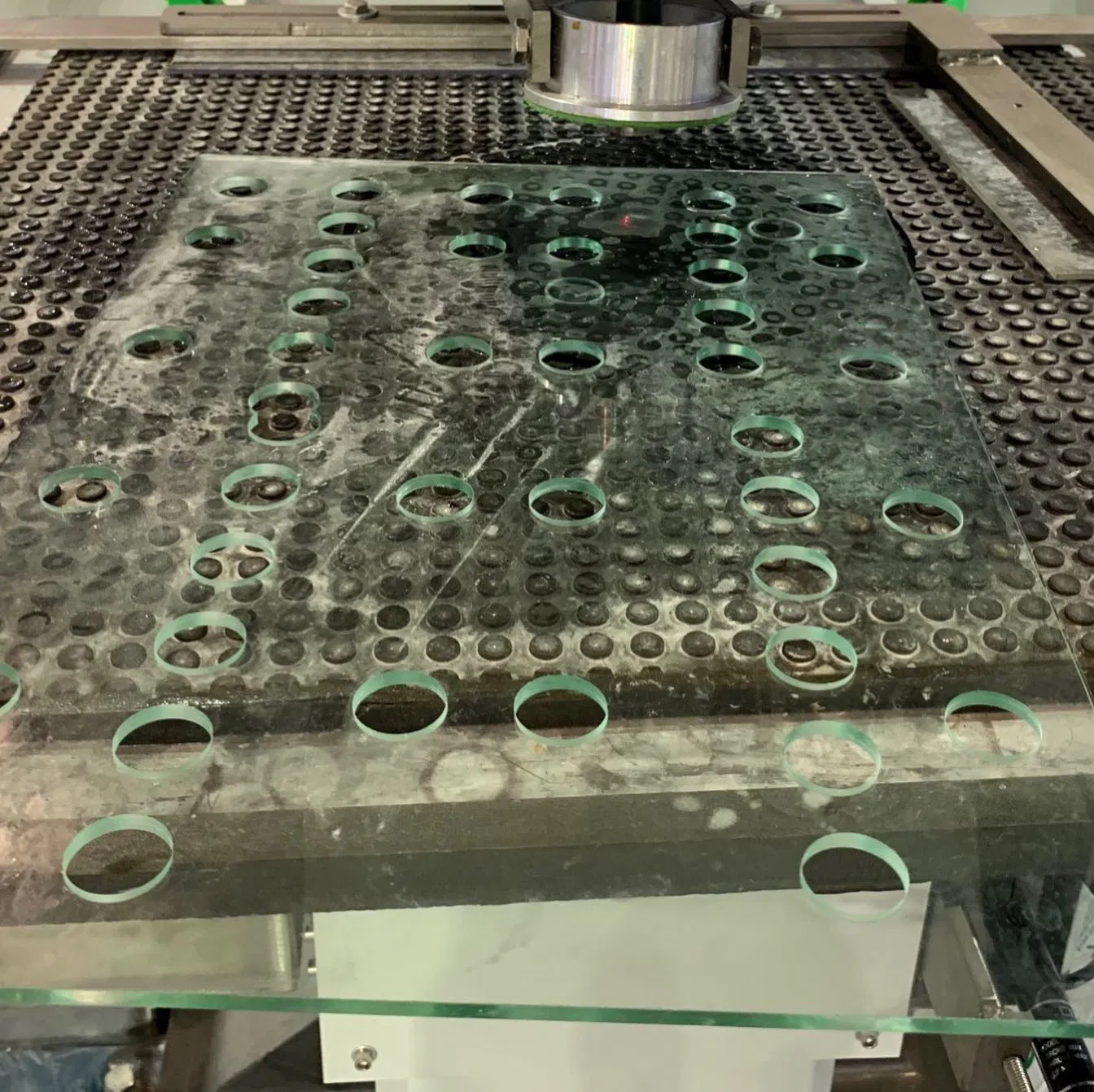

- Sink holes in glass countertops, stove holes, and pipe holes.
- Shower door clamps, hinge holes, and handle holes.
- Cabinet door invisible handle holes.
- Electric panel holes production.
- Aquarium stealthy covers and fish tank fabrication.
| Model |
Machine Measurement |
Max Size of Glass |
| ZXLB-ZX1200 |
4000*2200*2200mm |
1200*2200mm |
| ZXLB-ZX1500 |
6600*2600*2200mm |
1500*2500mm |
| ZXLB-ZX2000 |
6600*3100*2200mm |
2000*2500mm |
Service & Support:
- On-site installation and after-sales support provided.
- Machine is shipped as one whole part for easy setup.
- Operation manual and instructional media included.
- One-year warranty period with life-long maintenance.
- 24-hour technical support availability.
?
Frequently Asked Questions
What is the maximum glass thickness the machine can handle?
The ZXLB LUBAN LATHE can process glass with a maximum cutting thickness of 25mm, with a general range of 3-25mm.
Does the machine support custom design files?
Yes, the system is designed to receive external DXF and DGW files. It also features built-in drawing software for on-site modifications.
Can this machine perform multiple tasks in one cycle?
Absolutely. It integrates drilling, cutting, milling, and grinding functions into a single process, eliminating the need for tool changes and repeated positioning.
What kind of after-sales support is available?
We provide a one-year warranty, on-site installation, training, and 24-hour technical support via various digital channels.
Is the machine compatible with automated production lines?
Yes, the machine is reserved for mechanical and PLC expansion, allowing it to connect with robots, loading tables, and washing machines for fully automated production.
How is the machine delivered?
The machine is sent as one complete unit in a standard export package, ensuring easier installation and better structural integrity upon arrival.
