Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030
Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030
Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030
Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030
Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030
1 / 5
Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030
Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030
Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030
Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030
Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030

Pinhe Glass Washing Machine Vertical Glass Washing Machine 2030

Customization: Available
Certification: CE, ISO
Control System: PLC
Send Inquiry

Product Description

■

Basic Specifications

Model NO.
VWM2030
Type
Insulating Glass Production Line
Structure
Vertical
Washing Type
Ultrasonic Glass Washing
Edging Type
Glass Double Edging
Grinding Heads
20
Condition
New
Warranty
12 Months
After-Sales
12 Months
Origin
China
Capacity
2000 sets/Year
Specification
2000X3000MMS
■

Product Visuals

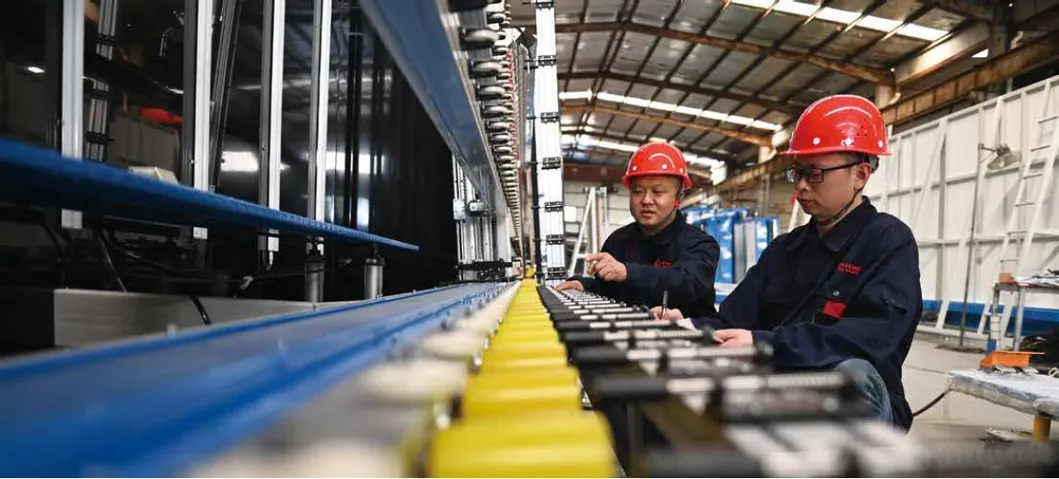

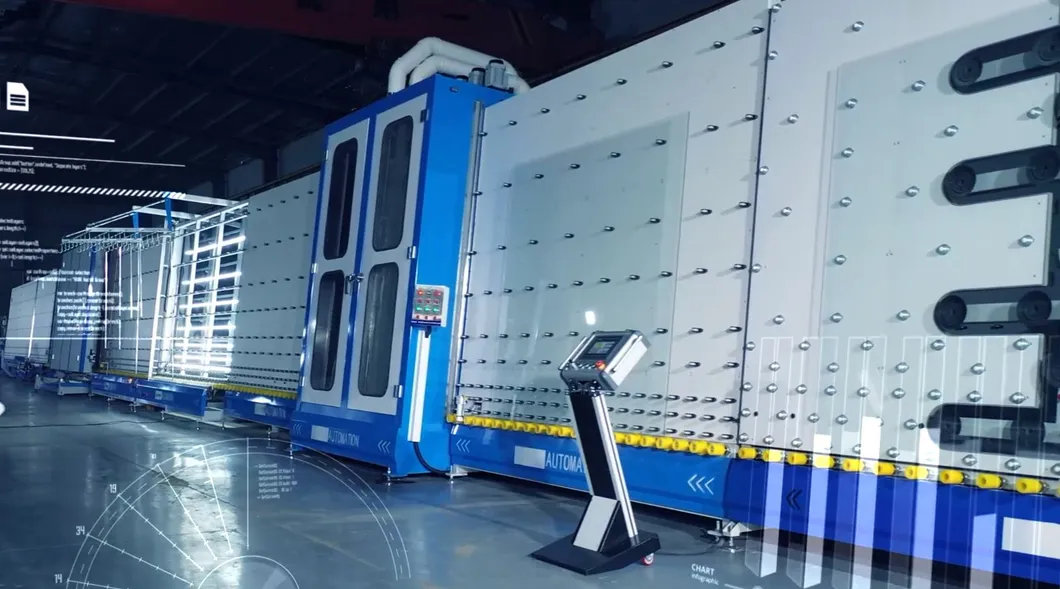

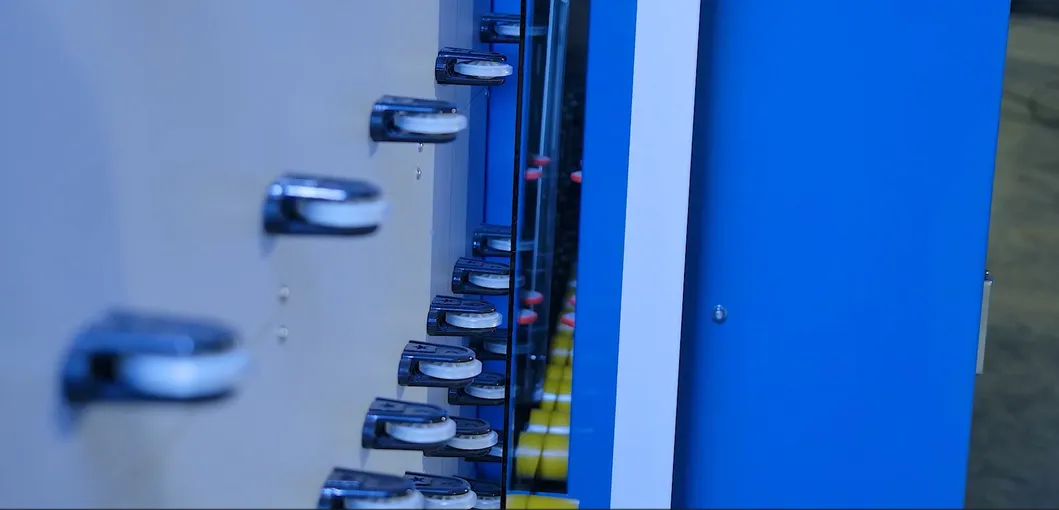

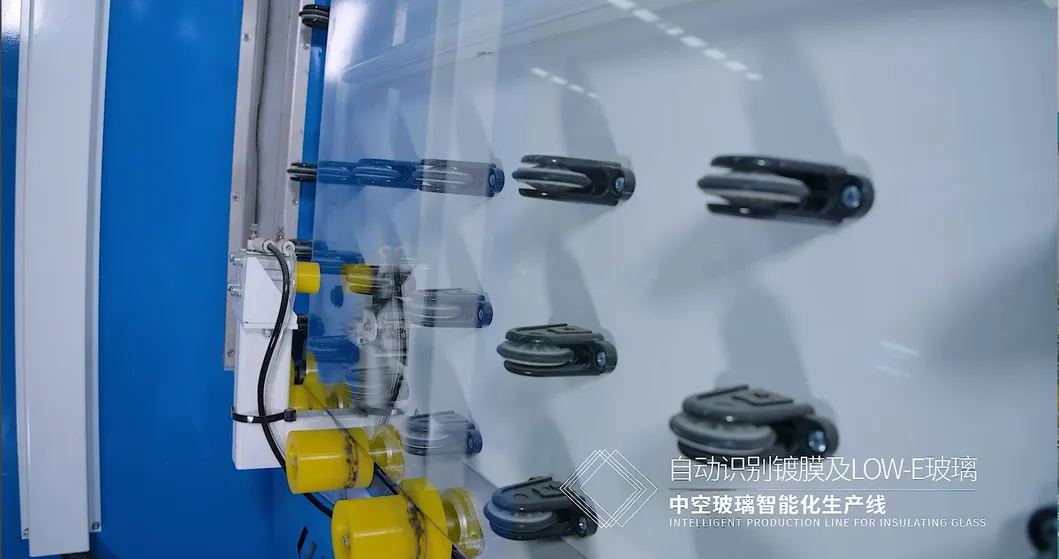

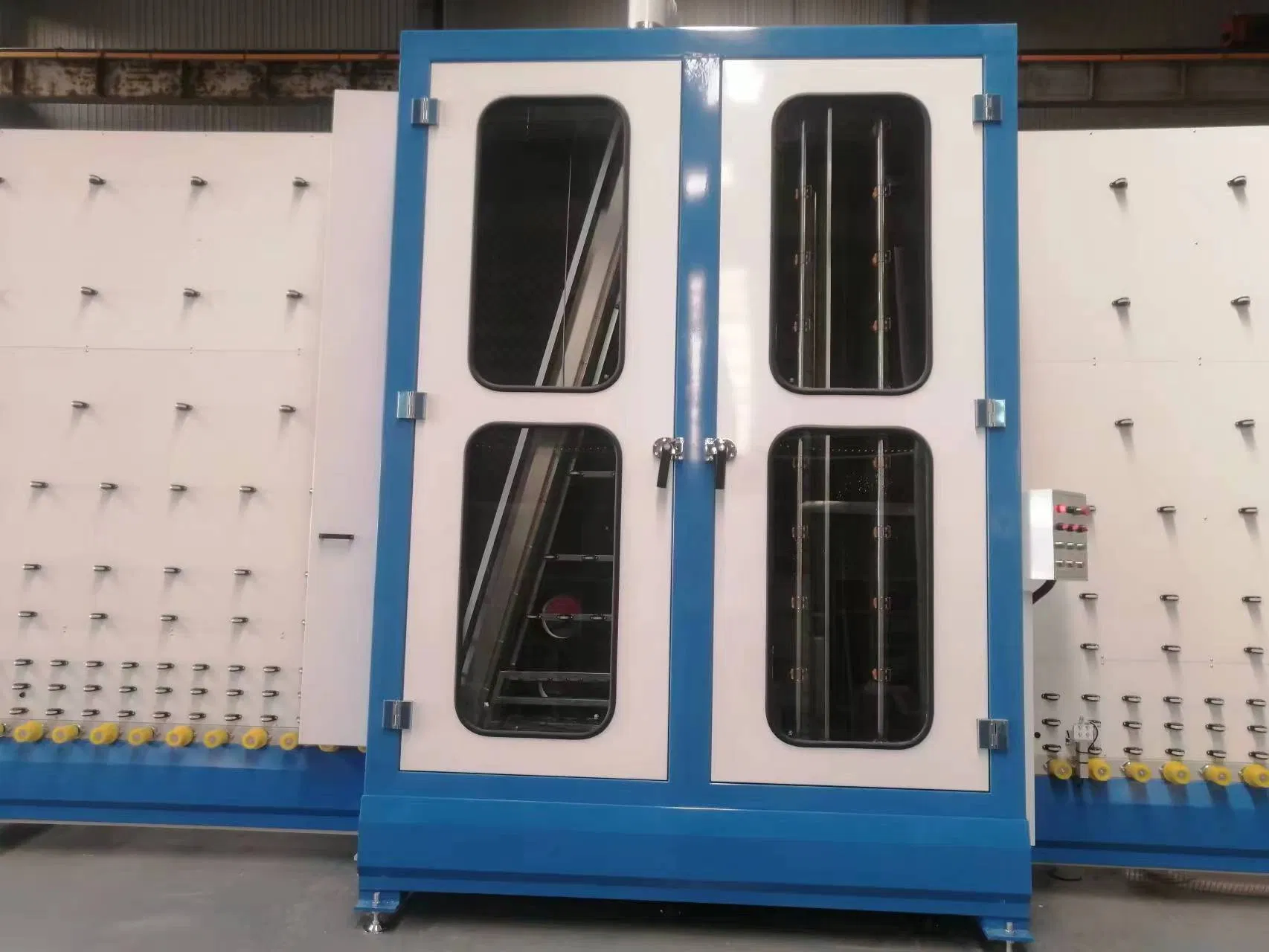

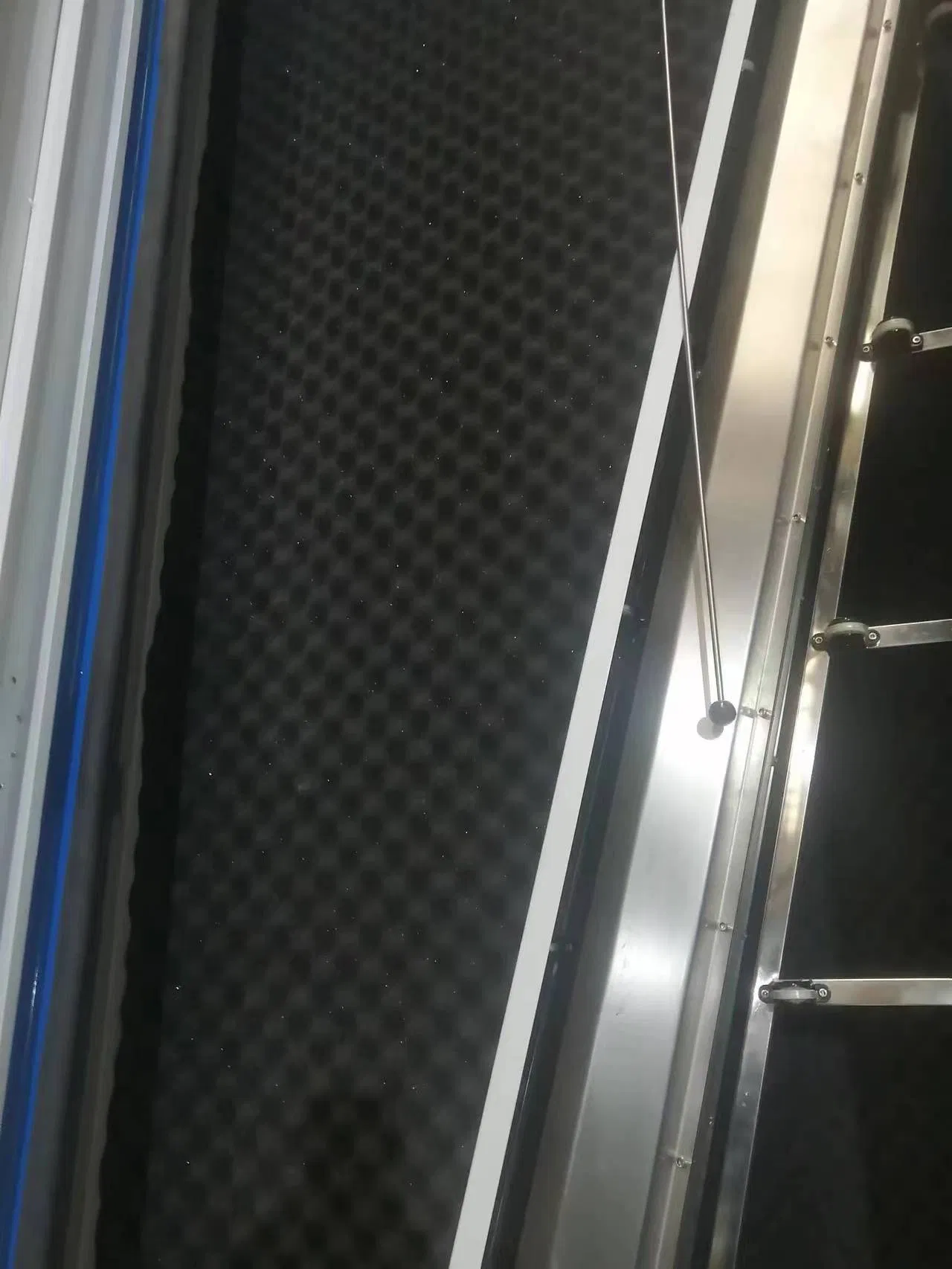

Glass Washing Machine Overview Vertical Glass Washing Details Production Line Components Glass Processing Unit Insulating Glass Line
■

Technical Parameters

Total Power: 30 KWS
Max Glass Size: 2000 x 3000 MMS
Min Glass Size: 280 x 450 MMS
Glass Thickness: 3 - 30 MMS
Max IG Unit Thickness: 12 - 40 MMS
Washing Speed: 2 - 12 M/MINUTE
Working Speed: 2 - 45 M/MINUTE
Air Pressure Flow: 0.8 M3/MINUTE (1 MPA)
Water Conductivity: < 40 US/CM
Overall Dimension: 17000 x 1600 x 2010 MMS
■

Product Description

The Vertical Automatic Insulating Glass gas filling inside Flat Press Production Line consists of the following components: feeding section, washing and drying section, storage section, light inspection section and spacer bar put section, outside assembly section, Inflatable board press and gas filling section, and output section.

  • ✓ Adopt PLC control for optimal working conditions.
  • ✓ Capability to produce Low-e glass, double glazing, and triple glazing.
  • ✓ Washing and drying section constructed from 304 stainless steel for corrosion resistance.

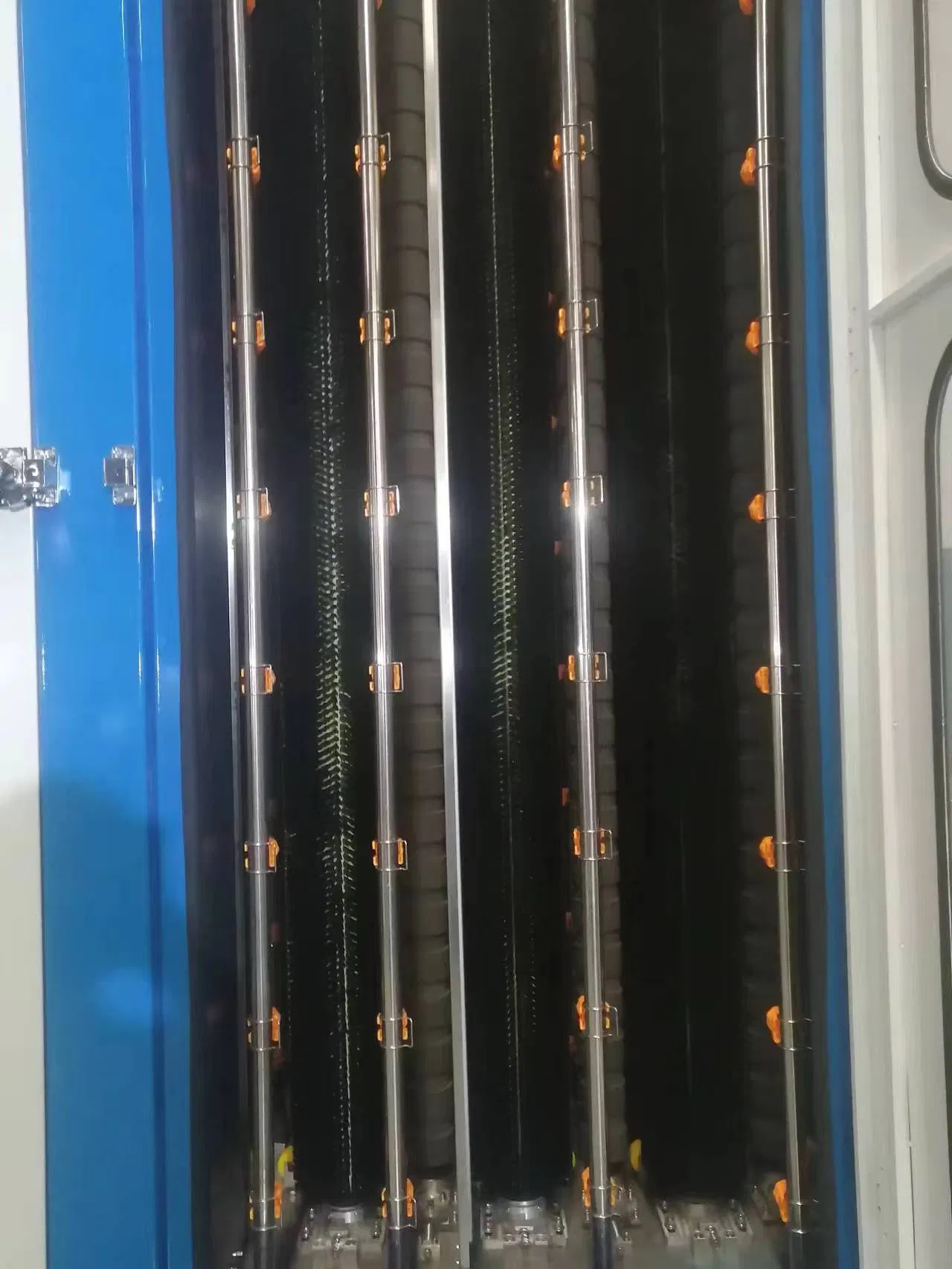

  • ✓ Automatic cylinder adjustment for brush distance based on glass thickness.
  • ✓ Full in-house raw material processing including cutting, milling, welding, and sandblasting.
  • ✓ Servo motor technology utilized for high-precision pressing sections.
  • ✓ Advanced gas flow control to optimize argon gas usage during the filling process.
■

Solutions & Support

Our specialized team provides high-quality flat glass processing machinery and comprehensive services. We search for the most innovative and reliable equipment for fabricating, handling, and processing flat glass. Each machine is characterized by innovative features, long-lasting durability, and high reliability.

One-Stop Partner: Identifying innovative equipment for flat glass processing with a focus on durability and performance.
Production Line Planning

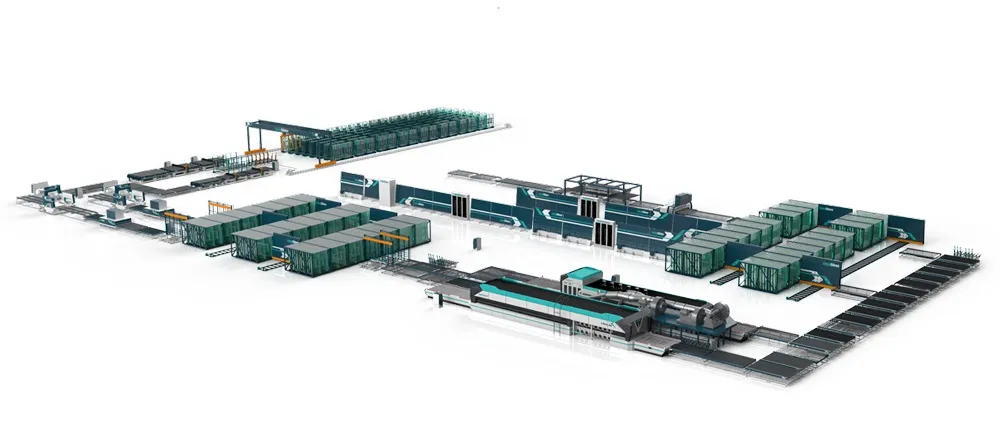

We provide complete turnkey solutions for both new and existing glass processing facilities. This includes production lines tailored to specific needs and assistance with technical drawings and recommendations for factory layout.

■

Frequently Asked Questions

Q1: What is the maximum glass size this production line can process? A: The VWM2030 model can handle a maximum glass size of 2000 x 3000 mm.
Q2: Can this machine produce Low-E or triple-glazed units? A: Yes, the production line is designed to produce Low-E glass, double glazing, and triple glazing units efficiently.
Q3: What materials are used in the washing and drying section? A: The washing and drying section is made of 304 stainless steel, which is resistant to rust and ensures long-term durability.
Q4: How does the machine handle different glass thicknesses? A: The system features a cylinder that automatically adjusts the brush distance according to the thickness of the glass (from 3mm to 30mm) to ensure a perfect cleaning effect.
Q5: Does the production line include gas filling capabilities? A: Yes, it includes an inflatable board press and gas filling section with automatic volume calculation to prevent gas waste.
Q6: What type of control system and motors are used? A: The machine utilizes a PLC control system for the entire working cycle and high-precision servo motors for the pressing section.
