Technical Parameters (VWM3040)
TOTAL POWER30 KWS
MAX GLASS SIZE3000 X 4000 MM
MIN GLASS SIZE280 X 450 MM
GLASS THICKNESS3 - 30 MM
MAX IG UNIT THICKNESS12 - 40 MM
WASHING SPEED2 - 12 M/MIN
WORKING SPEED2 - 45 M/MIN
AIR FLOW0.8 M³/MIN (1 MPA)
WATER CONDUCTIVITY<40US/CM
DIMENSIONS17000X1600X2010MM
★
Product Description & Features

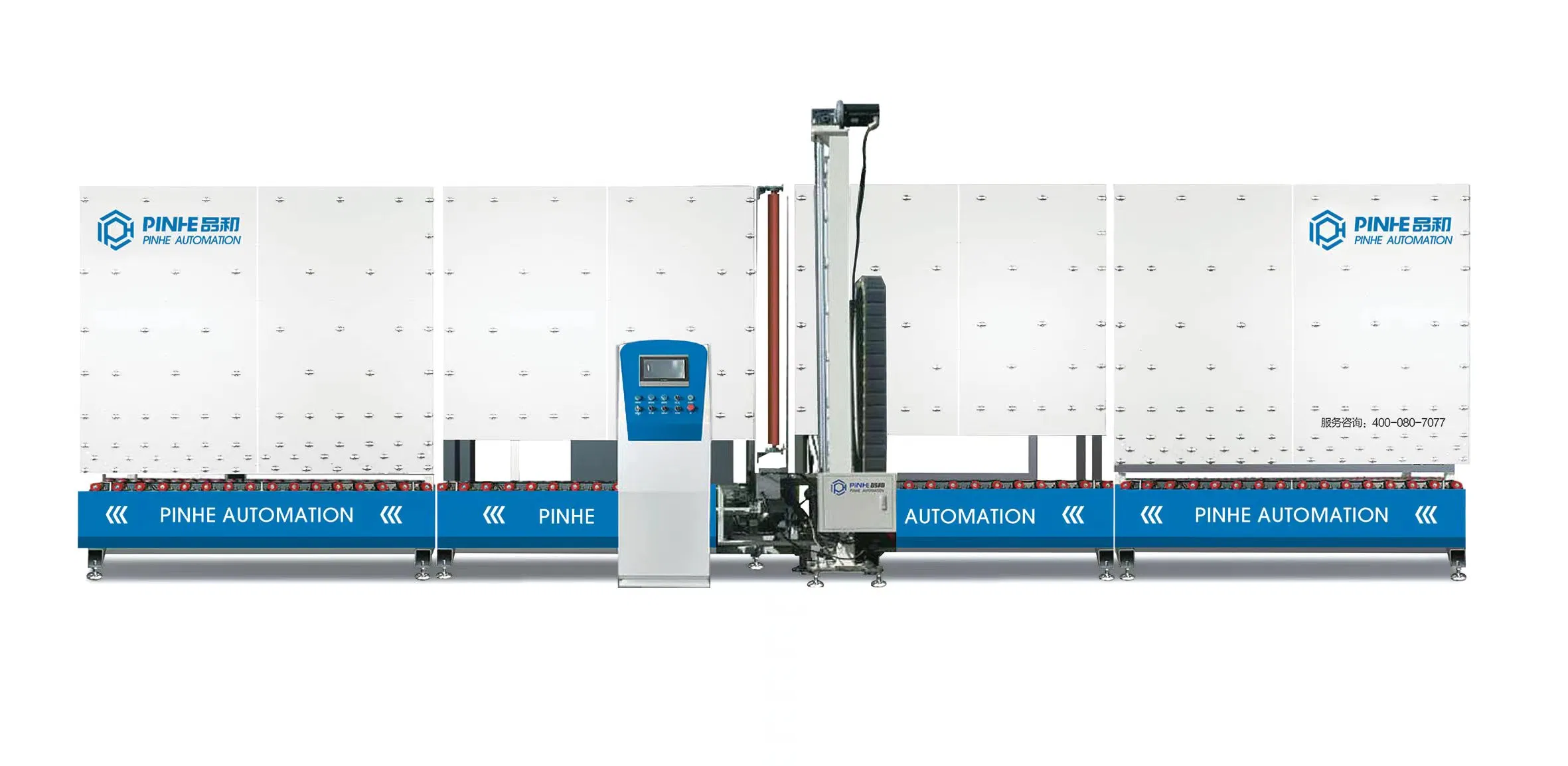

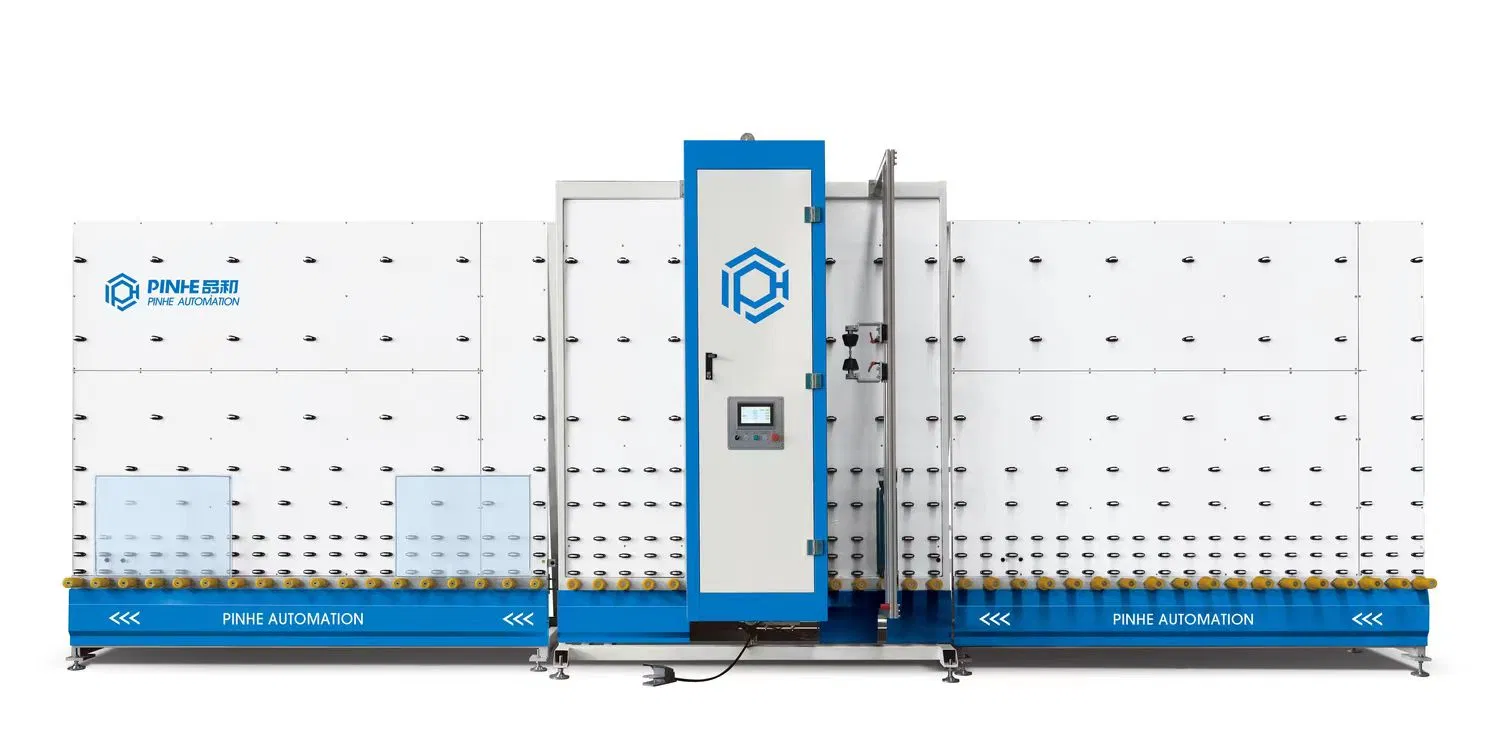

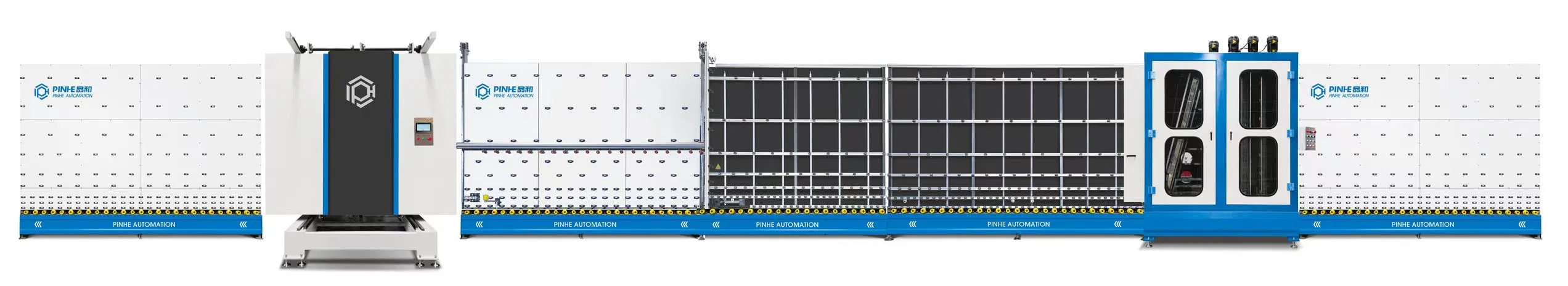

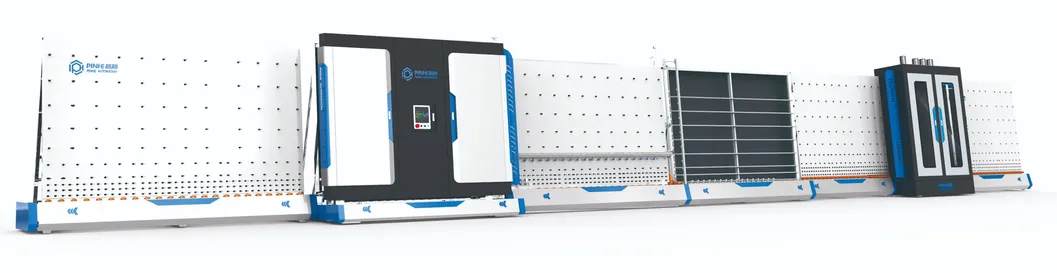

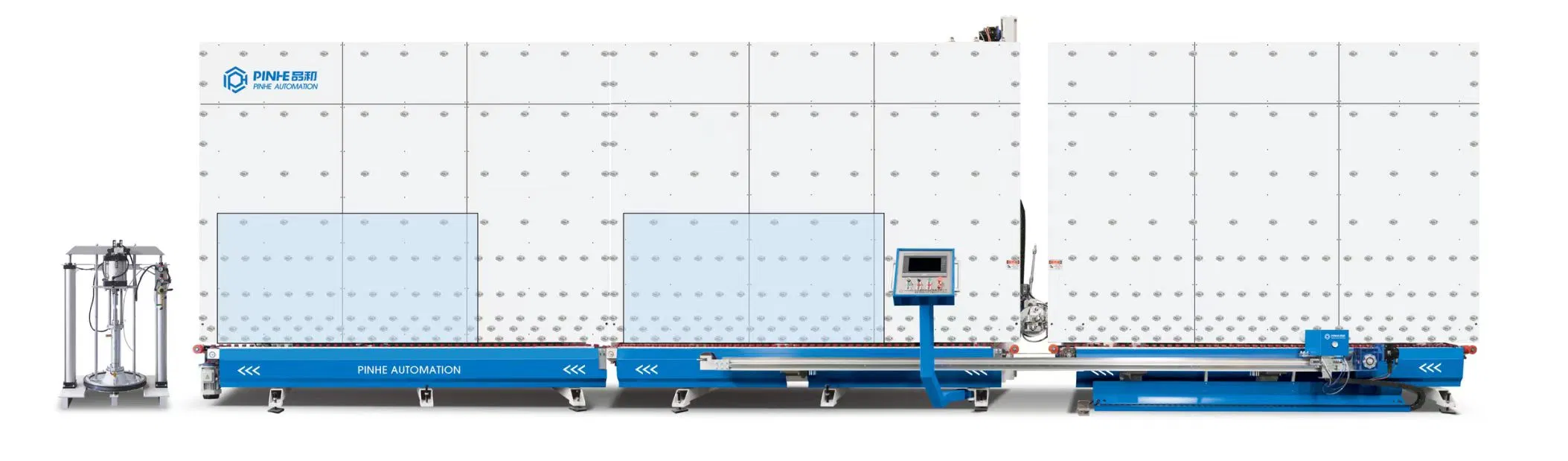

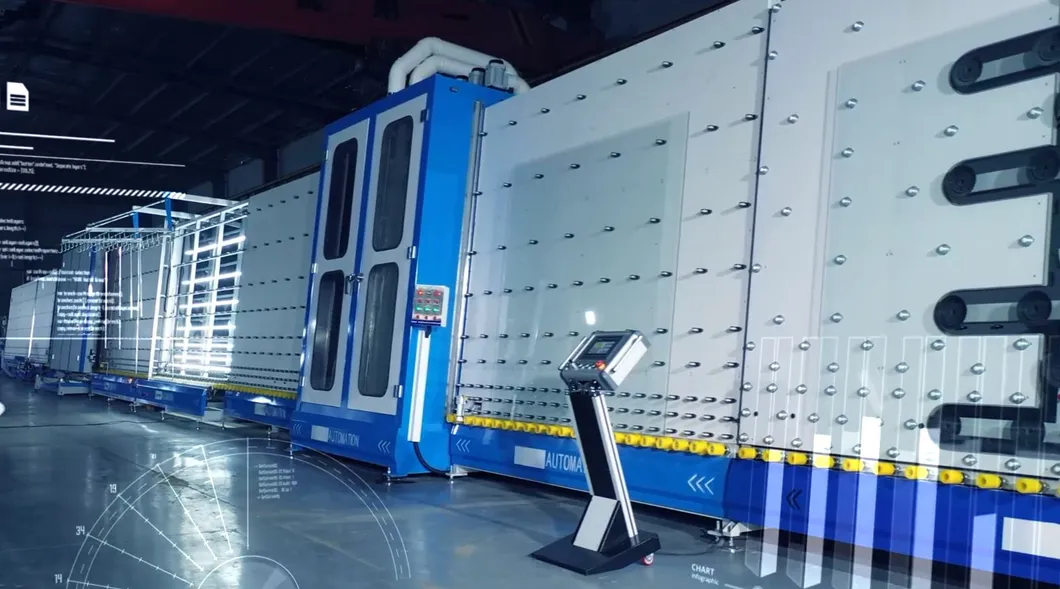

The Vertical Automatic Insulating Glass Production Line includes feeding, washing/drying, storage, light inspection, spacer bar placement, outside assembly, inflatable board press with gas filling, and output sections.
- Advanced PLC control system for precise monitoring of working conditions.
- Versatile production: Capable of producing Low-E glass, double glazing, and triple glazing.
- Durable construction: Washing and drying sections are made of high-quality 304 stainless steel.
- Smart cleaning: Cylinders automatically adjust brush distance based on glass thickness.
- One-stop manufacturing: Plate cutting, milling, welding, sandblasting, and spraying performed in-house.
- Quality Assurance: Dedicated inspection department strictly controls every production stage.
- High-precision pressing: Utilizes Schneider servo motors for the pressing section.
- Gas efficiency: Automatic glass volume calculation and flow meter control to optimize argon gas use.
?
Frequently Asked Questions
What types of glass can this production line process?
It is designed to produce a variety of glass types, including Low-E glass, standard double glazing, and high-performance triple glazing units.

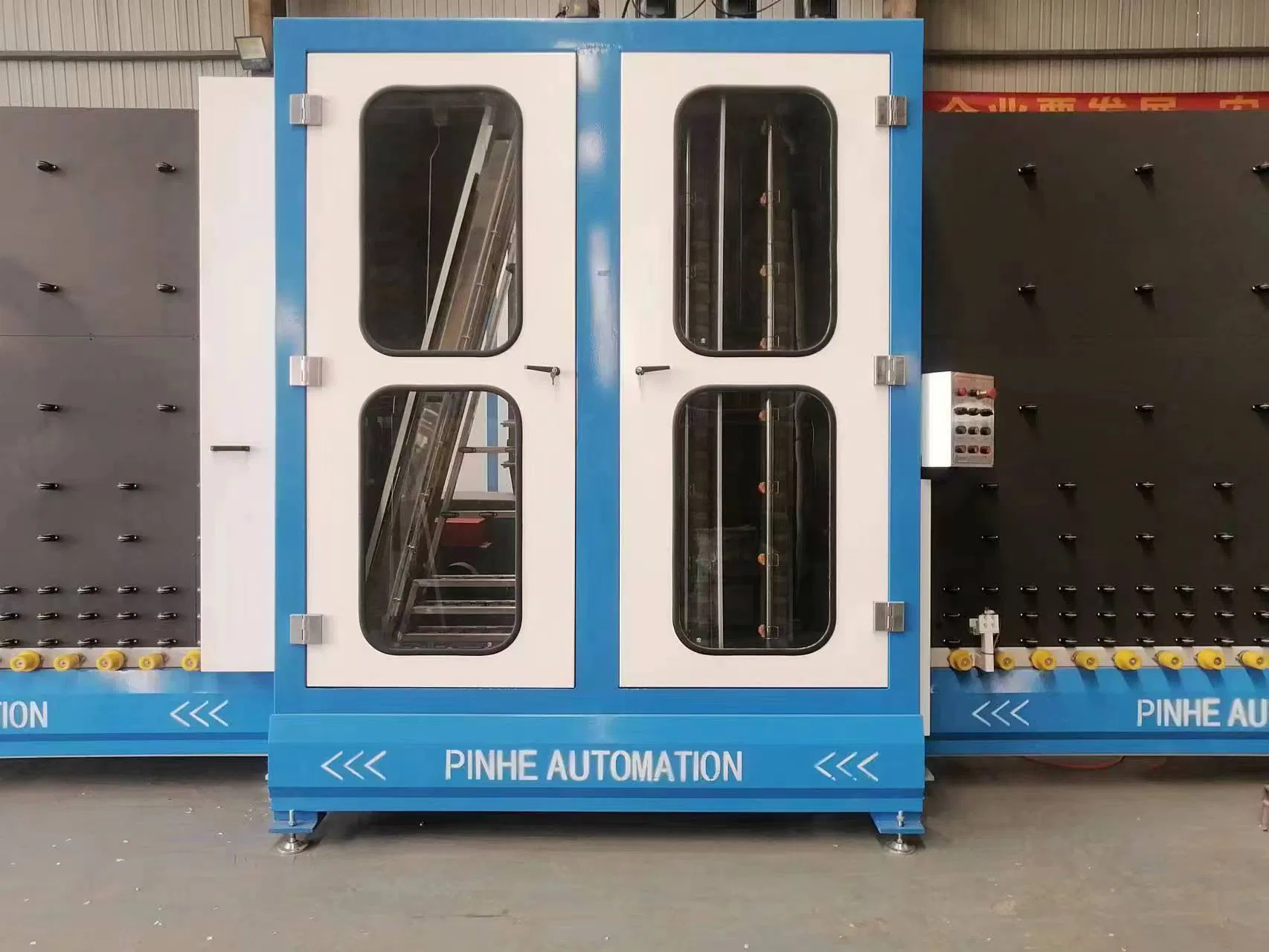

How does the machine ensure the glass is properly cleaned?
The washing section features ultrasonic technology and automatic cylinder-driven brush adjustment that adapts to the specific thickness of the glass (3-30mm).
What is the material used for the washing and drying sections?
These sections are constructed from 304 stainless steel, which contains nickel and no iron, ensuring excellent resistance to rust and corrosion.
How does the gas filling system prevent waste?
The system uses high and low-pressure valves to automatically calculate the glass volume, while a flow meter precisely controls the heavy gas injection to prevent argon waste.
What is the warranty and after-sales support period?
The equipment comes with a 12-month warranty and 12 months of dedicated after-sales service to ensure smooth operation.
Is the pressing section automated?
Yes, the pressing section is powered by a high-precision Schneider servo motor and managed by a PLC control system for consistent quality.
