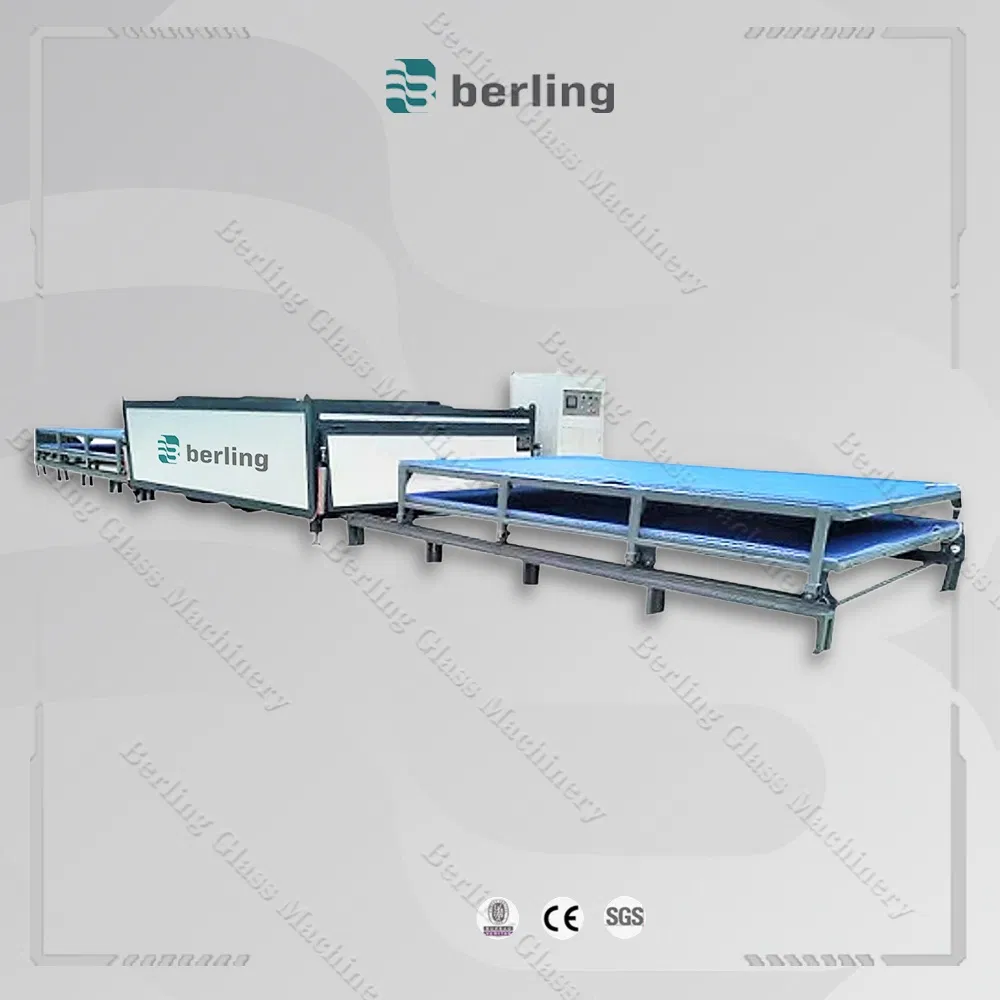

Precise Glass Laminating Machinery for EVA Films with Silicone Bag Teflonn Mesh

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Product Overview & Basic Info

⚙️

Model: BL2SS-2030

📏

Glass Thickness: 4-19 mm

⚡

Total Power: 84kw

📐

Max Glass Size: 3660*2440mm

Product Description

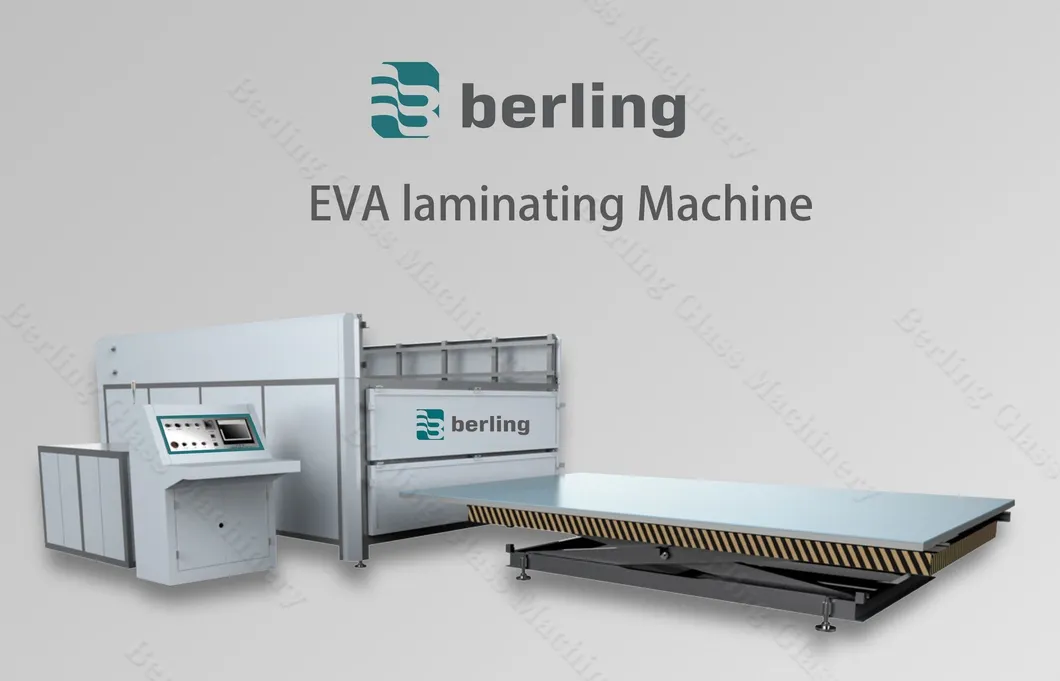

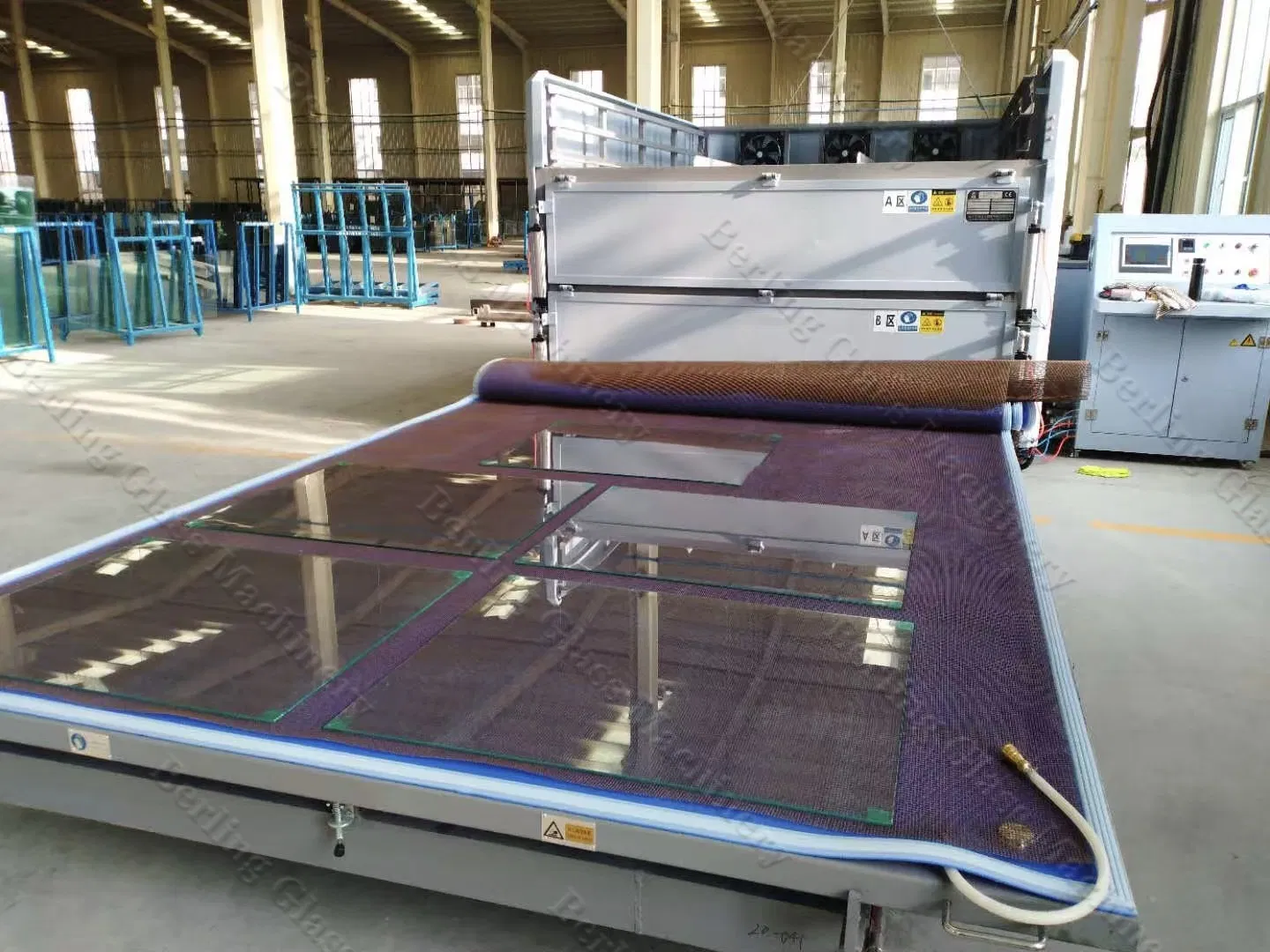

The EVA Laminated Glass Furnace is a high-efficiency, double-layer laminating machine designed for the thermal bonding of EVA (or EN) film between various types of glass sheets. With intelligent PLC temperature control, internal air circulation, vacuum systems, and durable silicone vacuum bags, it ensures stable, even heating and strong bonding, making it ideal for safety, decorative, and specialty glass manufacturing.

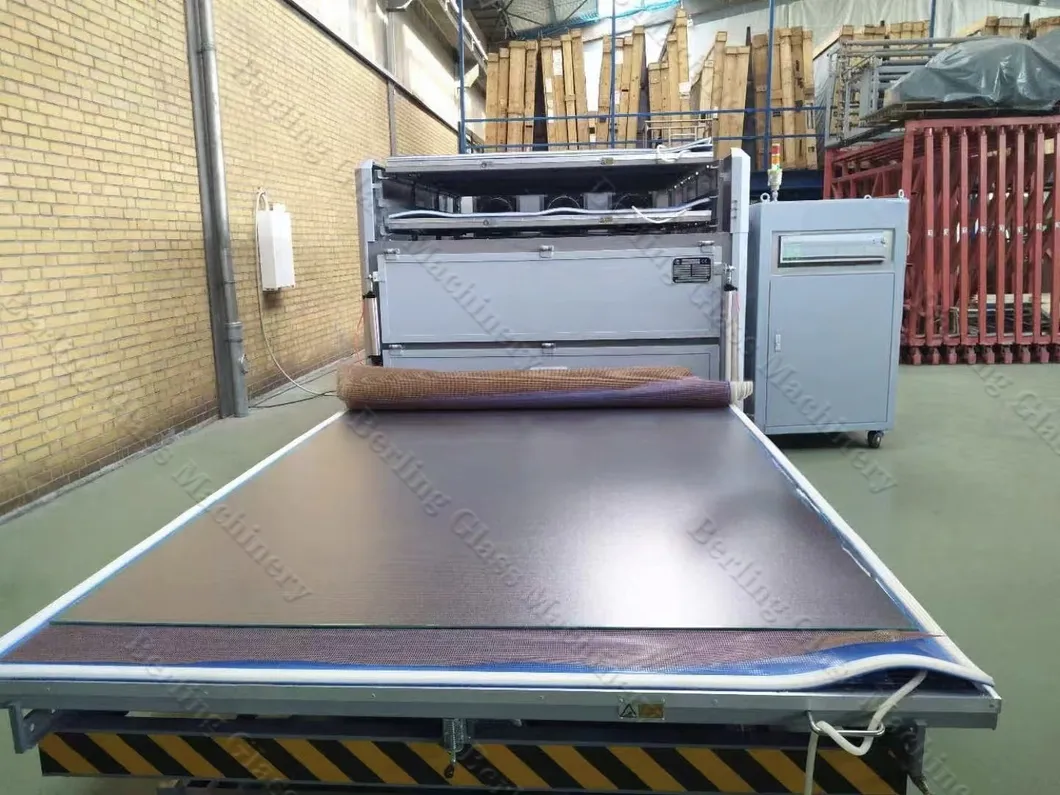

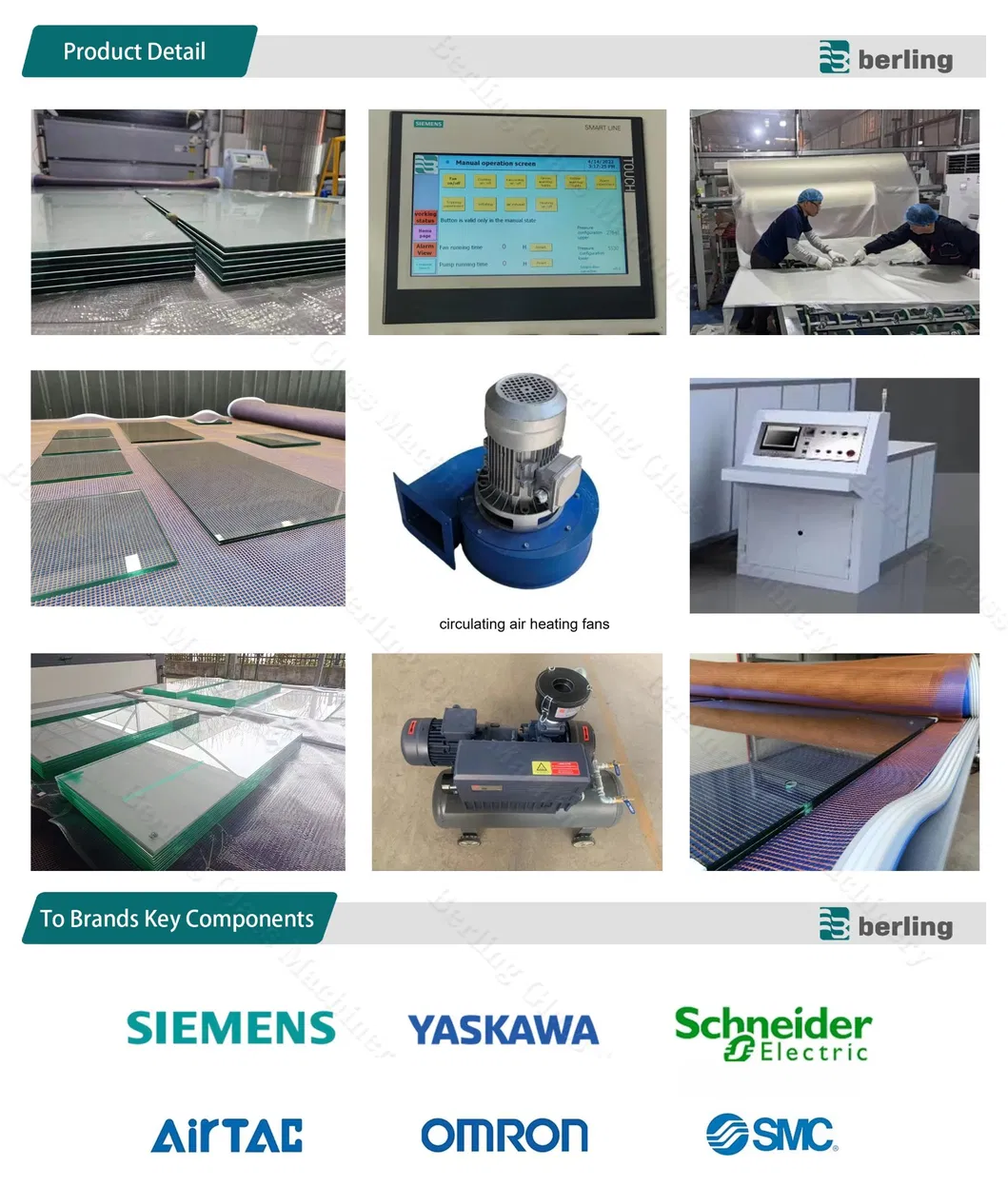

Detailed Technical Features

Efficient Heating: Fin-type circulation system with fast and even temperature distribution.
Accurate Control: PLC-controlled intelligent temperature regulation with programmable operations.
Strong Vacuum System: High-performance pump with air-oil separation and cooling protection.
Durable Structure: Thick galvanized steel frame and double insulation for stable use.
High Output Capacity: Silicone plates with strong vacuum sealing enable large-scale batch production.
Labor-Saving Design: Dual-layer and optional lifting system reduce manual handling.

Product Parameters

Items	Specification	Power Supply	Total Power(KW)	Silicone bag size(MM)	Max Glass Size(MM)	Overall Dimension(MM)	Silicone bag Qty
BL2SS-2030	single station, 2 layers	380V/50HZ	27	2000*3000	1900*2900	780025001590	2
BL4DD-2030	double stations, 4 layers	380V/50HZ	27	2000*3000	1900*2900	1220025001590	4
BL2SS-2638	single station, 2 layers	380V/50HZ	42	2600*3800	2500*3700	940031001590	2
BL4DS-2638	double stations, 4 layers	380V/50HZ	42	2600*3800	2500*3700	1460031001590	4
BL4DD-2638	double systems, 4 layers	380V/50HZ	84	2600*3800	2500*3700	1040031002200	4
BL2SS-2660	single station, 2 layers	380V/50HZ	60	2600*6000	2500*5900	1380031001590	2
BL4DS-2660	double stations, 4 layers	380V/50HZ	60	2600*6000	2500*5900	2120031001590	4

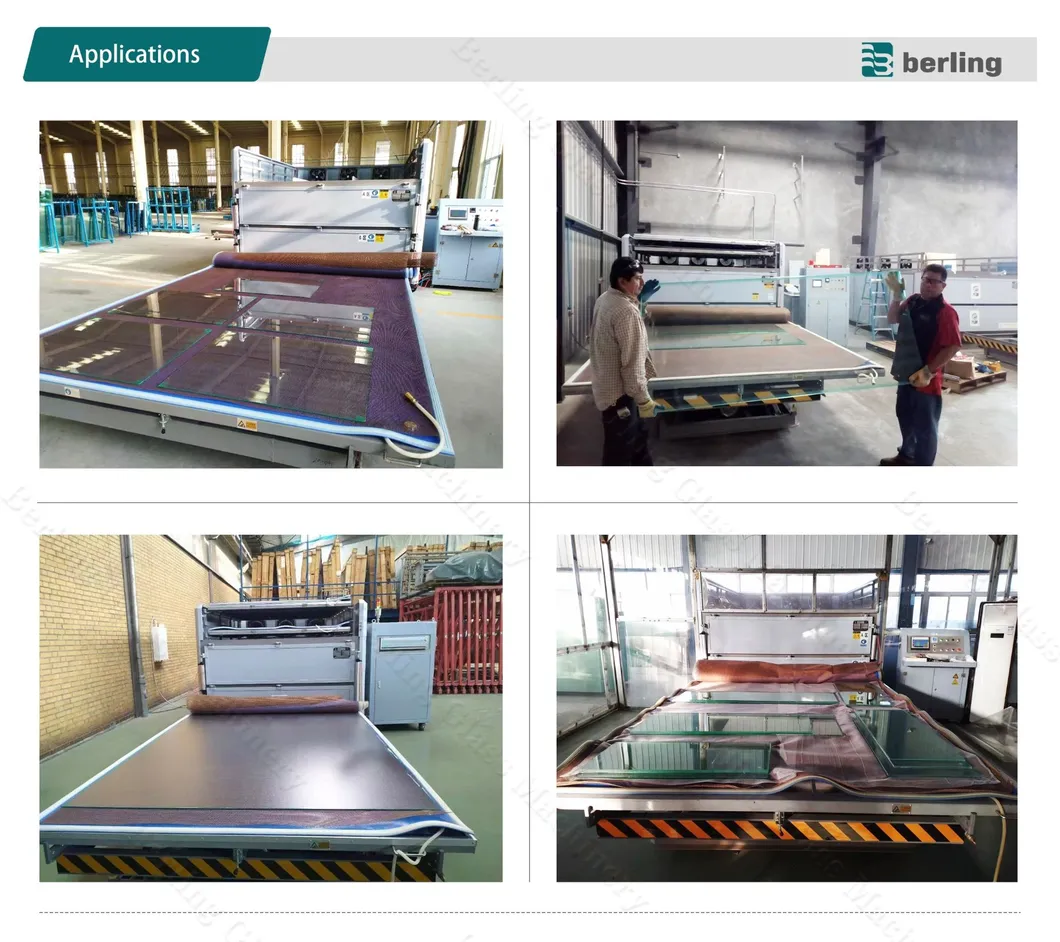

Application Scope

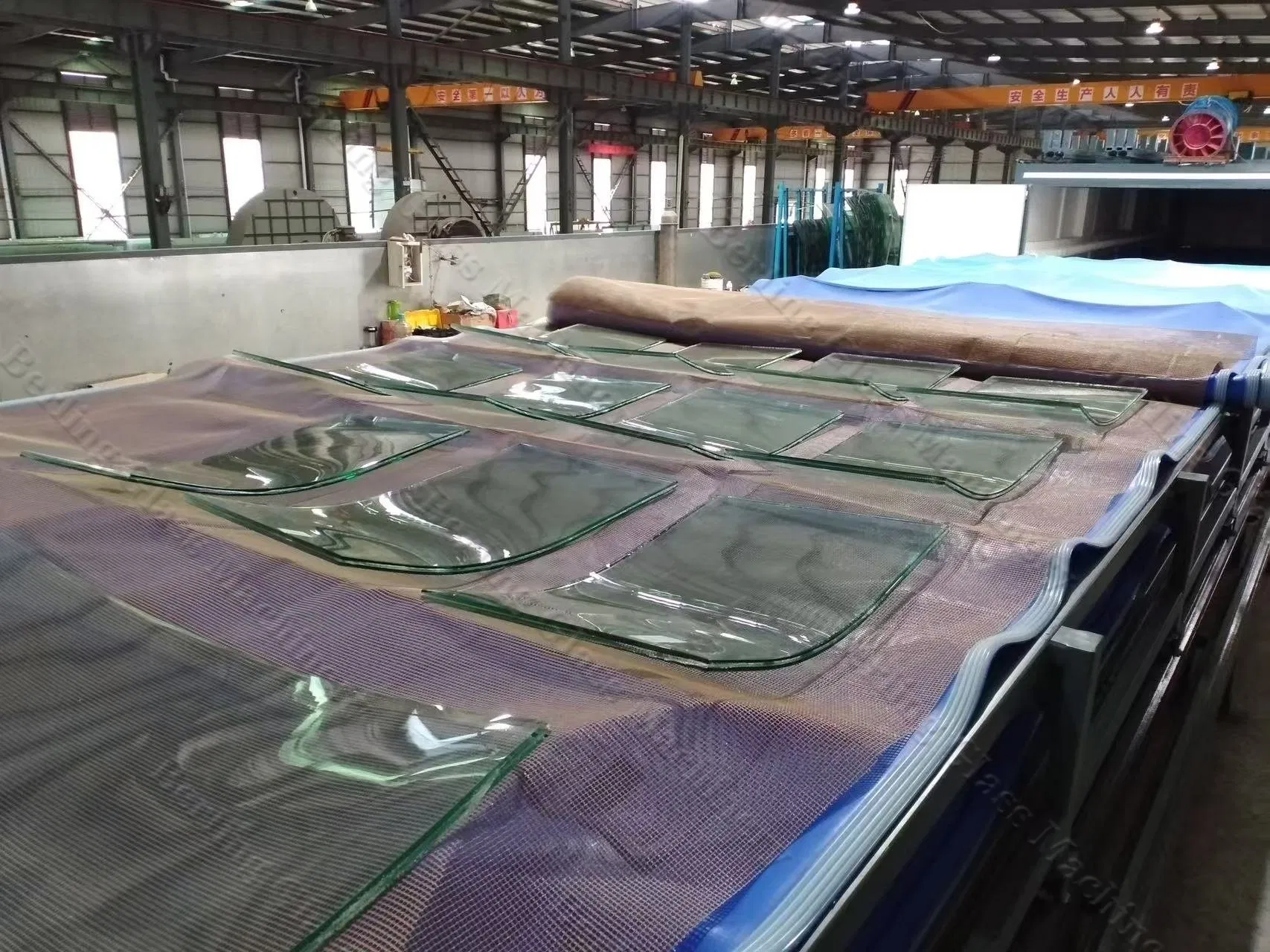

Laminated flat or curved glass
Toughened laminated safety glass
Decorative colored laminated glass
One-way perspective and dimming glass
Marble rock composite panels
Bulletproof and explosion-proof glass
Acrylic plate lamination
Art glass (printed, wired, textured)

Certifications & Production

Frequently Asked Questions

1. What types of glass can this furnace process?

This equipment is suitable for various glass types including flat, curved, toughened safety glass, decorative colored glass, bulletproof glass, and art glass with textures or prints.

2. How is the heating consistency ensured?

The machine uses a fin-type internal air circulation system which ensures fast and even temperature distribution across all layers.

3. What films are compatible with this laminating machine?

It is specifically designed for the thermal bonding of EVA or EN films between glass sheets for architectural and decorative use.

4. How is the quality of the machinery guaranteed?

Quality is maintained through a strict pre-production sample process and a comprehensive final inspection before shipment to ensure all systems are operating at peak performance.

5. What is the advantage of the PLC control system?

The intelligent PLC system provides programmable operations and precise temperature regulation, ensuring consistent bonding quality and reducing the risk of operator error.

6. What other machinery can be integrated with this production line?

Complete production capabilities can be achieved by integrating our glass cutting, washing, edging, and tempering machines to create a full processing workflow.
