Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace
Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace
Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace
Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace
Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace
1 / 5
Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace
Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace
Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace
Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace
Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace

Professional Laminated Machine Double Layer Glass Deep Processing Manufacture Furnace

Customization: Available
Certification: CE, FDA, ISO
Control System: PLC Control
Send Inquiry

Product Description

Basic Information
Model NO.
BL2SS-2030
Customized
Customized
Glass Thickness
8-40 mm
Max Glass Size
1900*2900mm
Silicone Bag Size
2000*3000mm
Overall Dimension
7800*2500*1590mm
Total Power
42kw
Power Supply
380V/50Hz
Process Time
40-100min
Silicone Bag Qty
2
Weight
2200kg
HS Code
84752919
Production Capacity
2000 Sets/ Year
Origin
China
Product Description

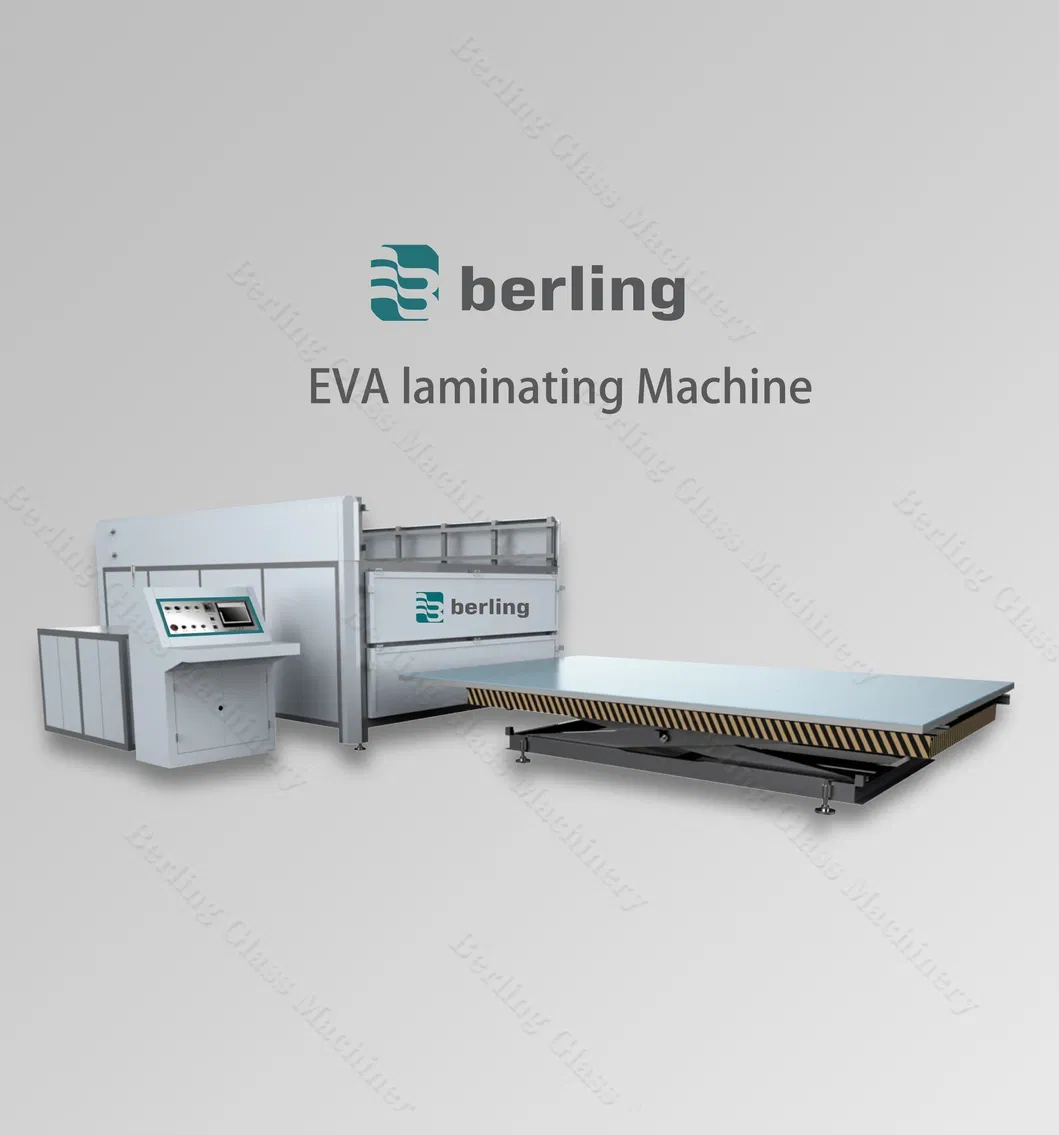

Product Description Image
Detailed Photos

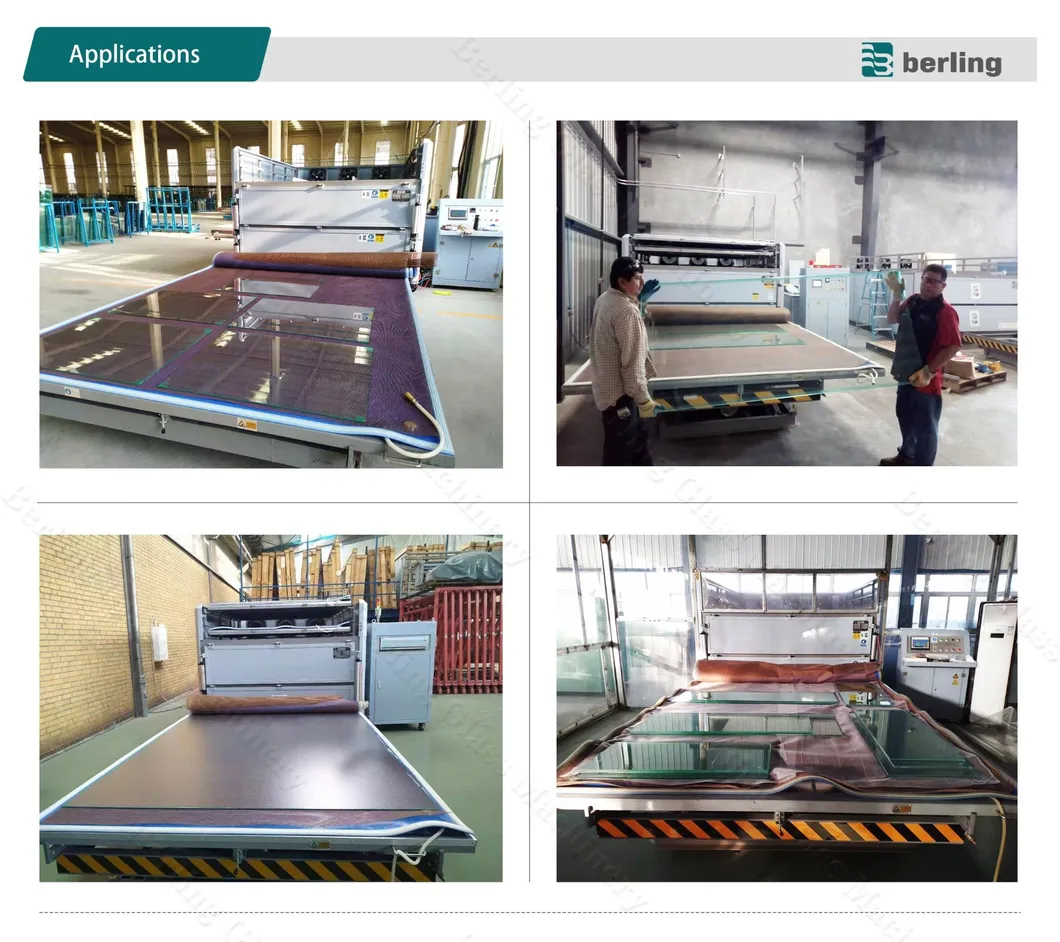

Detailed View 1 Detailed View 2
Our Advantages
Our Advantages

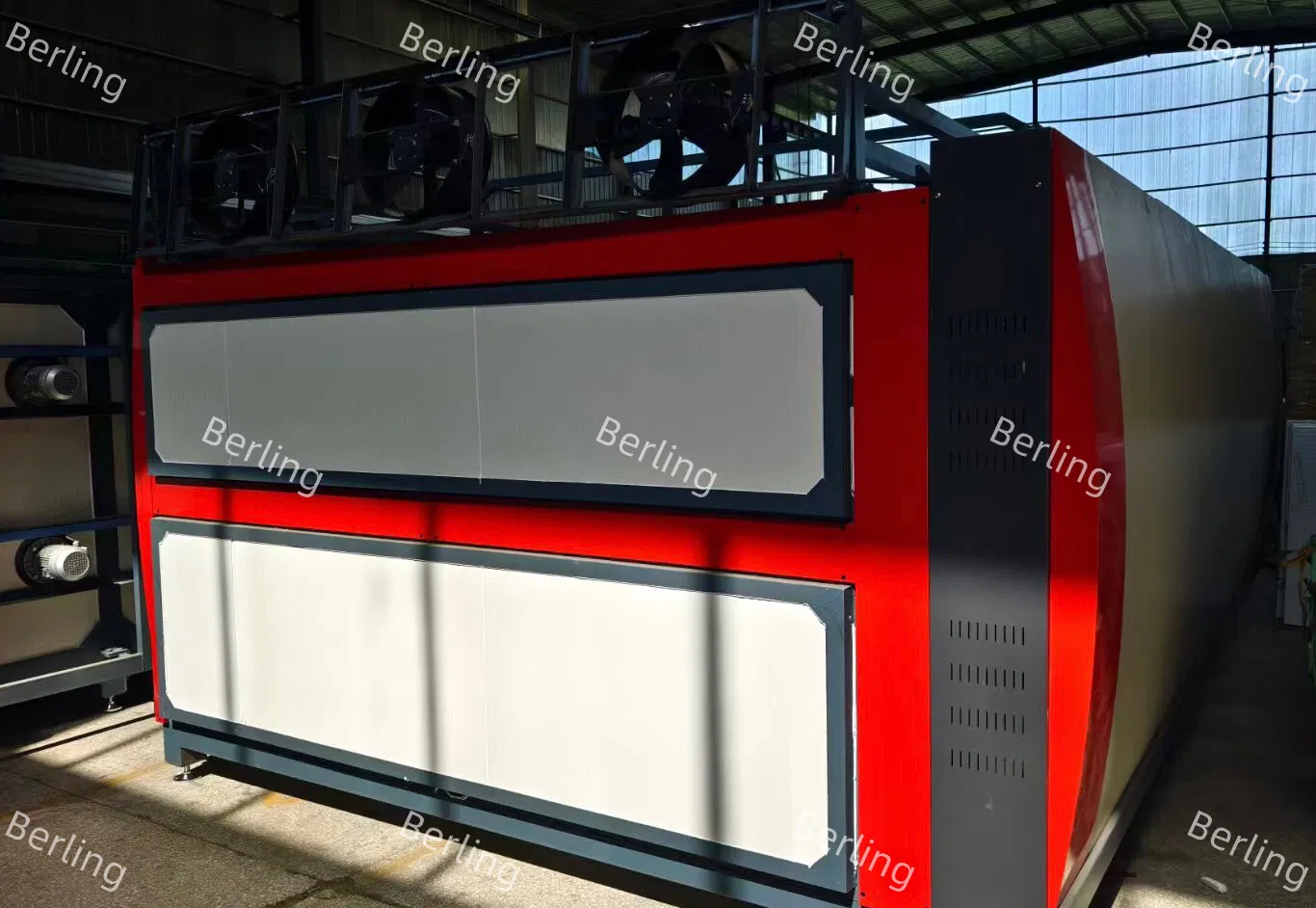

1. Furnace body Adopts newest custom encryption composite board as its insulation layer, can improve mechanical strength and thermal insulation performance.
2. Heating element Adopts 304 stainless steel heating tube, have longer service life, heating fast and equally.
3. Heating wiring All the heating wiring is connected outside the furnace, avoiding thread damage caused by high temperature.
4. Turbo blower Circulating heat glass ensures uniform heat and improves the overall yield.
5. PLC Computer control system Full automatic PLC control system, easy to operate via touch screen parameters.

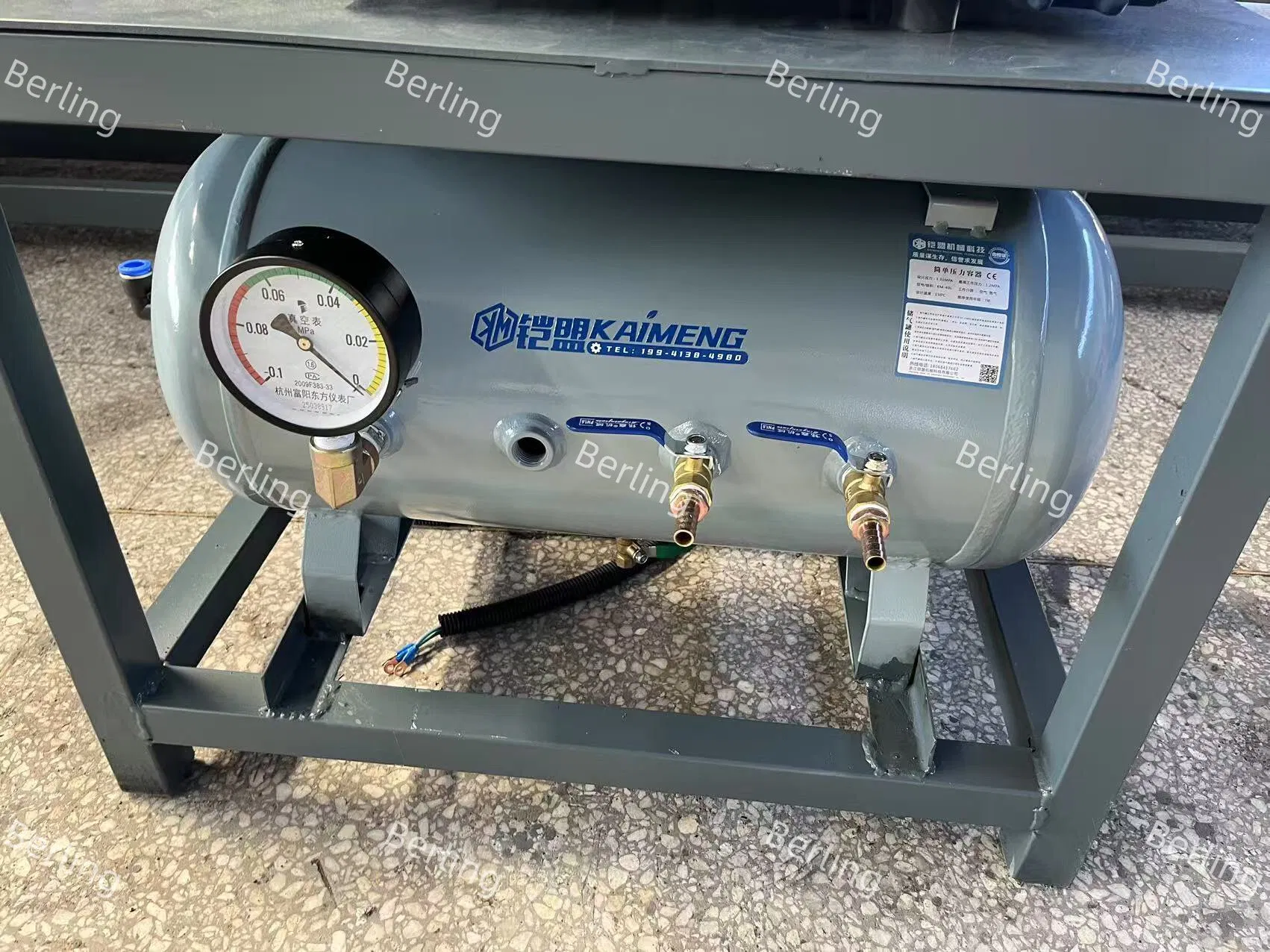

6. Vacuum pump Connected with buffer irrigation to ensure vacuum even during sudden power failure.
7. Silicone bag 3 mm thickness, heat resistant up to 180 degrees with high tear and aging resistance for high vacuum rates.
Product Parameters
Items Spec. Power Supply Total Power(KW) Silicone bag size(MM) Max Glass Size(MM) Overall Dimension(MM) Silicone bag Qty
BL2SS-2030single station, 2 layers380V/50HZ272000*30001900*29007800*2500*15902
BL4DD-2030double stations, 4 layers380V/50HZ272000*30001900*290012200*2500*15904
BL2SS-2638single station, 2 layers380V/50HZ422600*38002500*37009400*3100*15902
BL4DS-2638double stations, 4 layers380V/50HZ422600*38002500*370014600*3100*15904
BL2SS-2642single station, 2 layers380V/50HZ422600*42002500*410010200*3100*15902
BL4DS-2642double stations, 4 layers380V/50HZ422600*42002500*410015800*3100*15904
Packaging & Shipping
Packaging
Certifications
Certification 1 Certification 2
Frequently Asked Questions
How is the quality of the glass processing machines guaranteed?
Quality is maintained through pre-production samples before bulk manufacturing and a strict final inspection process before every shipment.
What types of glass machinery do you offer?
Our range includes EVA/PVB Laminated Glass Lines, Insulated Glass Lines, Cutting, Washing, Edging machines, Tempering Furnaces, and various consumables like EVA/PVB films.
What are the core technical advantages of your equipment?
Our machines feature 304 stainless steel heating tubes, high-efficiency turbo blowers for uniform heat, PLC automatic control, and high-tear resistance silicone bags for superior sealing.
What payment and delivery terms are available?
We accept various delivery terms including FOB, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, and PayPal in currencies like USD and EUR.
Do you provide after-sales support?
Yes, we have a professional after-sales service team and an excellent engineering team with over 20 years of experience to support our global customers.
Can the equipment be customized to specific glass sizes?
Yes, our equipment supports customization for different glass thicknesses (8-40 mm) and various maximum glass dimensions as specified in our product parameters.
