Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable
Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable
Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable
Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable
Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable
1 / 5
Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable
Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable
Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable
Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable
Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable

Top Quality Air Float Moving Float Glass Shaped Glass Tilting Cutting Breaking Rotating Fliptable

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
WND-4224
Height
1000mm
Compressed Air
0.6MPa
Machine Weight
1000kgs
Color
Black
Key Selling Points
Easy to Operate, Automatic, High-Accuracy
Core Component
Pressure Vessel, Motor, Gear, PLC, Pump, Engine
Type
Glass Cutting Machine
Structure
Vertical
Control System
PLC
Condition
New
Warranty
1 Year
Production Capacity
60 set / Quarter
Origin
China
Product Description
Intelligent Manufacturing and Efficient Solutions For Insulating Glass

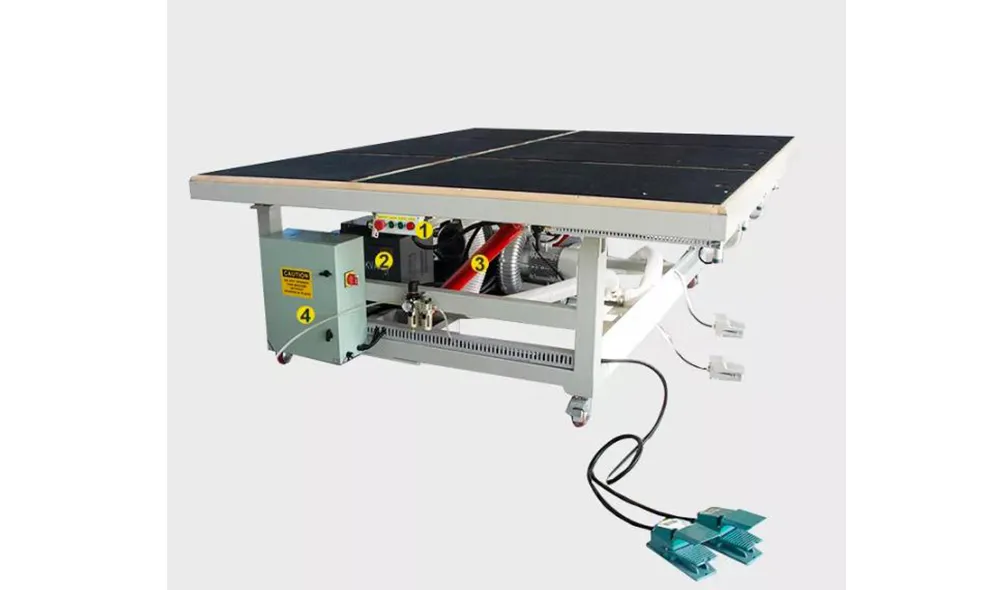

Automatic Shaped Glass Cutting and Breaking Line
◈
Manual operating on X and Y axes by using breaking bridge and head
◈

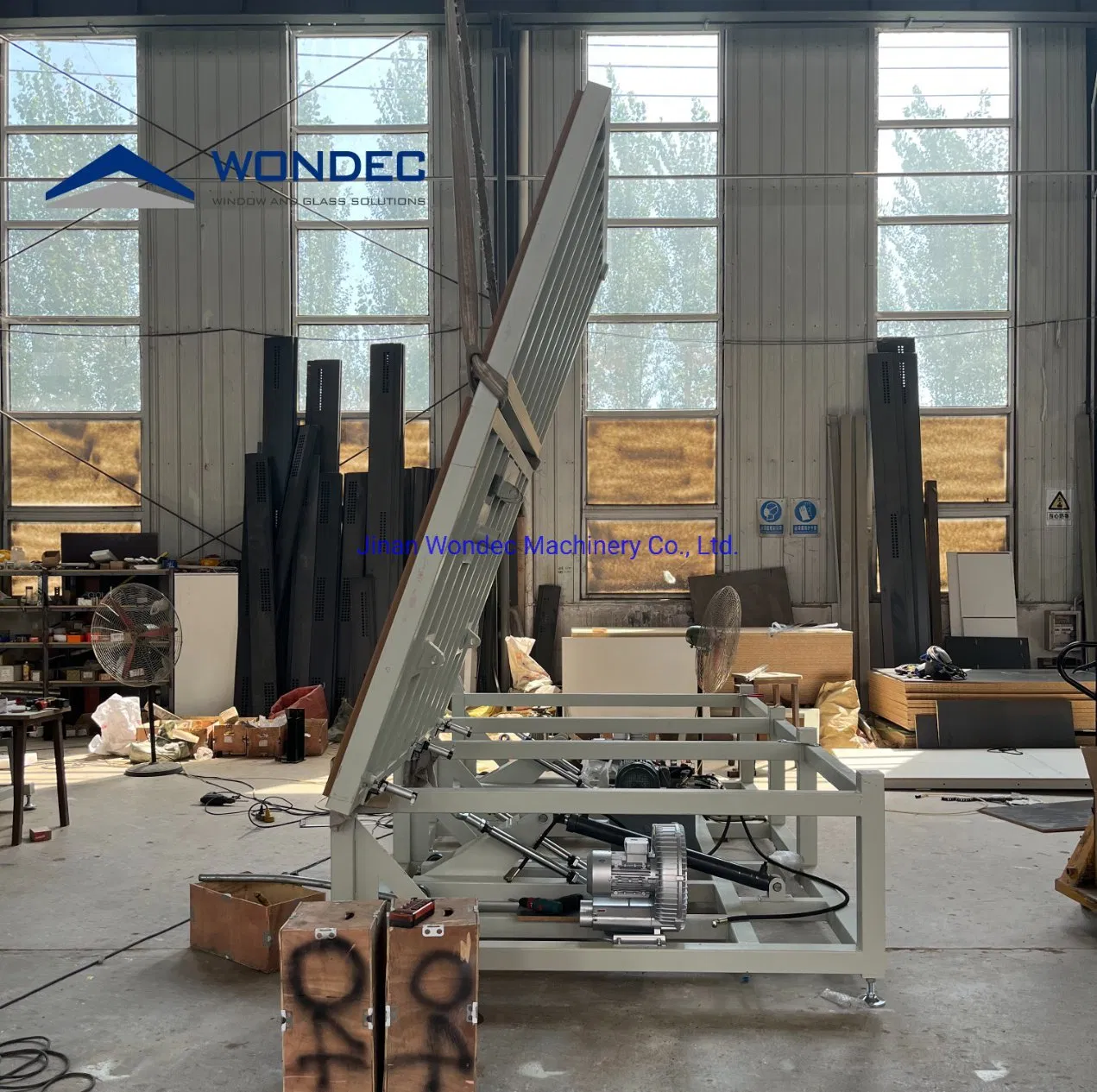

Hydraulic system helps on getting table vertically for safely and easily loading glass sheet
◈

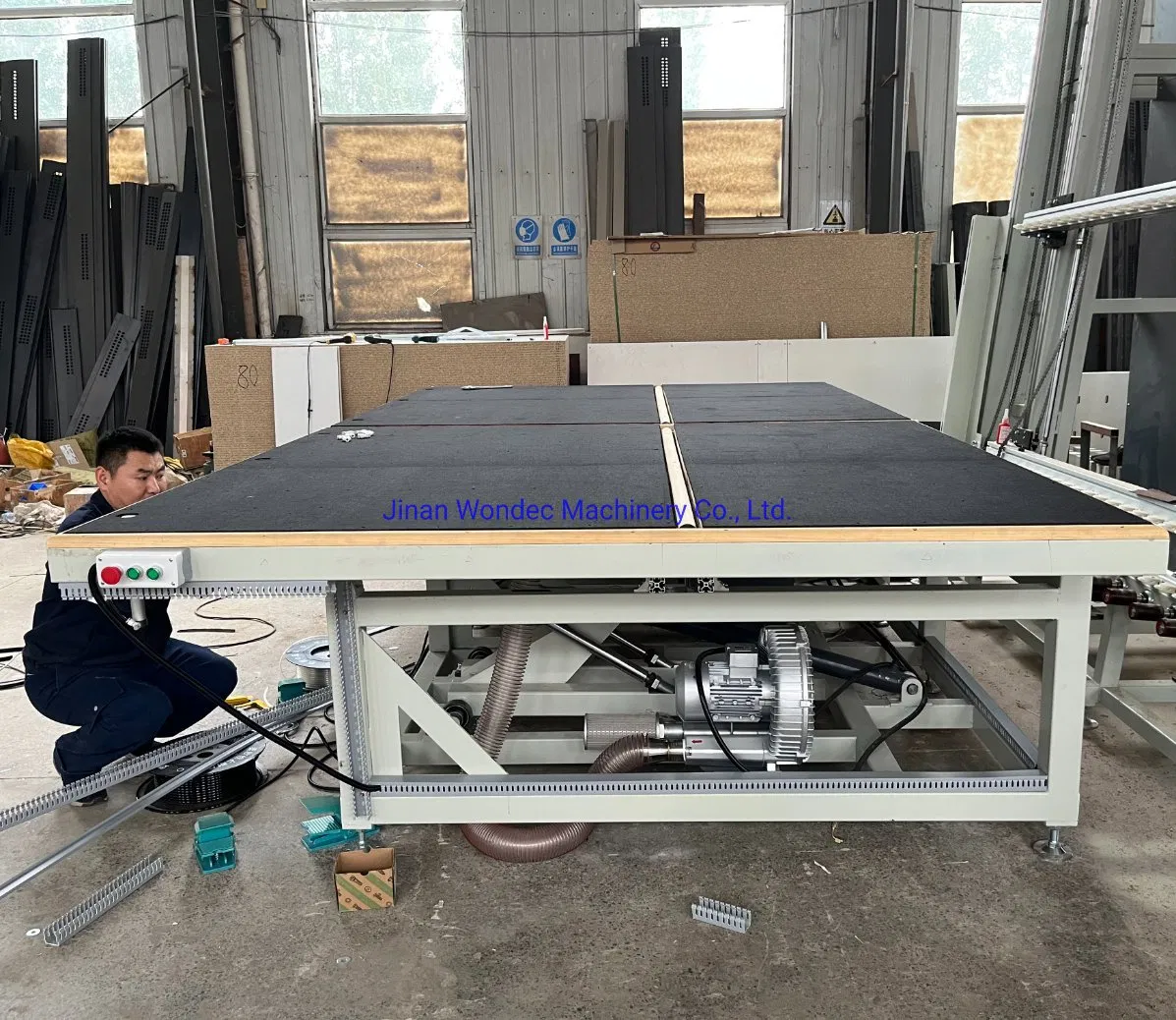

Air cushion system provides easily move glass sheet on table by hand
◈
Cutted glass pieces can be separated by pneumatic breaking bars

CNC Glass Breaking Machine Features:

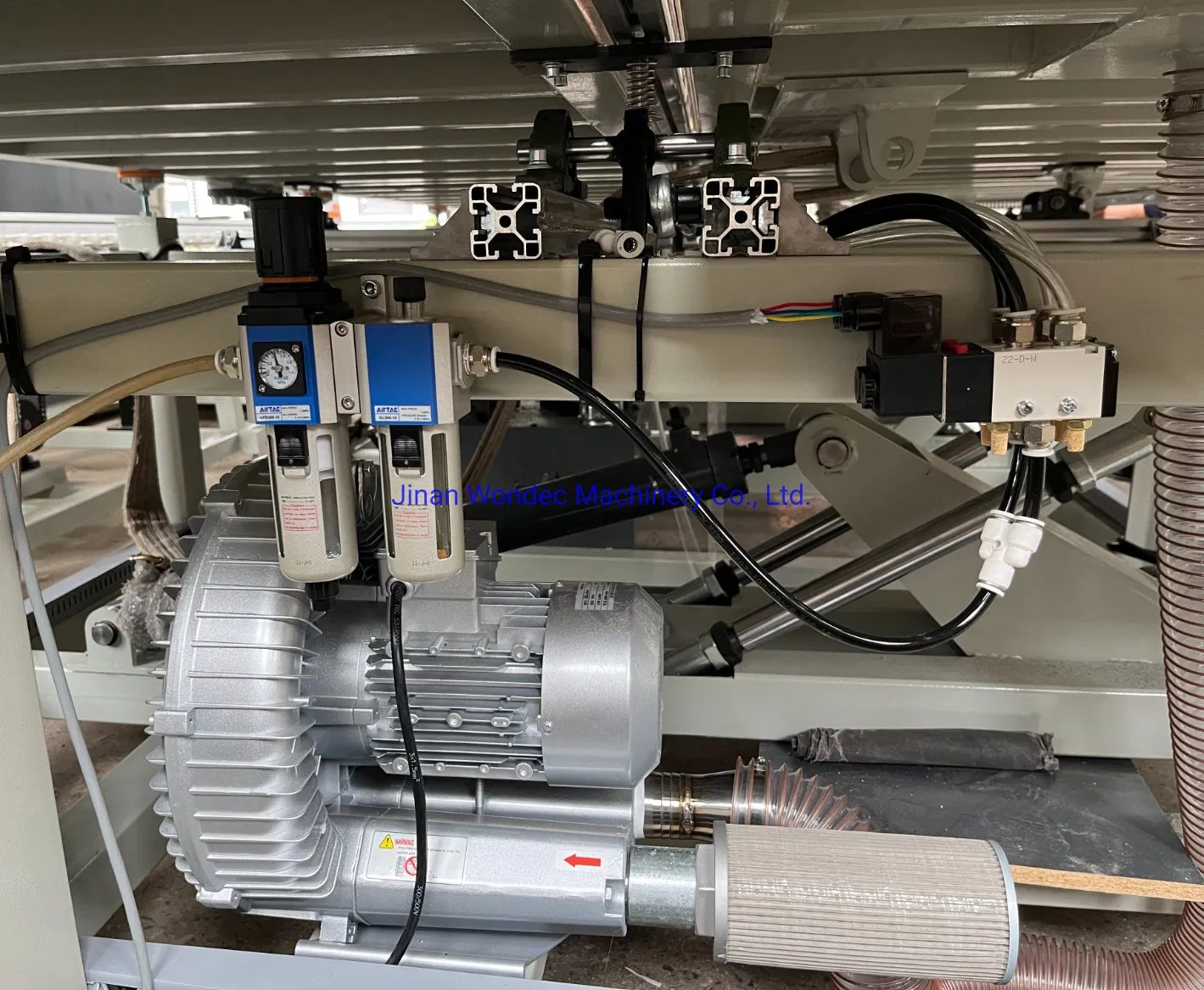

  1. Working surface equipped with air floating blower system for easy shifting movement.
  2. Hydraulically operated tilting table for stable ascending/descending with safety pinions.
  3. Pneumatically controlled X and Y breaking bars activated by foot pedal for large size cutting.
Detailed Photos

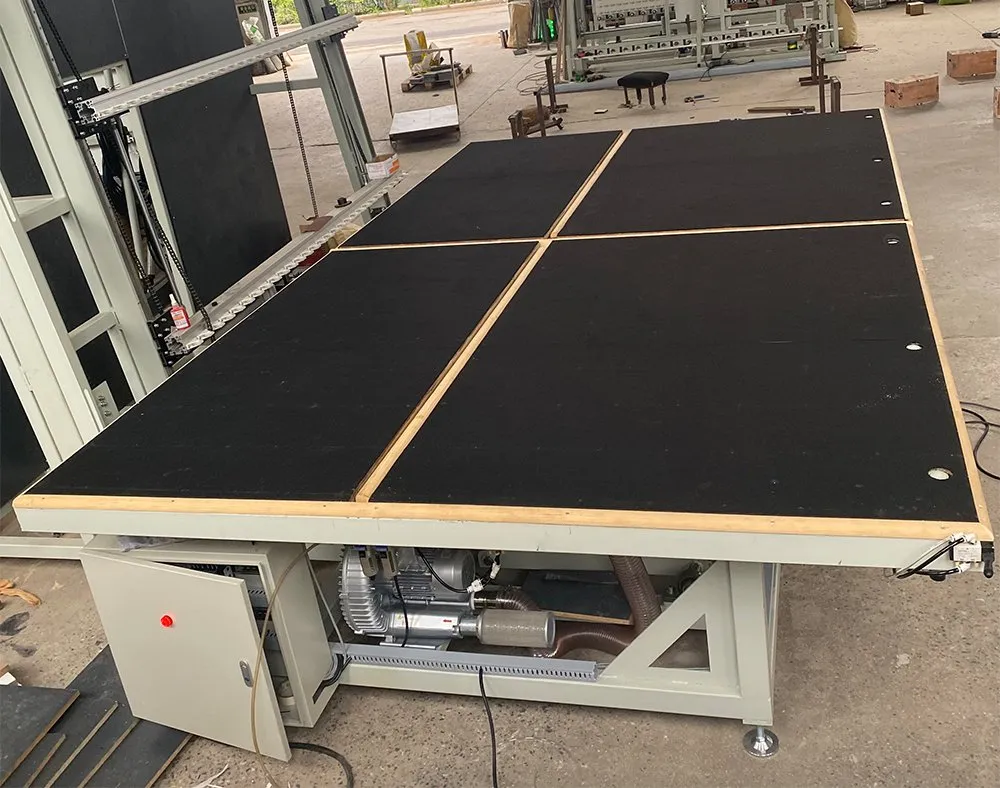

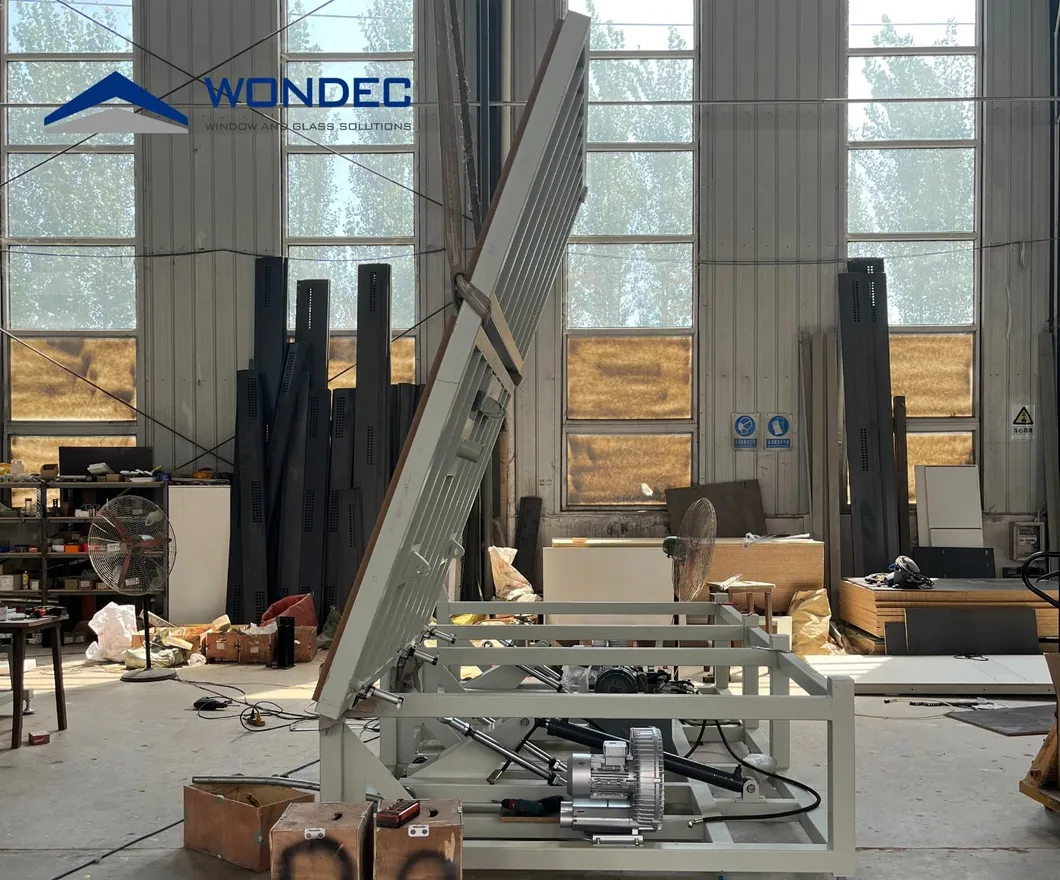

Detail 1 Detail 2

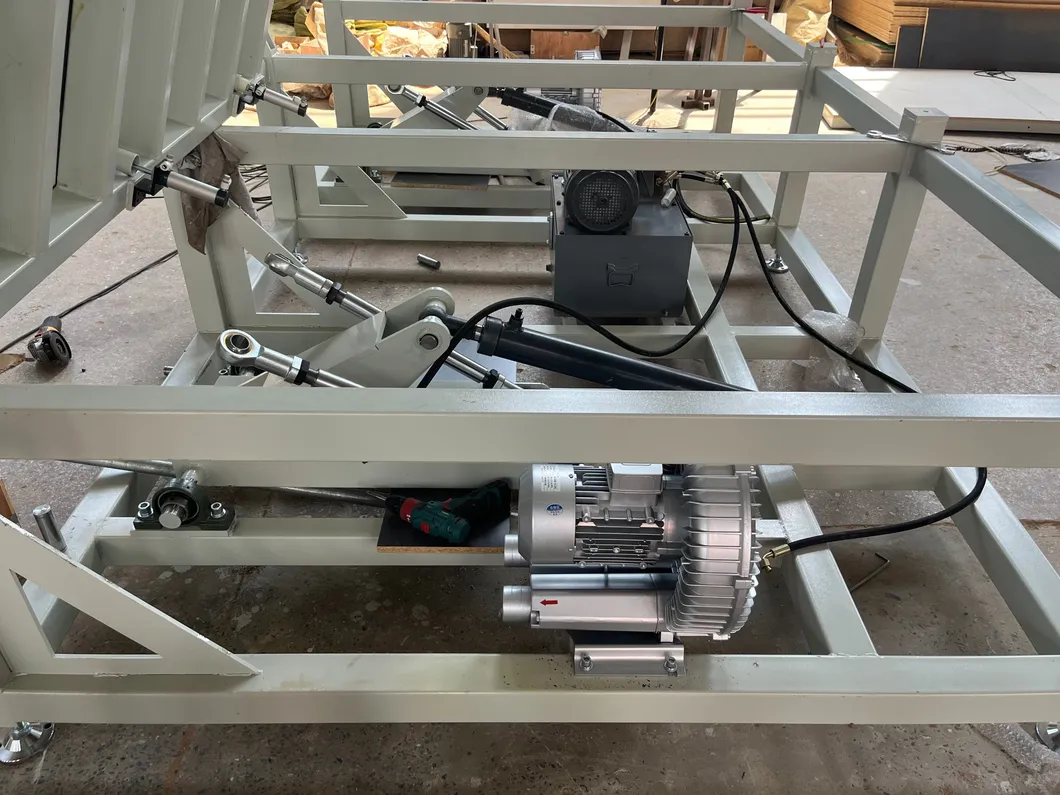

Detail 3 Detail 4 Detail 5
Product Parameters
Parameter Item Specification Details
Voltage380V 50Hz
Total Power4 kw
Max Glass Size4200*2400mm
Loading Speed50-60 sec./piece
Processing Glass Thickness3-19mm
Outer Size4200*2400*1000mm
Height1000+/-20mm
Weight1000kg
Packaging & Shipping
Packaging and Shipping
Service Solutions
📋
Pre-sales Layout: Custom equipment footprint based on your building floor plan or sketch.
⚙️
Technical Drawings: Professional technical drawings provided based on the equipment layout.
🛠️
Installation & Training: Global equipment installation, debugging, and personnel training services.
🔄
After-sales Support: One-year warranty and lifetime technical service with weekly production reports during manufacture.
Service Support
Exhibitions & Why Choose Us
Exhibition Why Choose Us 1 Why Choose Us 2
Frequently Asked Questions
Which countries are your products exported to?
Our equipment has been exported to 50 countries and regions, including South America, South Africa, India, Turkey, Canada, Russia, and various European countries.
How do we operate the glass processing machinery?
We provide comprehensive paper instructions in English and offer hands-on training until your operators are proficient in using the machine.
What is your quality control process?
The entire production procedure undergoes regular inspection and strict quality control. Every component is inspected, and the complete machine is tested before leaving the factory. Testing videos and pictures are available before delivery.
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 10 years of experience in the glass processing machinery area, providing both machines and integrated solutions.
What happens if the machine has problems after purchase?
Free replacement parts are provided during the warranty period. We offer lifetime technical service and 24/7 support via phone, WhatsApp, and email.
Do you provide installation services in my country?
Yes, we can arrange for engineers to install the machinery at your factory and provide on-site training for your personnel.
