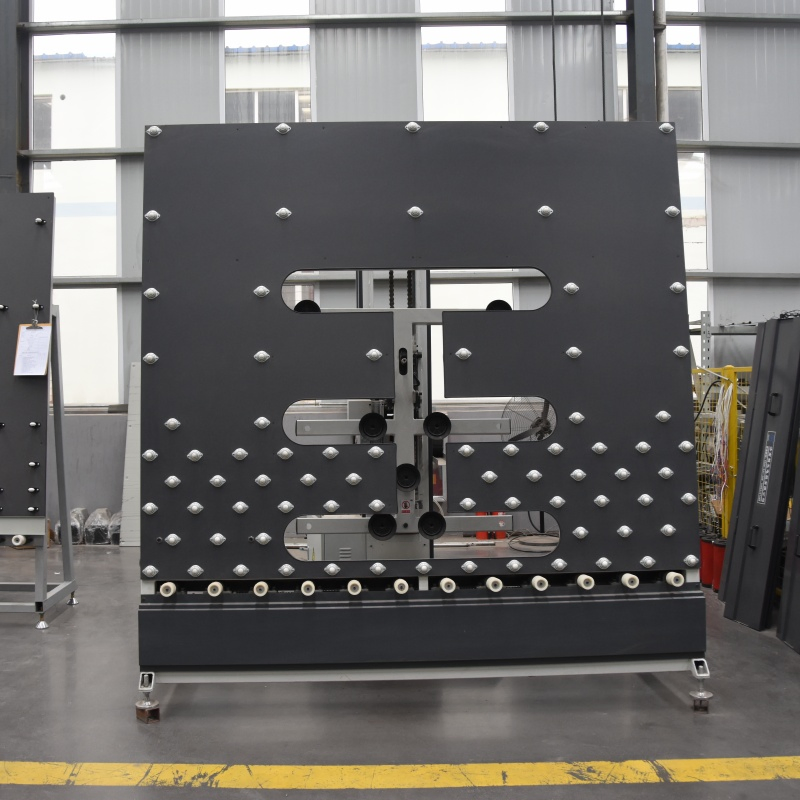

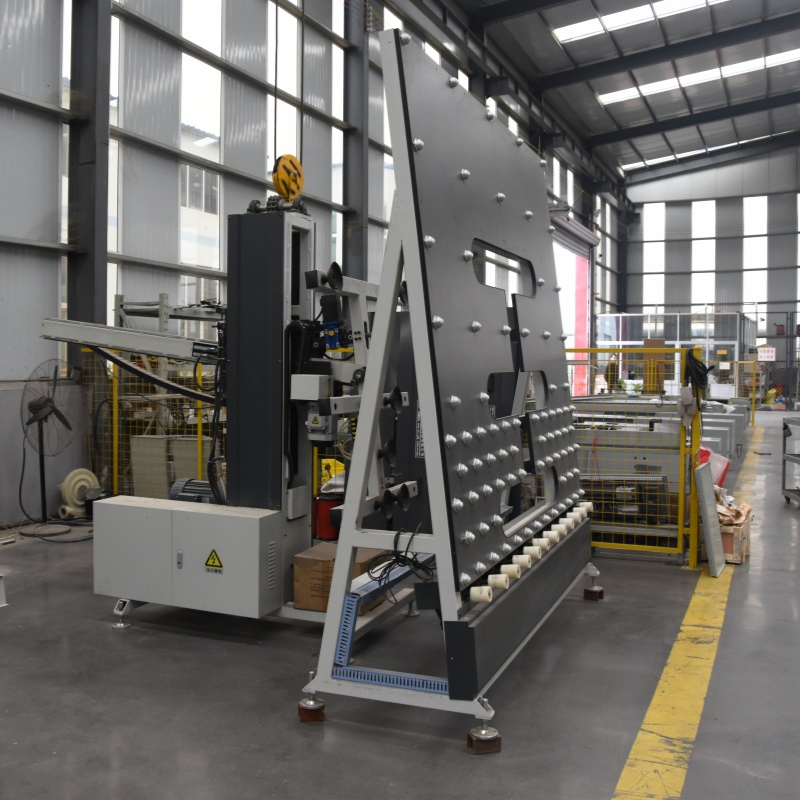

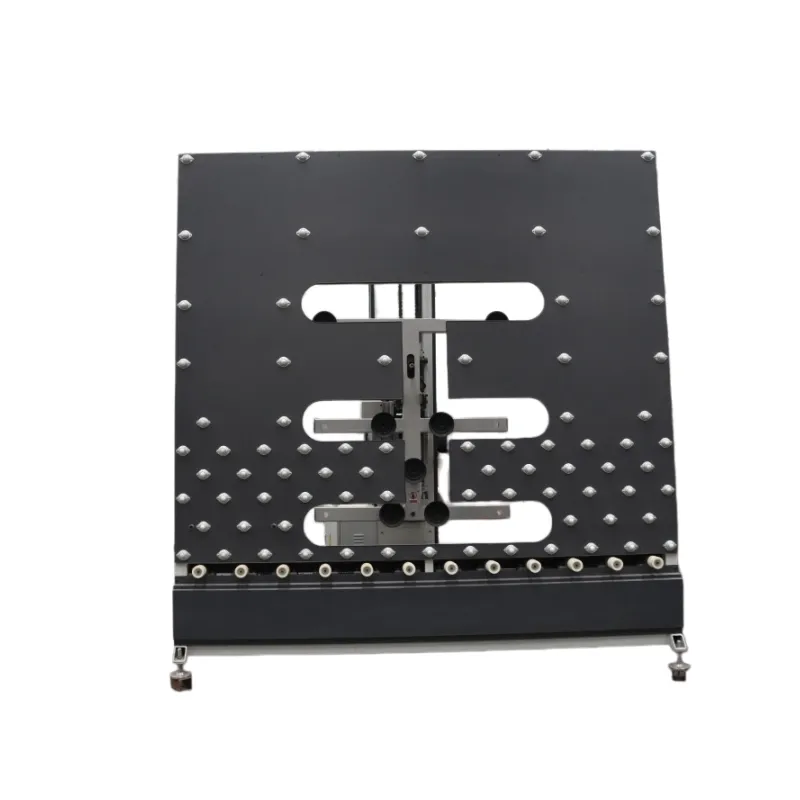

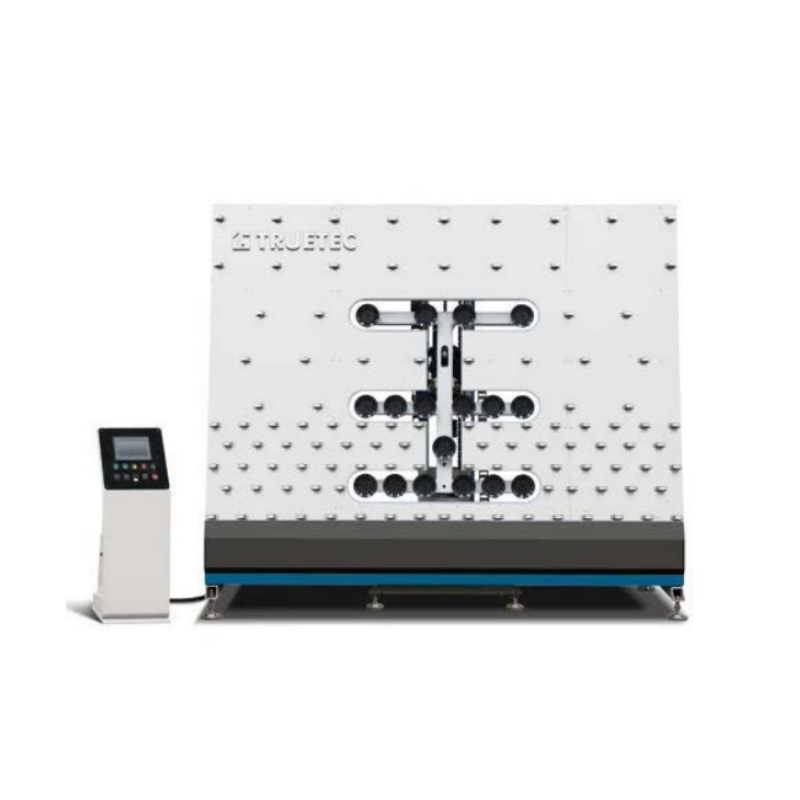

Sealed Unit Assembly Vertical Automatic Loading Machine
Sealed Unit Assembly Vertical Automatic Loading Machine
Sealed Unit Assembly Vertical Automatic Loading Machine
Sealed Unit Assembly Vertical Automatic Loading Machine
Sealed Unit Assembly Vertical Automatic Loading Machine
1 / 5
Sealed Unit Assembly Vertical Automatic Loading Machine
Sealed Unit Assembly Vertical Automatic Loading Machine
Sealed Unit Assembly Vertical Automatic Loading Machine
Sealed Unit Assembly Vertical Automatic Loading Machine
Sealed Unit Assembly Vertical Automatic Loading Machine

Sealed Unit Assembly Vertical Automatic Loading Machine

Customization: Available
After-sales Service: 12 Month
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
JYX-2025
Condition
New
Certification
CE
Automatic Grade
Automatic
Voltage
380V
Input Power
28kw
Air Pressure
0.5-0.8MPa
Max. Processing Size
2000*2500mm
Min. Processing Size
400*400mm
Glass Thickness
3-12mm
Transfer Speed
14-23s/P
Weight
5000kg
★

Vertical Automatic Loading Machine

Sealed Unit Assembly Vertical Automatic Loading Machine
"IT'S THE BEST THAT FITS MOST."
L

Key Features

  • Flip mode: Adopts advanced servo motor for stable flipping at any angle, suitable for 3-10mm insulating glass.
  • Film loading angle: Adjustable from 0 to 15 degrees to match various glass shelf angles.
  • Film suction depth: Reaches up to 900mm depth directly from the glass frame.
  • Induction device: International brand Autonics photoelectric induction to ensure safety.

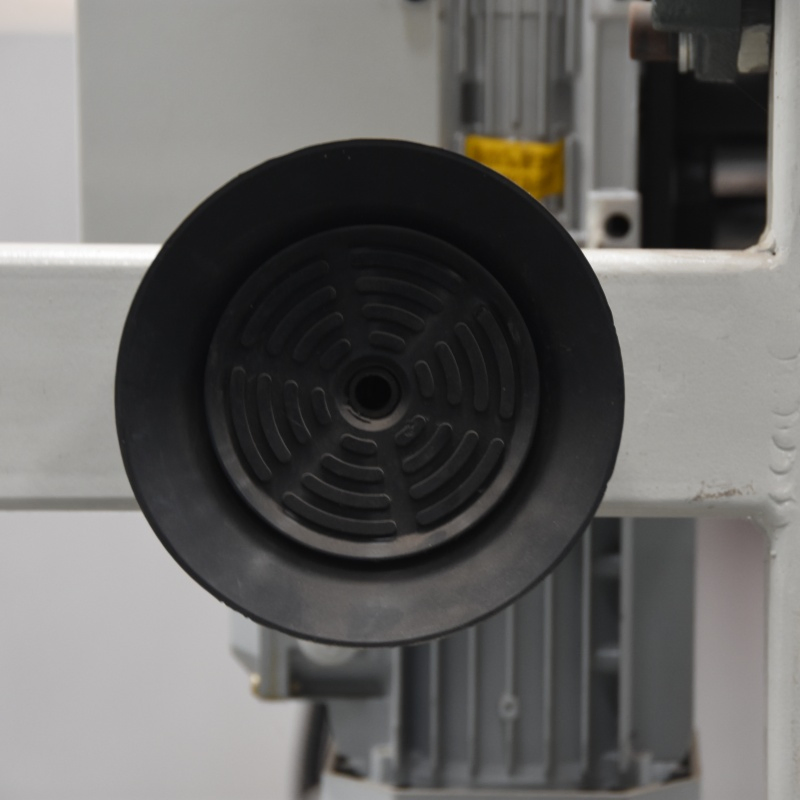

  • Adsorption device: Double-layer suction cup structure (inner and outer) eliminates air leakage defects.
  • Suction cup control: Intelligent selection via display screen to match various glass sizes.
  • Lifting device: Unique program to prevent glass breakage during operation.
  • Operation mode: Supports both automatic and manual modes.
  • Interface: Color LCD touch screen with multi-language display module.
  • Protection device: Proximity sensors and emergency stop switches to prevent collisions.
P

Technical Parameters

ModelJYX-2025
Max. size2000*2500mm
Min. size400*400mm
Thickness of glass3-12mm / 10-55mm
Speed10-20s/p / 15-25s/p
Transmit elevation height470±100mm
D

Machine Details & Production

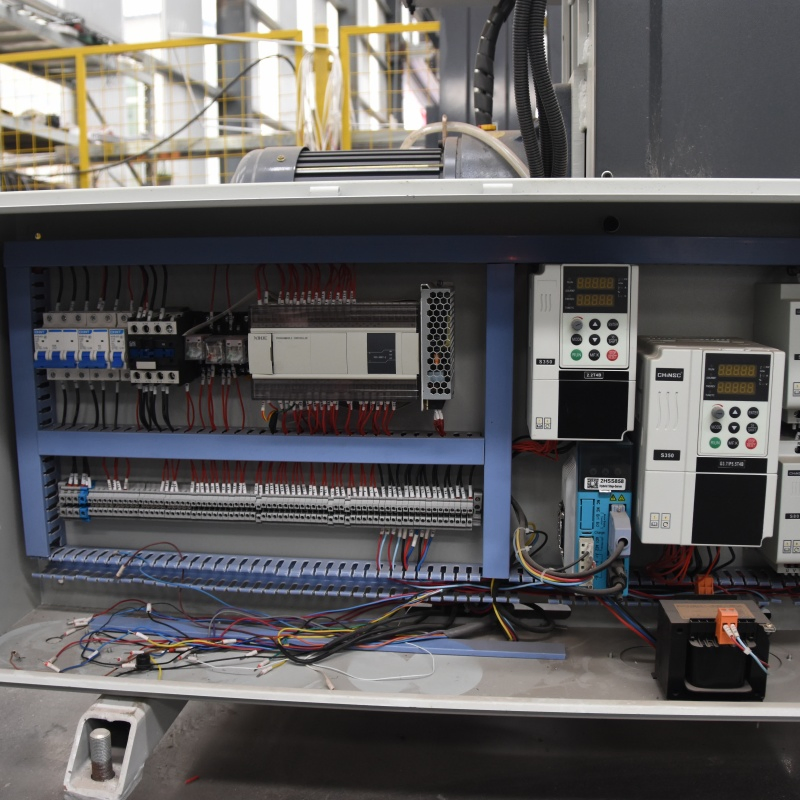

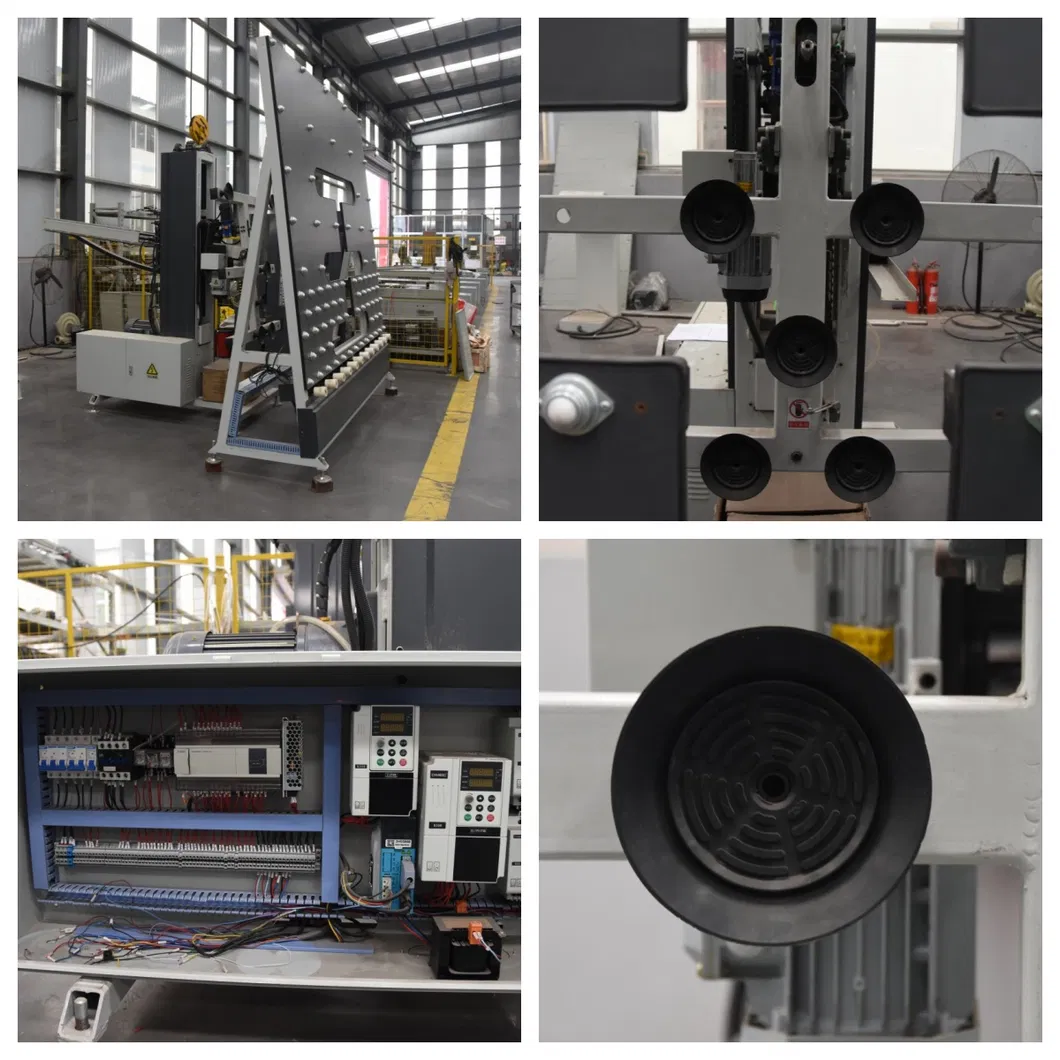

Machine Details
Detail 1
Detail 2
Detail 3
Detail 4

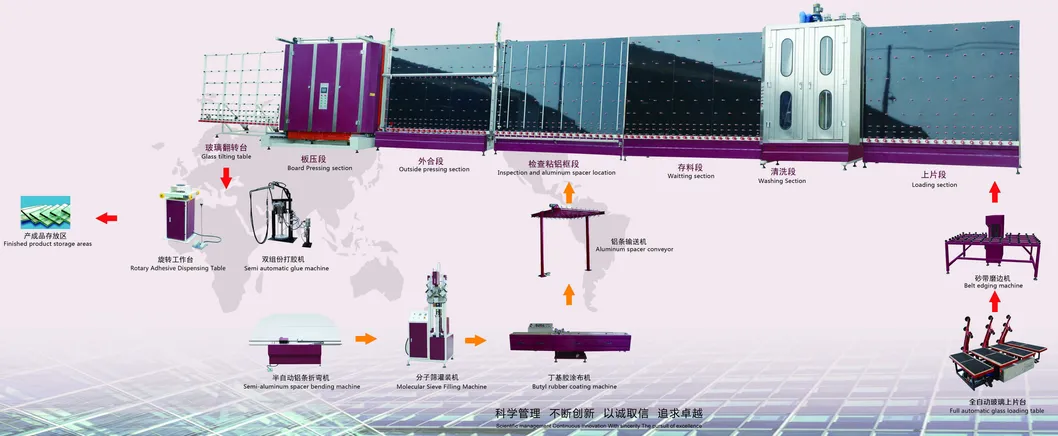

Insulating glass production line
Separator
?

Frequently Asked Questions

When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines may require more than 25 days.
What can you do if the machines have problems?
We can send free components if the machine is within the guarantee period, or dispatch engineers to repair your machines.
Do you provide equipment operation training?
Yes. We send professional engineers to the working site for installation, adjustment, and operation training. All our engineers have passports.
What is the maximum glass size this machine can process?
The maximum processing glass size for the JYX-2025 model is 2000*2500mm.
What glass thickness is compatible with the loading machine?
It supports single glass thickness ranging from 3mm to 12mm, with extended capabilities for 10-55mm.
Is the machine color customizable?
Yes, the machine color can be customized according to your specific requirements.
