3750* 1300 * 2500mm 800kg Sealing Robot for Insulating Glass Double Glazing Machine

Customization:	Available
Loading Capacity:	300-600kgs
Manual Rotation:	360 Dedrees

Send Inquiry

Product Description

Basic Info.

Lifting Range

3500mm

Manipulation

Walkie Type

Glass Size

3660*2440mm

Sucker Diameter

300mm

Transport Package

Plywood Box Package

Specification

2.6*1.05*1.8m

Trademark

N/A

Origin

China

HS Code

8428909090

Production Capacity

1000pieces/Year

Product Description

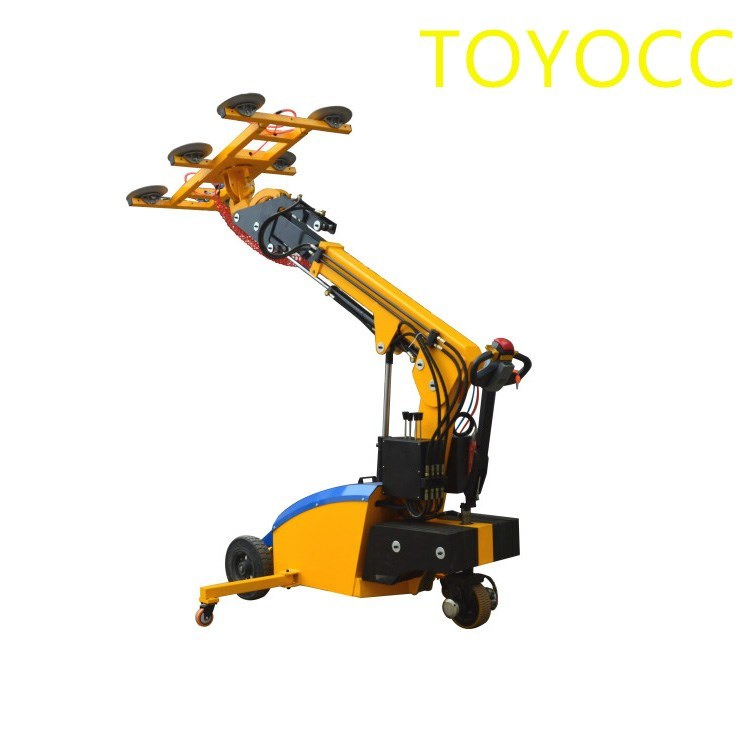

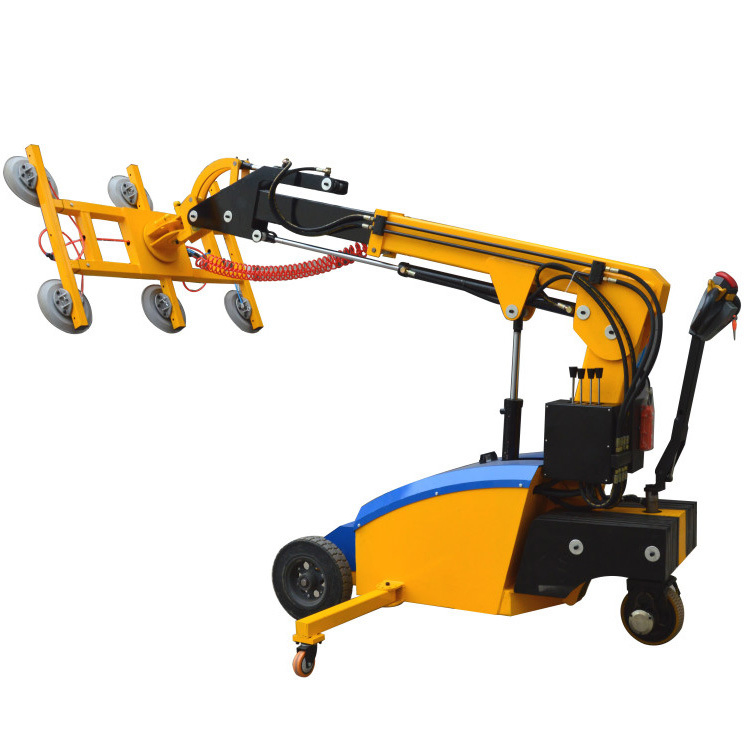

Battery Powered Glass Glazing Robot with CE Certificate

This machine is ideal for transport the delicate glass within company premises and on construction sites.

Specifications:

Electric Robot	Unit	Detailed info
Rated load capacity	kg	300	350	400	500	600
Manual rotating	deg	360	360	360	360	360
lifting height	mm	3500	3500	3500	3500	3500
Manipulation	/	Walkie Type	Walkie Type	Walkie Type	Walkie Type	Walkie Type
Battery	V/A	2x12/80	2x12/90	2x12/100	2x12/120	2x12/120
Charger	V/A	24/12	24/12	24/15	24/18	24/18
Drive motor	V/W	24/1200	24/1200	24/1200	24/1500	24/1500
Overall Width	mm	810	810	810	810	810
Overall Length	mm	2660	2660	2660	2800	2800

Why is it more competitive?

One multi-purpose machine can lift not only glass but also metal, building panels, granite.
Lightweight and extremely easy to operate.
Made from Q345 manganese steel material, square tube welding, safe and reliable.
With double system control mechanism, one vacuum system for working, and the other one for standby application.
Adopt THOMAS brand vacuum pump, Italy METALROTA heavy type driving wheels, Swiss BUCHER hydraulic power unit.
With 360 degrees rotation and 90 degrees turnover manually, allowing accurate and gentle glass picking.
Japanese PANASONIC digital display vacuum pressure switch and battery meter for safe monitoring.
Equipped with a 12V backup battery to ensure project progress.
An auto vacuum filling system ensures constant safe pressure and continuous operation.
Adjustable design: position of each suction cup can be changed, with separate control valves for different glass sizes.

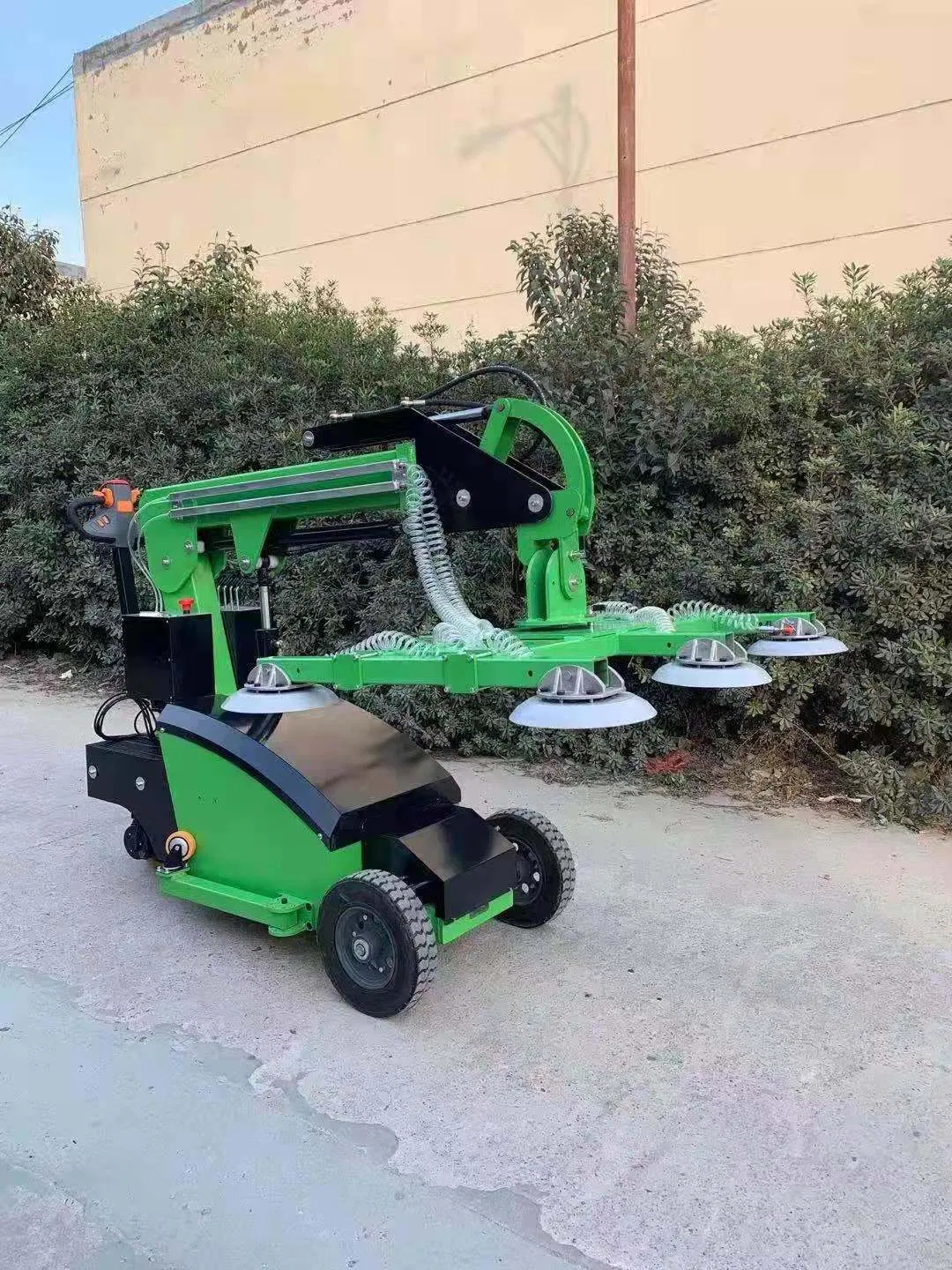

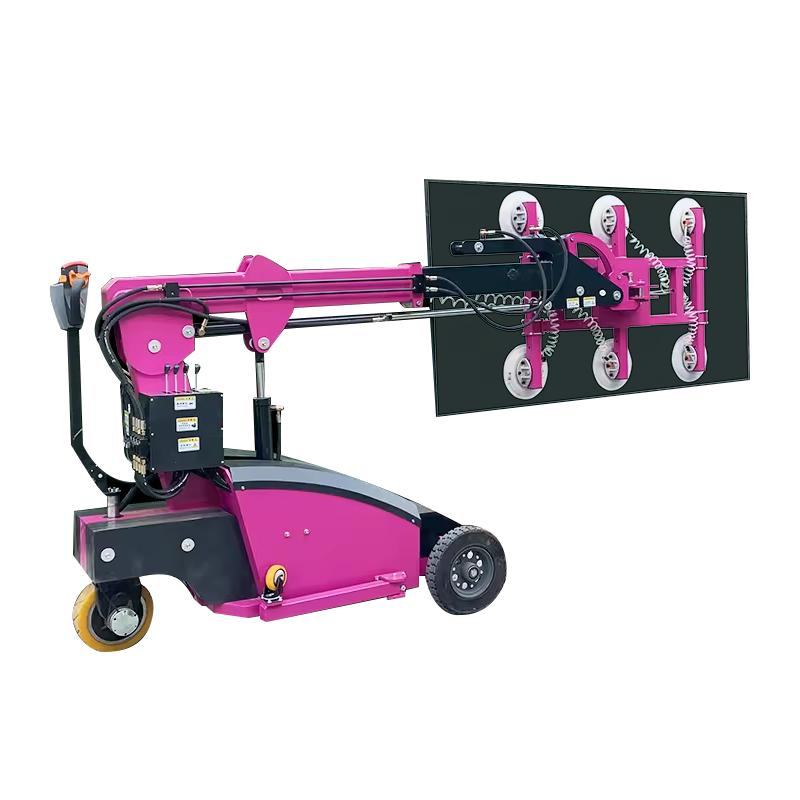

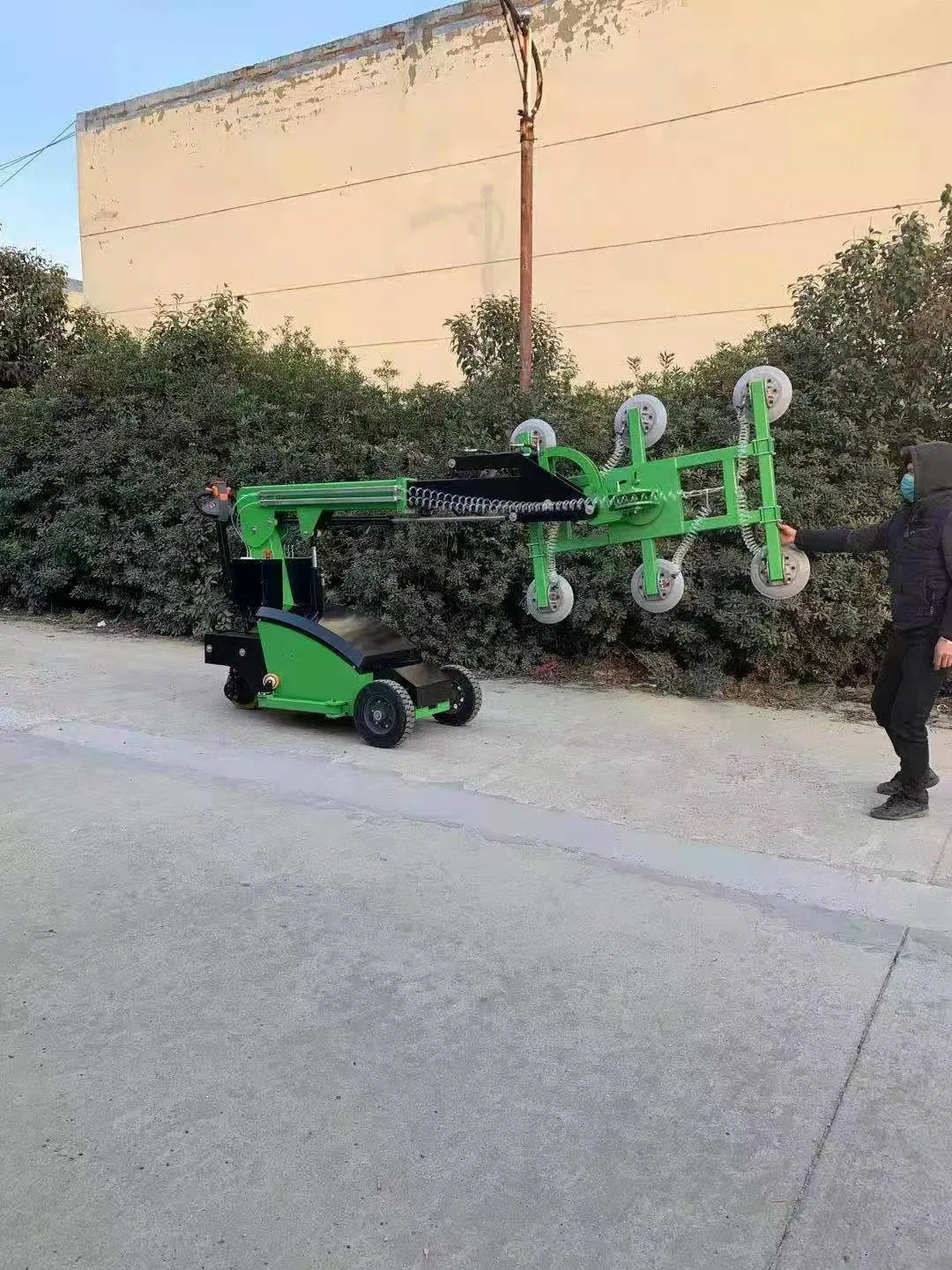

Detailed Pictures:

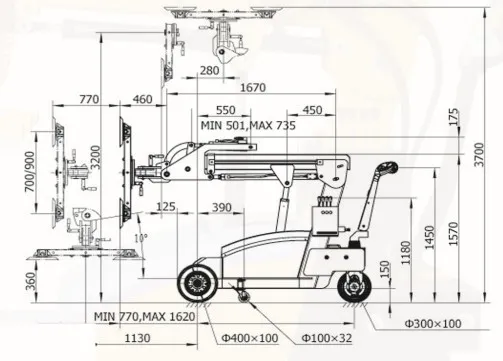

Dimension Drawing:

Quality Control:

Who are we?

Founded by two metal equipment manufacturing industry-leading companies in 2017, our team is specialized in glass making machines, systems, and tools for a wide variety of glass production, storage, and installation needs. With over 20 years' experience, not only can we manufacture the core products, but we also maintain long-term and trusty business partnerships with well-known suppliers both domestic and overseas.

We are able to provide one-stop sourcing services and solutions with high efficiency for global clients. We aim to assist you to save communication & negotiation cost with different factories, thus, further reducing the total procurement cost.

Other Related Products:

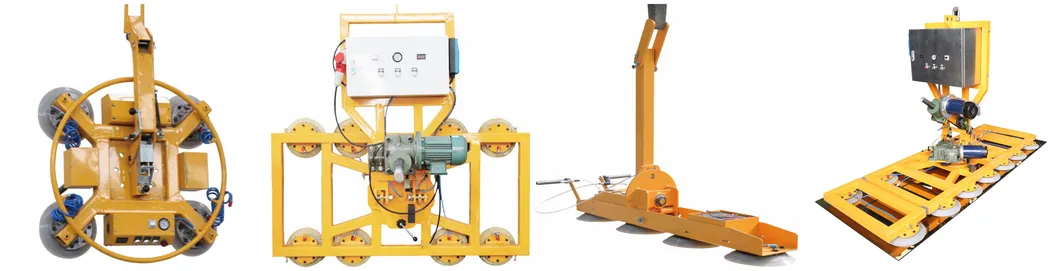

Electrical Vacuum Lifter

Pneumatic Vacuum Lifter

Frequently Asked Questions (FAQ)

What materials can this glass glazing robot handle?

It is a multi-purpose machine capable of lifting glass, metal plates, building panels, and granite stones.

What is the maximum lifting height and capacity?

The lifting height reaches up to 3500mm, with rated load capacities ranging from 300kg to 600kg depending on the model.

How does the safety system work?

The robot features a double vacuum system control mechanism. One system is for active working while the other serves as a standby for emergency backup.

Can it operate without an external power source?

Yes, it is equipped with high-quality maintenance-free batteries and an on-board charger, allowing it to move and operate freely on construction sites.

Is the suction cup configuration adjustable?

Yes, the position of each suction cup is adjustable, and each cup features a separate control valve to handle different sizes and shapes of glass.

What brands of core components are used?

We use premium international brands including THOMAS vacuum pumps, Swiss BUCHER hydraulic units, and Japanese PANASONIC pressure switches.
