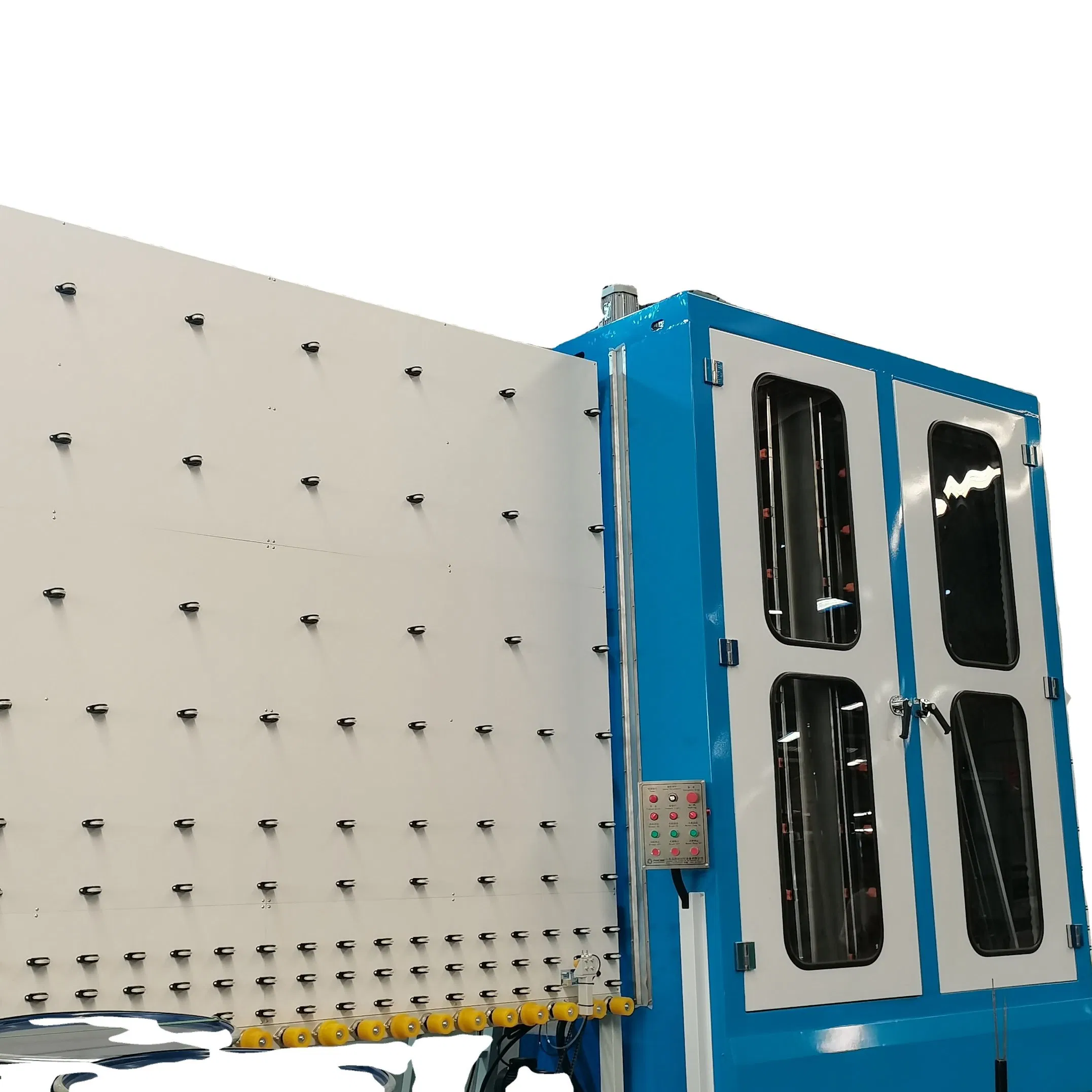

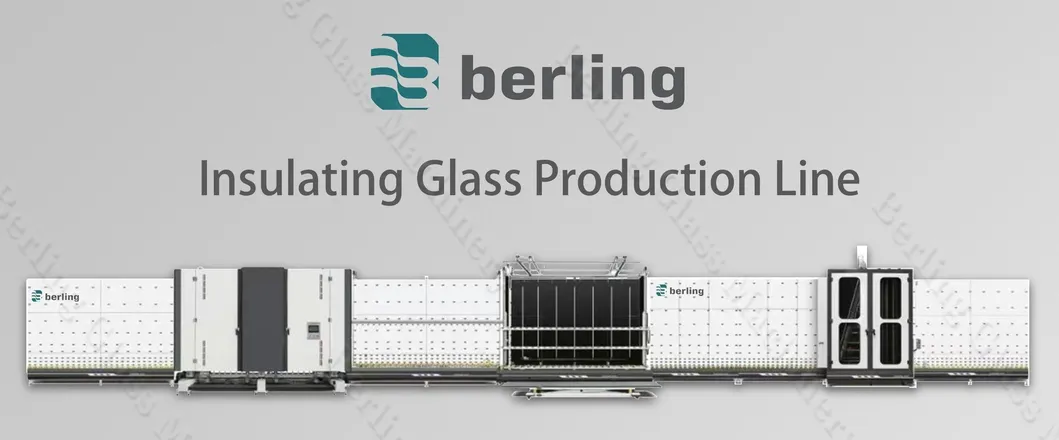

High-performance vertical insulating glass production lines designed for manufacturing double, triple, and structural glass units. These systems feature advanced PLC control, touchscreen operation, Low-E glass detection, gas filling, and servo-driven pressing for accurate and efficient processing.
| Item | BLBG-3060 | BLBG-2850 | BLBG-2540 | BLBG-2030 |
|---|---|---|---|---|
| Total power | 90KW | 70KW | 46KW | 36KW |
| Max glass size | 3000*6000mm | 2800*5000mm | 2500*4000mm | 2000*3000mm |
| Min glass size | 280*450mm | 280*450mm | 280*450mm | 280*450mm |
| Panel thickness | 3~30mm | 3~12mm | 3~12mm | 3~12mm |
| Max Unit thickness | 12~80mm | 12~80mm | 12~40mm | 12~40mm |
| Washing speed | 2-12m/min | 2-12m/min | 2-12m/min | 2-12m/min |
| Working Speed | 2-45m/min | 2-45m/min | 2-45m/min | 2-40m/min |
The line is designed for manufacturing double, triple, and structural glass units, and it includes specialized sensors to detect and safely process Low-E energy-saving glass.

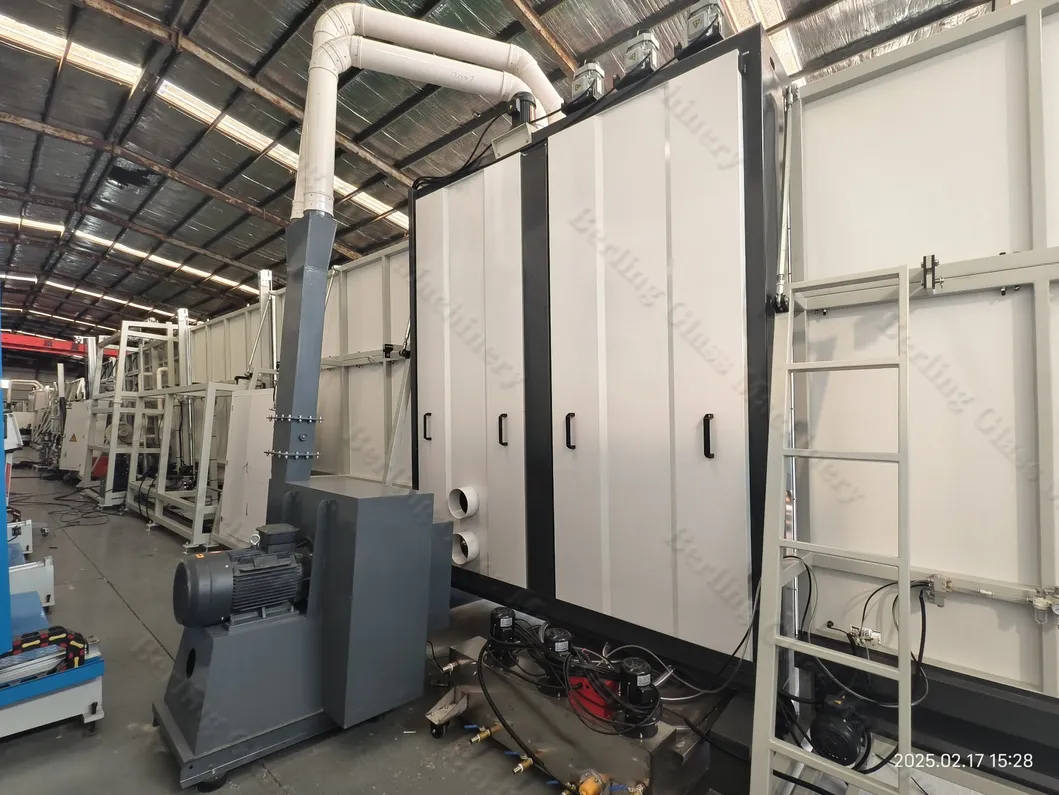

The Argon gas filling system is servo-controlled with pressurized injection. This ensures high-accuracy filling that meets industrial standards for thermal insulation.
Depending on the model, the maximum glass size ranges from 2000*3000mm (BLBG-2030) up to 3000*6000mm (BLBG-3060).
Yes, the system is flexible and can handle panel thicknesses from 3mm to 30mm, with total IG unit thicknesses reaching up to 80mm on heavy-duty models.

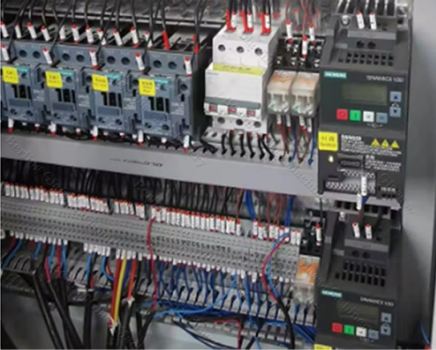

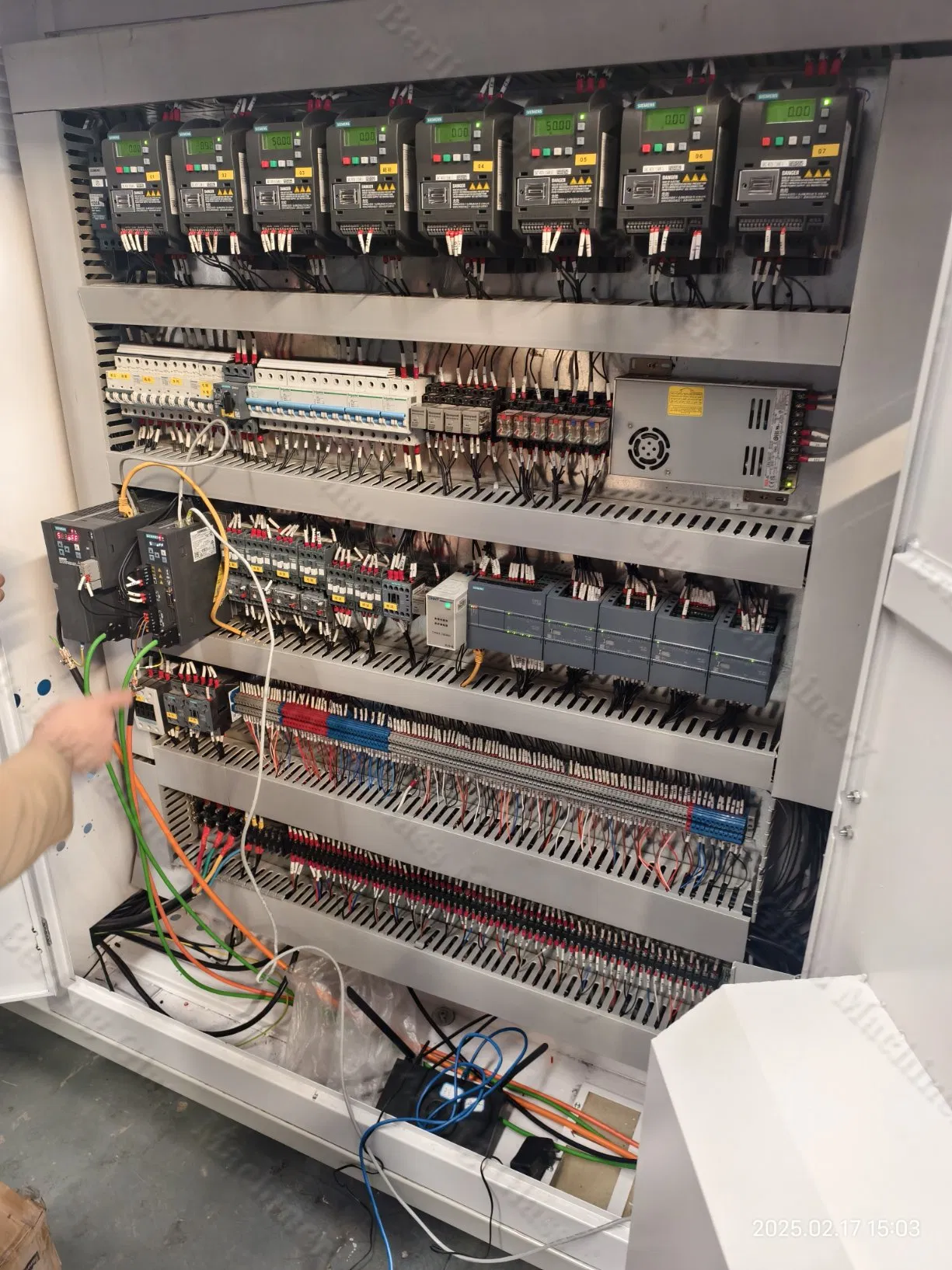

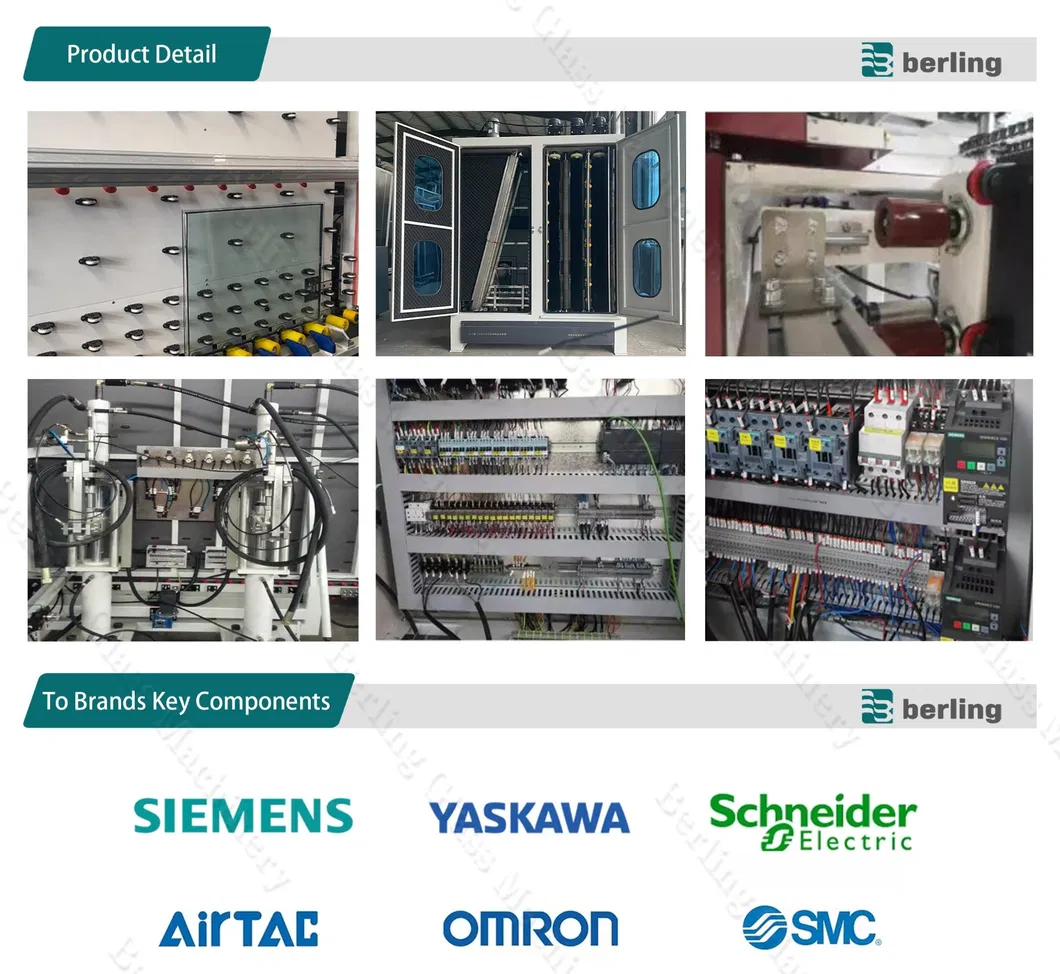

The line utilizes premium core components including Mitsubishi PLC control systems, Omron sensors for glass detection, and high-precision servo motors for pressing and filling.
We offer comprehensive technical support through a professional engineering team with over 20 years of experience, ensuring stable operation and maintenance for global clients.
