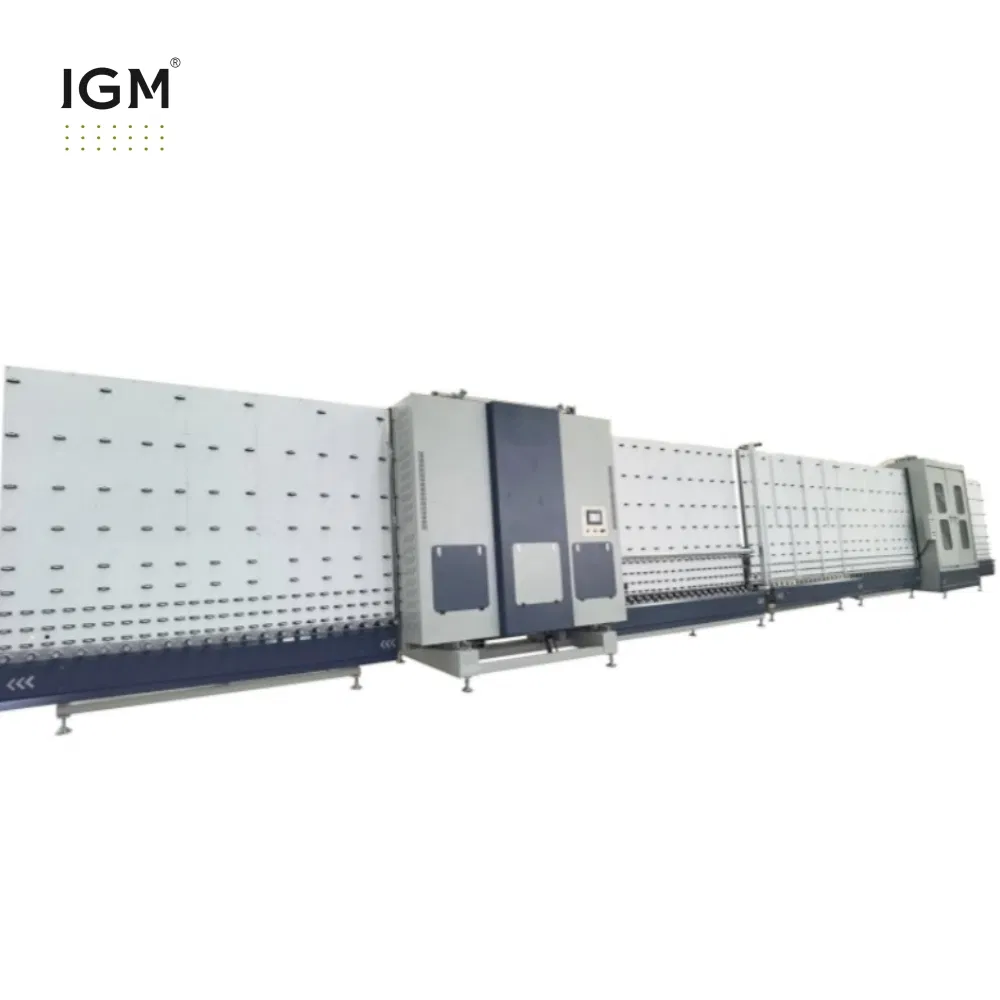

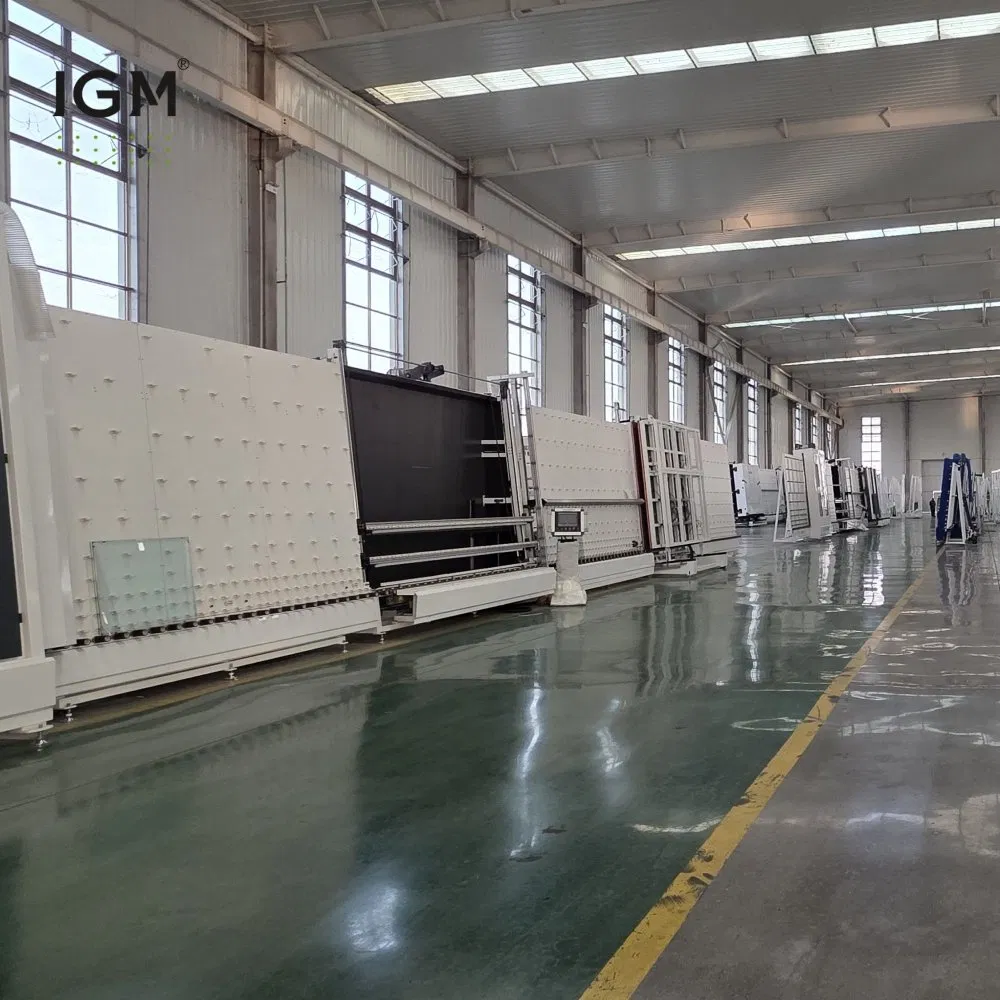

Siemens Servo Control System Triple Layer Insulating Glass Double Glass Making Machine

1 / 5

Siemens Servo Control System Triple Layer Insulating Glass Double Glass Making Machine

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Send Inquiry

Product Description

🔹 Basic Specifications

Model NO.: LZK2000

Product Name: Double Glazing Making Machine

Glass Thickness: 12-60 mm

Max. Glass Size: 2000*3000 mm

Min. Glass Size: 300*300mm

Input Power: 22kw

Power Supply: 380V 50 Hz

Warranty: 18 Months

Production Capacity: 100 Sets / Year

📺 Siemens Servo Control System Insulating Glass Machine

Model: LZK2000

Function: Making double layer insulating glass, triple layer insulating glass and other special-shaped glass. Application in Professional Glass Production Lines.

🚀 Main Features

✔ Can make double layer, triple layer, and special-shaped insulating glass.
✔ Consists of 7 sections: Transmission, Washing, Inspection, Glass covering, Flat pressing, and Output.
✔ Washing section is made of full stainless steel with three pairs of brushes, compatible with LOW-E glass.
✔ Flat pressing section adopts servo motor and precision square guide rail for superior synchronization and stability.
✔ Equipped with SIEMENS servo control system for high automation and easy operation.
✔ Supports multilingual interface and customizable sizes according to customer site space.

📋 Technical Parameters

Parameter	Details
Working Air Pressure	0.8 - 1 Mpa
Power Supply	220V/380V/415V 50/60Hz (Customized)
Input Power	22kw
Max Glass Size	2000*2500mm
Min. Glass Size	300*300mm
Original Glass Thickness	3-12mm
Max Double Glazing Thickness	12-40 mm
Glass Washing Speed	2-12 m/min
Working Speed	2-45 m/min
Weight	2000kgs

🖼️ Detailed Breakdown

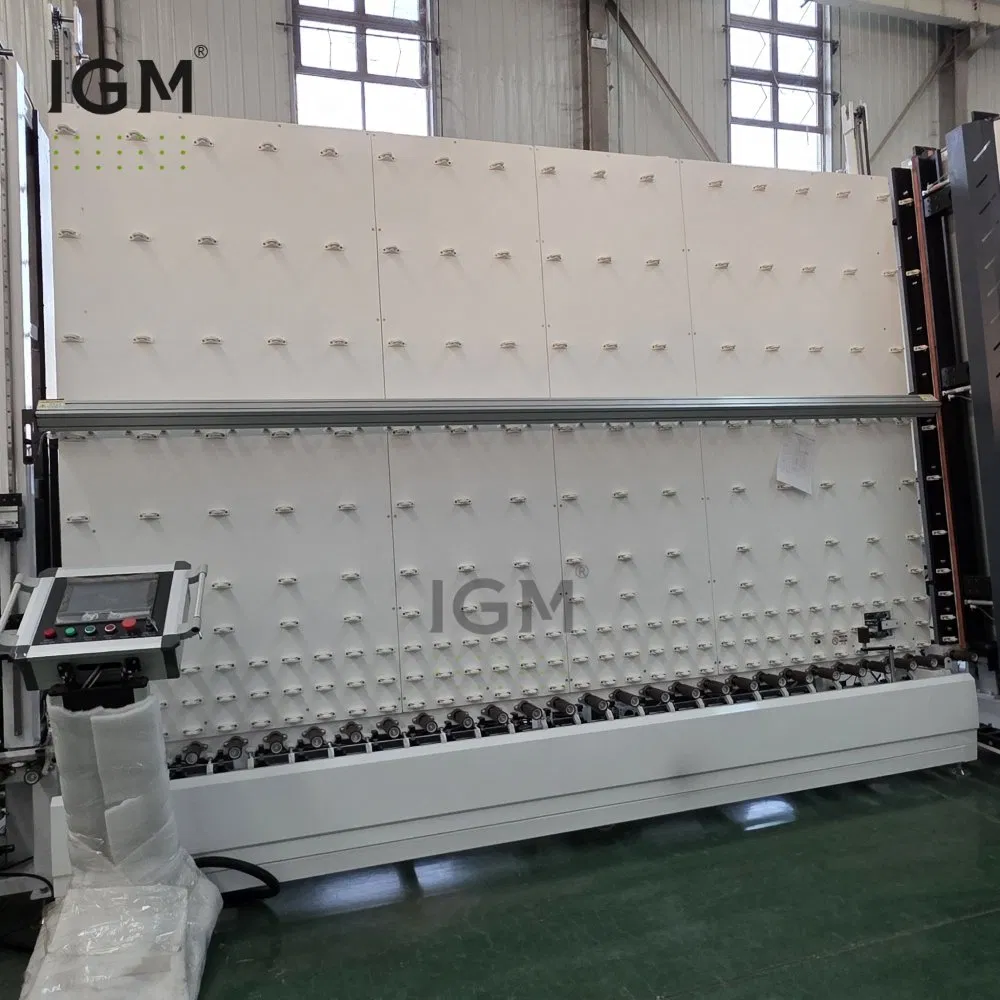

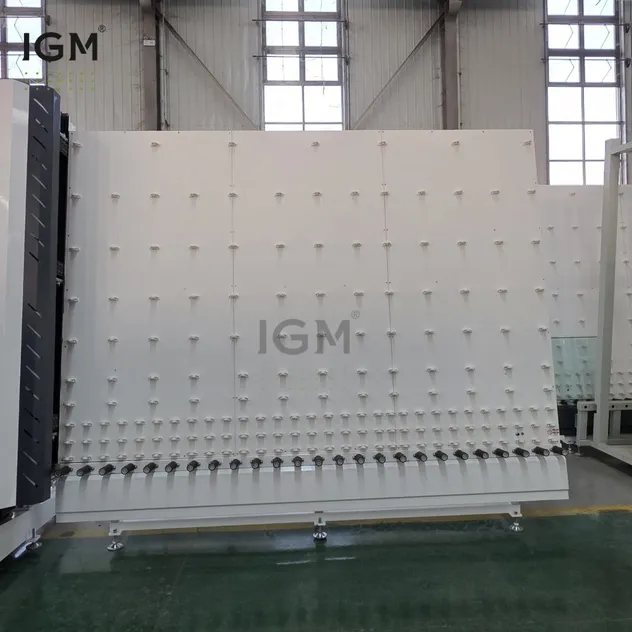

01 Section: Glass loading (Low-E detection)

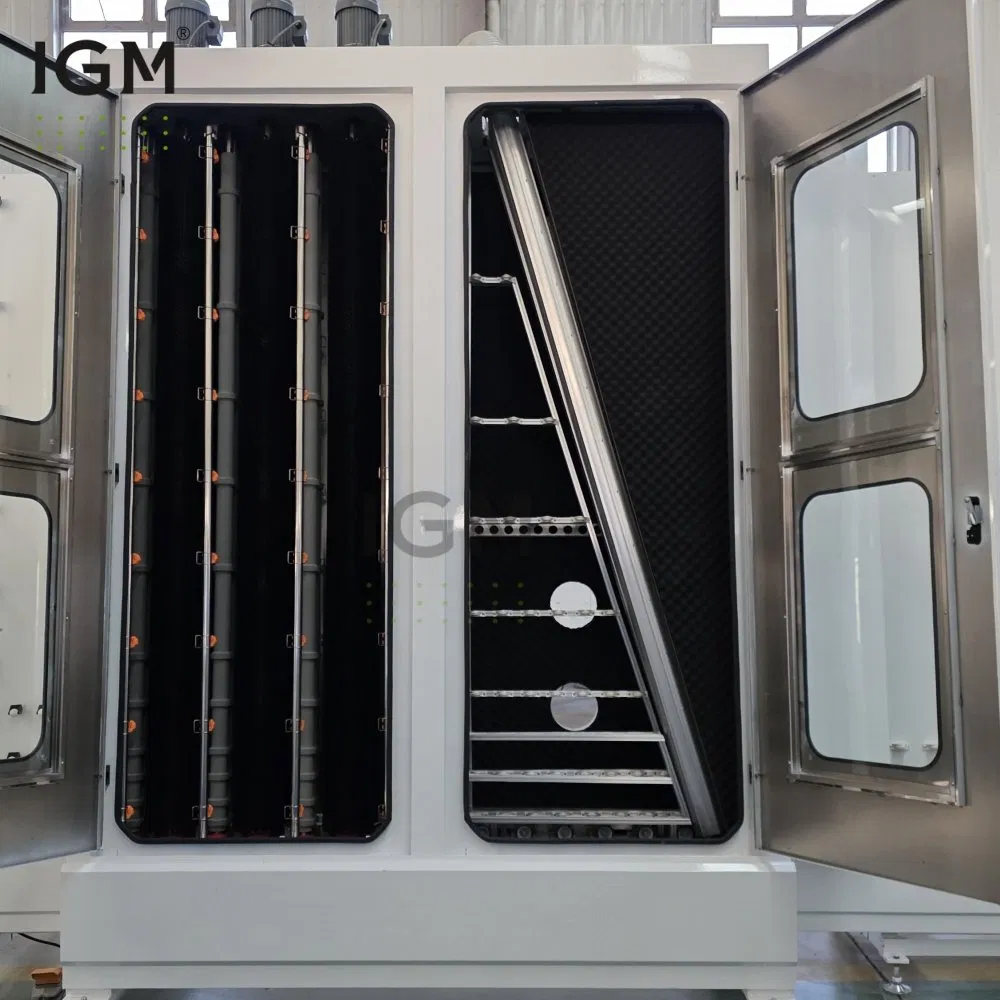

02 Section: Washing and drying

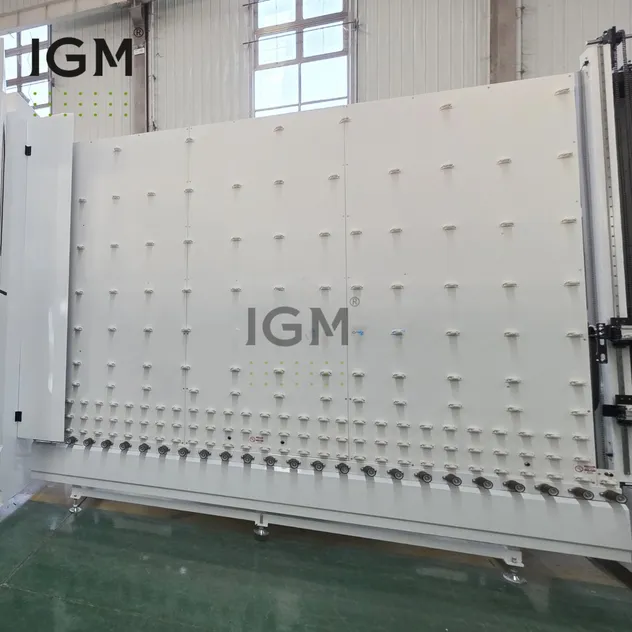

03 Section: Glass conveying

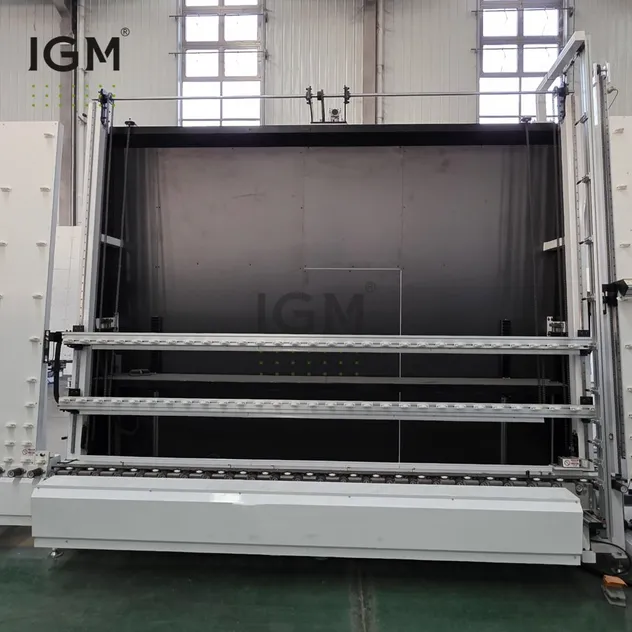

04 Section: Aluminum spacer assembly

05 Section: Glass assembly

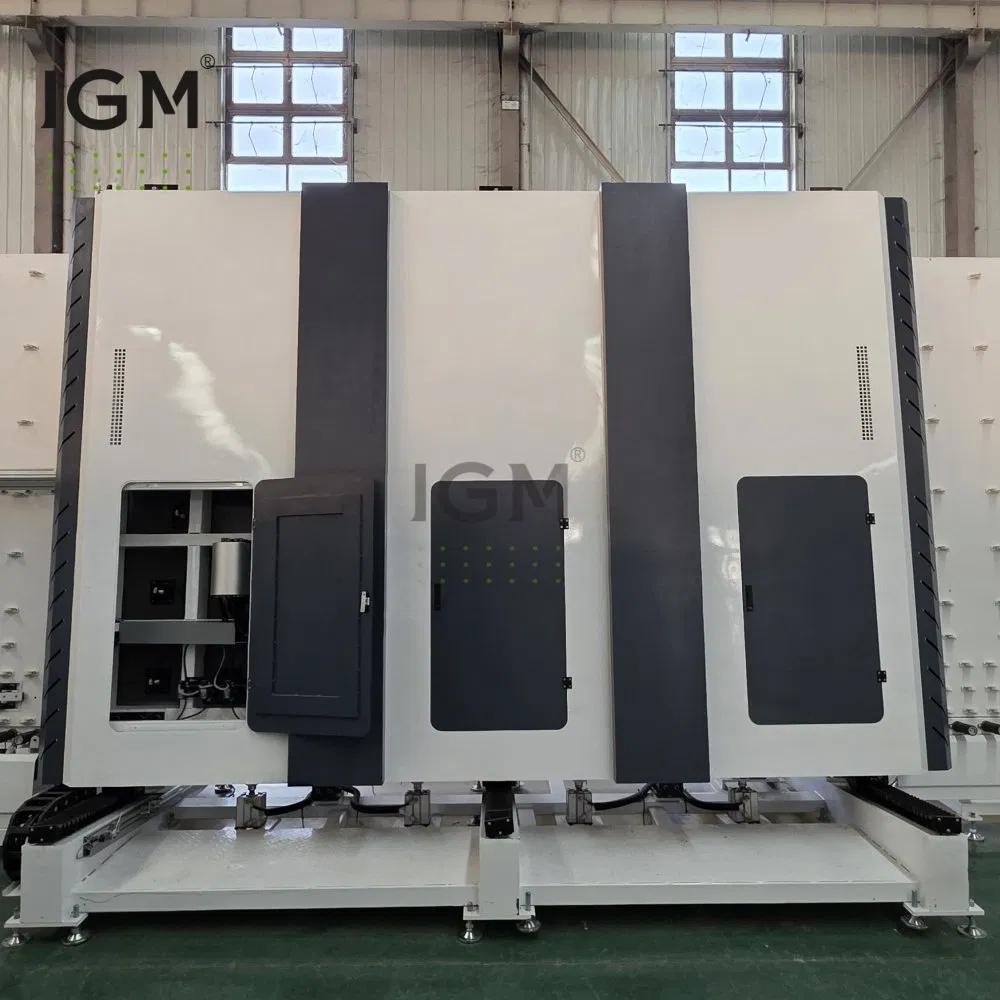

06 Section: Pressing section (Servo controlled)

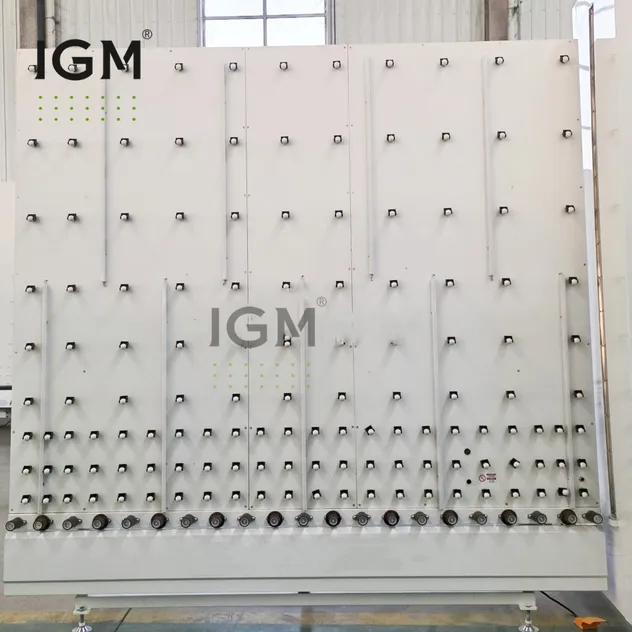

07 Section: Outputting section

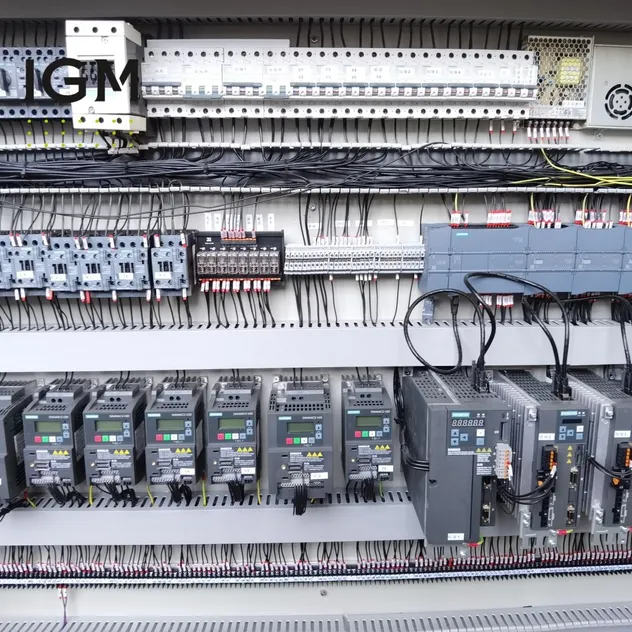

Distribution Box (Siemens Components)

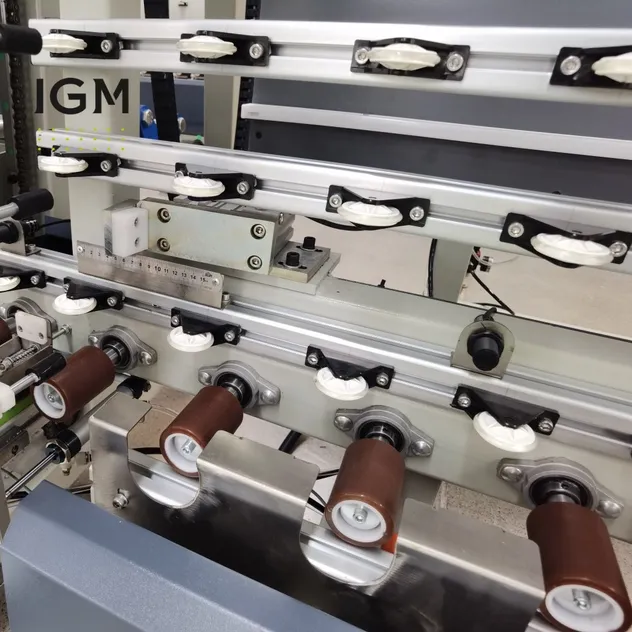

Precision Position Wheel

📦 Packaging & Shipping

LCL Shipping: Packed in fumigation-free plywood with thickened pallets and fixed with steel wires.

FCL Shipping: Fixed in 20/40-foot containers with plastic film and steel wire reinforcement.

🌍 Global Presence & Certifications

Our products have passed the EU CE certification and the US UL certification, exported to more than 50 countries including the USA, Canada, France, Russia, and the Middle East.

🛠️ After-Sales Support

Installation & Commissioning: On-site technician support for setup and testing.
Technical Training: Training for operators and maintenance personnel.
Maintenance Services: Regular inspections and remote technical support.
Warranty: 18 months extended warranty with lifelong service.
Spare Parts: Timely supply of original spare parts to reduce downtime.

❓ Frequently Asked Questions

Q1: Can the LZK2000 process Low-E glass? A1: Yes, the washing section is equipped with three pairs of high-quality brushes specifically designed to wash Low-E glass without damaging the coating.

Q2: What is the maximum glass size this machine can handle? A2: The standard LZK2000 model can handle glass sizes up to 2000mm x 3000mm. Custom sizes are available upon request.

Q3: What kind of control system does the machine use? A3: We use the world-renowned SIEMENS servo control system and motors to ensure high precision, automation, and long-term reliability.

Q4: How long is the warranty period for this glass making machine? A4: We offer an industry-leading 18-month warranty period along with lifelong technical support and after-sales service.

Q5: Is the machine suitable for making triple-layer insulating glass? A5: Yes, the machine is designed to automatically assemble double-layer, triple-layer, and even quadruple-layer insulating glass.

Q6: Do you provide installation and training service? A6: Yes, we provide professional technicians for on-site installation, commissioning, and comprehensive operation/maintenance training for your staff.
