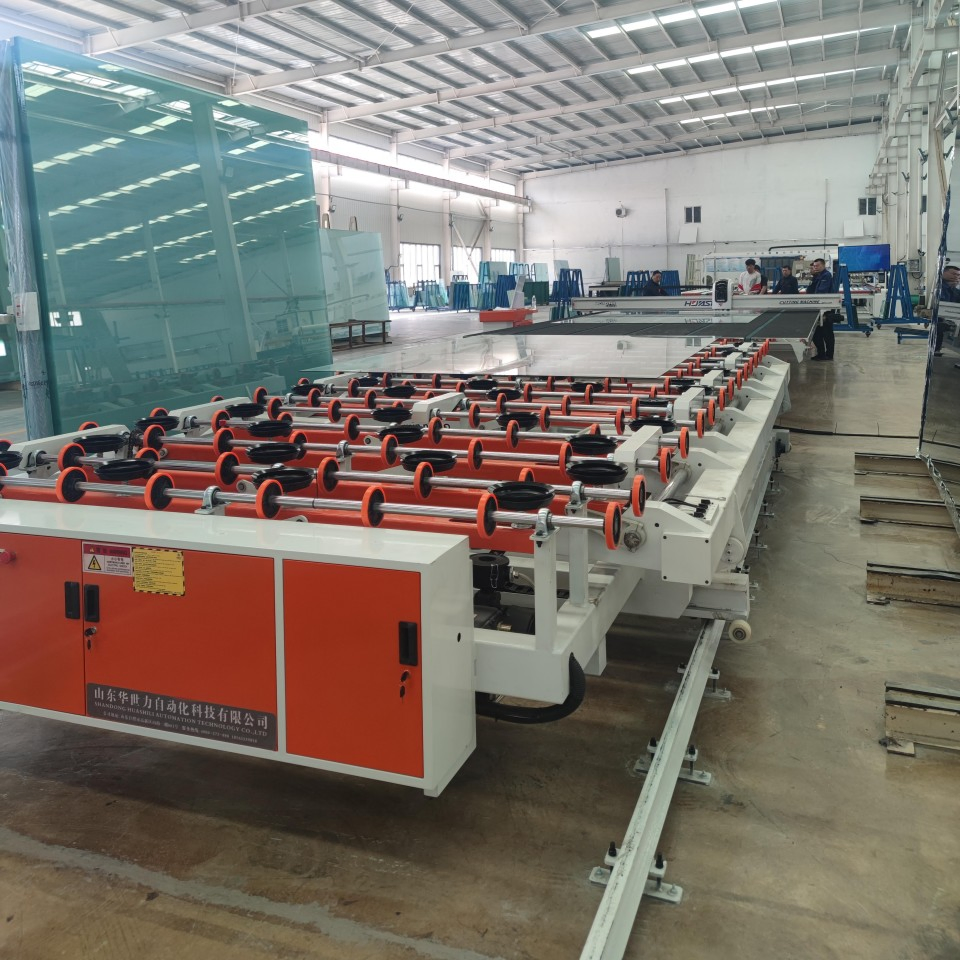

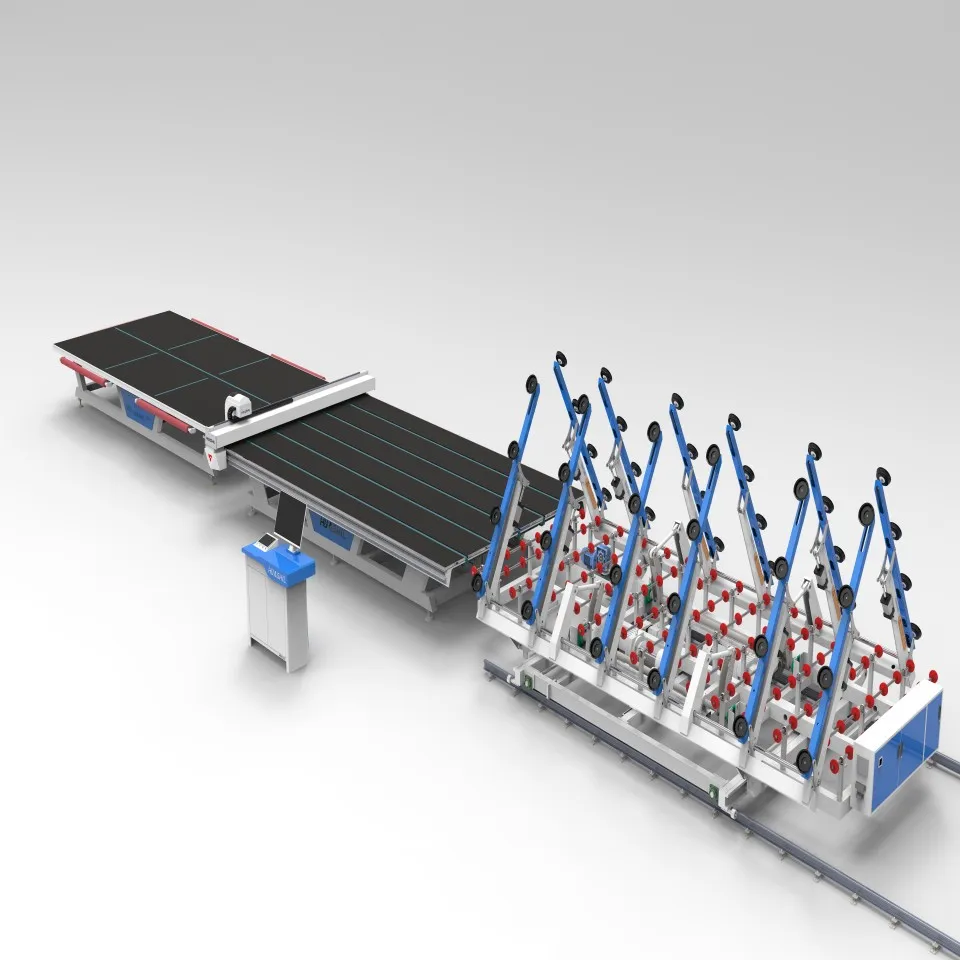

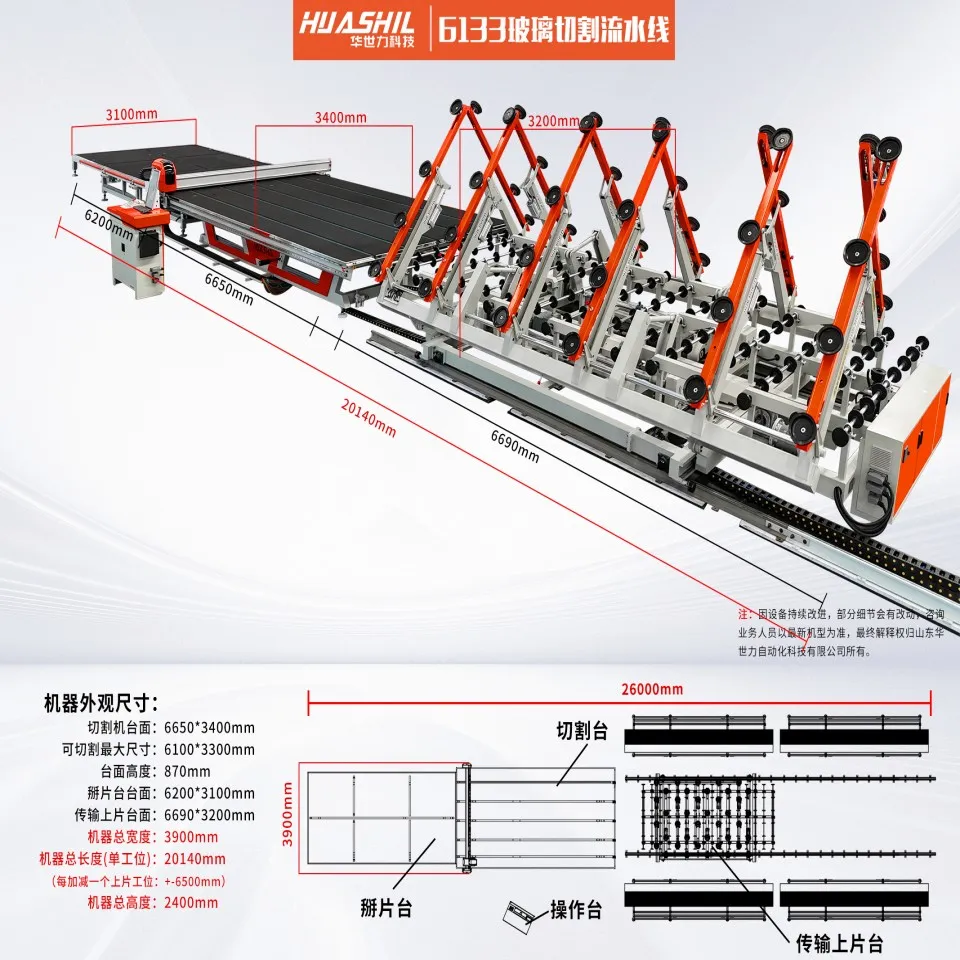

HSL-LSX6133 intelligent glass cutting assembly line consists of three major systems: the loading table, cutting table, and breaking table.
The glass cutting process is automated and can quickly and accurately perform picking, cutting, and air floating table breaking. Optional functions include automatic labeling, Low-e film removal, laser marking, etc. Suitable for straight and irregular cutting of flat glass in construction, decoration, home appliances, mirror splicing, handicrafts, and other fields.

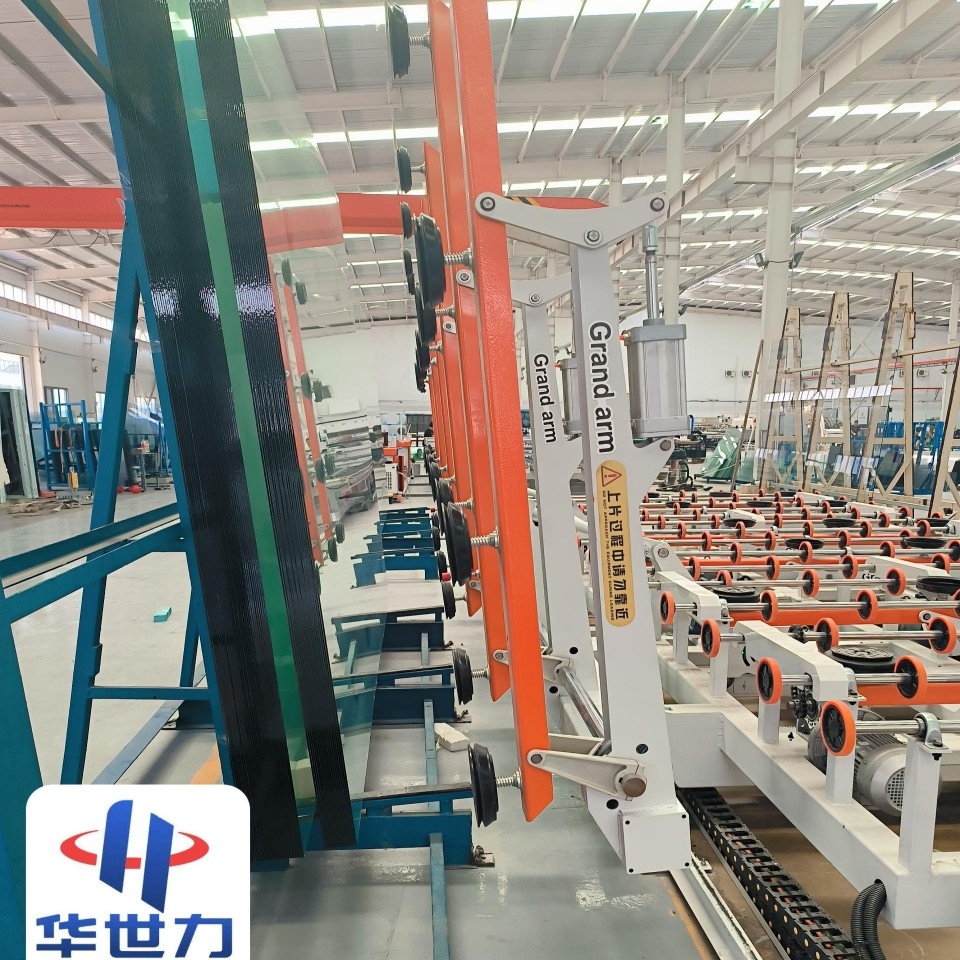

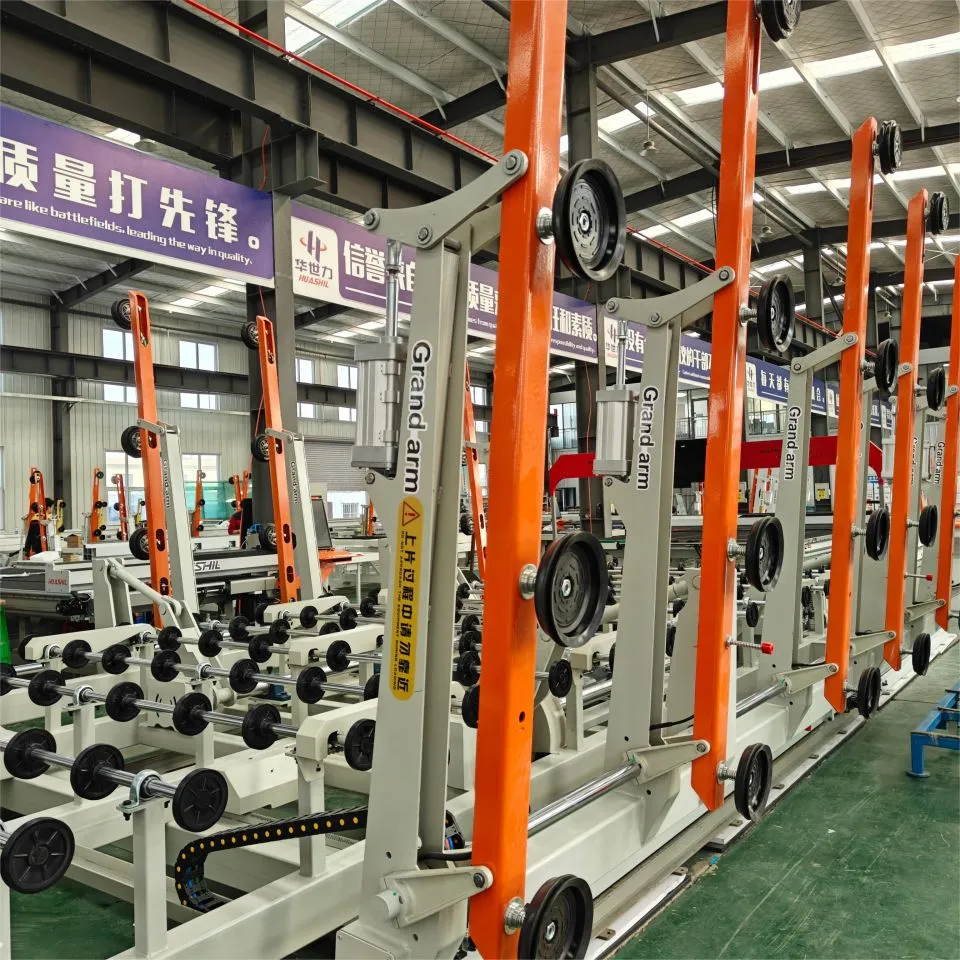

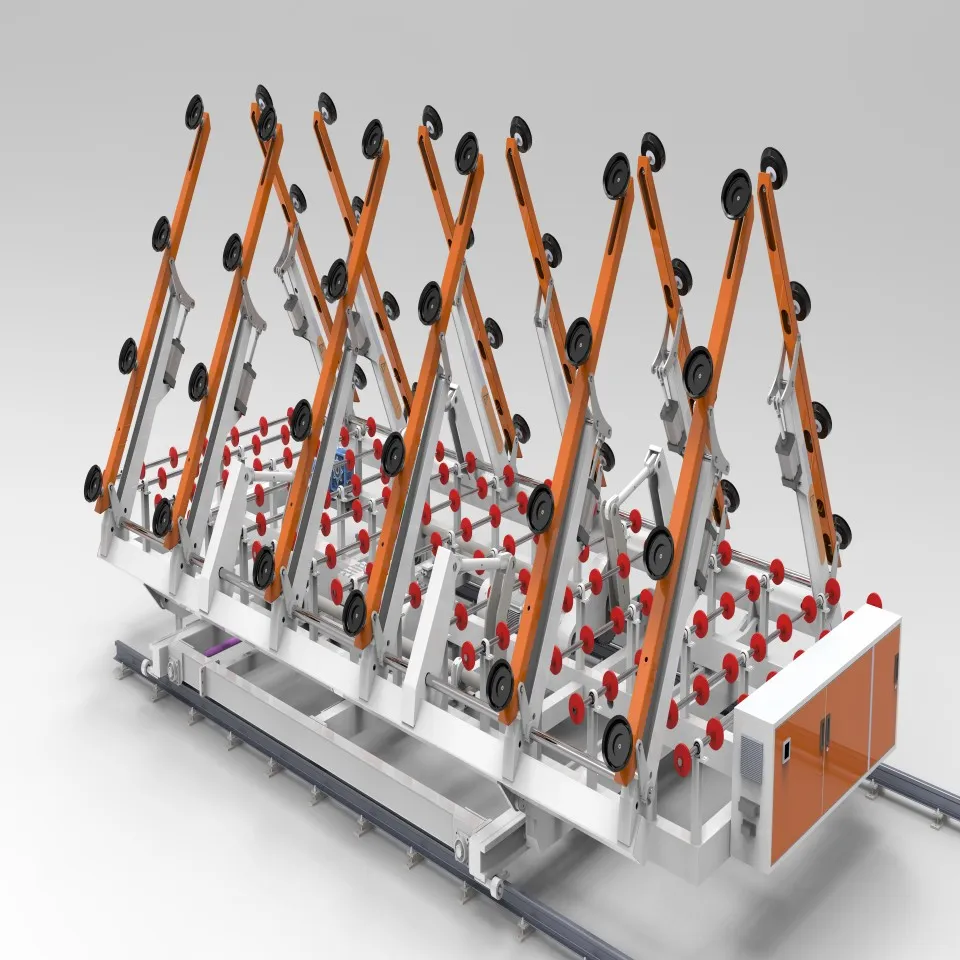

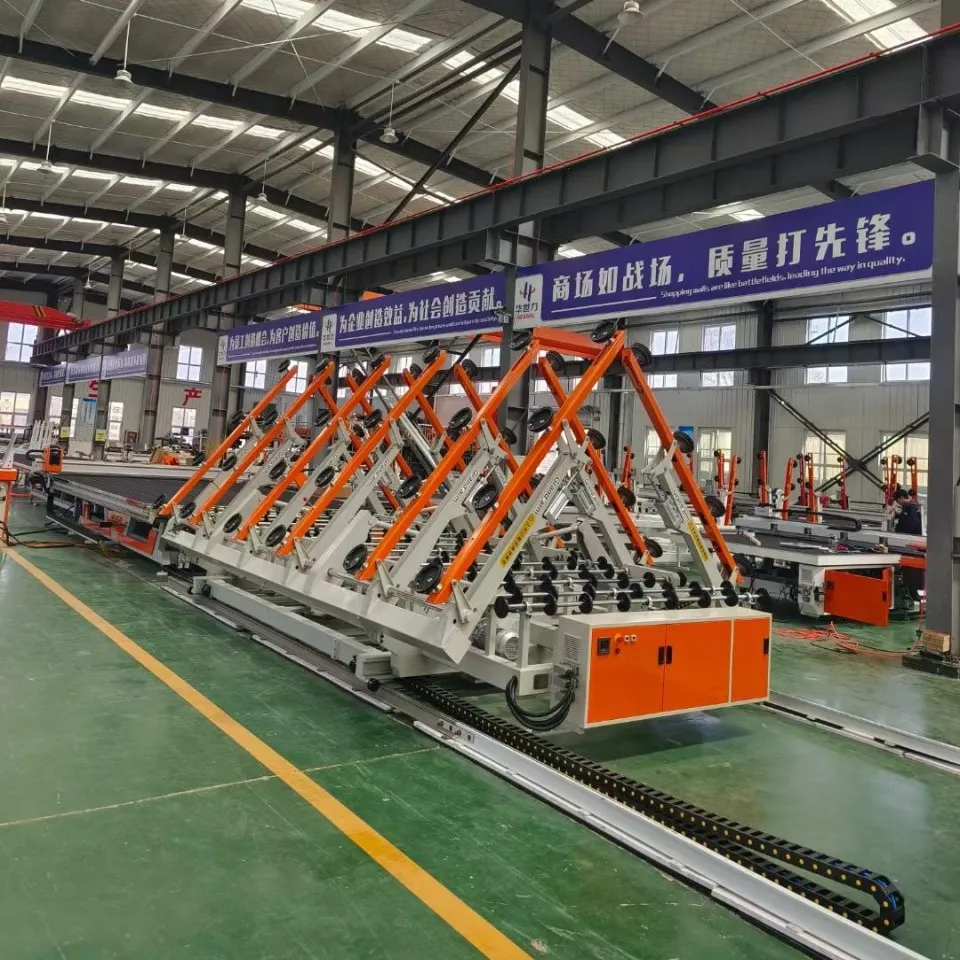

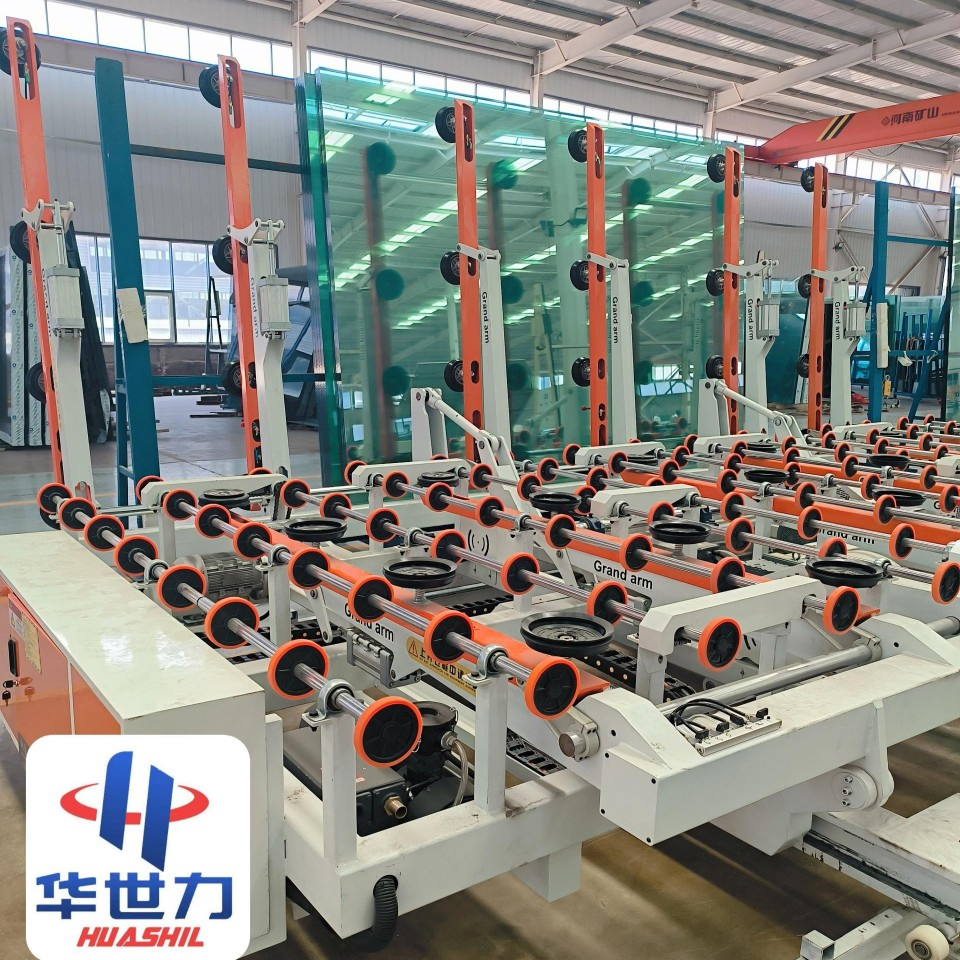

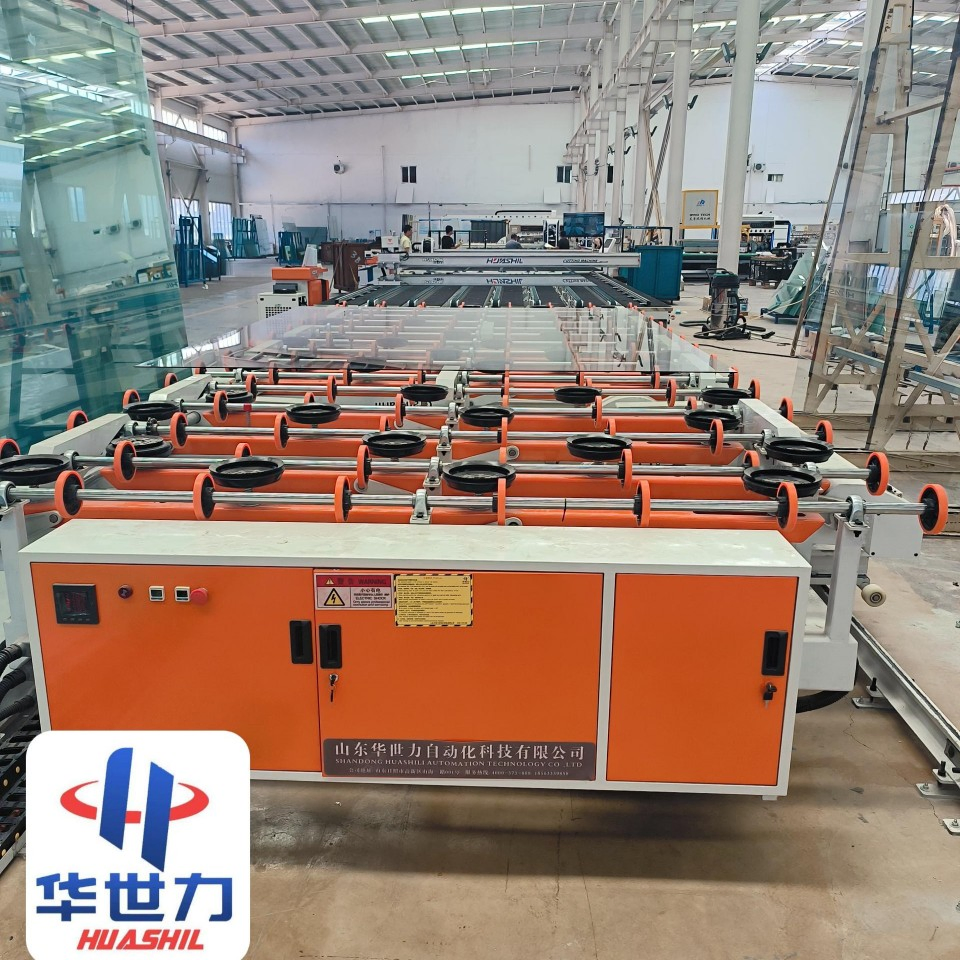

The loading machine adopts mechanical flipping, and the glass raw sheets are removed from the material rack through vacuum suction cups and dropped onto the loading platform. The tool box on the crossbeam is driven by a servo motor for high-speed X/Y movement. The Z-axis motor controls the tool's trajectory while analog signals manage pressure and depth. The four axes move simultaneously for precision cutting.
Technical Components
PLC
Shihlin
Frequency converter
Siemens
Contactor
DeSchneider
Switch power supply
Ming Wei
Solenoid valve
Inovanve solenoid valve
Photoelectric/Proximity switch
Omron
Key Features & Advantages

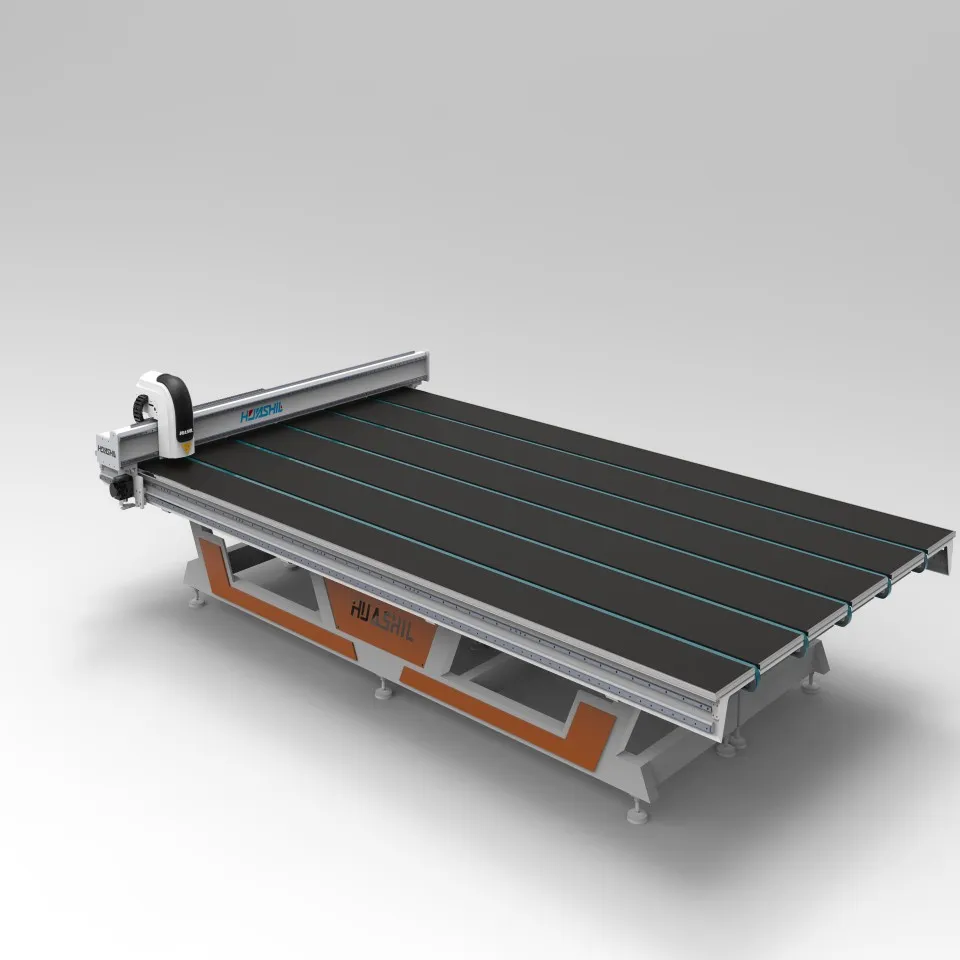

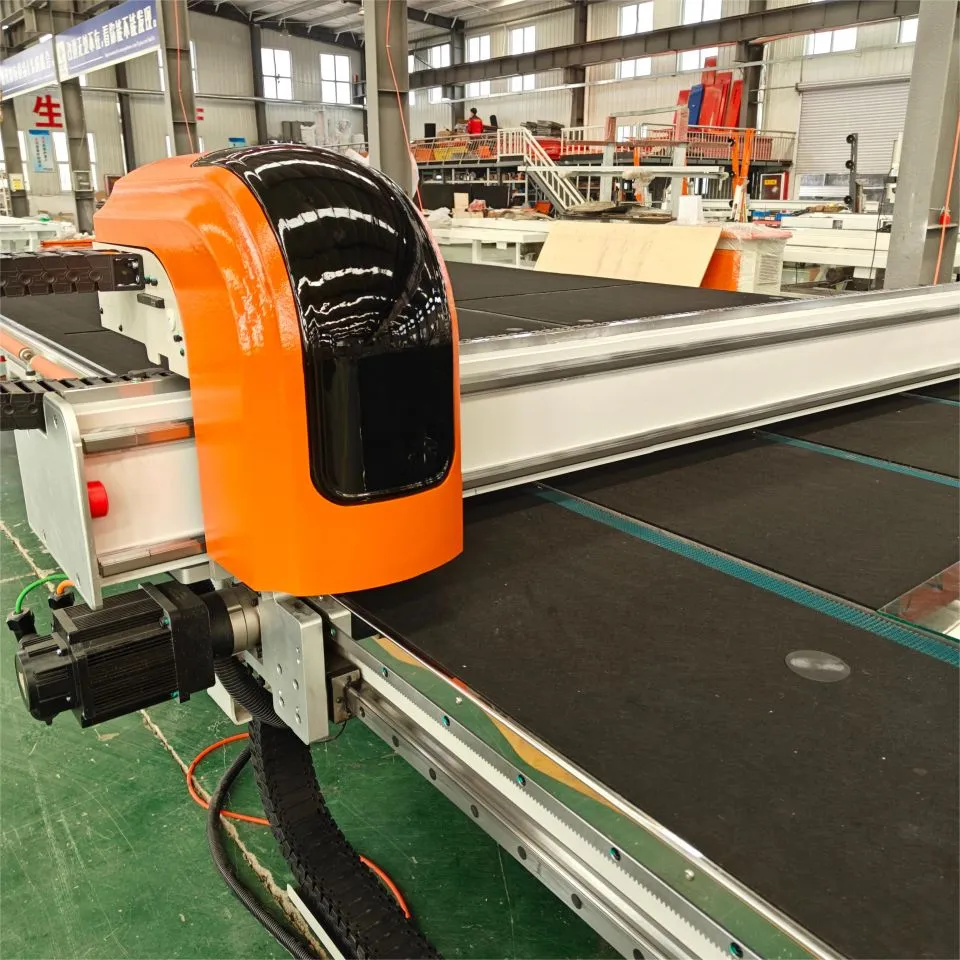

Patented industrial aluminum combination linear circular rail has a large bearing capacity and ensures stable operation of the cutting bridge with low friction.

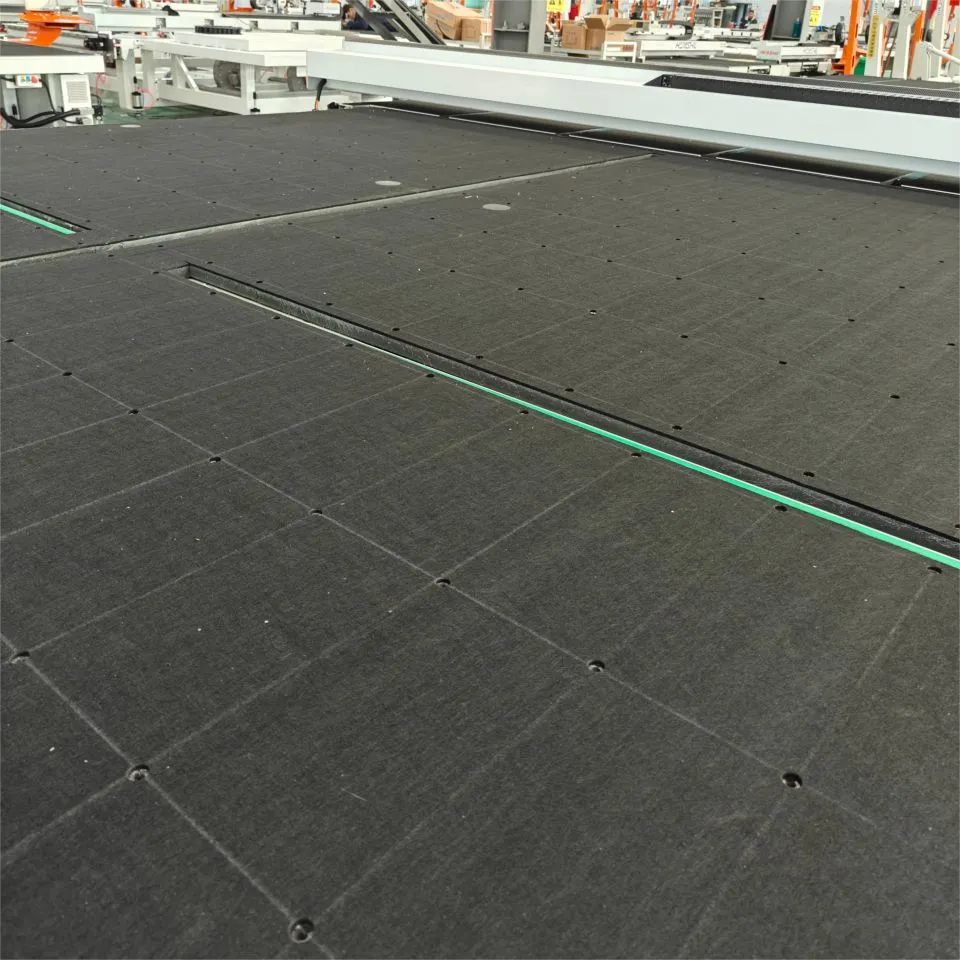

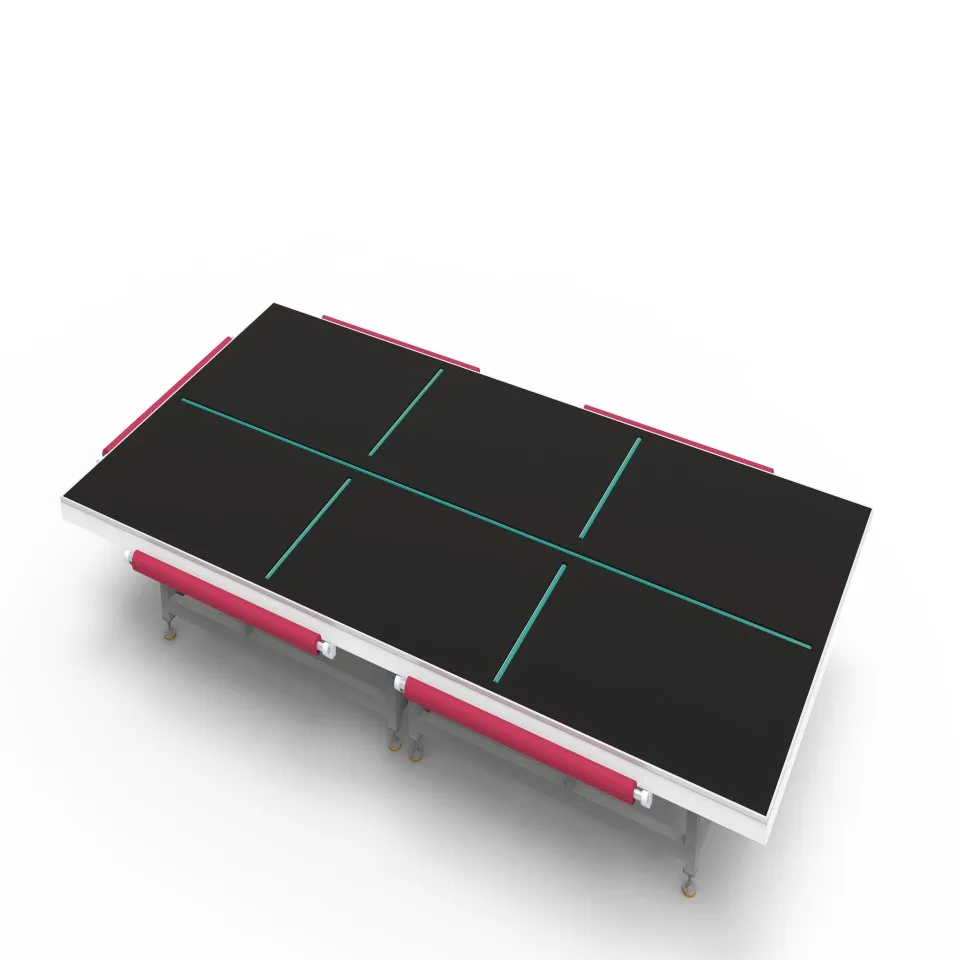

High-density waterproof board surface covered with anti-static industrial felt to ensure stable use in humid environments.
The whole process is automated, integrating loading, conveying, and cutting for maximum efficiency and labor savings.
Applications
Certifications & Packaging
Industry Expertise

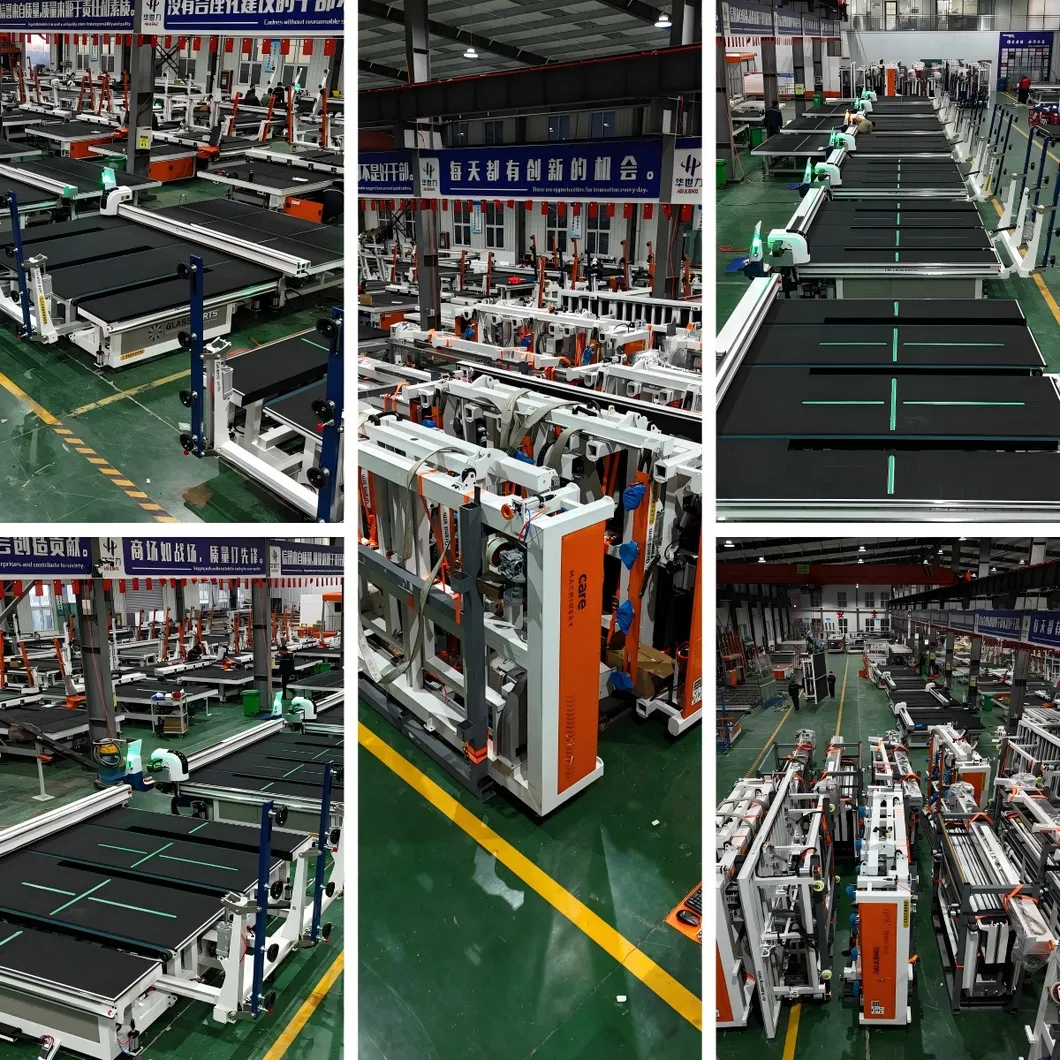

We are a high-tech manufacturing enterprise specialized in mechanical equipment automation R&D, manufacturing, and sales. We produce a full set of glass deep processing intelligent equipment.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer of glass deep processing lines with approximately 10 years of experience in the industry.
What is the cutting accuracy of the machine?
The cutting accuracy of our intelligent glass cutting line is <=+-0.2mm/M, ensuring high precision for various industrial applications.
What thickness of glass can this machine handle?
The machine is designed to handle glass thicknesses ranging from 3mm to 19mm, with a maximum cutting thickness capability of 15mm.
Do you provide installation and after-sales service?
Yes, we provide comprehensive installation services both online and by sending engineers to your facility to assist with machine setup and adjustment.
Can the machine be customized to specific requirements?
Absolutely. We offer customization options to meet specific customer requirements, including glass size and additional functional modules like laser marking or automatic labeling.
What are the main components used in your control systems?
We use high-quality international brands such as Siemens for frequency converters, Shihlin for PLC systems, and Omron for sensors and switches to ensure reliability.
