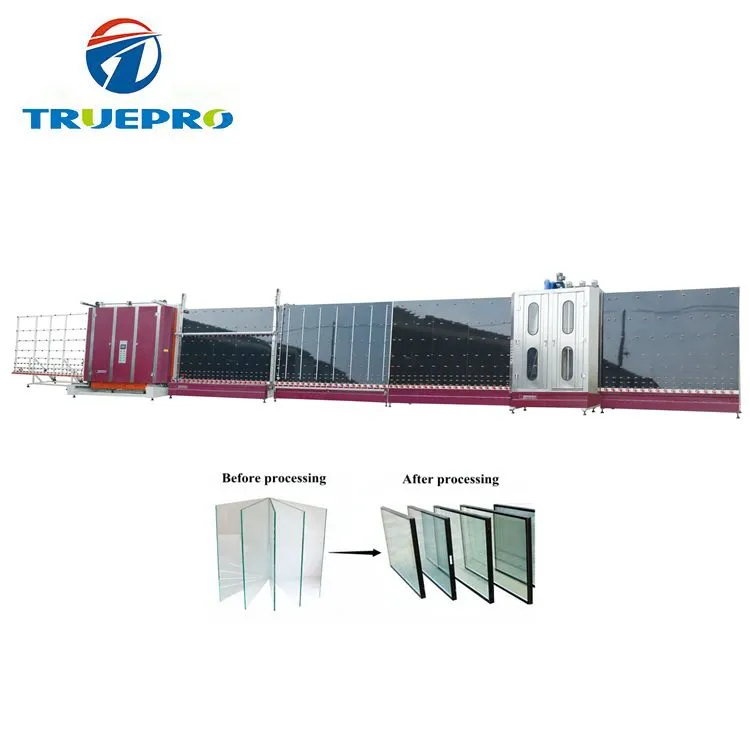

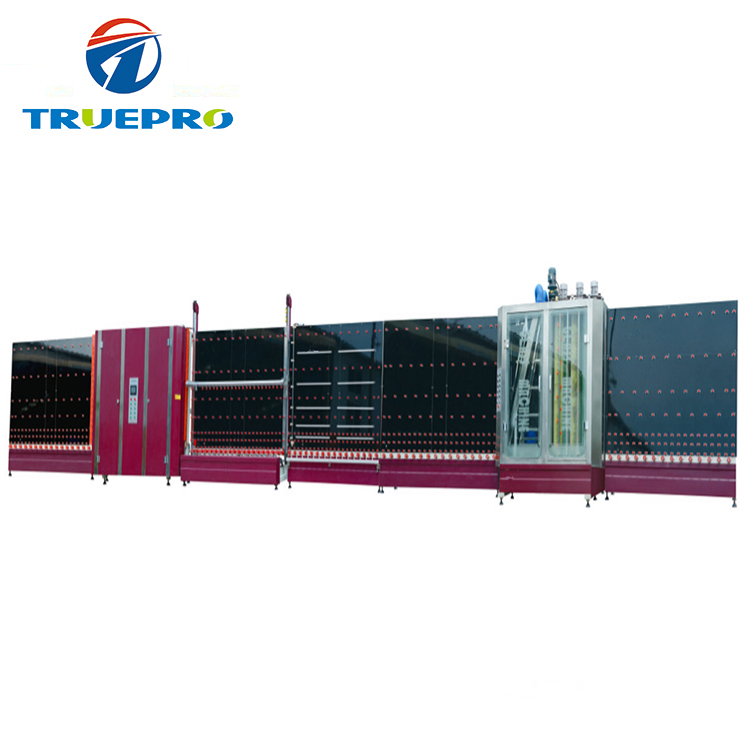

Efficient automatic vertical double glazing machine size 15700 * 2400 * 3200mm
Machine features:
- Automatically distinguish the coating side of coated glass and low-E glass.
- Static state load glass when adding glass material to ensure safety in production.
- The washing machine adopts stainless steel and other corrosion resistant material, good waterproof, security, clean, and long useful life.
- Adopt waterproof bearing without oil lubricant.
- Can clean 3~25mm thickness glass, with wide using range.
- Process same edge double insulating glass with high efficiency.
- Adopts world famous brand low-voltage electrics, sensor and PLC system.
- PLC control system with touch screen interface, simple operation and high automatic.
- Surface treatment of plate guard with baking paint, powder coated for durability and beauty.
- Dry part uses circulation hot wind to ensure drying effect and reduce noise.
Technical Parameters:
| Model | JYW-2500 |
| Input Voltage | 380V 50Hz |
| Total Power | 28.0KW |
| Cutting Glass Size | 2500×3000mm |
| Min Glass Size | 280×450mm |
| Glass Thickness | 3~18mm |
| Working Speed | 8~45m/min |
| Total Weight | 7000kg |
| Size of Line | 21500×2000×3700mm |

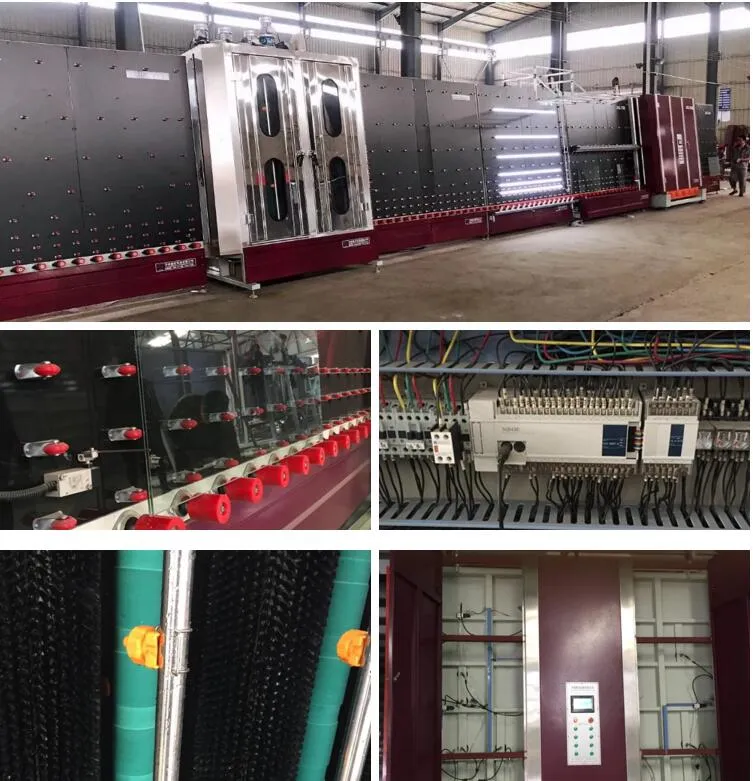

Machine Details & Gallery:
Customization: Every machine could be customized to meet your special requirement. We believe that "IT'S THE BEST THAT FITS MOST."
❓
Frequently Asked Questions
When can we arrange shipment?
We usually arrange shipment within 15 days after getting deposit, but customized machines may take more than 25 days.
What can be done if the machine has problems?
1) Free components can be sent if the machine is within the guarantee period. 2) Engineers can be dispatched to repair your machines.
Do you provide equipment operation training?
Yes. Professional engineers can be sent to the working site for installation, adjustment, and operation training.
What glass thicknesses can this machine process?
This insulating glass production line can process single glass thicknesses ranging from 3mm to 18mm, and clean glass up to 25mm.
Is the machine suitable for Low-E glass?
Yes, the machine features 6 brushes (including 3 Low-E brushes) and can automatically distinguish the coating side of Low-E glass.
What is the automation level of the production line?
The line features a high automatic grade, controlled by a PLC system with a touch screen interface for simple and efficient operation.
