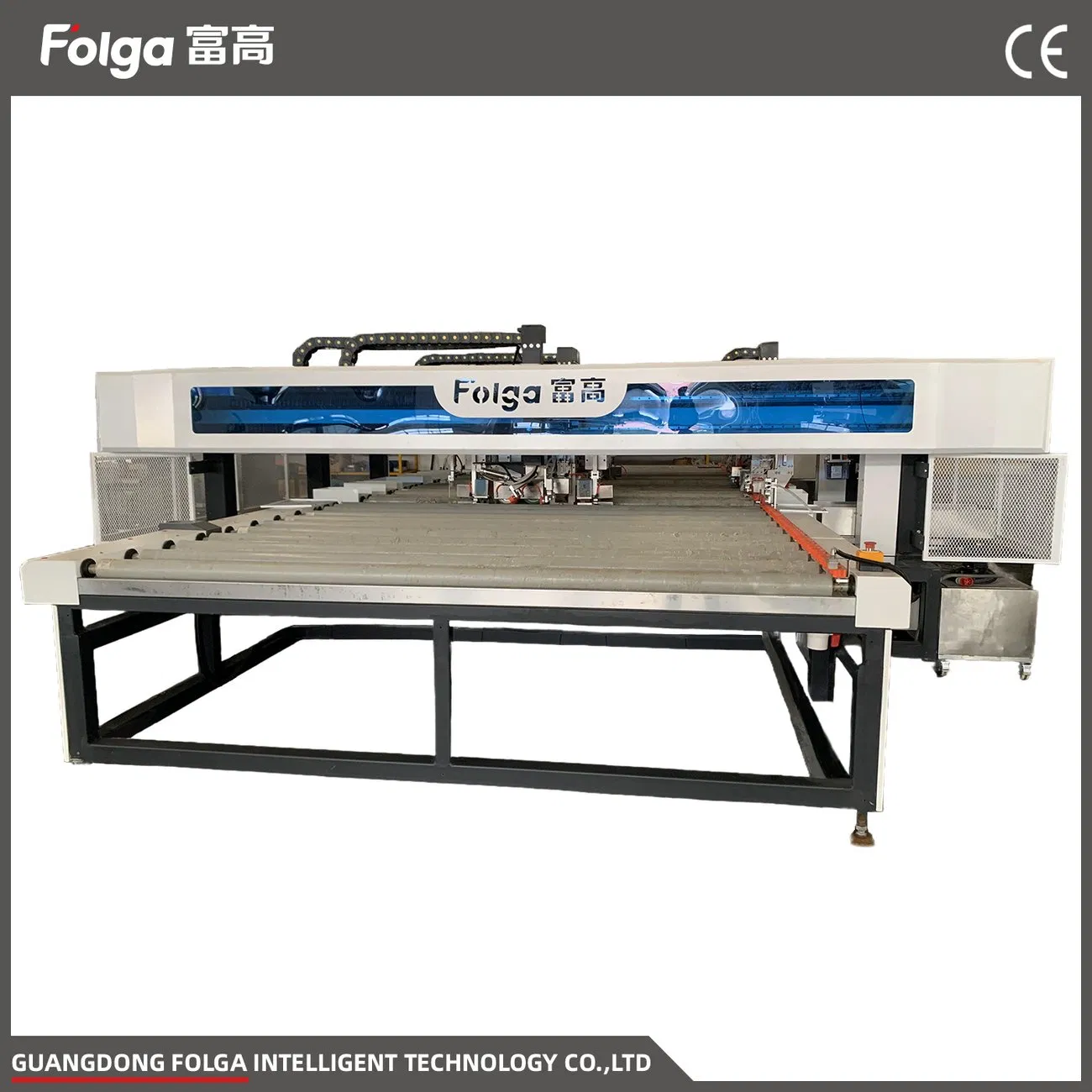

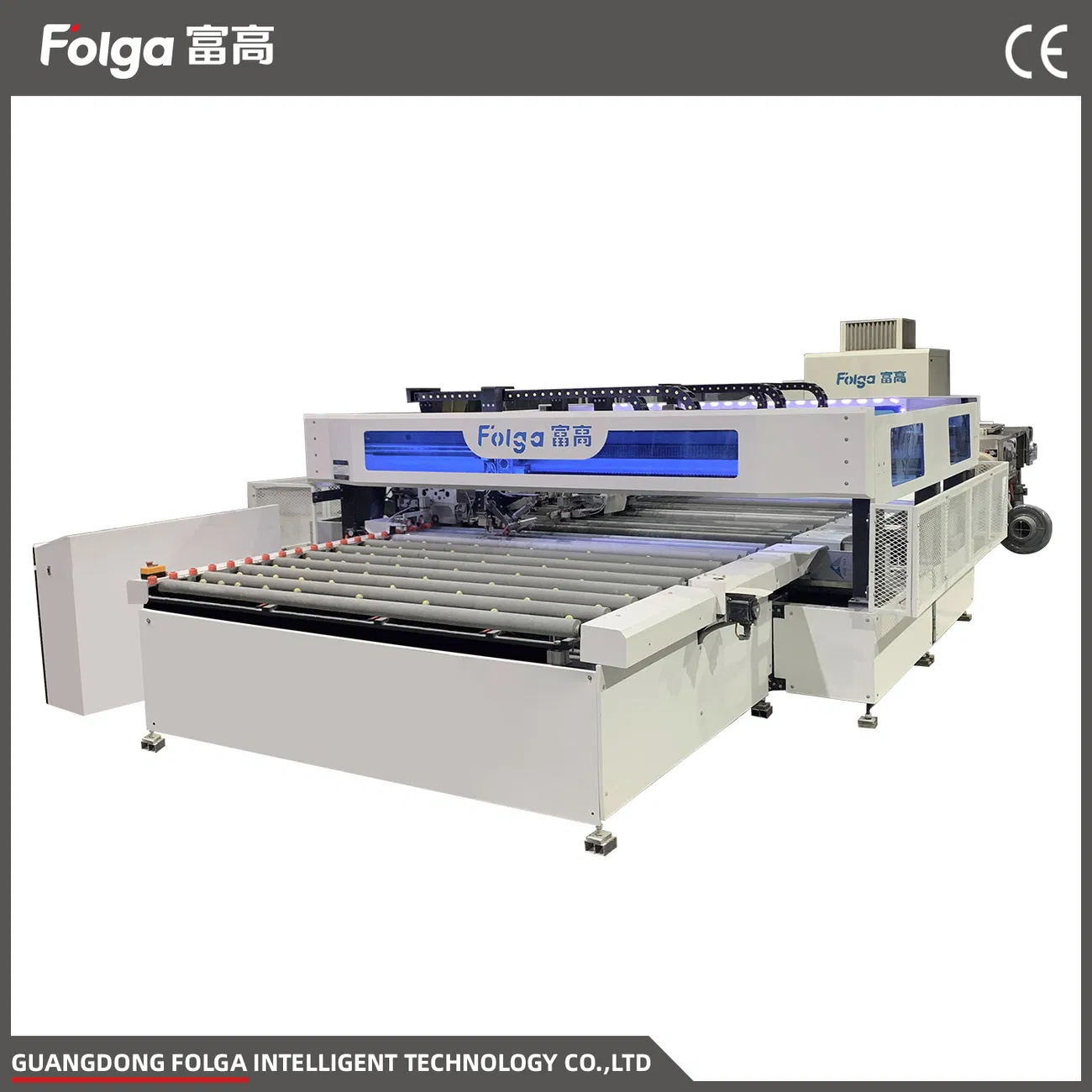

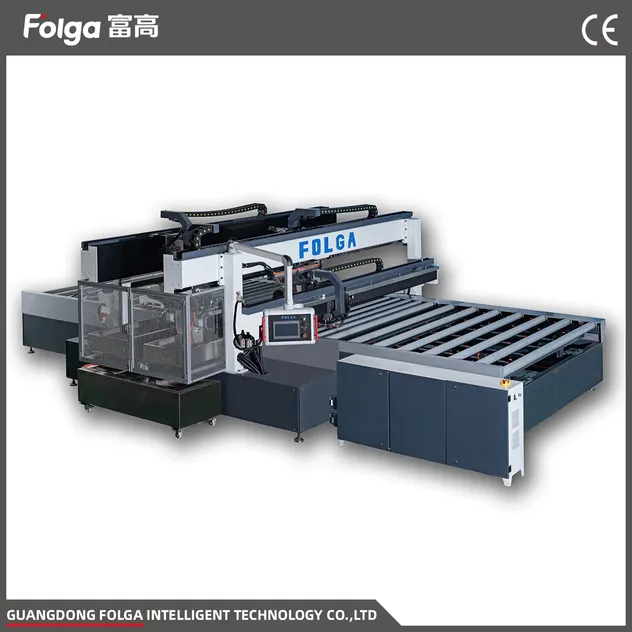

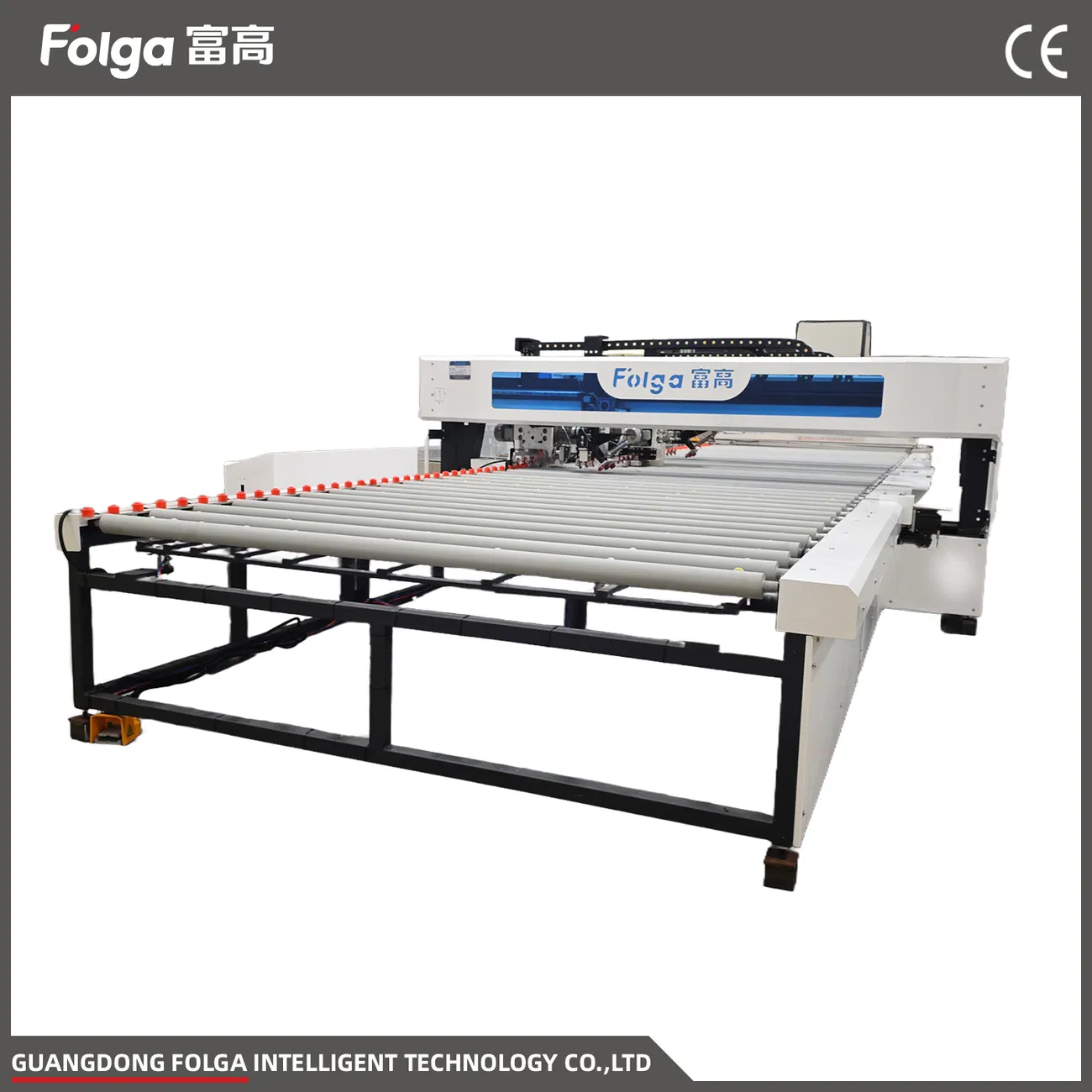

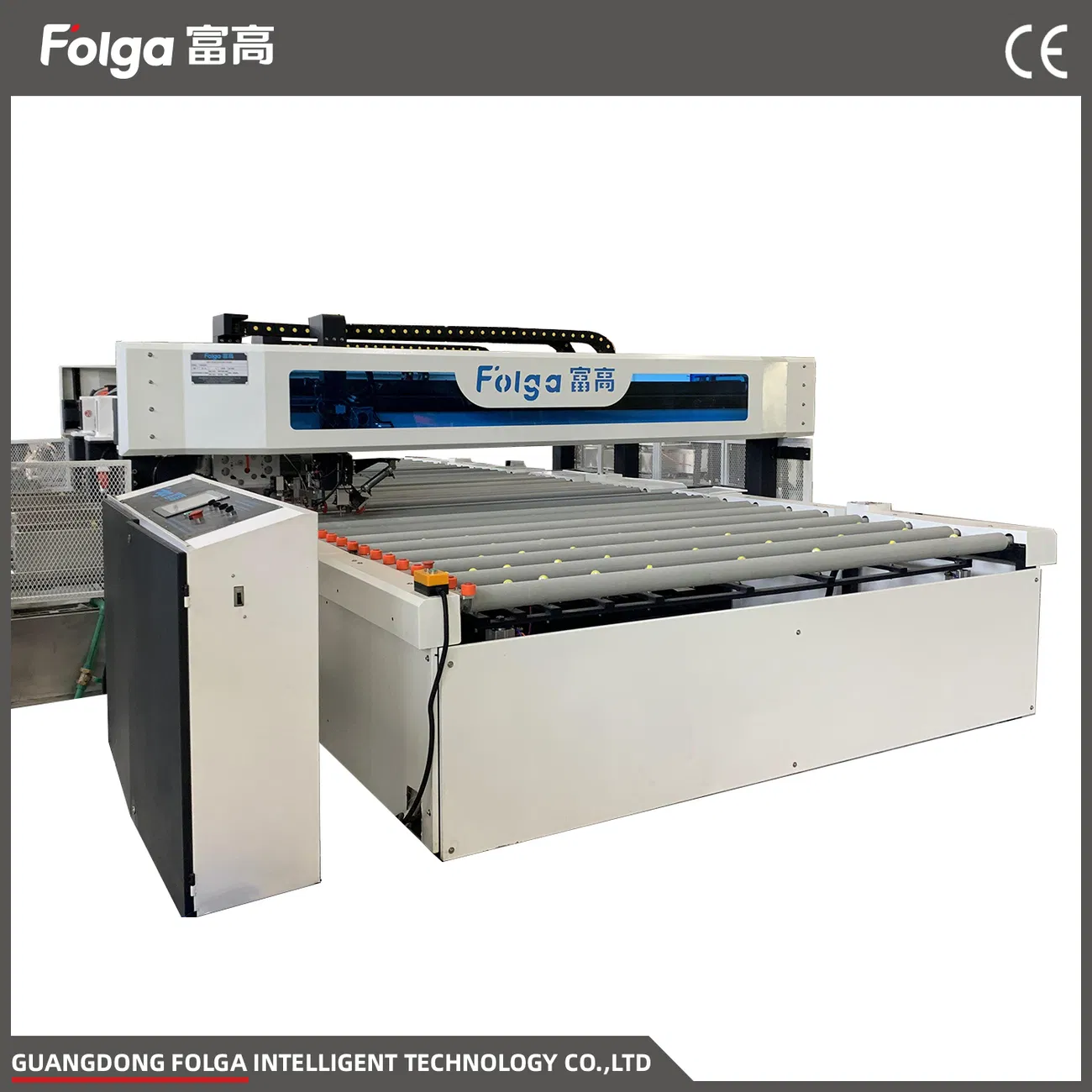

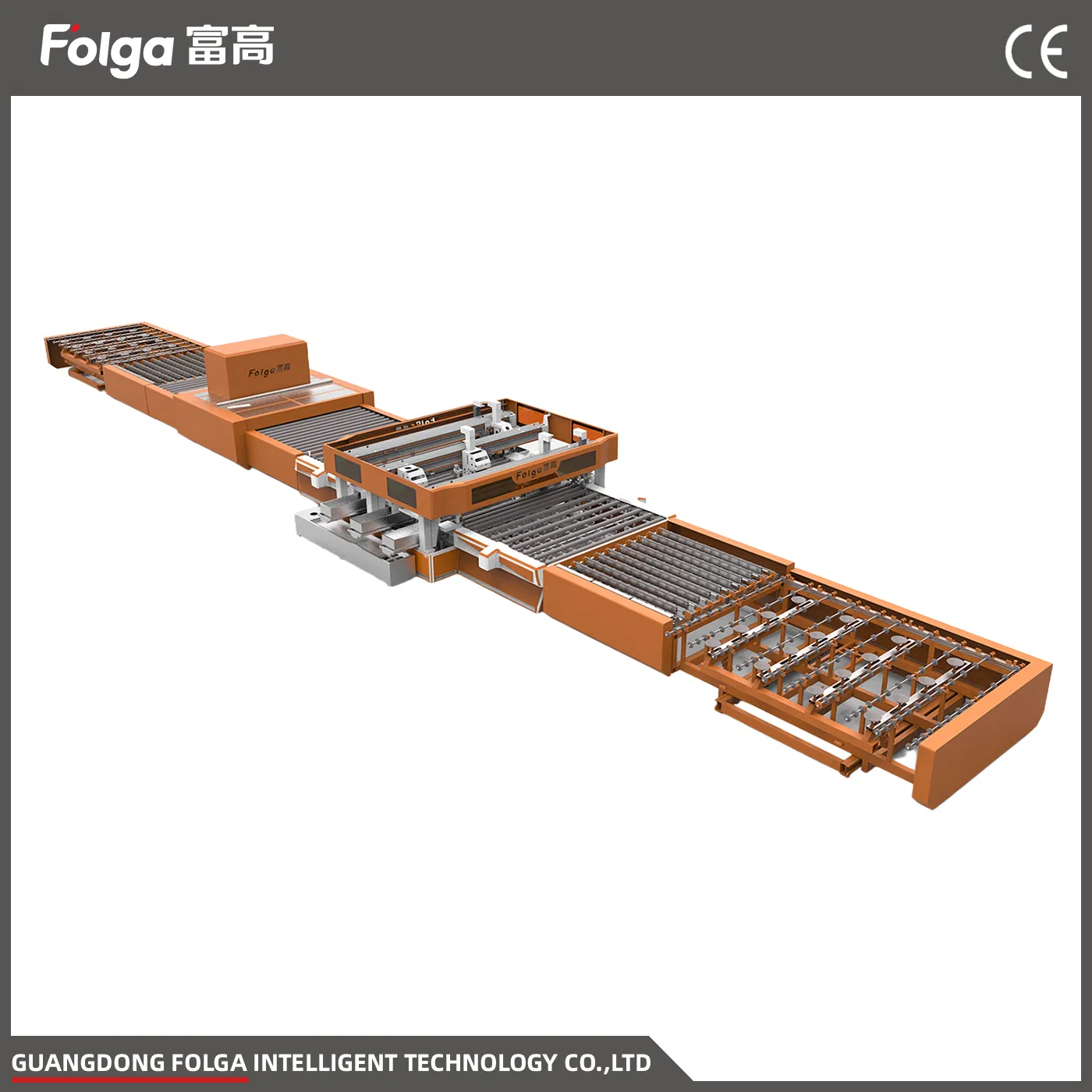

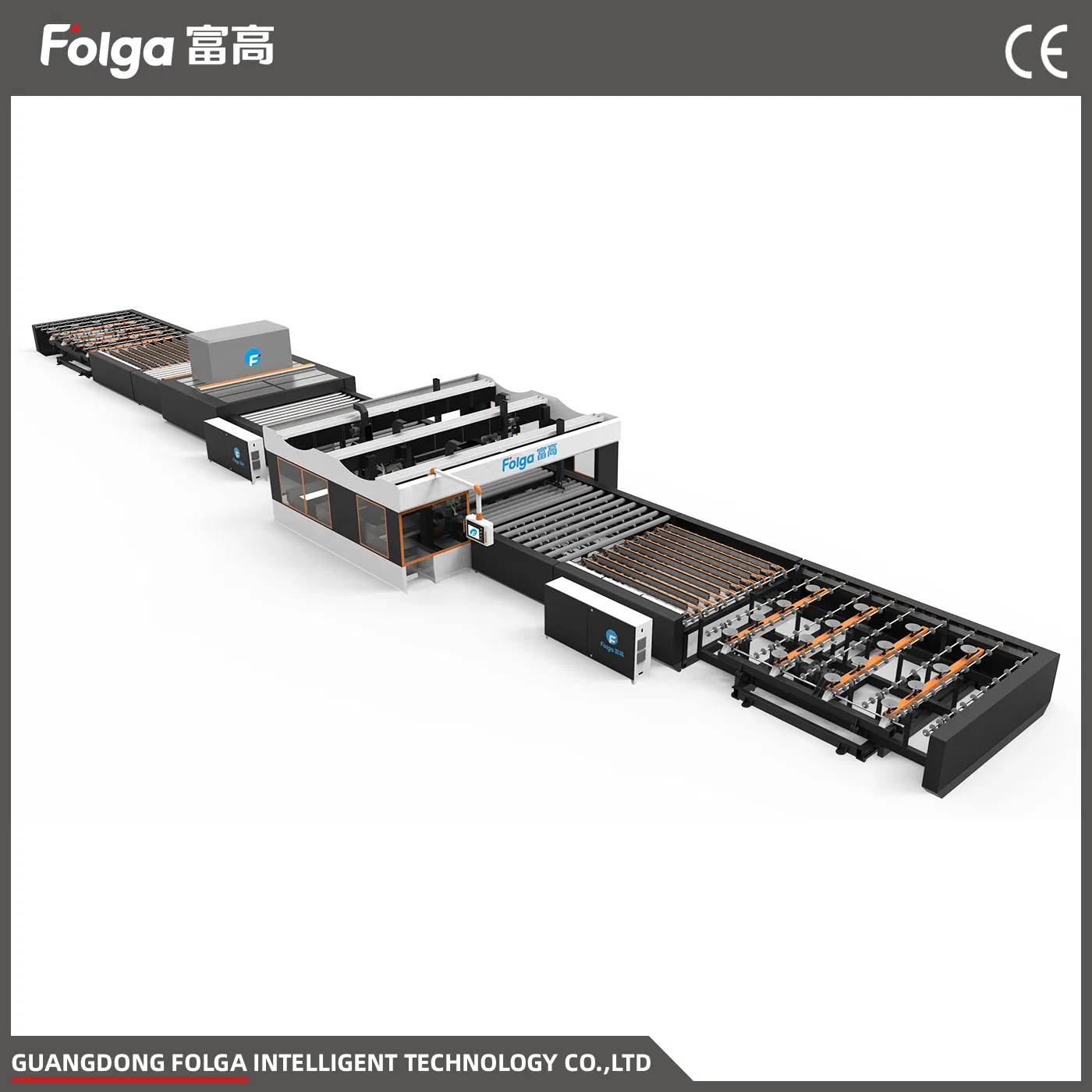

GLASS SEAMING MACHINE (Glass Four Side Edger) is a state-of-the-art automatic glass edging machine designed for high-efficiency processing of rectangular and square flat glass sheets.
This horizontal glass seamer features advanced four-side simultaneous grinding technology, capable of completing chamfering, bottom edge grinding, and Low-E coating removal in a single pass at speeds up to 40m/min.
Equipped with a BUS PLC controlling system and full servo motors, this glass four-sided edging machine delivers exceptional precision, energy efficiency, and labor cost reduction.

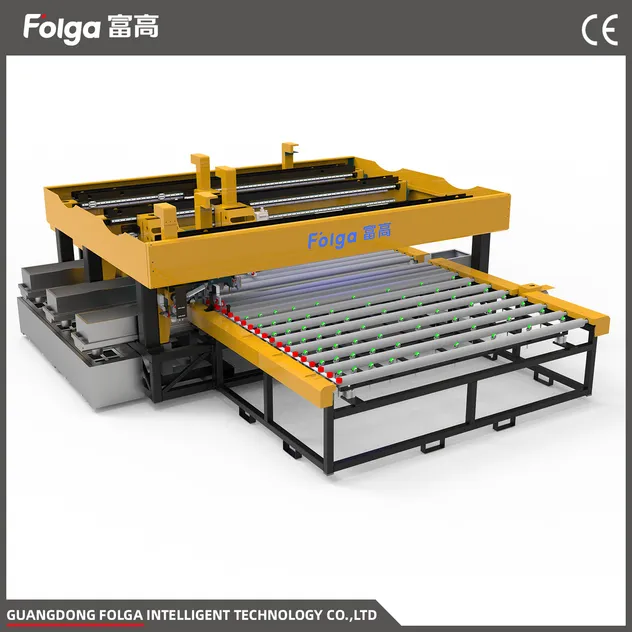

Four-Side Simultaneous Processing: Innovative "three bridges" structure with 4 sets of grinding head mechanisms enables simultaneous up & down chamfering, bottom edge grinding, and Low-E coating removal.
High-Precision Positioning System: Exclusive cylinder-probe positioning design prevents direct contact with glass surfaces, eliminating scratches and breakage risks while ensuring easy operation and maintenance.
Superior Edge Quality: Bottom edge grinding wheels feature a specialized "double edger bowl" structure that eliminates imperfect grinding issues, delivering flawless edge finishes.
| Machine Specification Data | |
|---|---|
| Product Name | Straight Line Edging Machine |
| Glass Thickness | 3-25mm |
| Max. Edge Grinding | 5mm |
| Max. Chamfer Grinding | 2mm |
| Working Speed | 1-30m /min |
| Size Changing Speed | 1-18m /min |
| Parallel Error | ≤0.2mm /m |
| Diagonal Error | ≤0.5mm /m |
| Air Pressure | ≥0.6Mpa |
| Single Machine Power | 42kw (12 motors) |
An Integrated BUS PLC controlling system with full servo motors provides exceptional stability and real-time production monitoring.
Movement powered by gear racks, gear reducers, and servo motors, ensuring 40m/min movement speeds with exceptional positioning accuracy.
Compatible with MES and ERP software integration, enabling real-time production data tracking and manufacturing resource planning.
