| Model NO. | SLM2516 | Certificate | CE |
|---|---|---|---|
| Min Glass Size | 100X100mm | Max Glass Size | 2500X2500mm |
| Thickness Range | 3-25mm | Weight | 2800kgs |
| Type | Glass Production Line | Structure | Vertical |
| Grinding Heads | 10 | Condition | New |

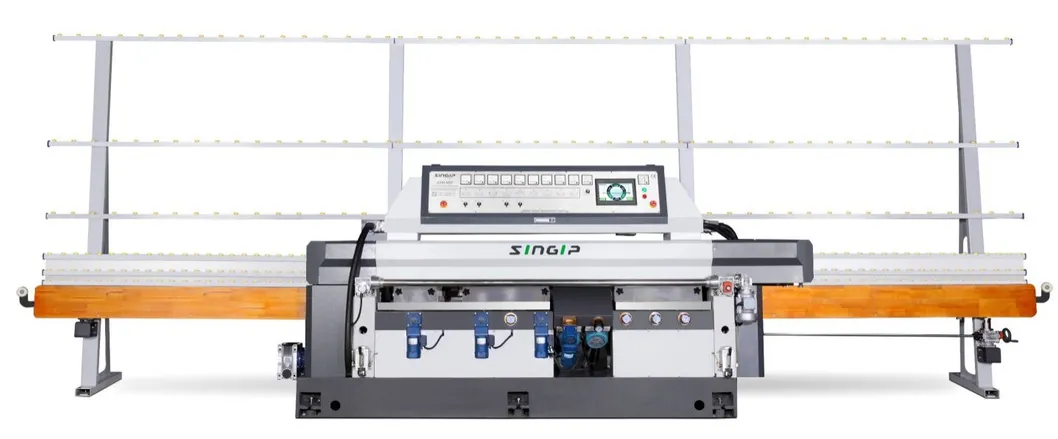

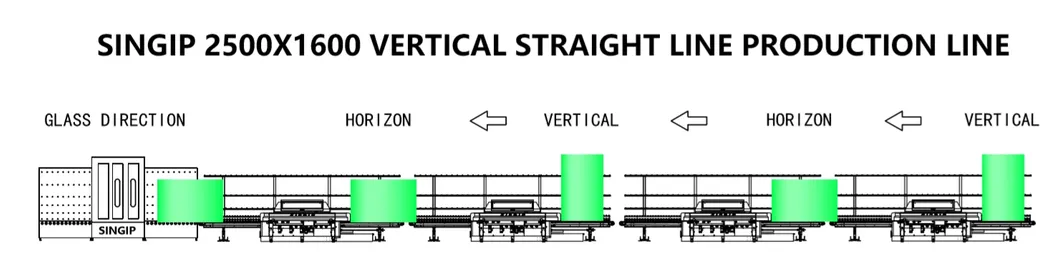

SLM2516 Automatic Efficient I Shape Glass Vertical Edging Production Line
This automated equipment is designed for glass processing, specializing in edge grinding, chamfering, and polishing. Utilizing an advanced control system, it ensures continuous operation with minimal manual intervention, significantly boosting production efficiency.

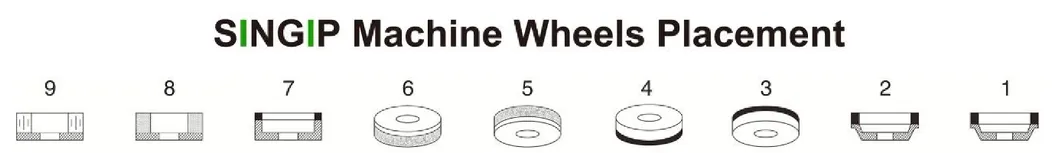

Features an intelligent edging system that compensates for polishing wheel wear in real-time. It supports both automatic and manual modes to handle diverse product requirements.
| Parameter | Value |
|---|---|
| Thickness range | 3-19mm |
| Min. Glass Size | 100x100mm |
| Feeding speed | 0.5m/min-5m/min |
| Total power | 20kw |
| Max cutting of flat edging | 3mm |

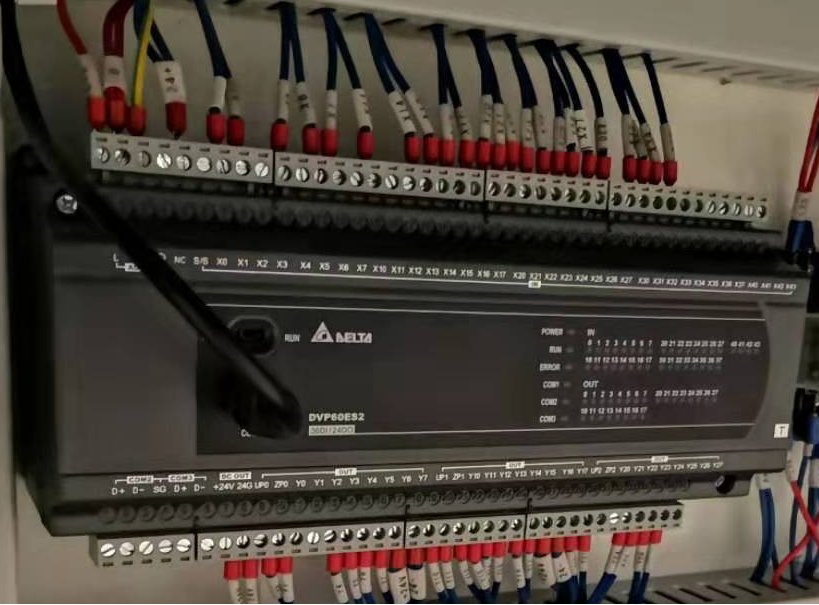

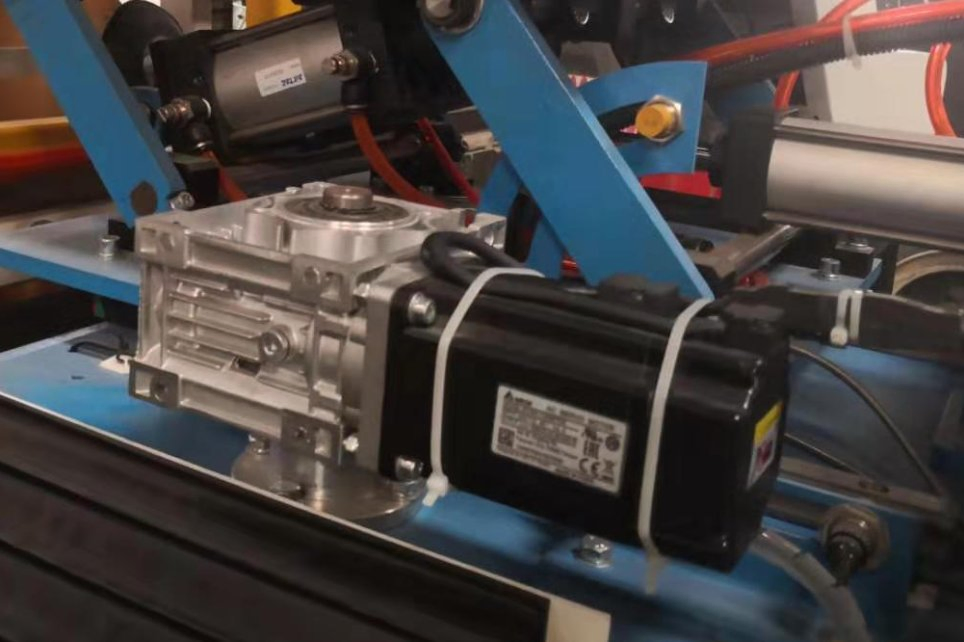

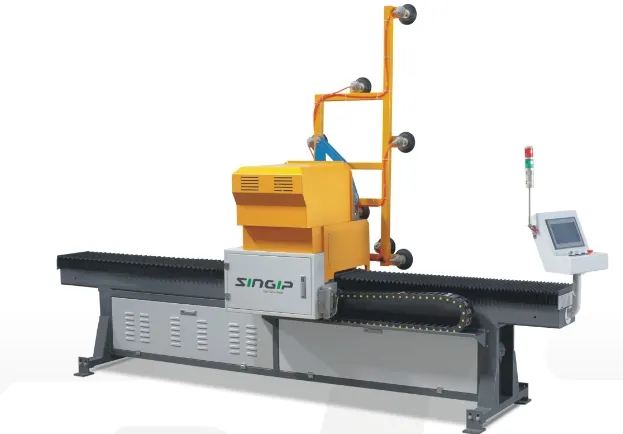

Designed for space efficiency with I-shape rotation. Equipped with a spring-buffered suction structure to catch glass safely without damage. Uses Delta PLC and Servo drivers for high precision.
| Weight capacity | Max 125kgs | Rotation time | 12-15 sec/pcs |
|---|---|---|---|
| Min Size | 400x400mm | Max Size | 2500x1600mm |

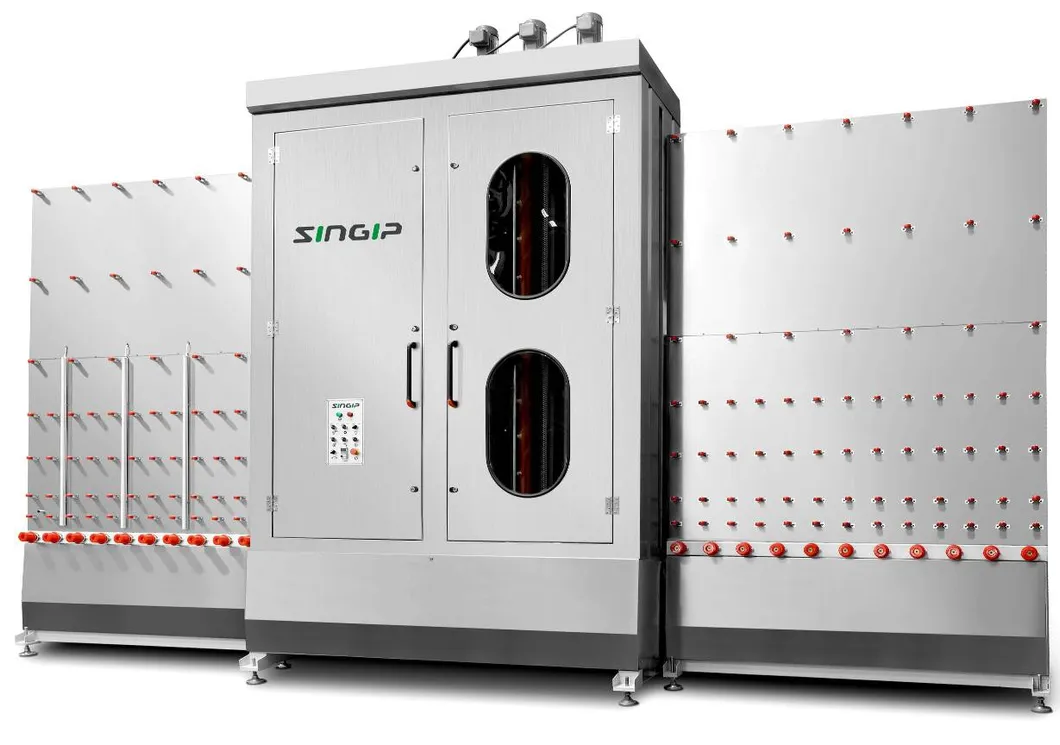

Features a 201 stainless steel body and high-quality brushes. The frequency inverter air blower provides powerful drying. Ideal for insulated glass production with limited floor space.
| Max Glass Height | 2500mm |
| Thickness range | 3-12mm |
| Feeding speed | 0.5m/min-8m/min |
Highly versatile for shower enclosures, glass railings, and commercial doors. Ensures a refined finish for both residential and commercial glass needs.
