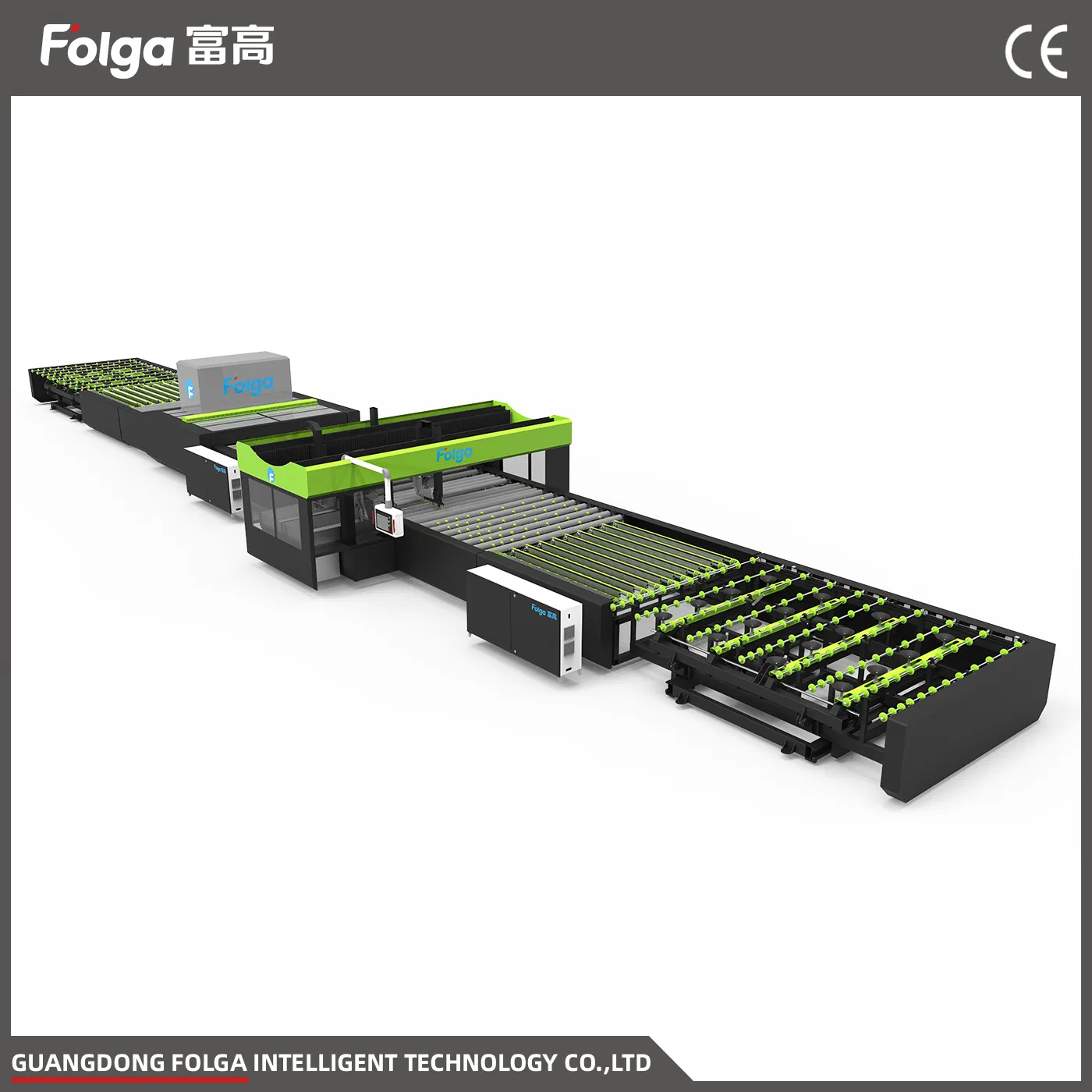

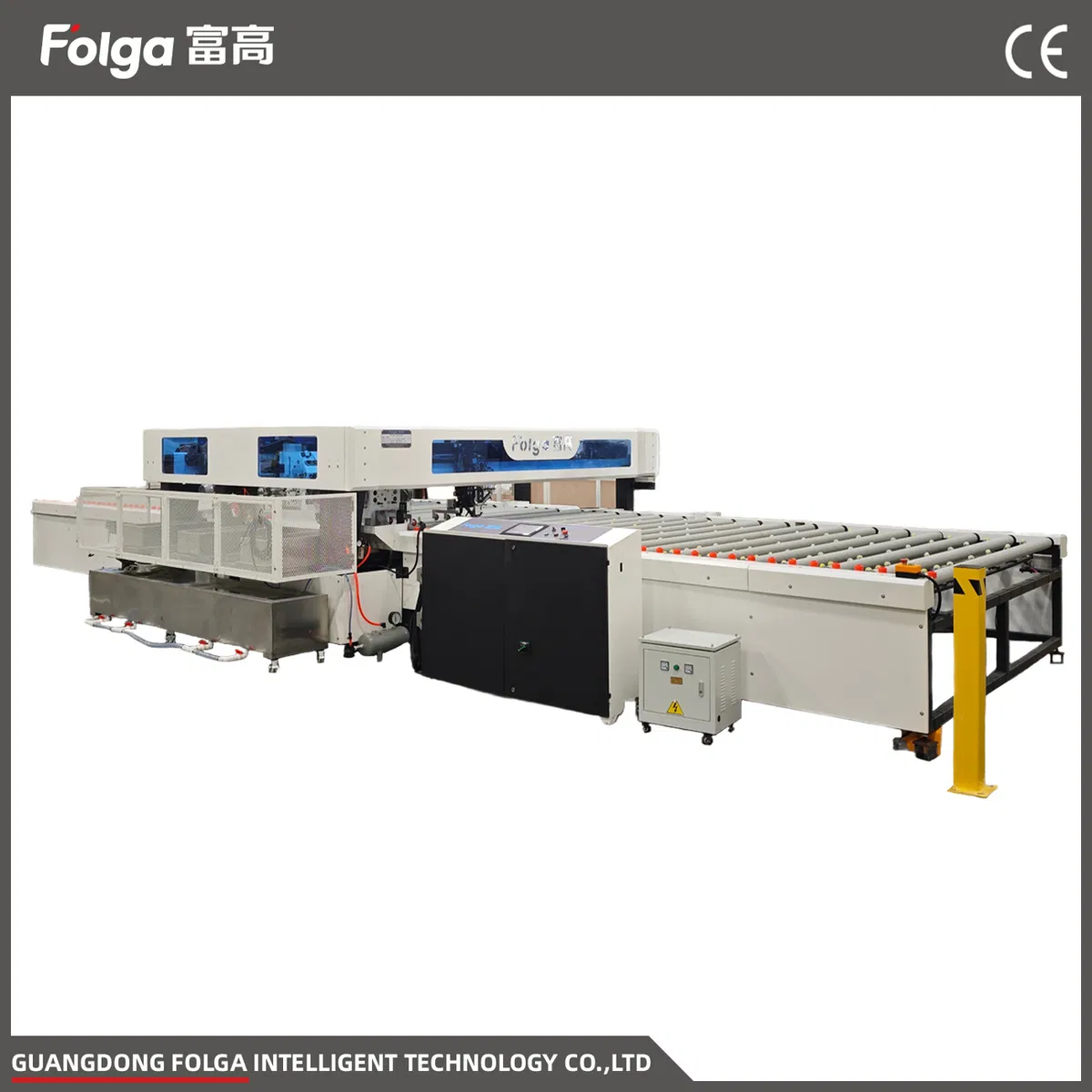

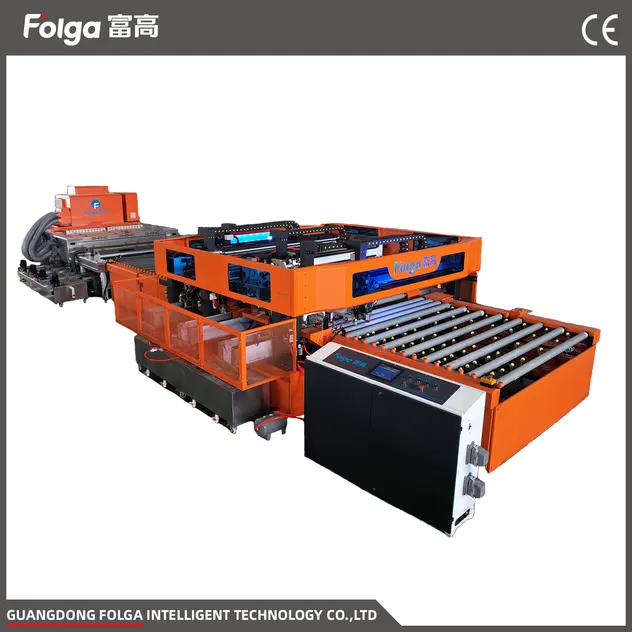

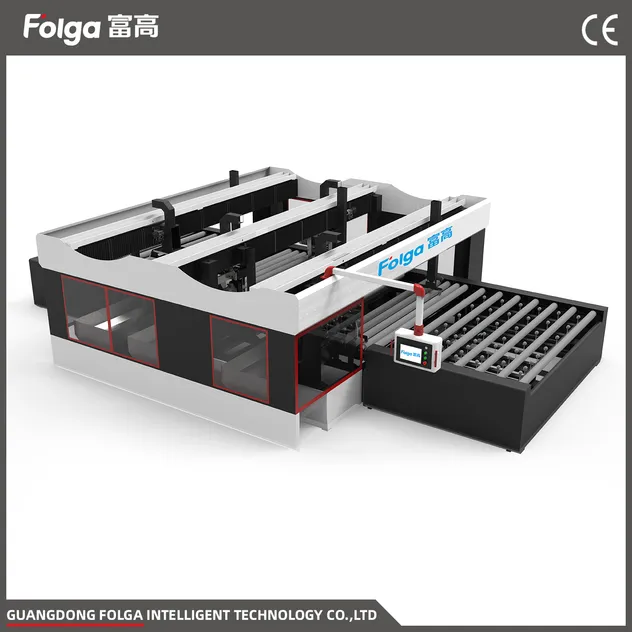

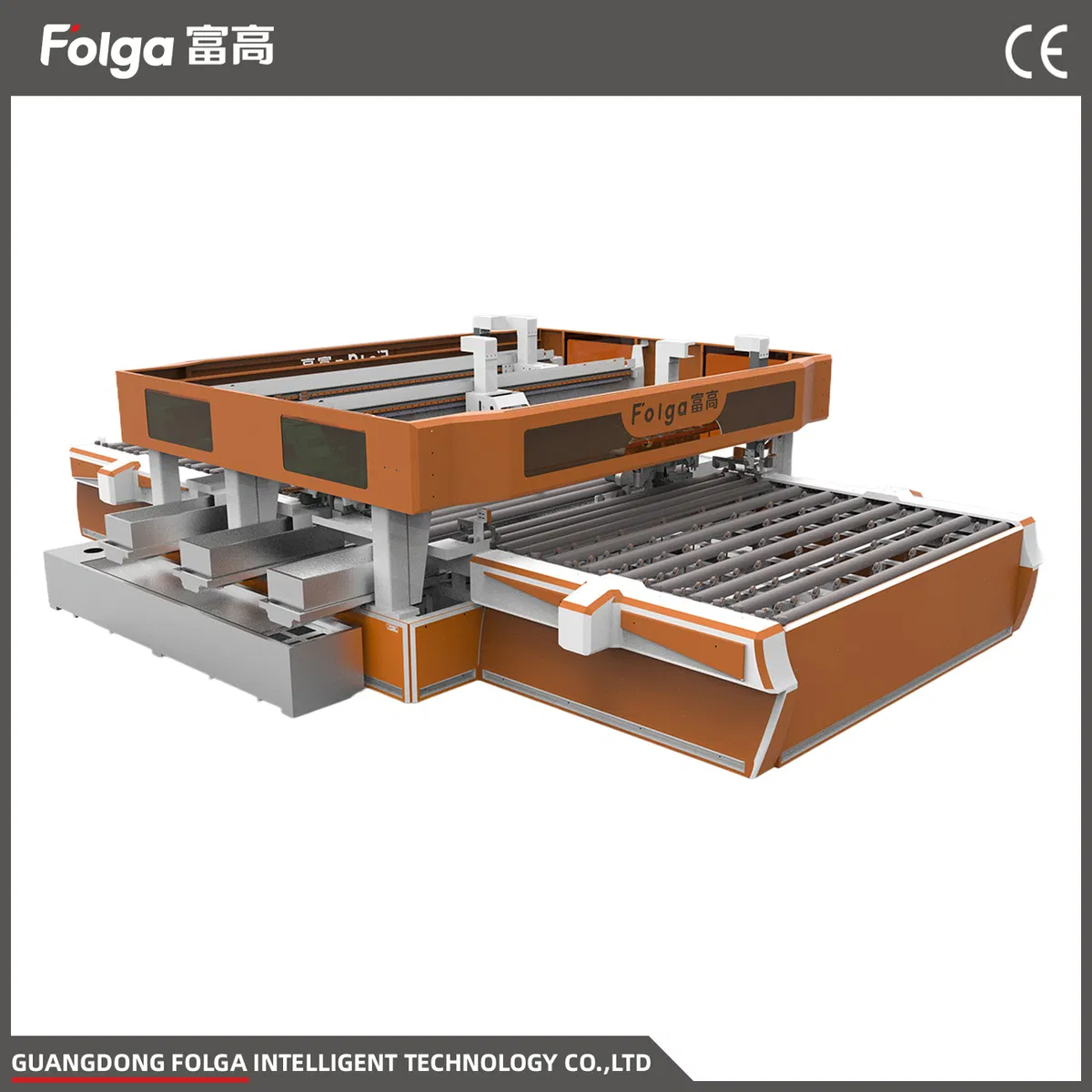

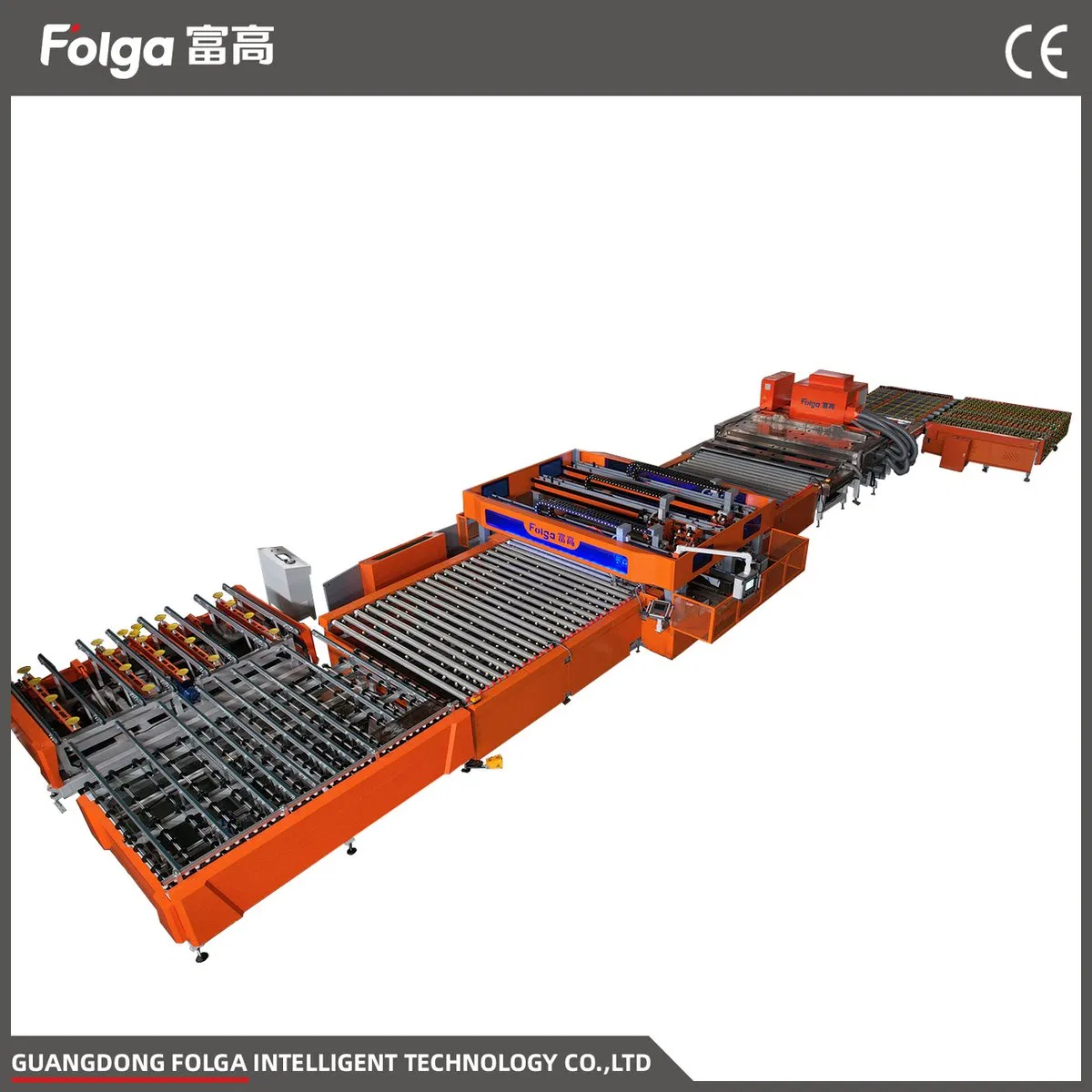

High-Quality Smart Horizontal Glass Seaming Machine Production Line

1 / 5

High-Quality Smart Horizontal Glass Seaming Machine Production Line

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR
Processing Speed:	25-30 m/min

Send Inquiry

Product Description

Basic Information

Model NO.

FGS0820DL

Product Name

High Speed Glass Seaming Machine

Processing Thickness

3-12mm

Voltage

380V

Working Speed

1-40m /Min

Air Pressure

≥0.6MPa

Single Machine Power

28kw (12 motors)

Production Capacity

500 Sets/Year

Product Description

GLASS SEAMING MACHINE

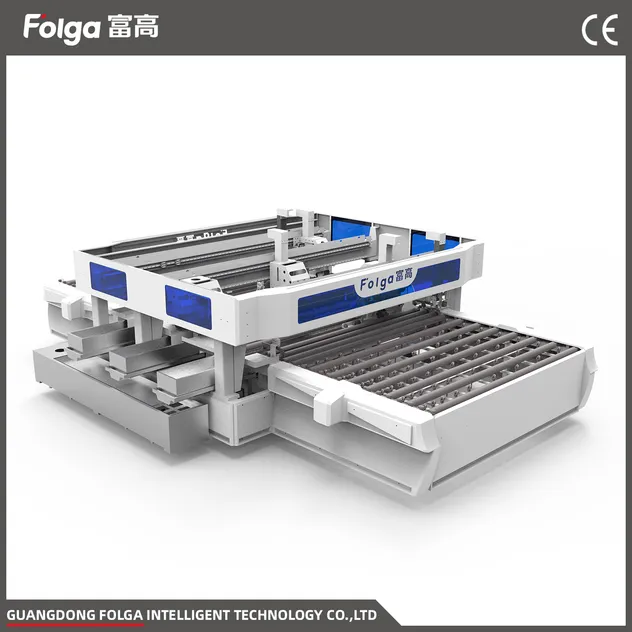

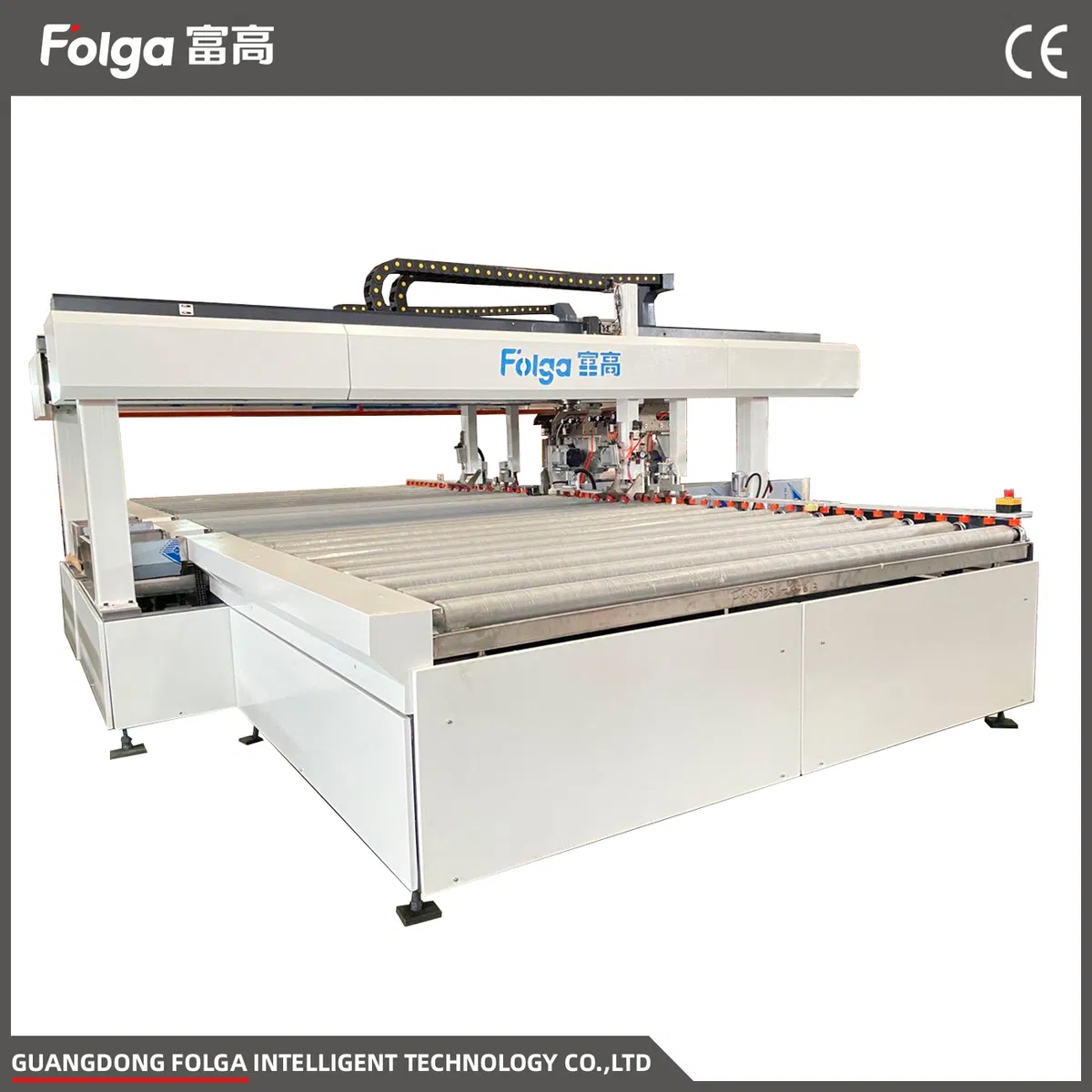

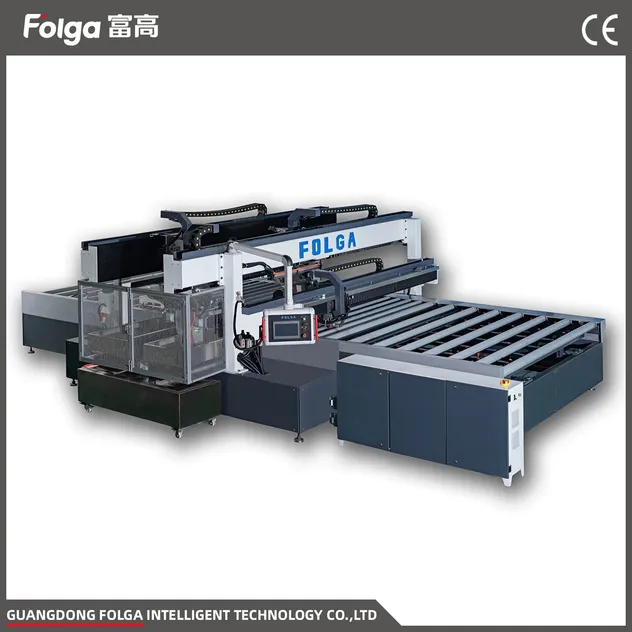

The Glass Seaming Machine (also known as Glass Four Side Edger) is a state-of-the-art automatic glass edging machine designed for high-efficiency processing of rectangular and square flat glass sheets.

This horizontal glass seamer features advanced four-side simultaneous grinding technology, capable of completing chamfering, bottom edge grinding, and Low-E coating removal in a single pass at speeds up to 40m/min.

Four-Side Simultaneous Processing

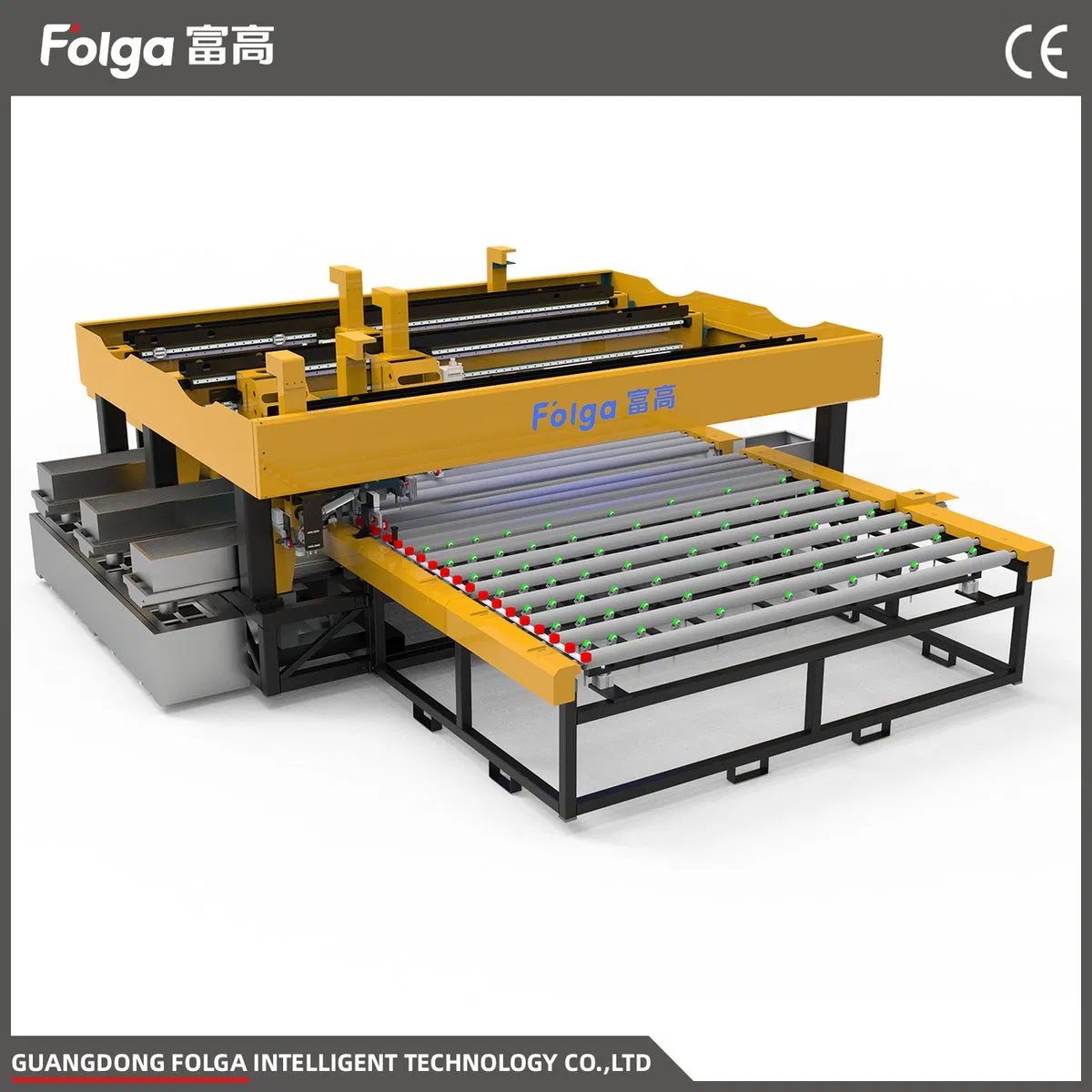

Innovative "three bridges" structure with 4 sets of grinding head mechanisms enables simultaneous up & down chamfering and grinding, achieving max throughput.

High-Precision Positioning

Exclusive cylinder-probe positioning design prevents direct contact with glass surfaces, eliminating scratches and breakage risks.

Superior Edge Quality

Bottom edge grinding wheels feature a specialized "double edger bowl" structure that delivers flawless finishes for premium glass.

Technical Specifications

Parameter	Details
Glass Thickness	3-25mm
Max. Edge Grinding	5mm
Max. Chamfer Grinding	2mm
Working Speed	1-30m /min
Size Changing Speed	1-18m /min
Parallel Error	≤0.2mm /m
Diagnial Error	≤0.5mm /m
Air Pressure	≥0.6Mpa
Single Machine Power	42kw (12 motors)

Detailed System Insights

FULL SERVO & BUS PLC CONTROL: Integrated system provides exceptional stability and real-time production monitoring.

PRECISION TRANSMISSION: Powered by gear racks and linear guides ensuring positioning accuracy at high speeds.

SMART FACTORY READY: Compatible with MES and ERP software integration for advanced manufacturing resource planning.

Frequently Asked Questions

Q1: What are your main glass processing products?

A: We primarily produce glass single edging machines, double edging machines, and seaming machines. We also provide washing machines, loading/unloading systems, and drilling machines.

Q2: How much experience do you have in manufacturing?

A: We have a history dating back to 2004, providing over 21 years of expertise in delivering stable technology, quality machinery, and prompt after-sales service.

Q3: Do you provide global on-site installation and training?

A: Yes, we offer comprehensive global installation services and training by dispatching experienced engineers to your site.

Q4: Can machine sizes be customized for JUMBO glass?

A: Yes, we specialize in customizing glass machine dimensions and specifications based on your specific industrial requirements.

Q5: What glass types can your machines process?

A: Our machines process all kinds of glass, providing both shiny polishing and matte grinding finishes depending on your needs.

Q6: What is your troubleshooting response time?

A: We respond within 8 hours. Technical solutions are provided within 24 hours, and spare parts are dispatched via express couriers like DHL if replacements are needed.
