Smart Handling Alignment Insulating Glass Processing Machine

Customization:	Available
After-sales Service:	12 Month
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

JYW-2030

Condition

New

Certification

Automatic Grade

Automatic

Voltage

380V

Input Power

28kw

Air Pressure

0.5-0.8MPa

Max. Processing Size

2500*3000mm

Single Glass Thickness

3-18mm

Transfer Speed

8-45m/Min

Machine Weight

7000kg

Origin

China

Product Description

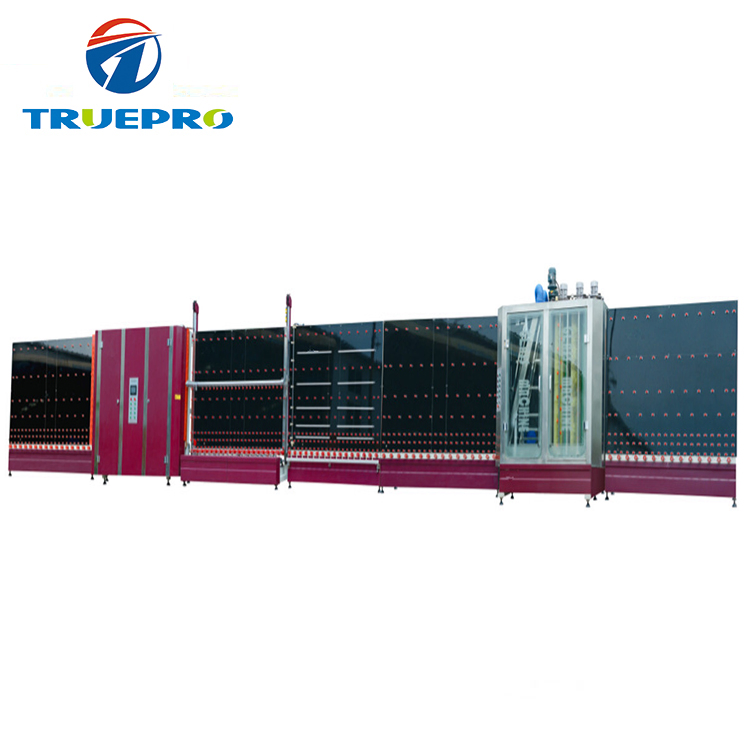

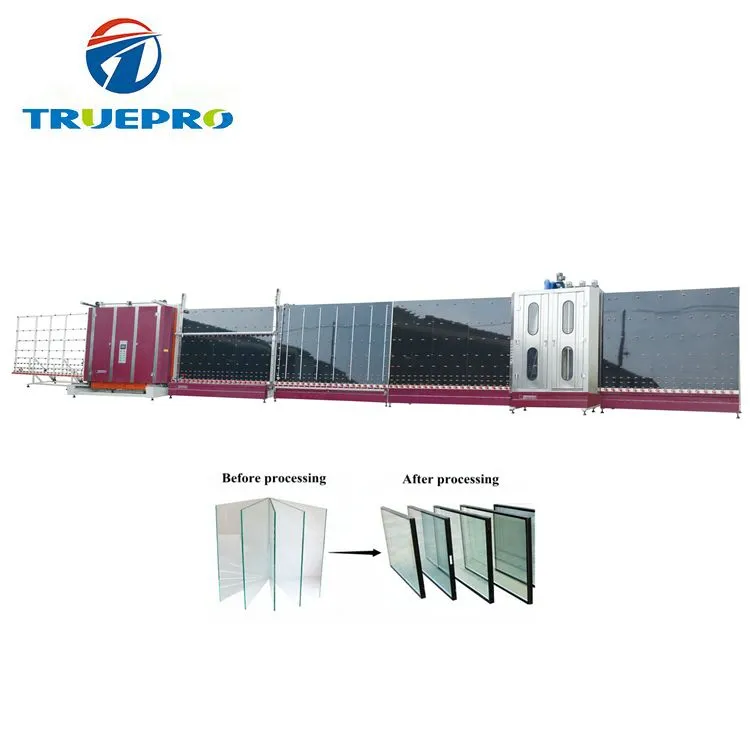

Efficient Automatic Vertical Double Glazing Machine

Key Features:

Automatically distinguish the coating side of coated glass and low-E glass.
Static state load glass when adding glass material to ensure safety in production.
Washing machine adopts stainless steel and corrosion-resistant materials with waterproof bearings.
Capable of cleaning 3~25mm thickness glass with a wide application range.
High efficiency processing for same-edge double insulating glass.

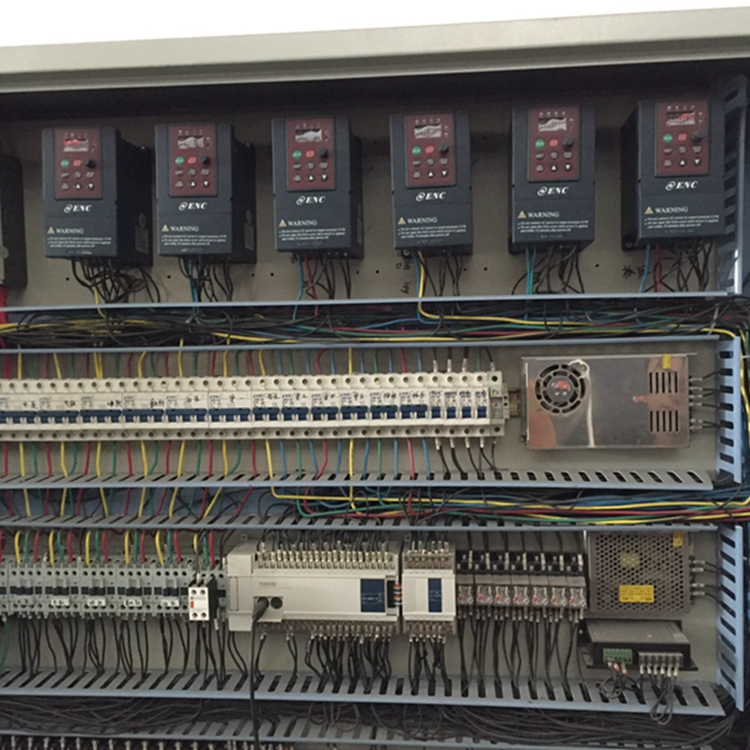

Equipped with world-famous brand low-voltage electrics, sensors, and PLC systems.
PLC control system with touch screen interface for simple, high-automatic operation.
Surface treatment with baking paint and powder coating for a durable, beautiful finish.

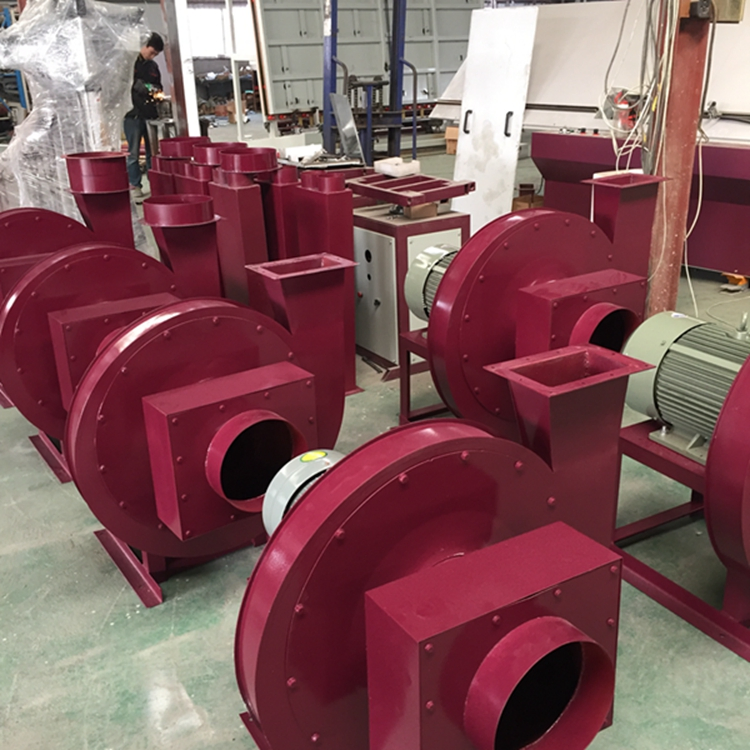

Drying section uses circulating hot wind to ensure dry glass and noise reduction.

Technical Parameters

Model	JYW-2500
Input Voltage	380V 50Hz
Total Power	28.0KW
Cutting Glass Size	2500×3000mm
Min Glass Size	280×450mm
Glass Thickness	3~18mm
Working Speed	8~45m/min
Total Weight	7000kg
Size of Line	21500×2000×3700mm

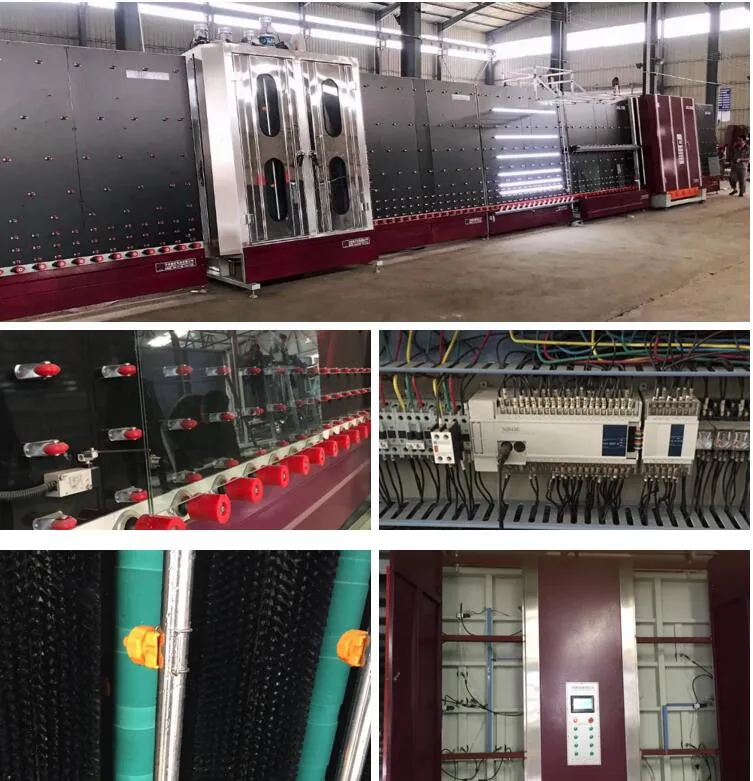

Machine Details

Frequently Asked Questions

When can shipment be arranged?

Standard machines are usually shipped within 15 days after deposit. Customized machines typically require more than 25 days.

What happens if the machine has problems?

We provide free replacement components if the machine is within the guarantee period. Additionally, engineers can be dispatched to perform repairs.

Is equipment operation training provided?

Yes. Professional engineers are available for on-site installation, adjustment, and operation training. All engineers hold valid passports for international travel.

What glass thickness can this machine process?

The machine is designed to process glass with a thickness ranging from 3mm to 18mm, though the washing unit can handle up to 25mm.

Can the machine be customized?

Yes, every machine can be customized to meet specific production requirements and special processing needs.

What materials are used in the washing section?

The washing section utilizes stainless steel and other corrosion-resistant materials, along with waterproof bearings that do not require oil lubricants.
