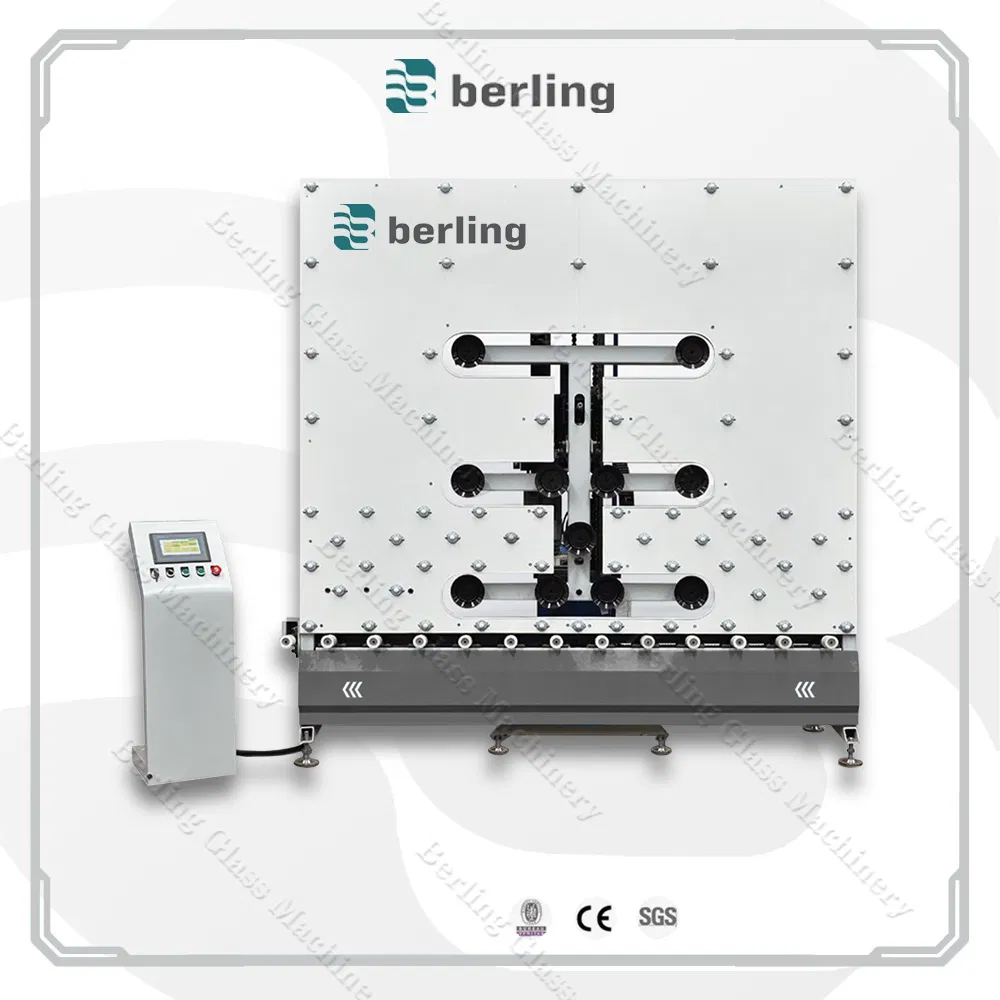

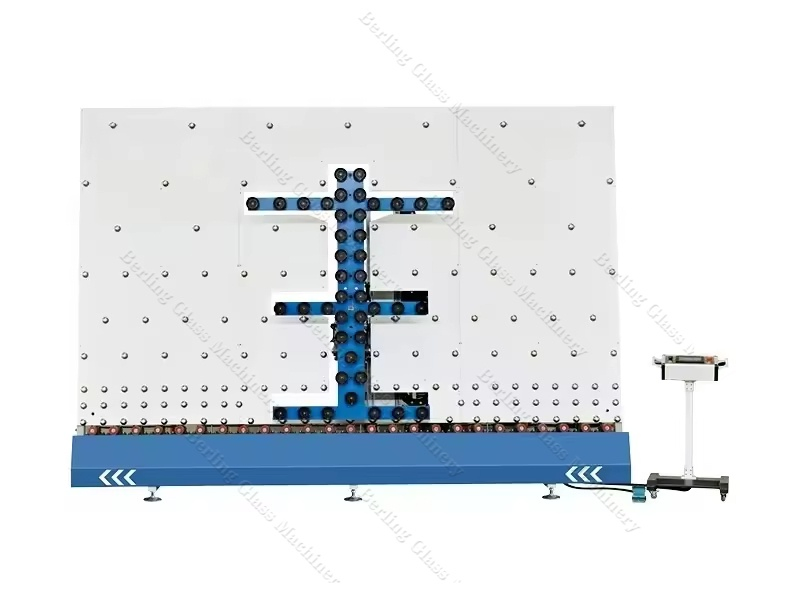

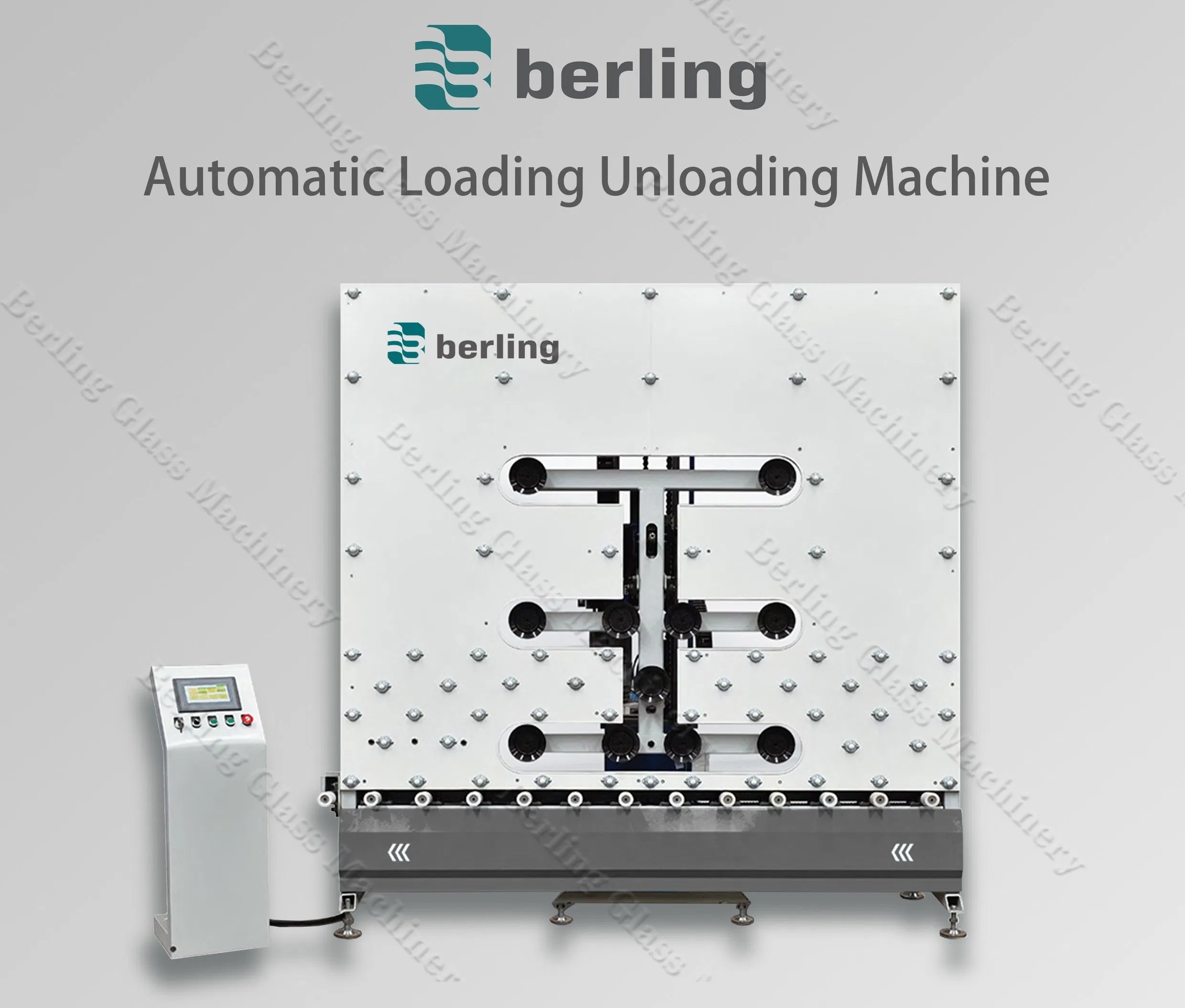

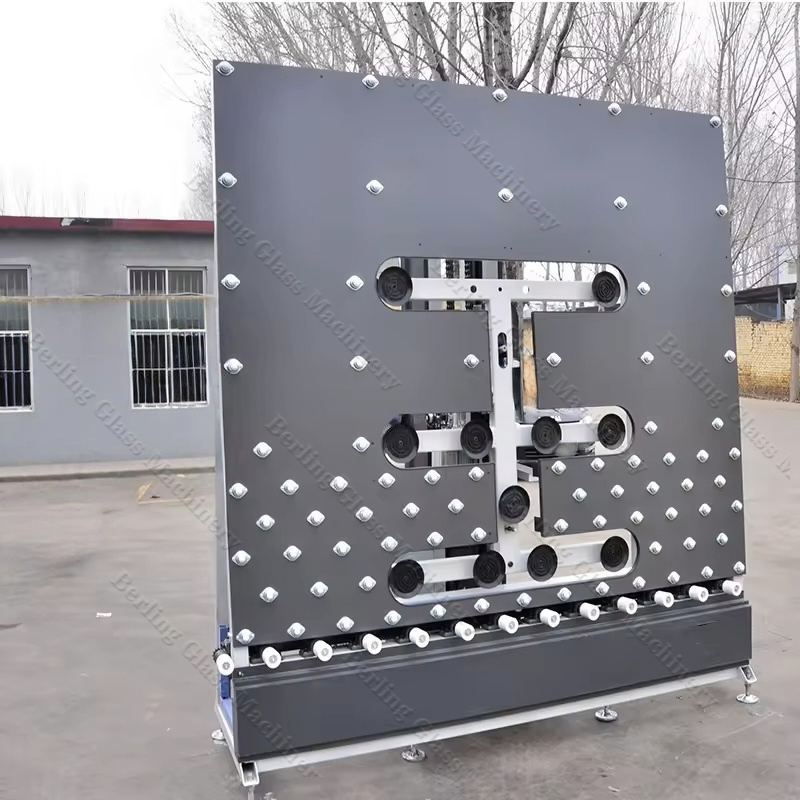

Smart Servo Controlled Glass Loading and Unloading Machine for Igu Units Equipment

Customization:	Available
Certification:	CE, ISO
Control System:	PLC Control

Send Inquiry

Product Description

📦 Basic Information

Model NO.

BLBG2030

Glass Thickness

3-12mm

Max Glass Size

2000*3000mm

Min Glass Size

200*300mm

Working Speed

2-40m/Min

Total Power

36kw

Voltage

380V/50Hz

Core Components

Motor, PLC, Pump

Control System

PLC (Mitsubishi)

Origin

China

HS Code

8464901900

🔍 Product Description

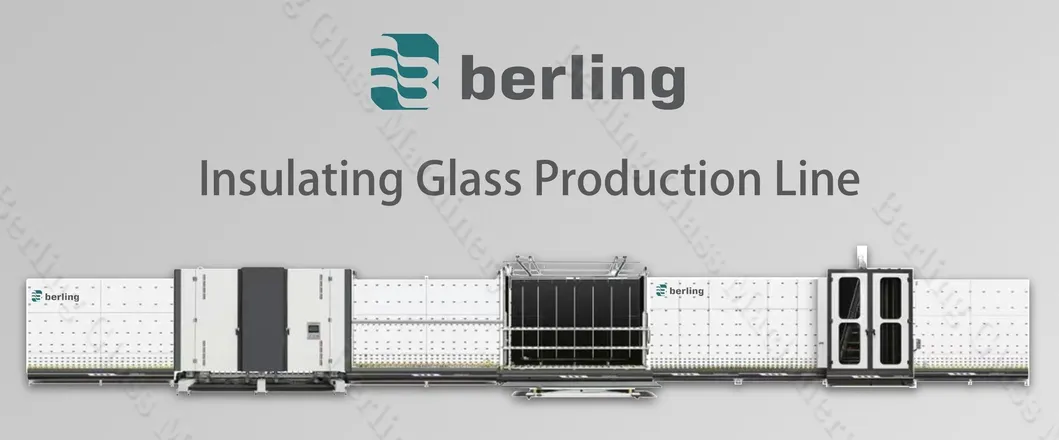

We provide high-performance vertical insulating glass production lines for manufacturing double, triple, and structural glass units. Our systems feature PLC control, touchscreen operation, Low-E glass detection, gas filling, and servo-driven pressing for accurate and efficient IGU processing.

Key Features

PLC Touchscreen Control - Easy operation and real-time monitoring.
Low-E Glass Detection - Omron sensors automatically identify coated glass.
Independent Brush Motors - Each brush is motor-driven for better cleaning.
Argon Gas Filling System - Servo-controlled, pressurized gas injection meets standards.
Flexible Assembly Modes - Supports both inner and outer press options.
Durable Stainless Steel Build - Corrosion-resistant for long-term use in industrial environments.

📊 Technical Parameters

Item	BLBG-3060	BLBG-2850	BLBG-2540	BLBG-2030
Total power	90KW	70KW	46KW	36KW
Max glass size	3000*6000mm	2800*5000mm	2500*4000mm	2000*3000mm
Min glass size	280*450mm	280*450mm	280*450mm	280*450mm
Panel glass thickness	3~30mm	3~12mm	3~12mm	3~12mm
Max IG unit thickness	12~80mm	12~80mm	12~40mm	12~40mm
Glass washing speed	2-12m/min	2-12m/min	2-12m/min	2-12m/min
Working Speed	2-45m/min	2-45m/min	2-45m/min	2-40m/min
Air pressure	0.8m³/min(1MPa)	0.8m³/min(1MPa)	0.8m³/min(1MPa)	0.8m³/min(1MPa)

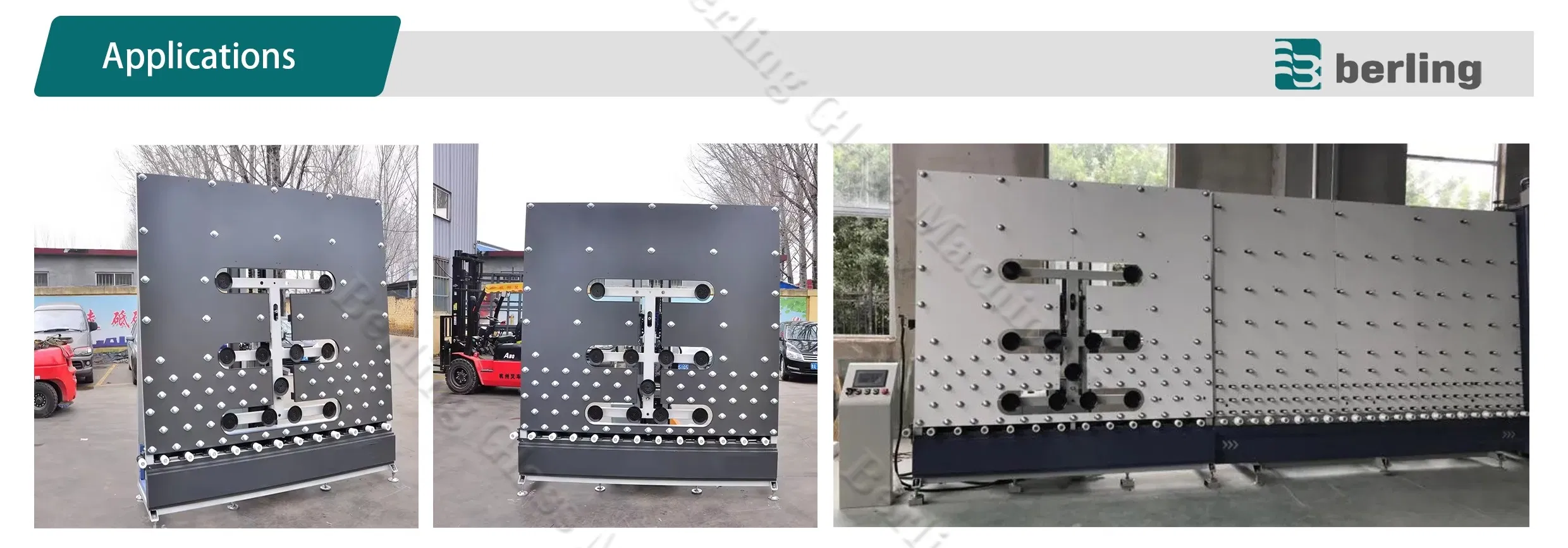

🏗️ Applications

Residential & commercial window IGU manufacturing
Curtain wall insulating glass unit production
Low-E energy-saving glass processing
Structural glass façade panel fabrication
Glass panel assembly and sealing in building industry

📜 Certifications & Logistics

Quality Certificates

Packaging & Shipping

🏢 Industry Expertise

After Sales Service

❓ Frequently Asked Questions

1. What types of glass machinery do you specialize in?

We provide a full range of glass processing equipment, including Insulated Glass Production Lines, Glass Cutting Machines, Washing Machines, Edging Machines, Tempering Furnaces, and Laminated Glass Lines.

2. How is the quality of the equipment guaranteed?

We ensure high quality by providing pre-production samples before bulk manufacturing and conducting a rigorous final inspection before every shipment.

3. What are the key technical advantages of your IGU lines?

Our lines feature advanced PLC control, Omron Low-E detection sensors, independent motor-driven brushes, and servo-controlled Argon gas filling systems for maximum efficiency.

4. Which international markets do you serve?

Our products are exported globally, with major markets in Eastern Europe, North and South America, the Middle East, Southeast Asia, and Western Europe.

5. What delivery and payment terms are accepted?

We accept various terms including FOB, CFR, CIF, EXW, and DDP. Payments can be made via T/T, L/C, Credit Card, or PayPal in USD, EUR, or CNY.

6. In which languages can you provide support?

Our team is multi-lingual and can provide professional service in English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, and more.
