| Model NO. | SLM2516 |
|---|---|
| Type | Glass Production Line |
| Structure | Vertical |
| Glass Edging Machine Type | Glass Straight Edging Machine |
| Grinding Head Number | 10 |
| Max Glass Size | 2500X2500mm |
| Min Glass Size | 100X100mm |
| Thickness Range | 3-25mm |
| Weight | 2800kgs |
| Certificate | CE |
| Condition | New |
| Production Capacity | 30 Sets/Month |
The glass vertical edge grinding line is automated equipment for glass processing, mainly used for glass edge grinding, chamfering, polishing, and other processes. The equipment adopts an automated control system, which can operate continuously, reduce manual intervention, and improve production efficiency.

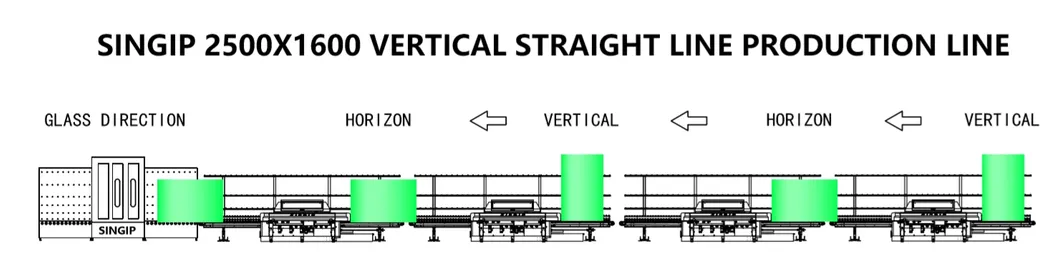

1. The whole line includes 4 sets of SZM-9SP intelligent polishing machines, 3 sets of SFZT2516 robot arms, and one set of SX-2500L vertical washing machine.
2. Efficiency is controlled by the SFZT2516 Robotics arm (3-4 pcs per min).
3. All edging machines adopt extended feeding and output guideways.
4. Capacity: Max size 2500x1600mm; Min size 400x400mm.

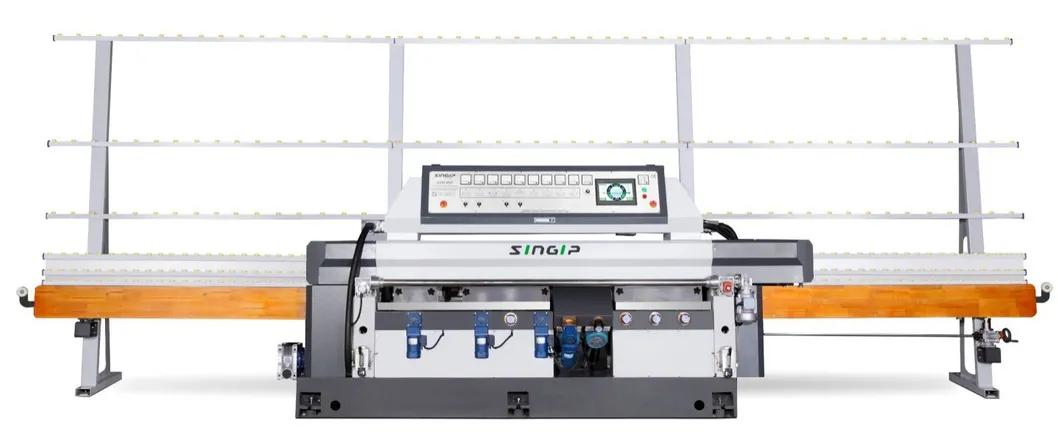

| Parameter | Specification (SZM-9SP) |
|---|---|
| Thickness Range | 3-19mm |
| Min. Glass Size | 100x100mm |
| Feeding Speed | 0.5m/min - 5m/min |
| Total Power | 20kw |
| Gross Weight | ~3000kg |

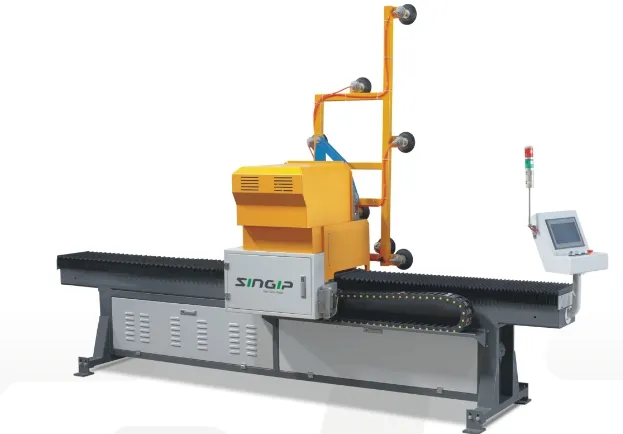

Robot Arm SFZT2516

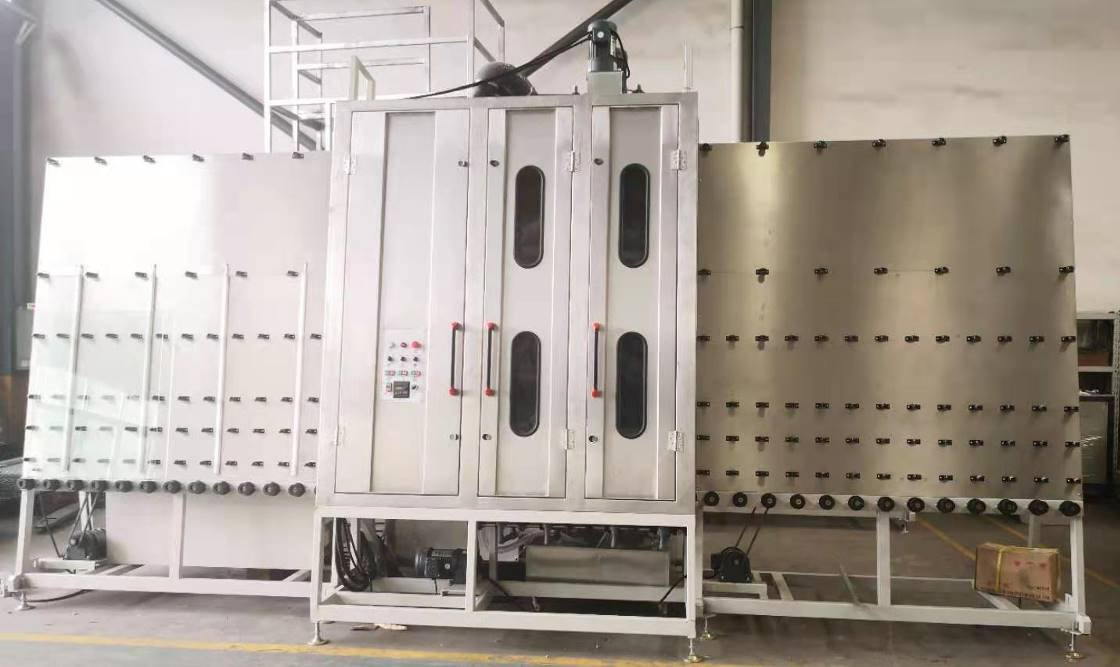

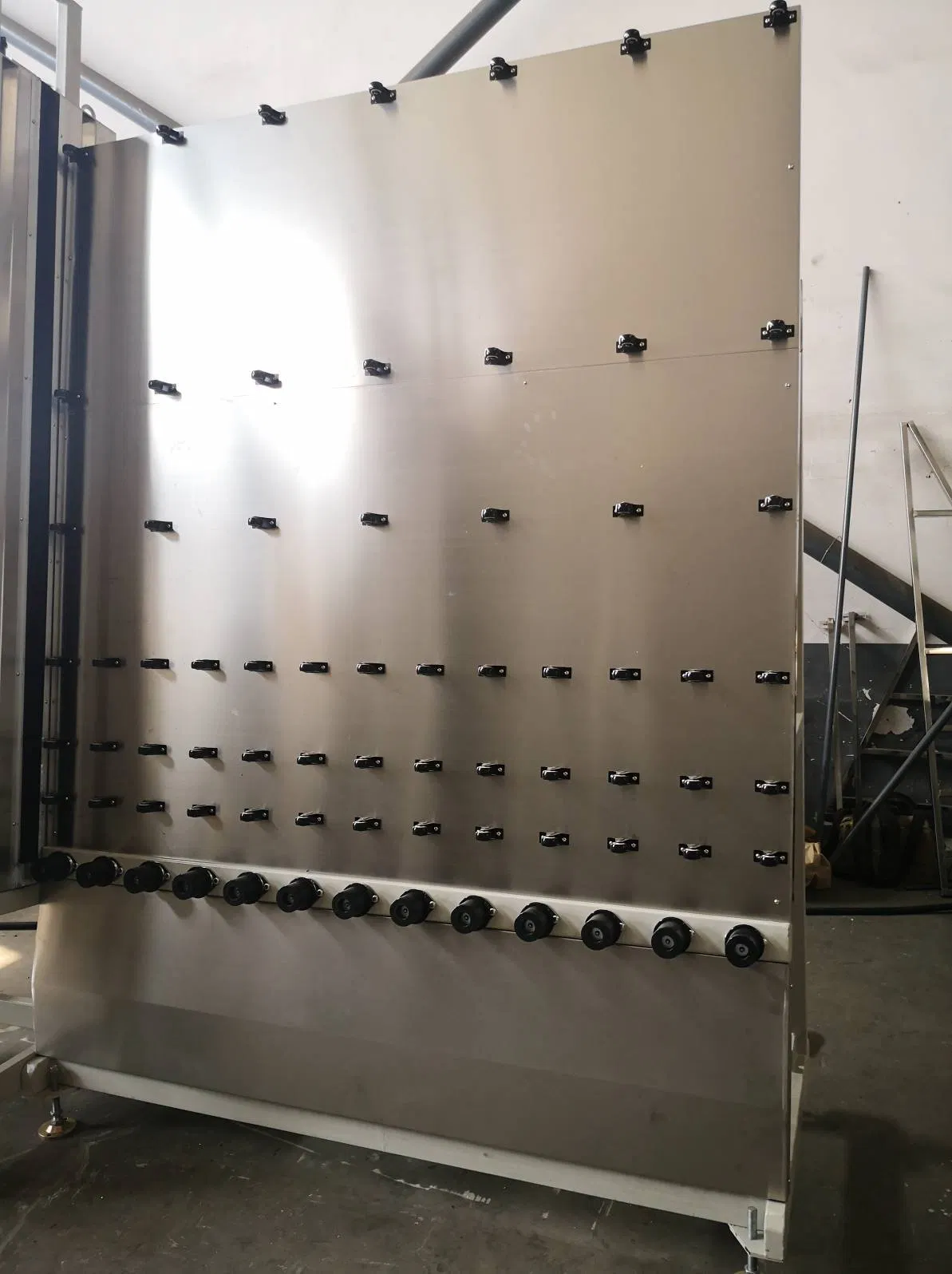

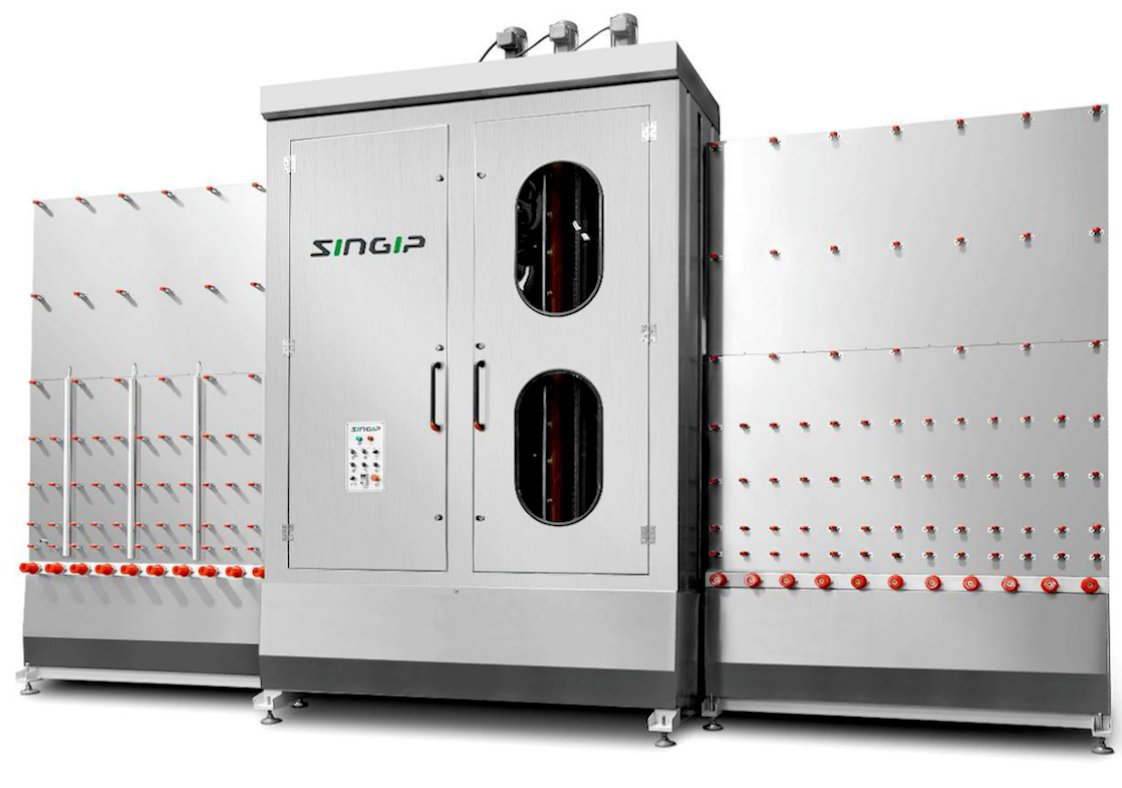

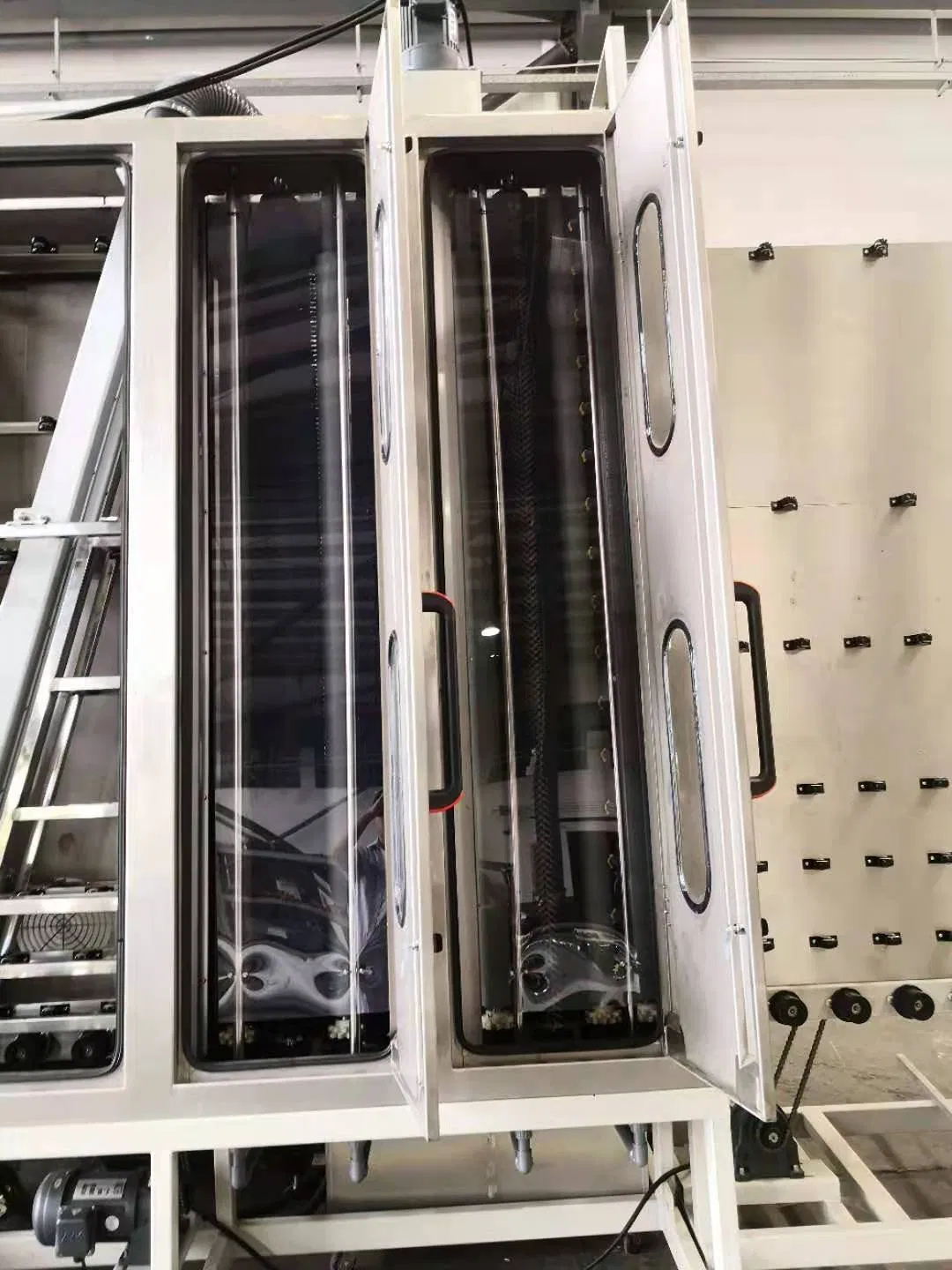

SX-2500L Washing Machine
The I Shape Glass Vertical Edging Production Line is highly versatile. It processes glass for shower enclosures, creating smooth edges. In construction, it makes elegant glass railings. For commercial doors, it ensures a refined finish. Ideal for both residential and commercial use, it meets diverse glass-edging needs.

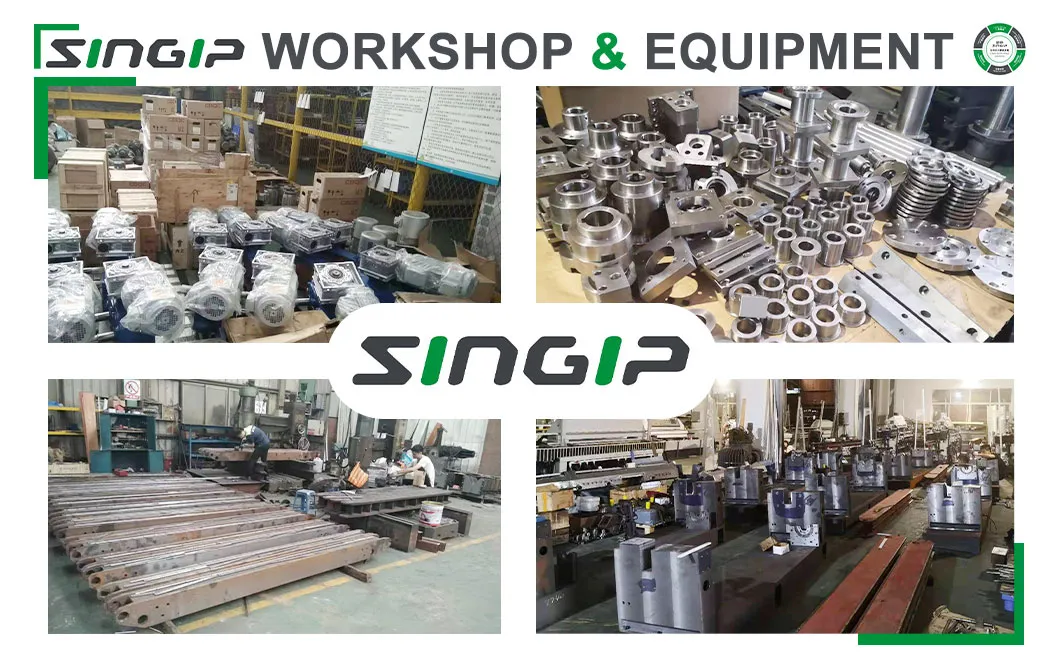

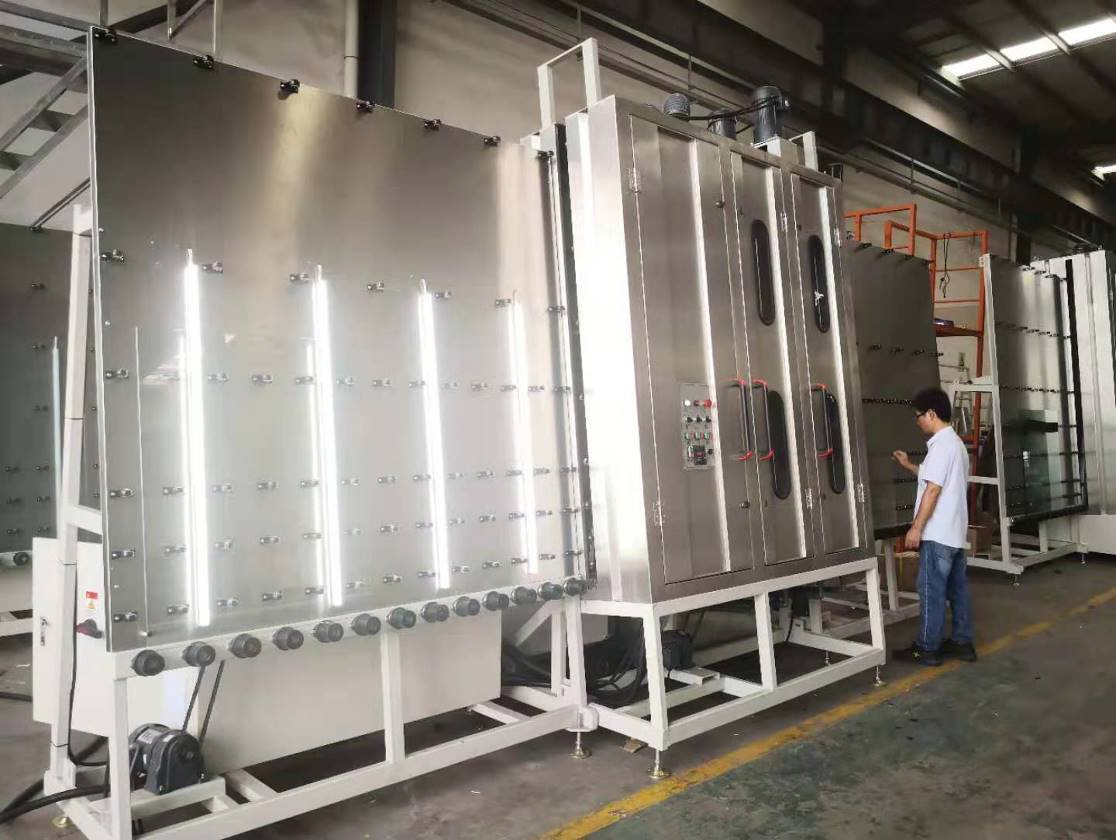

The workshop is equipped with diverse machines and organized neatly, storing packaged components and large metal structures. Precision parts and advanced equipment showcase our focus on quality and efficient production for glass-processing machinery. Our CE-marked machinery ensures strict international standard adherence.
Machinery is packed in containers suitable for long-distance ocean transportation. We use shock-absorbing materials such as pearl cotton and film to protect the equipment from damage during transit.
