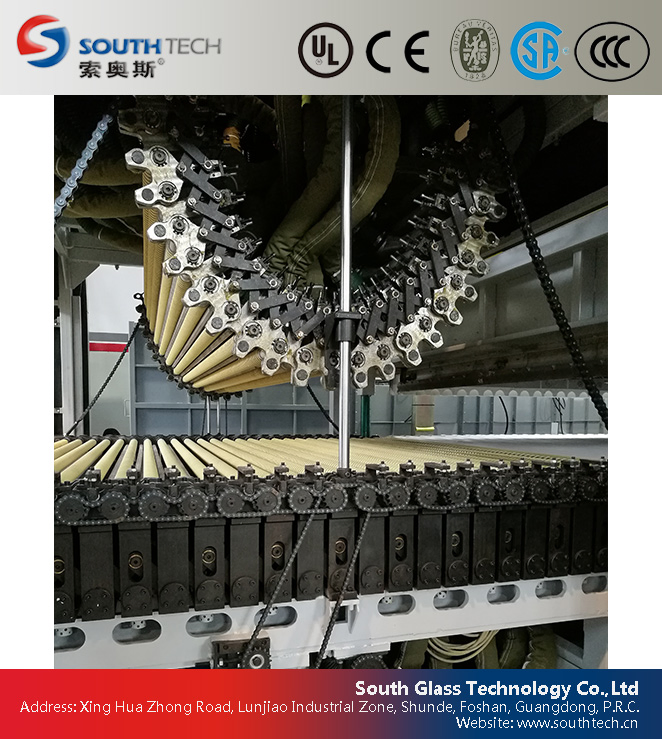

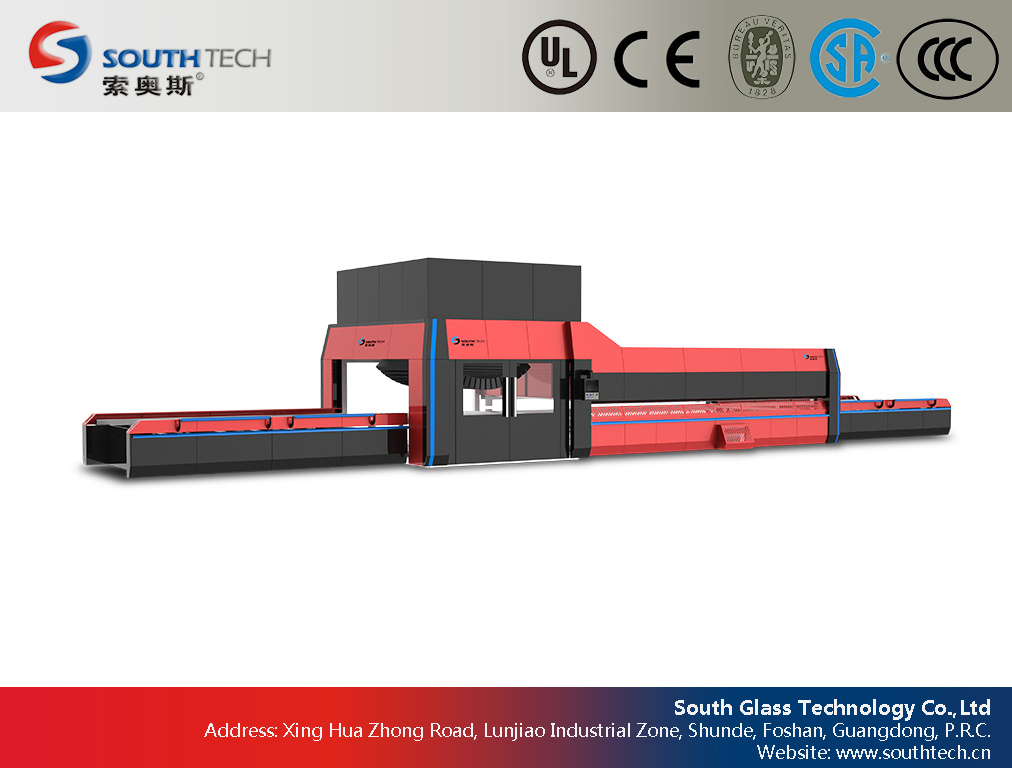

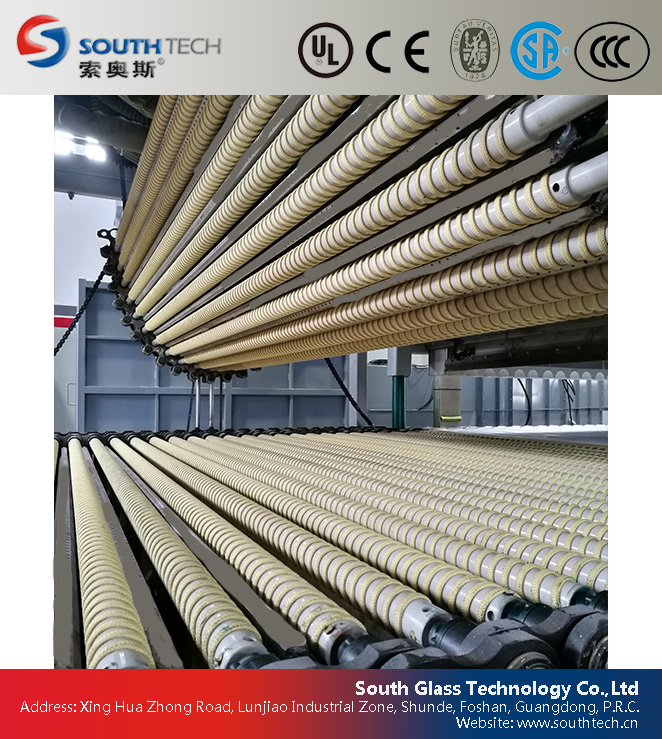

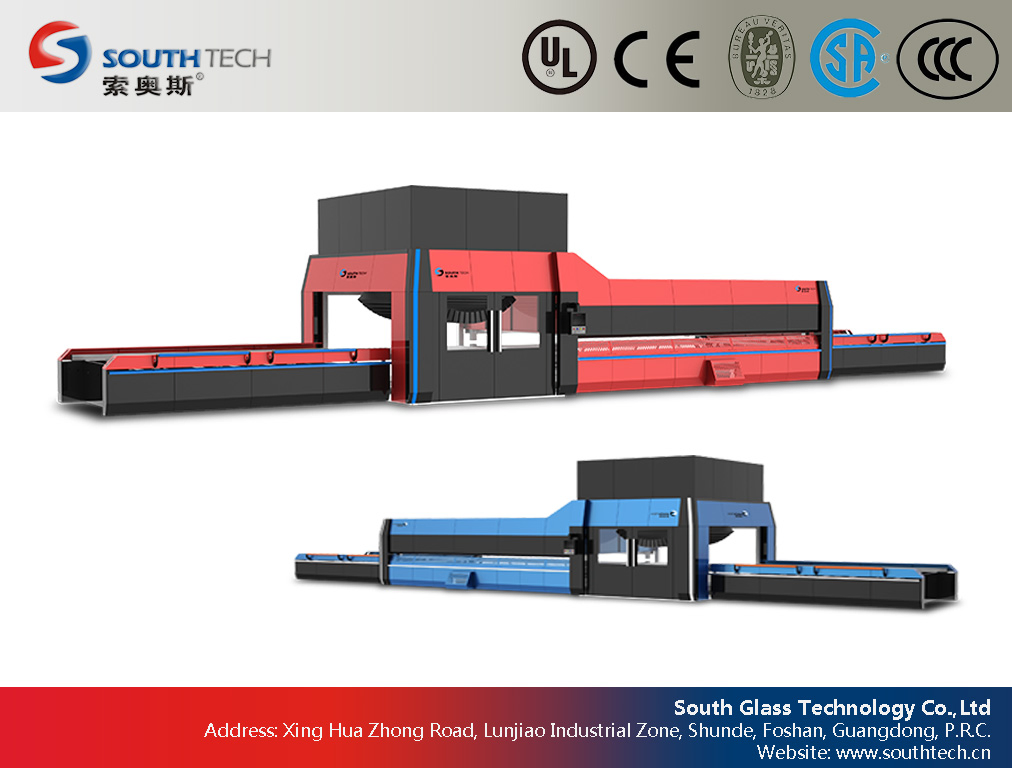

This cross curved bending toughened glass production line utilizes advanced technology to ensure high precision and energy efficiency for various industrial glass needs.
| Model | Max Loading Size (mm) | Min Size (mm) | Radius (mm) | Thickness (mm) | Output (m²/h) | Capacity |
|---|---|---|---|---|---|---|
| HWG0306 | 350 curved × 600 | 250 curved × 100 | 250 / 500 | 3.2 - 6 | 45 | ≥250kva |
| HWG0509 | 500 curved × 900 | 280 curved × 100 | 300 / 500 | 3.2 - 6 | 45 | ≥350kva |
| HWG0812 | 800 curved × 1250 | 350 curved × 200 | 400 / 1000 | 3.2 - 8 | 28 | ≥420kva |
| HWG1015 | 1000 curved × 1500 | 380 curved × 200 | 450 / 2000 | 4 - 12 | 28 | ≥480kva |
| HWG1020 | 1000 curved × 2000 | 380 curved × 380 | 480 / 2000 | 4 - 12 | 28 | ≥450kva |
Mainly used in: Domestic Appliances, Furniture, Lamps, Automotive Sidelites, Interior Decorations, Shower Booths, etc.

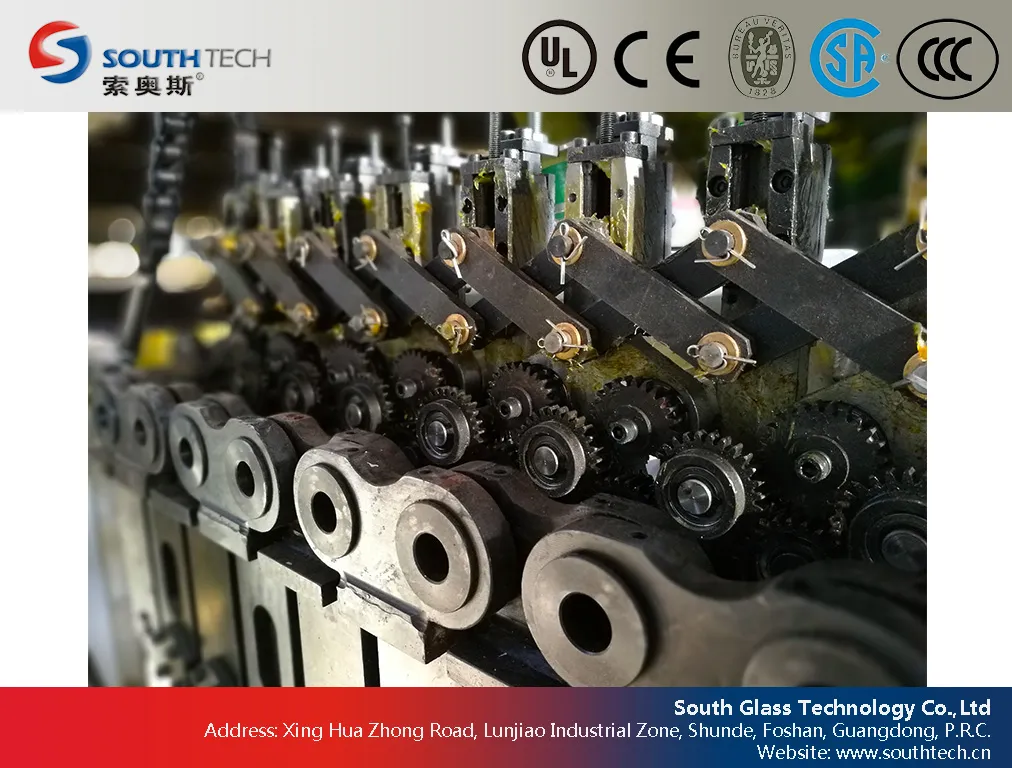

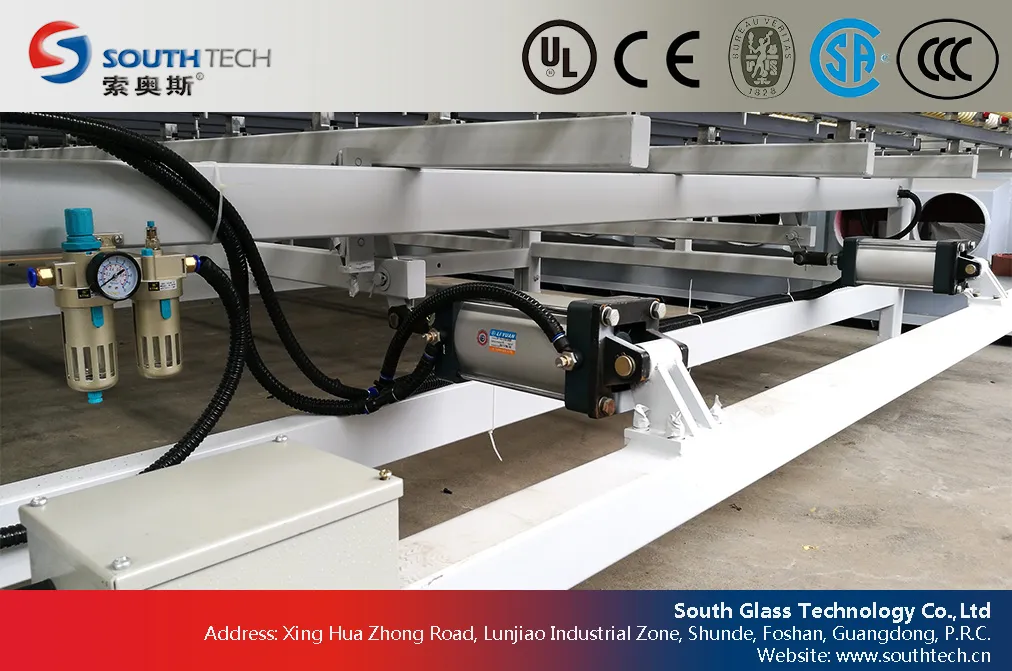

Machine Components:
Compatible with all types of float glass, including soft-coated Low-E glass (double and triple silver). Achieve flatness of 1-1.2‰ and breakage rates significantly better than international standards.
Up to 60% energy saving in the quenching section. Unique power-adjustment technology reduces transformer capacity needs by 200-300 KVA. Intelligent standby modes and high-quality insulation prevent heat loss.
In-house intelligent database records all batch data. Operators have separate control over multiple heating zones with an accuracy tolerance of ±2°C. Remote control and mobile application access for monitoring and diagnostics.
