Technical Parameters (Industrial & Appliance Glass)
| Model |
Max Loading Area (mm) |
Min Glass Size (mm) |
Thickness (mm) |
Production (m²/h) |
Transformer (KVA) |
| TPG2003-2 | 2000×300 | 50×50 | 2.85-6 | 13 | 125kva |
| TPG2506-2 | 2500×600 | 100×50 | 2.85-12 | 28 | 250kva |
| TPG3209-2 | 3200×900 | 150×80 | 2.85-12 | 43 | 500kva |

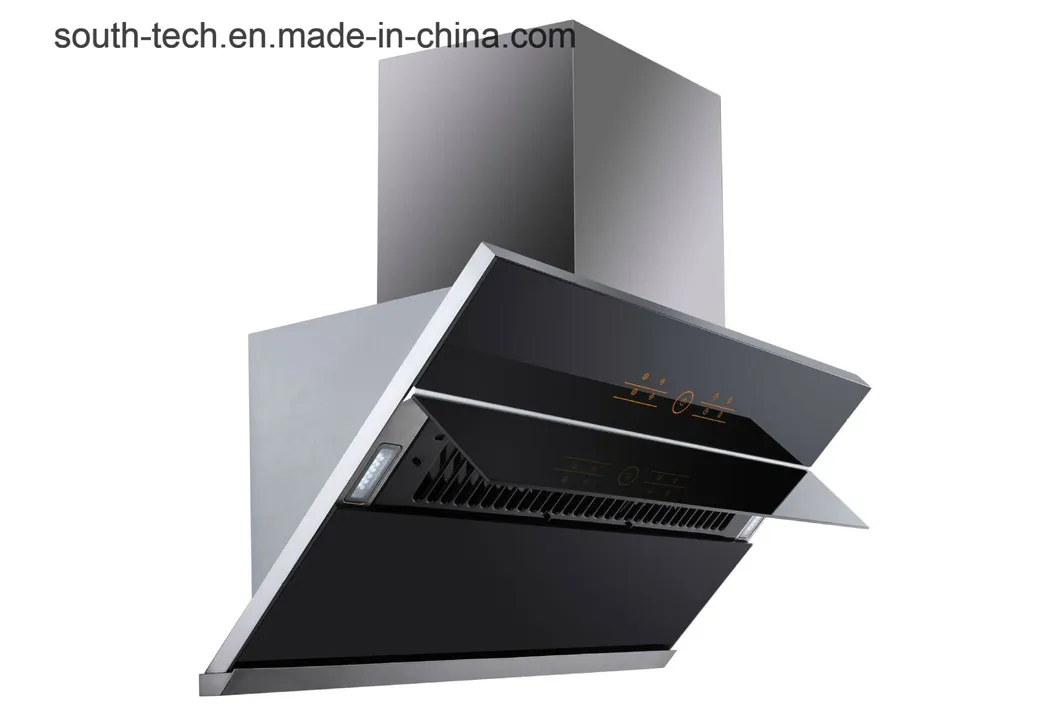

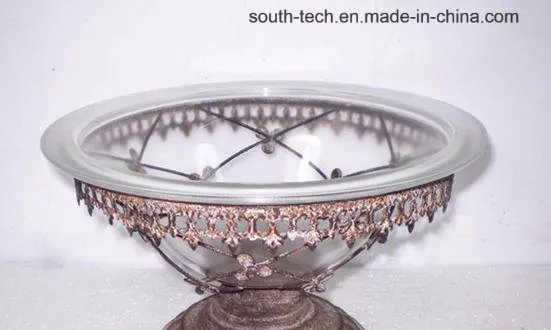

Main Application: Small or large size flat tempered glass for industrial instrumentation, lamps, and appliances.
Technical Parameters (Architectural & Interior Glass)
| Model |
Max Loading Area (mm) |
Min Glass Size (mm) |
Thickness (mm) |
Production (m²/h) |
Transformer (KVA) |
| TPG4012-2 | 4000×1250 | 250×100 | 2.85-15 | 112 | 700KVA |
| TPG5015-2 | 5000×1500 | 300×100 | 2.85-19 | 170 | 1000KVA |
| TPG5024-2 | 5000×2400 | 300×300 | 4-19 | 275 | 1100KVA |
| TPG6030-2 | 6000×3000 | 400×300 | 4-19 | 388 | 1600KVA |

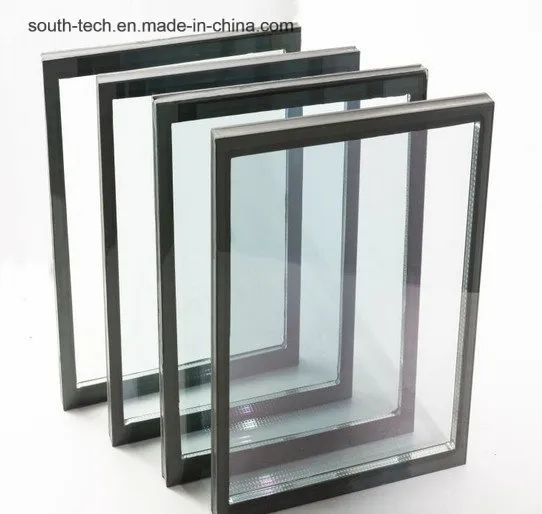

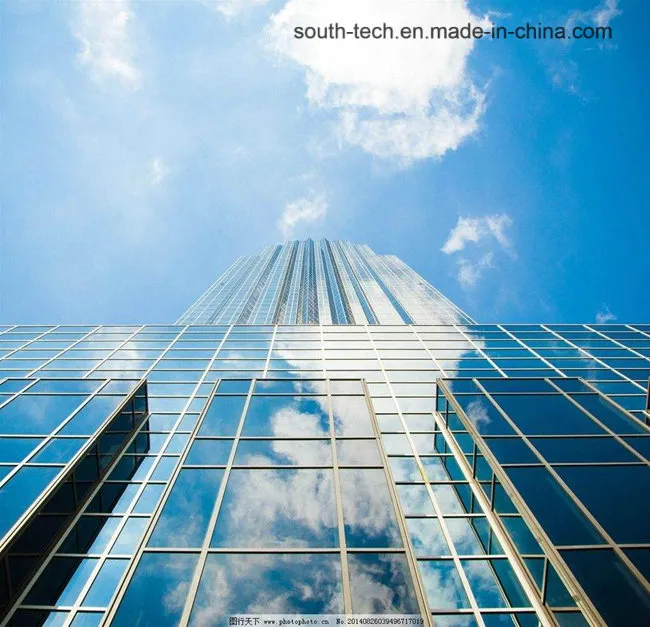

Main Application: Thin flat tempered laminated glass for domestic appliances, interior decoration, automobiles, trains, ships, and architecture.
Core Advantages
I. Superior Product Quality
- Certified for all types of float glass, including soft-coated Low-E (double and triple silver, E value 0.015).
- Flatness maintained at 1-1.2‰; wave degree less than 1%.
- No visual wind spots, stains, or white stripes.
- Breakage rate for 5mm is 80pcs/5 cm², doubling international standards.
II. Machine Stability Features
- Reliable, consistent performance with components proven for long service life.
- Dual blower system ensures production continues for 6-19mm even if one blower fails.
- UPS emergency driving system for protection during power cuts.

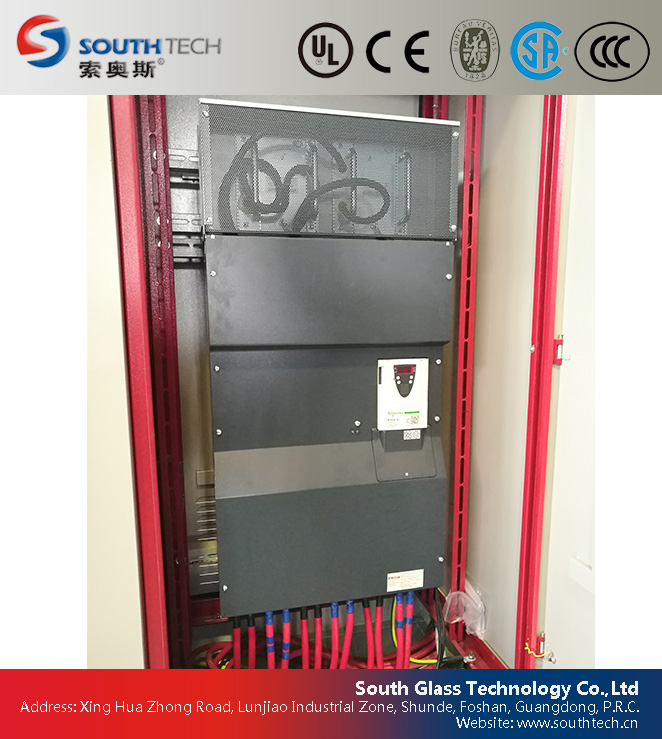

- Siemens Reducer and Danfoss inverter for main drive speed control.
III. Advanced Energy Saving
- Reduced voltage transformer capacity by 200-300 KVA through power-adjustment technology.
- Quenching section achieves up to 60% energy savings.
- Top-and-bottom compressed-air convection system with air recycling.
- Quick start-up: Reaches 700°C in just 20 minutes from cold start.
- Zero blower speed in stand-by mode between glass feeds.
IV. Intelligent Control Performance
- In-house developed intelligent database for batch recording and recall.
- Multiple heating zones with individual monitor screen adjustments.
- Automatic detection system for heating elements with on-screen error alerts.
- Remote control service and mobile application for status checks and troubleshooting.
V. Installation & Maintenance
- Combined structure for convenient installation and transportation.
- Independent convection system requires zero maintenance.
- No special foundation required for the blower system.
- Plug-in electrical components for easy replacement.
- Advanced on-screen scan system to pinpoint defects instantly.
Frequently Asked Questions (FAQ)

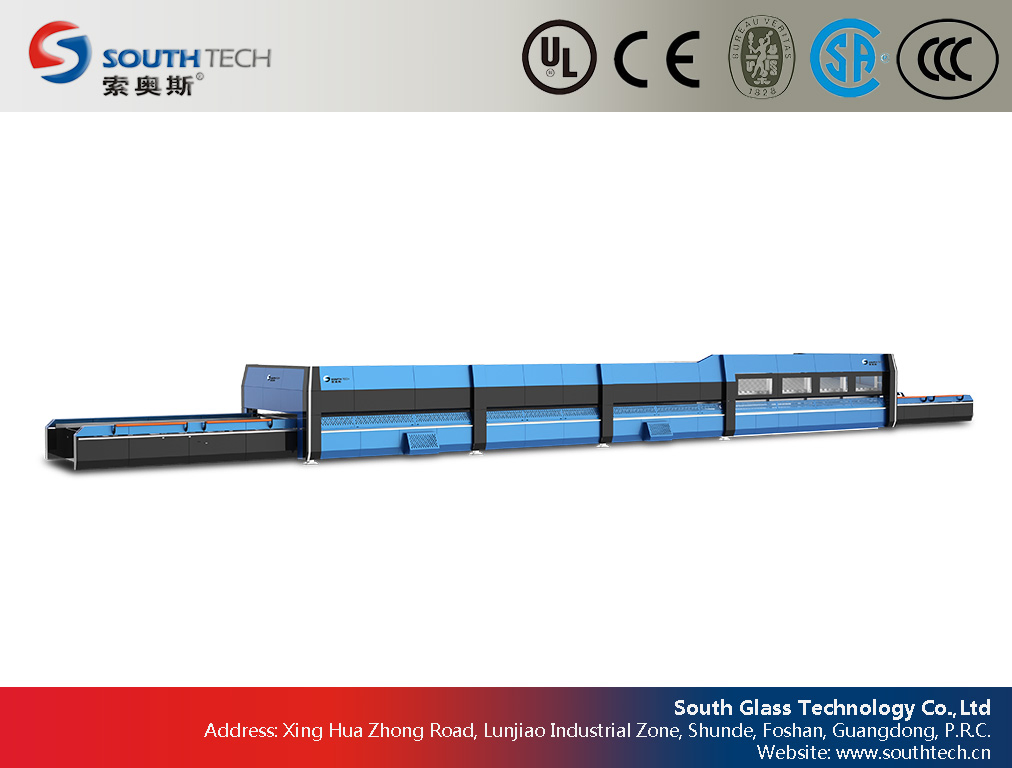

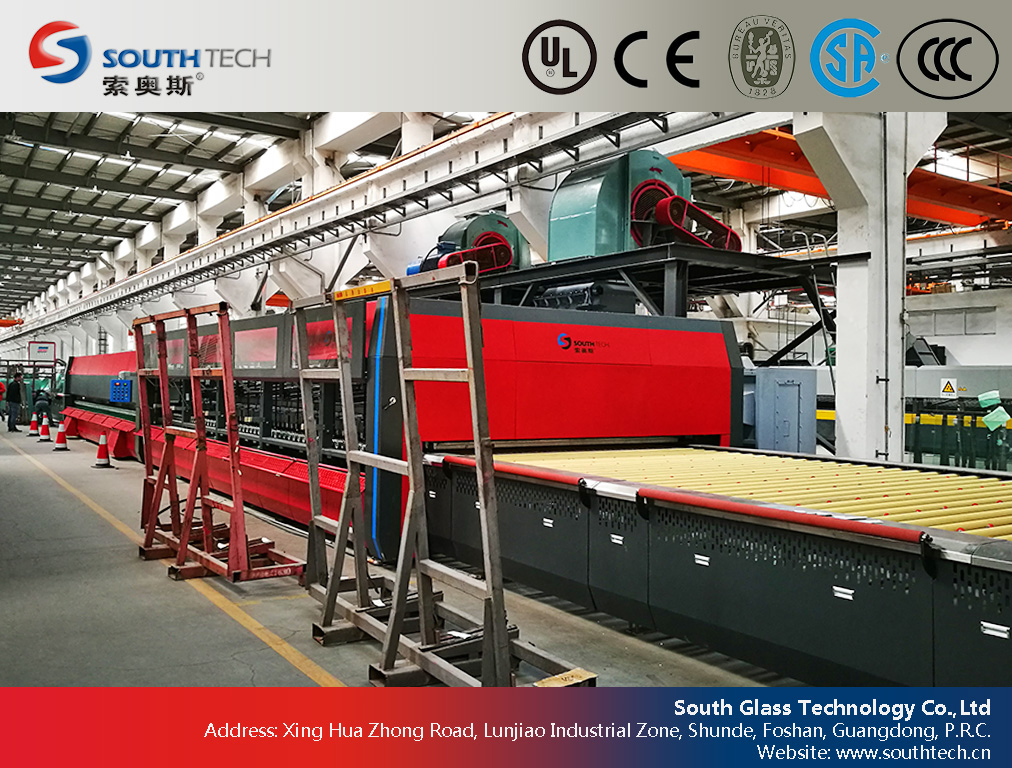

What types of glass can be processed by the TPG-2 series?
The system is designed to handle Low-E glass, ordinary flat glass, ultra-clear glass, screen printing glass, embossed glass, and colored glass with thicknesses ranging from 2.85mm to 19mm.
How does the double heating chamber save energy?
The double chamber design reduces the time required for heating and optimizes blower operation. Combined with unique passing-section technology, it can achieve up to 60% energy savings in the quenching section.
What is the quality standard for the tempered glass produced?
The flatness is maintained at 1-1.2‰ with a wave degree below 1%. It produces high-quality glass free of wind spots or white stripes, with a breakage rate significantly higher than international standards.
How is the machine protected against power failures?
The machine is equipped with an AC battery-backed UPS emergency driving system. In the event of a power cut, the UPS provides enough power to finish the current batch and safely exit the furnace.
Does the machine require complex daily maintenance?
No. Except for the blowers and main drive system, no lubrication is needed. The electrical components are plug-in types for easy replacement, and the convection system is designed for zero maintenance.
How quickly can the furnace heat up to working temperature?
Thanks to high-quality insulation and efficient structure, the machine can be shut down completely after a work day and only requires approximately 20 minutes to reach the 700°C working temperature the next morning.
