Product Description

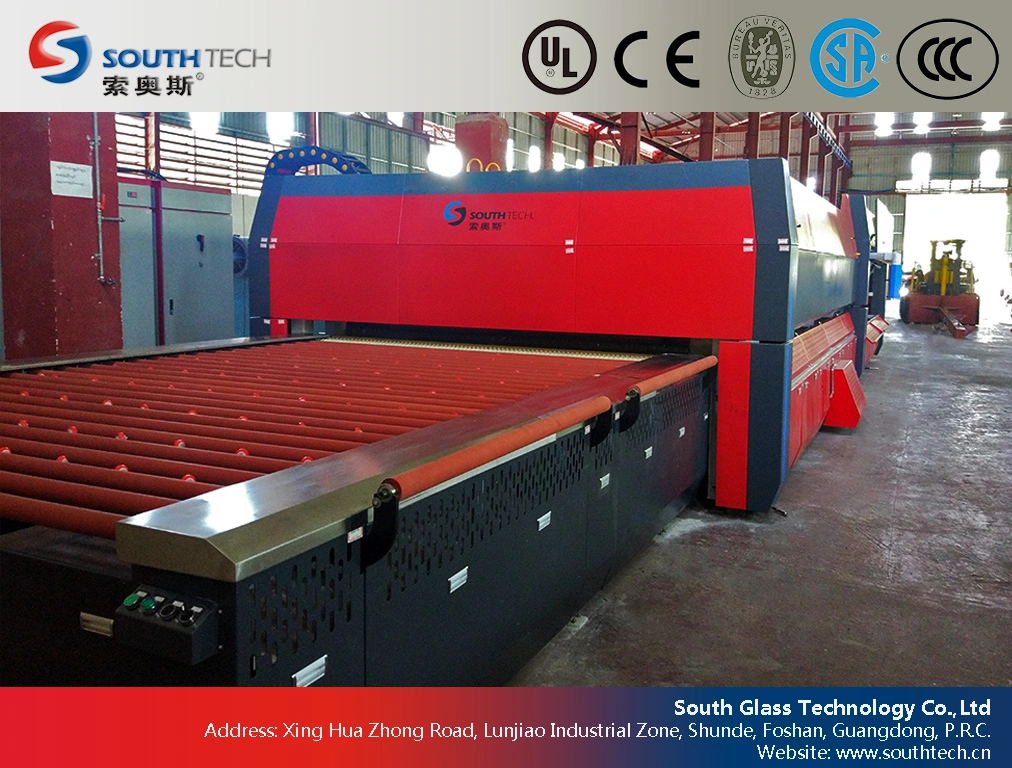

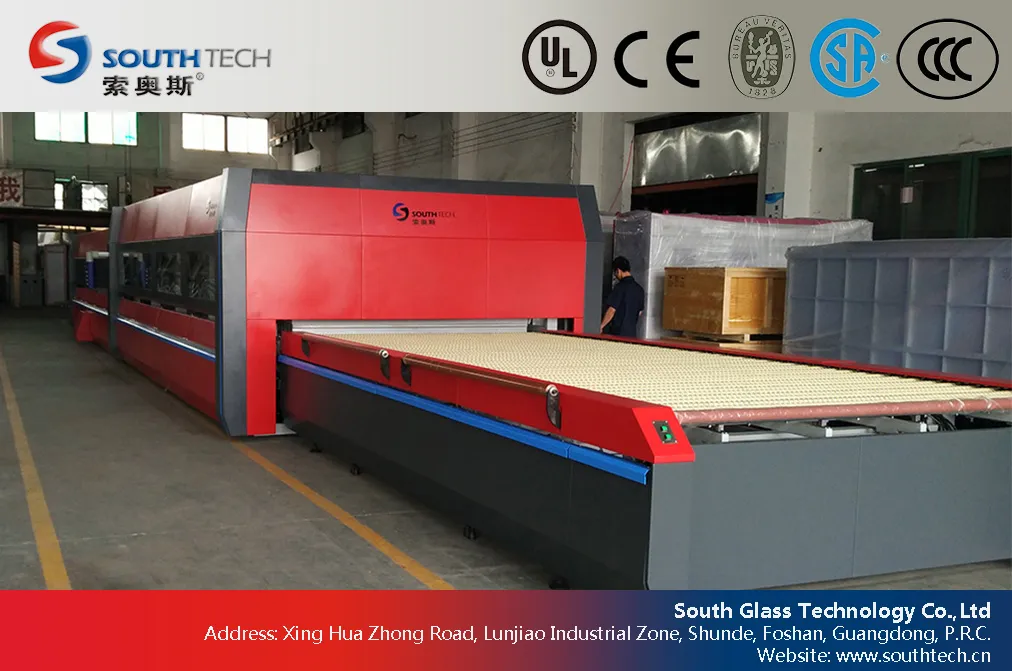

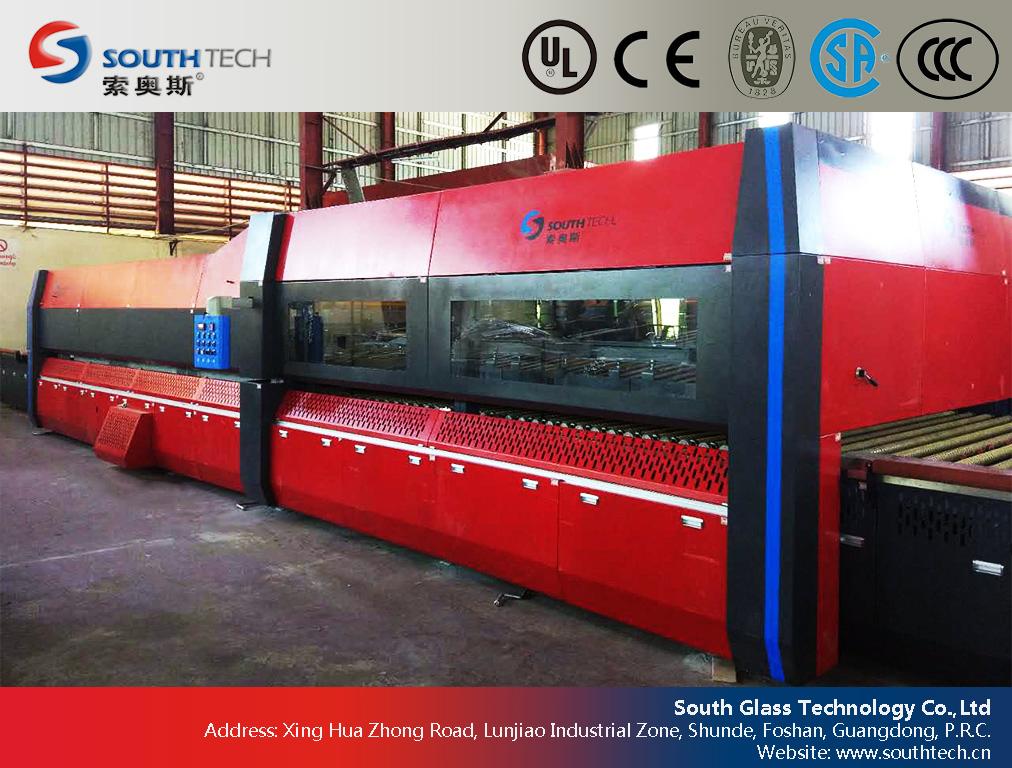

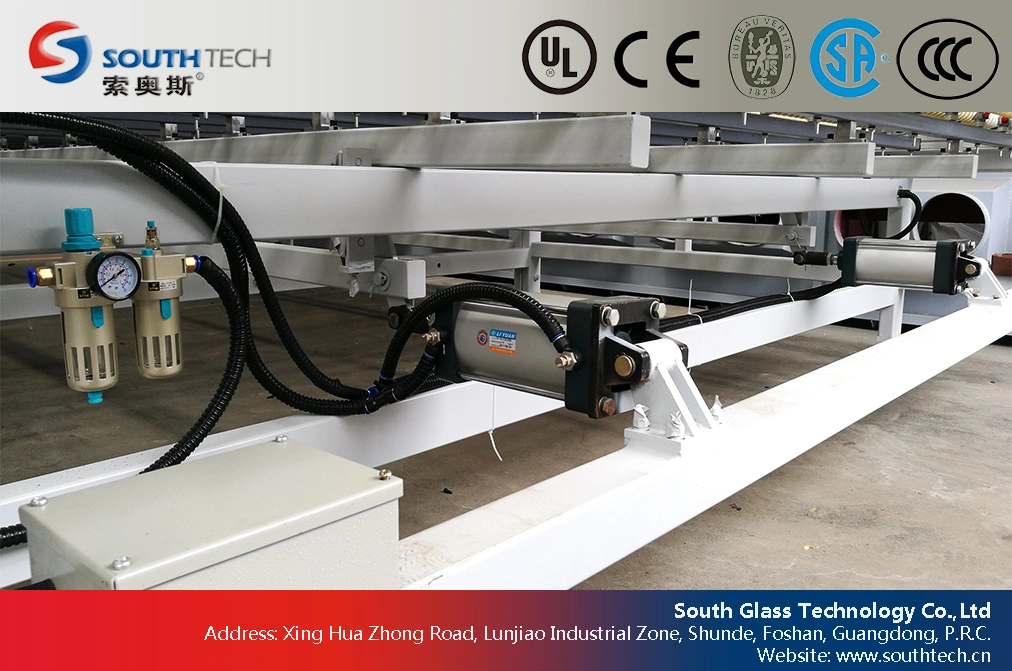

Passing Flat Tempered Glass Machine (TPG)
◈
Energy Saving: Realizing passing-type tempering with special passing quenching technology, providing outstanding energy-saving features.
◈
Heating Uniformity: The exposed heating system improves heating rate and uniformity inside the furnace.
◈
Digital Accuracy: Digital temperature transmission maintains the authenticity and precision of data.
◈
Safety: Equipped with a UPS power supply system for protection during power cuts.
◈
Versatility: Suitable for ordinary flat glass, ultra-clear glass, screen printing glass, embossed glass, colored glass, etc.
Technical Parameters
| MODEL |
Max. Loading size(mm) |
Min. size(mm) |
Glass thickness(mm) |
M²/h |
Consumption |
| TPG2002 | 2000×200 | 40×40 | 2.85-12 | 5 | ≥85KVA |
| TPG2512 | 2500×1250 | 250×100 | 2.85-12 | 38 | ≥290KVA |
| TPG4015 | 4000×1500 | 300×100 | 2.85-12 | 72 | ≥530KVA |
| TPG3624 | 3600×2400 | 300×300 | 4-19 | 103 | ≥500KVA |
| TPG5024 | 5000×2400 | 300×300 | 4-19 | 145 | ≥650KVA |

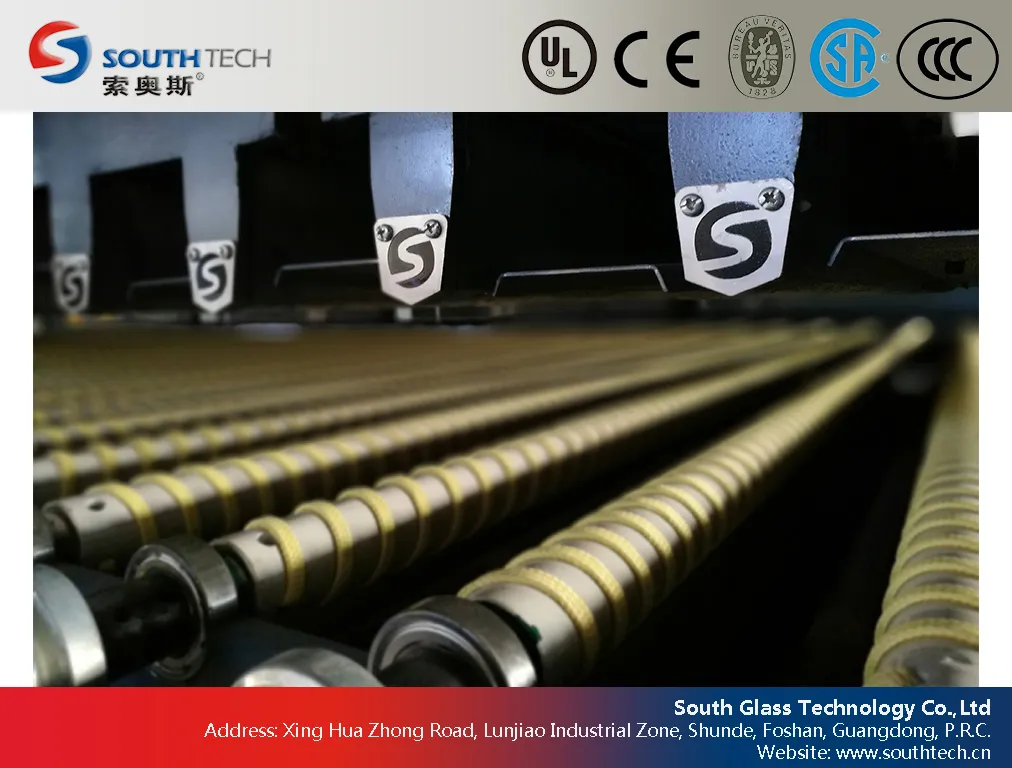

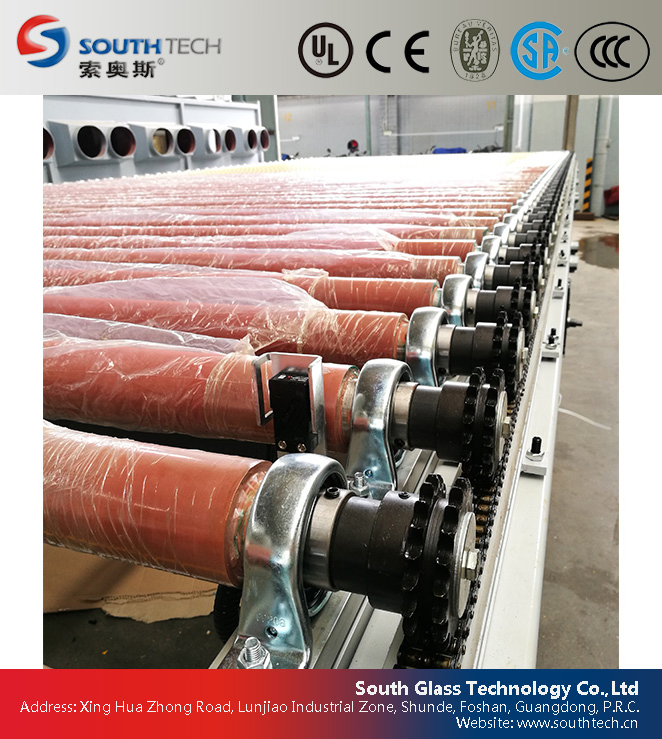

Machine Details & Applications

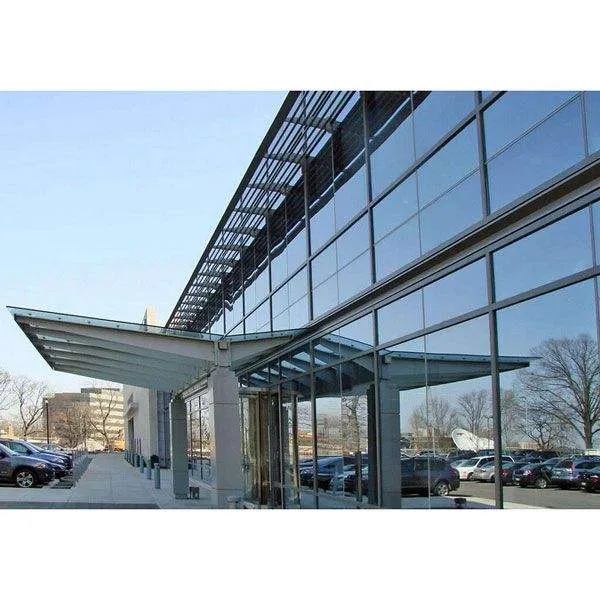

Main Applications: Thin flat tempered laminated glass for high-grade domestic appliances, interior decorations, automobile, trains, ships, architecture, etc.
Key Advantages
I. Product Quality
- Certified for all types of float glass, including soft coated low-e glass (double and triple silver).
- Flatness: 1-1.2‰. Wave degree: <1%. No visual wind spots or white stripes.
- High breakage rate standards: 80pcs/5 cm² for 5mm glass.
II. Machine Stability
- Long service life components with up to 5 years guarantee on specific parts.
- Dual blower system ensures production continuity for 6-19mm thicknesses even if one blower fails.
- AC battery emergency system for power protection.

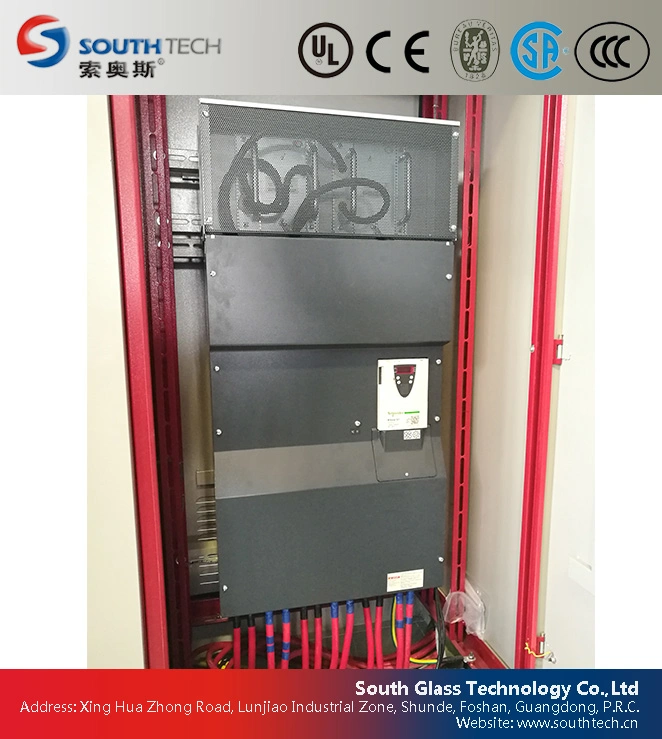

- Siemens Reducer and Danfoss inverter systems.
III. Advanced Energy Saving
- 60% energy saving in the quenching section.
- Multiple heating zones with a tolerance of +/-2°C.
- Zero blower speed in stand-by mode to conserve power.
- Rapid heat-up: Reach 700°C in just 20 minutes from cold start.
IV. Control Performance
- Intelligent database system for recording and recalling batch parameters.
- Remote control service and mobile application for status monitoring.
- Automatic detection for heating elements.
FAQ
What types of glass can this machine process?
The machine is suitable for ordinary flat glass, ultra-clear glass, screen printing glass, embossed glass, colored glass, and high-grade soft-coated Low-E glass (including double and triple silver).
What is the energy-saving performance of the quenching section?
Thanks to our unique passing section design, the machine can achieve up to 60% energy savings in the quenching section compared to traditional models.
How does the machine handle power outages?
The system is equipped with a UPS power supply and AC battery for emergency driving, ensuring the current batch can be finished and protecting the machine from damage during power cuts.
What is the temperature precision in the heating furnace?
The furnace utilizes multiple heating zones and digital transmission to maintain a uniform temperature with a strict tolerance of +/-2°C.
Does the machine support remote monitoring?
Yes, the machine features a remote control service and a dedicated mobile application that allows operators and technicians to check production status and diagnose defects remotely.
How long does the machine take to heat up?
High-quality insulation and efficient structure allow the machine to heat up to 700°C in approximately 20 minutes from a complete shutdown.
