Southtech Horizontal Flat Toughened Glass Production Line Price (TPG)

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Send Inquiry

Product Description

Basic Specifications

Model NO.

TPG

Glass Thickness

5-19mm

Suitable for

Ordinary Flat, Ultra-Clear, etc.

Min. Dimension

300*300mm / 400*400mm

Installed Capacity

500kVA, 700kVA, 1000kVA

Structure

Horizontal

HS Code

8475299000

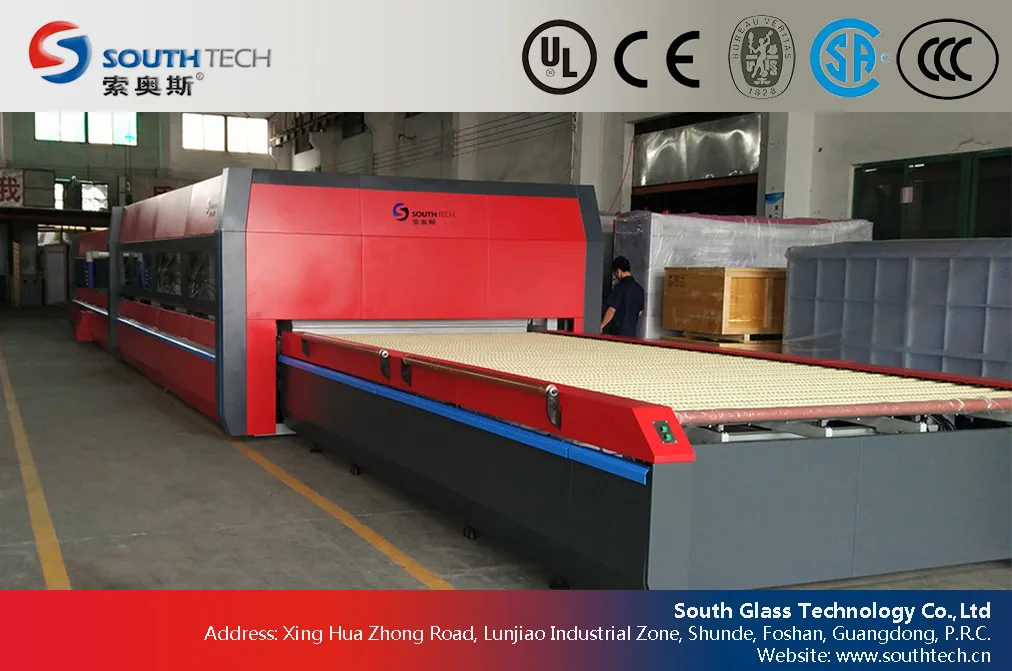

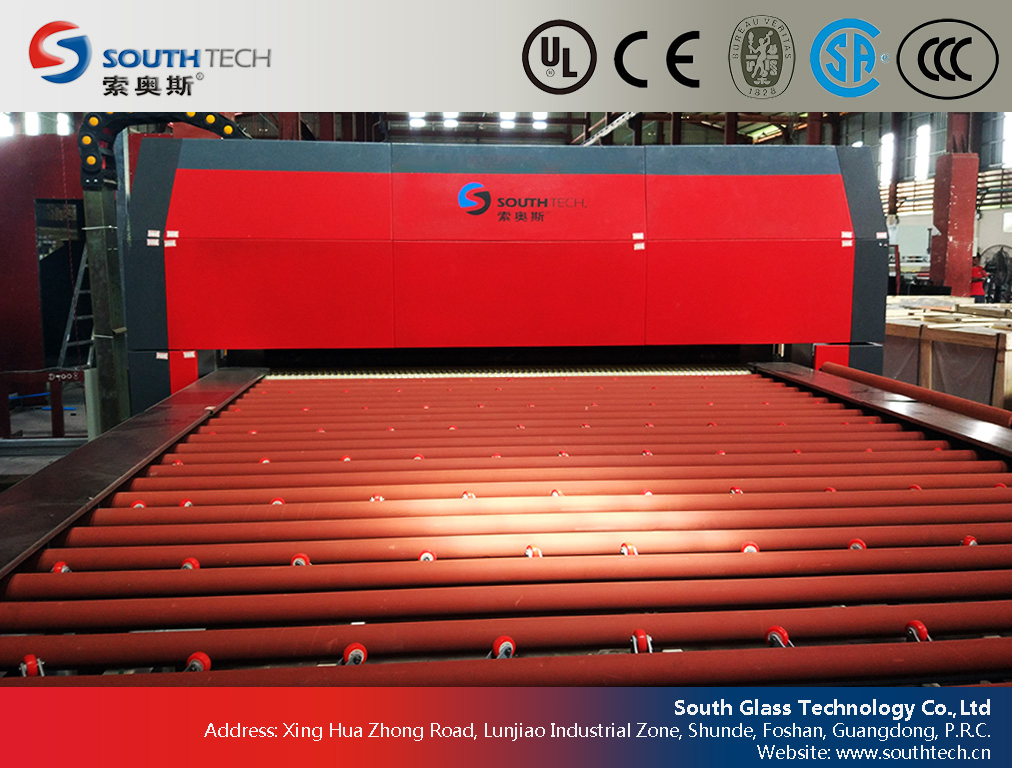

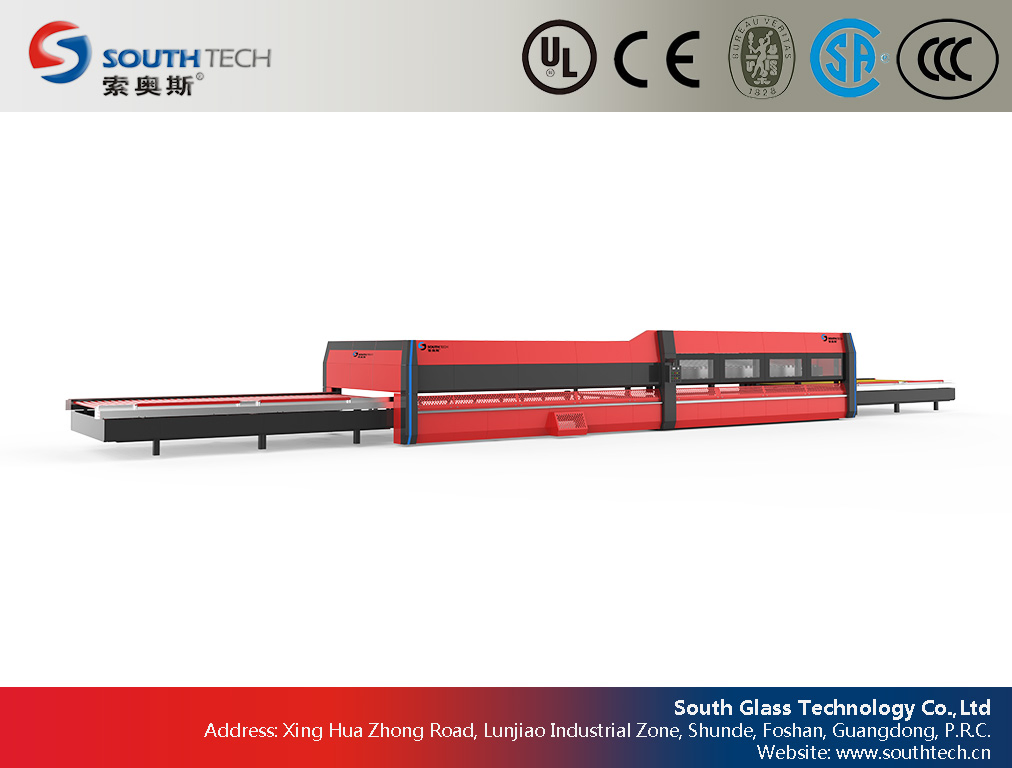

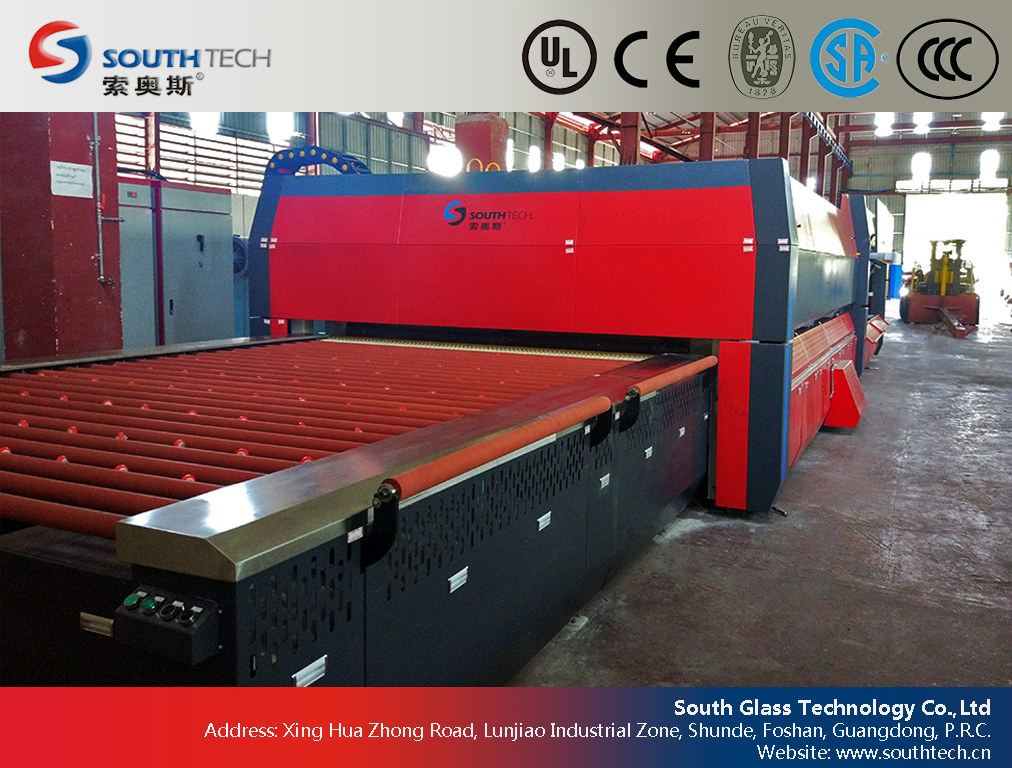

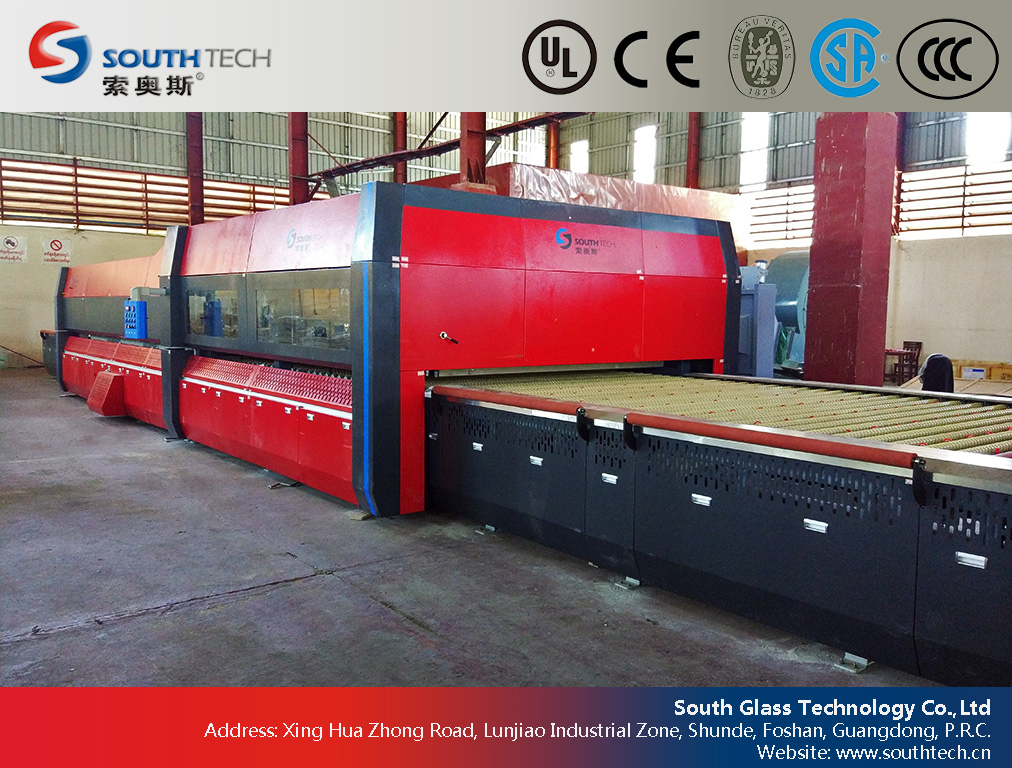

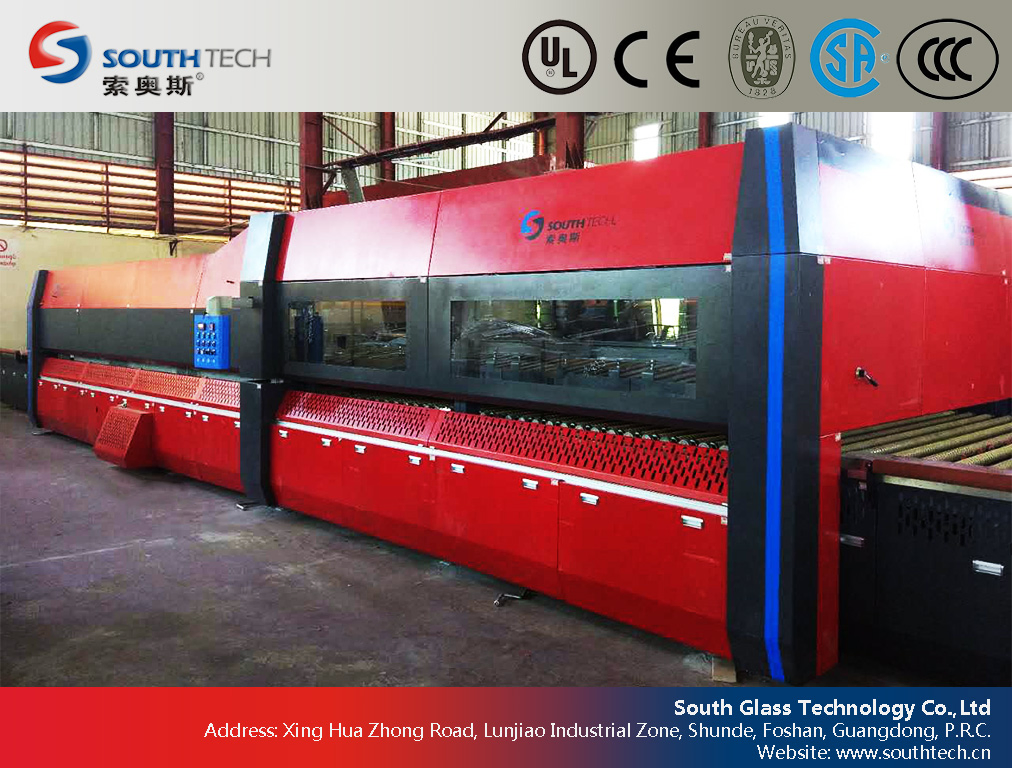

Passing Flat Tempered Glass Machine (TPG)

Realizing passing-type tempering with special passing quenching, offering outstanding energy-saving features.
Heating uniformity and rate inside the furnace are improved by the exposed heating system.
Digital-temperature transmission maintains data authenticity.
Equipped with a UPS power supply system for safety.
Suitable for: Ordinary flat glass, Ultra-clear glass, Screen printing glass, Embossed glass, Colored glass, etc.

MODEL	Max. Loading size(mm)	Min. size(mm)	Glass thickness(mm)	M²/h	Consumption
TPG2002	2000×200	40×40	2.85-12	5	≥85KVA
TPG2512	2500×1250	250×100	2.85-12	38	≥290KVA
TPG4015	4000×1500	300×100	2.85-12	72	≥530KVA
TPG3624	3600×2400	300×300	4-19	103	≥500KVA
TPG5024	5000×2400	300×300	4-19	145	≥650KVA

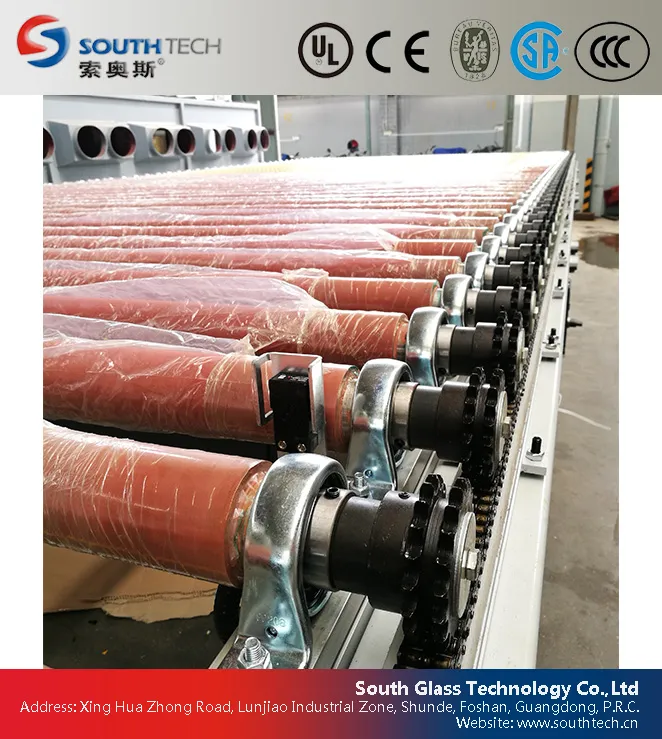

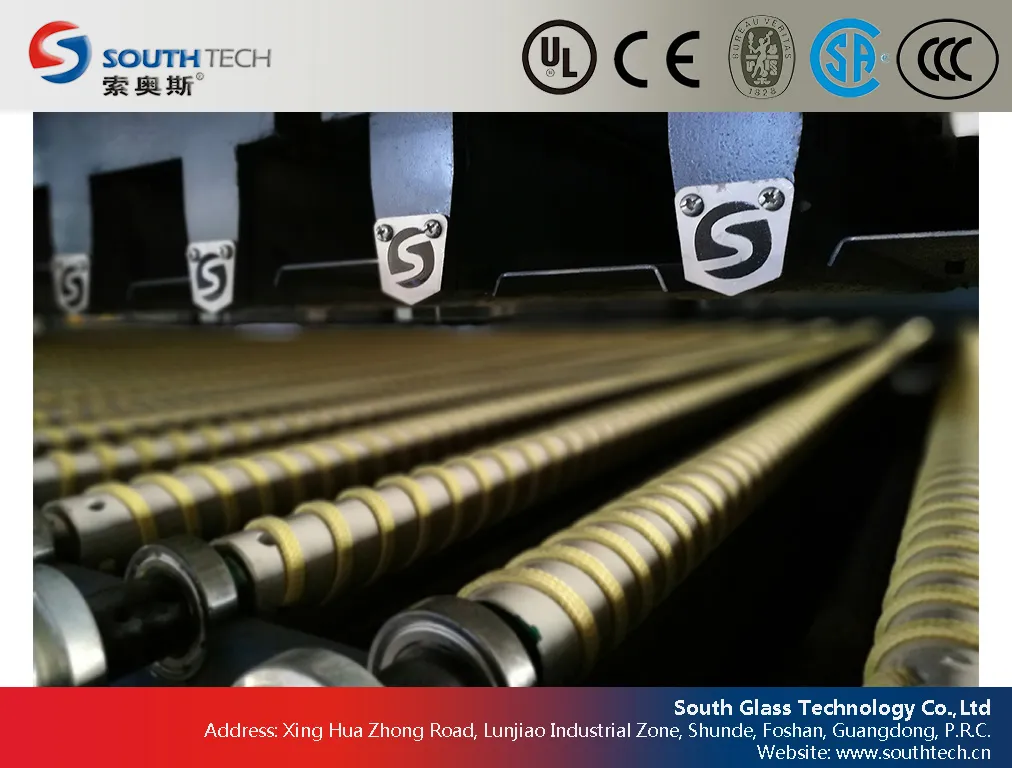

Machine Details & Applications

Main Applications: High-grade domestic appliances, interior decorations, automobile, trains, ships, architecture, etc., involving thin flat tempered laminated glass.

Key Features & Advantages

I. Product Quality

Machines can temper all types of float glass, including soft coated low-e glass (double and triple silver with E value of 0.015). Flatness is maintained at 1-1.2‰ with wave degree less than 1%.

II. Stability & Reliability

Features AC battery for emergency driving systems. Main components like Siemens Reducers and Danfoss inverters ensure long service life. Standard 5-year guarantee on specific components like ceramic rollers.

III. Energy Saving Technology

Achieves up to 60% energy saving in the quenching section. Multiple heating zones allow fine adjustments with a tolerance of +/-2C. Machine can be completely shut down daily, needing only 20 minutes to reach 700C the next day.

IV. Intelligent Control

In-house developed database system with remote control service and mobile application access. Automatic detection for heating elements and real-time monitoring of all production batches.

Frequently Asked Questions

Q1: What glass types can this tempering machine process? The machine is suitable for ordinary flat glass, ultra-clear glass, screen printing glass, embossed glass, colored glass, and high-performance soft coated Low-E glass.

Q2: How does the passing-type quenching save energy? The unique passing-section design ensures higher quality tempered glass while achieving up to 60% energy savings specifically in the quenching section.

Q3: What happens to the glass in the furnace during a power failure? The machine is equipped with a UPS power supply and an AC battery emergency driving system to finish the current batch and protect the machine components.

Q4: How precise is the temperature control within the heating chamber? We guarantee a temperature tolerance in the heating chamber of ±2°C, supported by multiple heating zones and digital transmission.

Q5: Does the machine require constant heating when not in use? No, the machine can be completely shut down after a working day. It only requires a 20-minute heat-up period to reach processing temperature (700°C) the following day.

Q6: What maintenance is required for the convection system? The convection system is independent and designed for zero maintenance cost, utilizing a stable and highly efficient top-and-bottom recycling system.
