📝 Product Description

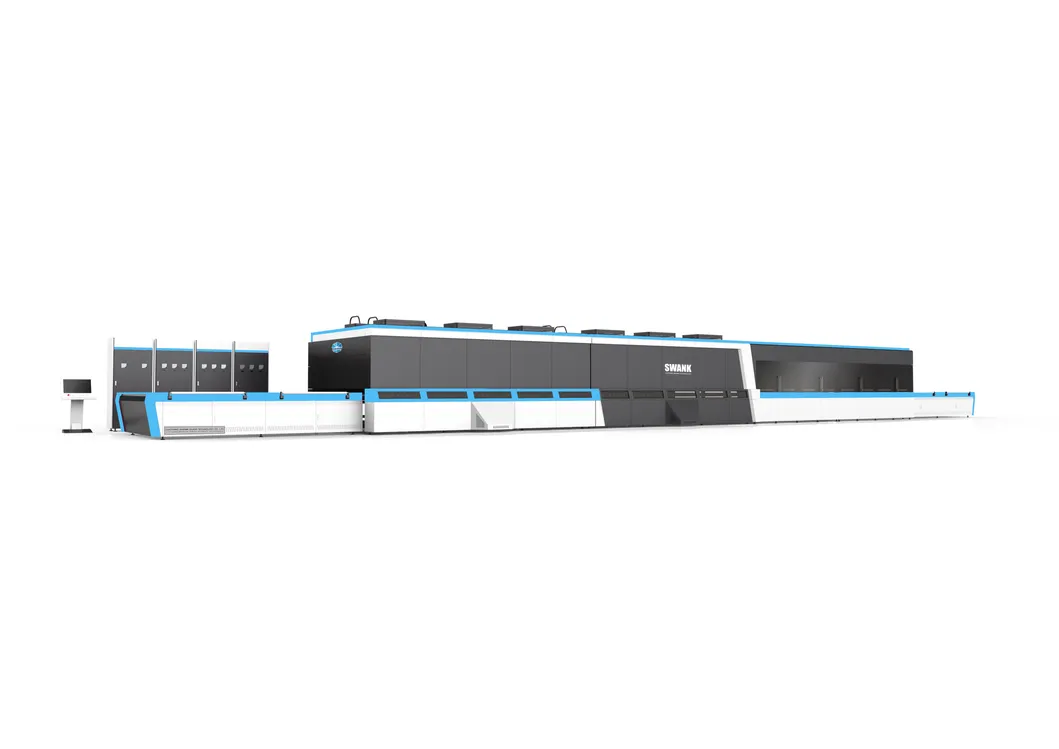

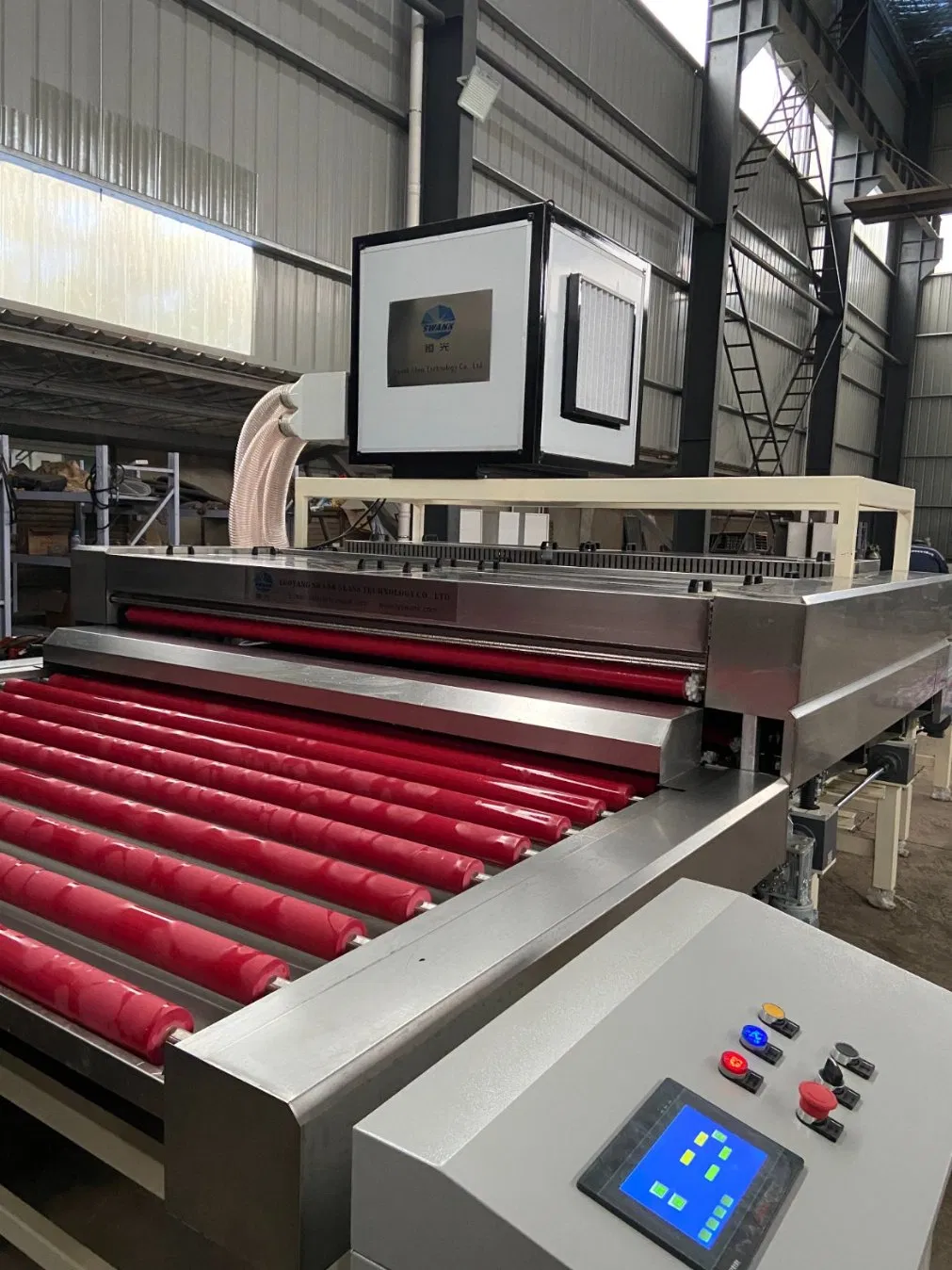

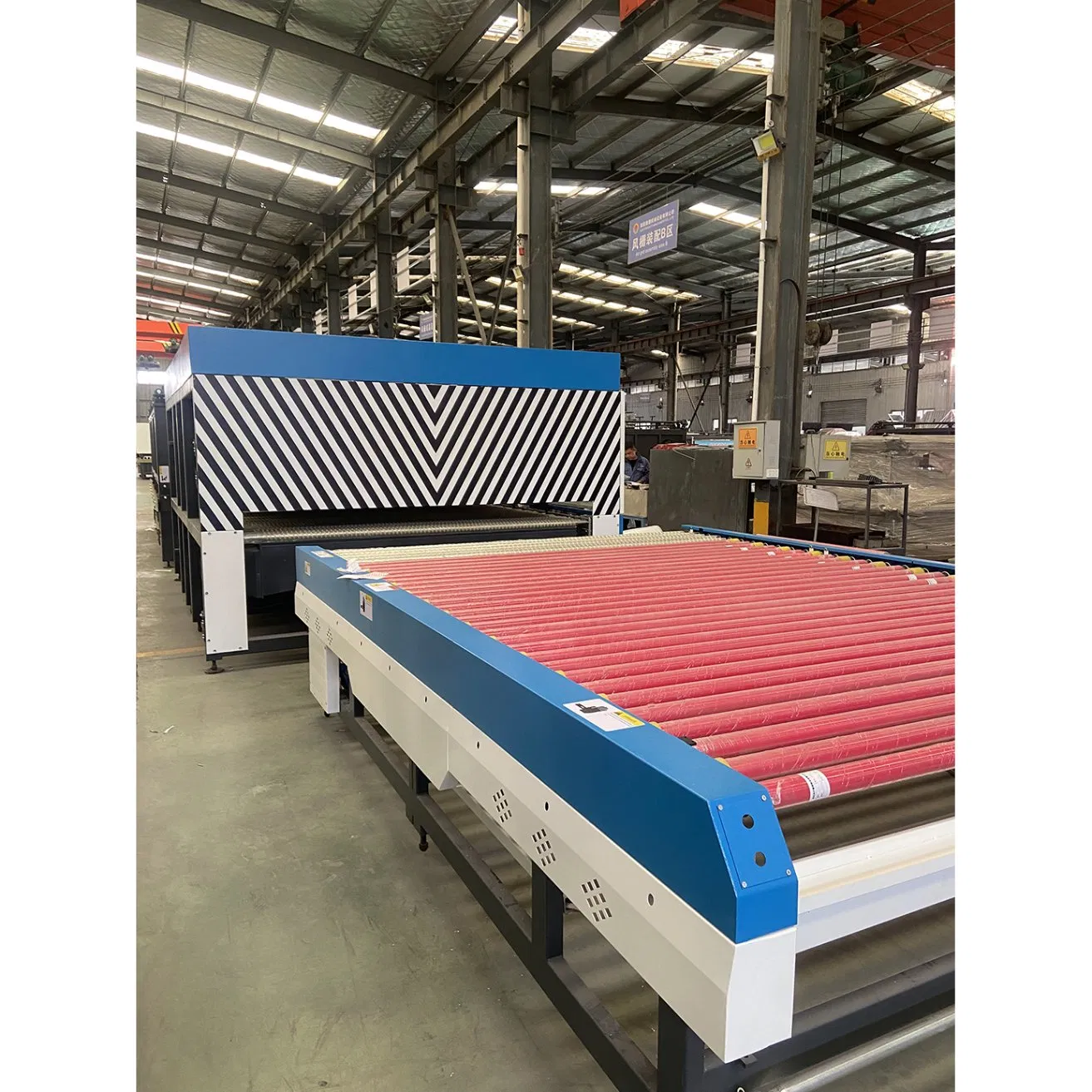

HG-TAQ series forced convection flat glass tempering furnace is suitable for processing float glass, patterned glass, coated glass, low-E glass, etc. It is mainly used for flat building glass, home appliance glass, furniture glass, and decorative glass. It is especially suitable for high-grade coated glass and hard/soft low-E glass.
🌟 Main Technical Features:
-
☆

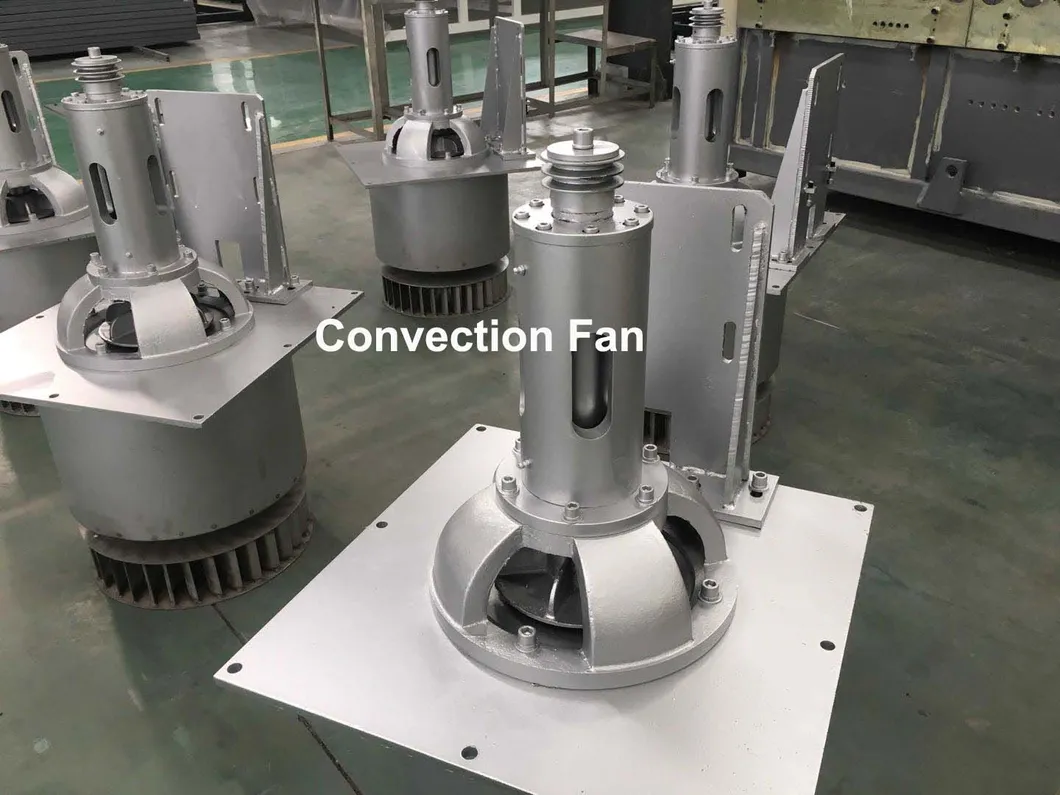

Top installed special heat-proof convection fan; Convection system is with top quality stainless steel, heat-proof and antioxidant, ensure excellent glass quality.
-
☆
Intelligent operation program, reasonable human-computer interface.
-
☆
Temperature-control module supply precise and accurate data, fast response.
-
☆

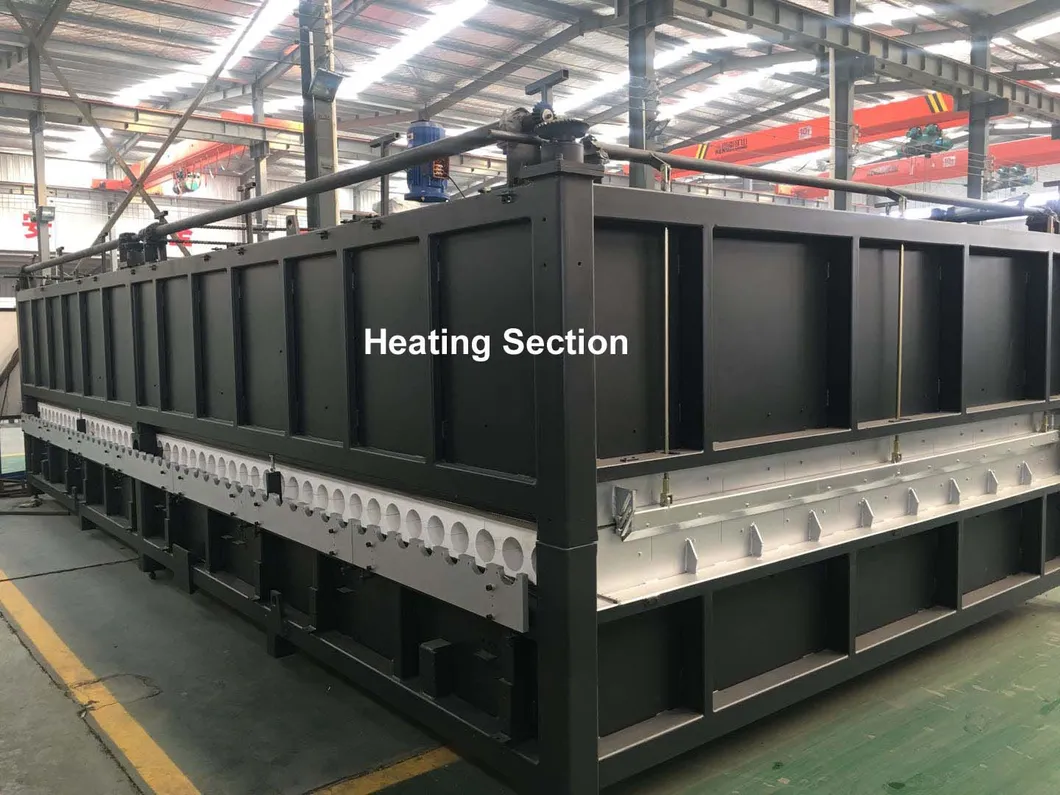

Superior heating element and insulating material can effectively reduce energy consumption.
-
☆
Remote diagnosis function can help customers deal with equipment problems quickly.
| Model |
Max Size (mm) |
Min Size (mm) |
Thickness (mm) |
Capacity (m²/h) |
Power (KVA) |
| HG-TAQ1825 | 1800x2500 | 100x250 | 3-19 | 81 | 315 |
| HG-TAQ2030 | 2000x3000 | 100x250 | 4-19 | 108 | 400 |
| HG-TAQ2036 | 2000x3660 | 100x250 | 4-19 | 131 | 500 |
| HG-TAQ2436 | 2440x3660 | 100x300 | 4-25 | 160 | 630 |
| HG-TAQ2442 | 2440x4200 | 100x300 | 4-25 | 186 | 630 |
| HG-TAQ2450 | 2440x5000 | 100x300 | 4-25 | 222 | 800 |
| HG-TAQ2460 | 2440x6000 | 100x300 | 4-25 | 266 | 1000 |
| HG-TAQ2842 | 2850x4200 | 200x350 | 5-25 | 221 | 800 |
| HG-TAQ2860 | 2850x6000 | 200x350 | 5-25 | 316 | 1000 |
| HG-TAQ3050 | 3000x5000 | 200x400 | 5-25 | 277 | 1000 |
| HG-TAQ3060 | 3000x6000 | 200x400 | 5-25 | 327 | 1250 |
| HG-TAQ3350 | 3300x5000 | 200x400 | 5-25 | 297 | 1000 |
| HG-TAQ3360 | 3300x6000 | 200x400 | 5-25 | 335 | 1250 |
| HG-TAQ3380 | 3300x8000 | 200x400 | 5-25 | 469 | 1600 |
Notice:
The above data is calculated by 5mm clear glass and 100% loading rate. Actual data will be subject to glass types, specifications and loading rate. Other models can be designed and supplied according to exact requirement.
Frequently Asked Questions
What types of glass can be processed by the HG-TAQ series furnace?
The furnace is designed for float glass, patterned glass, coated glass, and both hard and soft low-E glass. It is highly versatile for building, appliance, and furniture glass production.
Is technical training and installation provided with the purchase?
Yes, full installation services and professional operation training are included to ensure your team can operate the machine efficiently and safely.
What is the thickness range for glass tempering?
The equipment can process glass thicknesses ranging from 3mm to 19mm for standard models, with some configurations reaching up to 25mm.
How does the furnace optimize energy consumption?
The HG-TAQ series utilizes superior heating elements and advanced insulating materials combined with an intelligent control system to effectively reduce power consumption.
What kind of after-sales support do you offer?
We provide lifetime maintenance support and online monitoring capabilities. Additionally, our remote diagnosis function allows for quick resolution of equipment issues.
Can I request a custom furnace size for my specific factory needs?
Yes, while we have standard model sizes, we can design and supply specialized models according to your exact technical requirements and glass size needs.
