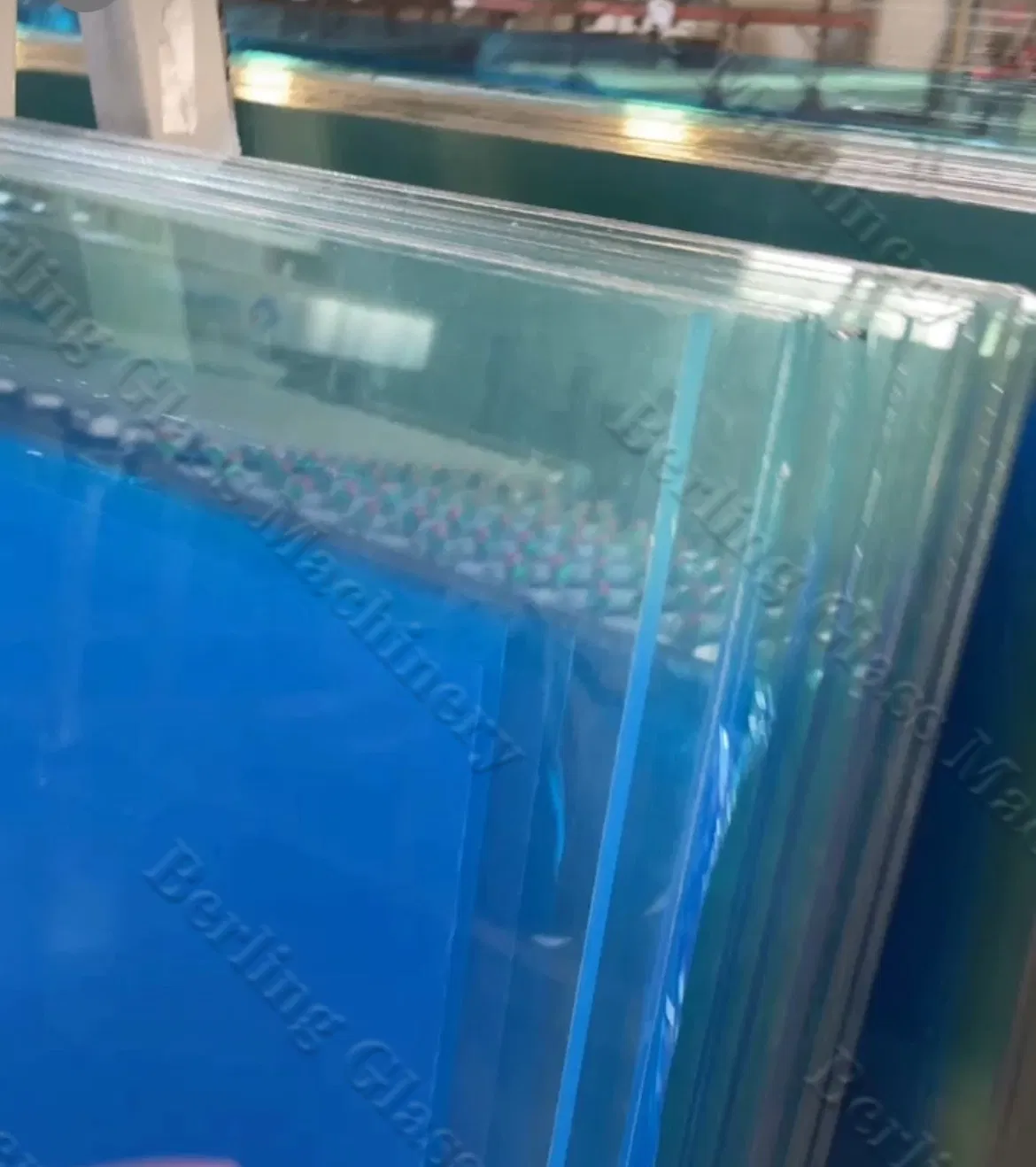

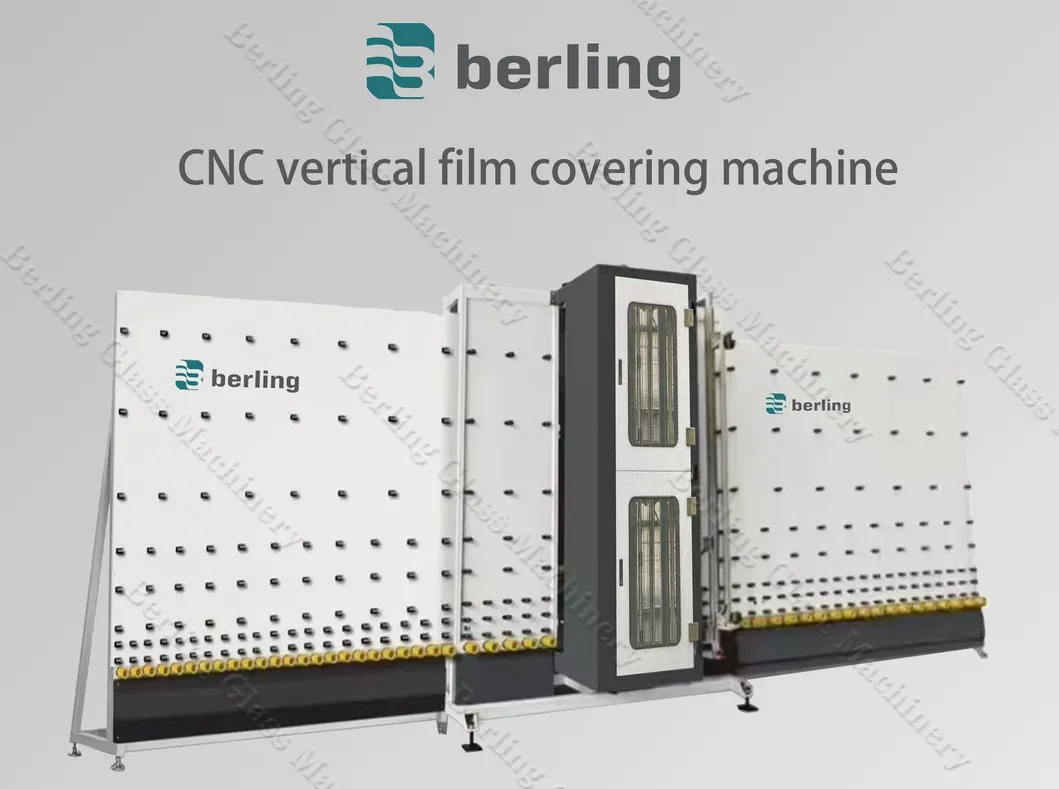

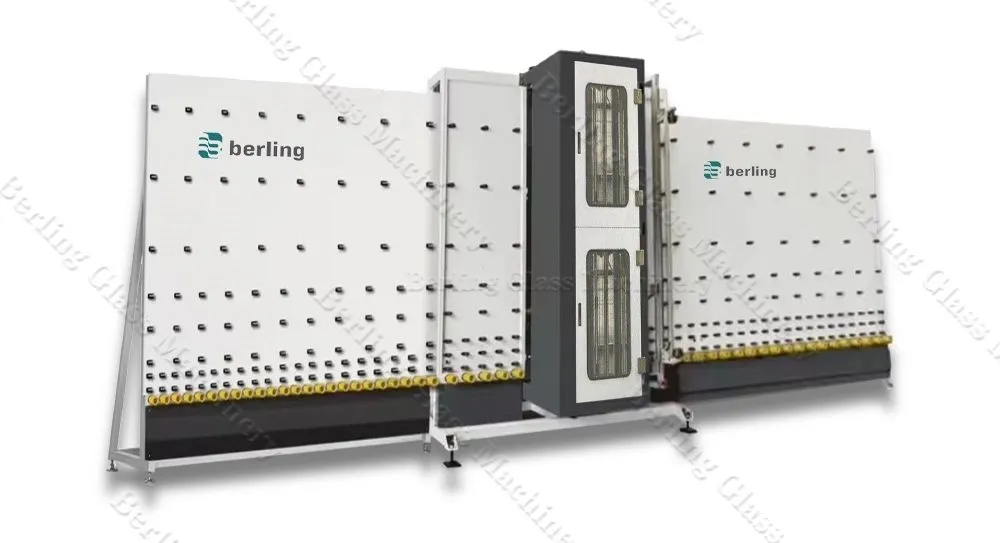

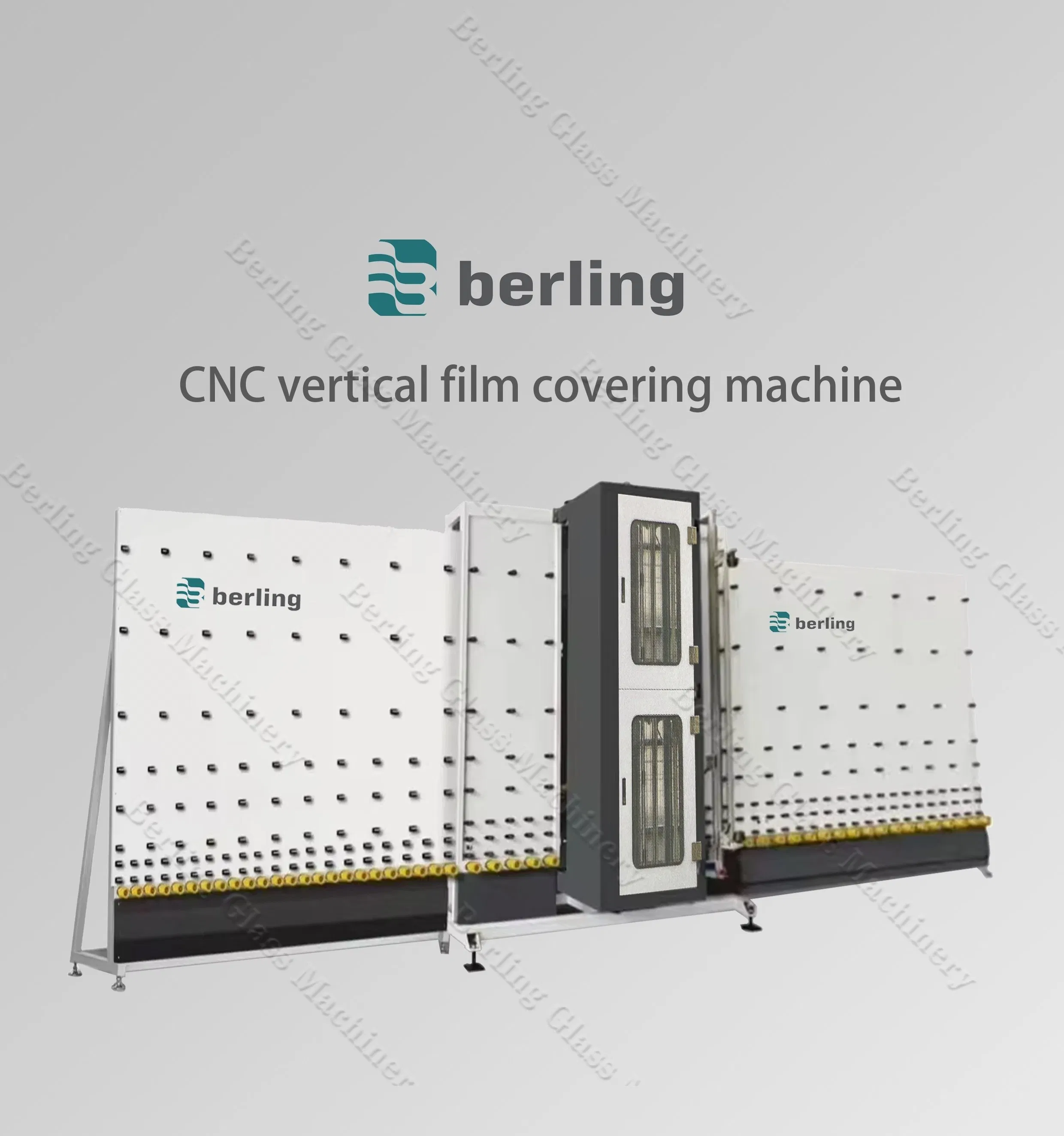

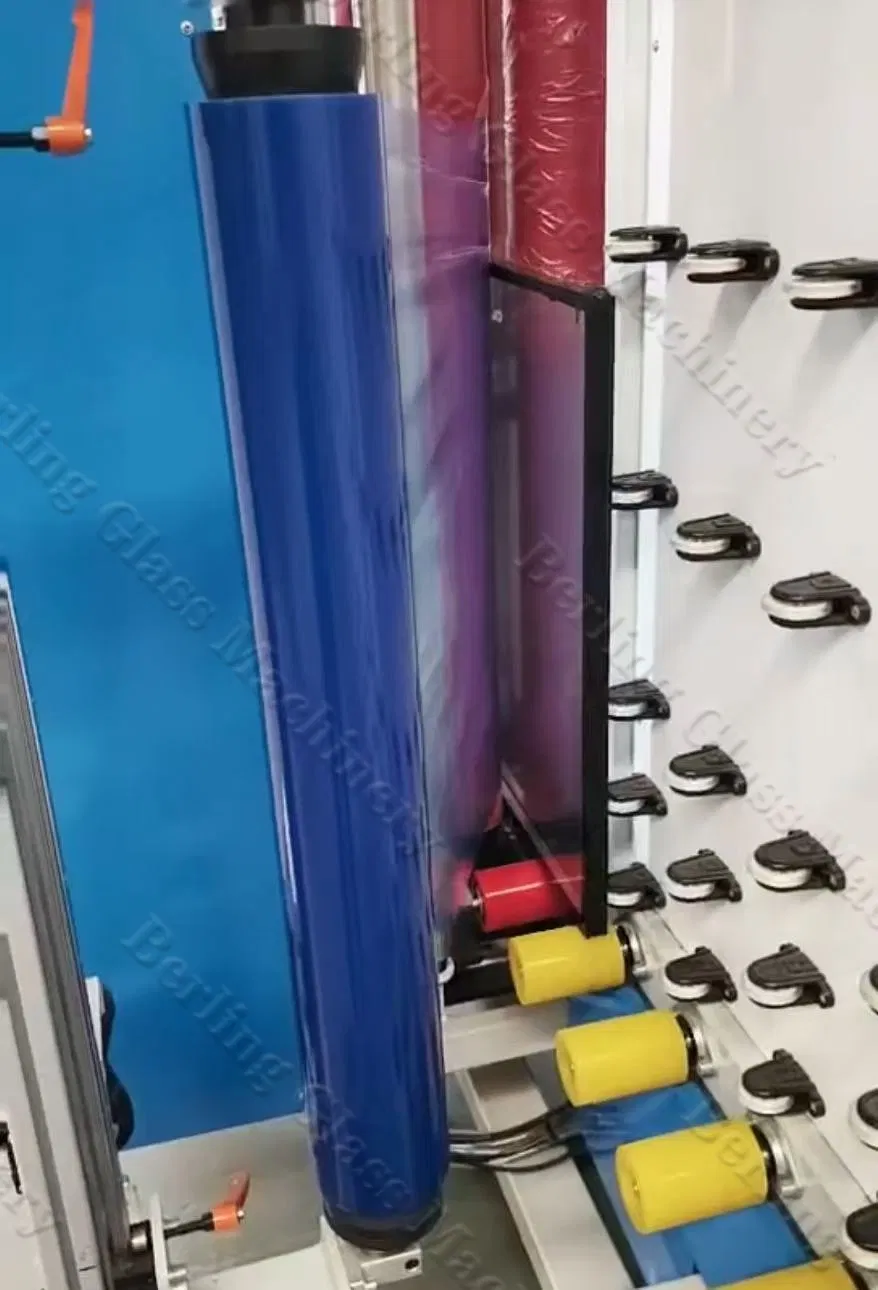

This intelligent vertical film laminating machine is designed for high-efficiency application of protective film to insulating glass panels. It supports both double-sided and single-sided film lamination, with fully adjustable parameters for different production requirements. The device provides real-time feedback via an HMI interface.
The fully intelligent touch screen interface is perfectly compatible with the production line, and the vertical design improves space utilization. Features include:
| Model No. | BLFMJ2050 | BLFMJ2550 | BLFMJ2850 | BLFMJ3390 |
|---|---|---|---|---|
| Dimensions | 6720*1410*2890mm | 6720*1410*2890mm | 11000*1500*3800mm | 19500*1500*4300mm |
| Power Supply | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Air Pressure | 0.5~0.8Mpa | 0.5~0.8Mpa | 0.5~0.8Mpa | 0.5~0.8Mpa |
| Max. Glass Height | 2000mm | 2500mm | 2850mm | 3390mm |
| Thickness | 4-50mm | 4-50mm | 4-50mm | 4-50mm |
| Film Speed | 4~20m/Min (Adjustable) | |||
