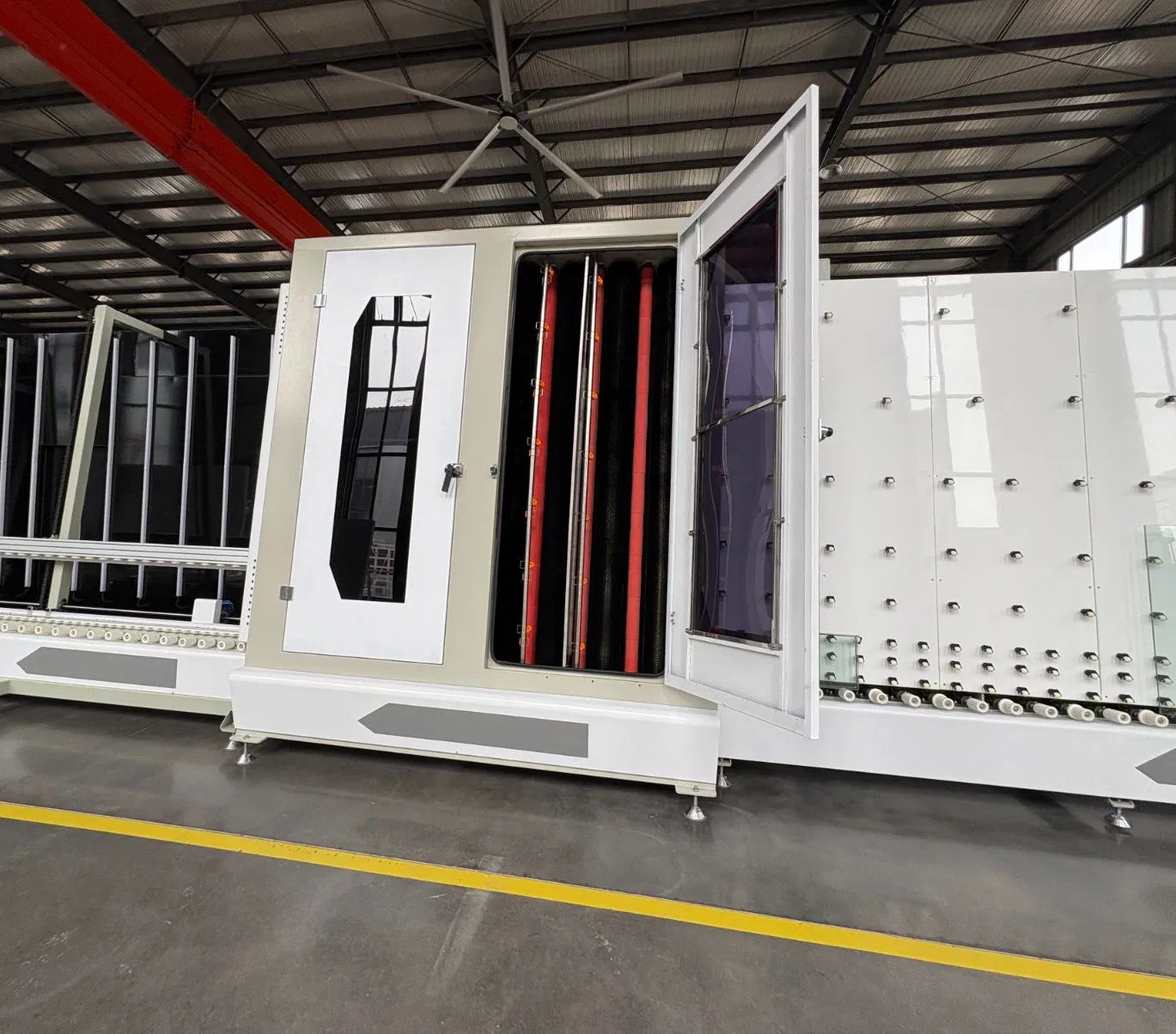

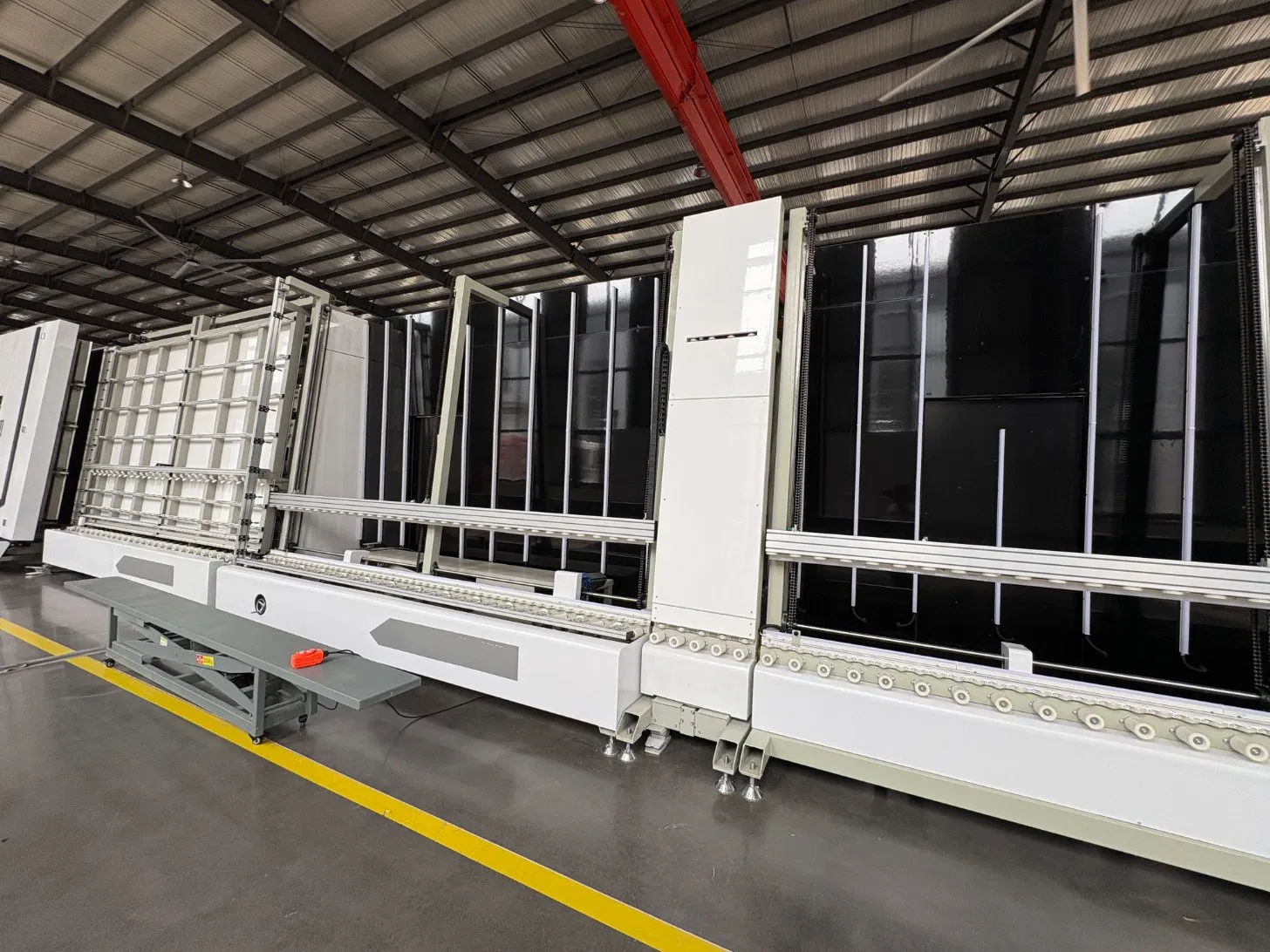

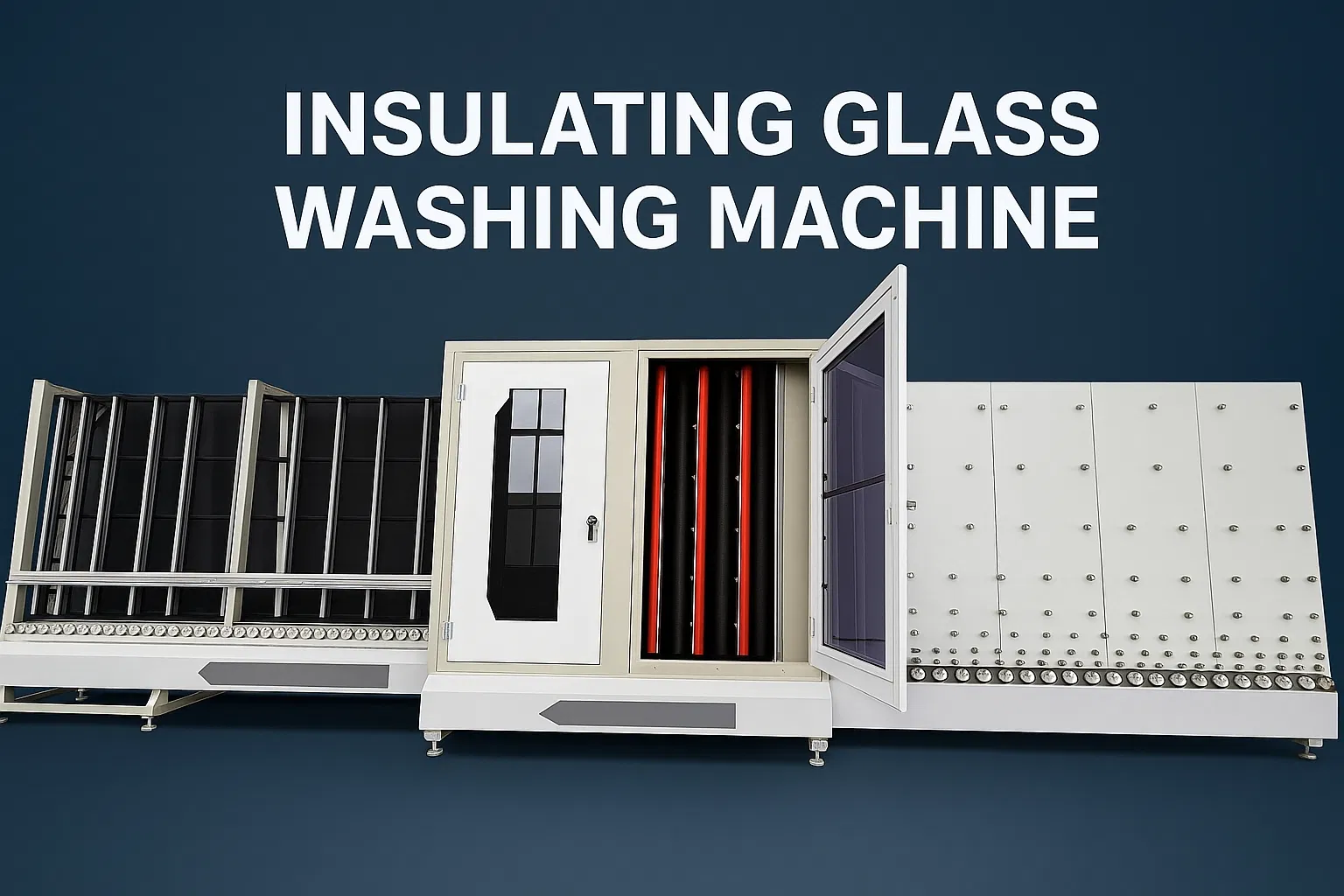

Vertical Insulating Glass Processing Line (IGU/DGU) Machine
Glass Washing Drying Pressing and Gas Filling Function features:
| Item | Specification |
|---|---|
| Power supply | 380V 50Hz 3P (or customized) |
| Total power | 12KW |
| Max glass sheet | 2000 × 2500 mm |
| Min glass sheet | 300 × 400 mm |
| Original glass thickness | 3 ~ 18 mm |
| Washing speed | 8 m/min |

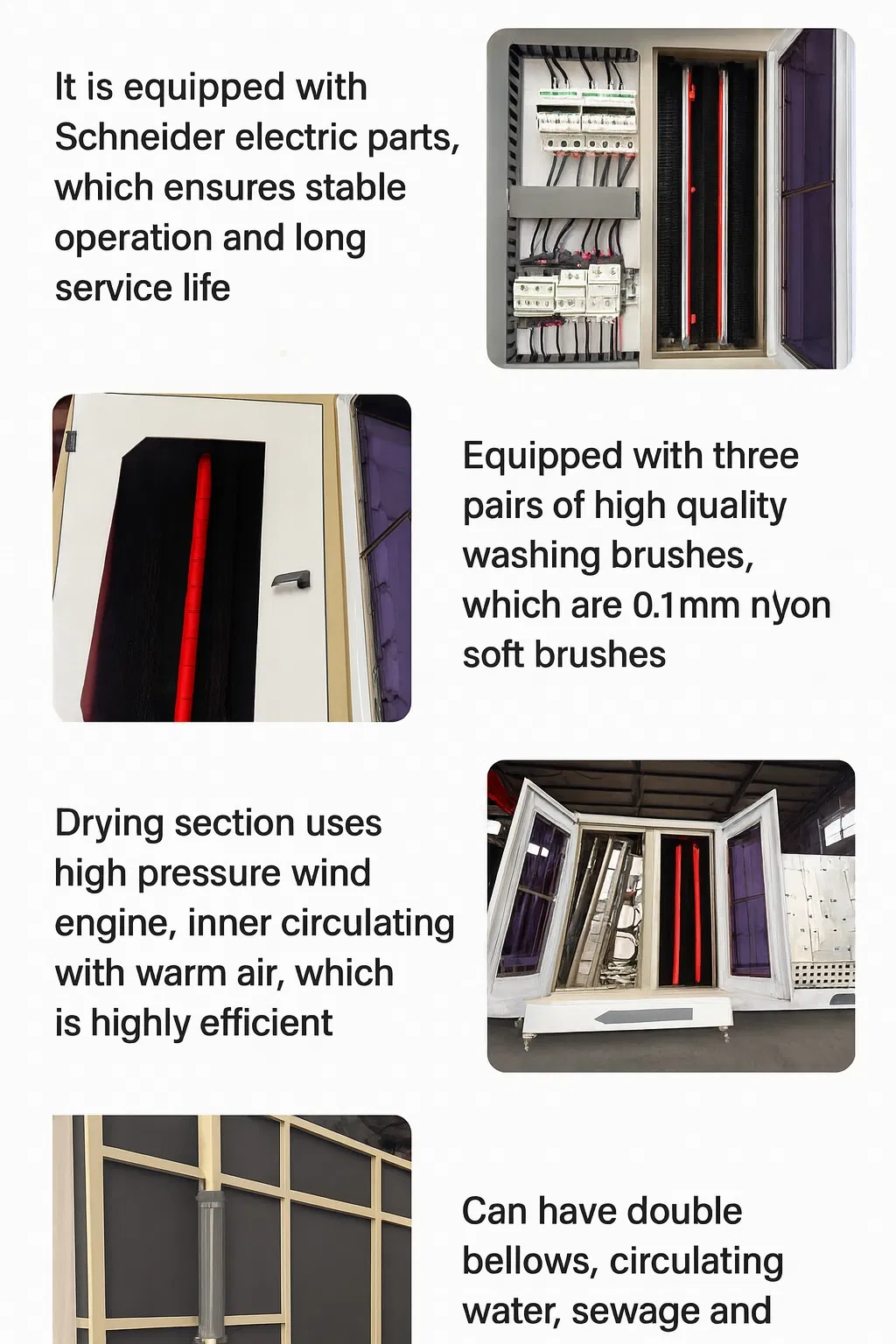

1. Brushes utilize 610 food-grade nylon yarn to reduce static electricity.
2. High-pressure nozzles (fan-shaped) ensure spotless cleaning.
3. Scientific Air Knife design for efficient drying.
1. Time Control Function prevents glass misalignment, superior to traditional switches.

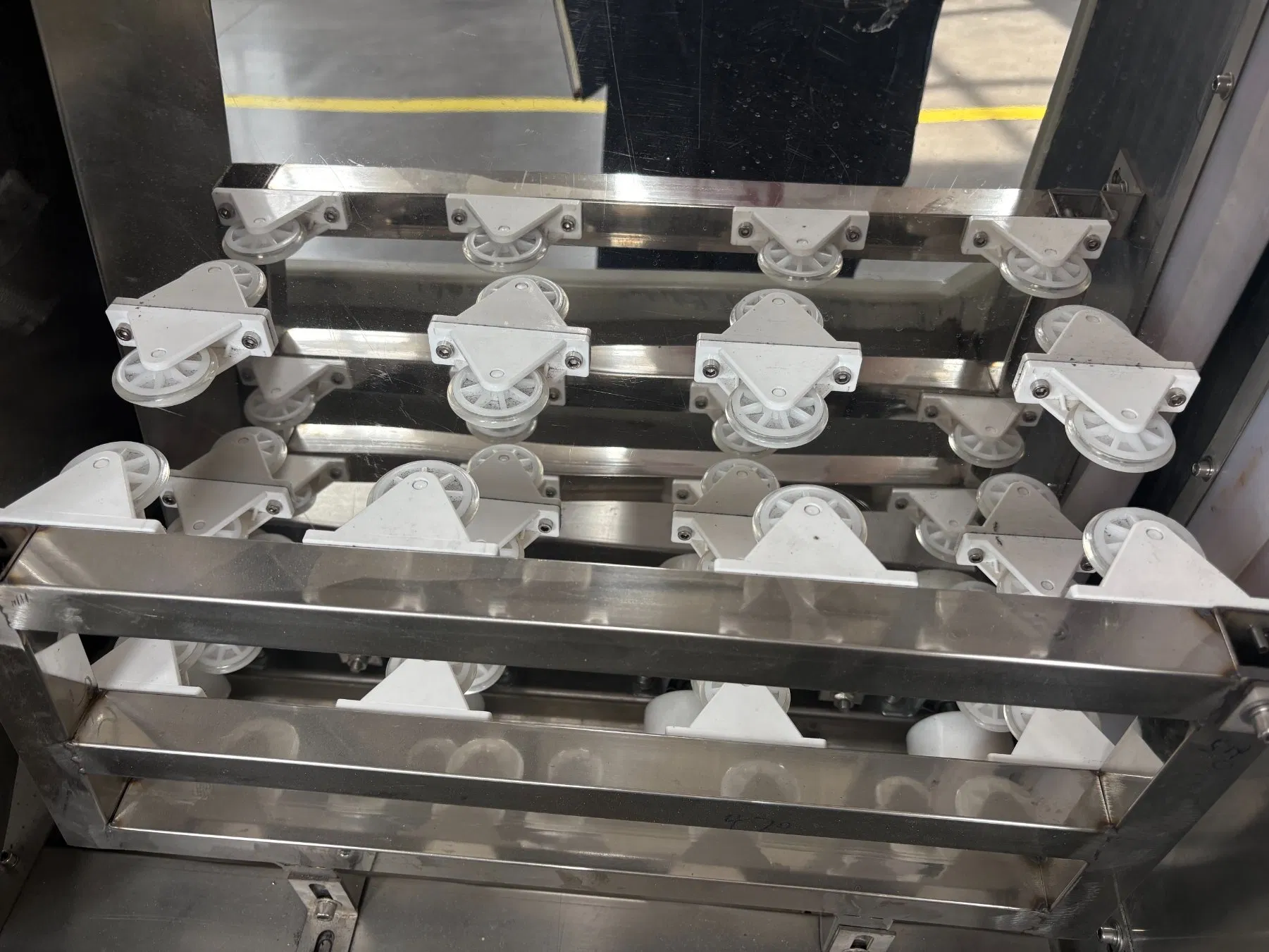

2. Glass Movement Buffer prevents collisions during movement.
3. Step-by-step movement for high precision in glass assembly.
1. High precision ball screw and bidirectional linear guides ensure parallel pressing.
2. Bottom-filling mode for uniform inflation and fullness.
3. Wide opening structure for easy maintenance access.

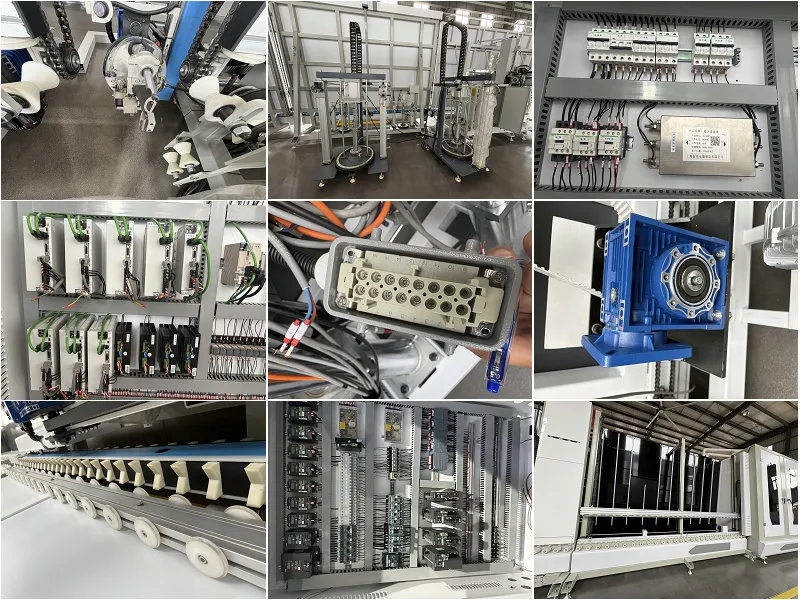

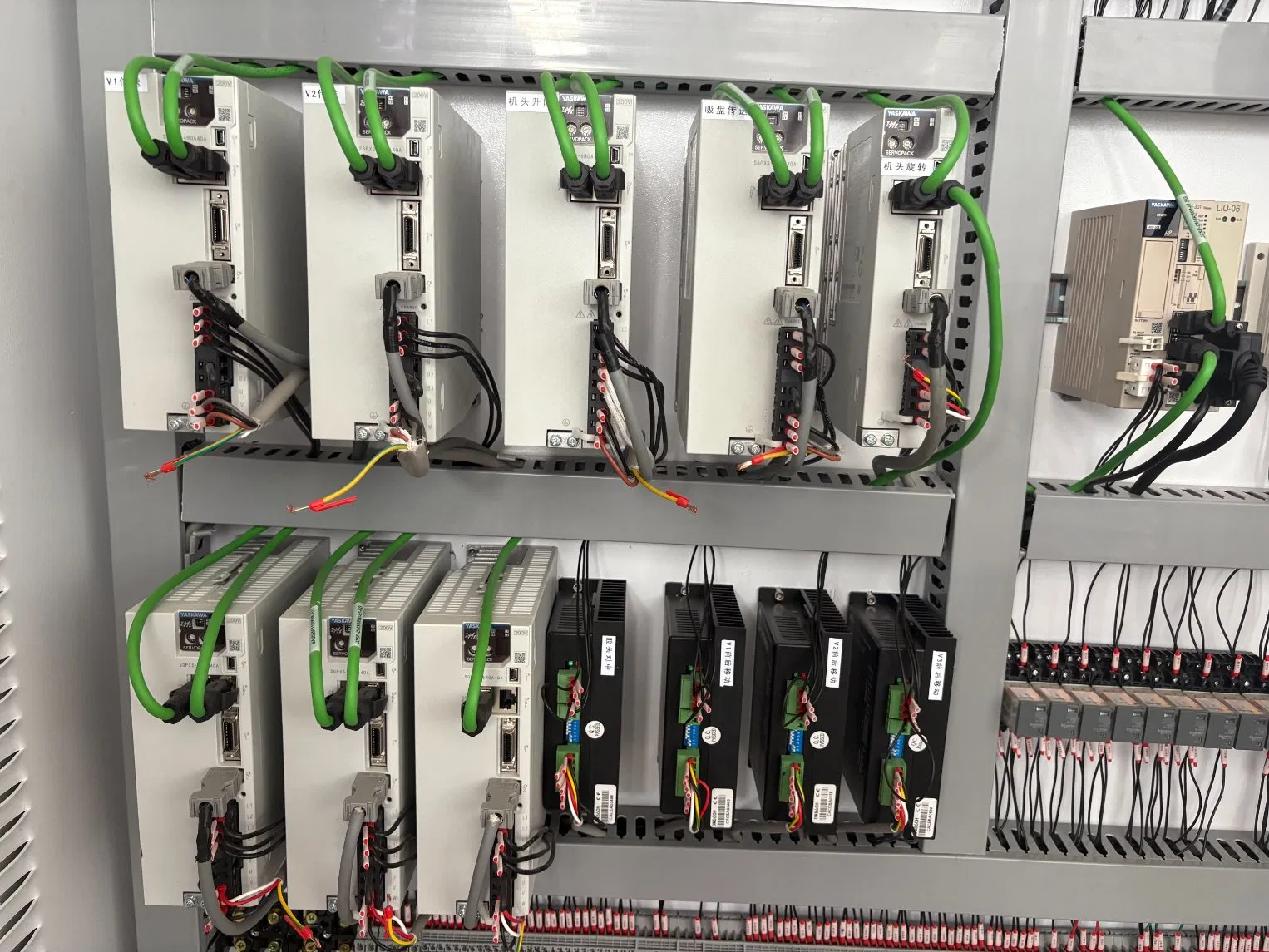

| Name | Brand | Origin |
|---|---|---|
| Servo Motors | YASKAWA | Japan |
| PLC Controller | YASKAWA | Japan |
| IO Module | MAYSTEM | Japan |
| Sensor | Autonics | South Korea |
| Low voltage appliance | Schneider | France |
| Cylinder | Airtac | Taiwan |
As a globally recognized leader in the design and manufacturing of intelligent door and window processing machinery, we focus on technical support and customized solution design. Our core range comprises insulating glass production lines as well as aluminum and PVC window processing machinery.
Quality is at the heart of everything we do. We are committed to providing reliable and high-performance machines, aiming to be the professional solution expert in glass processing facilities.
