Vertical Automatic Insulating Glass Gas Filling Inside Flat Press Production Line

Customization: Available
Certification: CE, ISO
Control System: PLC

Product Description

Overview & Basic Info

Model NO. LBW2000PC/2200PC/2500PC
Max. Glass Size 2450*3150
Min. Glass Size 450*450
Washing Glass Speed 2-8 M/Min
Washing Glass Thickness 3-15 mm
Insulating Glass Thickness 48mm
Air Pressure 1MPa
Type Insulating Glass Production Line
Structure Vertical
Condition New
Warranty 12 Months
After-sales Service Engineer Support
Transport Package Plywood Cases and Plastic Film
Specification 23100*1800*2250
Origin China
📦

Packaging & Delivery

Package Size 2310.00cm * 1800.00cm * 335.00cm
Package Gross Weight 6500.000kg
⚙️

Product Description

Vertical Automatic Insulating Glass Gas Filling Inside Flat Press Production Line

  • Automatically Distinguish the side of coated glass and low-E glass.
  • PLC control system with touch screen operation.
  • Machine work and fault dynamic display.
  • Standard double layer IG and three layers IG.
  • Frequency control designed for glass transmission.
  • Panel press openable, easy for maintenance.
  • With function of IG online gas filling.
📊

Product Parameters

ModelLBW2500PC
Input voltage(KW)380V/1P+N220V 50HZ
Max. glass size(mm)2450*3150
Min. glass size(mm)450*450
Washing Glass Speed2-8 m/min
Washing Glass Thickness3-15 mm
Insulating glass thickness48mm
Compressed air0.8 sqm/min
Air pressure1Mpa
Water electrical conductivityNot more than 50μs/cm
Water Consumption0.5T/h
Overall Dimension23100*1800*3350

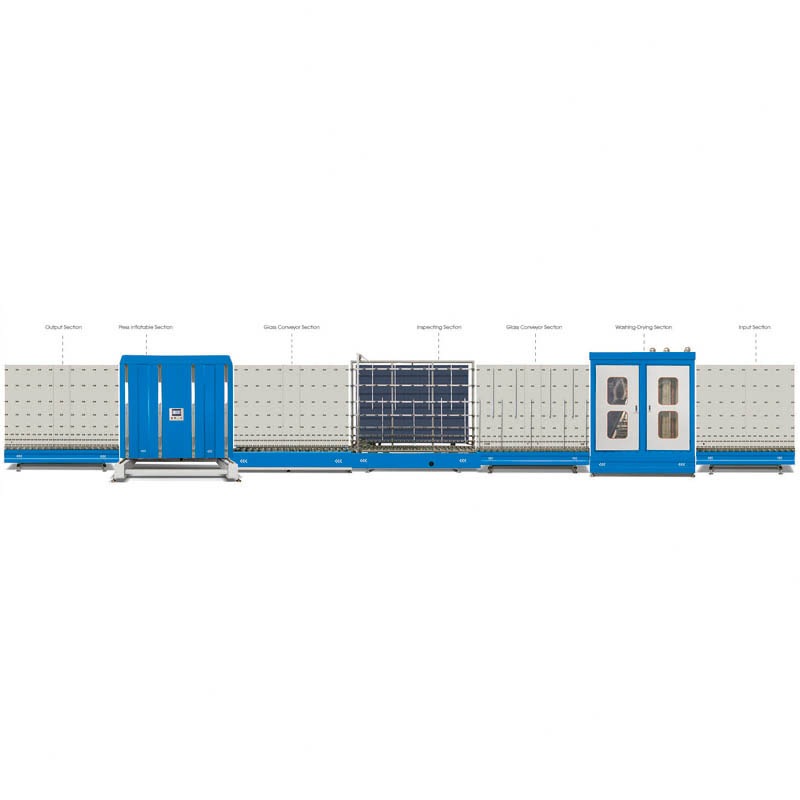

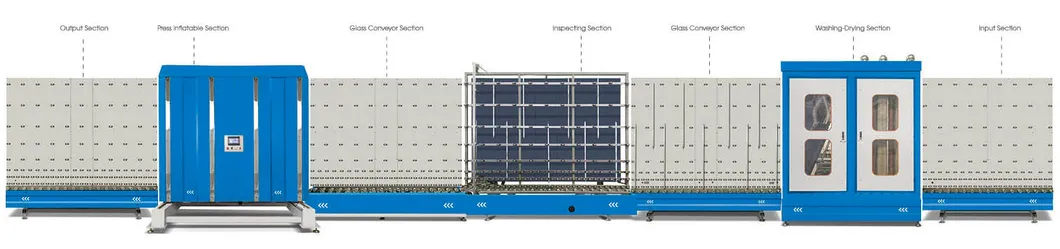

Product Parameter Diagram
🖼️

Detailed Photos

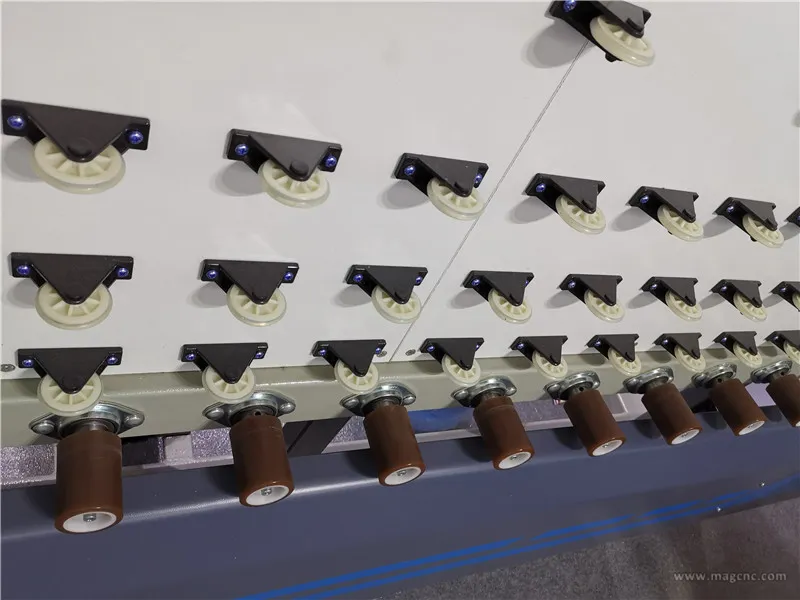

Vertical Automatic Insulating Glass Detail 1

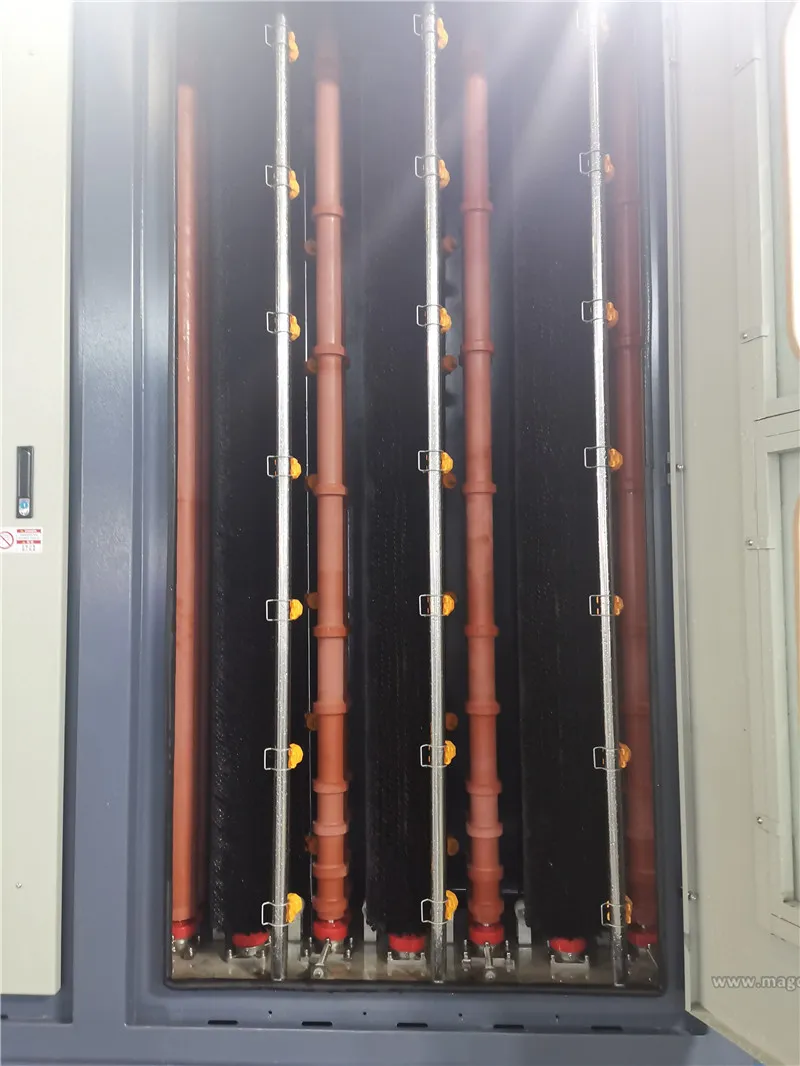

Vertical Automatic Insulating Glass Detail 2

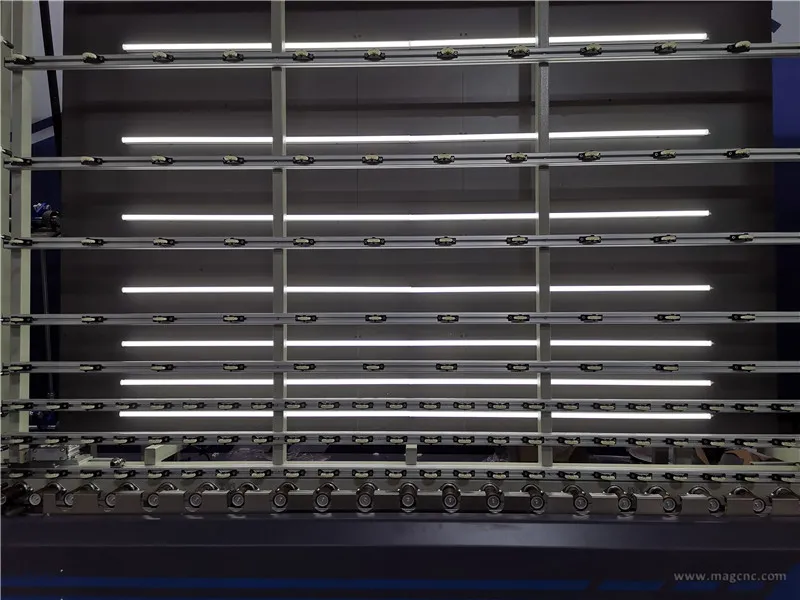

Vertical Automatic Insulating Glass Detail 3

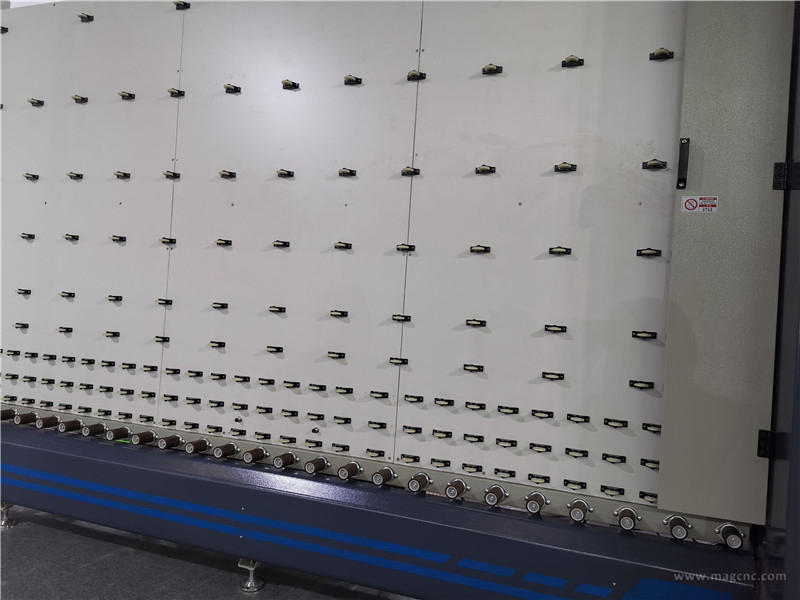

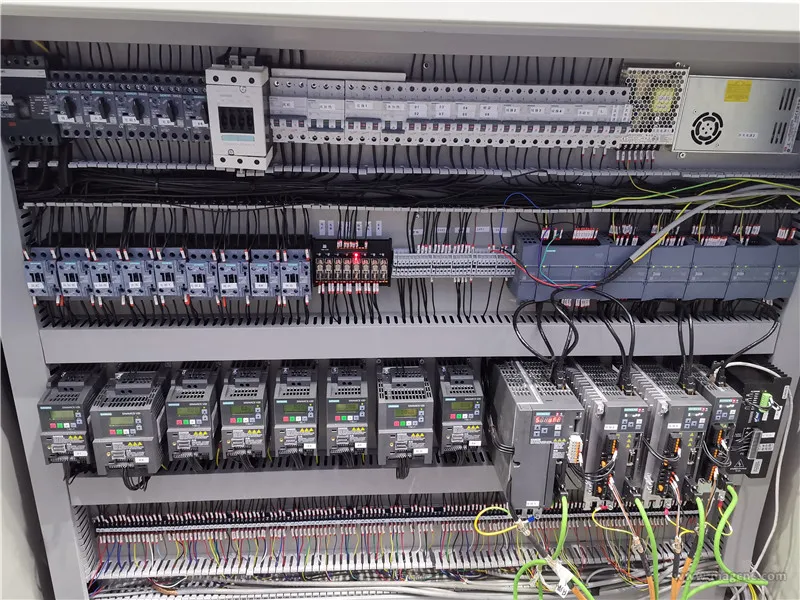

Vertical Automatic Insulating Glass Detail 4
📜

Certifications

Product Certifications
🏭

Production Line

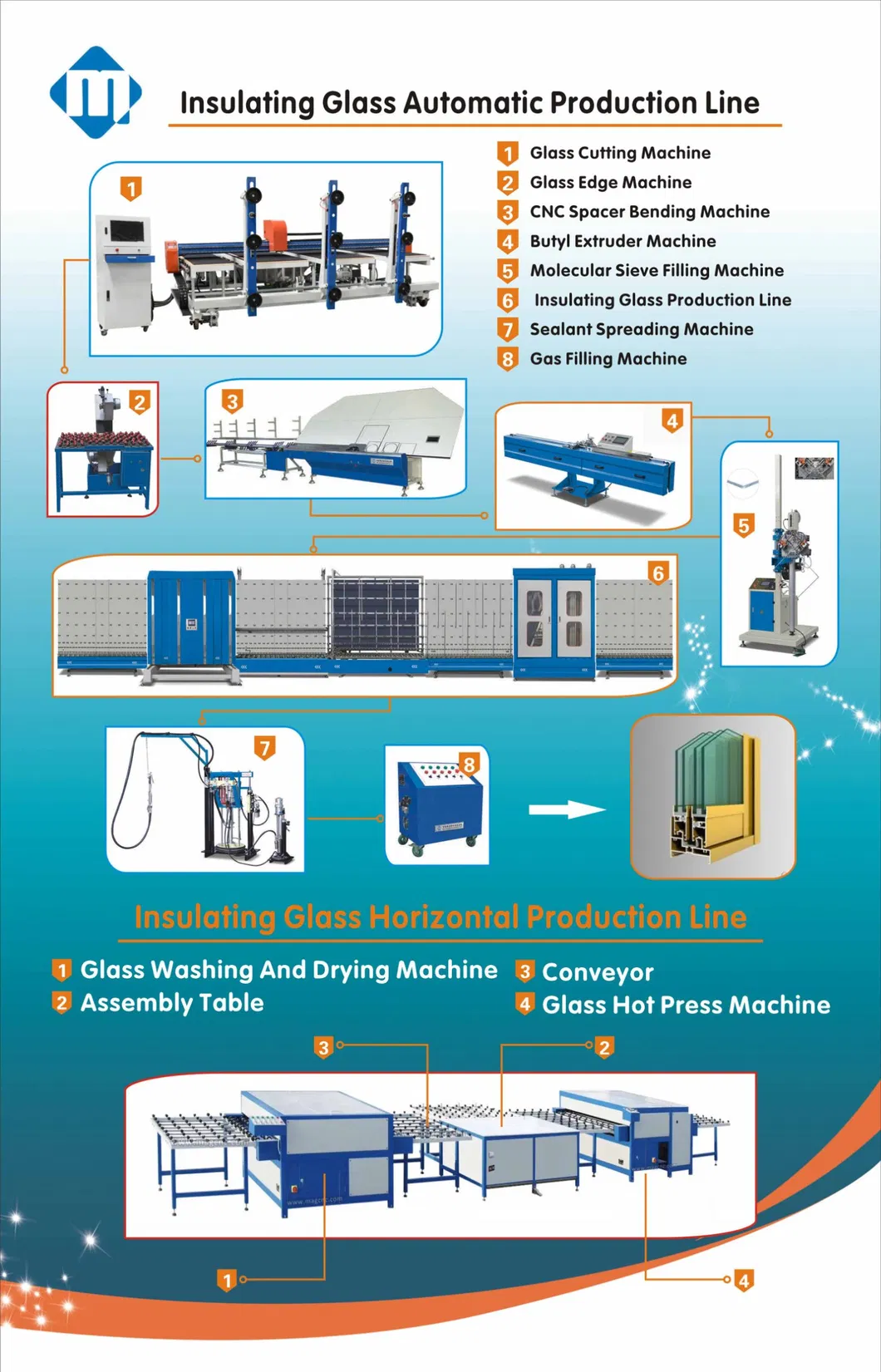

Production Line View
🤝

Customers & Exhibition

Global Customers
Exhibition Show

Frequently Asked Questions

What is the payment term? T/T, L/C and other payment terms could be negotiated.
What kind of guarantee do you provide for this machine? We offer a 12-month guarantee. We also provide 24-hour technical support via email or calling, English manuals, video tutorials, and consumable parts at agency prices.
Can we visit the factory before placing an order? Yes, we warmly welcome and sincerely invite you or your team to visit our factory. We can help arrange hotel accommodations and airport pick-up.
What is the typical delivery term? Most of the time, we have stock in the factory. If not, the delivery time is normally 15-20 working days after receiving the deposit. Special arrangements can be made for urgent needs.
How is the machine packed for safe transportation? The machine is packed in standard export wooden boxes for the outer package and stretch film for the inner package to prevent damage during sea or air transport.
Do you offer after-sales technical support? Yes, we provide 24 hours online service each day and free technical support, including assistance with problem controllers even if they were not originally from our factory.
