Basic Information

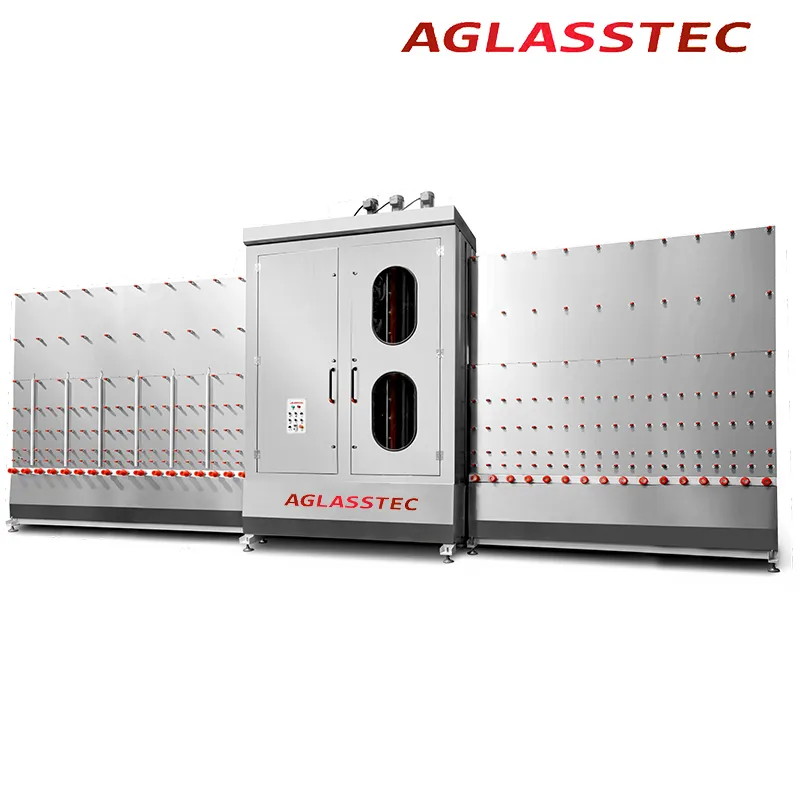

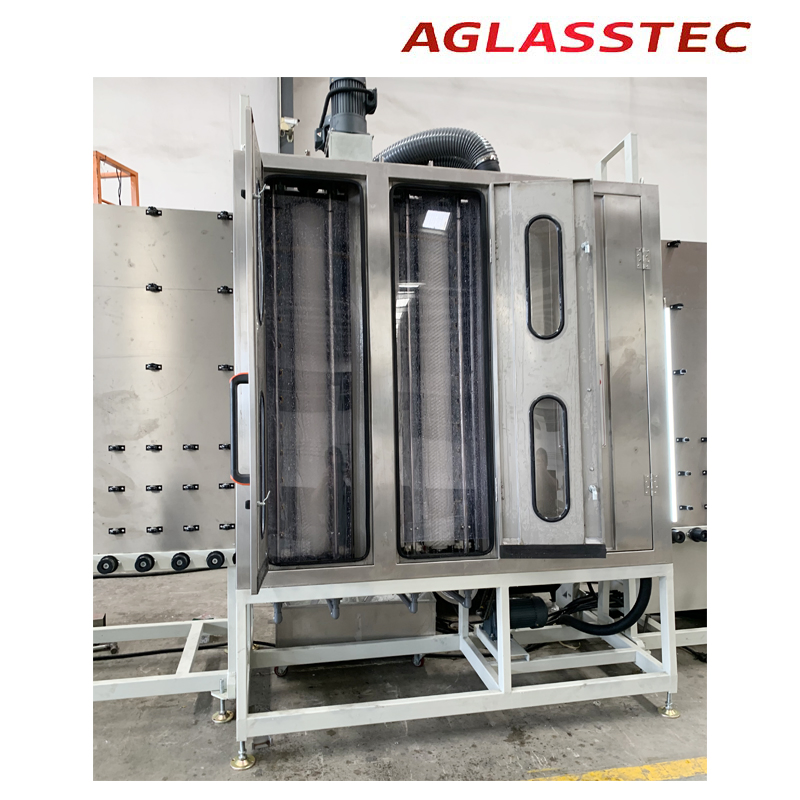

2000KGS Stainless Steel Vertical Flat Glass Open Top Washing and Drying Machine - FGW-VW1600L
Function
Low-E Glass Washing
Drying Type
Air Knife Drying
Product Description
01
The machine adopts leading technology from Italy; washing sections and metal plates contacted with water are made of high-strength, distortion-free stainless steel. It can be connected with single edger lines, vertical CNC working centers, and vertical drilling machines.
02
Optional Low-E glass detecting system: automatically recognizes the coated side of the glass. Two hard brushes can automatically retract to avoid damaging the coating.
03

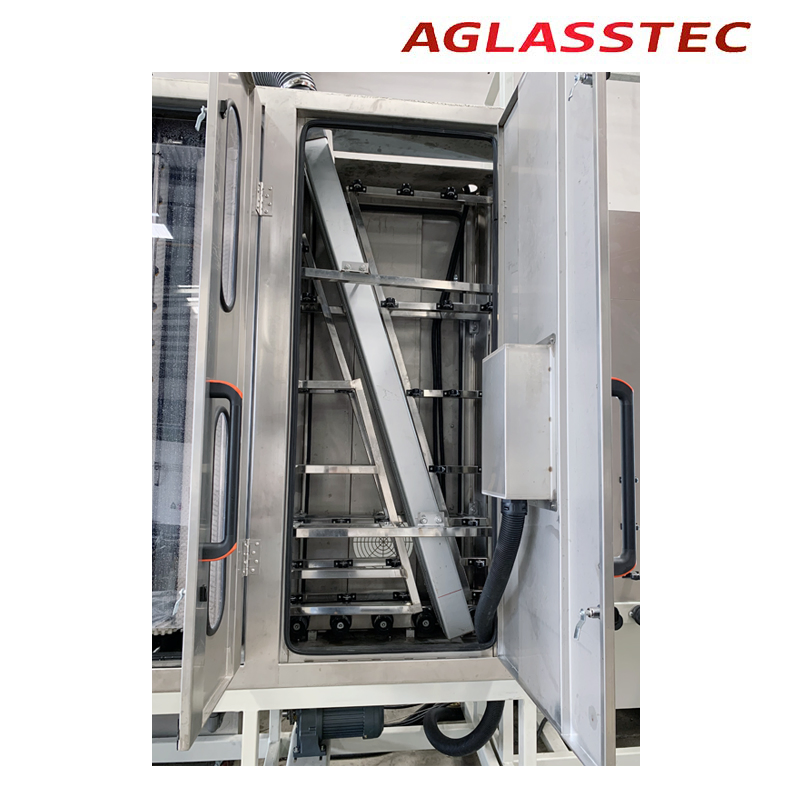

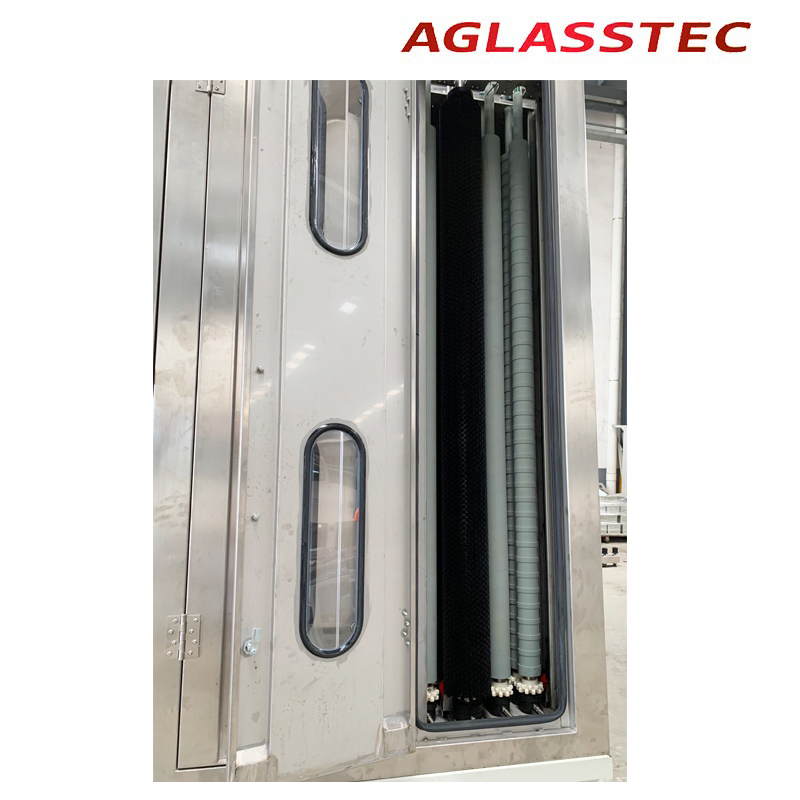

Equipped with three pairs of brushes (six Ø160mm high-temperature resistant brushes) and four spray cycles, ensuring fast and thorough cleaning.
04
Stainless steel spring system automatically adjusts for glass thicknesses ranging from 3mm to 12mm. All water-contact parts are made of stainless steel, brass, or water-proof aluminum for long-term durability.
05
Features special-made stainless steel air knives with separate circular wind and an air heating system (reaching 40°C in winter without heaters), ensuring energy-saving and low-noise drying.
Product Parameters
| Model No. |
Max. Glass Height |
Min. Glass Size |
Glass Thickness |
Max. Speed |
Total Power |
Machine Size |
Machine Weight |
| FGW-VW1600L |
1600mm |
500*300mm |
3-12mm |
7m/min |
15KW |
6000*1800*2800mm |
2000KGS |

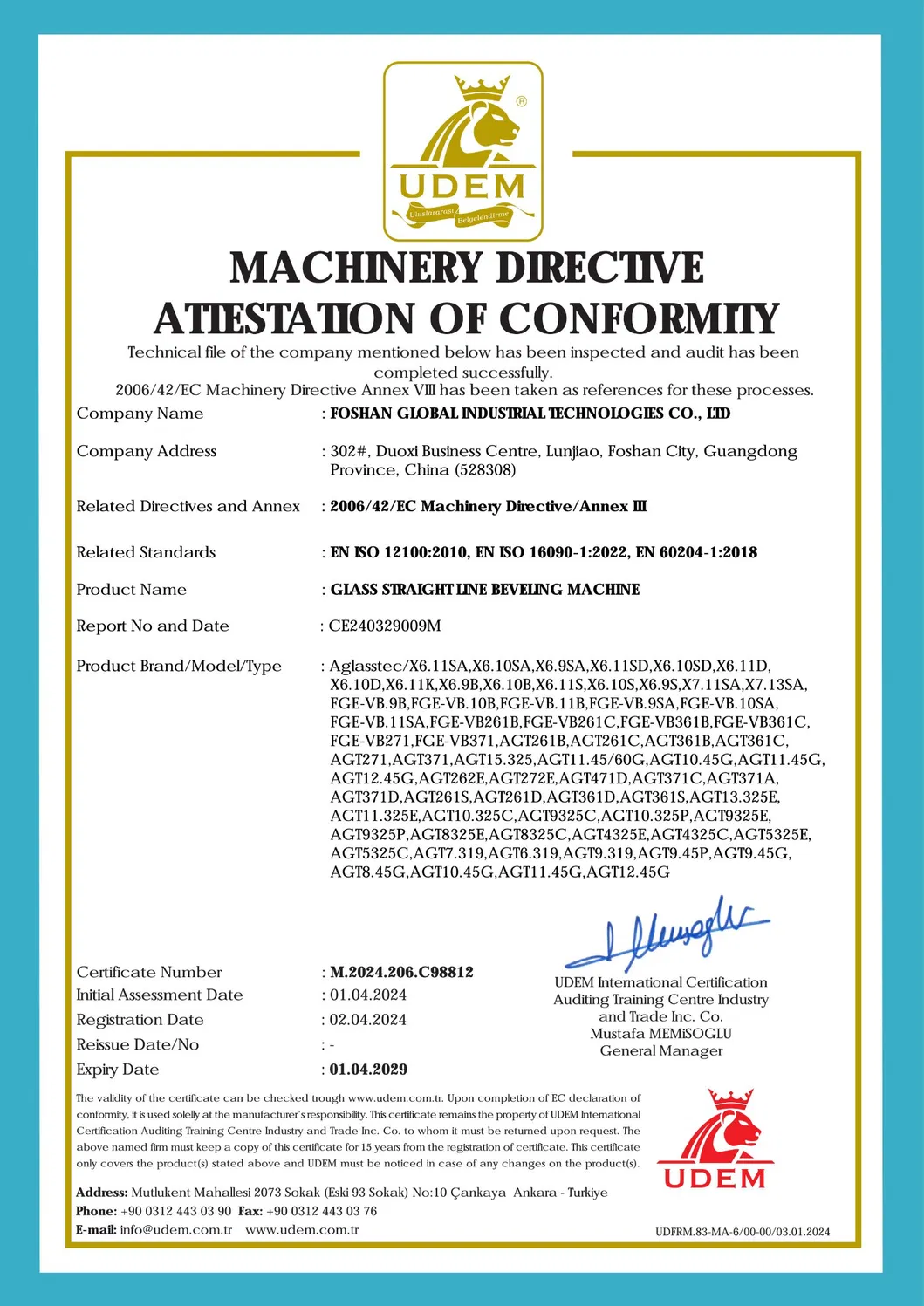

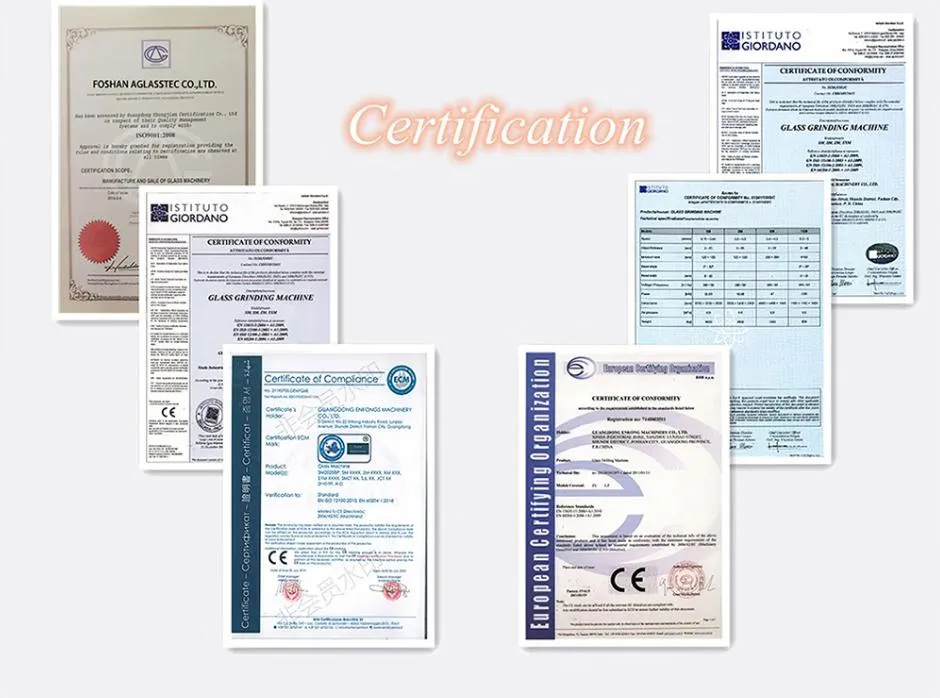

Certifications & Customers Visit
Frequently Asked Questions
Are you a trading company or a manufactory?
We are a manufactory. We supply equipment at factory prices with guaranteed quality. You are welcome to visit our facility.
What is the machine warranty?
We provide lifelong maintenance services. For machines beyond the warranty period, we continue to provide follow-up support, with spare parts charged only at cost price.
Is the machine easy to operate for a first-time buyer?
Yes. We provide operation manuals and videos. We can also assist via online remote support or send engineers to your factory for installation and staff training.
How do I choose the most suitable machine?
Simply provide us with your material type, sizes, and functional requirements. We will recommend the most suitable machine based on our extensive industry experience.
How is the quality control for the products?
The entire production procedure undergoes regular inspection and strict quality control. Every machine is tested before leaving the factory, and testing videos/pictures are provided.
What if the machine has problems after ordering?
Free parts are sent during the warranty period. We offer 24-hour service via telephone or messaging apps to resolve any issues for the lifetime of the machine.
