Basic Information
Pane Glass Thickness
3-18mm
Max. Glass Size
2500*3000mm
Production Capacity
15 Sets Per Month
Product Description

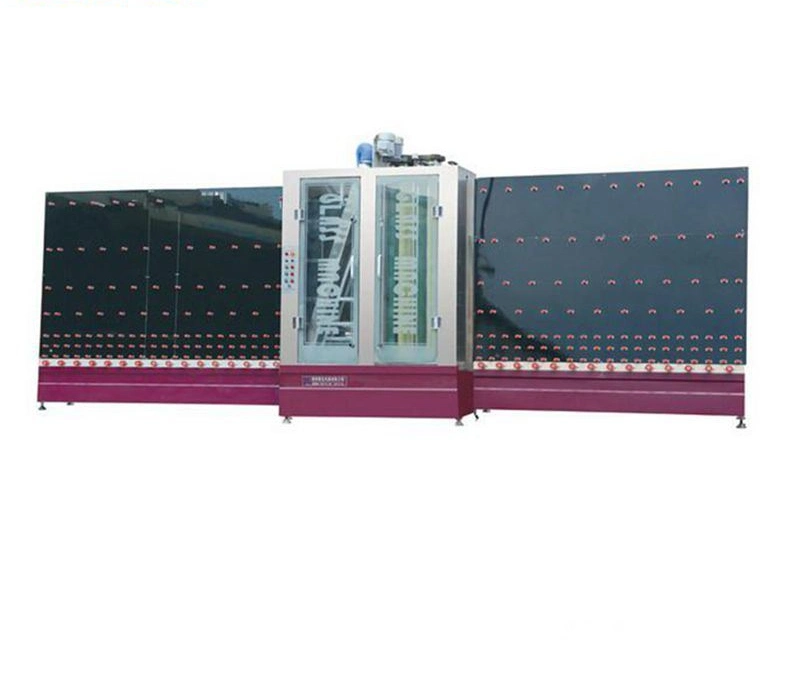

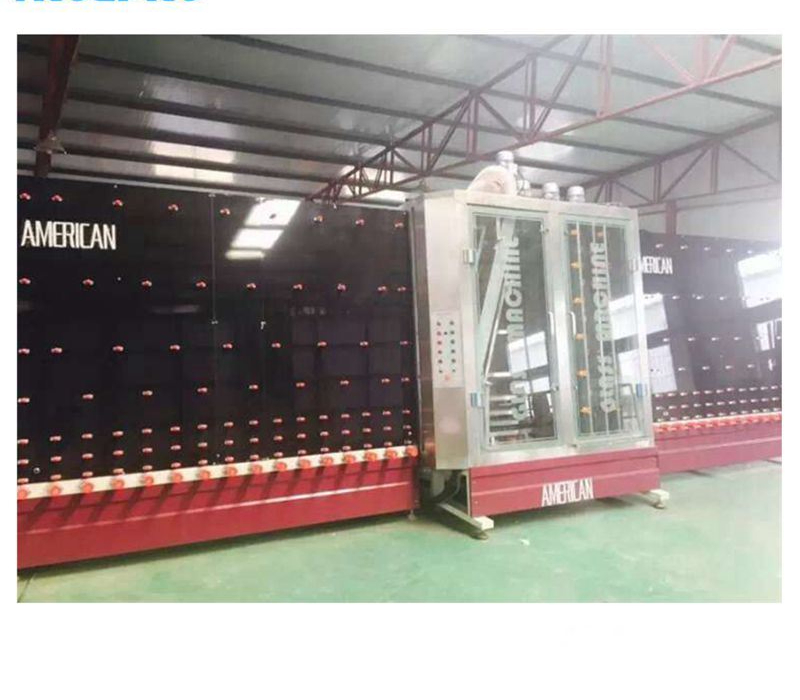

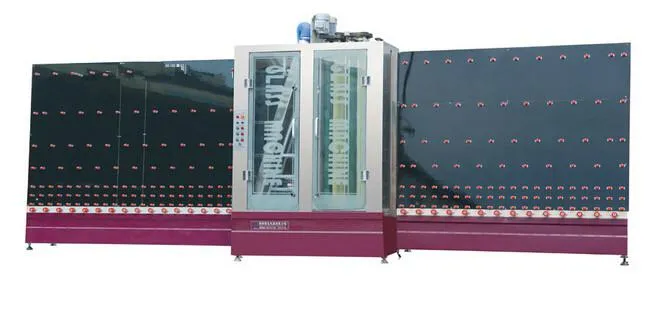

Vertical Glass Washing Machine for Insulating Glass
Main Features
- Washing section and water system adopt complete stainless steel or rot-proof materials.

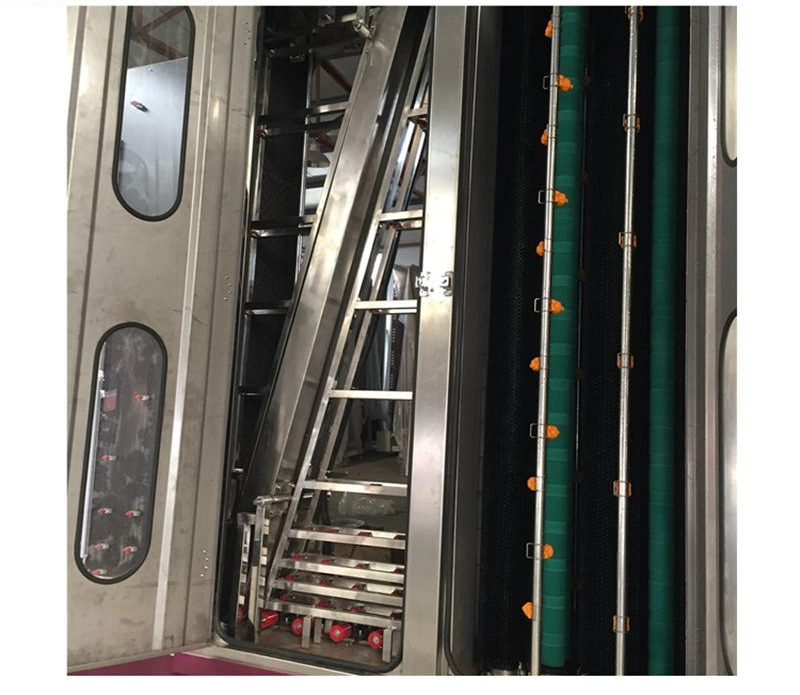

- Equipped with 3 pairs of soft brushes suitable for coated glass and LOW-E glass.
- Drying section uses rubber rollers to scrape water combined with hot wind for high-efficiency drying.

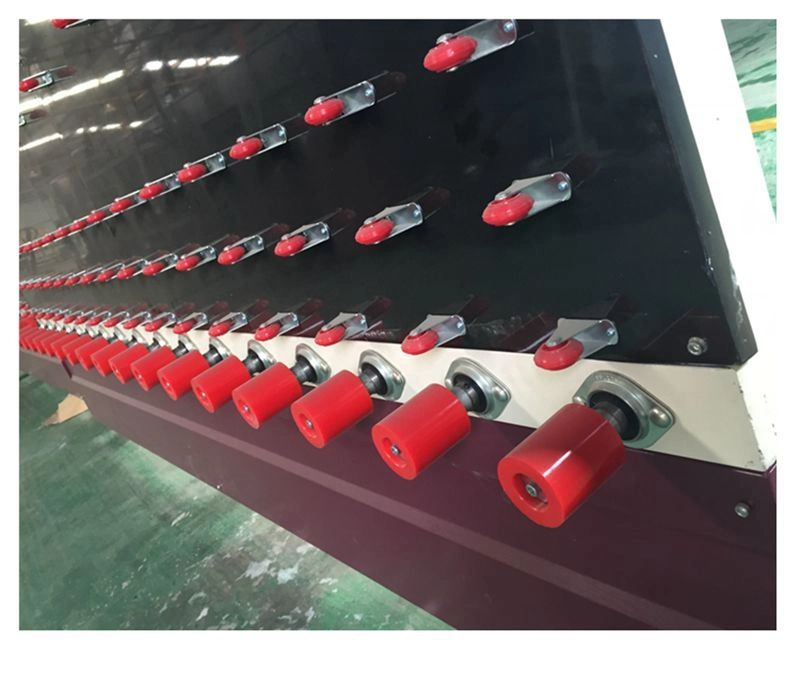

- Transmit system adopts unlimited speed adjustment for varied application needs.
Technical Parameters
| Power Supply |
380V 50Hz |
Power |
23kw |
| Work Pressure |
0.5-0.8MPa |
Min. Cutting Size |
280*450mm |
| Max. Cutting Size |
2500*3000mm |
Working Direction |
Left-Right |
| Glass Thickness |
3-18mm |
Washing Speed |
0-12m/min |

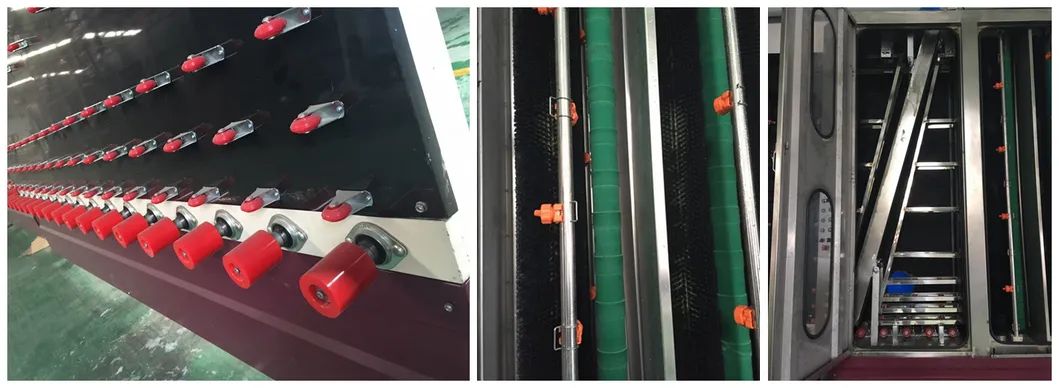

Machine Components & Display
Packaging & Delivery
Transport Package
Carton Packing, Wooden Packing or Simple Packing
Gross Weight
20.000kg (Package unit)
Frequently Asked Questions
When can we arrange shipment?
We usually arrange shipment within 15 days after receiving the deposit. However, customized machines may require more than 25 days.
What should I do if the machine has problems?
If the machine is within the guarantee period, we can send you free replacement components. Additionally, we can dispatch engineers to assist with repairs.
Do you provide equipment operation training?
Yes. Professional engineers can be sent to the working site for installation, adjustment, and comprehensive operation training. All engineers are equipped with passports for international travel.

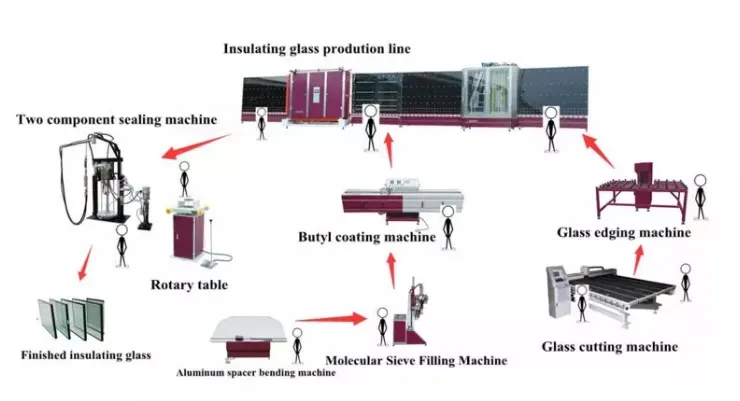

How many basic machines are needed for making insulating glass?
Typically, you need a glass cutting machine, a vertical glass washing machine, a spacer bar bending machine, and a sealant spreading machine to complete the production line.
Is the washing machine compatible with Low-E glass?
Yes, the machine is equipped with three pairs of soft brushes specifically designed to clean coated glass and Low-E glass without damaging the sensitive surface.
What is the daily maintenance required for this machine?

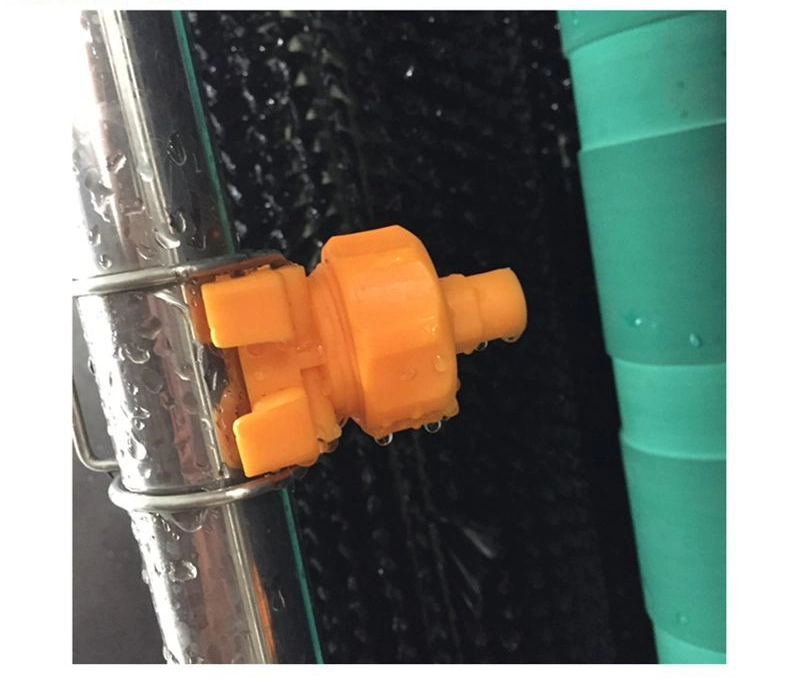

It is recommended to clean the water tank and filter daily, check the nozzles for blockage, and ensure the rubber rollers are clean to maintain optimal drying performance.
