Fully Automatic Glass Insulating Igu Production Equipment Machine Processing
Fully Automatic Glass Insulating Igu Production Equipment Machine Processing
Fully Automatic Glass Insulating Igu Production Equipment Machine Processing
Fully Automatic Glass Insulating Igu Production Equipment Machine Processing
Fully Automatic Glass Insulating Igu Production Equipment Machine Processing
1 / 5
Fully Automatic Glass Insulating Igu Production Equipment Machine Processing
Fully Automatic Glass Insulating Igu Production Equipment Machine Processing
Fully Automatic Glass Insulating Igu Production Equipment Machine Processing
Fully Automatic Glass Insulating Igu Production Equipment Machine Processing
Fully Automatic Glass Insulating Igu Production Equipment Machine Processing

Fully Automatic Glass Insulating Igu Production Equipment Machine Processing

Customization: Available
Certification: CE, ISO
Control System: PLC Control
Send Inquiry

Product Description

📊Basic Information
Model: BLBG2030
Glass Thickness: 3-12mm
Max Glass Size: 2000*3000mm
Min Glass Size: 200*300mm
Working Speed: 2-40m/Min
Total Power: 36kw
Control System: PLC (Mitsubishi)
Core Components: Motor, PLC, Pump
🛠️Product Description

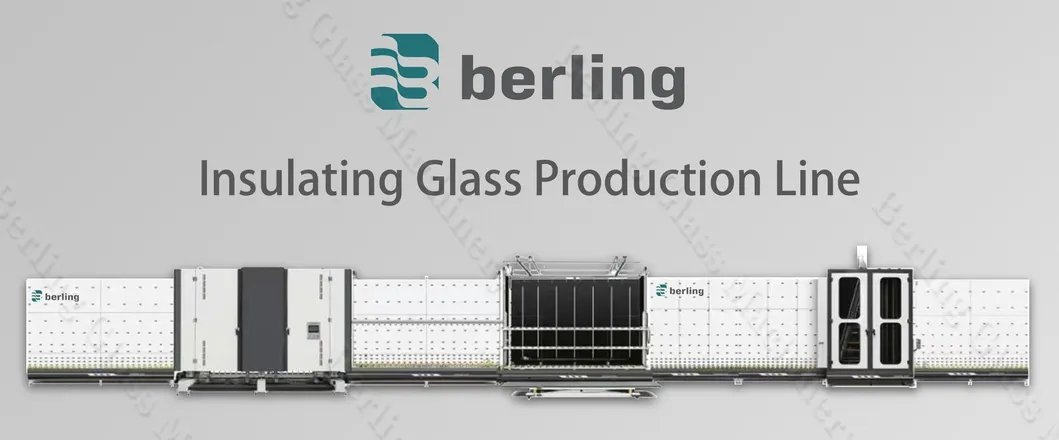

Fully Automatic Glass Insulating Production Line

High-performance vertical insulating glass production lines designed for manufacturing double, triple, and structural glass units. Systems feature PLC control, touchscreen operation, Low-E glass detection, and servo-driven pressing for accurate IGU processing.

  • PLC Touchscreen Control - Easy operation and real-time monitoring.
  • Low-E Glass Detection - Omron sensors automatically identify coated glass.
  • Independent Brush Motors - Each brush is motor-driven for superior cleaning.
  • Argon Gas Filling System - Servo-controlled pressurized injection.
  • Durable Build - Stainless steel construction for corrosion resistance.

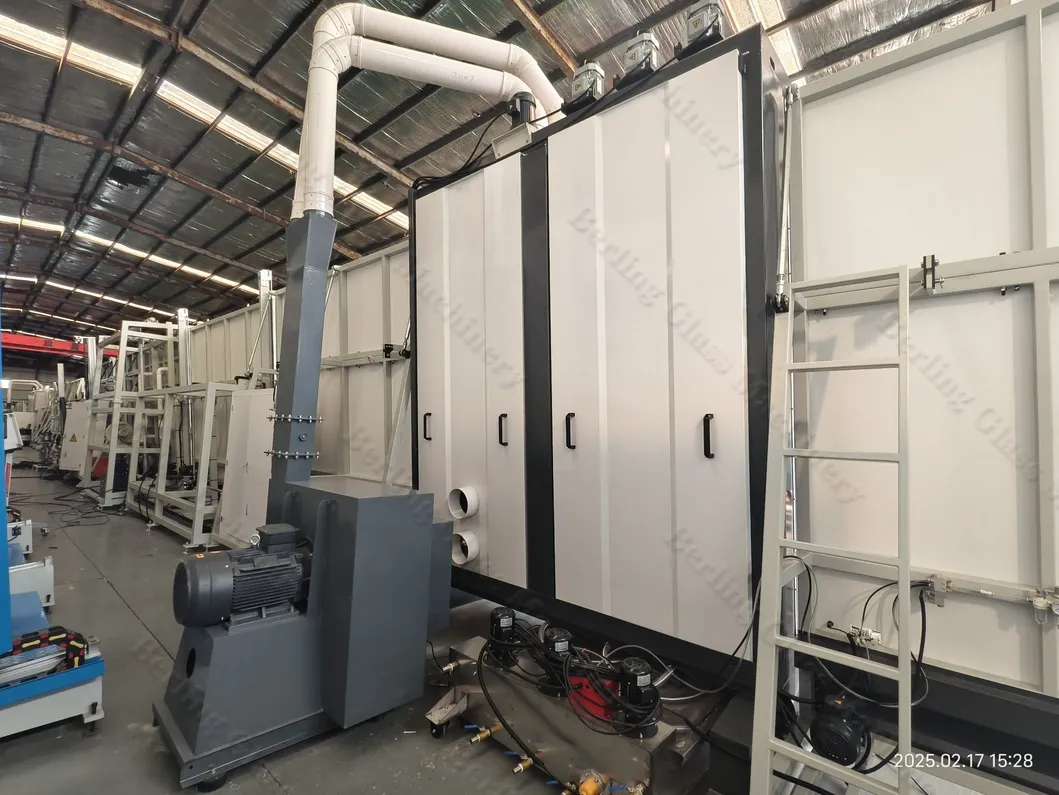

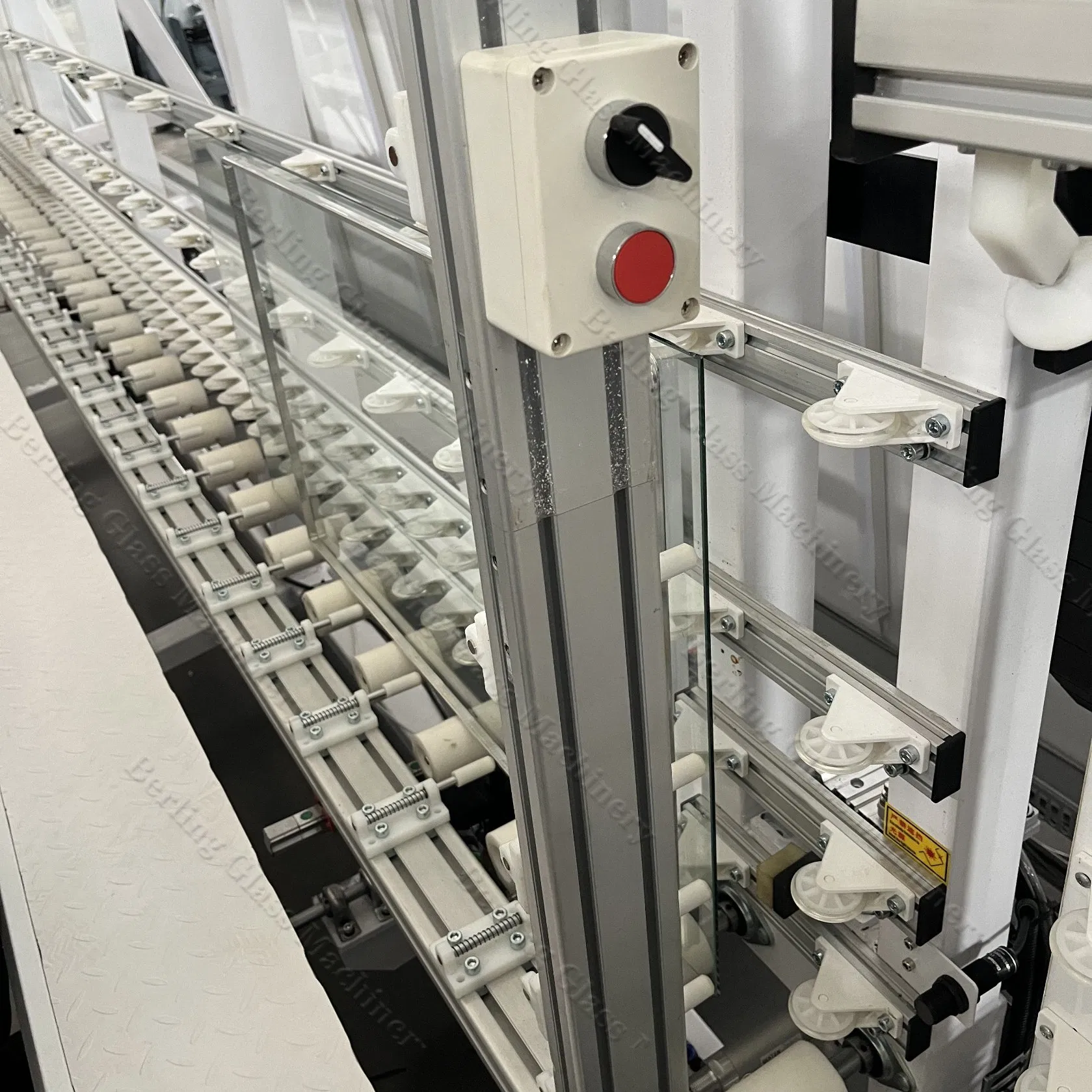

IGU Processing Detail

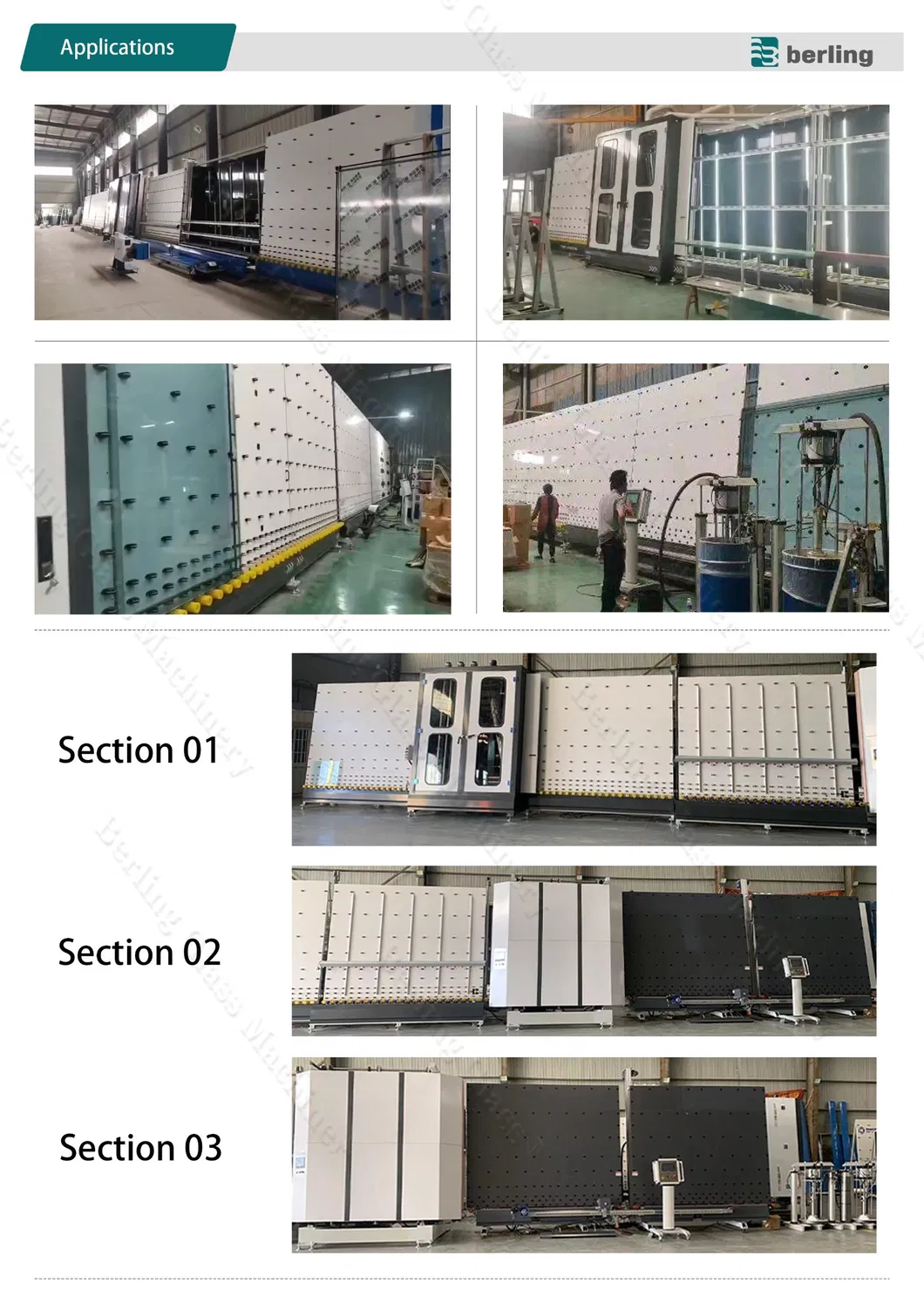

Machine Structure
📋Technical Parameters
Item BLBG-3060 BLBG-2850 BLBG-2540 BLBG-2030
Total power 90KW 70KW 46KW 36KW
Max glass size 3000*6000mm 2800*5000mm 2500*4000mm 2000*3000mm
Min glass size 280*450mm 280*450mm 280*450mm 280*450mm
Panel glass thickness 3~30mm 3~12mm 3~12mm 3~12mm
Working Speed 2-45m/min 2-45m/min 2-45m/min 2-40m/min
Overall dimension 42000*3200*3900mm 30500*3200*3900mm 25300*3200*3600mm 21000*3000*2910mm

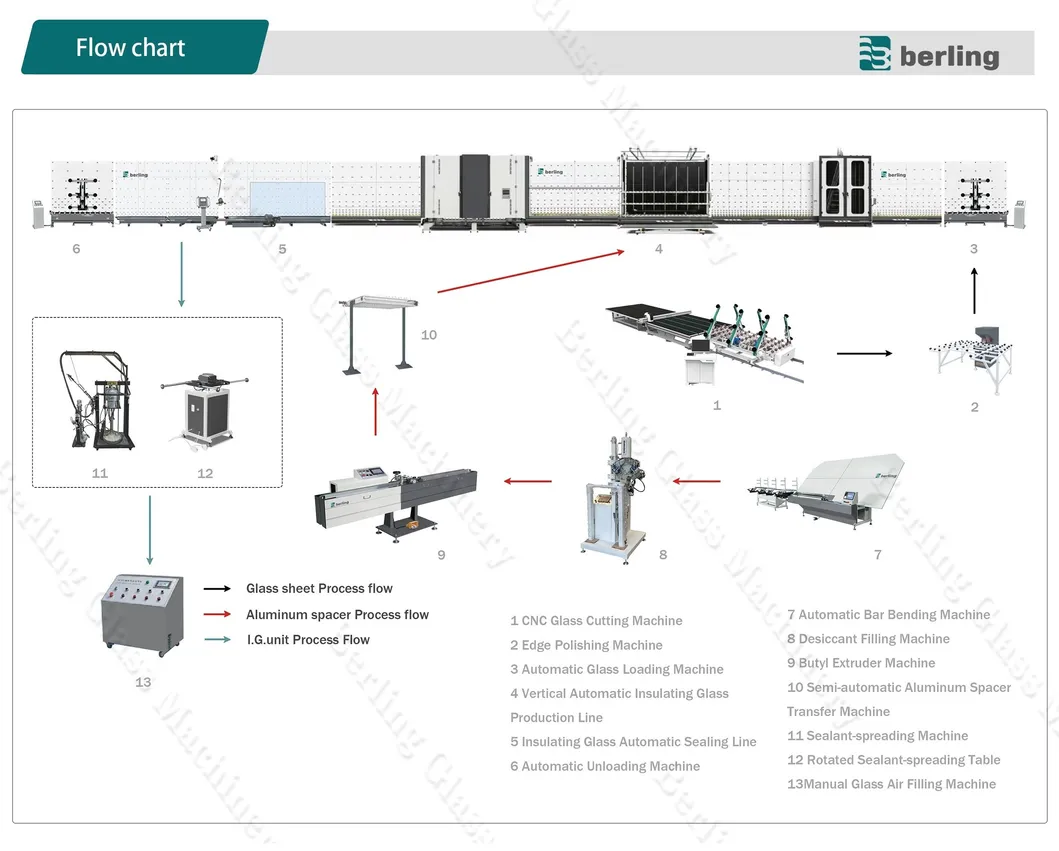

Technical Drawing
🏗️Application Scope
  • Residential & commercial window IGU manufacturing
  • Curtain wall insulating glass unit production
  • Low-E energy-saving glass processing
  • Structural glass façade panel fabrication
  • Glass panel assembly and sealing in the building industry

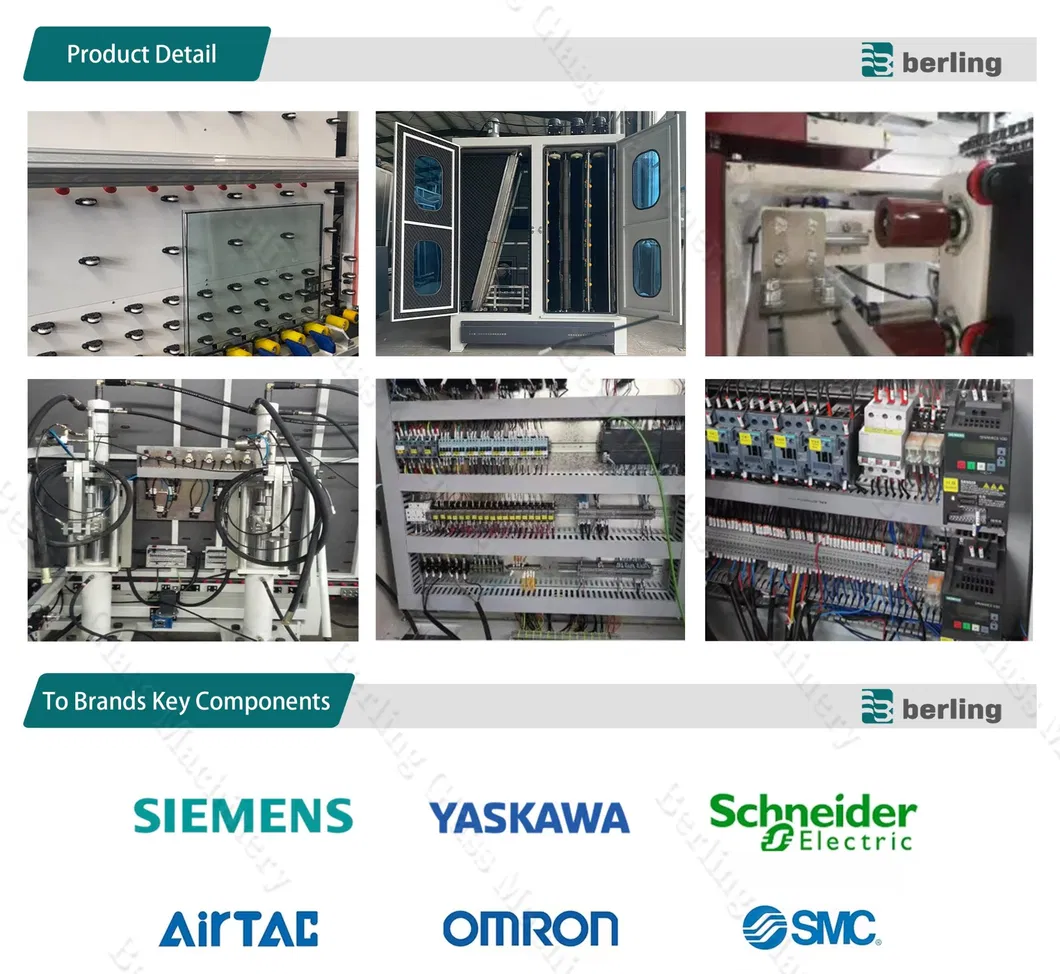

Application Case 1
Application Case 2
📜Certifications & Logistics
Certifications
Packaging and Shipping
🏭Production & Service
Production Facility
Factory Overview
After Sales Service
❓Frequently Asked Questions
1. What types of insulating glass can this production line manufacture?
The production line is versatile and can manufacture double-glazed, triple-glazed, and structural glass units, including specialized Low-E energy-saving glass.
2. How is the quality of the production line guaranteed?
We maintain strict quality control by providing pre-production samples and conducting a comprehensive final inspection before shipment to ensure stable product quality.
3. Does the system support Argon gas filling?
Yes, the production line includes a servo-controlled, pressurized Argon gas filling system that meets international standards for high-efficiency thermal insulation.
4. What are the core advantages of the control system?
The machine uses a Mitsubishi PLC and touchscreen interface, providing easy operation, real-time monitoring, and precise control over the entire IGU processing cycle.
5. Can the machine detect Low-E coated glass automatically?
Yes, the line is equipped with advanced Omron sensors that automatically identify the coating side of Low-E glass to prevent damage during the washing and pressing process.
6. What after-sales services do you provide?
We offer professional engineering support and technical after-sales service to assist with installation, maintenance, and operational guidance.
