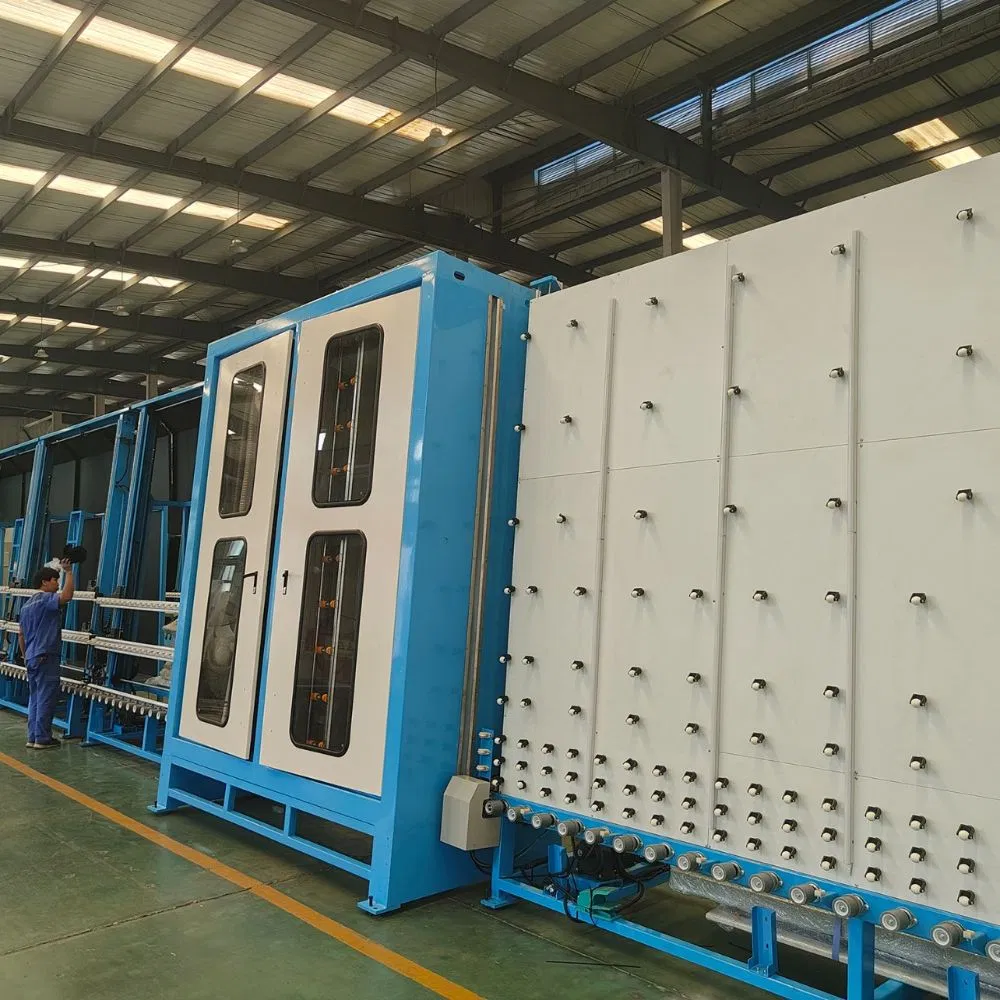

Automatic Insulated Glass Flat Press Production Line Machine with Glass Washing Machine

1 / 5

Automatic Insulated Glass Flat Press Production Line Machine with Glass Washing Machine

Customization:	Available
Certification:	CE
Guarantee:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

LBZ2540

Type

Insulating Glass Production Line

Structure

Vertical

Installation

Engineer Included

Specification

2500*4000mm

Glass Washing

Ultrasonic System

Argon Gas

Online Filling

Condition

New

Origin

China

Production Capacity

300 sets/Year

Packaging & Delivery

Package Size

2000.00cm * 2000.00cm * 3000.00cm

Gross Weight

5000.000kg

Transport Package

Seaworthy Package

Product Description

Application

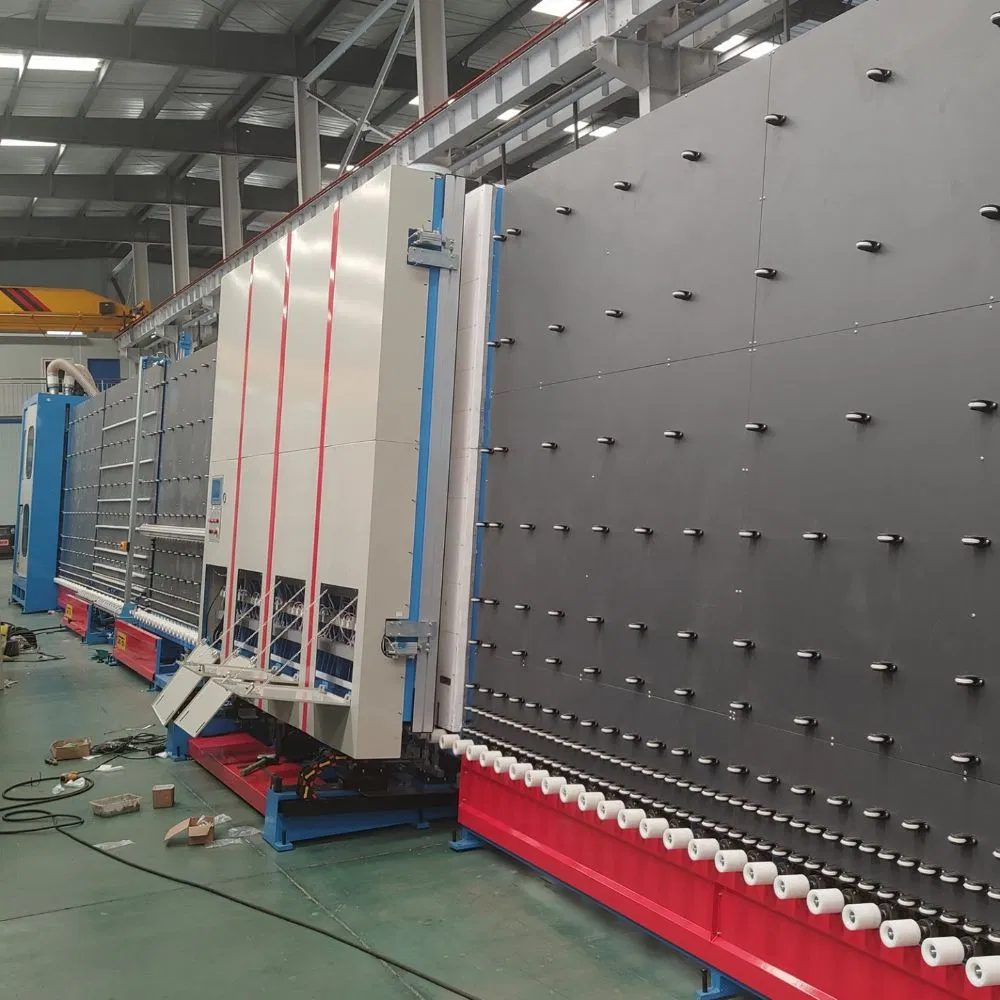

Vertical automatic insulating glass flat press production line is mainly used for Insulating Glass Units (double glazing glass) production. This model applies for glass processing companies and windows & doors fabricators. Fully automatic glass sheet transportation, Low-E coating detection, washing, drying, assembly, and pressing with optional gas filling ensure high-quality production and long-life performance.

Key Features

PLC control system with touch screen interface.
Automatic recognition of Low-E glass coating side.
High-performance washing zone made of stainless steel.
Unique air knife with silencer device for quiet operation.
Inside and outside assembly and press function.
On-line gas filling and auto glass size checking (Optional).
Supports double, triple, shaped, and stepped IGU production.

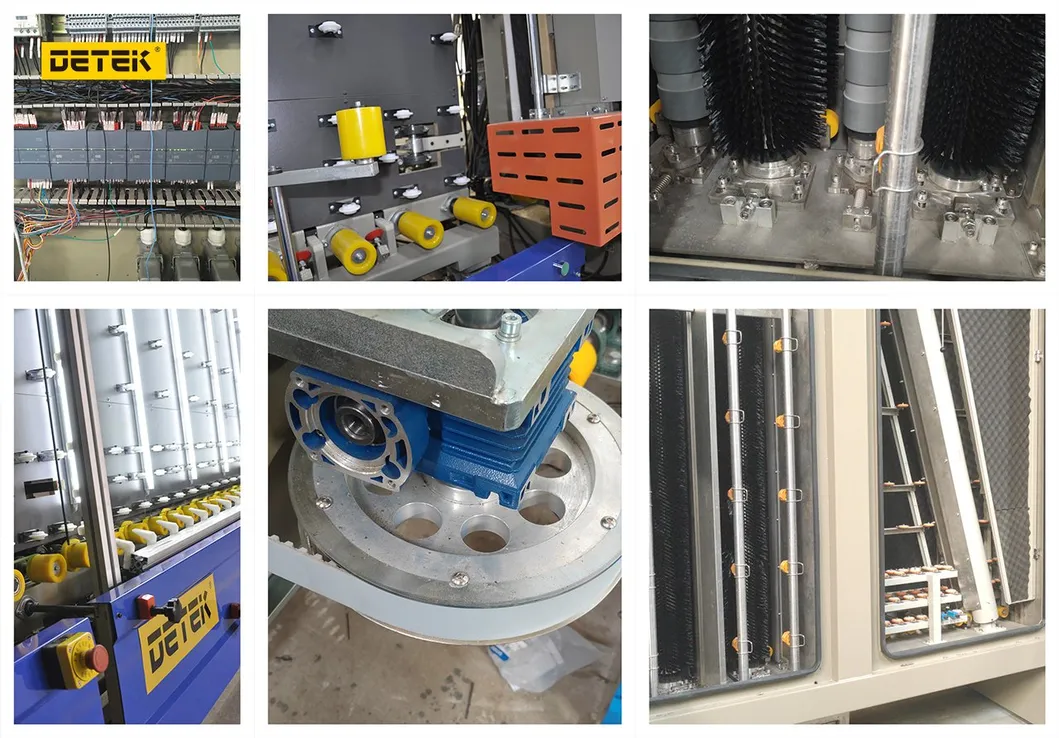

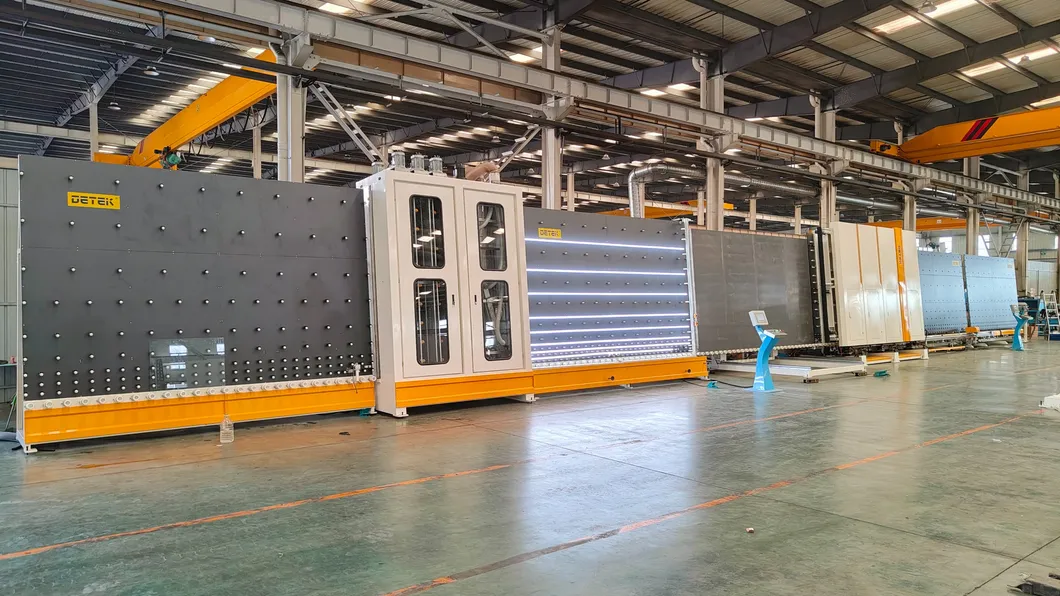

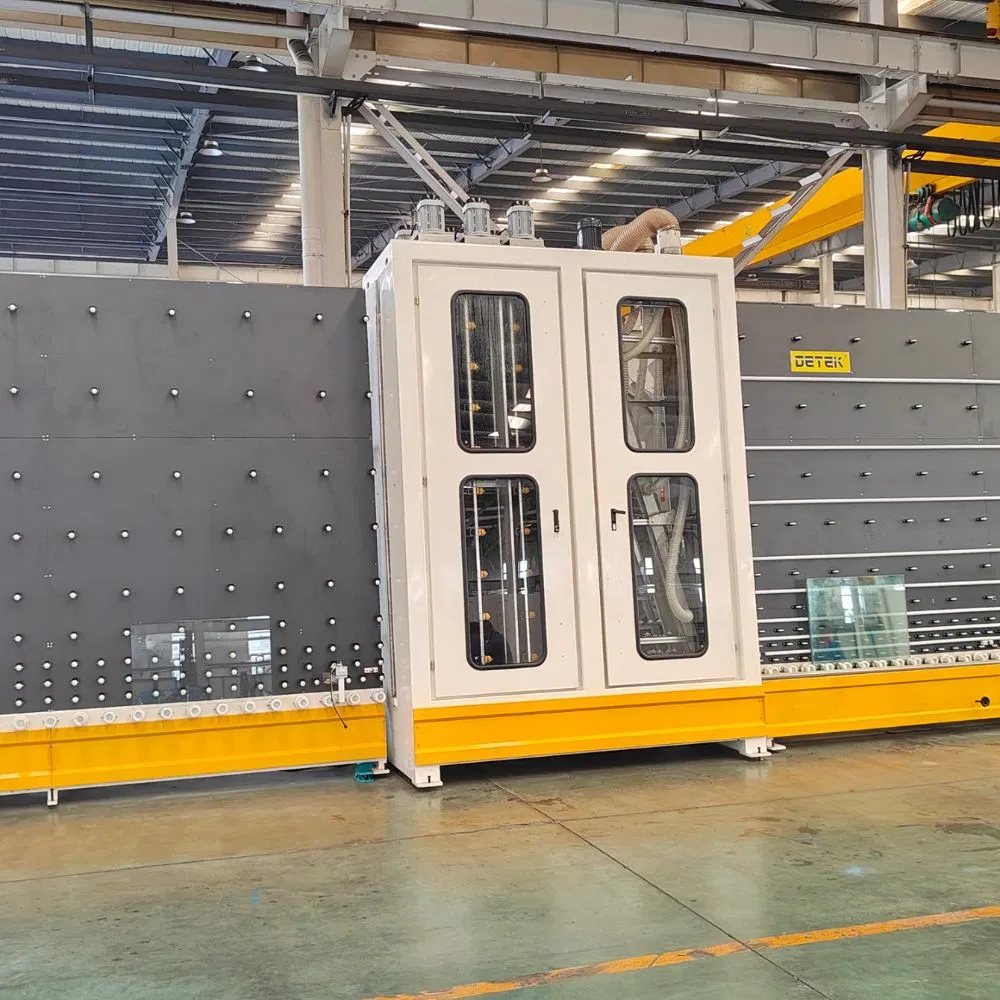

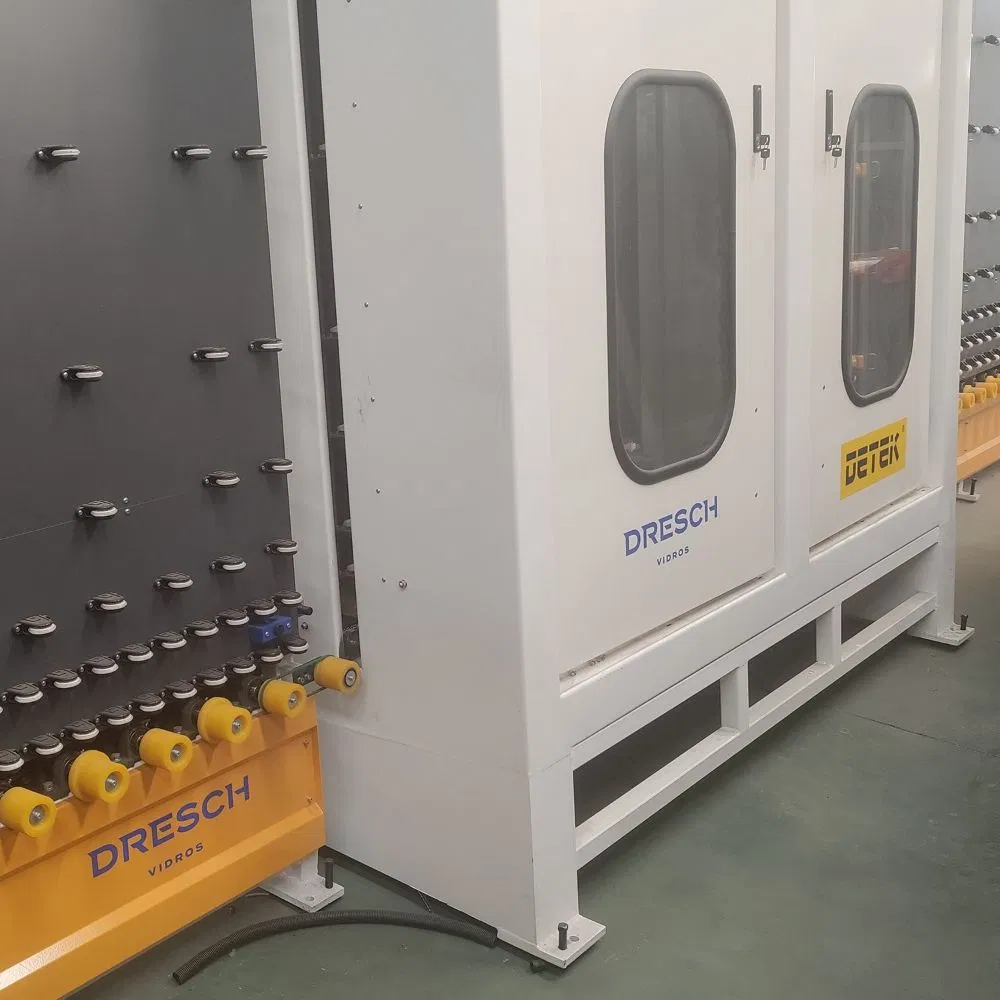

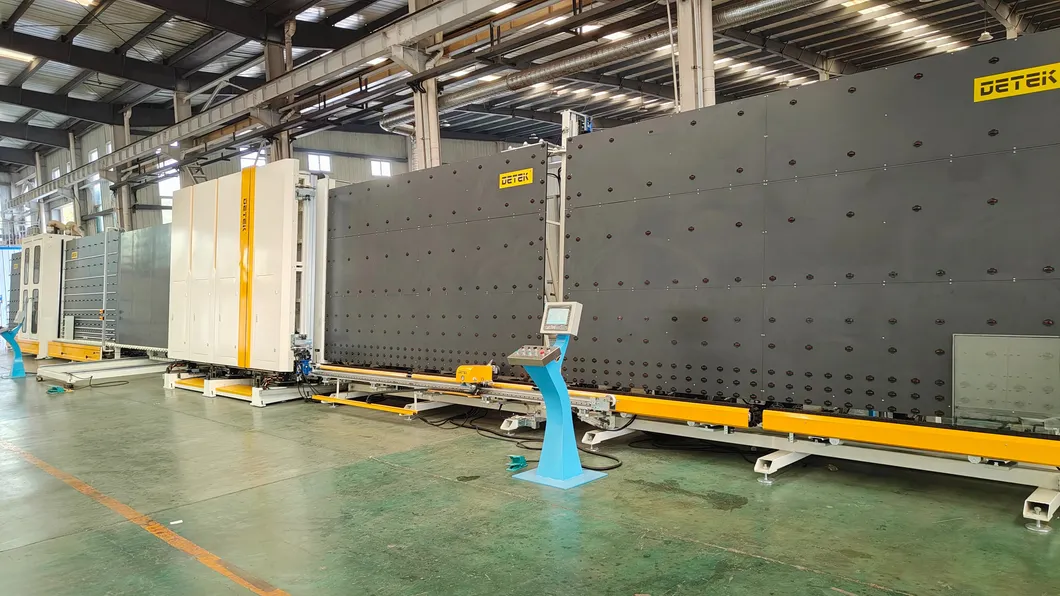

Washing & Pressing Details

Automatic adjustment of glass thickness from 3mm to 12mm.
Three pairs of soft brushes for Low-E glass cleaning.
Independent water circulating systems for rinsing.
Ultra-long glass processing capability in the pressing robot.
Servo motor driven synchronous belts for precision.

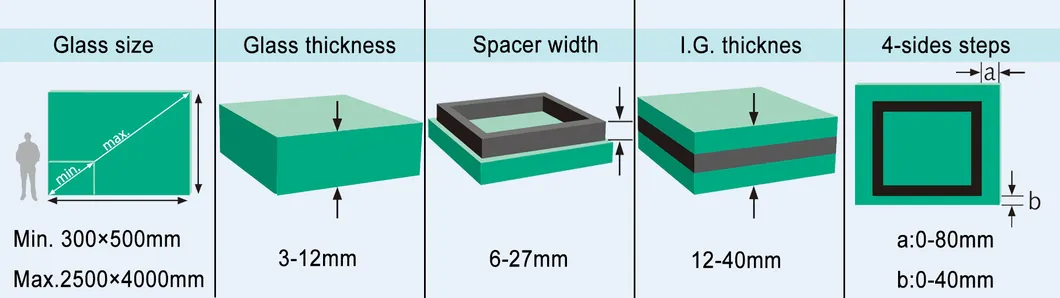

Technical Parameters

Parameter Item	Data Specification
Max. IG size	2500×4000mm
Min. IG size	280×450mm
Single glass thickness	3-12mm
Insulating glass thickness	40mm
Glass washing speed	2-10m/min
Glass conveyor speed	45m/min
Power Supply	3P 380V 50HZ 40kw
Dimension	24500×3500×3800mm
Weight	6500Kg

Core Components Brand List

Component Name	Brand	Country of Origin
PLC / Servo Driver	Siemens	Germany
Inverter / Sensor	Omron	Japan
Breaker / Contactor / Relay	Schneider	France
Servo Motor / Touch Screen	Kinco	China
Solenoid / Cylinder	Airtac	Taiwan
Power Supply	MW	Taiwan
Linear Guide	TBI	Taiwan

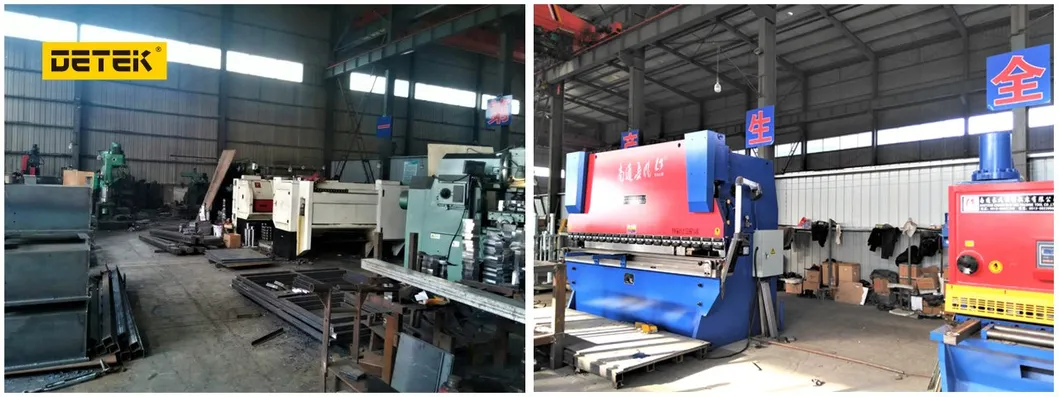

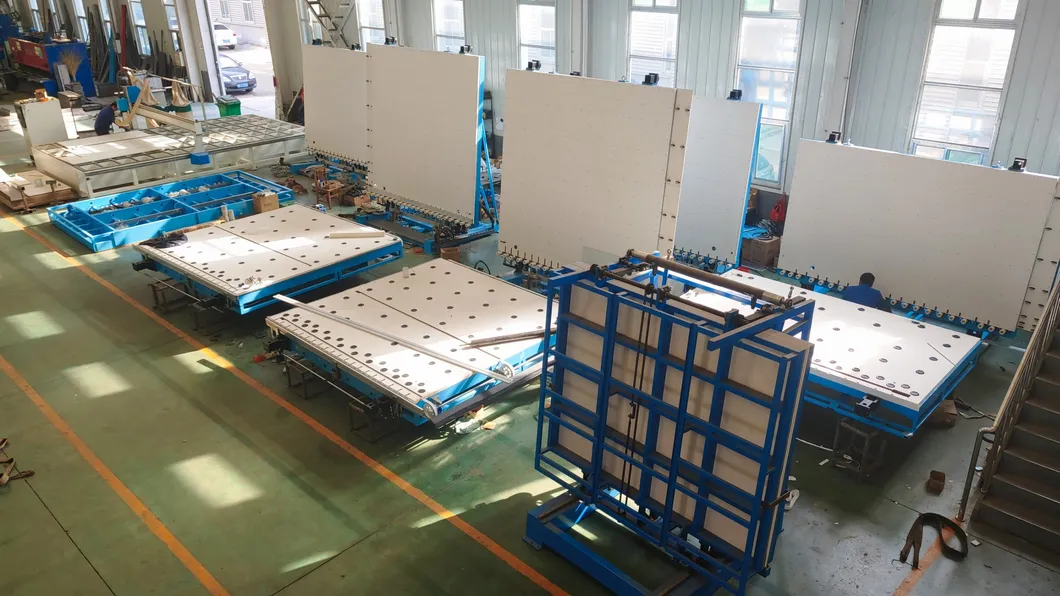

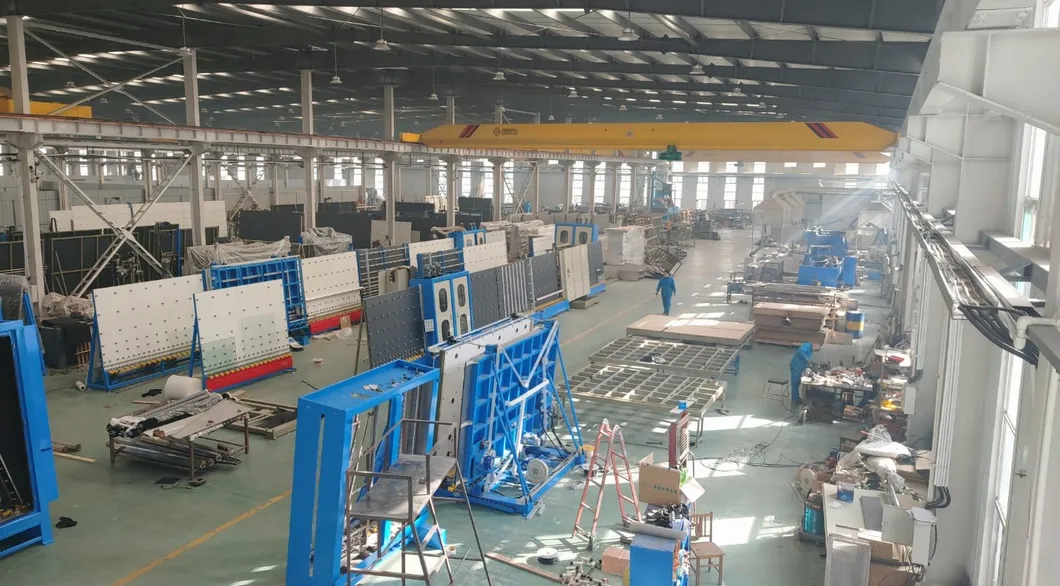

Workshop & Production

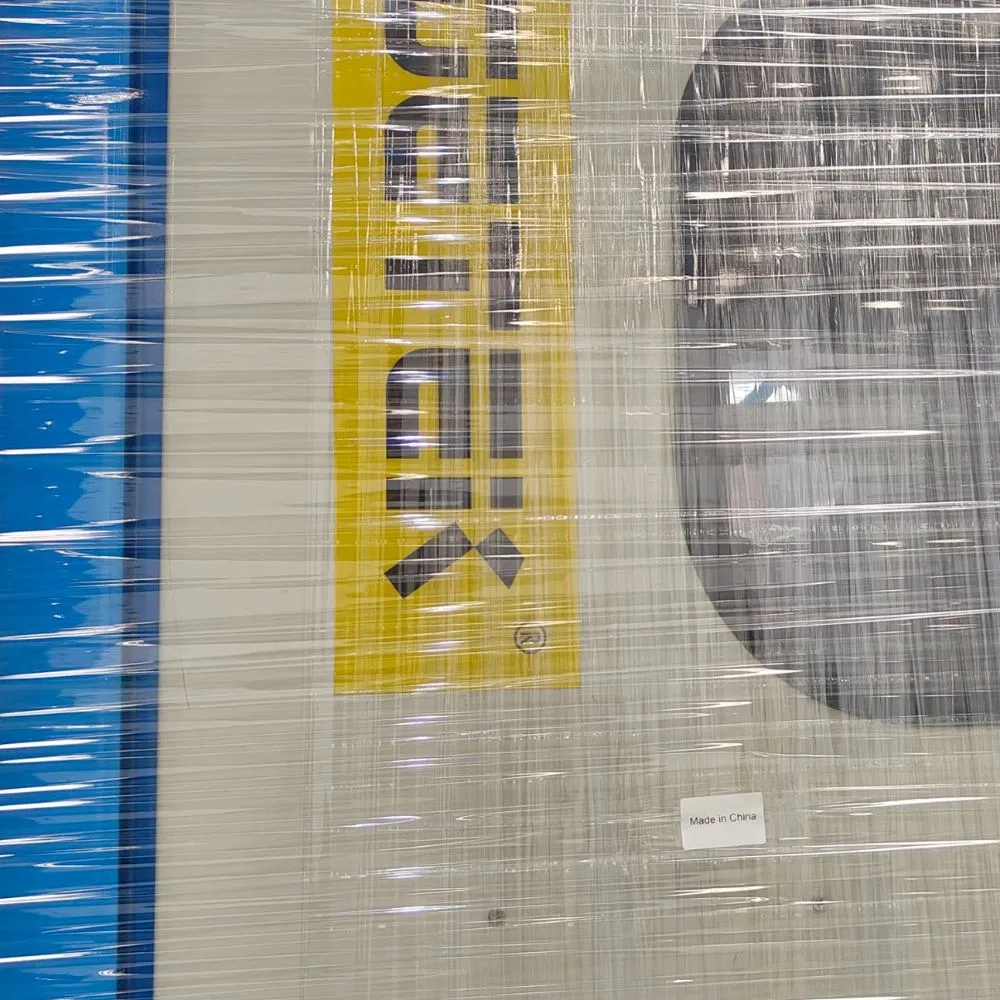

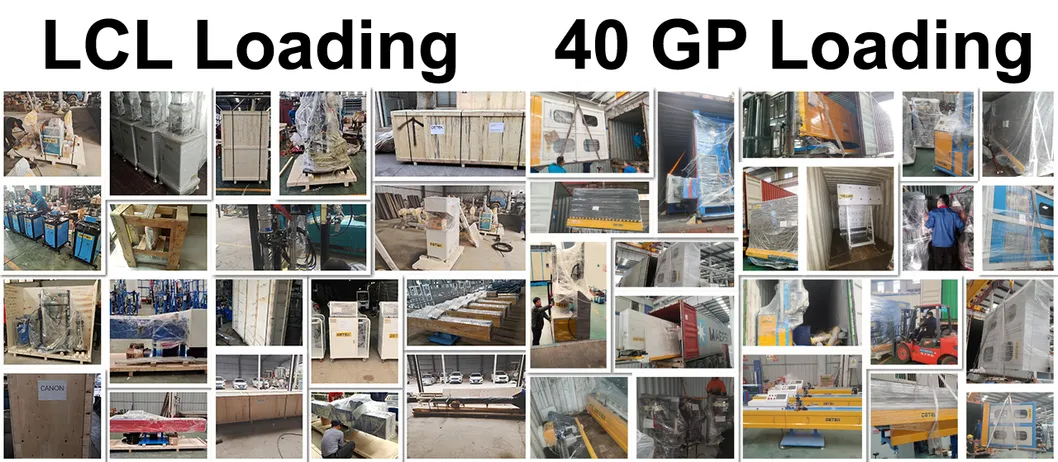

Packing & Shipping

Frequently Asked Questions

1. What is the standard lead time for delivery?

The lead time is approximately 60 days for a complete production line and 30 days for individual machines. For special custom requirements, please verify with our sales team.

2. How is the machine shipment and packaging handled?

All machines are designed to fit into standard containers for sea freight efficiency. We use seaworthy packaging and professional workshop loading to ensure safe arrival.

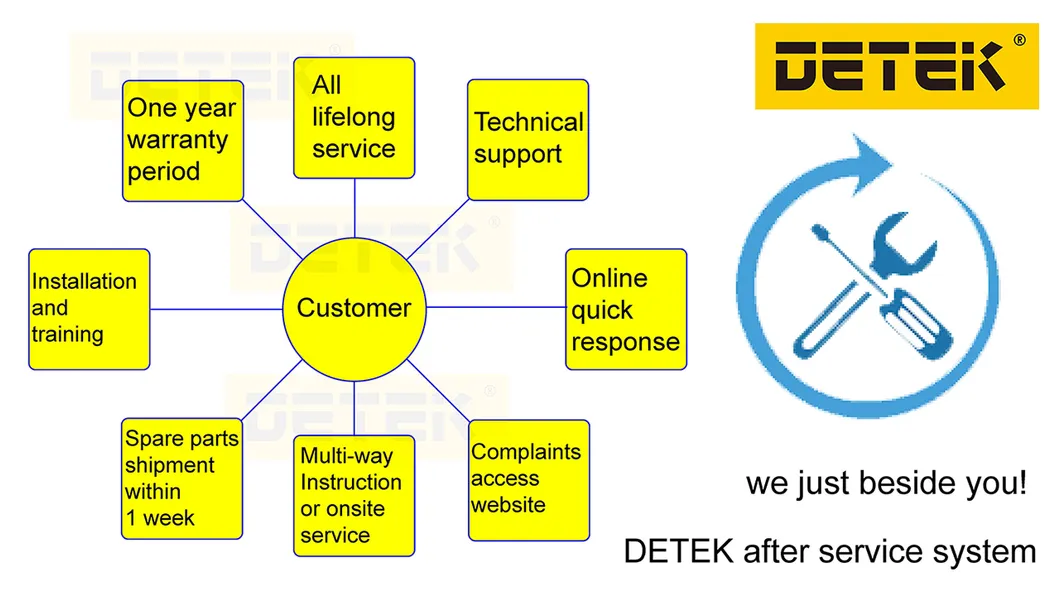

3. What kind of guarantee and service do you provide?

We provide a one-year guarantee (excluding wearing parts) and lifelong technical service. Engineers can be dispatched for on-site service upon request.

4. Is on-site installation included?

Yes, installation is included. Customers are responsible for the engineer's travel expenses (flights, local transport, accommodation). Installation typically takes up to 15 days.

5. How efficient is your after-sales spare parts service?

Spare parts can be dispatched within 72 hours. Our experienced technical team and service engineers are ready to assist with instructions and on-site support.

6. Can this line process Triple IGU or Stepped IGU?

Yes, our LBZ2540 model has optional functions to process double IGU, triple IGU, shaped IGU, and stepped IGU to meet diverse project requirements.
