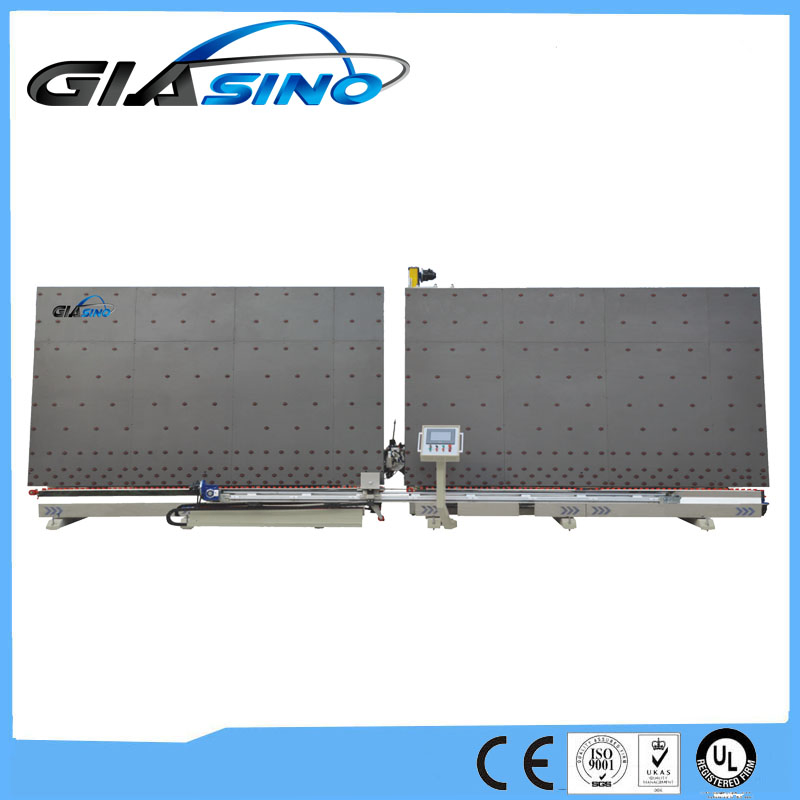

Hot Sale High Quality Automatic Sealing Robot for Insulating Glass Production Line

1 / 5

Hot Sale High Quality Automatic Sealing Robot for Insulating Glass Production Line

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Send Inquiry

Product Description

📑 Basic Information

Model NO.

ZNJ 2540

Type

Insulating Glass Production Line

Structure

Vertical

Condition

New

Transport Package

Sea Worthy Package

Specification

Production Capacity

10set/Sets Per Month

💎 Product Description

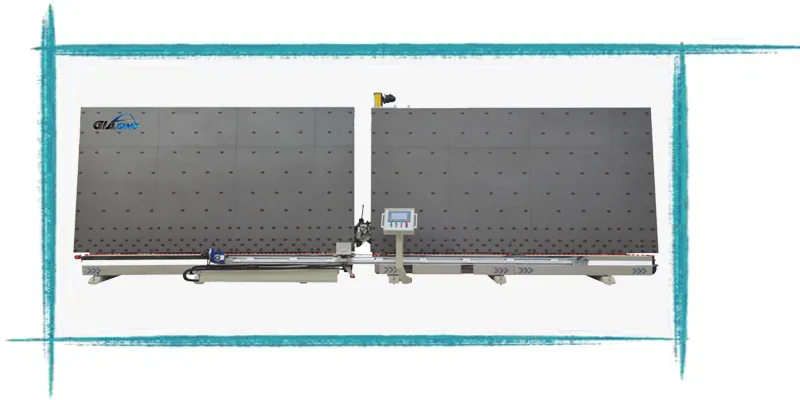

Insulating Glass Making Machine Automatic Silicone Sealing Machine

🚀 Mechanical Characteristics

High automation reduces labor intensity and improves production efficiency.
Full machine control via man-machine touch screen interface with memory function.
Achieves bubble-free, full sealant coating on glass edges and corners; no manual paring needed.
Dual independent sealant supply systems for fast, one-button switching between materials.
Compact design with a 1.5m width to save floor space.
The third section prestores glass to effectively boost processing speed.
Minimum processable insulating glass size: 300*300mm.
Integrated anti-blocking device within the mixer.
Equipped with a stable Japan YASKAWA servo control system.
Shaft transmission ensures smooth glass transfer and accurate positioning.
Special V-type transmission belt prevents sealant sticking and ensures clean edges.
High-standard spare parts ensure long-term stability and precision.
Fully suitable for triple glazing production.
Embedded backboard conveying wheels ensure smooth transportation.

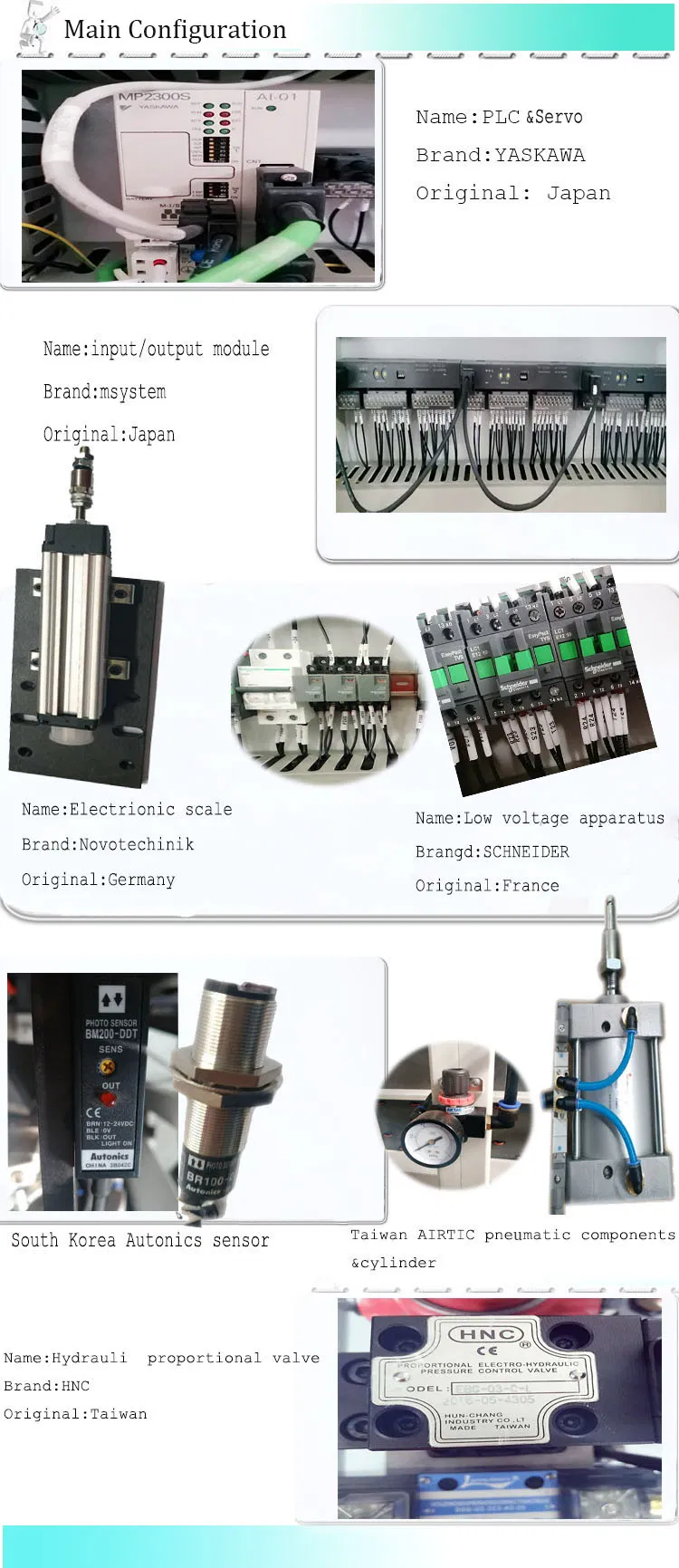

🛠️ Main Configuration

Component	Brand	Origin
PLC Control System	YASKAWA	Japan
Reducer	Xingxing	China
Low Voltage Electrical	Schneider	France
Photoelectric Sensor	Autonics	South Korea
Cylinder	Airtac	Taiwan
Touch Screen	Kinco	China
Pneumatic Component	SMC	Japan
Hydraulic Proportional Valve	HNC	Taiwan

📊 Technical Parameters

Model	Voltage Power	Air Pressure	Max. Glass Size	Glass Thickness	Working Speed
ZNJ2000-2	380V 13KW	0.5~0.7Mpa	2000*2500mm	12~56mm	5~40m/min

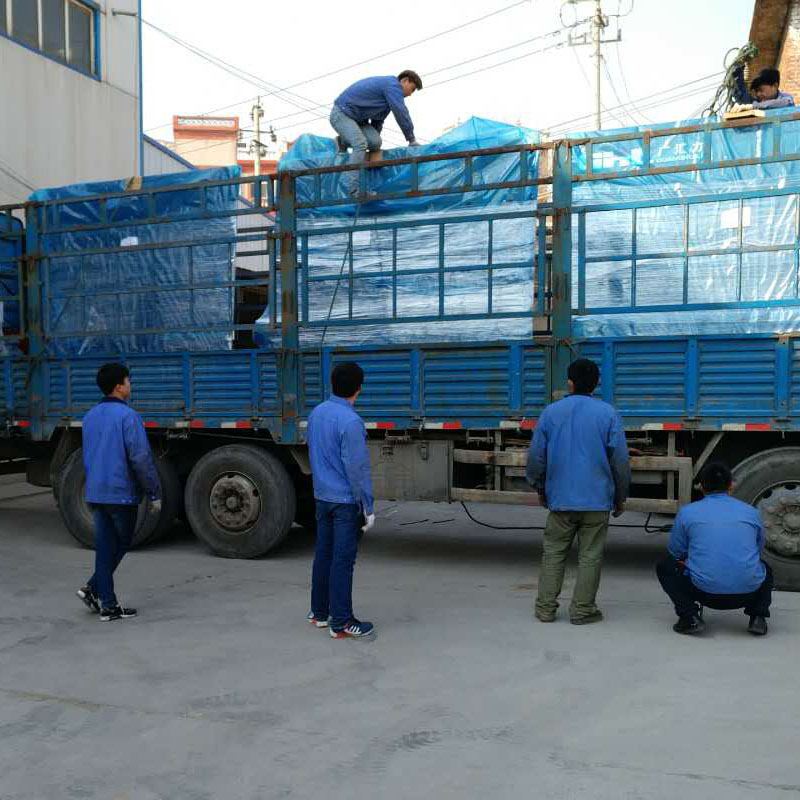

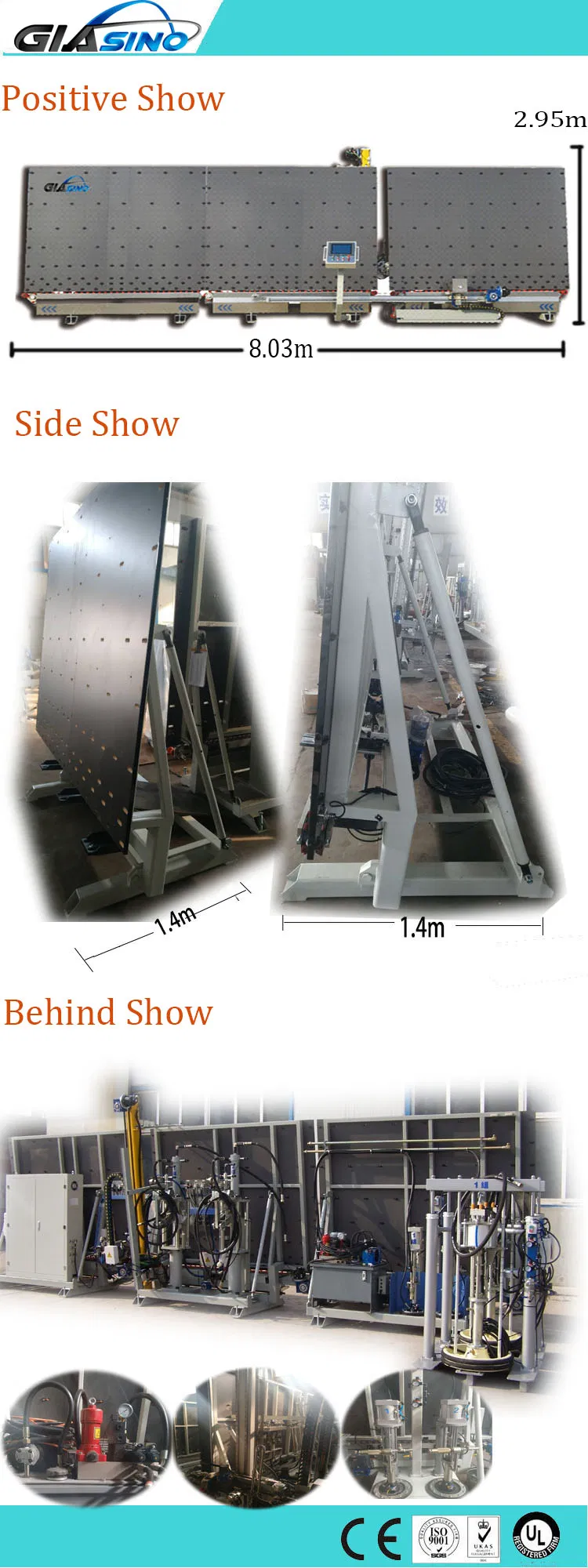

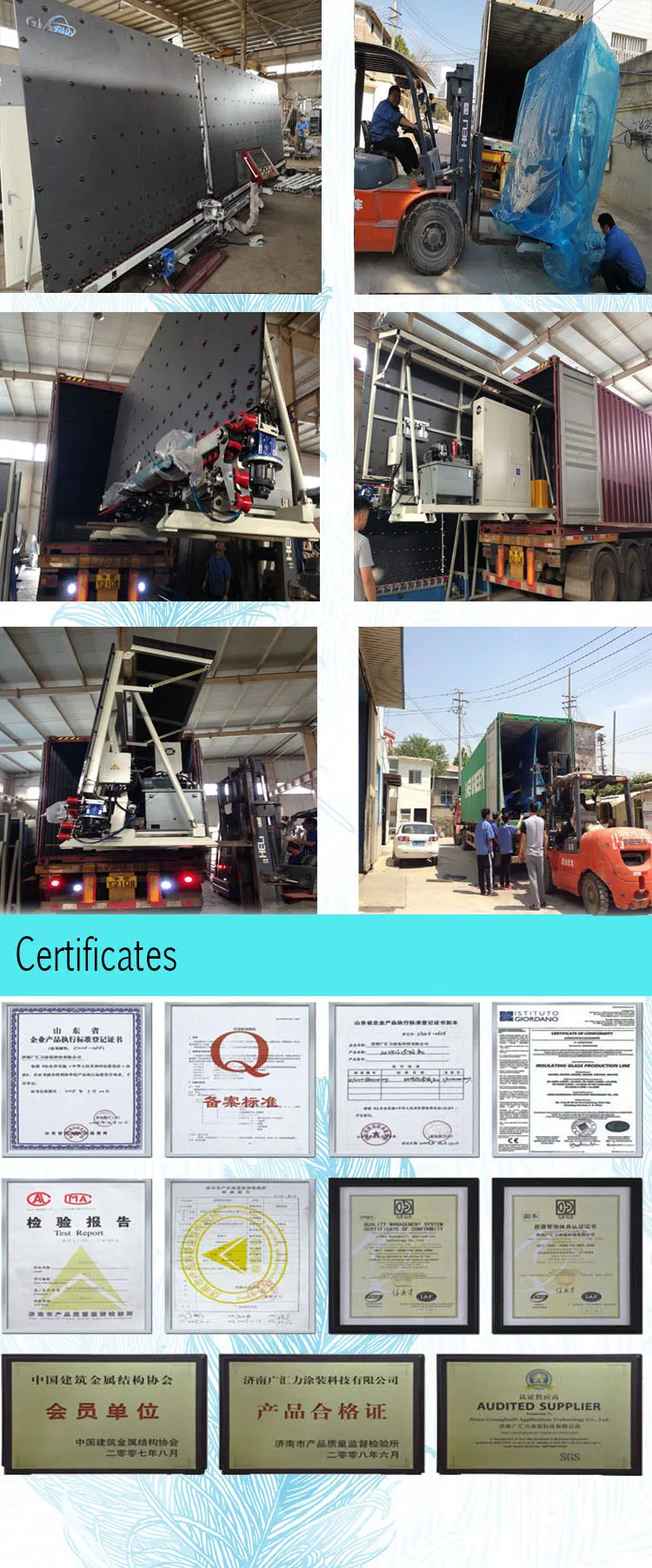

🔍 Product Details & Transportation

📦 Main Product Range

❓ Frequently Asked Questions

What is the minimum glass size this machine can process?

The minimum insulating glass size that can be processed is 300*300mm.

Does the machine support triple glazing?

Yes, this automatic sealing machine is fully suitable for processing triple glazing units.

What are the primary brands used for the control system?

The machine utilizes a world-famous Japan YASKAWA servo control system for stable and precise performance.

How does the machine prevent sealant from sticking to the belts?

It features a special V-type transmission belt designed to avoid sealant sticking, which ensures the glass edges remain clean.

Can the machine handle different types of sealants?

Yes, the machine (Model II) is equipped with two sets of independent sealant supply systems, allowing for easy switching between two kinds of sealants with one-button operation.

What are the power requirements and working speed?

The standard ZNJ2000-2 model operates on 380V 13KW power with an adjustable working speed ranging from 5 to 40m/min.
