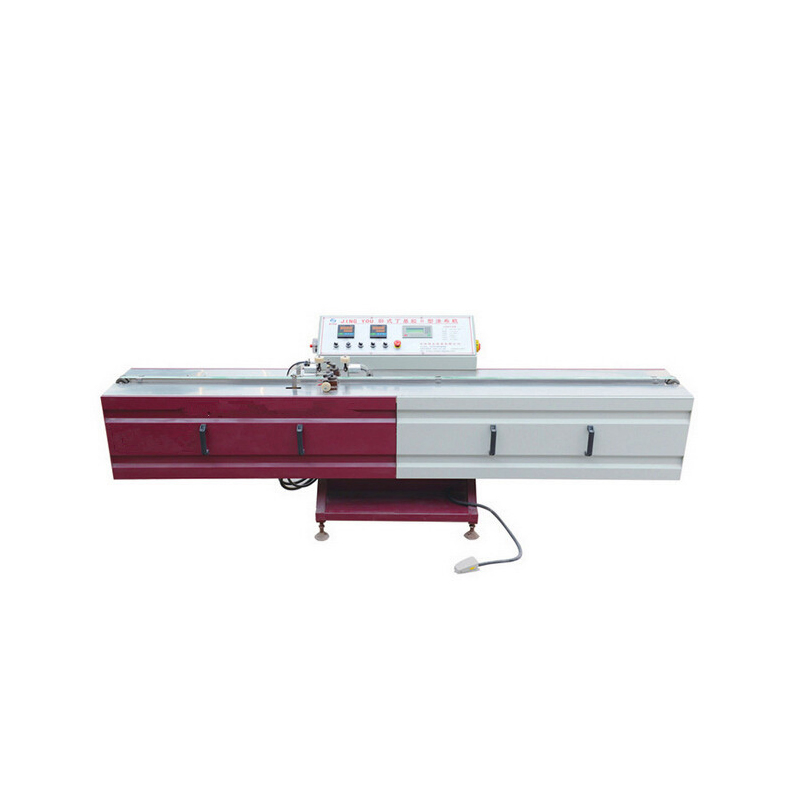

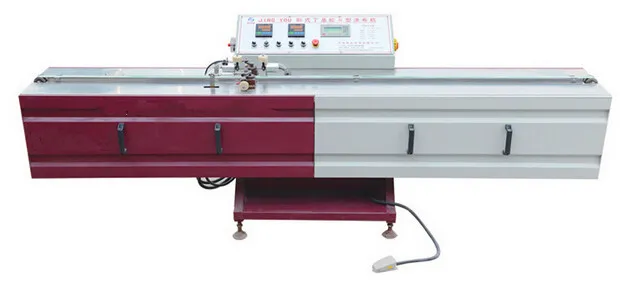

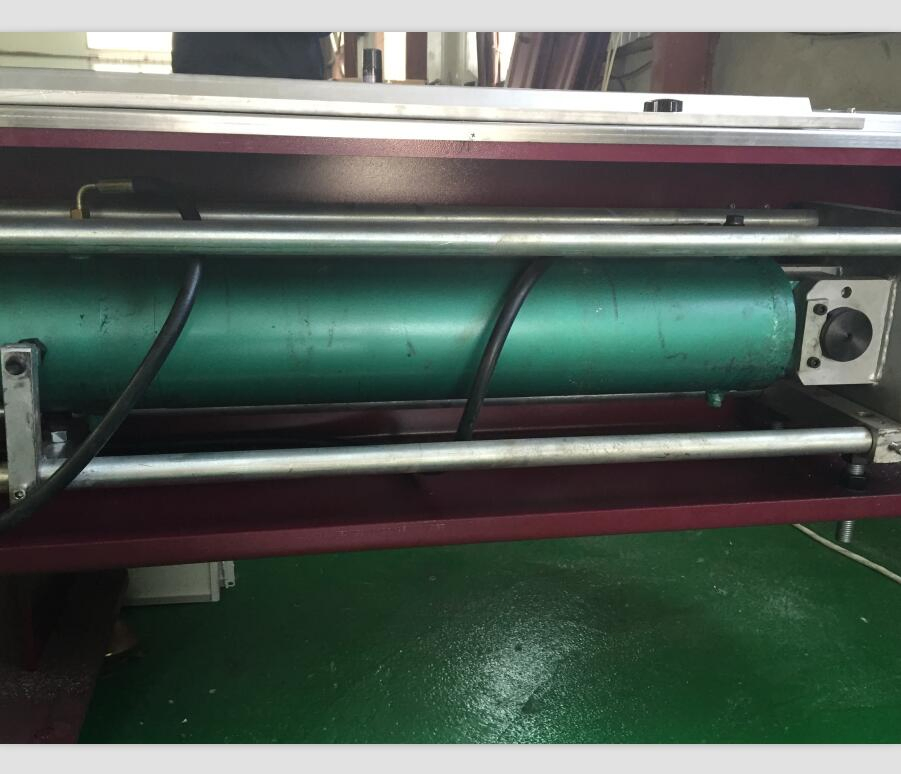

Hot Melt Butyl Extruder Machine/ Automatic Insulating Glass Butyl Extruder

1 / 5

Hot Melt Butyl Extruder Machine/ Automatic Insulating Glass Butyl Extruder

Customization:	Available
Certification:	CE, ISO, FDA, UR, PCI, PDA
Control System:	PLC

Send Inquiry

Product Description

Hot Melt Butyl Extruder Machine/ Automatic Insulating Glass Butyl Extruder

Basic Specifications

Model NO.

JYJ-02

Power(W)

3kw

Squeeze Pressure

12-16MPa

Working Speed

0-45m/Min

Supply Gas Pressure

0.6-0.8MPa

Adjustable Range

4-27mm

PLC System

Xinjie

Structure

Horizontal

Condition

New

Dimensions

3000*740*340mm

Capacity

200 Sets Per Year

★

Key Equipment Features

✔ Used for the primary sealing of insulating glass with butyl sealant coating.

✔ Capable of coating both straight lines and arc shapes for aluminium spacers.

✔ Automatic temperature control of the sealant via high-performance PLC system.

✔ Delivers uniform coating effect with high processing efficiency.

✔ Convenient adjustable distance between sealant mouths without the need to release pressure or fasten screws.

⚙

Main Parameters

Parameter	Value	Parameter	Value
Model	JYJ-02	Power Supply	380V 50Hz
Squeeze Pressure	12-16 MPa	Working Speed	0-45 m/min
Gas Pressure	0.6-0.8 MPa	Spacer Width	4-27 mm
Dimension	3000 * 740 * 340 mm

📷

Product Gallery

Frequently Asked Questions

Q1: What is the main application of this Butyl Extruder machine? It is primarily used for the first sealing of insulating glass by applying butyl sealant coating to aluminium spacers.

Q2: Can it handle curved aluminium spacers? Yes, the machine is designed to provide uniform coating for both straight line and arc-shaped aluminium spacers.

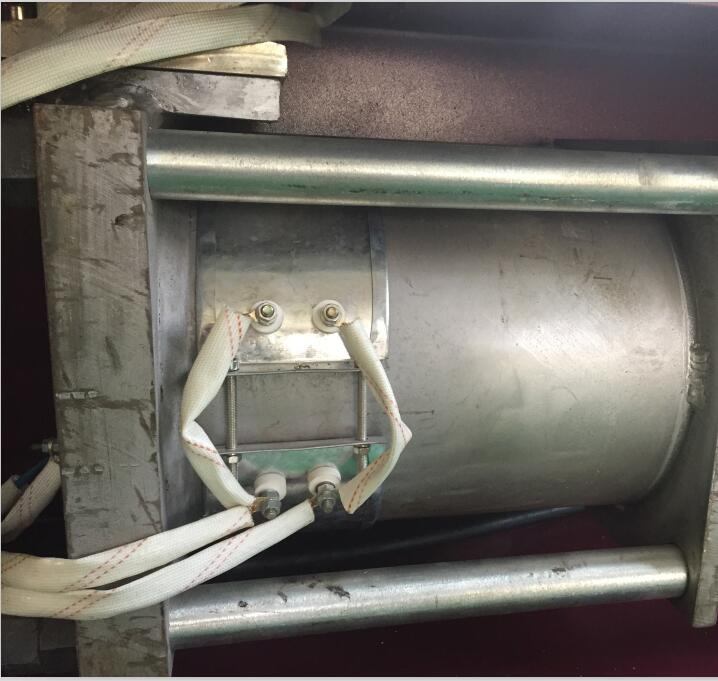

Q3: How is the sealant temperature managed? The temperature of the sealant is automatically monitored and controlled through a PLC system for consistent application.

Q4: What is the adjustable range for the sealant nozzles? The distance between the two sealant mouths can be easily adjusted between 4mm and 27mm to accommodate different spacer widths.

Q5: Is the operation difficult for nozzle adjustment? Not at all. The design allows for easy adjustment without needing to release pressure or fasten screws manually, making it very user-friendly.

Q6: What are the power and gas requirements? The machine requires a 380V 50Hz power supply and a supply gas pressure of approximately 0.6-0.8 MPa.
