Insulating Glass Two-Component Sealant Coating Extruder Making Machine
Insulating Glass Two-Component Sealant Coating Extruder Making Machine
Insulating Glass Two-Component Sealant Coating Extruder Making Machine
Insulating Glass Two-Component Sealant Coating Extruder Making Machine
Insulating Glass Two-Component Sealant Coating Extruder Making Machine
1 / 5
Insulating Glass Two-Component Sealant Coating Extruder Making Machine
Insulating Glass Two-Component Sealant Coating Extruder Making Machine
Insulating Glass Two-Component Sealant Coating Extruder Making Machine
Insulating Glass Two-Component Sealant Coating Extruder Making Machine
Insulating Glass Two-Component Sealant Coating Extruder Making Machine

Insulating Glass Two-Component Sealant Coating Extruder Making Machine

Customization: Available
Glass Thickness: 3-25mm
Maximum Glass Size: 1750*950*1980mm
Send Inquiry

Product Description

📑 Basic Information
Model NO.
BL-T03
Power Supply
220/380/415/480V, 50/60Hz
Warranty
1 Year
Outside Dimension
1750*950*1980 mm
Weight
510 Kg
Power(W)
18kw
Core Components
Motor, PLC, Pump
Production Capacity
500 Set/Sets Per Month
🔍 Product Description

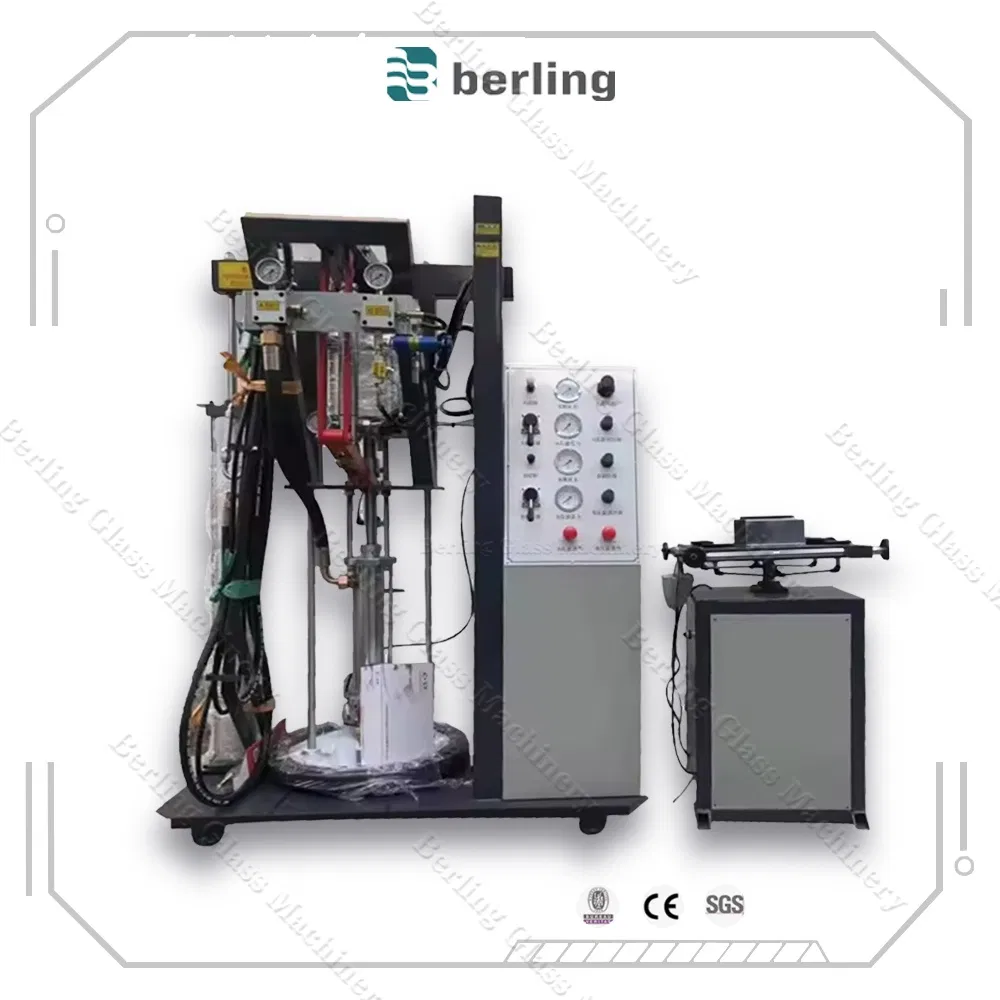

Sealant Coating Extruder

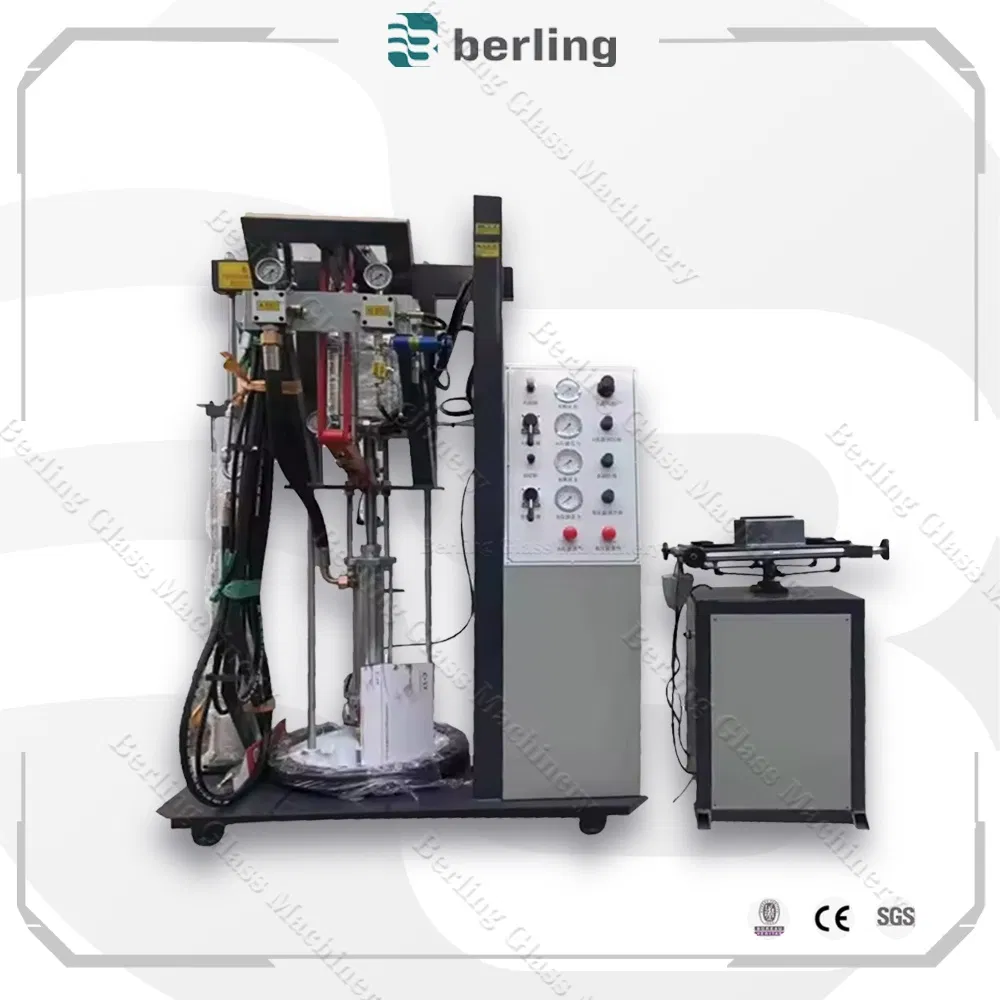

Equipment Detail

Equipment Advantages

⚙️ Suitable for mass production of insulating glass and curtain walls.
⚙️ Pneumatic control, easy to operate.
⚙️ Main and auxiliary motor adopt advanced technology, stable power.
⚙️ Integrated pump structure to avoid sealant leaking.
⚙️ Special check valve for fluent sealant output and complete mixing.
⚙️ Multichannel filtering device to eliminate impurities.
⚙️ Stainless steel mixing spindle, precise and durable.
📊 Product Parameters
Parameter Item Technical Data
Mixing Ratio6:1 ~ 14:1
Material Drum55 gallon (200L)
Curing Agent Drum5 gallon (20L)
Max. Air Consumption0.8 m³/min
Max. Dispensing Pressure32 MPa
Output4 ~ 10 L/min
Air Supply Pressure0.6 ~ 1.0 MPa
Glass Thickness3 - 25 mm
Glue Pressure Ratio50:1
📸 Detailed Photos & Scenarios

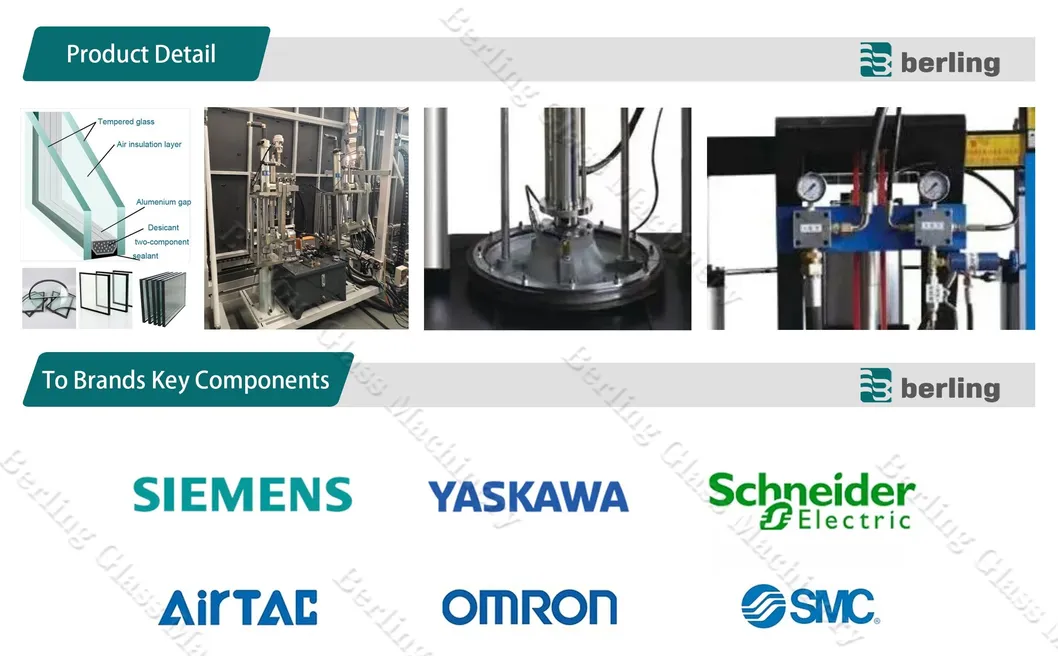

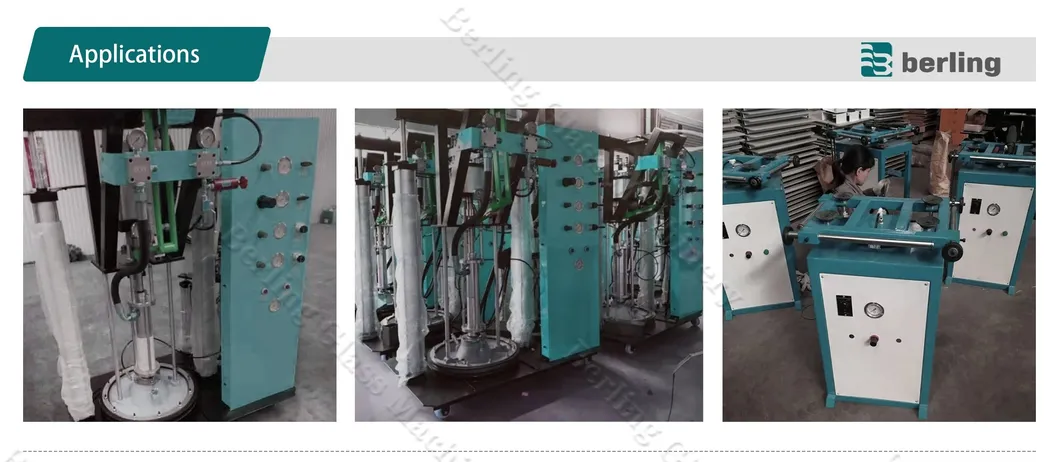

Detailed View Application Scenario Our Advantages
🏢 Factory & Exhibition
Company Profile Exhibition
📦 Packaging & Certification
Packaging Certifications
❓ Frequently Asked Questions
What is the production capacity of the BL-T03 extruder?
The machine has a production output of 4 to 10 liters per minute, making it suitable for mass production environments.
What types of sealant mixing ratios does it support?
The BL-T03 supports a wide mixing ratio range from 6:1 to 14:1 to accommodate different sealant requirements.
What are the core components of the equipment?
The core components include a high-performance Motor, a reliable PLC system, and a precision Pump for stable operation.
Is the machine compatible with different power standards?
Yes, it is designed to work with 220V, 380V, 415V, and 480V at both 50Hz and 60Hz frequencies.
How is the sealant quality ensured during mixing?
The machine features a stainless steel mixing spindle and a special check valve in the proportioning pump to ensure uniform mixing and fluent output.
What is the warranty period for this machine?
We provide a 1-year warranty for the equipment to ensure long-term operational reliability.
