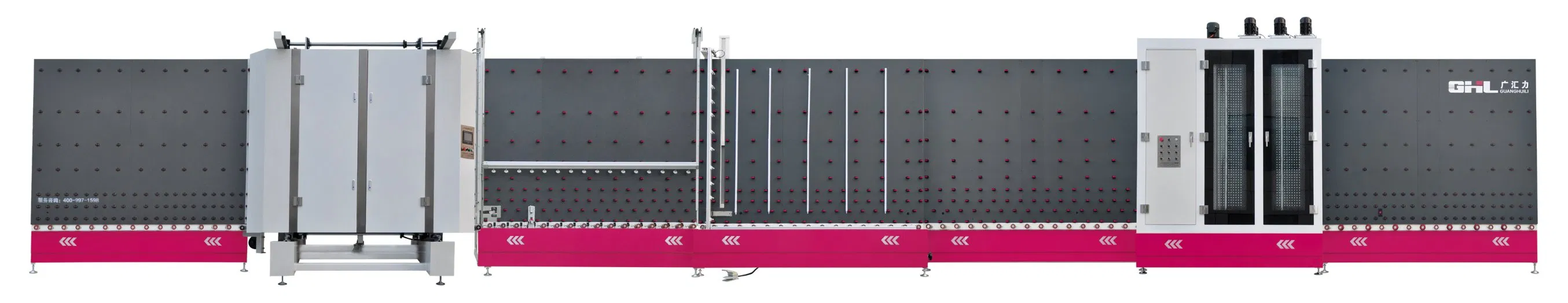

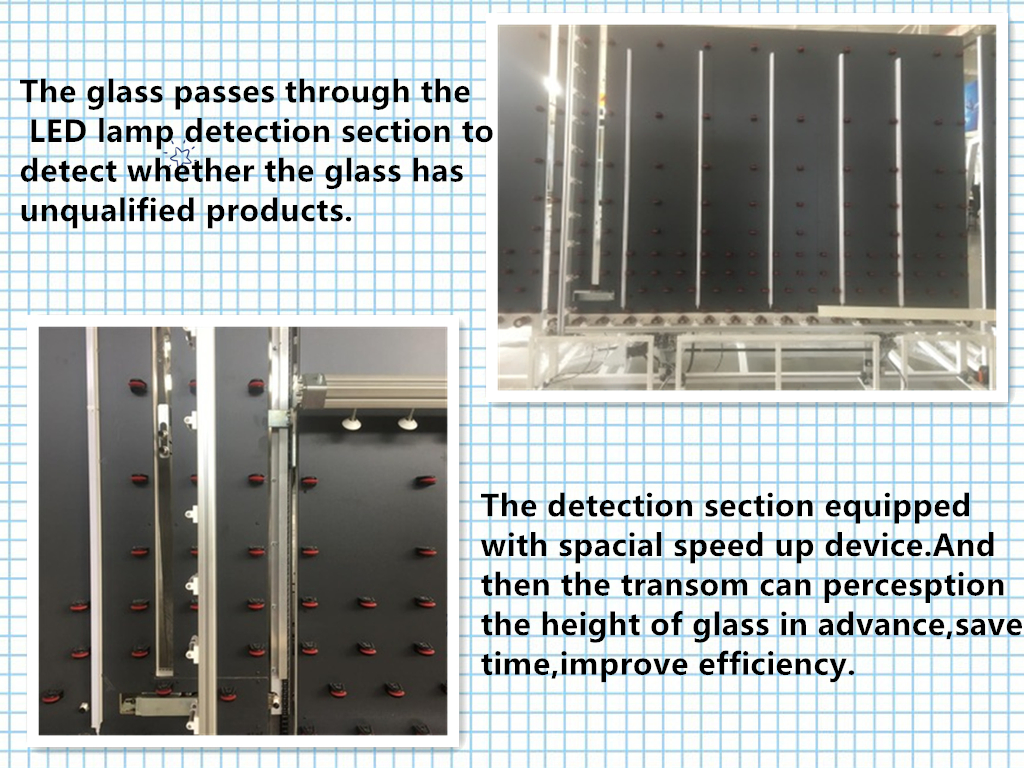

Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line
Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line
Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line
Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line
Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line
1 / 5
Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line
Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line
Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line
Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line
Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line

Lbj2030/2025 Automatic Insulating Glass Flat-Pressing Production Line

Customization: Available
Condition: New
Certification: ISO, CE, Sge, ISO9001:2008
Send Inquiry

Product Description

Basic Specifications

Model NO.
LBJ2030/2025
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
HS Code
8475299000
Production Capacity
500set/Year

Machine Performance Introduction

1
Outside and inside assembly program, comprehensive function.
2
Automatic numerical control production line with automatic identification for LOW-E glass.
3

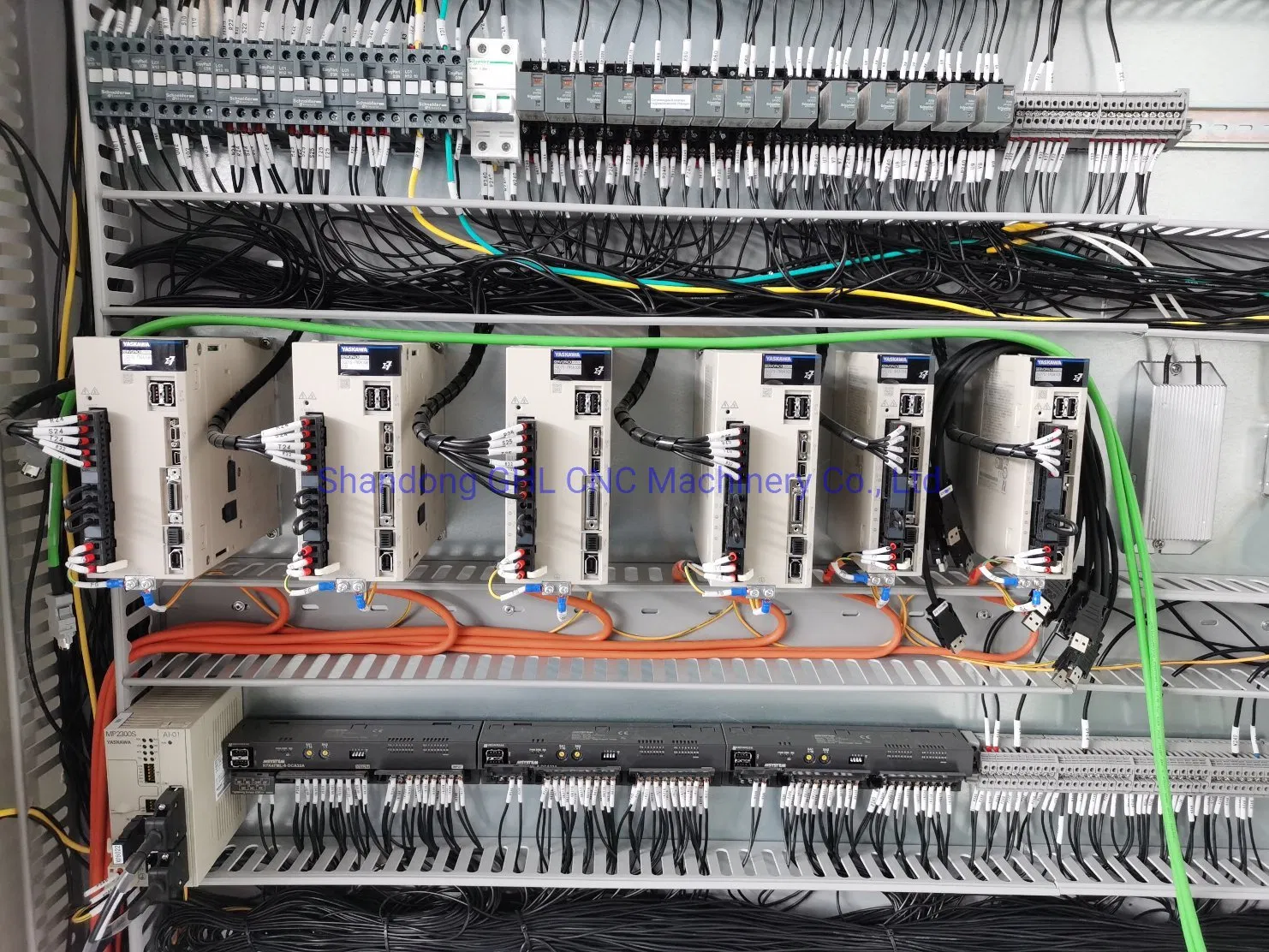

Advanced Siemens PLC control with touch sensitive screen man-machine interface.
4
Equipped with imported vacuum generator and sucker for perfect suction effect.
5
Capable of producing step IG units and triple glass based on customer requests.
6
Full distance automatic frequency speed adjustment to improve production efficiency.

Technical Parameters

Input Voltage380V 50Hz
Total Power30kw
Max. Glass Size2000*3000mm
Min. Glass Size300*500mm
Glass Thickness3~12mm
Working Speed8~45m/min
Total Weight5500kg
Overall Dimension22000*1800*3100mm

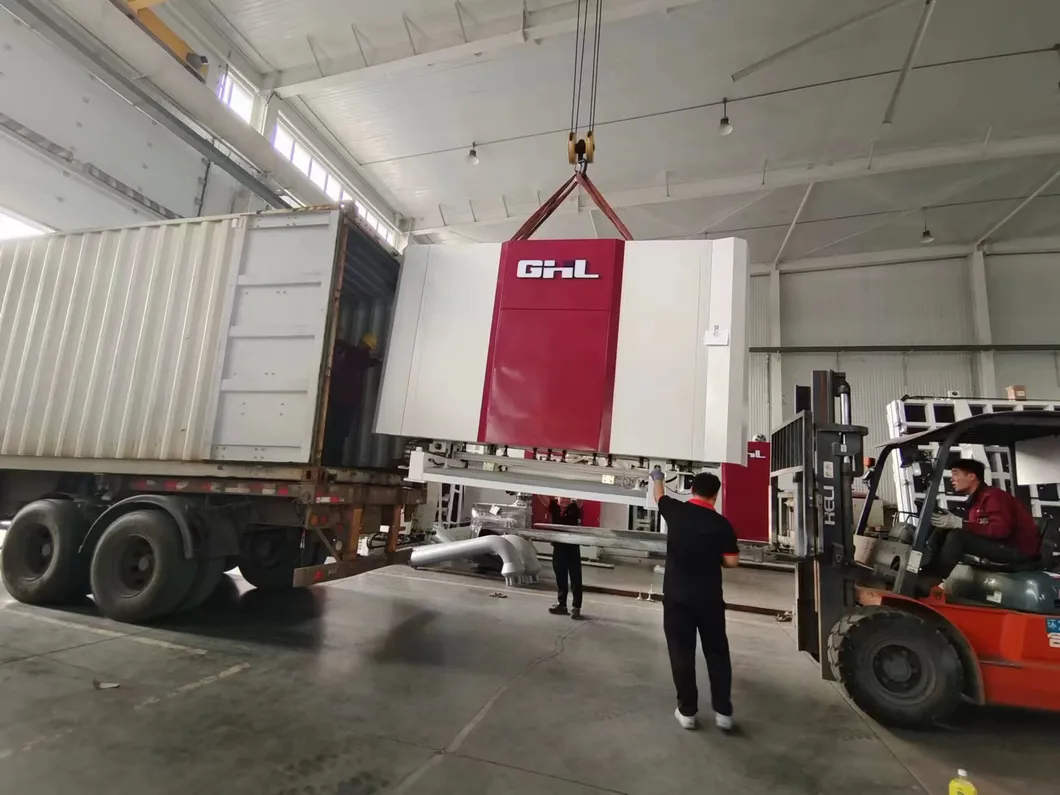

Insulating Glass Line 1

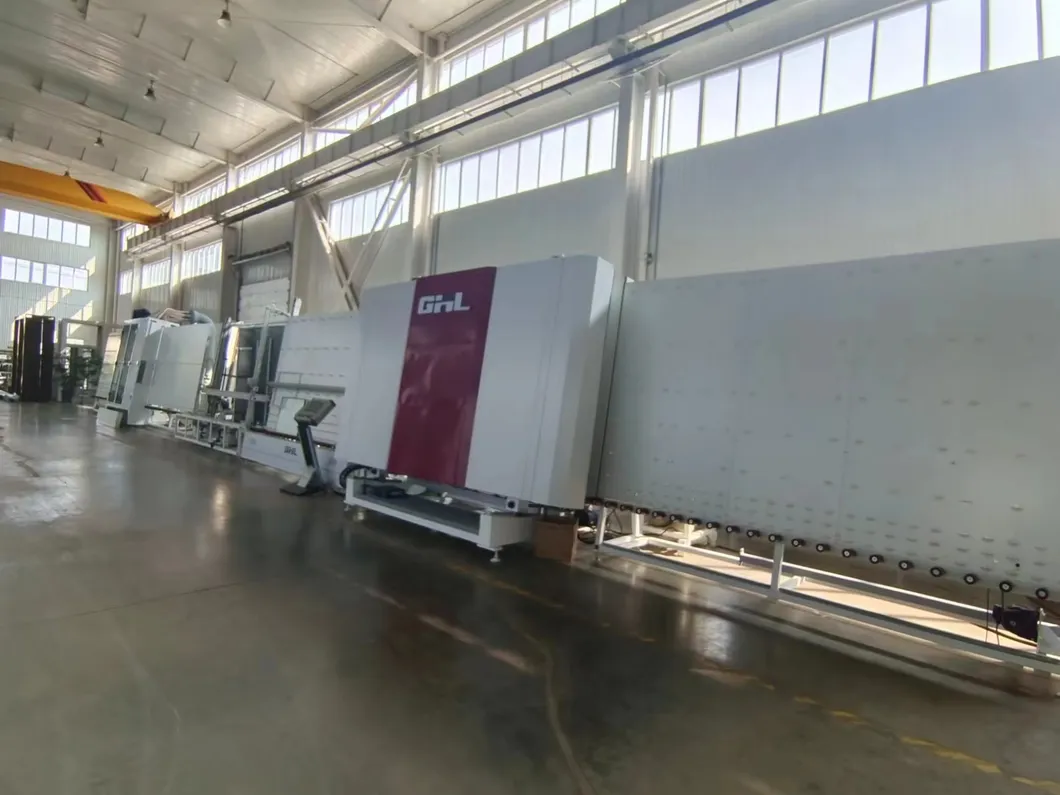

Insulating Glass Line 2

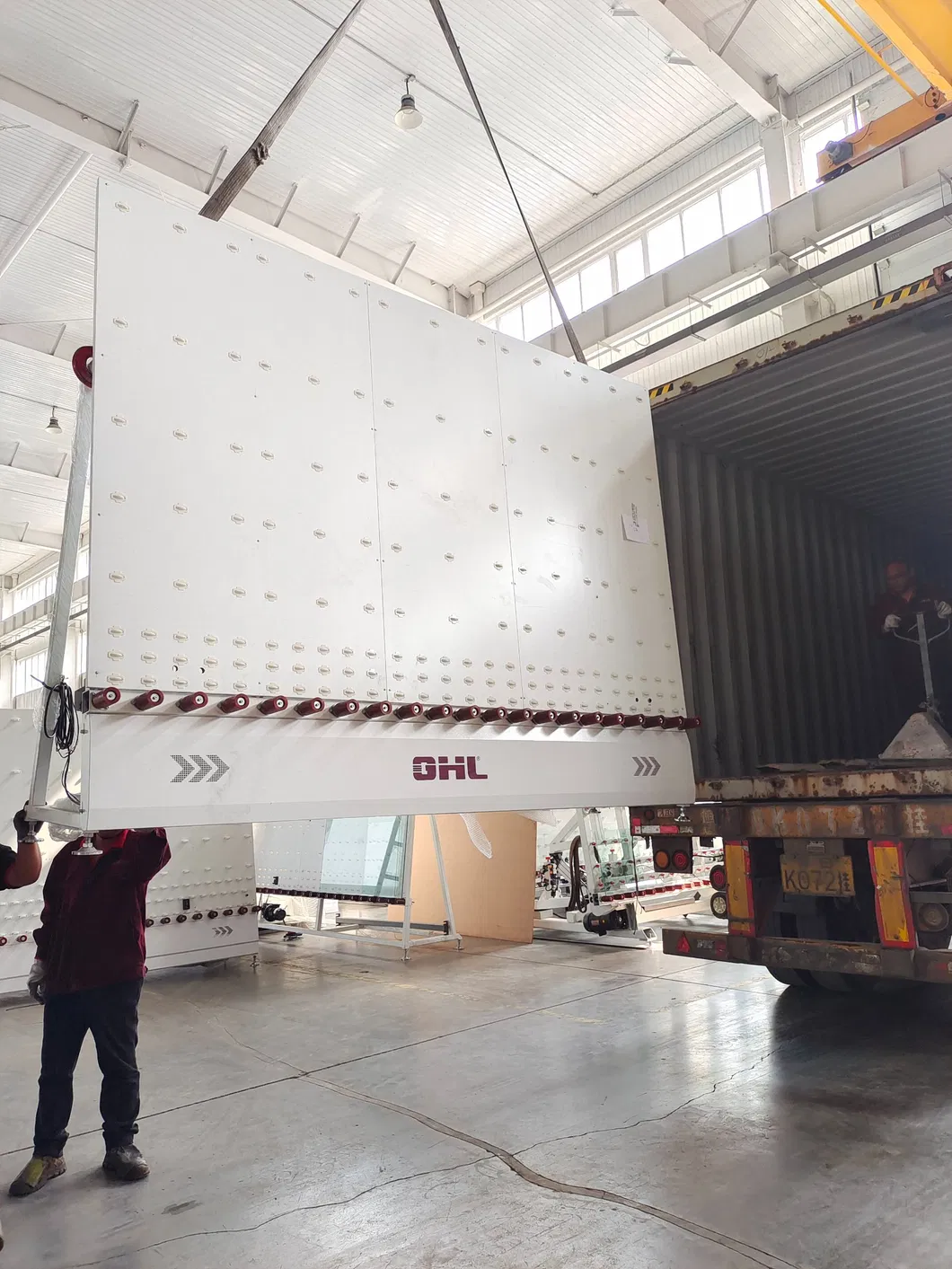

Insulating Glass Line 3

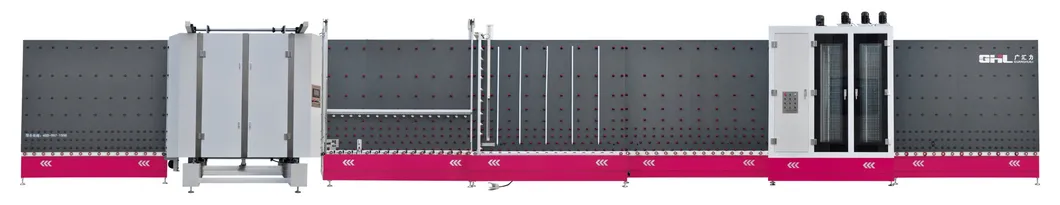

Insulating Glass Line 4

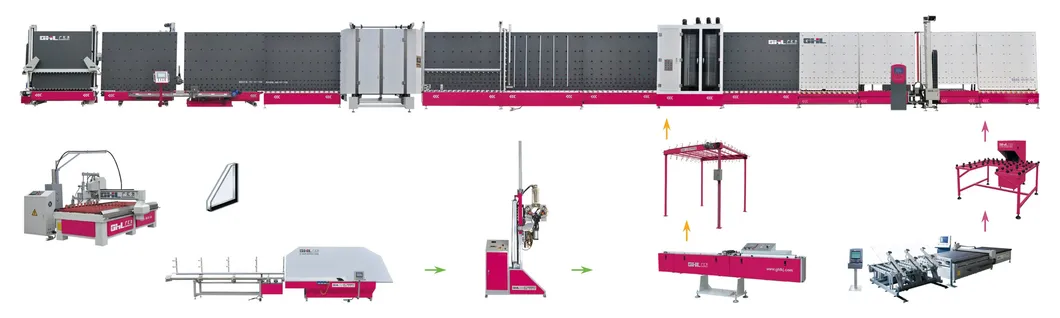

Insulating Glass Line 5
Insulating Glass Line 6

Frequently Asked Questions

What is the maximum glass size this production line can handle?
The LBJ2030 model can process a maximum glass size of 2000*3000mm.
Can the machine detect Low-E glass automatically?
Yes, the production line features automatic identification for Low-E glass to ensure proper processing.
What control system does the machine use?
The machine is equipped with a high-performance Siemens PLC control system and a user-friendly touch screen interface.
Is it possible to produce triple-layer insulating glass?
Yes, the system is designed to produce both step IG units and triple glass production based on specific customer requirements.
What is the thickness range for the glass?
The production line supports glass thicknesses ranging from 3mm to 12mm.
How does the machine save work waiting time?
It utilizes full-distance automatic frequency speed adjustment, which optimizes workflow and significantly improves production efficiency.
