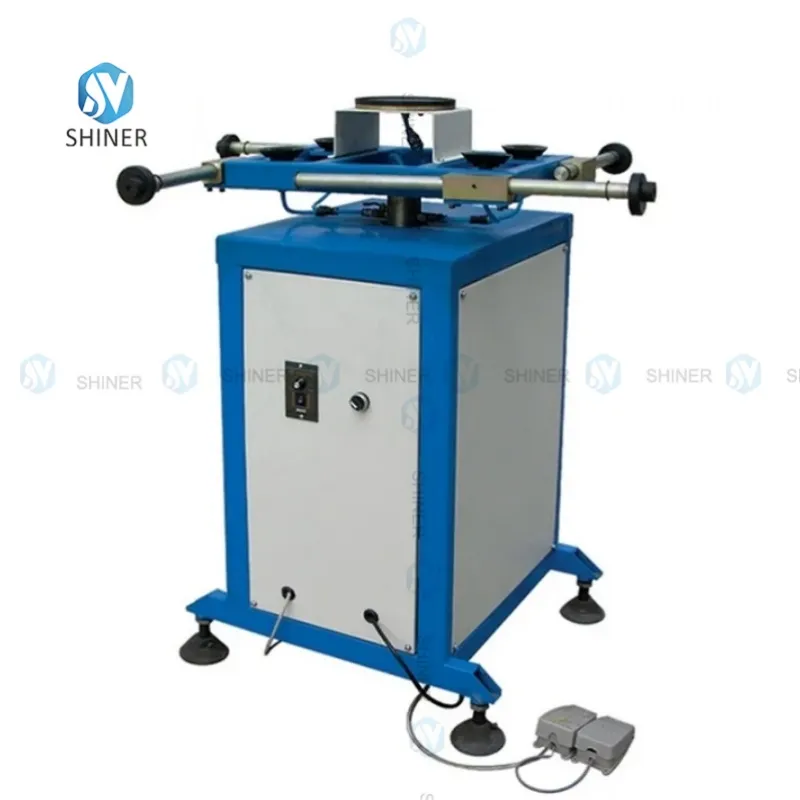

The supporting arm can be adjusted based on glass dimension.
The support device is equipped with vacuum chuck. So no manual holding is needed on spreading.
Operators are capable to operate the foot switch for control the lifting and rotating of glass about the 0~90 degree rotation as to complete sealing of glass edge.
The machine is simple in operating procedures and high in working efficiency.
Easy to operate the positive reversal rotary structure.
Insulating glass of different types can be processed easily and conveniently.

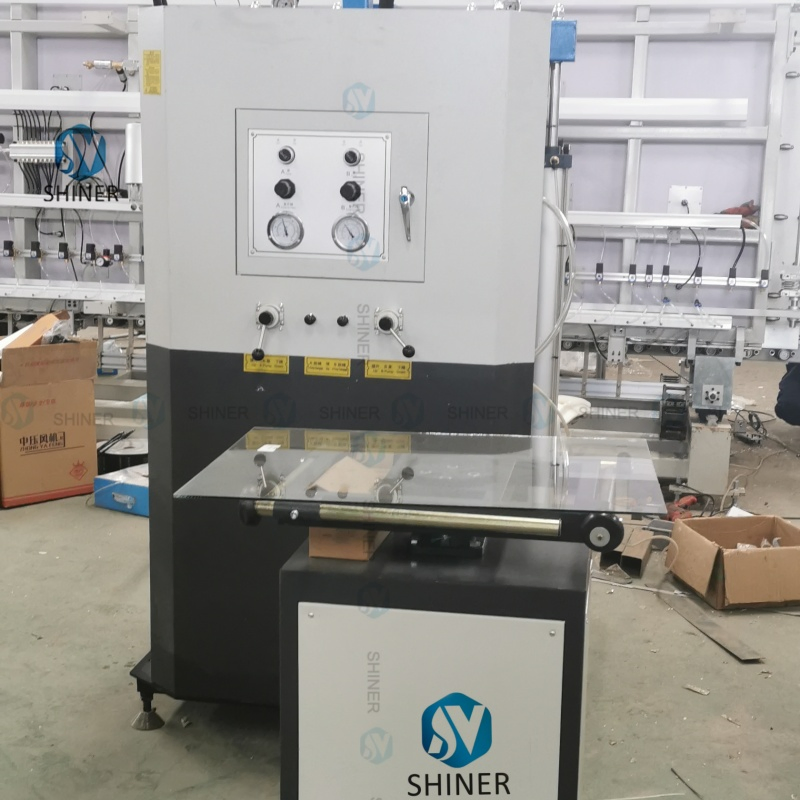

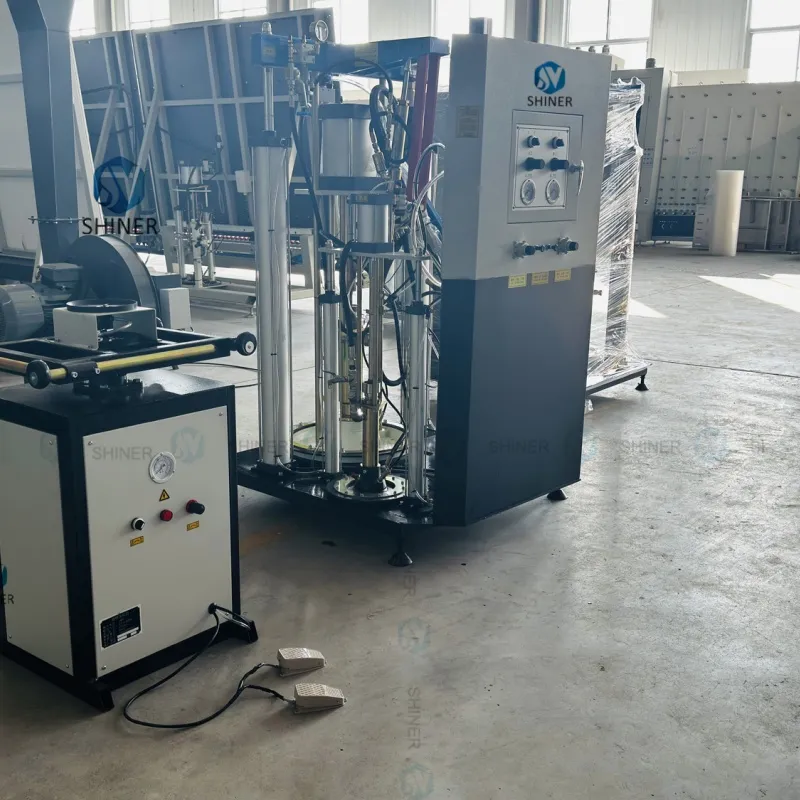

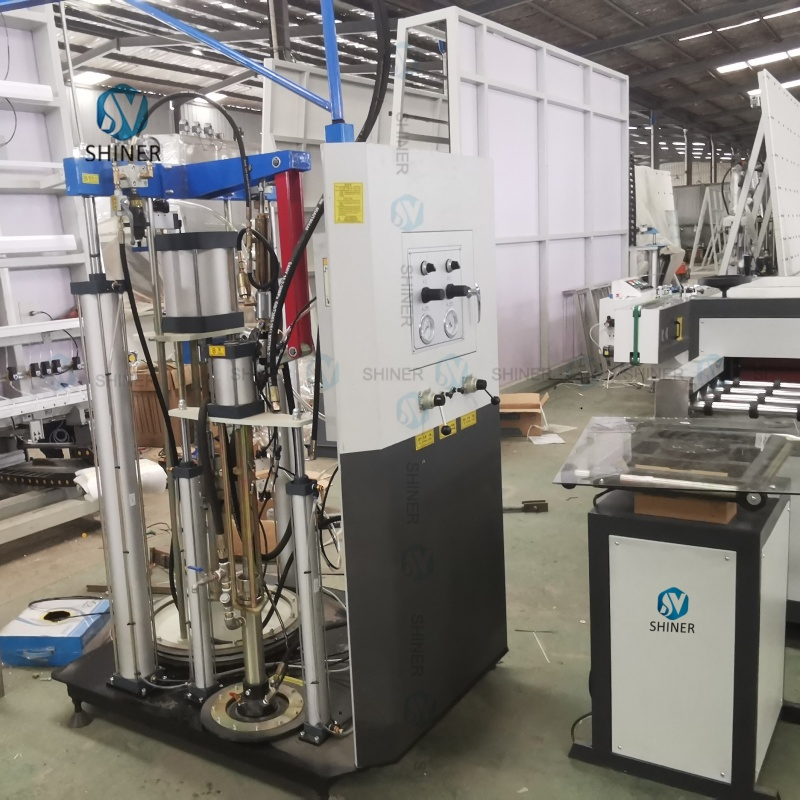

Detailed Photos
Technical Parameters
Description
Specification
Input Voltage
220V/50HZ
Total Power
0.12KW
Min Glass Size
200*200mm
Max Glass Size
2000*1500mm
Overall Dimension
660*550*1100mm
Packaging & Shipping
LCL (Less Container Load): Inner stretch film with standard export plywood case.
FCL (Full Container Load): All machines wrapped with film and fixed into container with steel iron.
Delivery Detail: Standard machines dispatch within 3-5 working days. Large or customized orders take 10-15 working days.
Our Service
12 months warranty with lifetime maintenance.
Free parts replacement within 7 days of customs clearance if problems occur.
Free exchange of old parts for new ones within the warranty period.
Machine precision and stability guaranteed by engineers with over 15 years of experience.
Professional testing conducted before every shipment to ensure performance.
Our Exhibition
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with more than 15 years of experience in the window and door machinery industry.
What is the guarantee for your machines?
We offer a 12-month warranty, 24-hour technical support via email or phone, and lifetime maintenance. English manuals and video tutorials are also provided.
What accessories do you offer?
We provide standard accessories with the machine, free replacement parts within the warranty period, and consumable parts at agency prices.
What machines are needed for a full UPVC window production line?
A basic line requires at least 7 machines: Cutting machine, Welding machine, V-cutting/End milling machine, Glazing bead machine, Lock hole machine, Water slot milling machine, and Corner cleaning machine.
What machines are needed for an aluminum window production line?
At least 5 machines are required: Double/Single head cutting machine, End milling machine, Copy routing machine, Punching machine, and Corner crimping machine.
How long is the delivery time?
Dispatch usually occurs within 3-5 working days after receiving payment. For customized machines or large orders, it takes 10-15 working days.
