Product Description

Basic Information
Model NO. WLBZ2030-C
Power 31kw
Max. I.G. Unit Thickness 12~80mm
Working Speed 2~48m/Min
Type Insulating Glass Production Line
Structure Vertical
Glass Washing Type Ultrasonic Glass Washing Machine
Condition New
Warranty 1 Year
Specification 22400*2500*2900mm
Origin China
Production Capacity 10sets/Month
Product Description

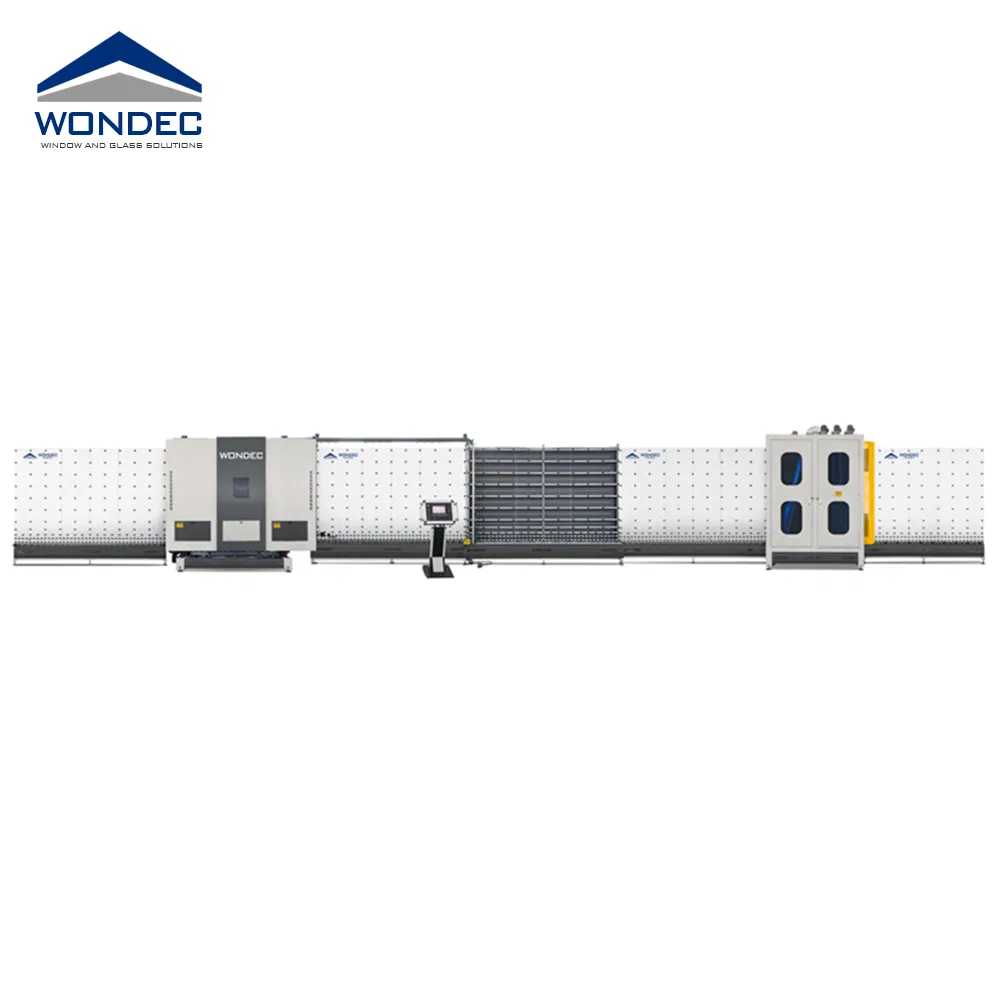

Automatic Vertical Insulating Glass Argon Gas Filling Production Line

This line can not only produce ordinary insulating glass but also for low-e insulating glass. It is a better mass production equipment to produce insulating glass with high automatic degree, high efficiency, easiness of operation and maintenance. It can be upgraded and expanded according to user's requirements.

Insulating Glass Production Line
01
Input Conveyor: This section is mainly to transmit the glass into the washing and drying section. Carbon fiber conductive brushes are used for coating glass and Low-e glass detection.
02

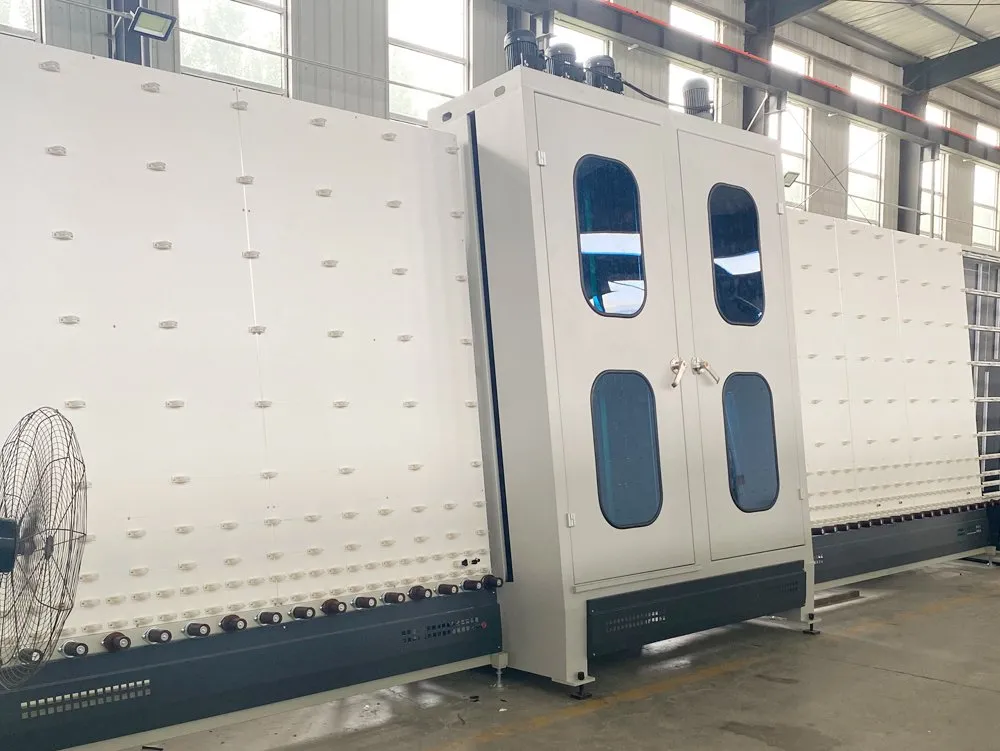

Glass Washing and Drying Section:
  • Stainless steel and corrosion-resistant materials used for washing area and water system.
  • 6 brushes driven by 6 independent motors to ensure continuous operation.
  • Direct coupling connection between brush and motor prevents slipping.
  • Equipped with soft brushes (0.1mm) for Low-E glass and hard brushes (0.2mm) for ordinary glass.
03
Transition Section: Adopts dual motors to drive the transmission. Two small glasses can be parked simultaneously to improve efficiency.

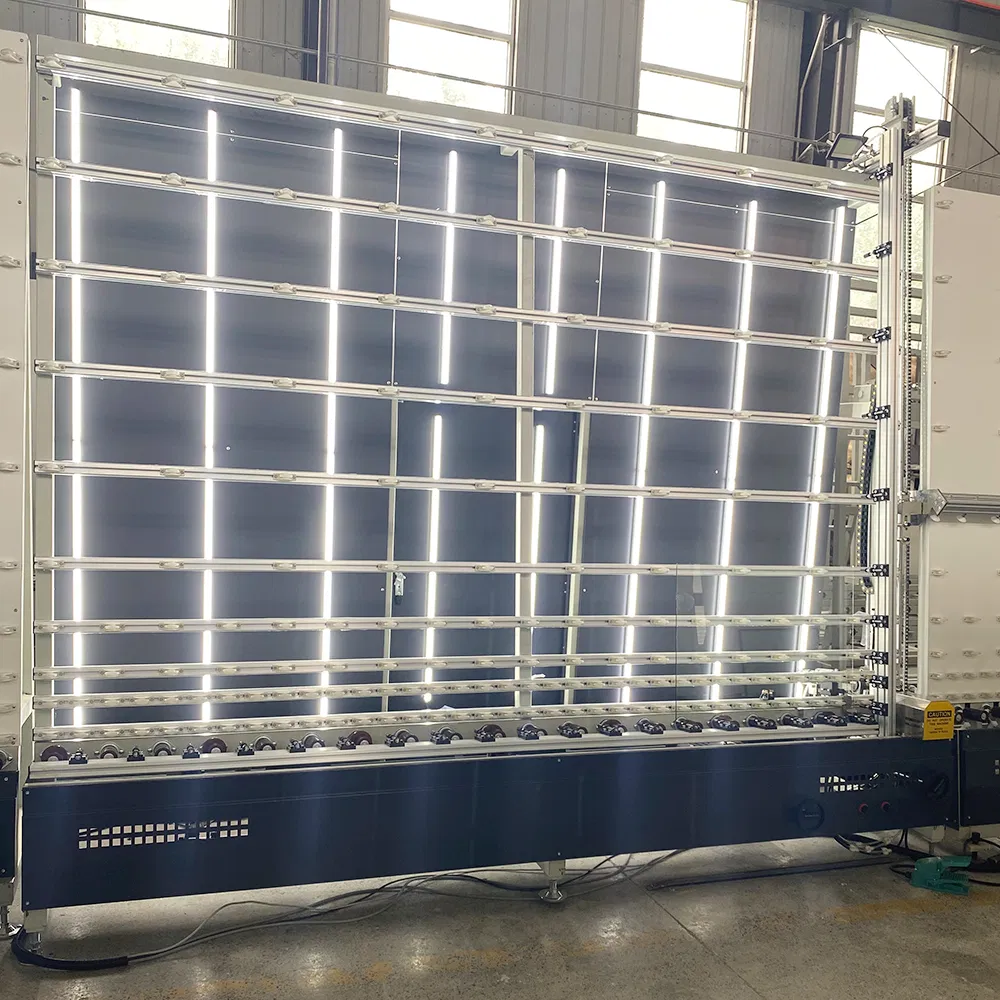

Washing Section Details
04

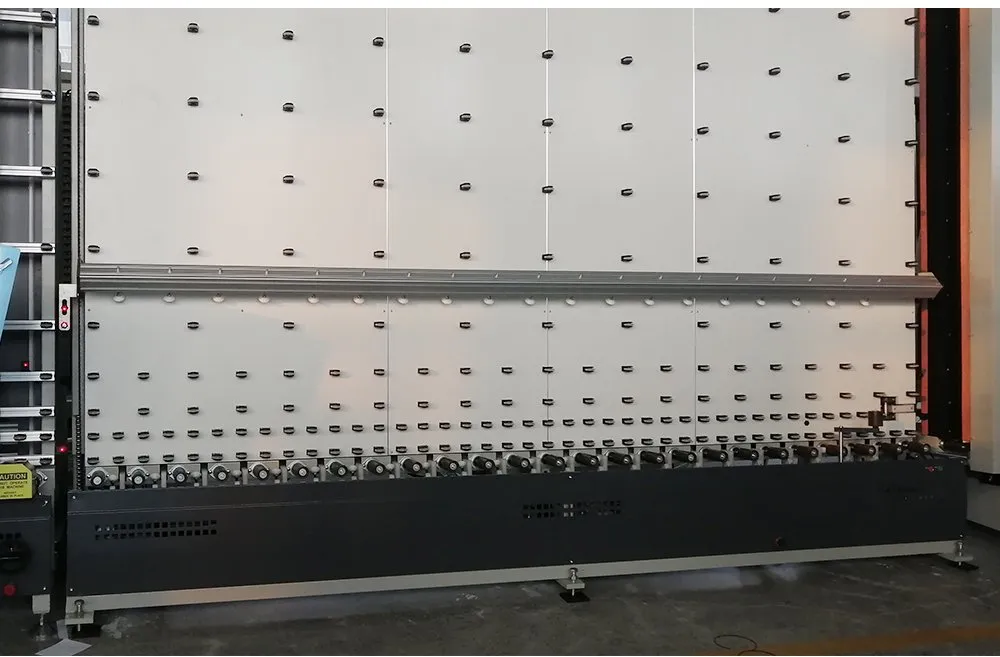

Lights Inspection & Aluminum Spacer Placement: Made of aluminum-alloy profiles. Equipped with movable doors for inspection and high-quality energy-saving LED lamps.
Inspection Section
05

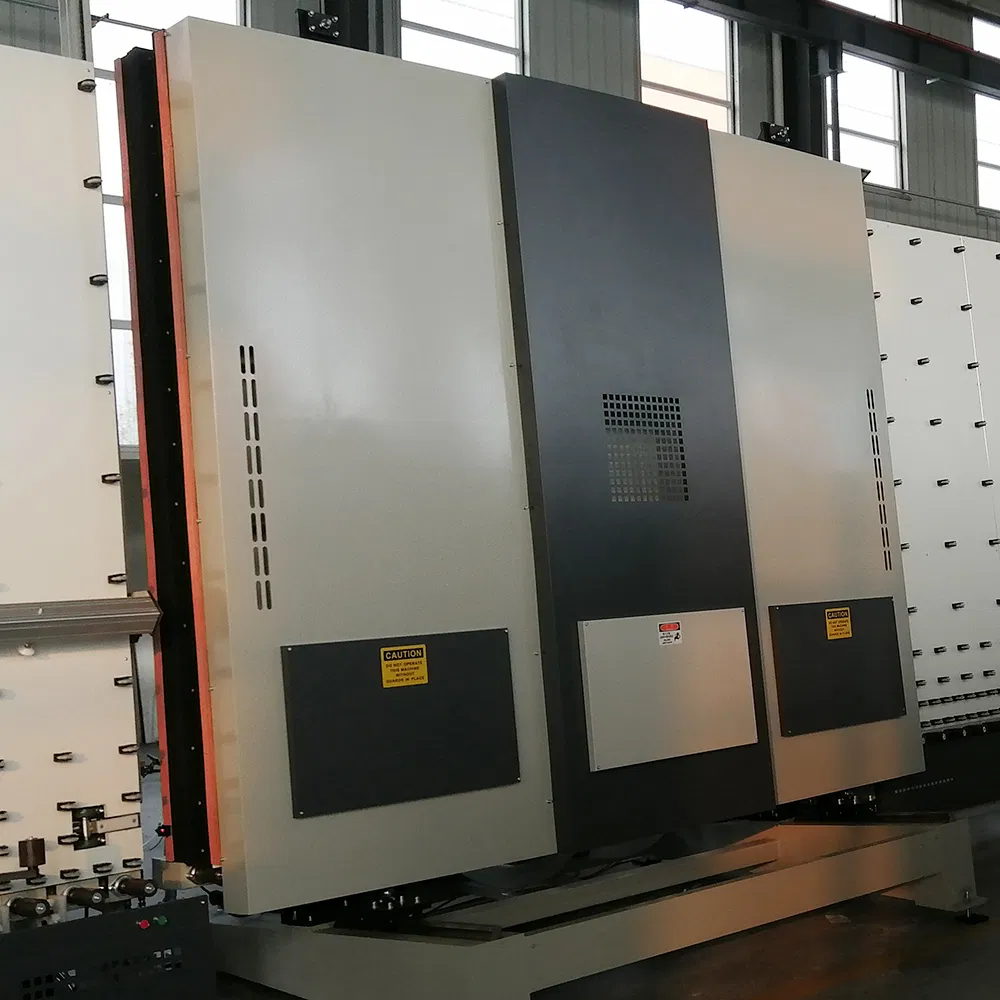

Outside Assembly (Optional): Fast and efficient with a low failure rate.
Assembly Part 1
Assembly Part 2
06

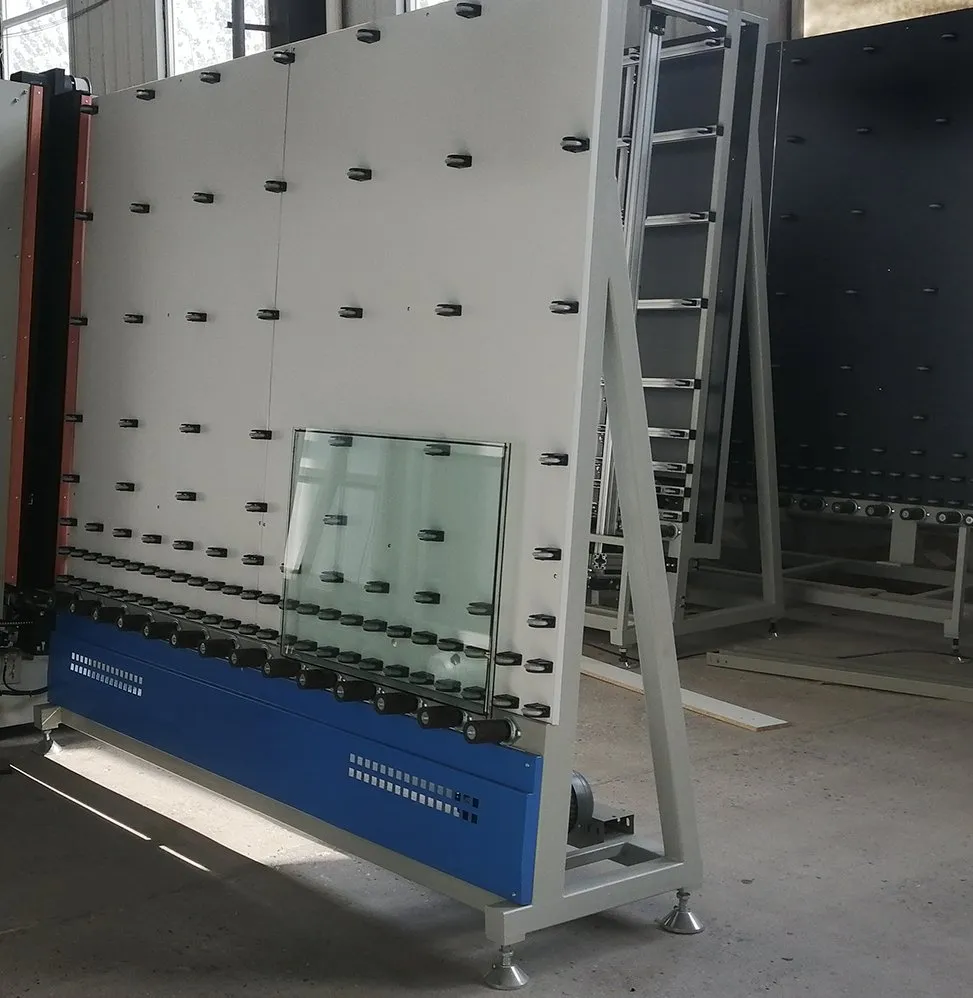

Inside Assembly & Panel Press with Online Argon Gas Inflation:
  • Denser steel frame for a stronger machine body.
  • Panel press controlled by Servo motor.
  • Two-layer front pressing plate ensures long-term flatness.
  • Partitioned suction cups with individual logic valves.
  • Automatic online gas filling from the bottom for double & triple IGU.
Panel Press Section
07
Output Conveyor: Used to transmit and store glass units. Can be connected directly with a sealing robot for maximum workflow efficiency.
Product Parameters
Input power31KW
Max. glass size2000*3000mm
Min. glass size500*300mm
Pane glass thickness3-12mm
Max. IGU thickness12-80mm
Glass washing speed3-12m/min
Working speed2-48m/min
Air pressure0.8m³/min
Water conductivity≤40µS/cm
Overall dimension22400*2500*2900mm
WeightAbout 8000kgs
Manufacturing Excellence

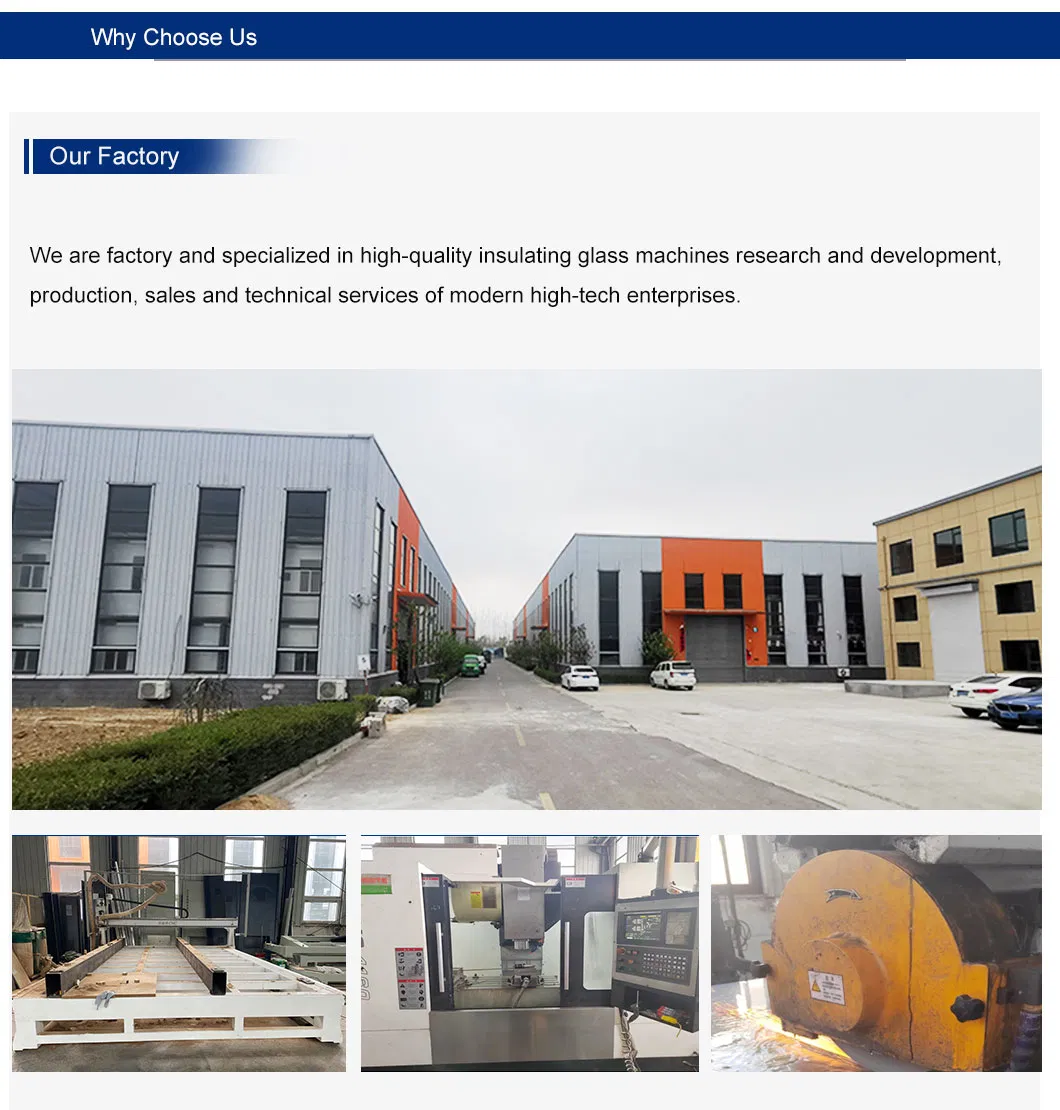

Factory View 1

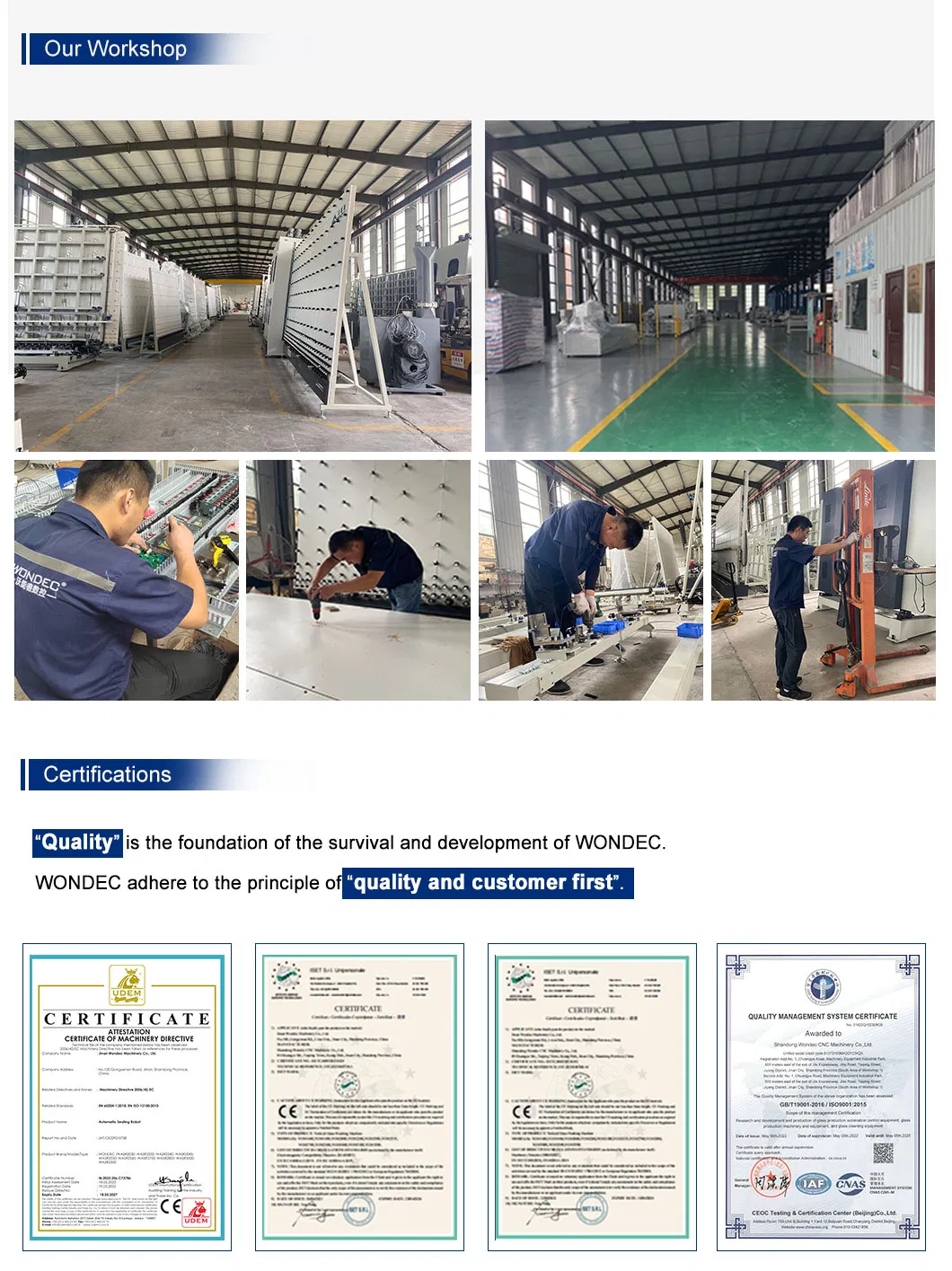

Factory View 2
Processing Detail
Quality Control
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer with over 10 years of experience in the glass machinery industry.
Can the machine be customized to our local voltage?
Absolutely. We can customize the electrical configuration of our machines to match your local voltage requirements.
What is the process after payment is made?
Once the deposit is confirmed, we arrange production immediately. After testing, we provide a performance video for your feedback before preparing the machine for shipment.
Do you assist with shipment arrangements?
Yes, we work with reliable shipping partners who offer competitive pricing and fast delivery to arrange global shipment based on your needs.
How is the machine installed upon arrival?
We provide detailed manuals and installation videos. Additionally, we set up a dedicated technical support group via instant messaging to provide real-time assistance during setup.
What kind of after-sales support do you offer?
We provide comprehensive video technical support and direct access to our engineering team to ensure your production line runs smoothly.
