Customization: Available
Certification: CE, ISO
Control System: PLC
Send Inquiry

Product Description

1

Basic Specifications

Model NO.
GSSU2025
Customized
Available
Glass Thickness
3-19 mm
Type
Insulating Glass Production Line
Structure
Vertical
Condition
New
Warranty
1 Year
Transport Package
Sea Worthy Package
Specification
5000kg
Production Capacity
30 sets/Month
2

Product Description

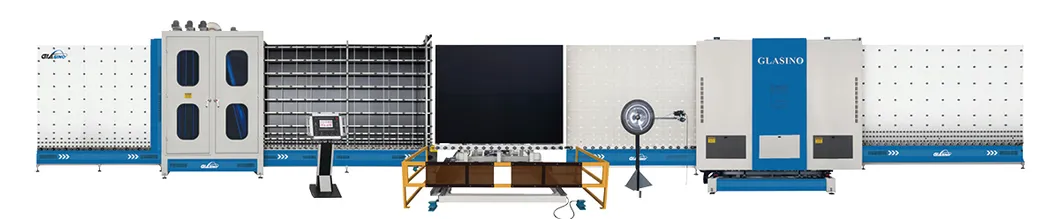

Insulating Glass Line
INSULATING GLASS PRODUCTION LINE WITH SUPER SPACER
ZK2500A vertical insulating glass production line is assigned with the following functions: glass washing & drying, aluminum spacer positioning and placement, IGU automatic assembly and panel press, and output conveying. Specially designed for aluminum-spacer type insulating glass units processing, the ZK2500A production line is characterized with the advantages of high efficiency, reliable performance and easy maintenance.
■ Reliable touch screen with easy operation, the system parameters can be modified any time.
■ The working status of the sensors and motors are displayed in the touch screen (input monitor). In case of a malfunction, the fault point can be easily identified.
■ Two operation modes (automatic and manual) are available. Each section can be controlled separately in manual mode for convenient operation.
■ The system includes 7 sections: input conveyor, washing and drying section, transmission station, light inspection & spacer assembly, outside assembly station, panel pressing station, and output conveyor.
Machine Detail
3

Detailed Photos

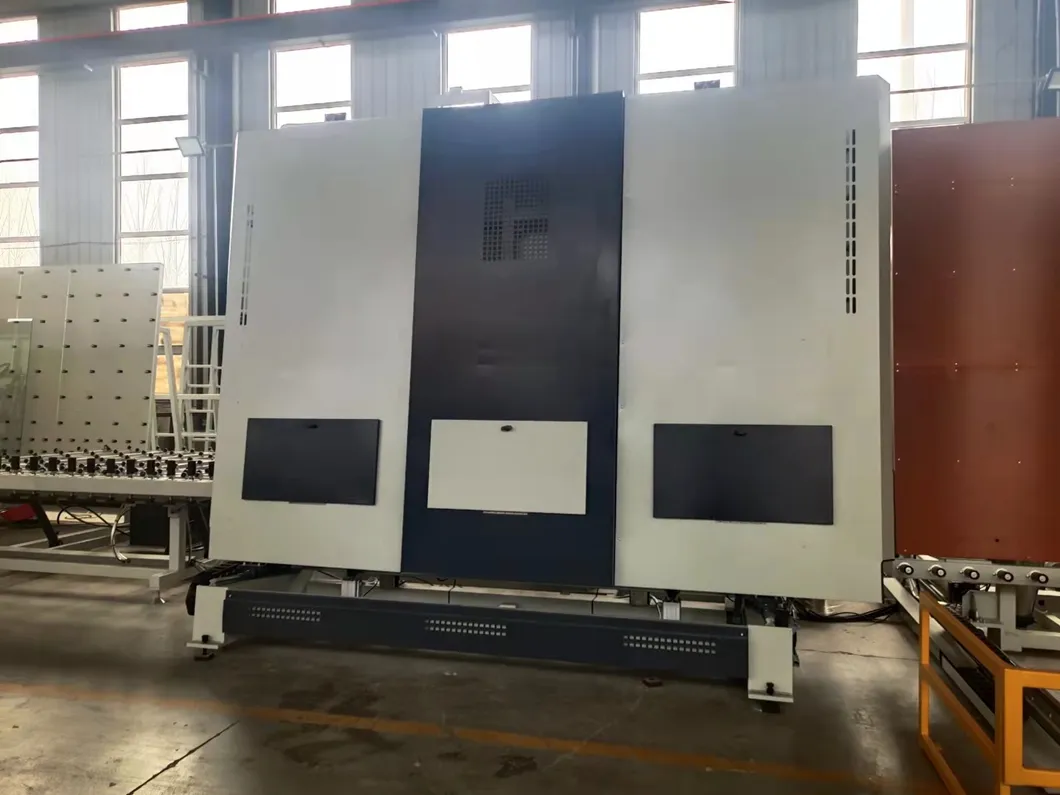

Detail 1

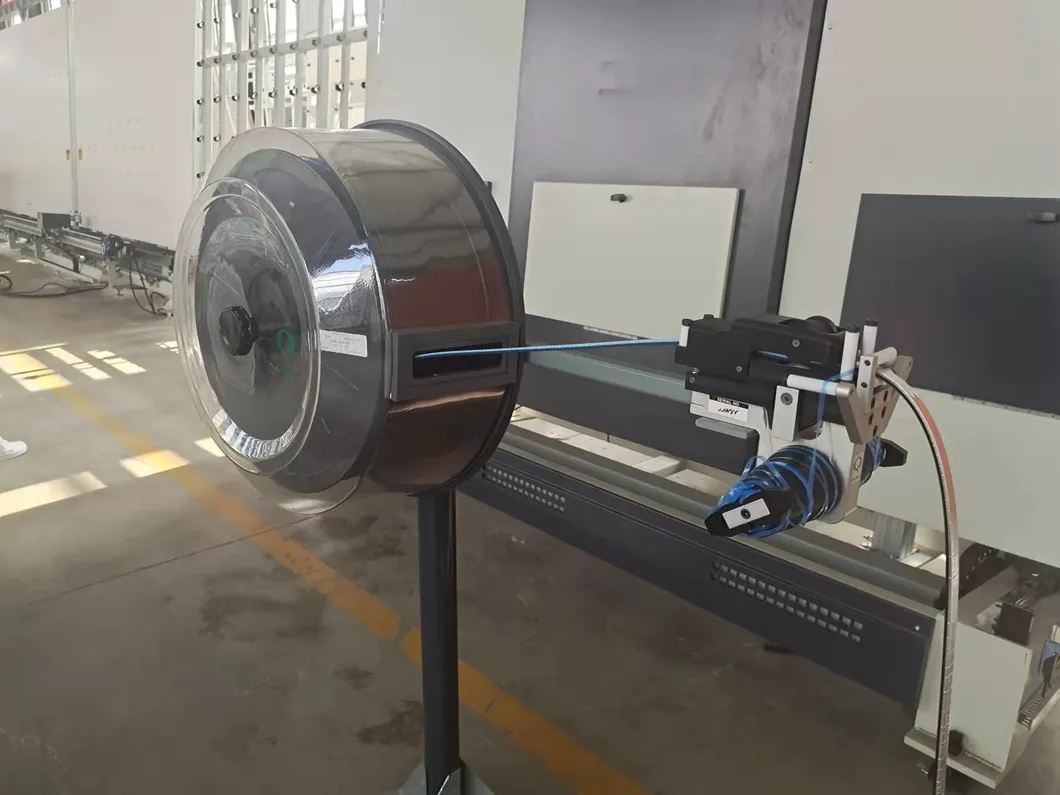

Detail 2

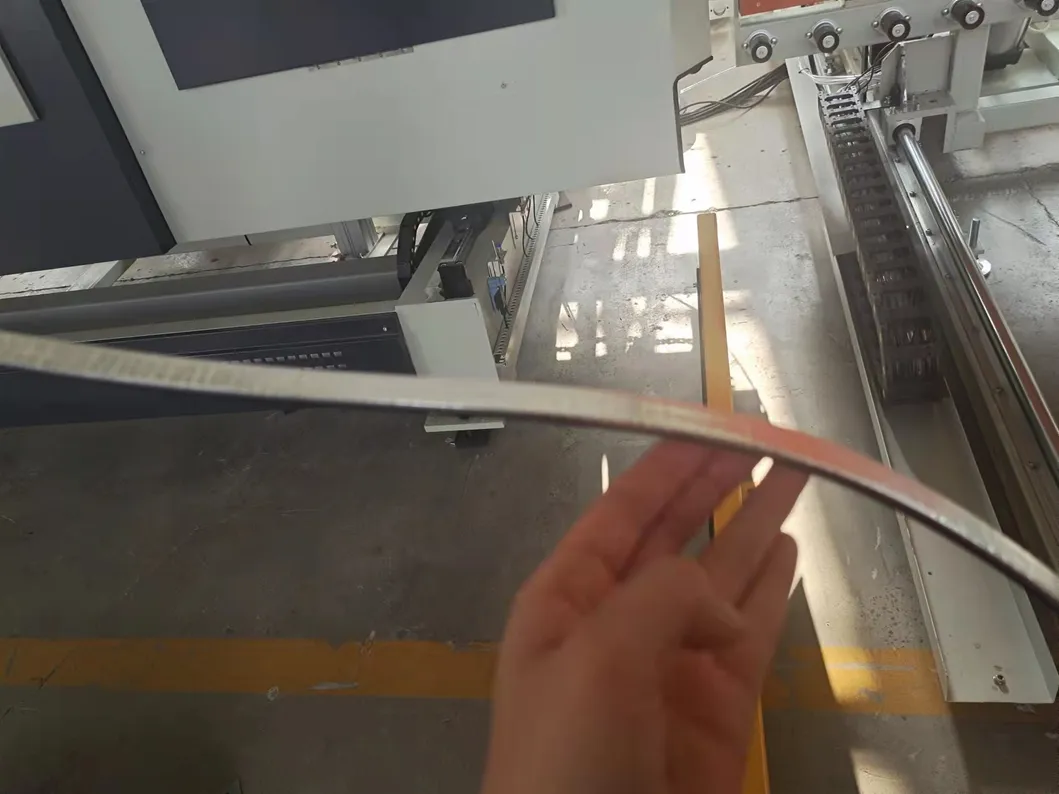

Detail 3
4

Technical Parameters

Max. glass size 2500*3500mm Total power 45KW (WLBZ2535-C) / 40KW (WLBZ2535)
Min. glass size 300*500mm Working speed 2-45m/min
Single glass thickness 3-16mm Washing speed 2-15m/min
Insulating glass thickness 12-80mm Overall dimension 24800*2500*3400mm / 24300*2500*3400mm
5

Core Technology

The 06 section: Plate pressing is a servo motor controlled synchronous belt pressing system featuring linear guide rails and ball screws. It realizes automatic pressing without manual input of glass thickness due to its integrated thickness measurement function.

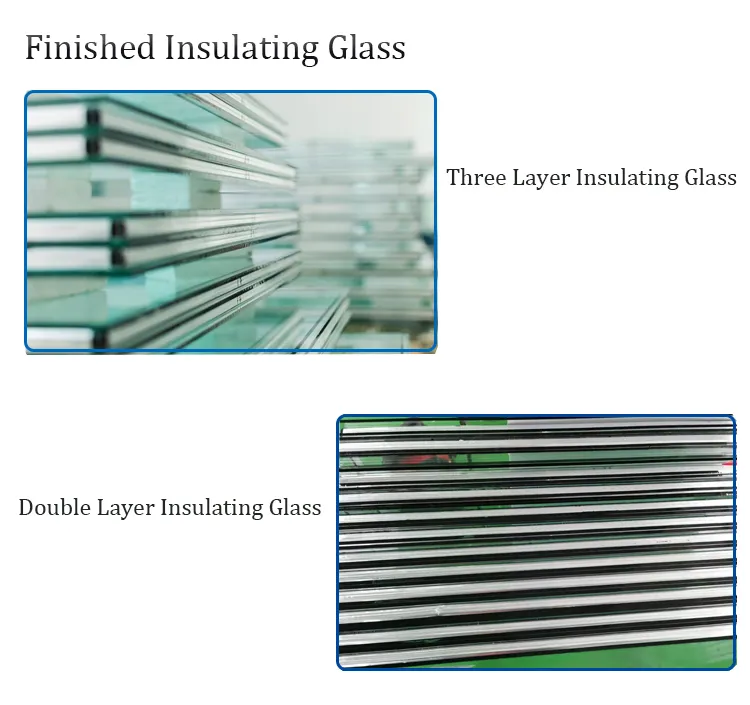

Technology View

• Controlled by German Siemens PLC and digital input control system.

• Human-machine interface touch screen for automatic/manual conversion.

• Single-stage operation function for accurate fault condition display.

• Aviation plug connection method for strong anti-interference and easy maintenance.

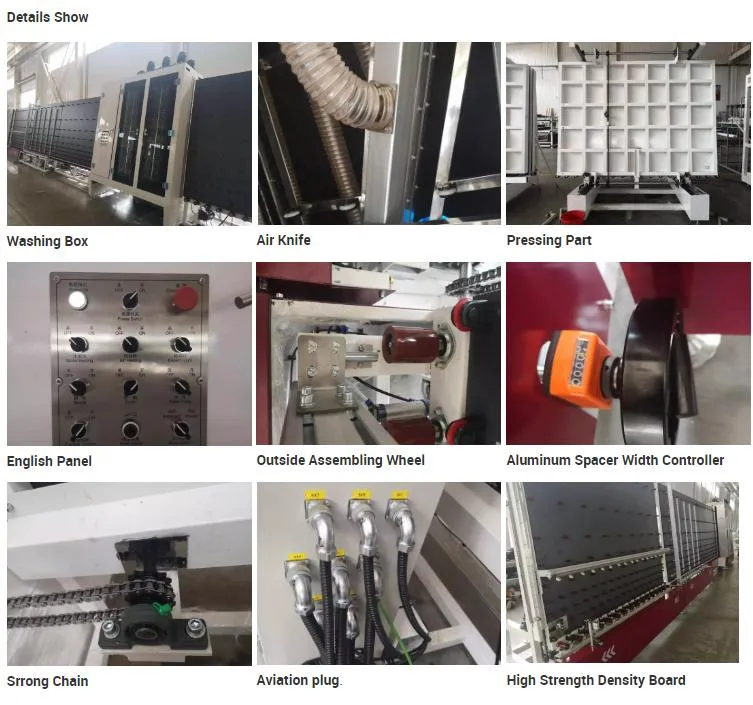

Full Line View
?

Frequently Asked Questions

Q1: What is the maximum glass size this production line can handle? The ZK2500A production line can process glass up to a maximum size of 2500*3500mm.
Q2: Does the machine require manual input for different glass thicknesses? No, the plate pressing section (Section 06) features automatic thickness measurement, allowing for automatic pressing without manual input.
Q3: What control system is used in this equipment? The equipment is powered by a German Siemens PLC and a digital input control system for high stability and user-friendly operation.
Q4: What are the available operation modes? It offers both Automatic and Manual modes. Each section can be controlled separately in manual mode for maintenance and setup convenience.
Q5: What is the washing and drying capacity? The washing speed is adjustable between 2-15m/min, ensuring high-efficiency cleaning and drying before assembly.
Q6: What is the warranty period for this production line? The equipment comes with a standard 1-year warranty and includes after-sales service support.
