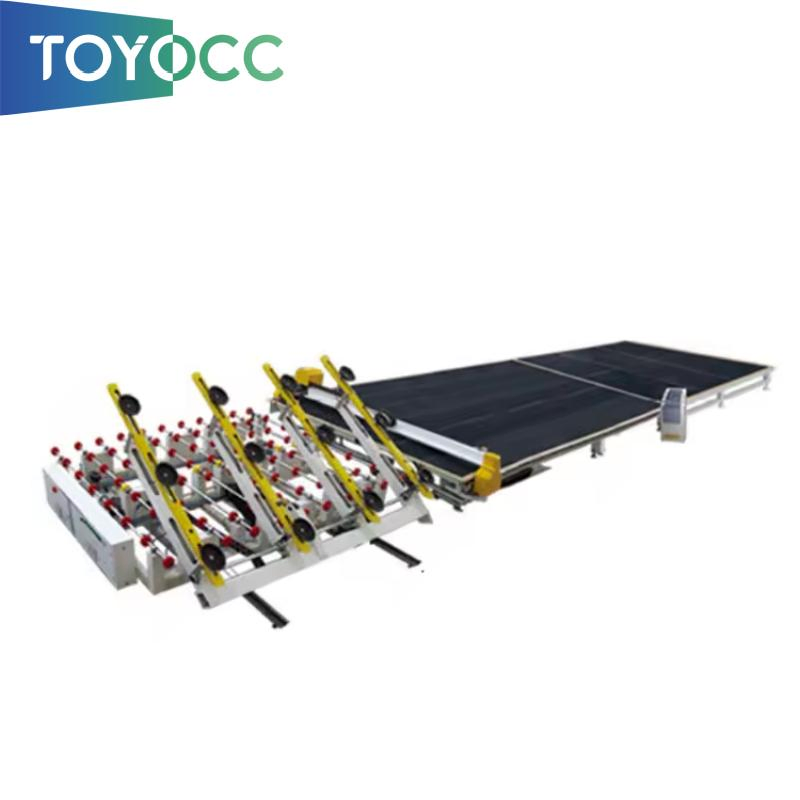

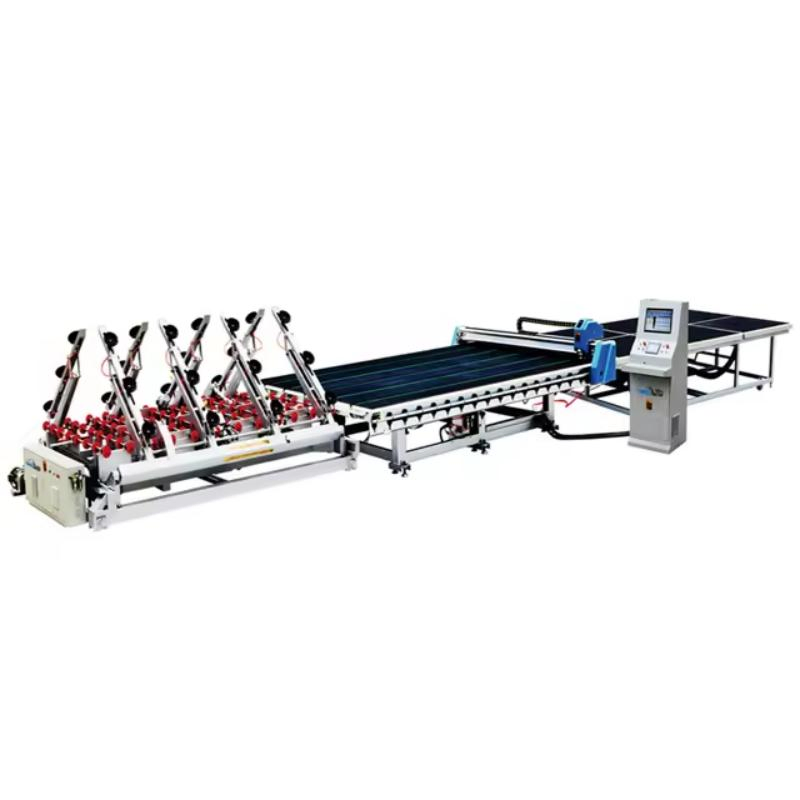

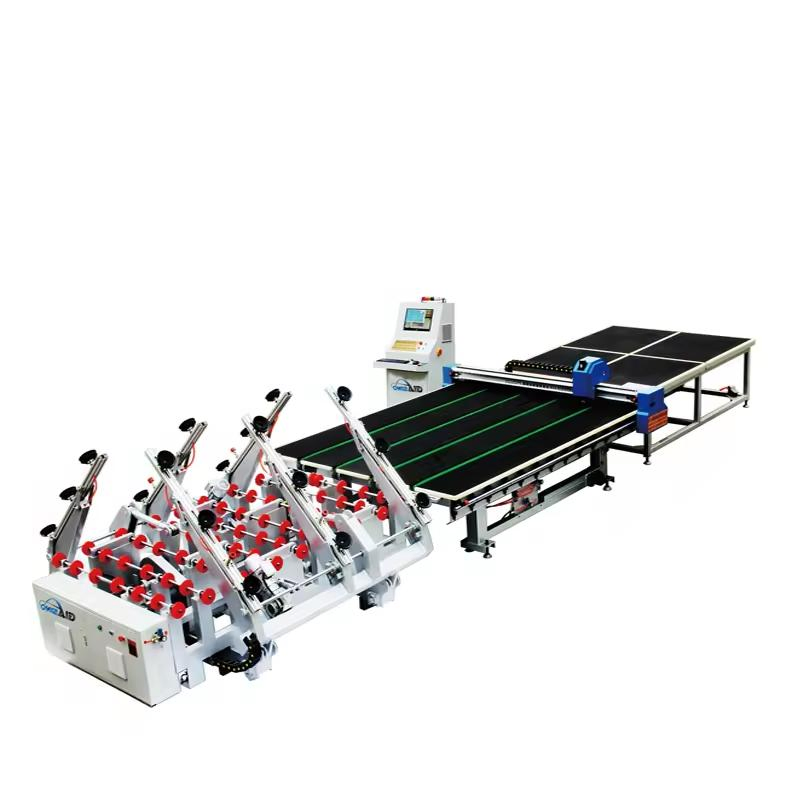

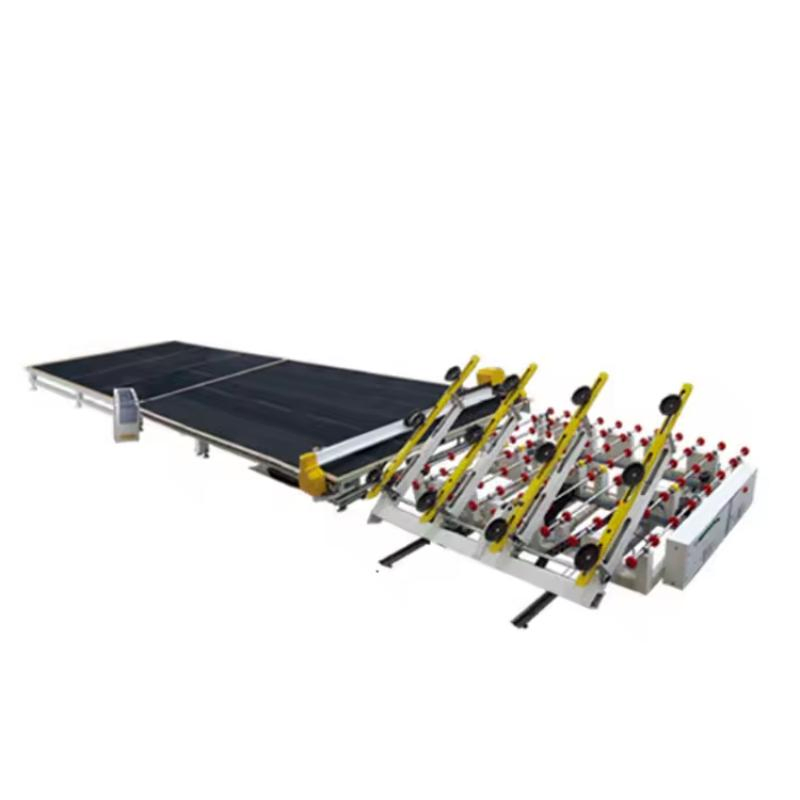

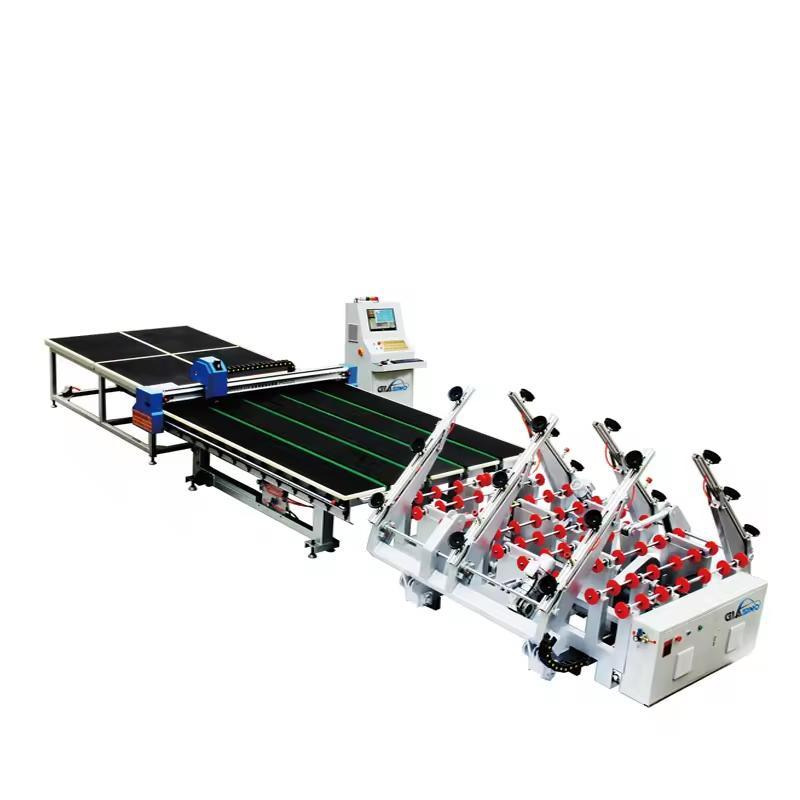

CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line
CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line
CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line
CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line
CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line
1 / 5
CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line
CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line
CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line
CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line
CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line

CNC Glass Processing Machinery Cutting Machine Line Double Turn Loading Glass Cutting Line

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Maximum Cutting Thickness
0-25mm
Power Supply
380V
Safety Features
Emergency Stop Button, Overload Protection, Safety Sensor
Cutting Thickness
2-19mm
Cutting Speed
0-180m/Min
Loading Speed
15-40 Seconds
Table Height
850mm
Type
Glass Cutting Machine
Structure
Horizontal
Control System
PLC
Condition
New
Warranty
3 Years
Grinding Head Number
1
Transport Package
40GP
Specification
5300*3100*1400mm
Origin
Shandong China
HS Code
8464901100
Production Capacity
10000 Pieces/Year
Product Description

Fully Automatic Glass Cutting Machine Production Line (6100*3300)

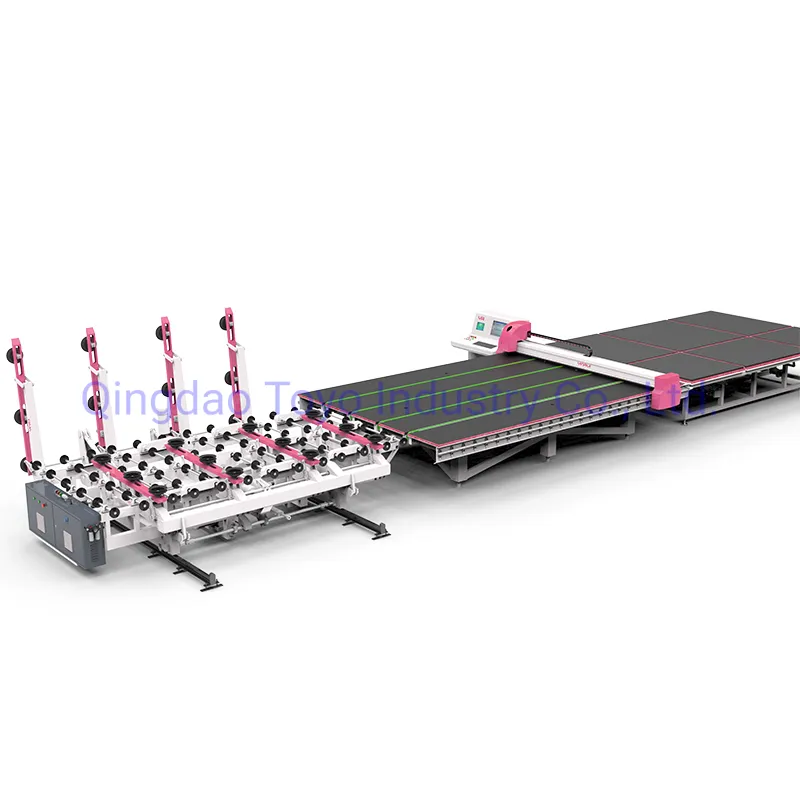

Glass Cutting Line
Machinery Configuration
  • Full-automatic Glass Loading Machine
  • Full-automatic CNC Glass Cutting Machine
  • Air-cushion Glass Breakout Machine

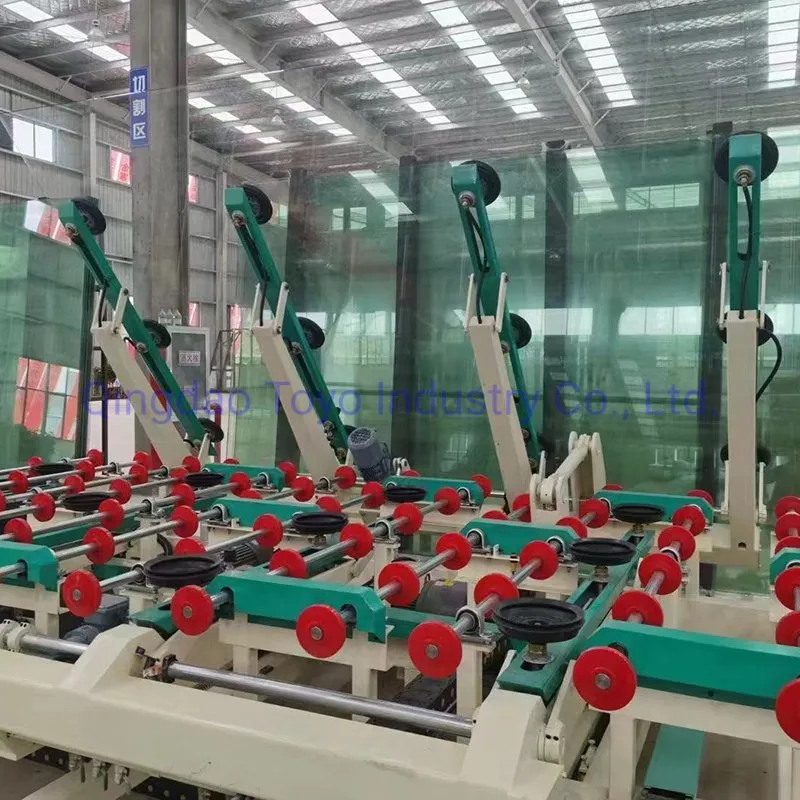

I. Full-automatic Double-arm Loading Machine
Equipment System: Main frame, Running system, Transfer system, Vacuum adsorption system, Mechanical turning system, High/low pressure control system, Program control system.

Mechanical components:
  • Turning wheel chain: high precision reinforced type
  • Transfer idler wheel: PU
  • Vacuum suction cup: double absorption structure
  • Transfer/turning motor: Taiwan CPG motor
Technical parameters:
  • Max glass size: 4200*2800 | Min size: 1500*1500
  • Glass thickness: 3-19mm
  • Loading glass cycle: 40-90s (adjustable)
  • Max rack depth: 750mm | Loading weight: 900KG
Loading Machine Details

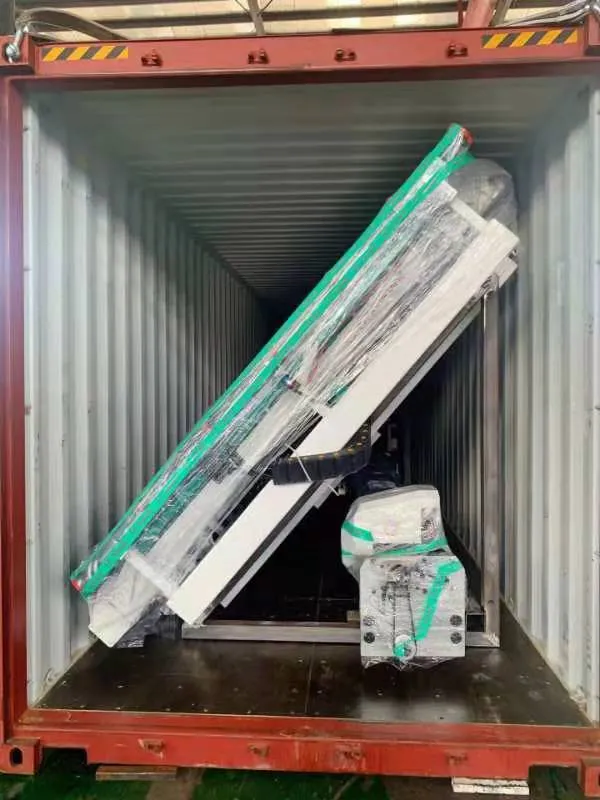

CNC Processing
II. Full-automatic CNC Glass Cutting Machine
Cutting Performance:
  • Max glass size: 6100*3300
  • Linear parallelism: ≤±0.25mm/m | Diagonal accuracy: ≤±0.30mm/m
  • Cutting bridge speed: 0-160m/min
  • Cutting head: 360-degree rotation
  • Table top: Imported waterproof HDF board with anti-static felt
Electrical & Software:
  • Motor: Japan YASKAWA servo motor
  • Control card: Italy imported TECNOS
  • Software: Italy imported optimization software (ERP compatible)
  • Shape database: Over 2,000 shapes included

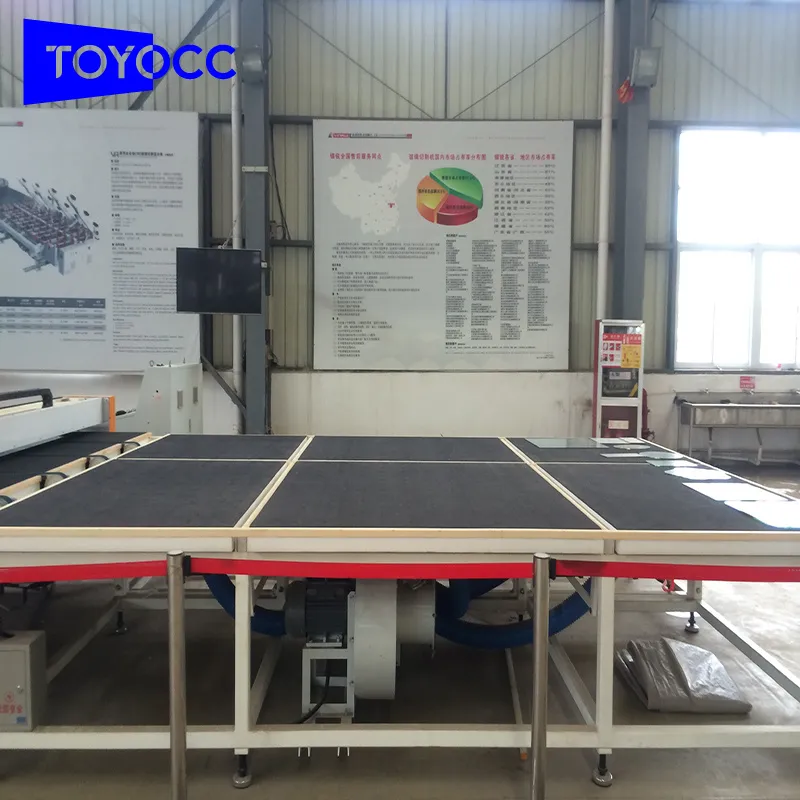

III. Glass Breaking Machine
  • Table top size: 6100×3300mm | Height: 900±30mm
  • Components: Fiber and woolen felt surface, HDF board
  • Breaking Bars: 2 horizontal, 1 vertical
Glass Breaking Table
Frequently Asked Questions
1. Do you offer customized equipment configurations?
Yes, we can accept custom specifications and configurations based on your specific production requirements.
2. What is the typical delivery time for the production line?
The standard delivery time is approximately 45 days after order confirmation.
3. How is after-sales technical support handled?
We provide immediate after-sales service through detailed instructional videos, technical photos, and direct remote technical guidance.
4. Where can I source replacement parts if needed?
The equipment uses high-quality common hardware components. You can easily find replacement parts in your local hardware market or specialized parts shops.
5. How are repairs managed if a technical issue occurs?
The equipment is designed for an extremely low failure rate. In the event of an issue, we provide step-by-step repair instructions and video guidance to ensure quick resolution.
6. What is your Quality Assurance (QA) and Control (QC) policy?
We maintain strict quality standards, including a 3-stage 100% inspection process for all machinery before shipping.
