Industrial Production Line Glass Tempering Furnace Machine
Industrial Production Line Glass Tempering Furnace Machine
Industrial Production Line Glass Tempering Furnace Machine
Industrial Production Line Glass Tempering Furnace Machine
Industrial Production Line Glass Tempering Furnace Machine
1 / 5
Industrial Production Line Glass Tempering Furnace Machine
Industrial Production Line Glass Tempering Furnace Machine
Industrial Production Line Glass Tempering Furnace Machine
Industrial Production Line Glass Tempering Furnace Machine
Industrial Production Line Glass Tempering Furnace Machine

Industrial Production Line Glass Tempering Furnace Machine

Customization: Available
Certification: CE
Control System: PLC
Send Inquiry

Product Description

Basic Specifications

Model NO.
SH-FA2436
Product Name
Tempered Glass Machine
Warranty
12 Month
Input Power
350kw
Air Pressure
0.5-0.8MPa
Max Processing Size
2500*2000mm
Min Processing Size
100 X 300 mm
Glass Thickness
4-19mm
Transfer Speed
0.7-3.5m/Min
Machine Weight
4000kg
Structure
Horizontal
Type
Glass Tempering Furnace

4-19mm Normal Tempered Glass Making Machine

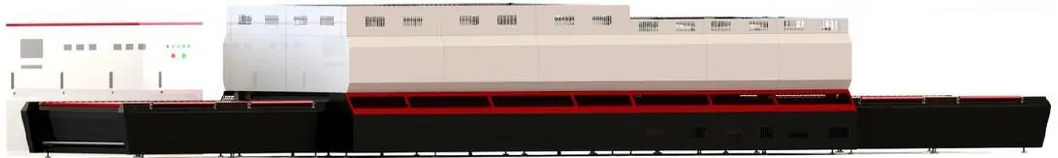

Production Line

Key Machine Features:

  • ✓ Glass thickness range: 4 - 19 mm with tolerance +0.2/-0.2mm
  • ✓ Max flat glass size: 2,500 mm x 2000 mm
  • ✓ Finished product rate: over 5mm not less than 98%
  • ✓ Productivity: 5 mm = 16-18 loads / hr
  • ✓ Power Requirement: Heating 550 kW, Quenching 250KW
  • ✓ Suitable glass: Clear float, Coated, Patterned, and Tinted glass

Main Configuration Components:

Industrial Computer
Advantech (Taiwan)
PLC & Sensors
OMRON (Japan)
Monitor
Dell
Ceramic Rollers
SINOMA/KAMROLA
Inverter
250KW Inverter

Machine Detail Showcase

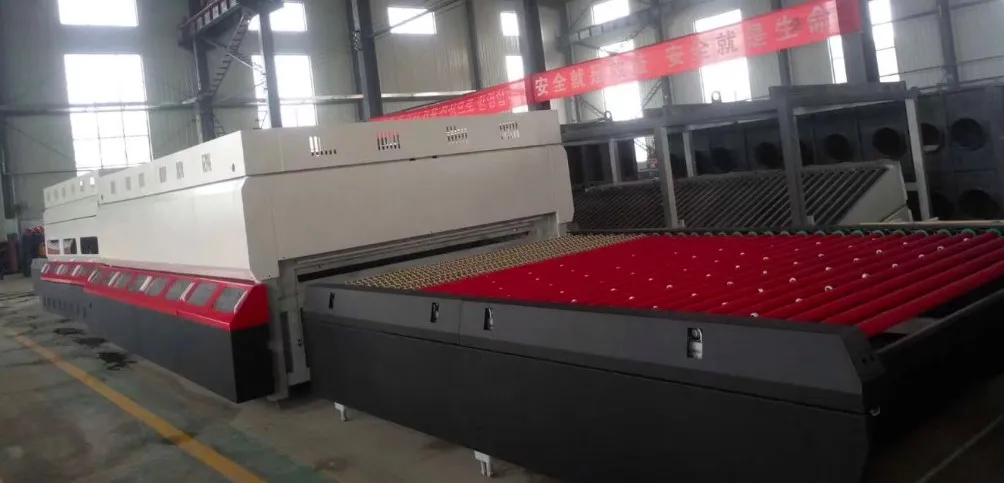

Detail 1

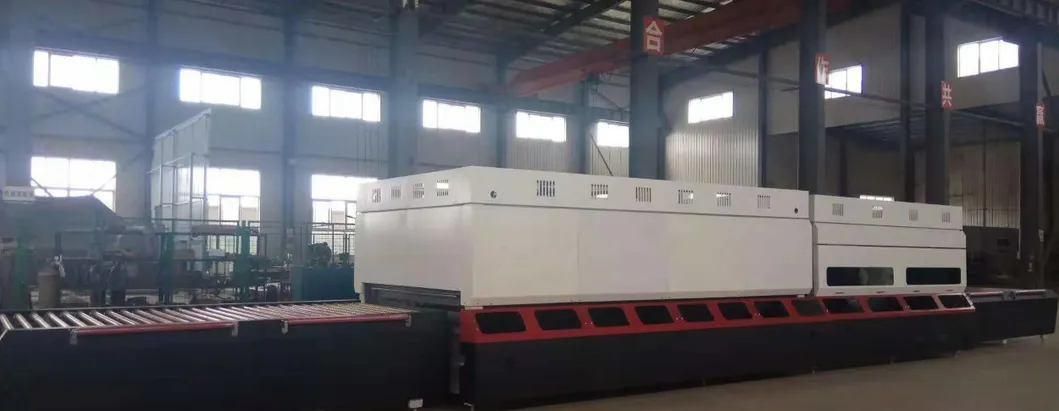

Detail 2

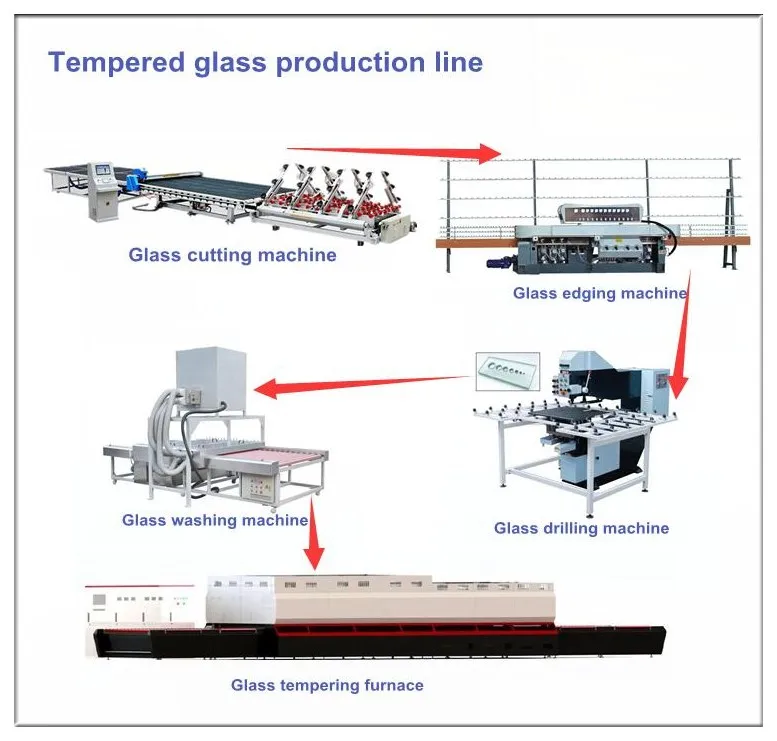

Detail 3
Detail 4
Detail 5
Detail 6
Detail 7
Detail 8
Detail 9

Frequently Asked Questions

1. When can you arrange shipment?
We usually arrange shipment within 15 days after receiving the deposit. However, customized machines may require more than 25 days for preparation.
2. What support is available if the machine has problems?
During the guarantee period, we can send free replacement components. Additionally, we can dispatch our engineers to repair your machines directly.
3. Do you provide training for equipment operation?
Yes. We send professional engineers to the working site for installation, adjustment, and comprehensive operation training for your staff.
4. What is the thickness range for glass processing?
This machine is designed to handle a glass thickness range of 4mm to 19mm with high precision and a tolerance of +/- 0.2mm.
5. What types of glass are compatible with this furnace?
It is suitable for clear float glass, patterned glass, tinted glass, and various coated glasses that can withstand temperatures up to 700 ºC.
6. What is the maximum glass size the machine can process?
The maximum flat glass size for this specific model (SH-FA2436) is 2500 mm x 2000 mm.
