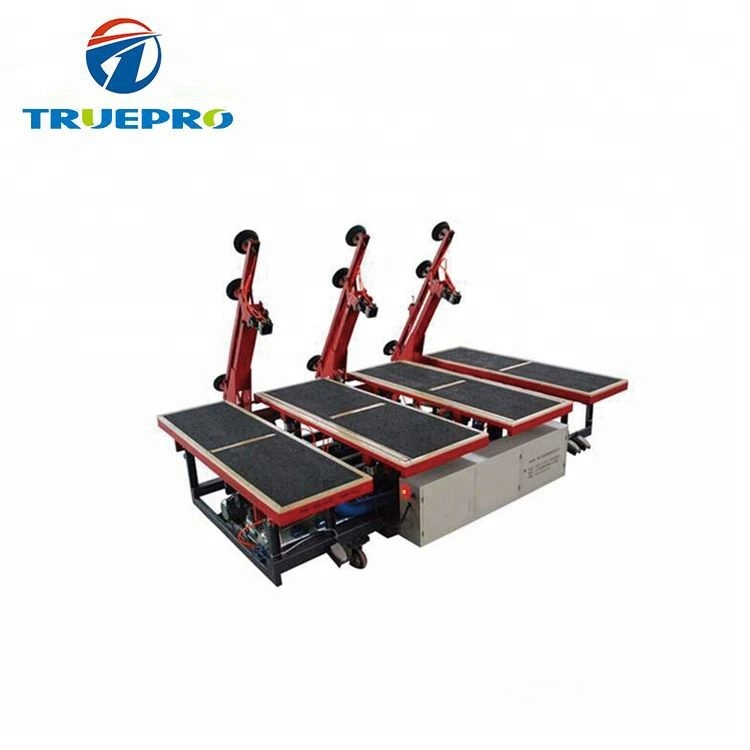

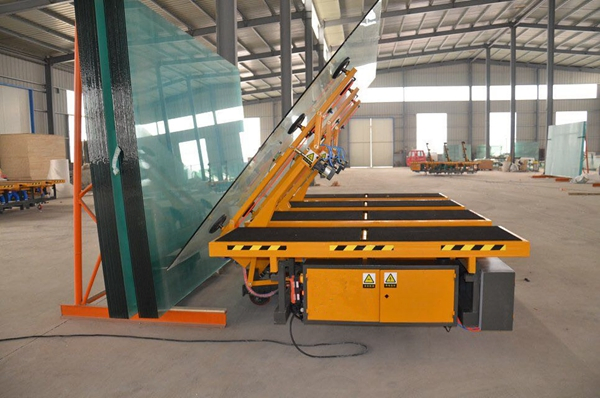

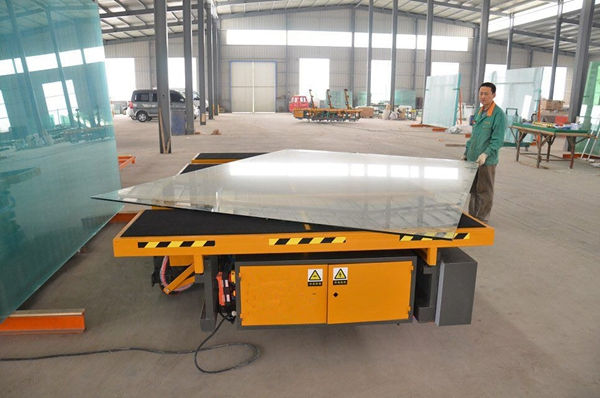

Precision Processing Float Technology Glass Loading Cutting Machine
Precision Processing Float Technology Glass Loading Cutting Machine
Precision Processing Float Technology Glass Loading Cutting Machine
Precision Processing Float Technology Glass Loading Cutting Machine
Precision Processing Float Technology Glass Loading Cutting Machine
1 / 5
Precision Processing Float Technology Glass Loading Cutting Machine
Precision Processing Float Technology Glass Loading Cutting Machine
Precision Processing Float Technology Glass Loading Cutting Machine
Precision Processing Float Technology Glass Loading Cutting Machine
Precision Processing Float Technology Glass Loading Cutting Machine

Precision Processing Float Technology Glass Loading Cutting Machine

Customization: Available
Application: Glass Processing Industry
Control System: PLC
Send Inquiry

Product Description

Basic Information
Model NO.:JYX-03
Product Name:Smart Glass Processing Line Automatic Glass Loading
Safety Features:Safety Sensors
Warranty:12 Month
Input Power:7kw
Air Pressure:0.5-0.8MPa
Max. Glass Size:3660*2440mm
Transfer Speed:5-40m/Min
Machine Dimension:4200*2900*900mm
Weight:2500kg
Certification:CE
Glass Thickness:2-19mm
Product Description
Automatic Glass Processing Machine

Key Features & Functions

  • Mainly used for automatic unloading of glass after processing.
  • Equipped with single/double stations to unload glass; four systems connect together for integrated or separate operation.
  • Utilizes Mitsubishi PLC and Delta servo systems for stability, efficiency, and safety.
  • Features an automatic counting function with setable target quantities for automatic stops.
  • Designed for labor-saving and convenient operation in precision float technology.
Technical Parameters
Parameter Item Specification Details
Voltage380V
Outer Size3400*2400*800mm
Transfer Speed1-15m/min
Max. Glass Size2500*2000mm
Min. Glass Size300*500mm
Processing Glass Thickness2-19mm
Arm Number4
Product Gallery

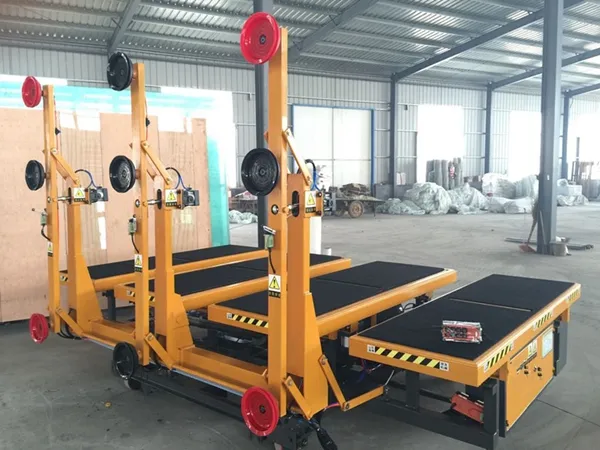

Loading Machine Detail 1

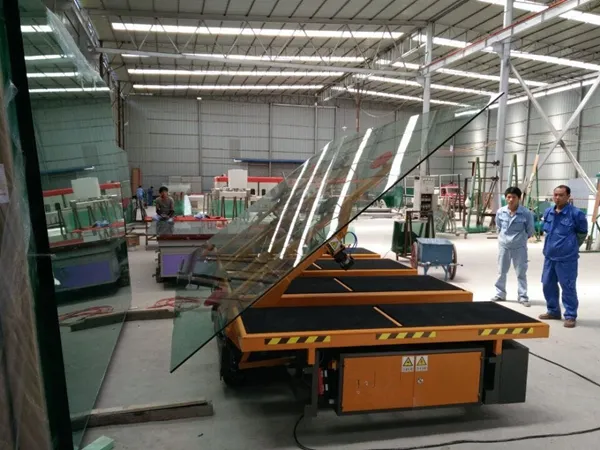

Loading Machine Detail 2

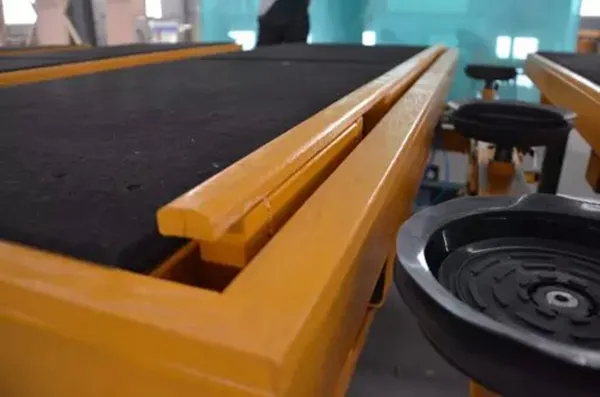

Loading Machine Detail 3

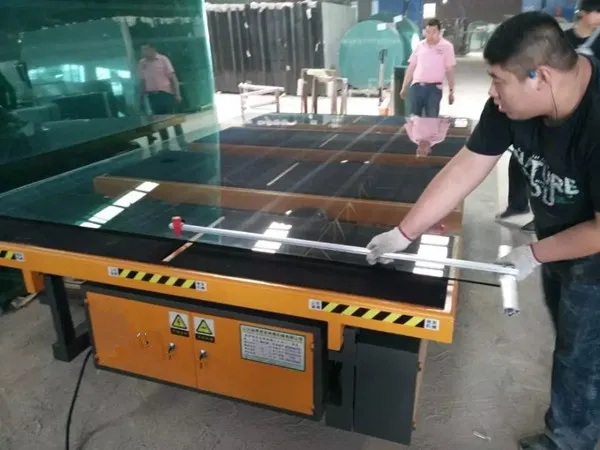

Loading Machine Detail 4
Loading Machine Detail 5
Loading Machine Detail 6
Machine Overview Processing Line
Packaging & Delivery
Package Size:4200.00cm * 2900.00cm * 900.00cm
Gross Weight:2500.000kg
Package Type:Standard Export Package
Packaging Status
Frequently Asked Questions
When can you arrange shipment?
We usually arrange shipment within 15 days after receiving the deposit. However, customized machines may require more than 25 days.
What support is provided if the machine has problems?
If your machine is within the warranty period, we can send free components. We can also dispatch engineers to assist with repairs.
Do you provide equipment operation training?
Yes, we can send professional engineers to the working site for installation, adjustment, and comprehensive operation training.
What glass thicknesses can this machine process?
This automatic loading and unloading machine is designed to handle glass thicknesses ranging from 2mm to 19mm.
Can the machine be customized for specific requirements?
Yes, every machine can be customized to meet your special industrial requirements and processing needs.
What control systems are used in the machine?
The equipment utilizes high-quality Mitsubishi PLC and Delta servo systems to ensure stable and efficient performance.

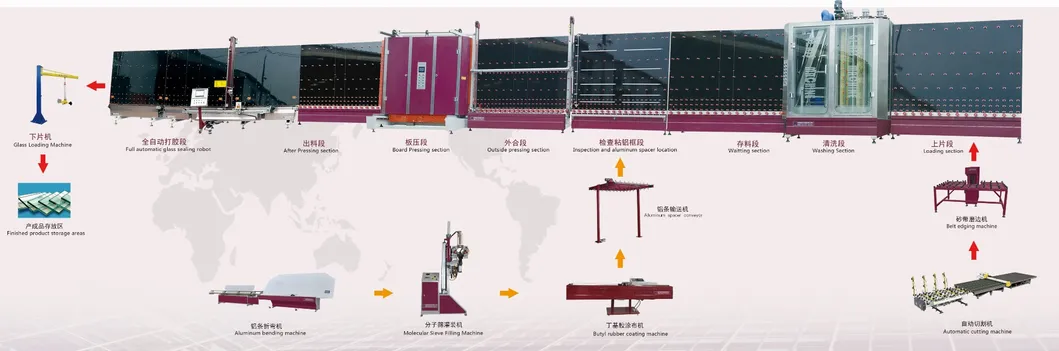

Production Line End
