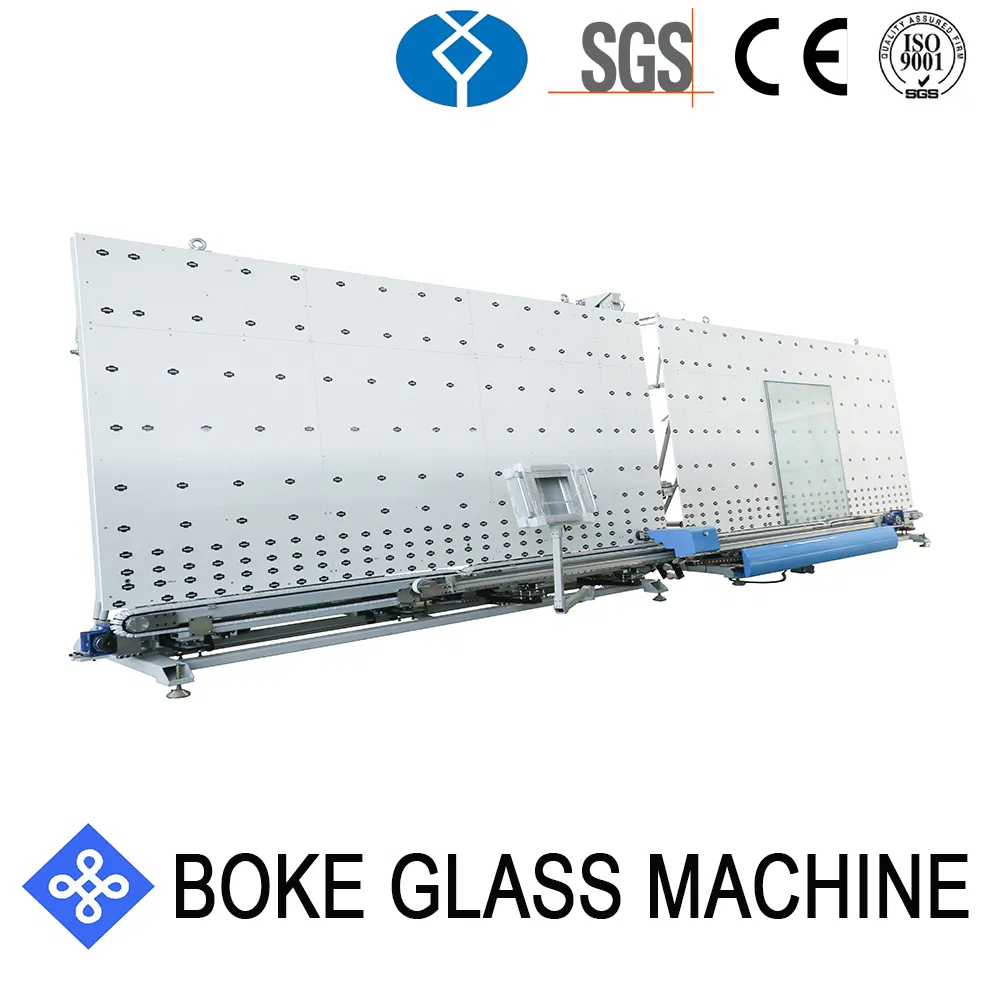

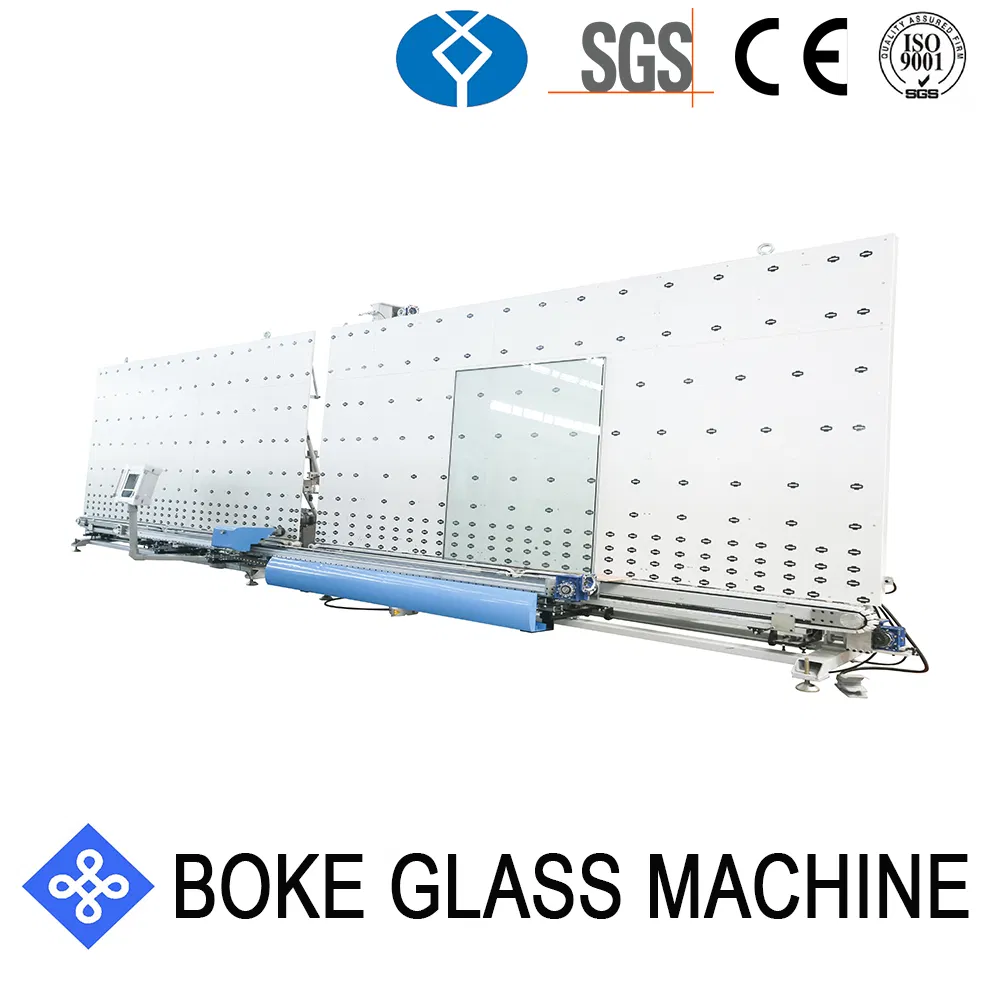

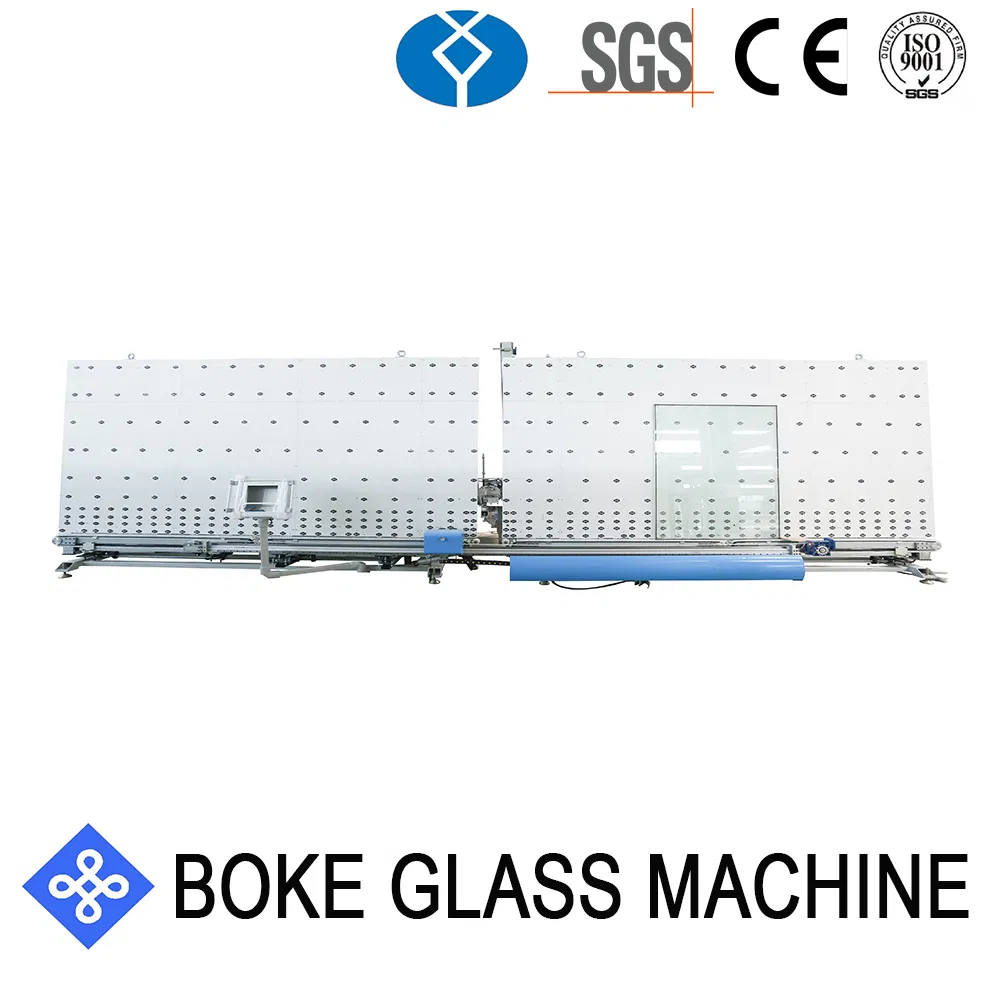

Automatic Double Glass Sealing Machine (Max. 6000*2850mm IG unit)

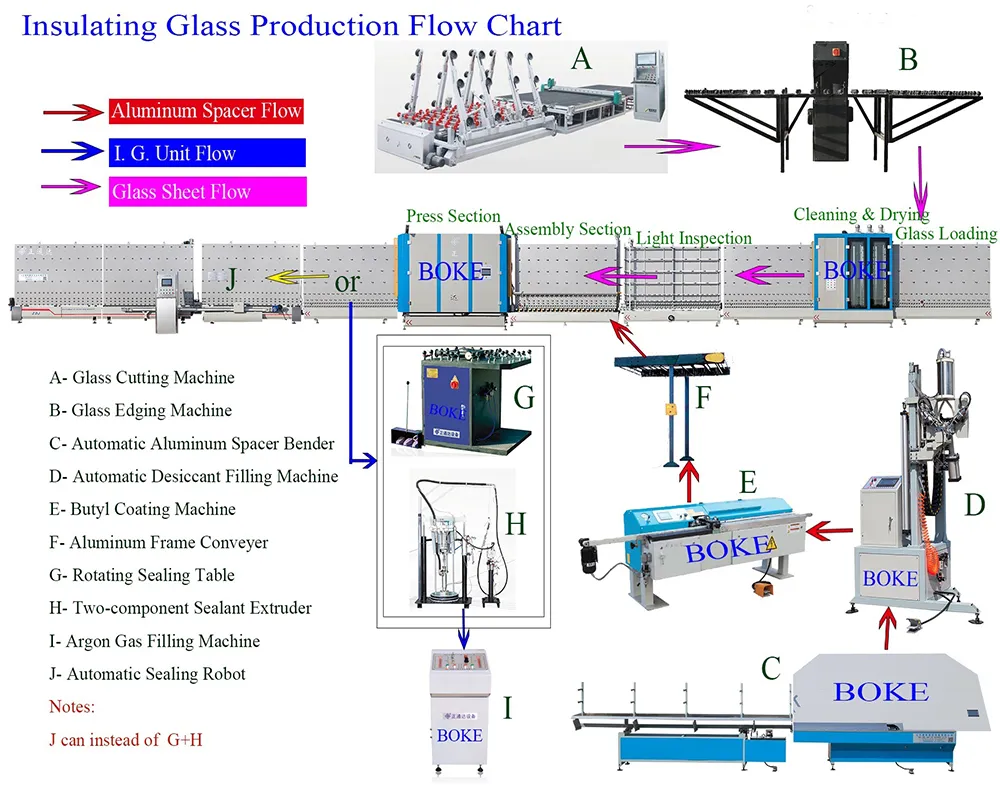

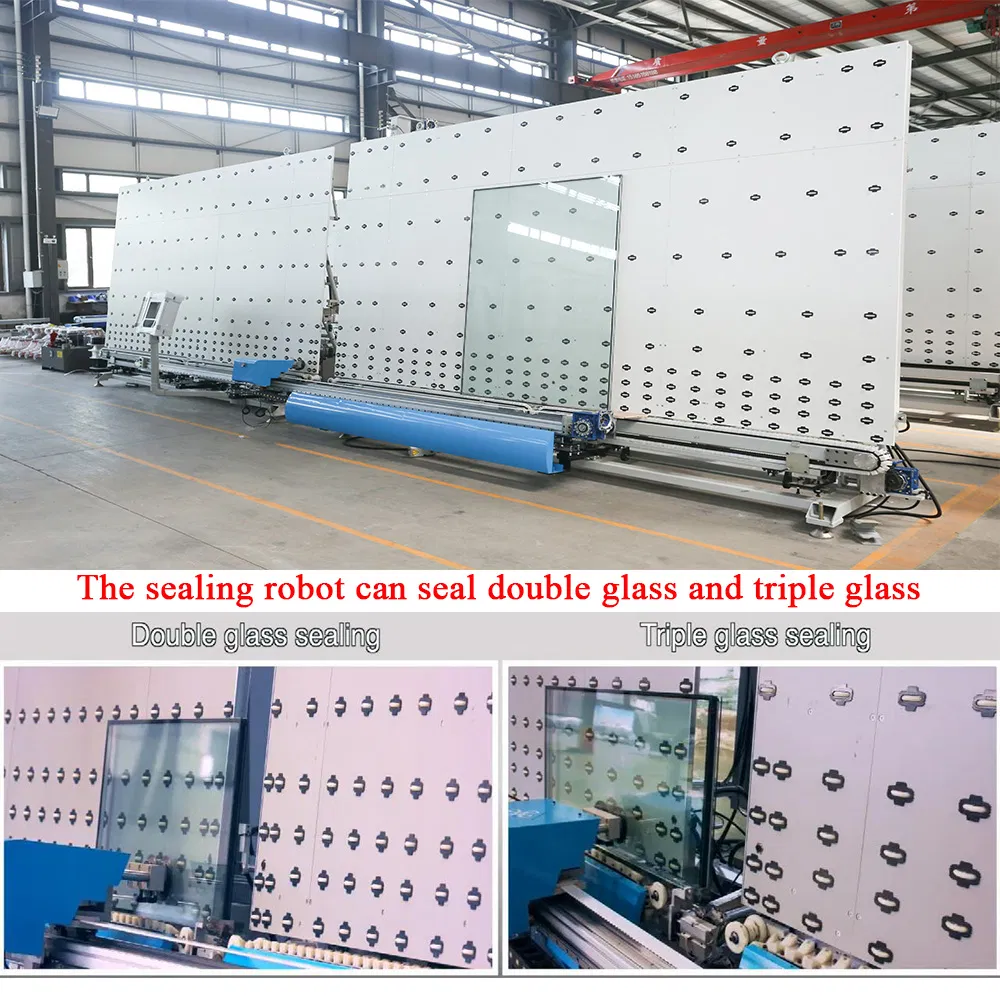

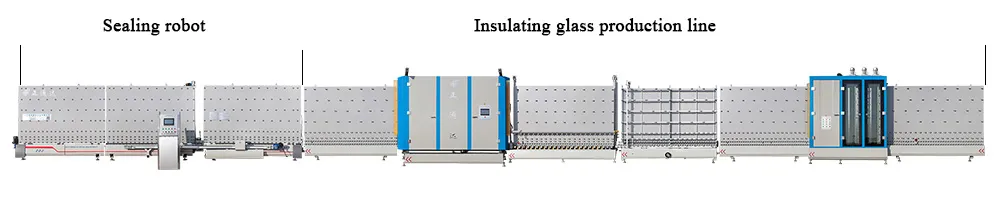

The sealing robot ZDJ-V28.5 is a high-precision glue applicator designed for the second sealing of insulating glass. It seamlessly integrates into the production workflow including glass cleaning, drying, aluminum frame placement, and final sealing.
| Parameter | Specification |
|---|---|
| Sealing Speed | 5-35 m/min |
| Sealing Depth | <18 mm |
| Thickness of IG Unit | 12-50 mm |
| Min. IG Unit Size | 350*200 mm |
| Max. IG Unit Size | 6000*2850 mm |

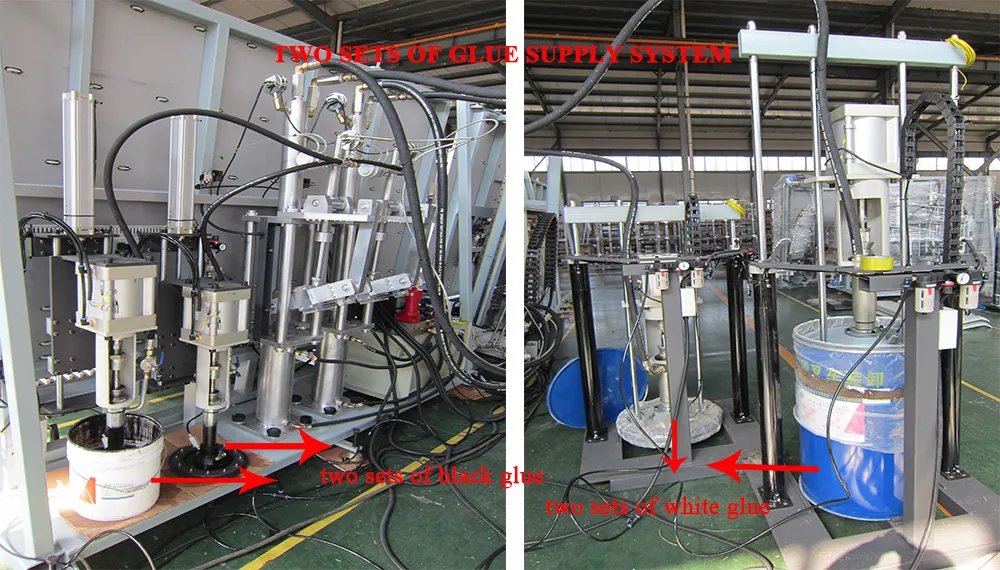

| Glue Supply Pressure | <30 MPa |
| Total Power | 10 kW |
| Max Weight of IG Unit | 1000 Kg |
| Outline Dimension | 14000*3500*3550 mm |
Our equipment utilizes world-class components to ensure stability and longevity.
| Component Name | Brand |
|---|---|

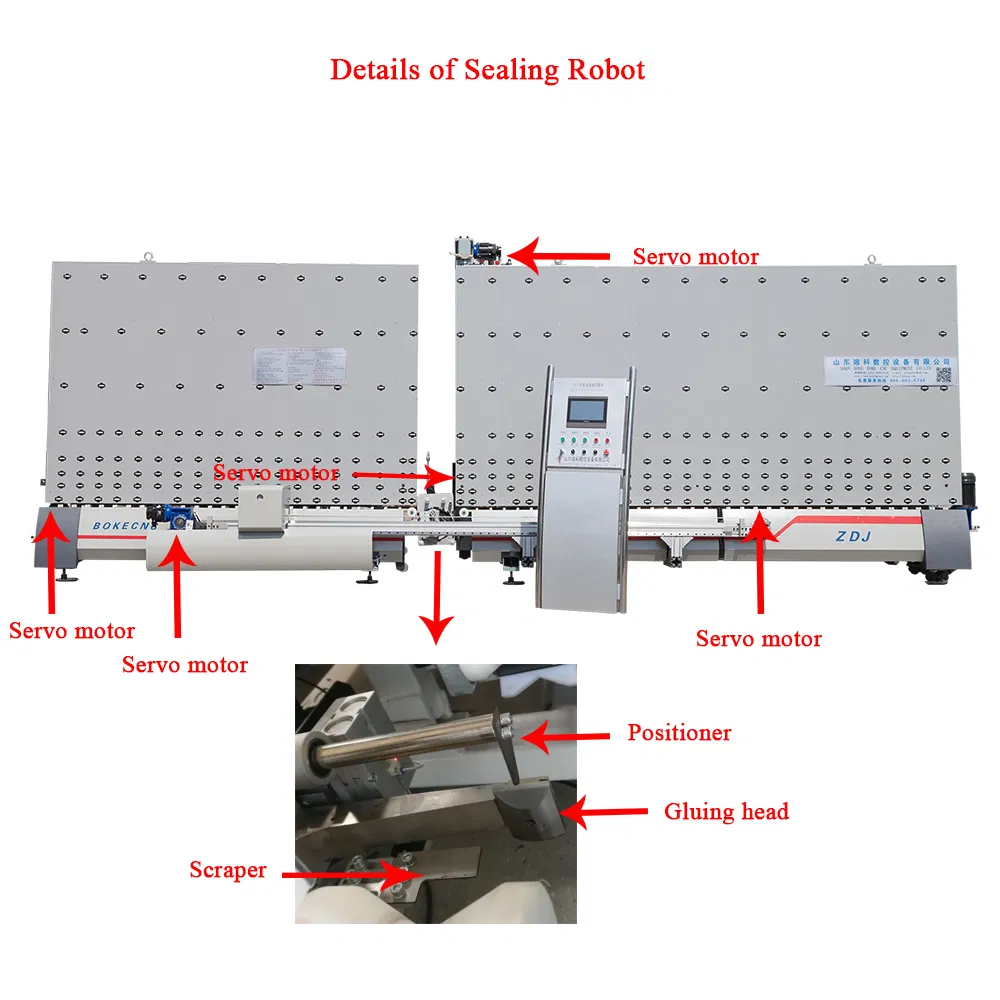

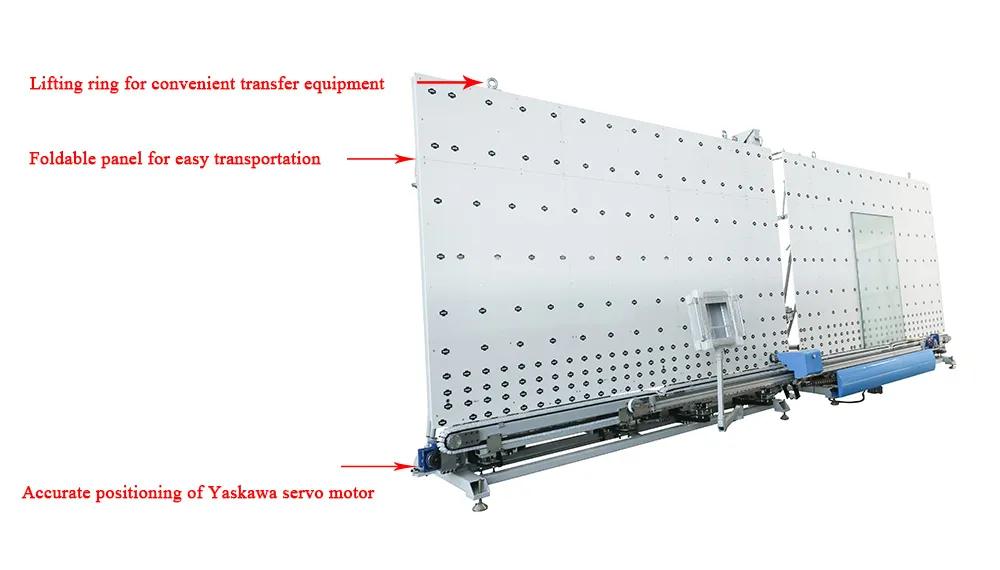

| Servo Motor & Actuators | Yaskawa (Japan) |
| Pneumatic Components | SMC (Japan) / Airtac |
| Photoelectric Switches | OPTEX (Japan) / Autonics |
| Guide Rail & Slider | HIWIN |

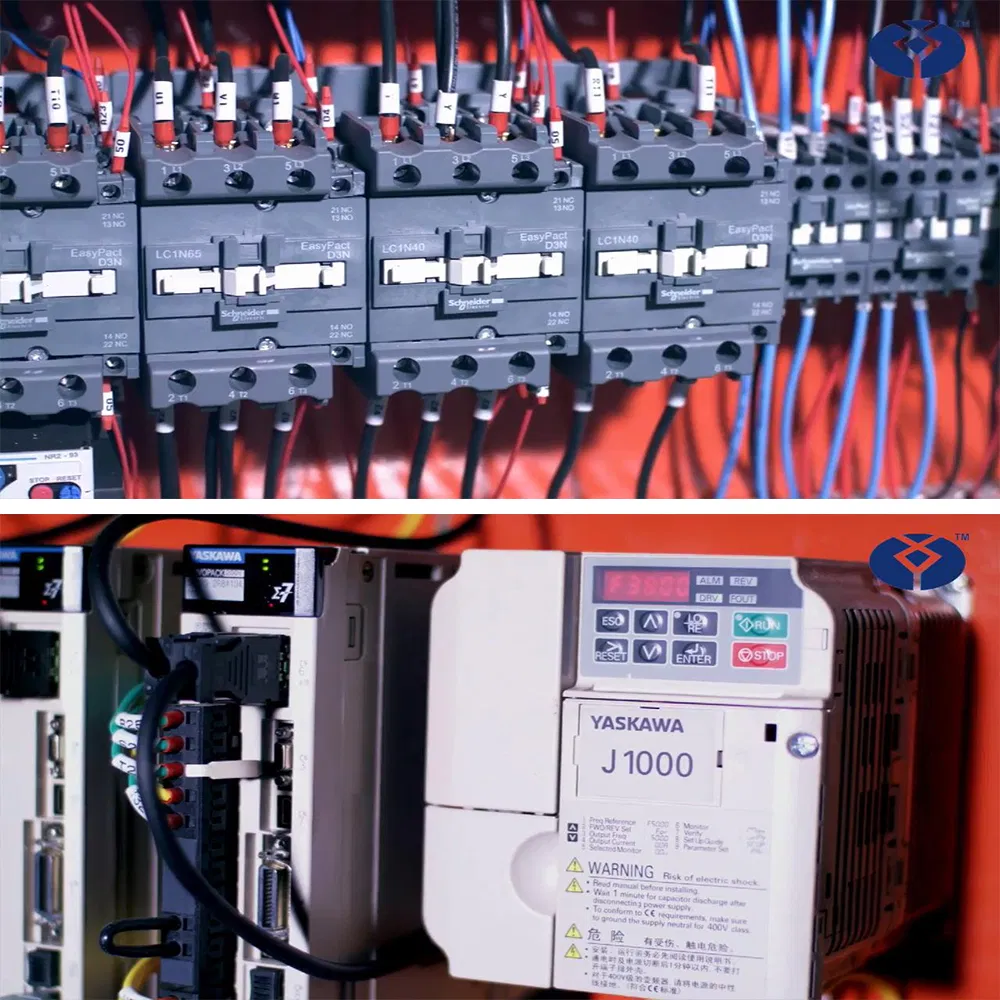

| PLC Control | Yaskawa |
| Linear Bearings | Shenzhen Weiyuan |

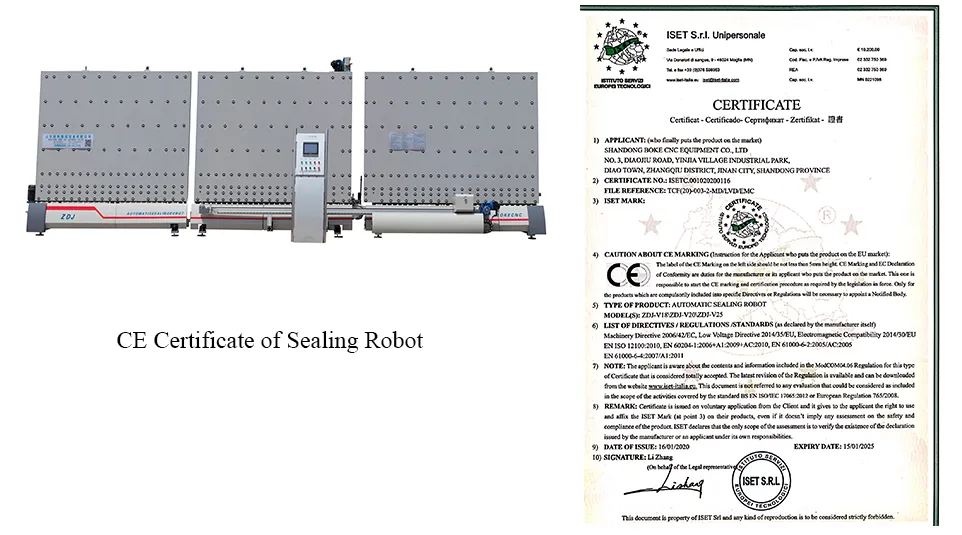

All equipment is manufactured under strict quality control systems and holds international certifications.
