CNC Automatic Insulating Glass Production Line Hot Melt Sealing Robot Machine Double Glazing Glass Processing Coating Silicone Spreading Robot

1 / 5

CNC Automatic Insulating Glass Production Line Hot Melt Sealing Robot Machine Double Glazing Glass Processing Coating Silicone Spreading Robot

Customization:	Available
Certification:	CE, ISO
Control System:	PLC

Send Inquiry

Product Description

Basic Information

Model NO.

ZNJR2025

Customized

Glass Thickness

3-19 mm

Type

Insulating Glass Production Line

Structure

Vertical

Warranty

1 Year

After-Sales Service

1 Year

Transport Package

Sea Worthy Package

Specification

3500kg

Production Capacity

30 sets/Month

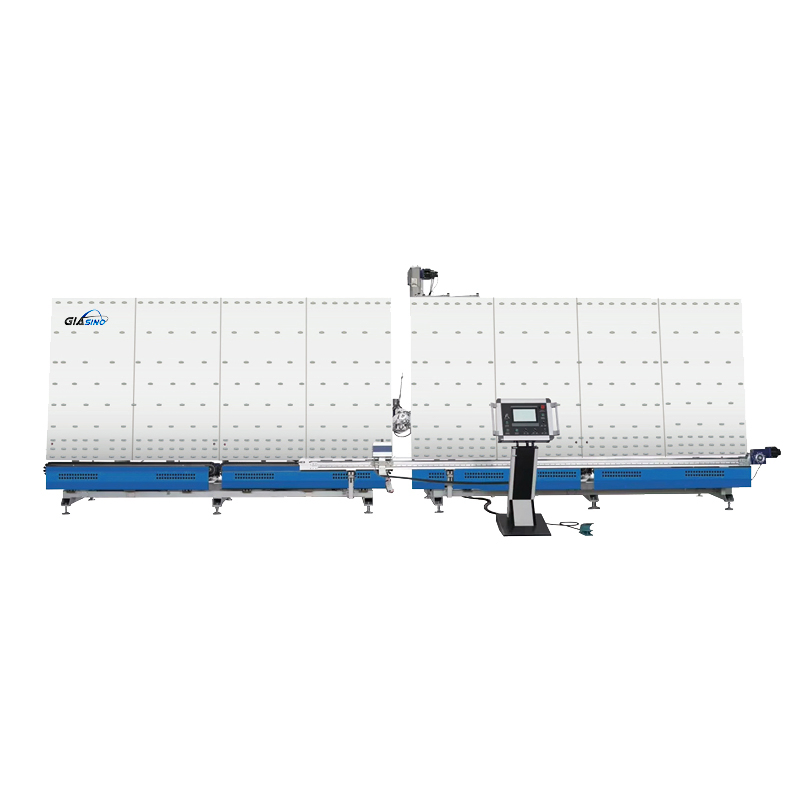

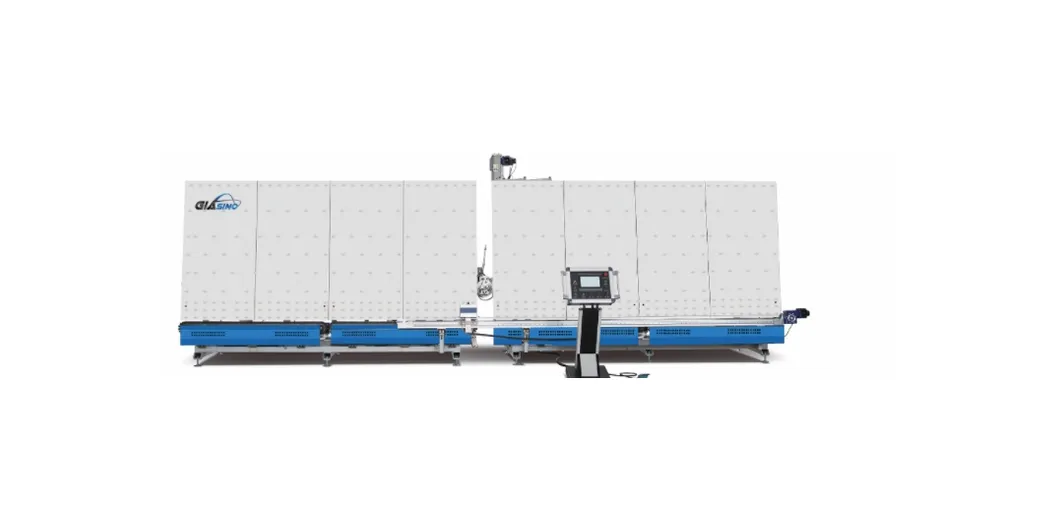

Automatic Insulating Glass Sealing Robot

▶
The robot applies single component hot melt sealant.
▶
Finished sealed IG units can be stored on the third conveyor to increase efficiency.
▶
Economical and practical for all glass fabricators.
▶
All edges and corners are fully sealed with no voids, leaving a smooth surface without manual corner treatment.
▶
Servo control system using world renown brands (YASKAWA).
▶
Belt conveyor smoothly transfers and positions the glass by servo motor.
▶
Unique V belt delivery system reduces sealant to belt contact which results in cleaner glass, also has replaceable inserts for easy maintenance and cleanup.
▶
High quality materials used throughout to extend the longevity of the equipment.

Spare Parts Configuration

NO	Name	Brand	Country
1	Motion Controller	YASKAWA	Japan
2	Touch screen	PANELMASTER	Taiwan
3	Frequency converter	YASKAWA	Japan
4	AC contactor	SCHNEIDER	France
5	Intermediate relay	SCHNEIDER	France
6	Breaker	SCHNEIDER	France
7	Air cylinder	SMC	Japan
8	Intermediate relay	Weidmuller	Germany
9	Photoelectric switch	AUTONIC	South Korea
10	Solenoid	AIRTAC	Taiwan
11	Servo motor	YASKAWA	Japan
12	Low-voltage electrics	SCHNEIDER	France

Product Showcase

Frequently Asked Questions

Q1: What thickness of glass can this sealing robot handle?

The machine is designed to process glass with a thickness ranging from 3mm to 19mm.

Q2: What brand of control system does the robot use?

The robot utilizes a high-performance servo control system and motion controllers from YASKAWA, Japan.

Q3: Does the machine require manual corner treatment?

No, the robot fully seals all edges and corners with no voids, providing a smooth surface that eliminates the need for manual treatment.

Q4: How does the V belt delivery system benefit the glass quality?

The unique V belt system reduces contact between the sealant and the belt, resulting in cleaner glass and easier maintenance.

Q5: What is the production capacity of this equipment?

The production capacity for this insulating glass sealing robot is approximately 30 sets per month.

Q6: What type of sealant is compatible with this robot?

This robot is specifically designed to apply single component hot melt sealant efficiently.
