2000mm CE Certificated Insulating Glass Production Line for Float Glass
2000mm CE Certificated Insulating Glass Production Line for Float Glass
2000mm CE Certificated Insulating Glass Production Line for Float Glass
2000mm CE Certificated Insulating Glass Production Line for Float Glass
2000mm CE Certificated Insulating Glass Production Line for Float Glass
1 / 5
2000mm CE Certificated Insulating Glass Production Line for Float Glass
2000mm CE Certificated Insulating Glass Production Line for Float Glass
2000mm CE Certificated Insulating Glass Production Line for Float Glass
2000mm CE Certificated Insulating Glass Production Line for Float Glass
2000mm CE Certificated Insulating Glass Production Line for Float Glass

2000mm CE Certificated Insulating Glass Production Line for Float Glass

Certification: CE, ISO, CE
Control System: PLC
Max. Glass Size: 2000X3000mm
Send Inquiry

Product Description

Basic Specifications

Model NO.
WLBZ2030
IGU Thickness
12-80mm
Low-E Glass Washing
Standard Function
Gas Filling Function
Without
Type
Insulating Glass Production Line
Structure
Vertical
Condition
New
Warranty
1 Year

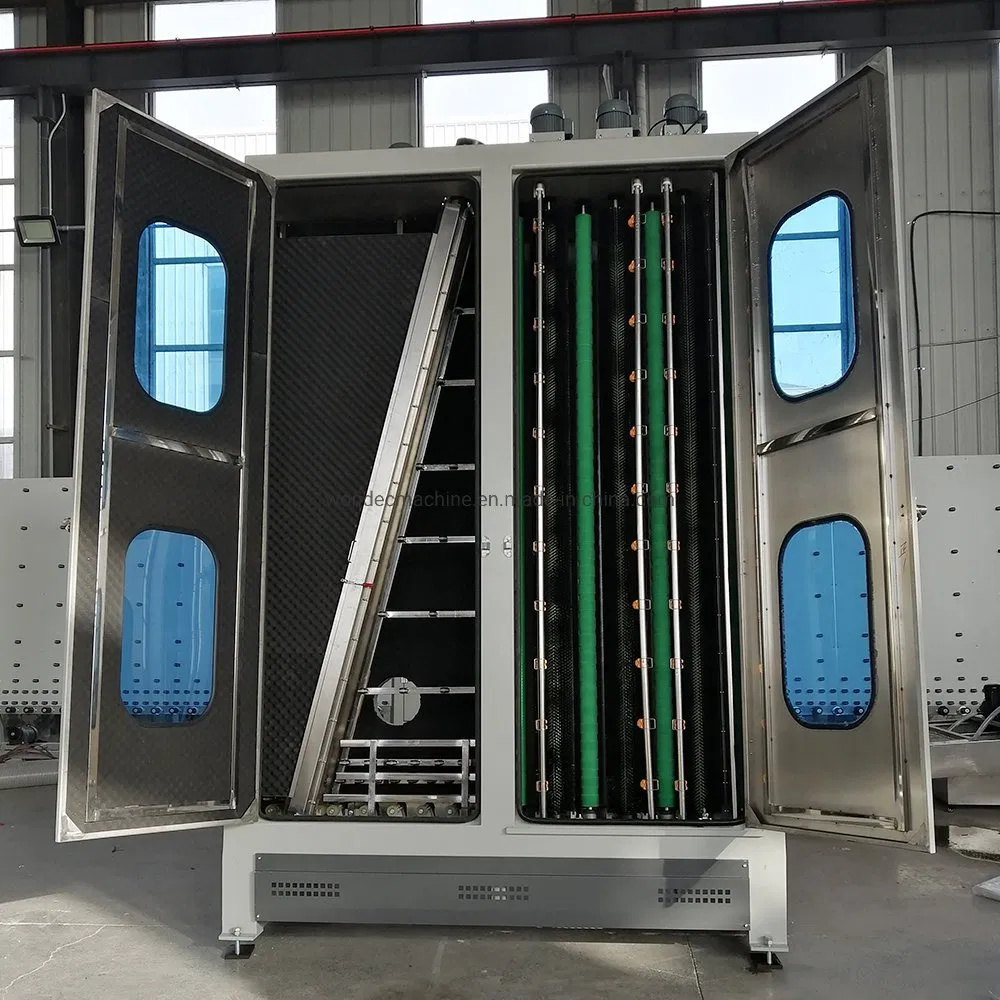

Washing Machine Type
Vertical
Brushes
3 Pairs
Origin
China
HS Code
847529000

2000 Insulating Glass Production Line

Machine Features:

✓Automatically distinguish the coating side of coated glass and low-e glass.
✓PLC control system with touch screen operation.
✓Machine work and fault dynamic display.
✓Outside assembly lines can produce standard double layer IG and three layers IG.
✓Available for both inside and outside panel press; can produce stepped IG.
✓Inter gas filling in the plate (optional).
✓IG press design-gear and synchronous device driven by hydraulic station.
✓Frequency control designed for glass transmission.
✓Panel press openable, easy for maintenance and glass transmission.
✓High Output: 800 IG units per 8-hour shift (1M double layer IG).

Technical Parameters

Power29Kw Working Speed2~45m/min
Max Glass Size3000*2000mm Trip DimensionOptional
Min Glass Size500*300mm Air Pressure0.8mCBM/min(1Mpa)
Pane Glass Thickness3~12mm Water ConductivityLess than 40us/cm
Glass Washing Speed2-12m/min Overall Dimension21300*2500*2900mm

Product Gallery

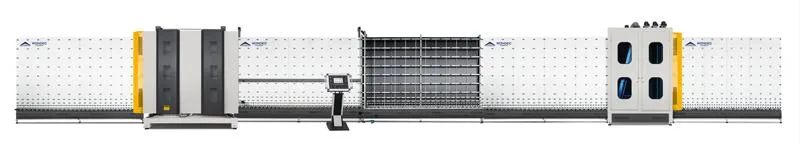

Insulating Glass Production Line Overview
Glass Machine Detail 1
Glass Machine Detail 2
Glass Machine Detail 3
Glass Machine Detail 4
Glass Machine Detail 5
Glass Machine Detail 6

Frequently Asked Questions

What is the maximum glass size this production line can handle?
The WLBZ2030 model can process a maximum glass size of 3000 x 2000mm.
Can this machine process Low-E glass?
Yes, it features a standard function to automatically distinguish the coating side of Low-E and coated glass, ensuring safe washing and processing.
What is the daily production capacity?
The output is approximately 800 insulating glass units per 8-hour shift, based on 1-meter double-layer IG units.
Does the machine support triple-layer glass production?
Yes, the outside assembly lines and panel press are designed to produce both standard double-layer and three-layer insulating glass (IG).
What kind of control system does it use?
The machine uses a professional PLC control system equipped with a touch screen for intuitive operation and fault diagnosis.
Is gas filling included with this model?
The standard WLBZ2030 model is without gas filling, but inert gas filling in the plate is available as an optional feature.
