2024 Hot-Sale CNC Glass Cutting with Good Quality

Customization:	Available
Certification:	CE, FDA, ISO, PCI, PDA, UR, SGS
Cutting Method:	Diamond Wheel Cutting

Send Inquiry

Product Description

Machine Specifications & Basic Information

Model NO.

ZK-CNC-3826

Maximum Cutting Thickness

15 mm

Power Supply

220V

Max Glass Size

3660 * 2440mm

Workbench Height

850 ± 50mm

Cutting Thickness Range

2~24mm

Installation Power

380V/50Hz

Actual Equipment Power

8kw

Type

Glass Cutting Machine

Structure

Horizontal

Control System

PLC

Warranty

1 year / Lifetime After-Sales

Production Capacity

1000 sets/Year

HS Code

8464901100

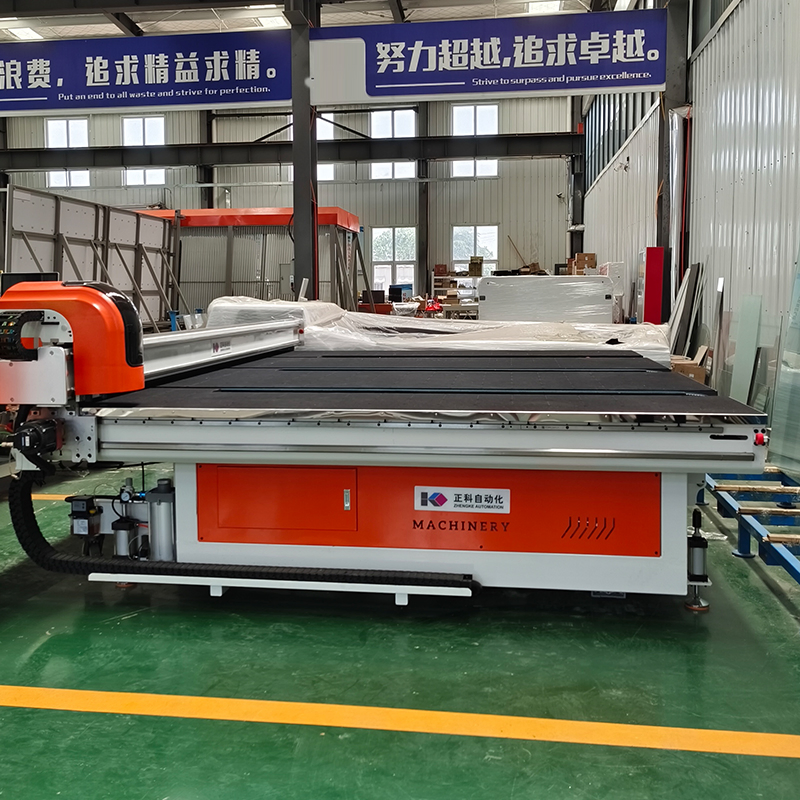

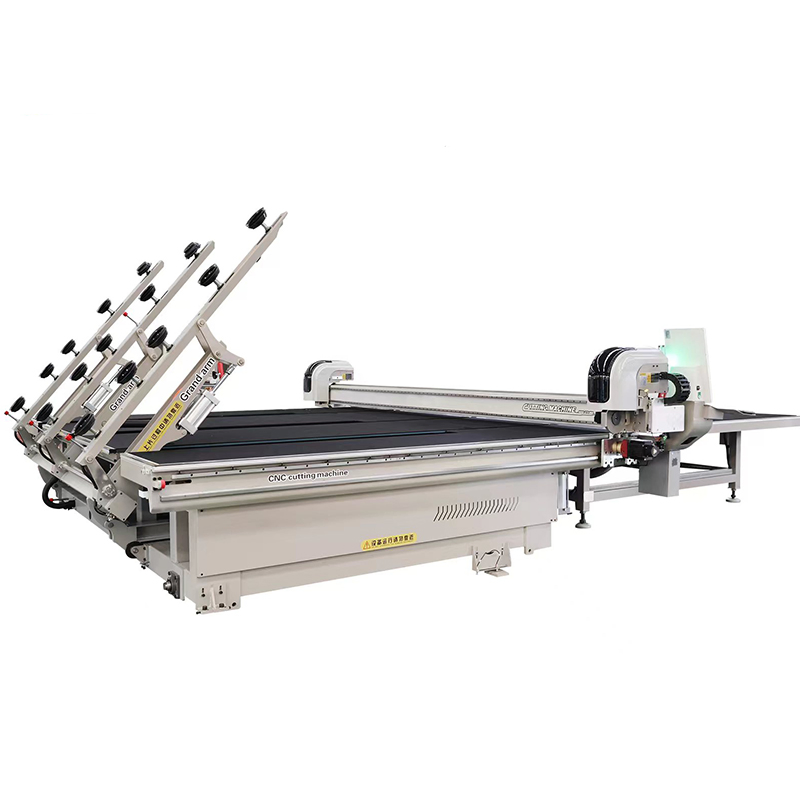

Advanced CNC Glass Cutting Technology

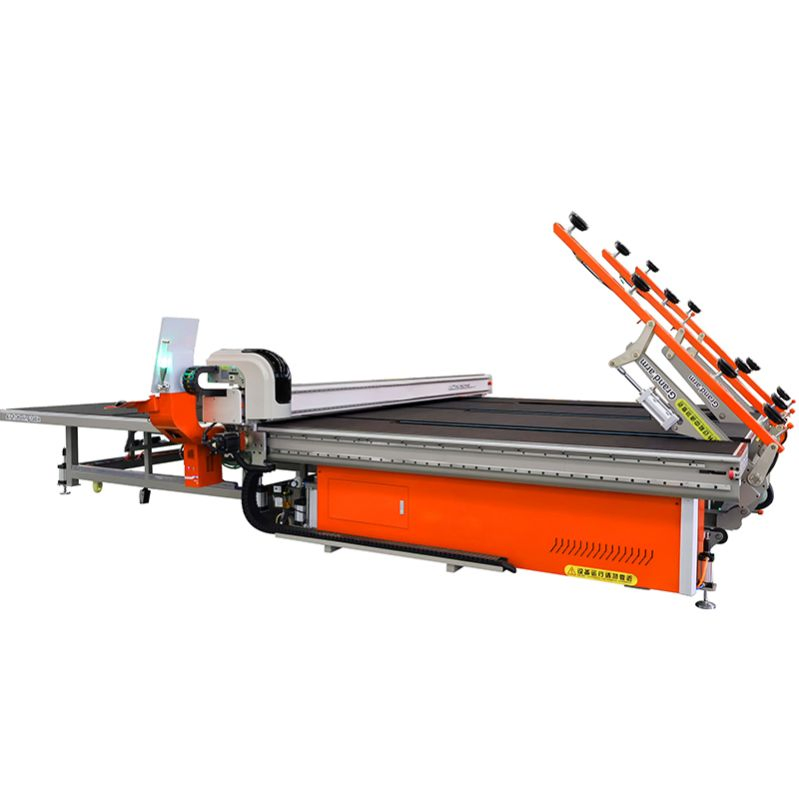

Model ZK-3826 represents the latest innovation in high-speed chip loading and cutting all-in-one machines. Designed for efficiency, the main machine handles glass sizes up to 3660 × 2440 mm with precision and speed.

Key Technical Features

Dual-Axis Servo Drive: The beam drive utilizes a Fuji servo motor two-axis drive mode for superior stability compared to single-axis stepper systems.
Precision Pressure Control: Features Japanese imported SMC electromagnetic proportional valves for high-accuracy cutting pressure regulation.
Advanced Control System: Integrated with USA GALIL computer control systems for seamless operation.
Optimized Software: Equipped with Beijing Guiyou brand optimization software, achieving up to 98% glass utilization.

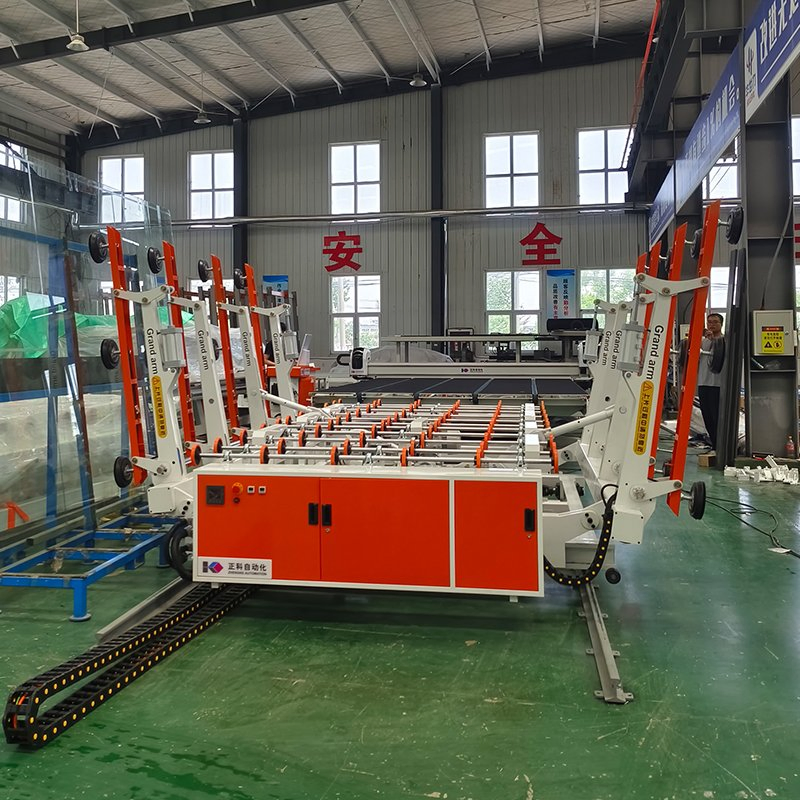

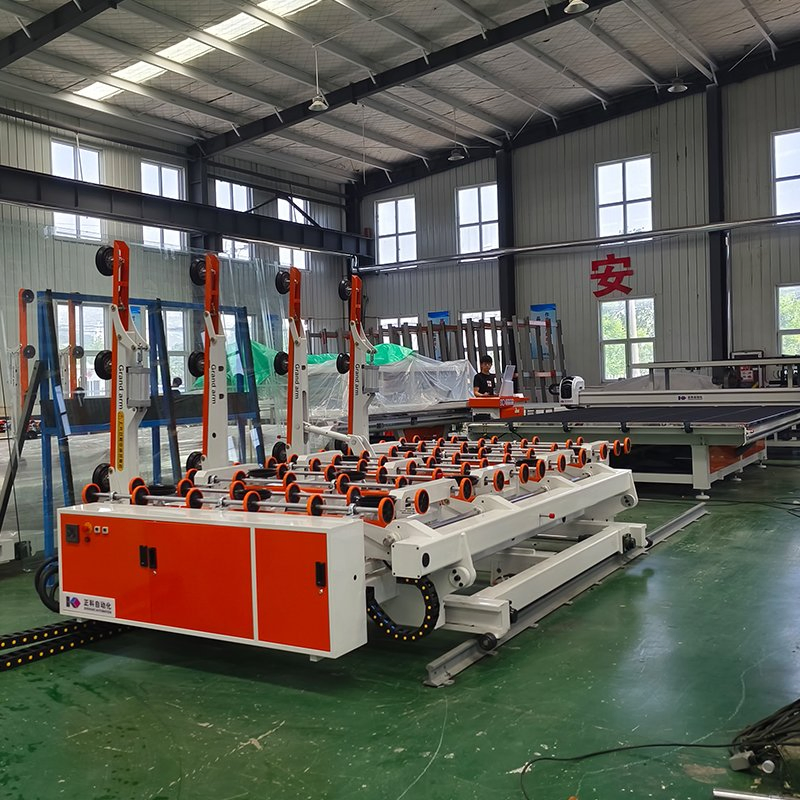

Air-Floating Worktable: Includes a portable air-floating open-sheet worktable (4300×2700×800) with vertical and horizontal ejector rods.

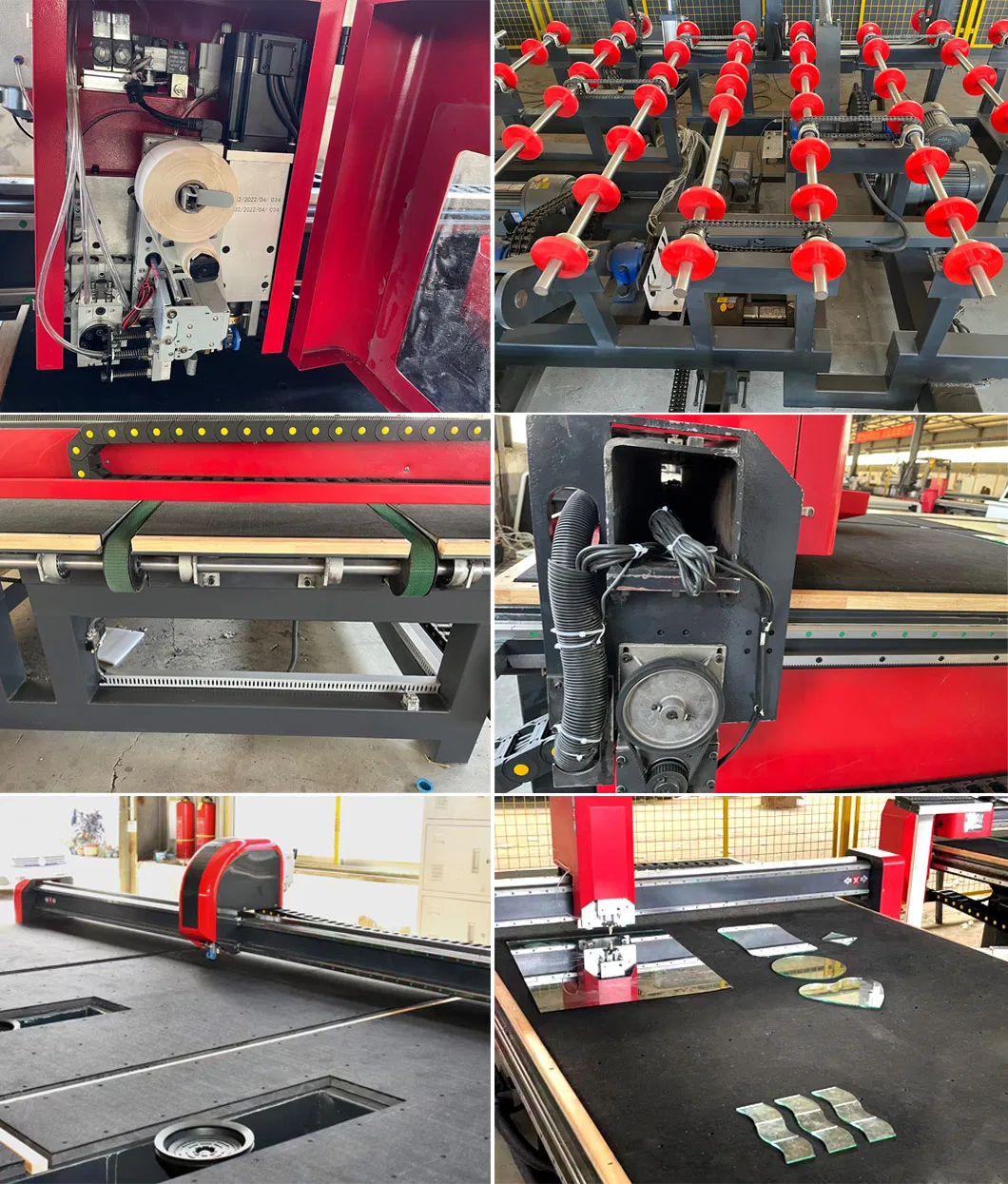

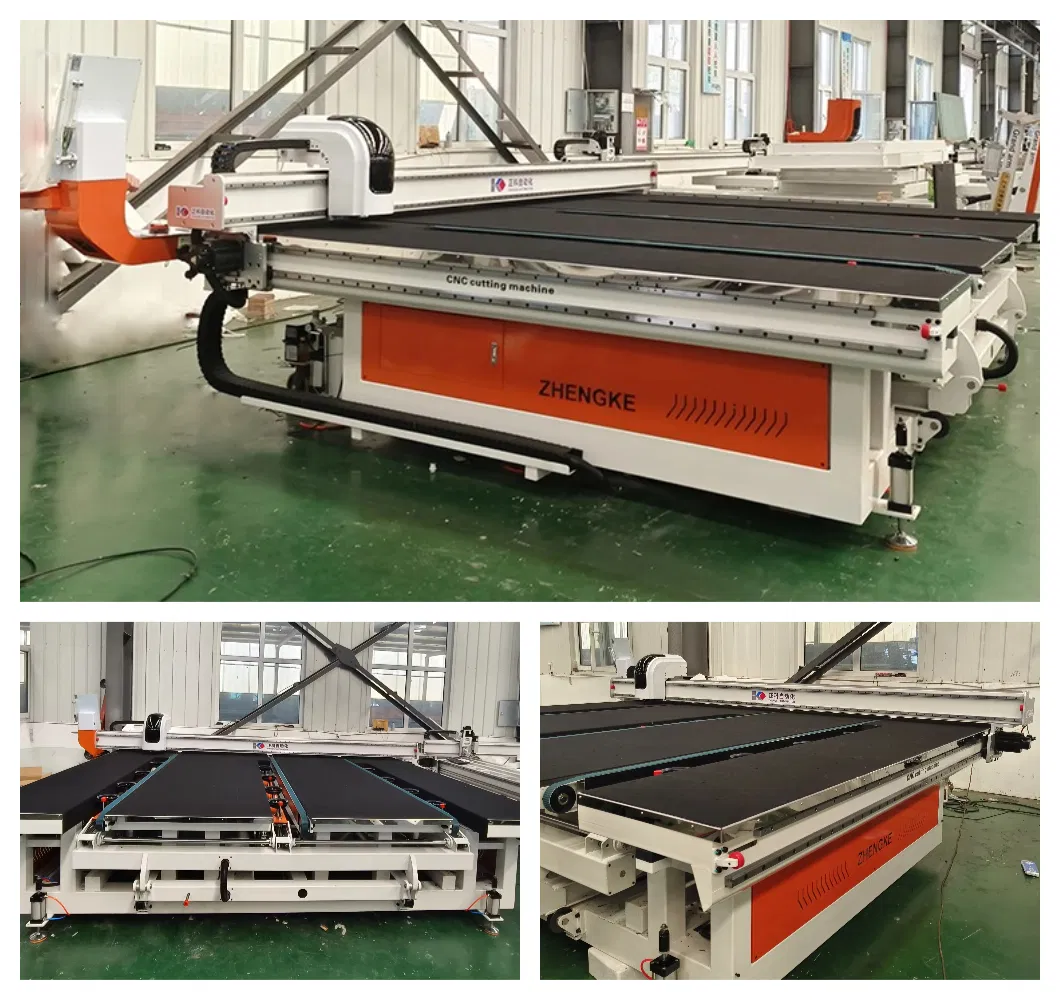

Detailed Product Display

Our Service Advantages

Professional glass production solutions and technical consulting.
24-hour online service response for all global inquiries.
Advanced production equipment and strict quality testing systems.
Direct manufacturer pricing without middleman markups.
OEM & ODM customized designs, logos, and packaging options.
Comprehensive after-sales support including staff operation training.

Frequently Asked Questions (FAQ)

Q1: What is the maximum glass size the ZK-CNC-3826 can cut? A1: The machine can handle all original glass sizes up to 3660 × 2440 mm.

Q2: What cutting thickness range does the equipment support? A2: It supports a cutting thickness range of 2mm to 24mm, with a maximum cutting thickness of 15mm for standard operations.

Q3: How does the software help in saving material? A3: We use professional glass cutting optimization software that can optimize glass sizes up to 98%, significantly reducing waste.

Q4: What are the key mechanical components of the machine? A4: The machine features Fuji servo motors with a dual-axis drive, SMC electromagnetic proportional valves from Japan, and a GALIL control system from the USA.

Q5: Is an air-floating table included with the system? A5: Yes, the system includes a high-pressure air-floating worktable with horizontal and vertical ejector rods for easy glass handling.

Q6: What type of after-sales service is provided? A6: We provide a 1-year warranty along with lifetime after-sales technical support, machine debugging, and staff operation training.
