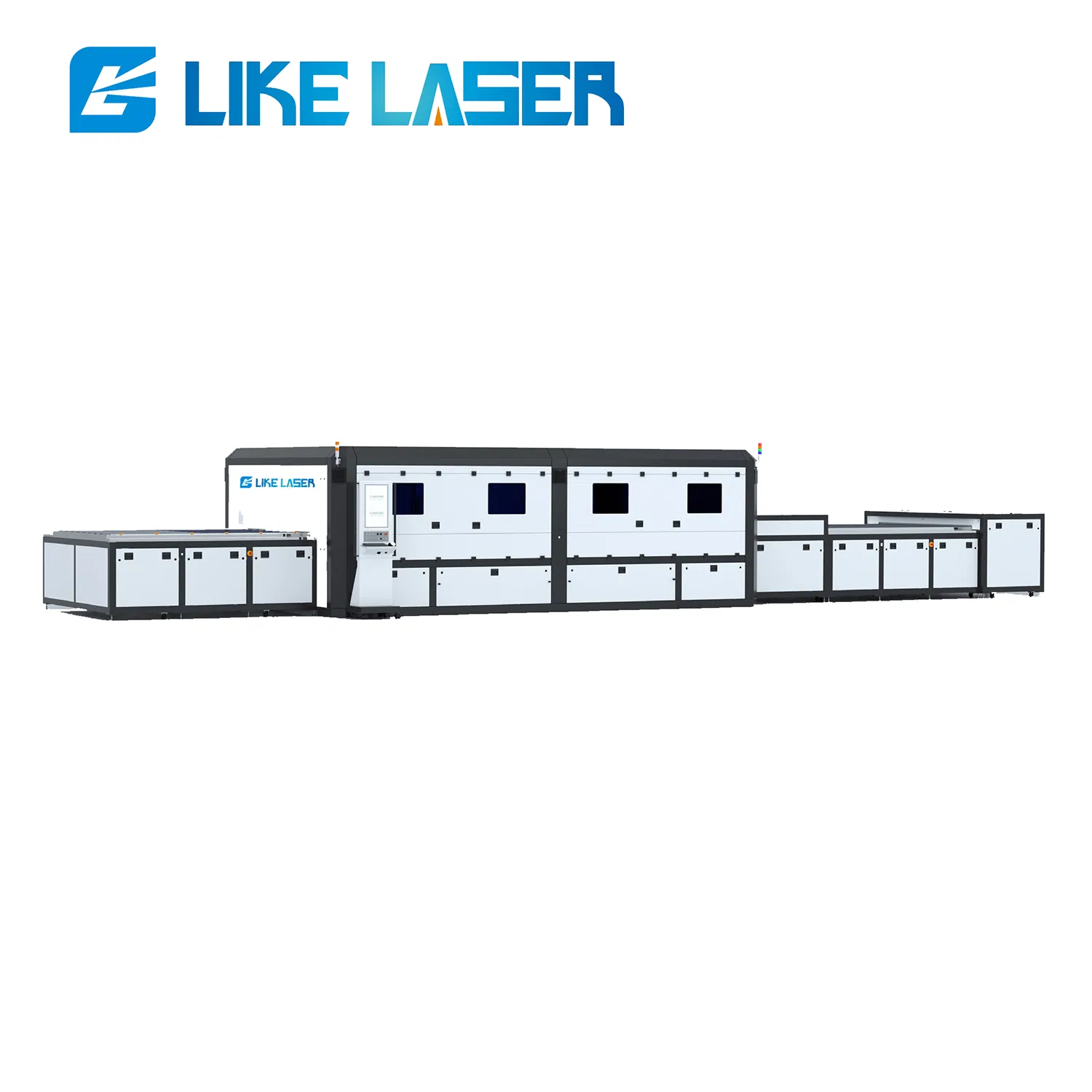

2025 New Tempered Optical Automotive Glass Laser Picosecond Cutting Machine

Basic Specifications

Model

LK-GC7010B

Cooling System

Water Cooling

Technical Class

PS/CO2

Structure Type

Gantry Type

Laser Power

120W

Laser Lifetime

100,000h

Max Thickness

20mm

Min Aperture

0.3mm

Product Description

The Picosecond laser glass cutting machine is a high-efficiency, automatic solution designed for precision industries. By utilizing picosecond laser sources and RF CO2 laser technology, it provides non-contact, high-speed processing for various glass materials.

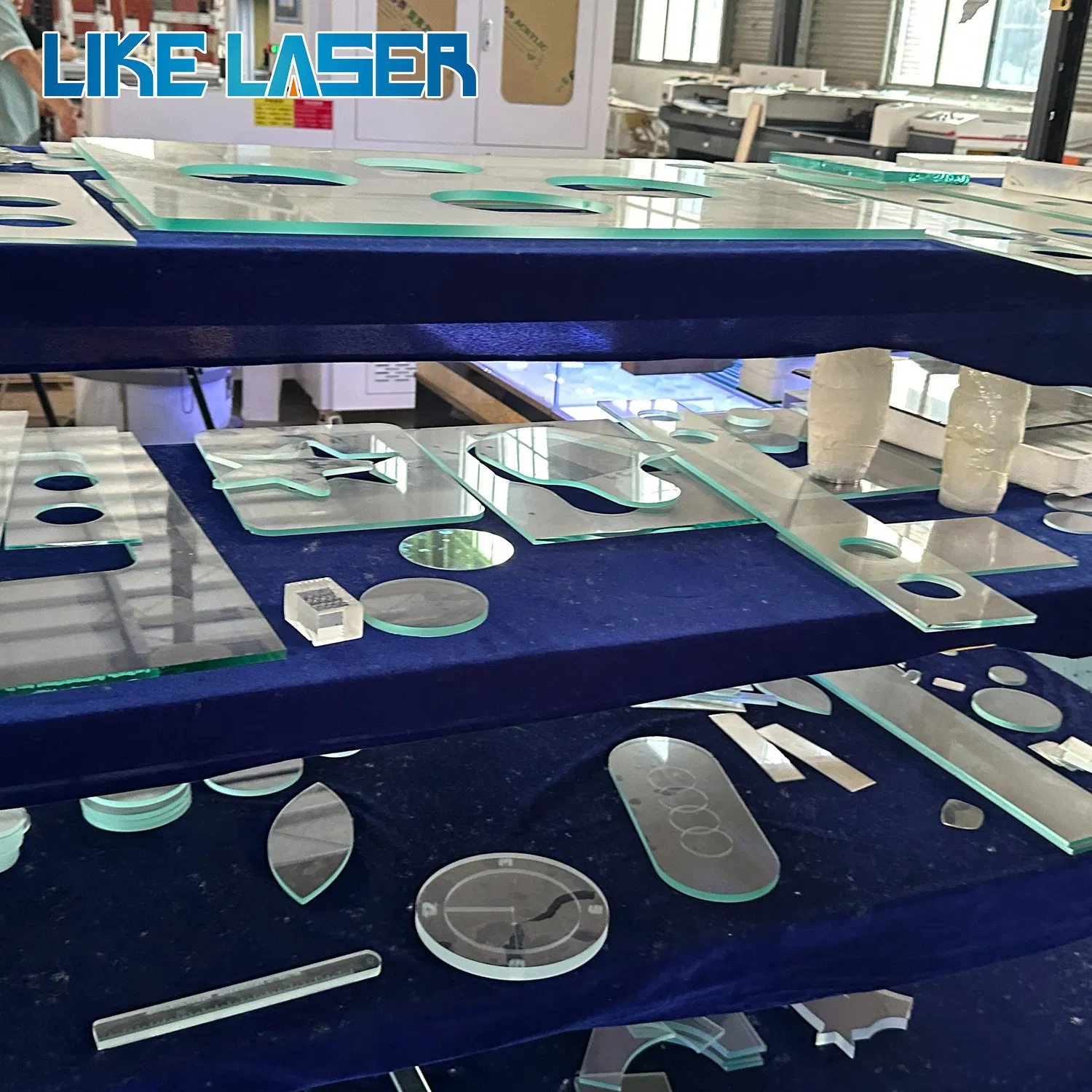

Scope of Application:

Reinforced and non-reinforced glass (mobile phone covers, car glass).
Sapphire glass cutting (LED light strips, watch covers).
LCD glass cutting (Shaped inverted R/U/C angles).
Optical glass (filters, mirrors).
Specialized glass (borosilicate, quartz, bathroom glass).

Key Advantages

Our ultra-fast glass laser cutting machine features a self-developed AI control system and a custom high-end picosecond light source. Equipped with double-drive linear motors and a stable marble work surface, it achieves an accuracy of ±2 microns.

Technical Parameters

Model	Standard Size	Workbench
LK-GC7060D	700*600mm	2
LK-GC8060D	800*600mm	2
LK-GC1380A	1300*800mm	1
LK-GC2010D	2000*1000mm	1
LK-GC3020A	3000*2000mm	1

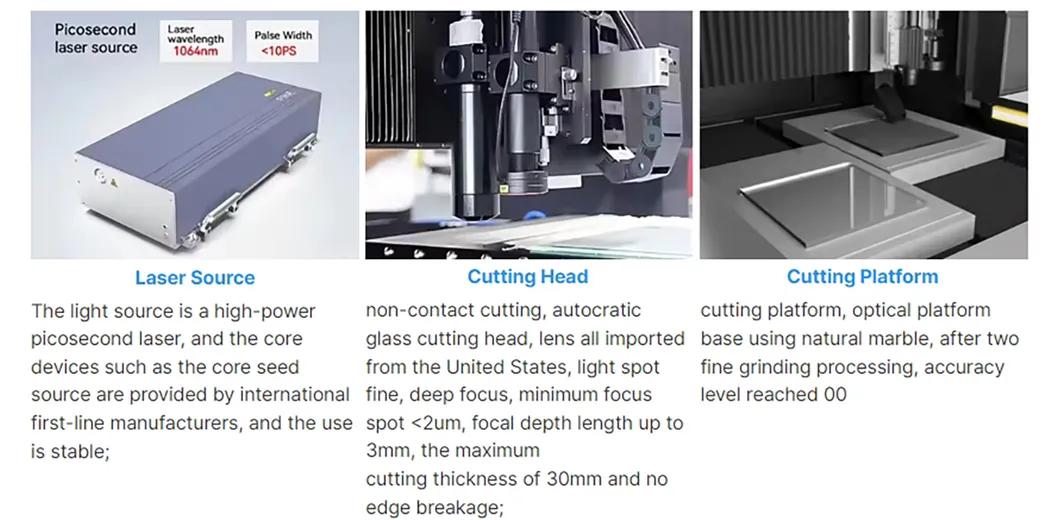

Light Source Details:

Laser Type: Picosecond pulse laser (seed source from global brands).
Wavelength: 1064nm, Beam quality: M2 < 1.3.
Pulse Length: < 10PS; Frequency: 1Hz-1000kHz.
Visual System: 5 million CCD camera with adjustable ring-type light source.

Packaging & Shipping

Quality Certificates

Frequently Asked Questions

What is the main advantage of picosecond laser cutting over traditional CNC?

Unlike traditional CNC or water knife processing, picosecond laser cutting is non-contact. This eliminates bit loss, edge collapse, and pollution while allowing for non-destructive, fine-shape cutting with much higher precision.

What materials can this machine process?

It is designed for a wide range of materials including tempered glass, sapphire glass, LCD screens, quartz glass, high borosilicate glass, and even automotive mirrors.

How accurate is the cutting process?

The system utilizes high-end linear motors and AI control to achieve a processing accuracy of up to ±2 microns.

What is the maximum glass thickness the machine can handle?

The machine is capable of cutting glass with a maximum thickness of up to 20mm, depending on the specific configuration and laser power.

Does the machine support custom sizes?

Yes, we offer various models ranging from 700*600mm to 3000*2000mm workbenches to suit different production requirements.

What industries benefit most from this technology?

It is widely used in mobile phone manufacturing (covers), the automotive industry (rearview mirrors), medical instruments, and the smart wearable watch industry.
